Page 461 of 588

461 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E

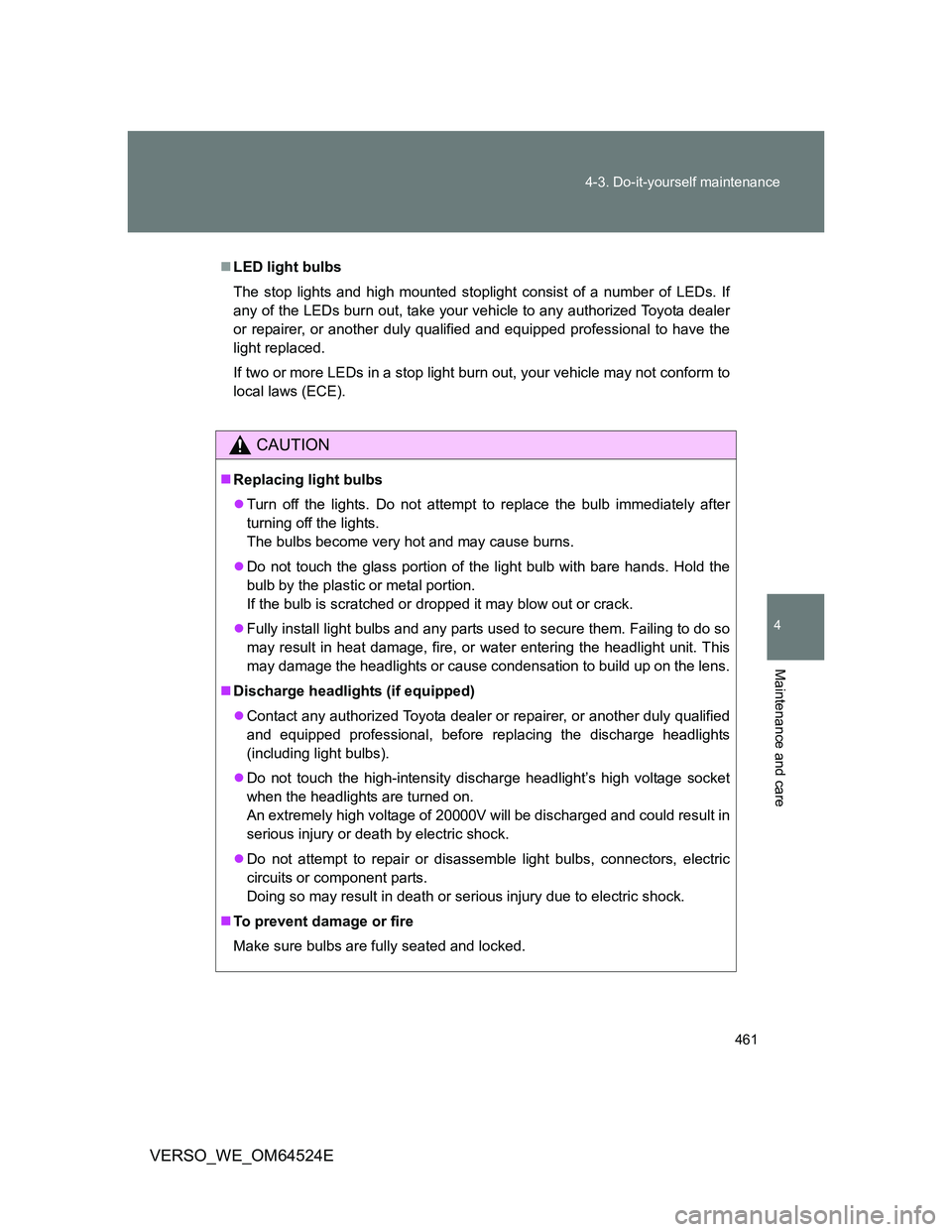

LED light bulbs
The stop lights and high mounted stoplight consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional to have the
light replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 20000V will be discharged and could result in
serious injury or death by electric shock.
Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Page 462 of 588

462 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Page 463 of 588

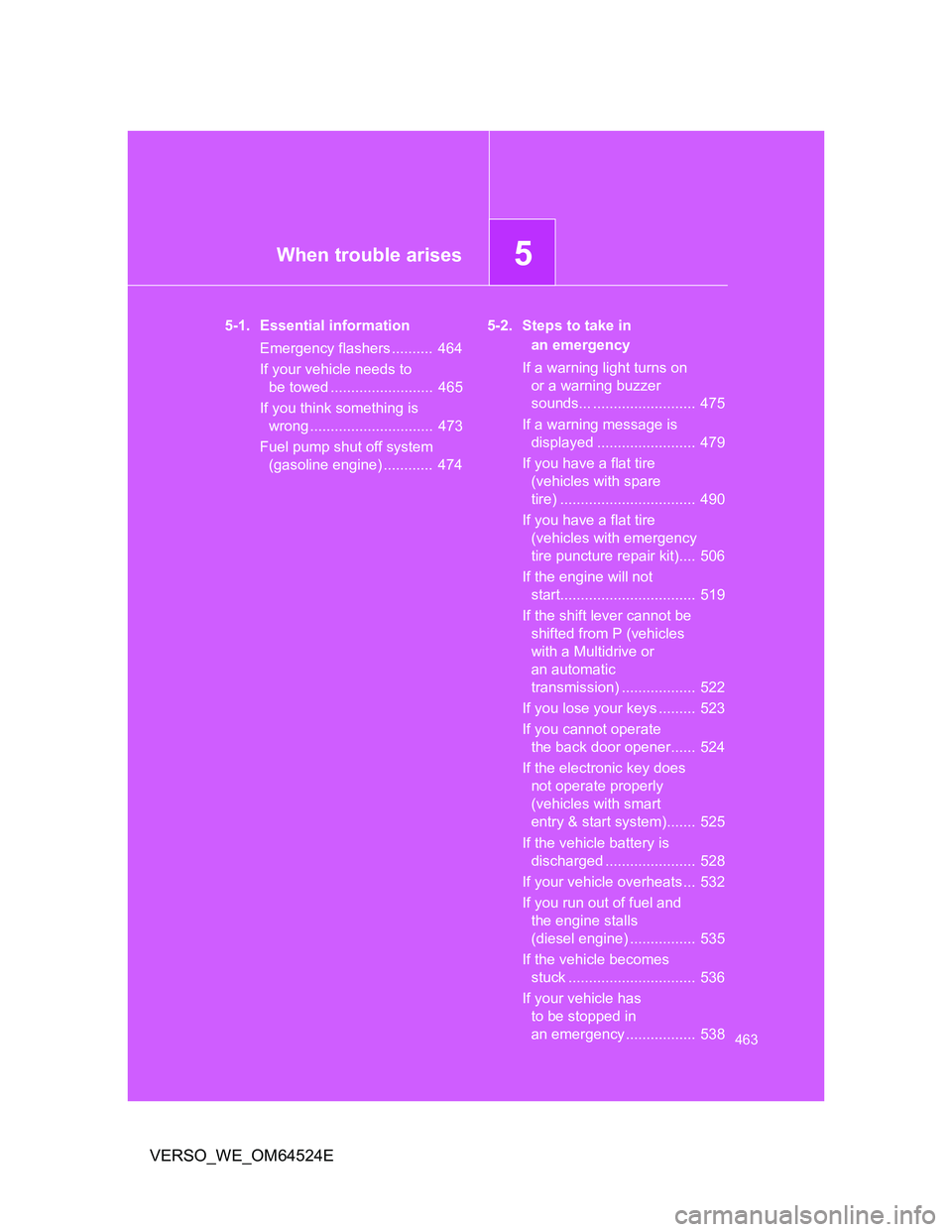

5When trouble arises
463
VERSO_WE_OM64524E
5-1. Essential information
Emergency flashers .......... 464
If your vehicle needs to
be towed ......................... 465
If you think something is
wrong .............................. 473
Fuel pump shut off system
(gasoline engine) ............ 4745-2. Steps to take in
an emergency
If a warning light turns on
or a warning buzzer
sounds... ......................... 475
If a warning message is
displayed ........................ 479
If you have a flat tire
(vehicles with spare
tire) ................................. 490
If you have a flat tire
(vehicles with emergency
tire puncture repair kit).... 506
If the engine will not
start................................. 519
If the shift lever cannot be
shifted from P (vehicles
with a Multidrive or
an automatic
transmission) .................. 522
If you lose your keys ......... 523
If you cannot operate
the back door opener...... 524
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)....... 525
If the vehicle battery is
discharged ...................... 528
If your vehicle overheats ... 532
If you run out of fuel and
the engine stalls
(diesel engine) ................ 535
If the vehicle becomes
stuck ............................... 536
If your vehicle has
to be stopped in
an emergency ................. 538
Page 464 of 588

464
VERSO_WE_OM64524E
5-1. Essential information

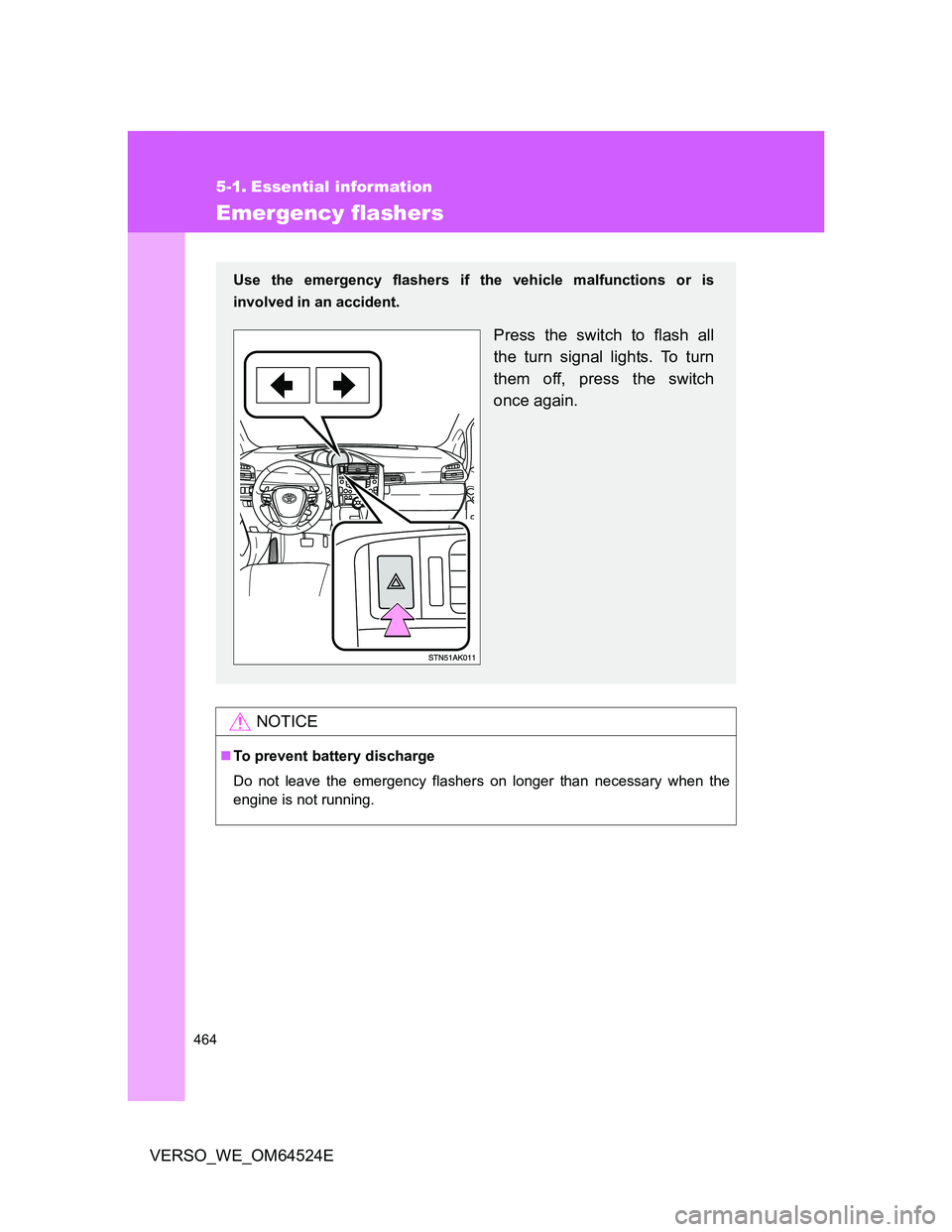

Emergency flashers
NOTICE
To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
Page 465 of 588

5
465
5-1. Essential information
When trouble arises
VERSO_WE_OM64524E

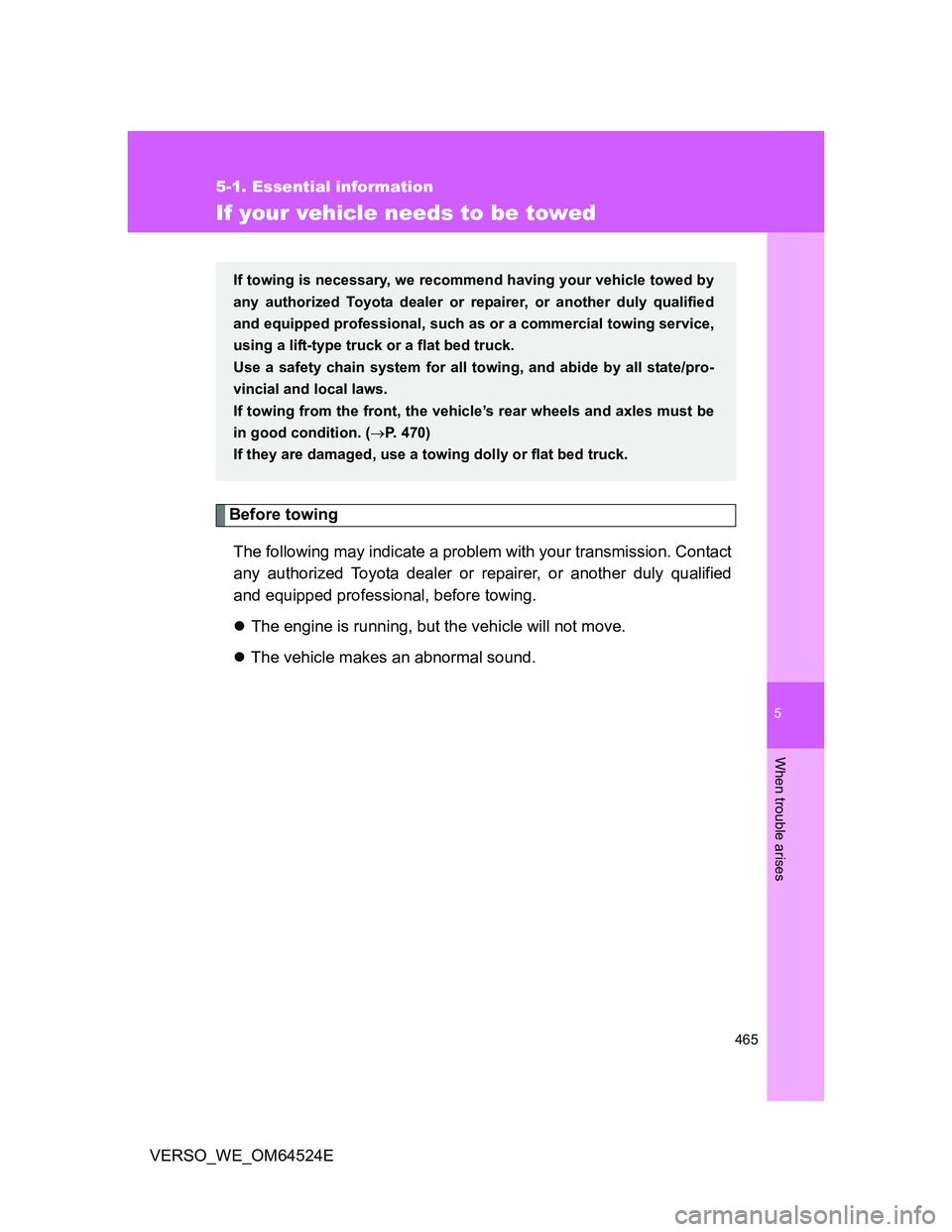

If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before towing.
The engine is running, but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as or a commercial towing service,
using a lift-type truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehicle’s rear wheels and axles must be
in good condition. (P. 470)
If they are damaged, use a towing dolly or flat bed truck.
Page 466 of 588

466 5-1. Essential information
VERSO_WE_OM64524E

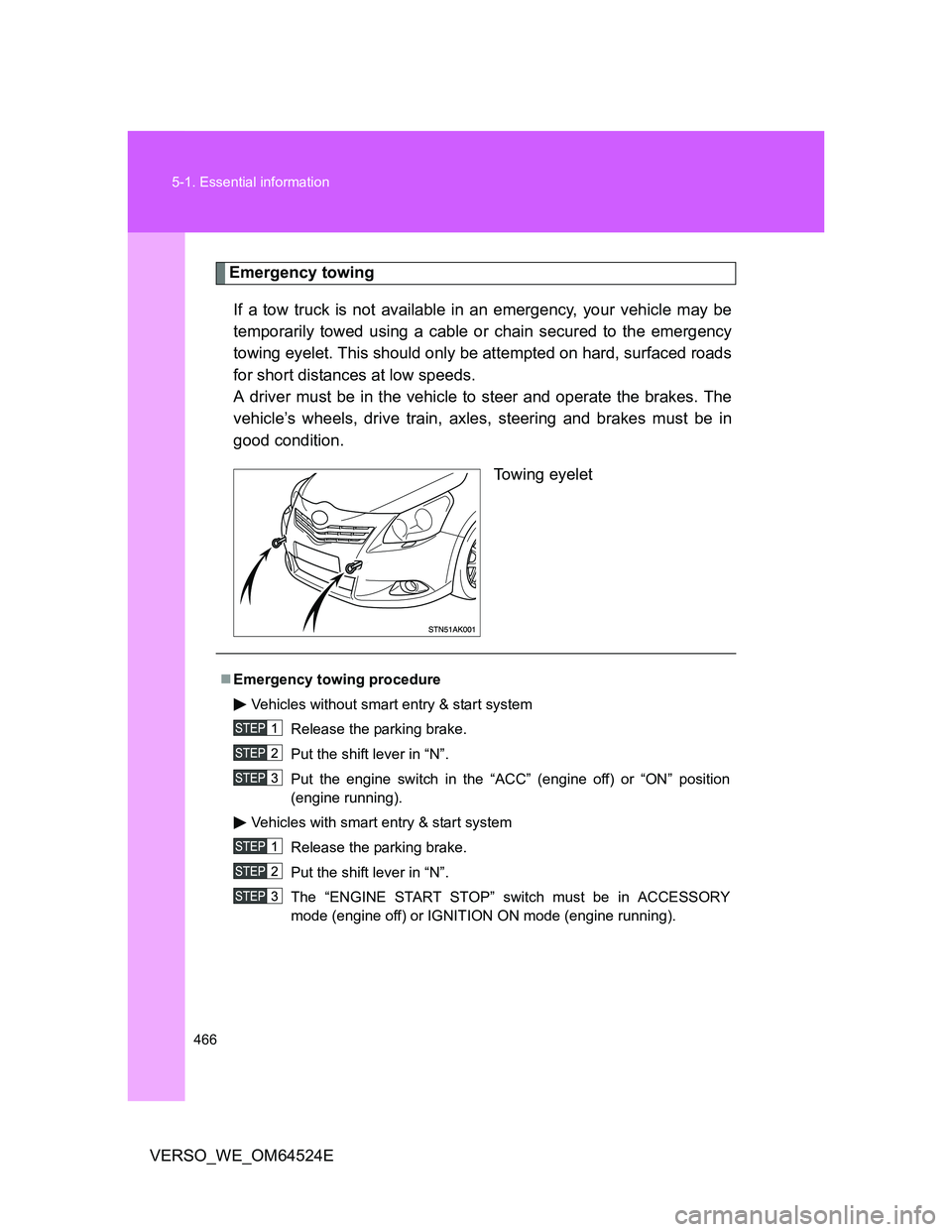

Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard, surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
Emergency towing procedure
Vehicles without smart entry & start system
Release the parking brake.
Put the shift lever in “N”.
Put the engine switch in the “ACC” (engine off) or “ON” position
(engine running).
Vehicles with smart entry & start system
Release the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in ACCESSORY
mode (engine off) or IGNITION ON mode (engine running).
Page 467 of 588

5
467 5-1. Essential information
When trouble arises
VERSO_WE_OM64524E

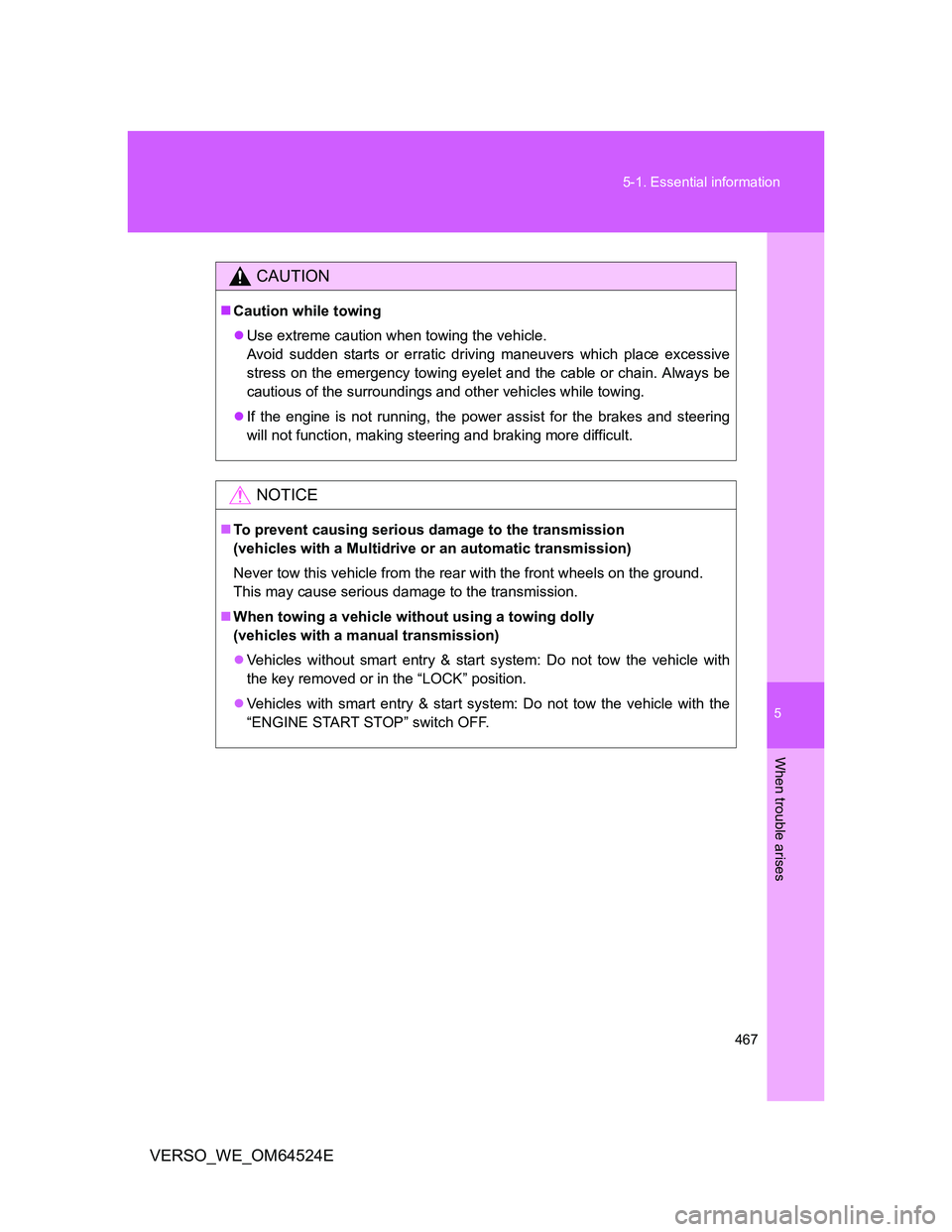

CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cable or chain. Always be
cautious of the surroundings and other vehicles while towing.
If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
To prevent causing serious damage to the transmission
(vehicles with a Multidrive or an automatic transmission)
Never tow this vehicle from the rear with the front wheels on the ground.
This may cause serious damage to the transmission.
When towing a vehicle without using a towing dolly
(vehicles with a manual transmission)
Vehicles without smart entry & start system: Do not tow the vehicle with
the key removed or in the “LOCK” position.
Vehicles with smart entry & start system: Do not tow the vehicle with the
“ENGINE START STOP” switch OFF.
Page 468 of 588

468 5-1. Essential information
VERSO_WE_OM64524E

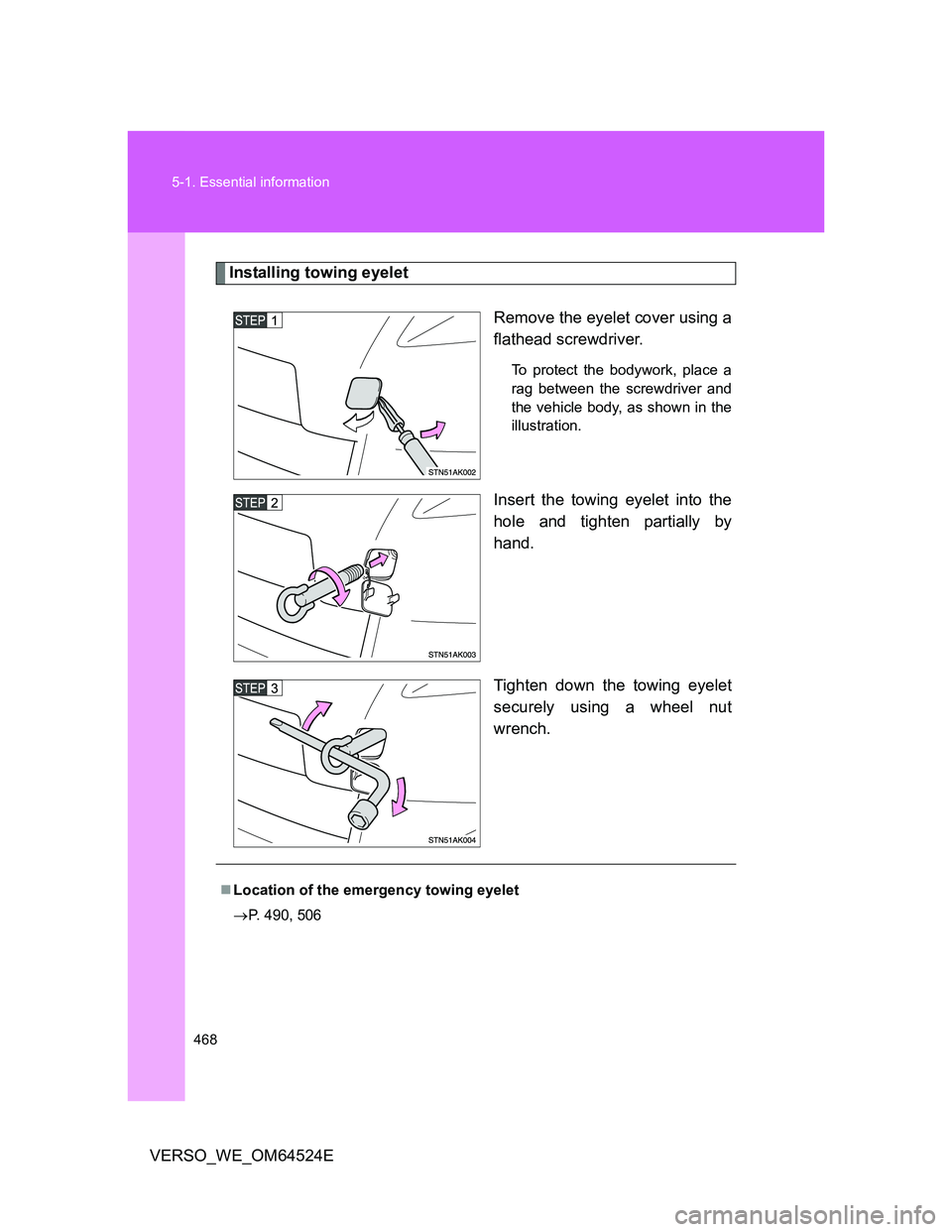

Installing towing eyelet
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
Location of the emergency towing eyelet
P. 490, 506
Page 469 of 588

5
469 5-1. Essential information
When trouble arises
VERSO_WE_OM64524E

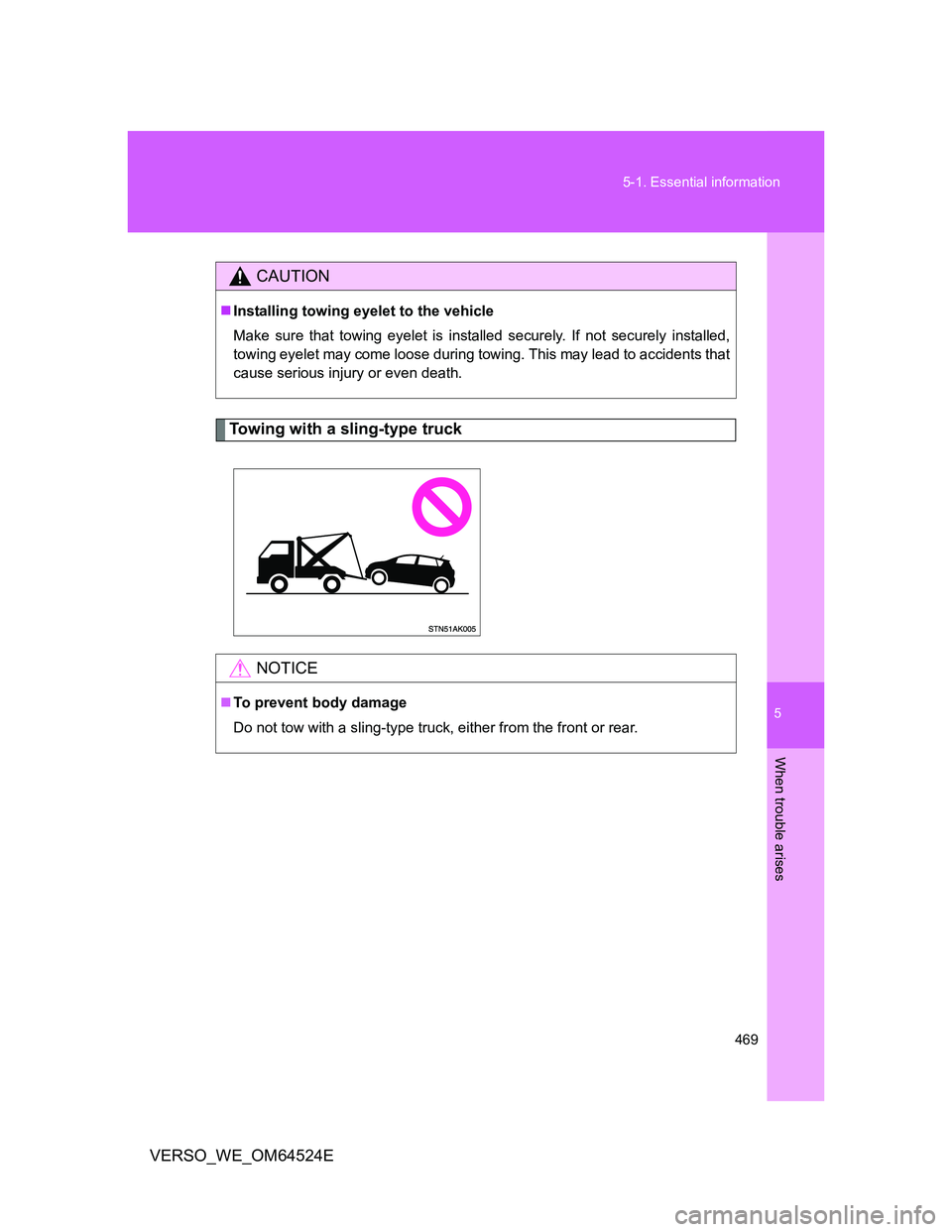

Towing with a sling-type truck
CAUTION
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely. If not securely installed,
towing eyelet may come loose during towing. This may lead to accidents that
cause serious injury or even death.
NOTICE
To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.
Page 470 of 588

470 5-1. Essential information
VERSO_WE_OM64524E

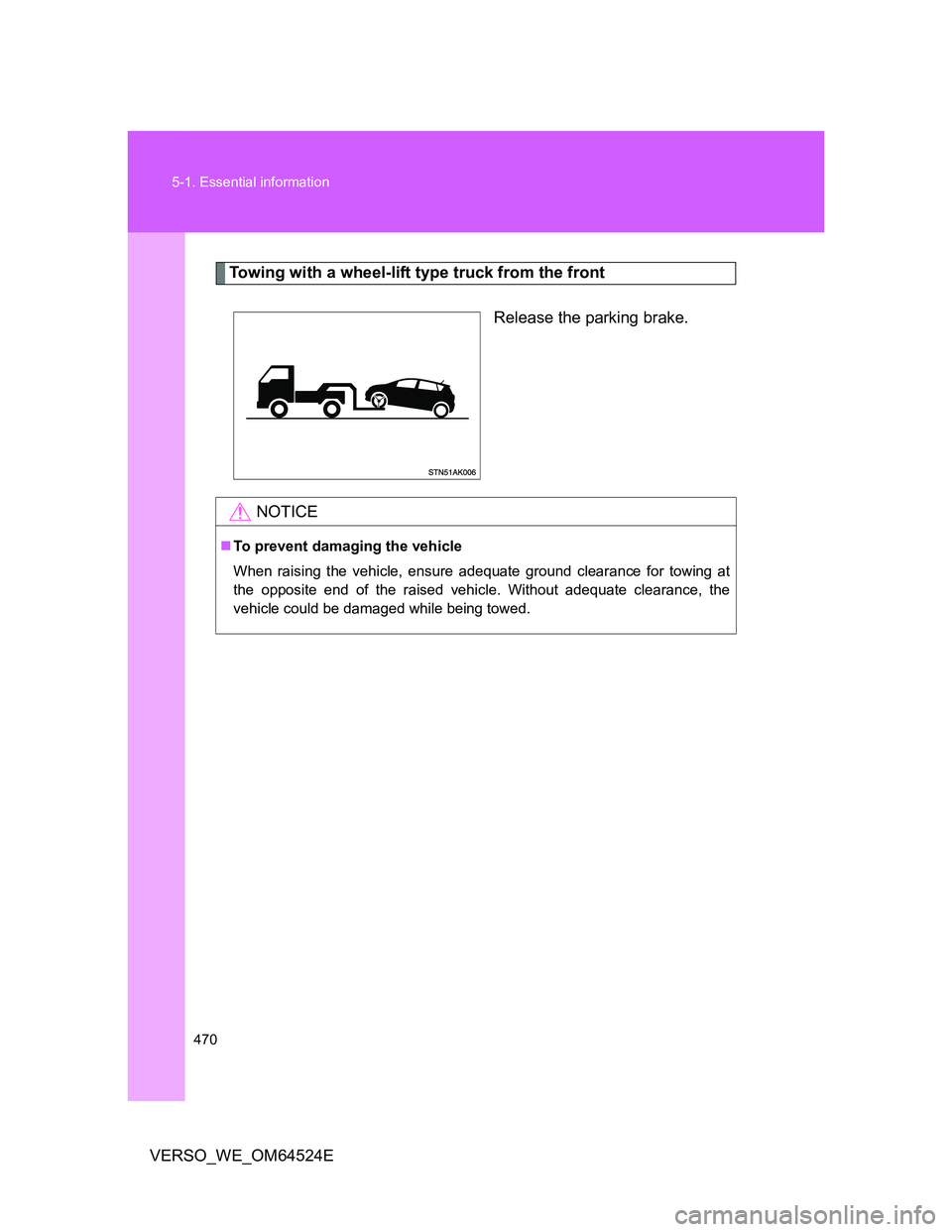

Towing with a wheel-lift type truck from the front
Release the parking brake.
NOTICE
To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
