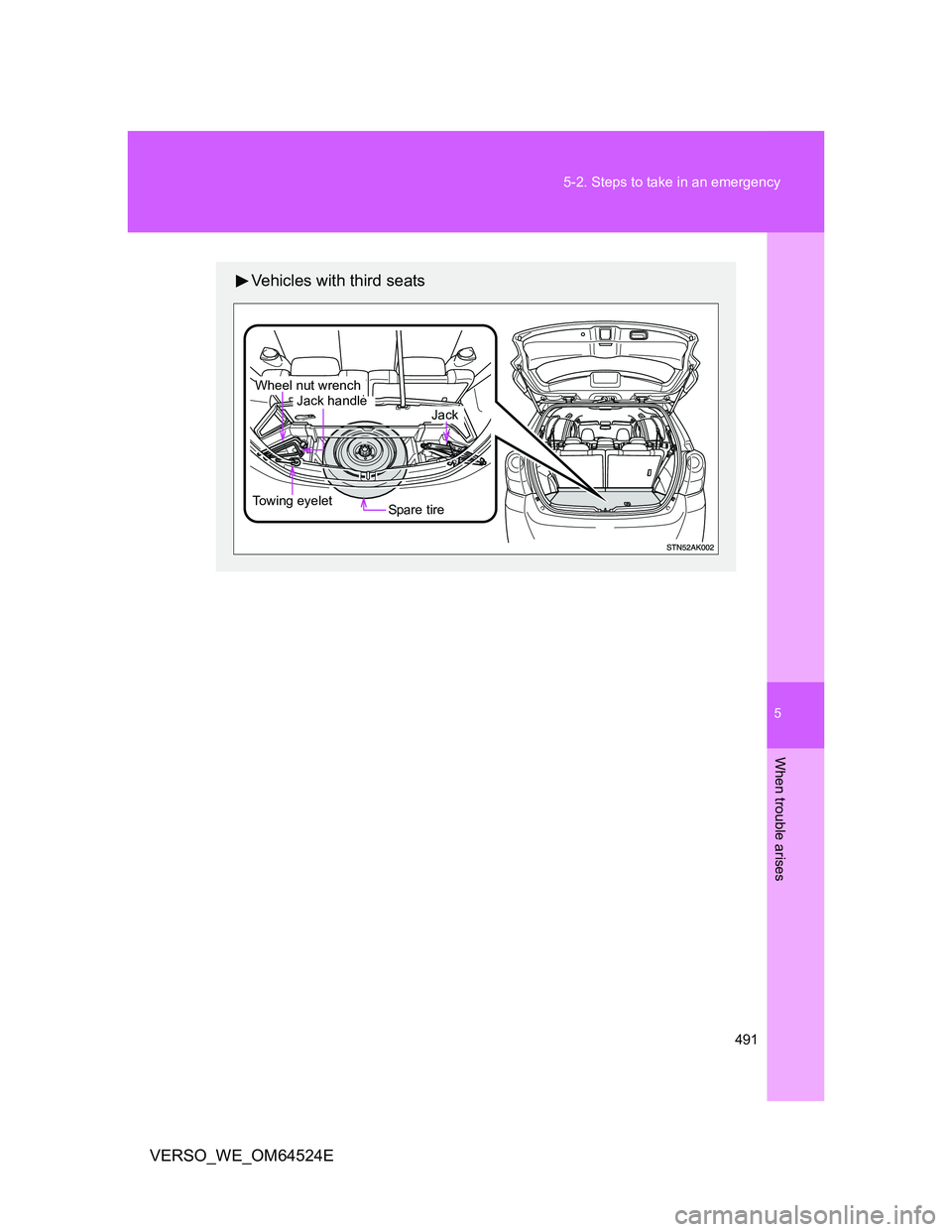

Page 491 of 588
5
491 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Vehicles with third seats
Spare tire
Jack handleJack
Wheel nut wrench
Towing eyelet

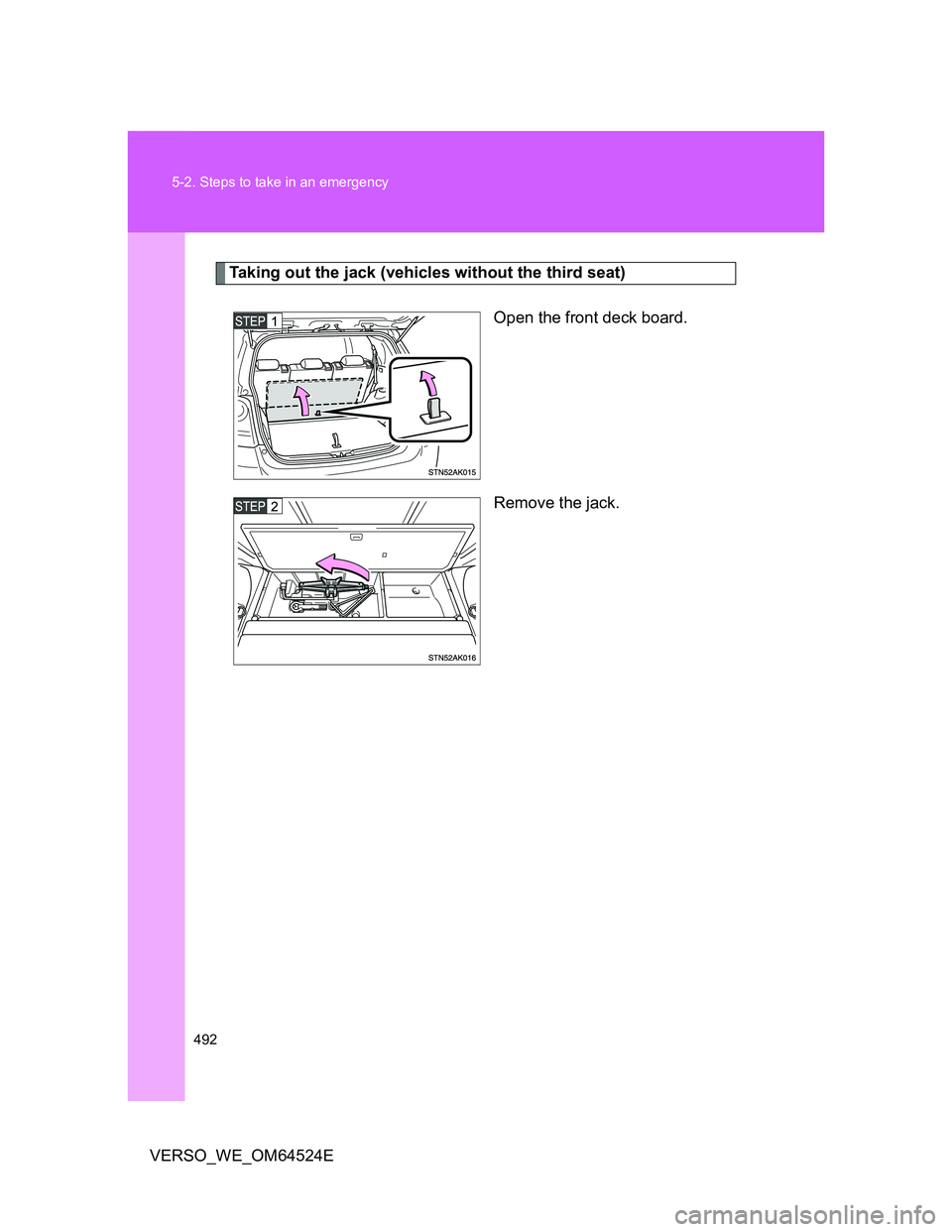

Page 492 of 588
492 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.

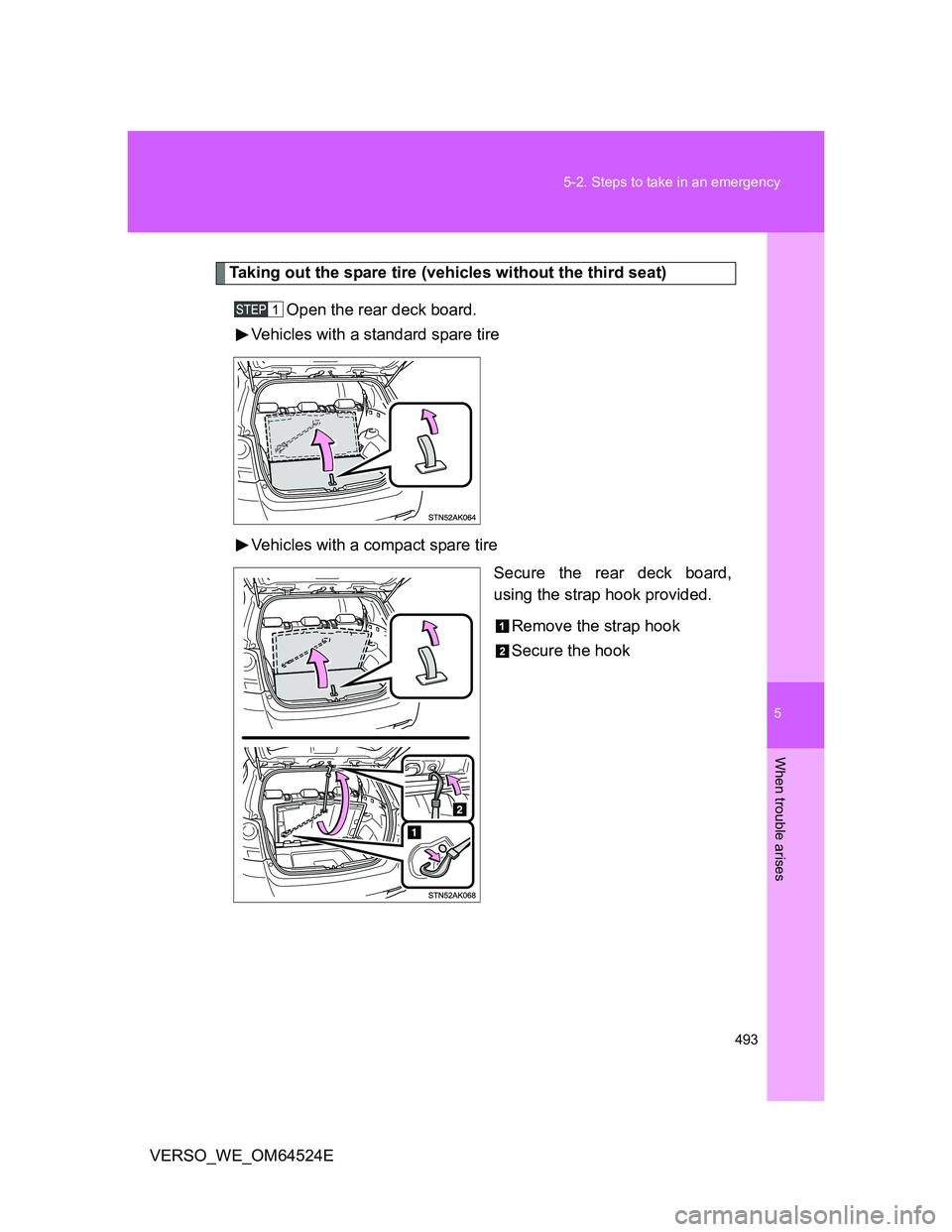

Page 493 of 588
5
493 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

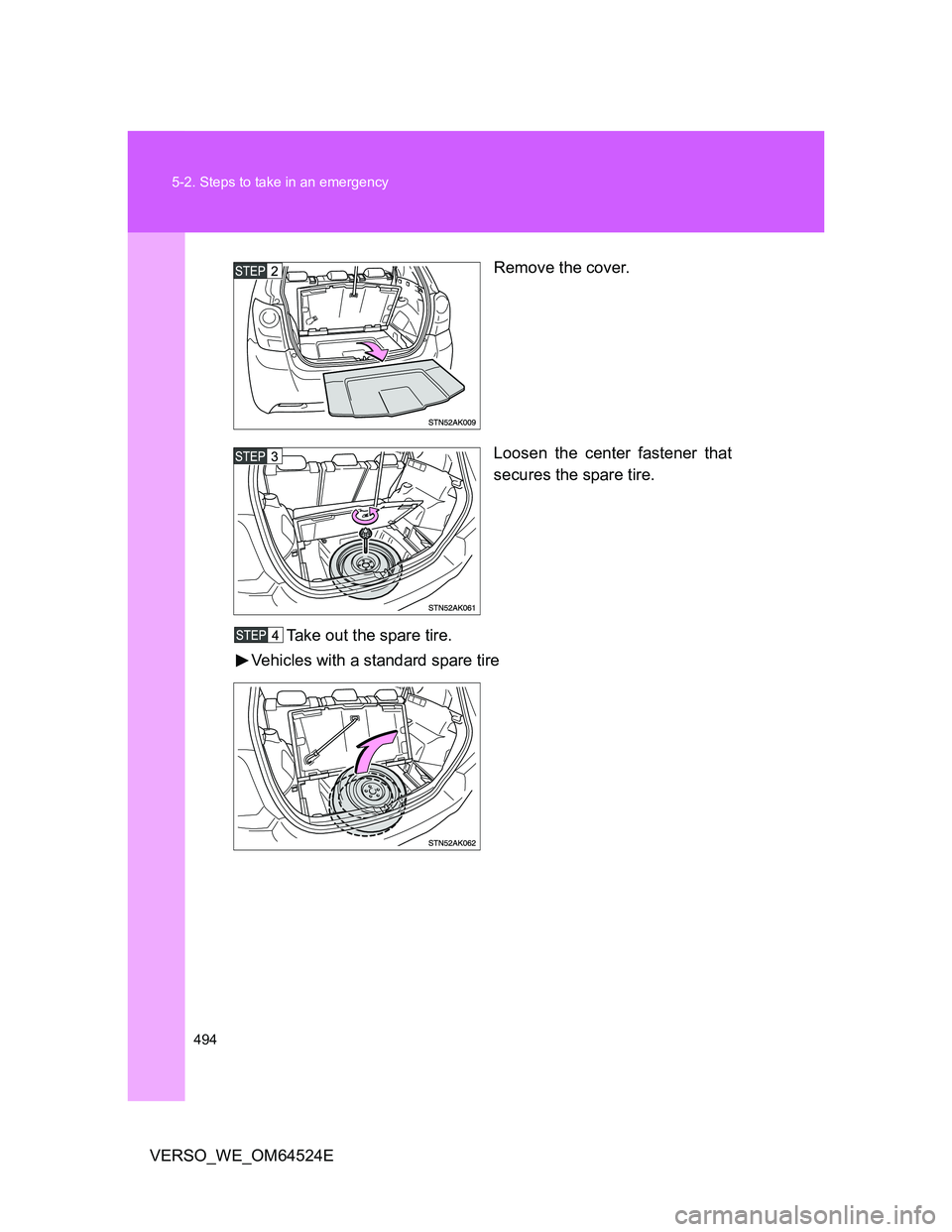

Page 494 of 588
494 5-2. Steps to take in an emergency
VERSO_WE_OM64524ERemove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire

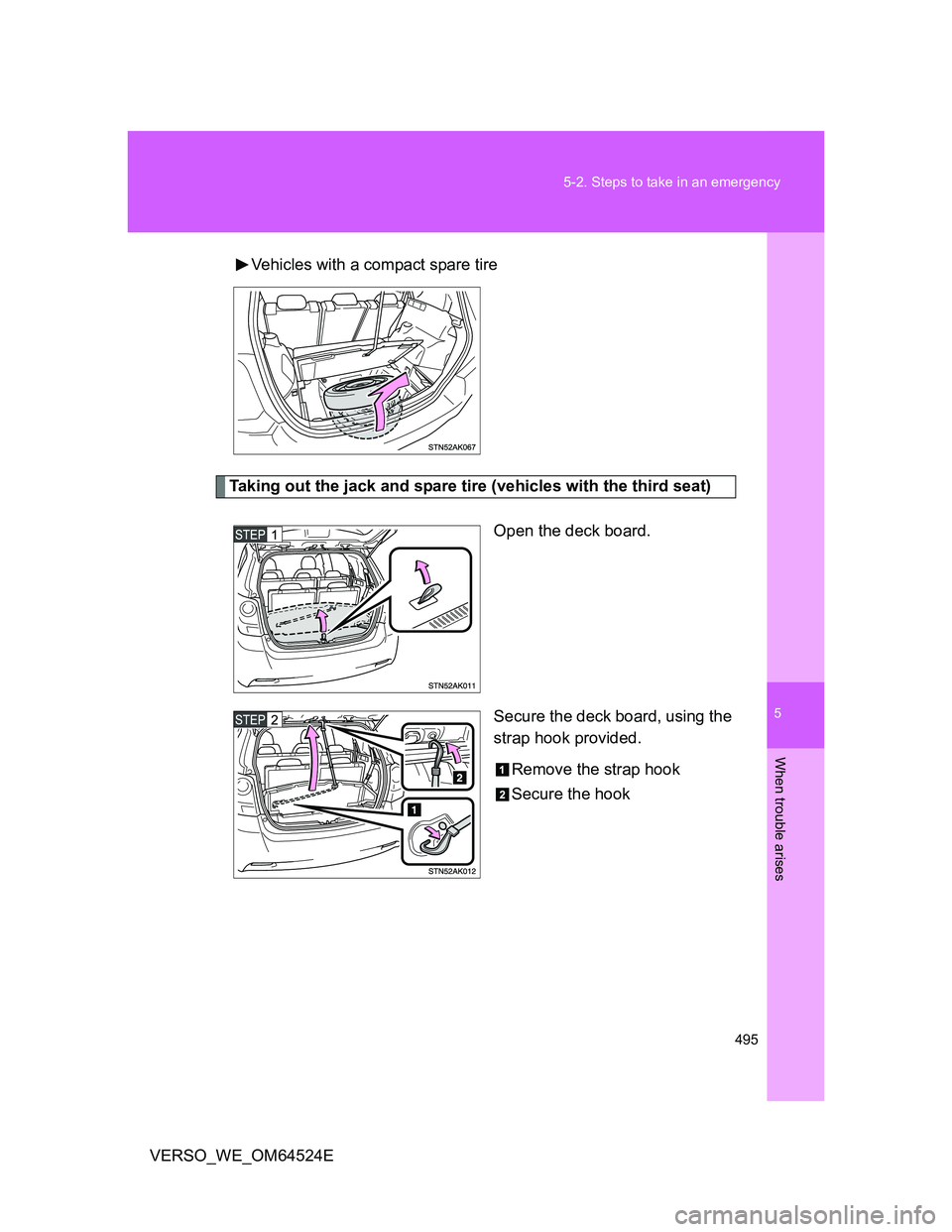

Page 495 of 588
5
495 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524EVehicles with a compact spare tire
Taking out the jack and spare tire (vehicles with the third seat)
Open the deck board.
Secure the deck board, using the
strap hook provided.
Remove the strap hook
Secure the hook

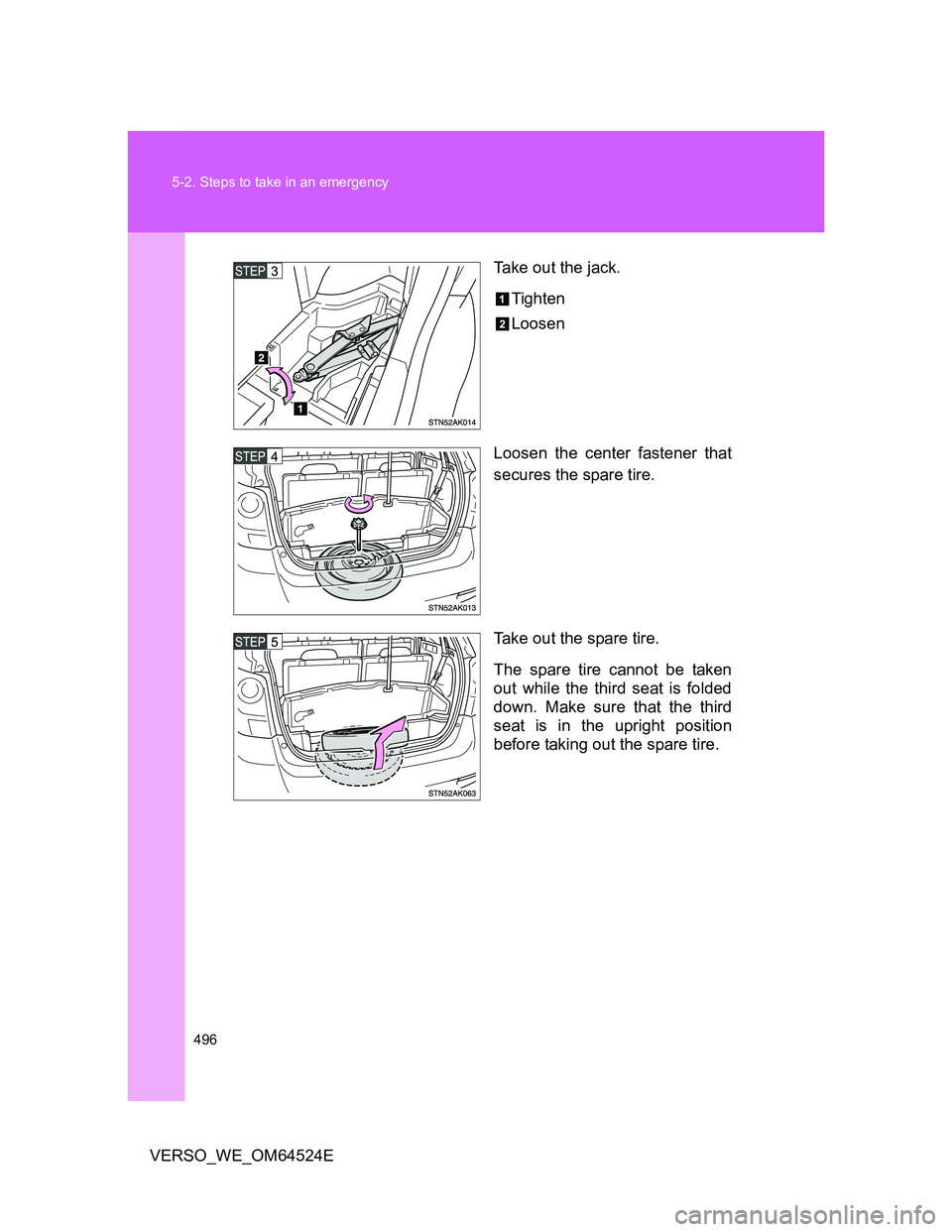

Page 496 of 588
496 5-2. Steps to take in an emergency
VERSO_WE_OM64524ETake out the jack.
Tighten
Loosen
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down. Make sure that the third
seat is in the upright position
before taking out the spare tire.

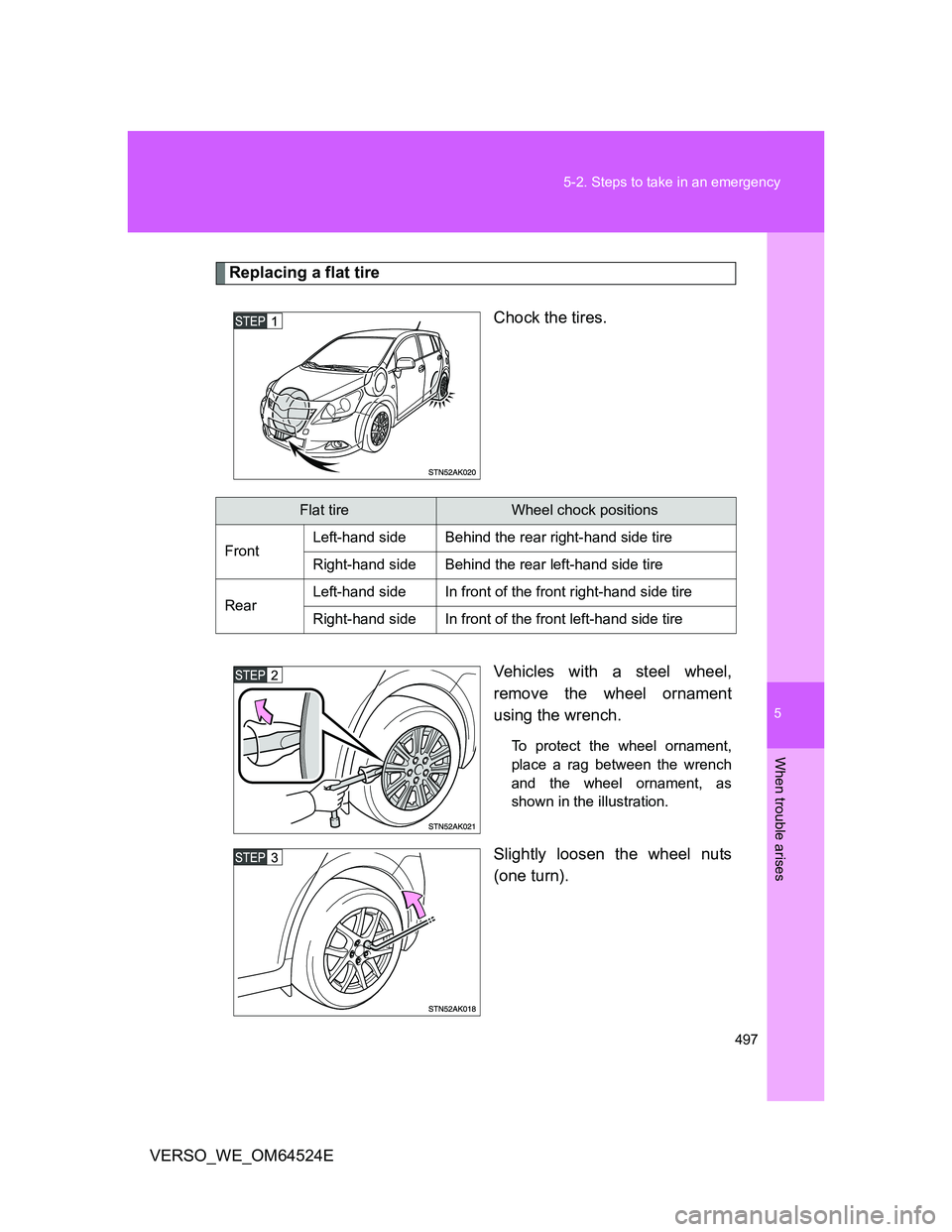

Page 497 of 588
5
497 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Slightly loosen the wheel nuts
(one turn).
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

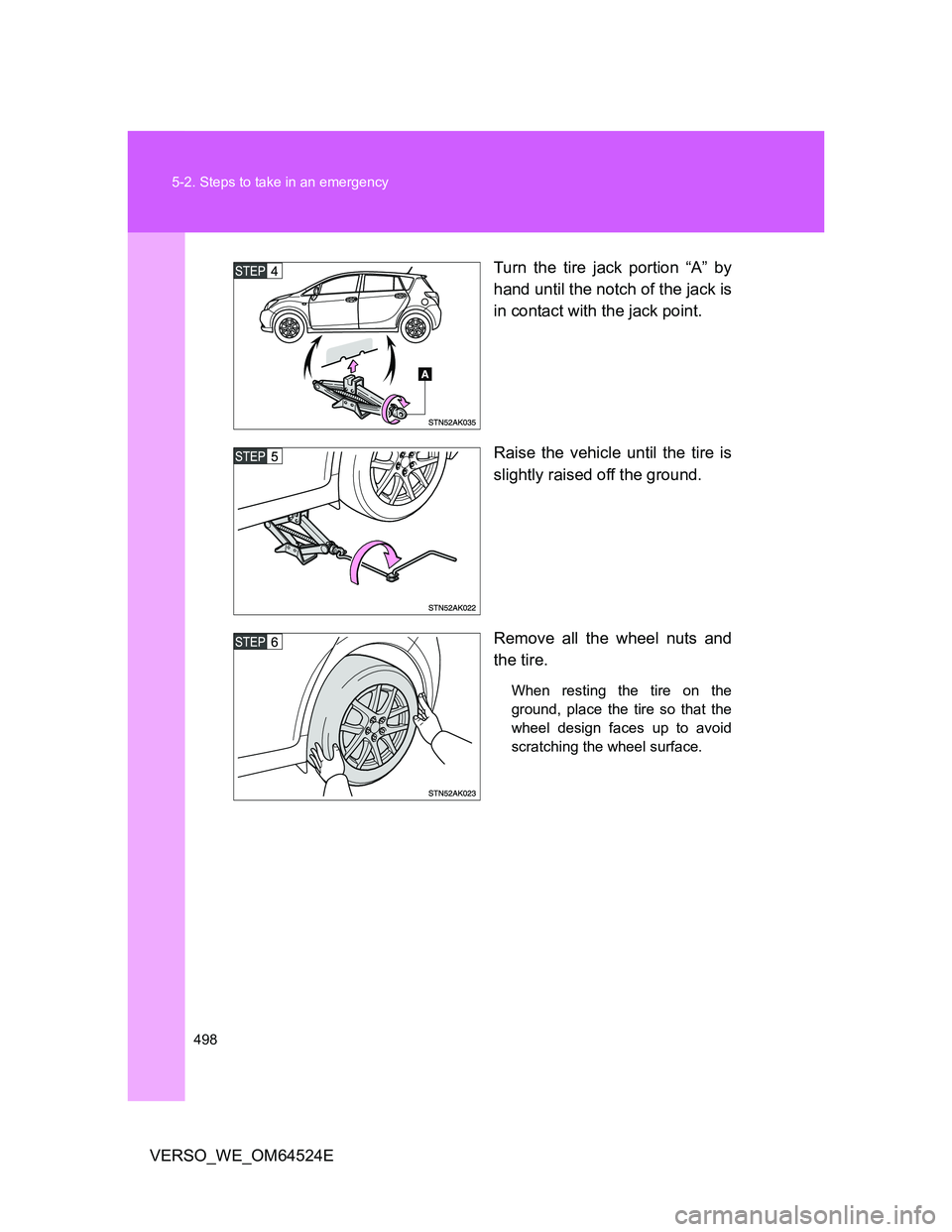

Page 498 of 588
498 5-2. Steps to take in an emergency
VERSO_WE_OM64524ETurn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.

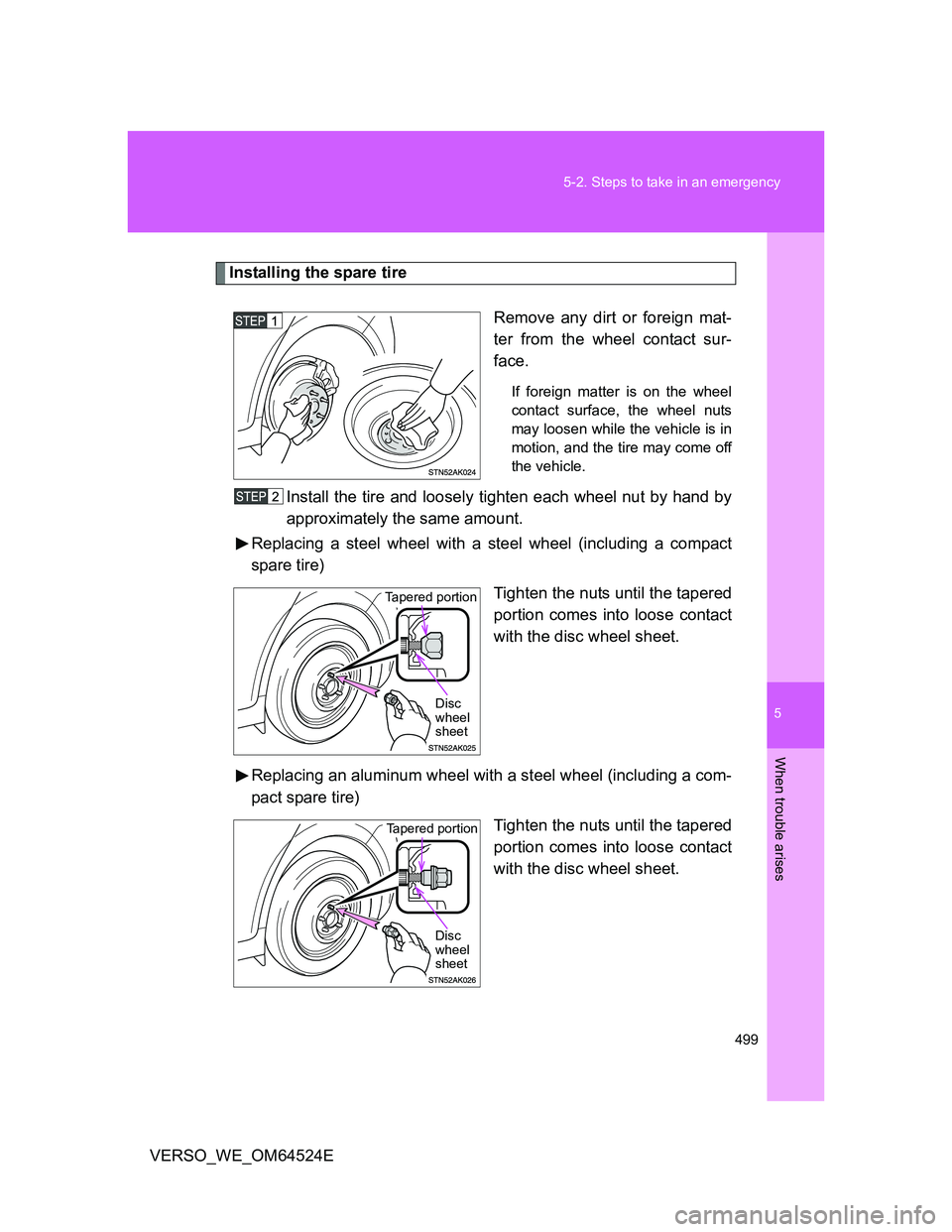

Page 499 of 588
5
499 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a steel wheel (including a compact
spare tire)
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Replacing an aluminum wheel with a steel wheel (including a com-
pact spare tire)
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Tapered portion
Disc
wheel
sheet
Tapered portion
Disc
wheel
sheet

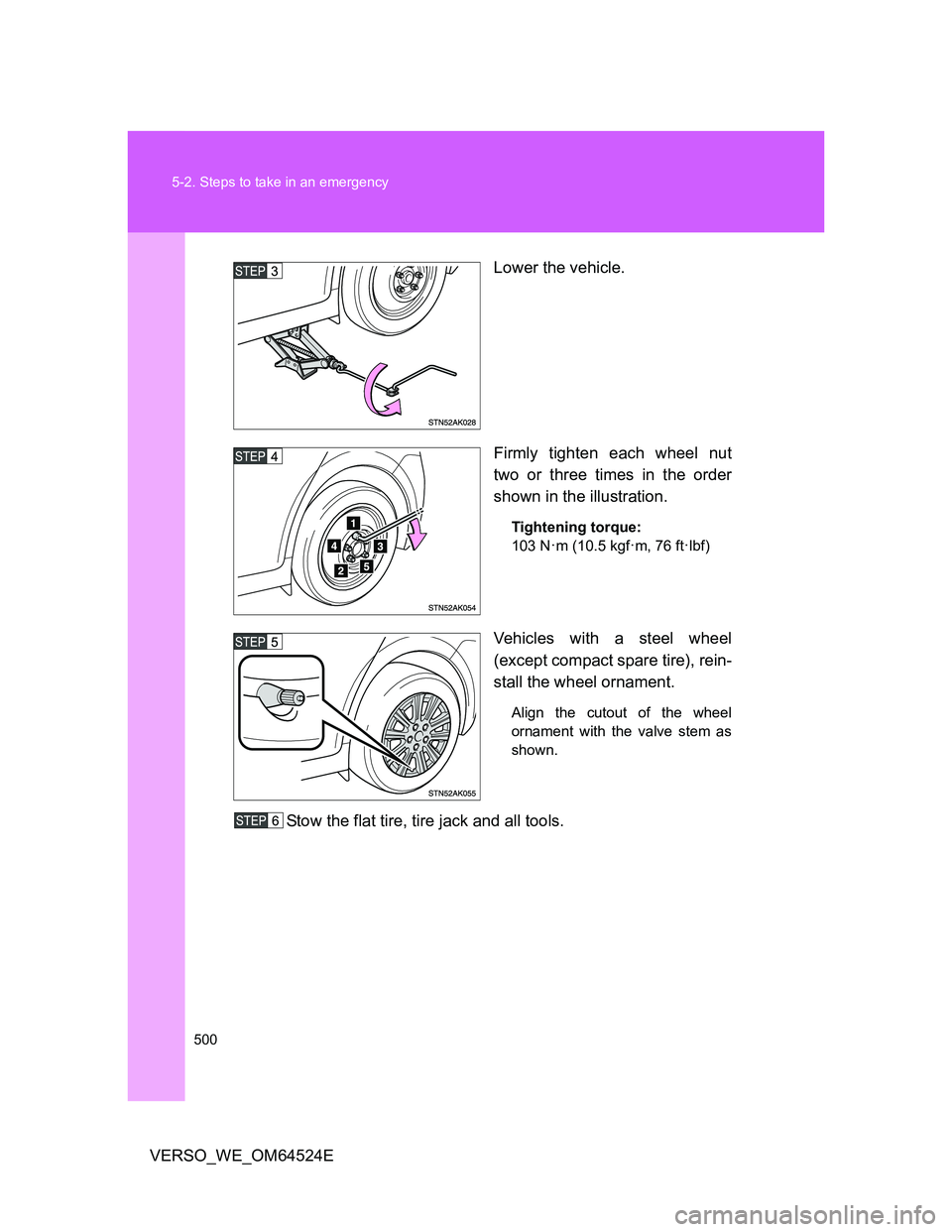

Page 500 of 588
500 5-2. Steps to take in an emergency
VERSO_WE_OM64524ELower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N
·m (10.5 kgf·m, 76 ft·lbf)
Vehicles with a steel wheel
(except compact spare tire), rein-
stall the wheel ornament.
Align the cutout of the wheel
ornament with the valve stem as
shown.
Stow the flat tire, tire jack and all tools.
