TOYOTA VERSO 2013 Owners Manual

381 3-5. Other interior features
3
Interior features
VERSO_WE_OM64550E_EURO5

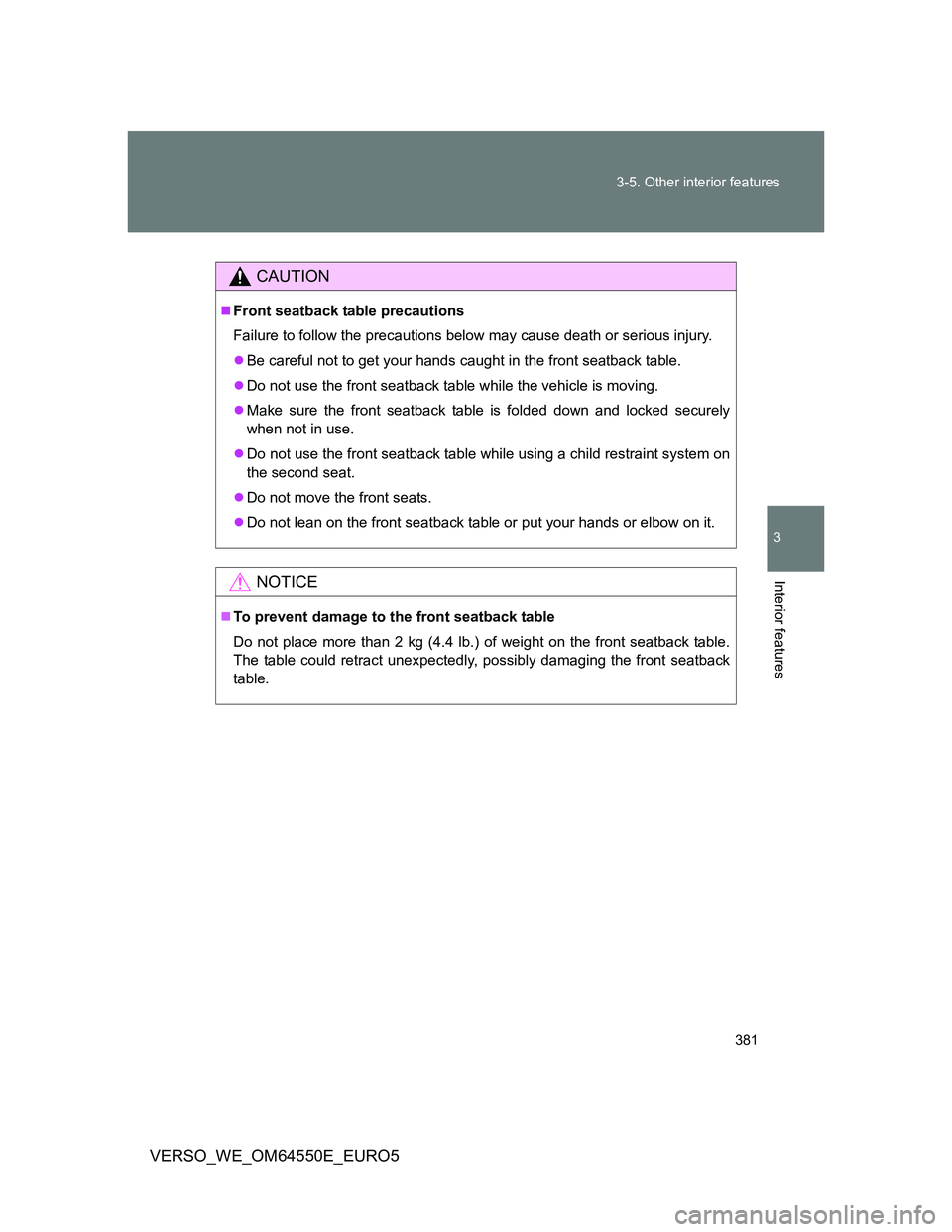

CAUTION
Front seatback table precautions
Failure to follow the precautions below may cause death or serious injury.
Be careful not to get your hands caught in the front seatback table.
Do not use the front seatback table while the vehicle is moving.
Make sure the front seatback table is folded down and locked securely
when not in use.
Do not use the front seatback table while using a child restraint system on
the second seat.
Do not move the front seats.
Do not lean on the front seatback table or put your hands or elbow on it.
NOTICE
To prevent damage to the front seatback table
Do not place more than 2 kg (4.4 lb.) of weight on the front seatback table.
The table could retract unexpectedly, possibly damaging the front seatback
table.

382
3-5. Other interior features
VERSO_WE_OM64550E_EURO5

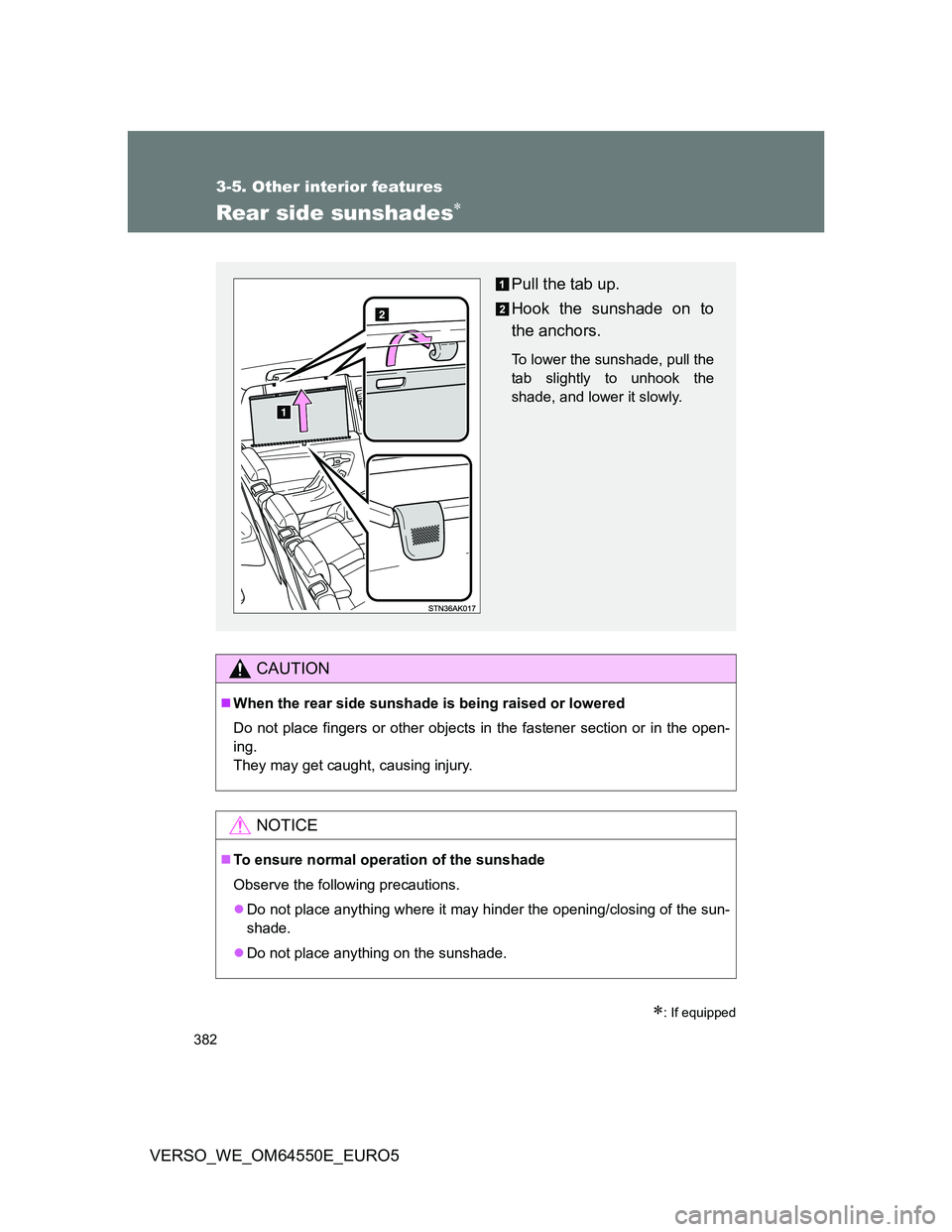

Rear side sunshades
: If equipped
CAUTION
When the rear side sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing.
They may get caught, causing injury.
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

383
3-5. Other interior features
3
Interior features
VERSO_WE_OM64550E_EURO5

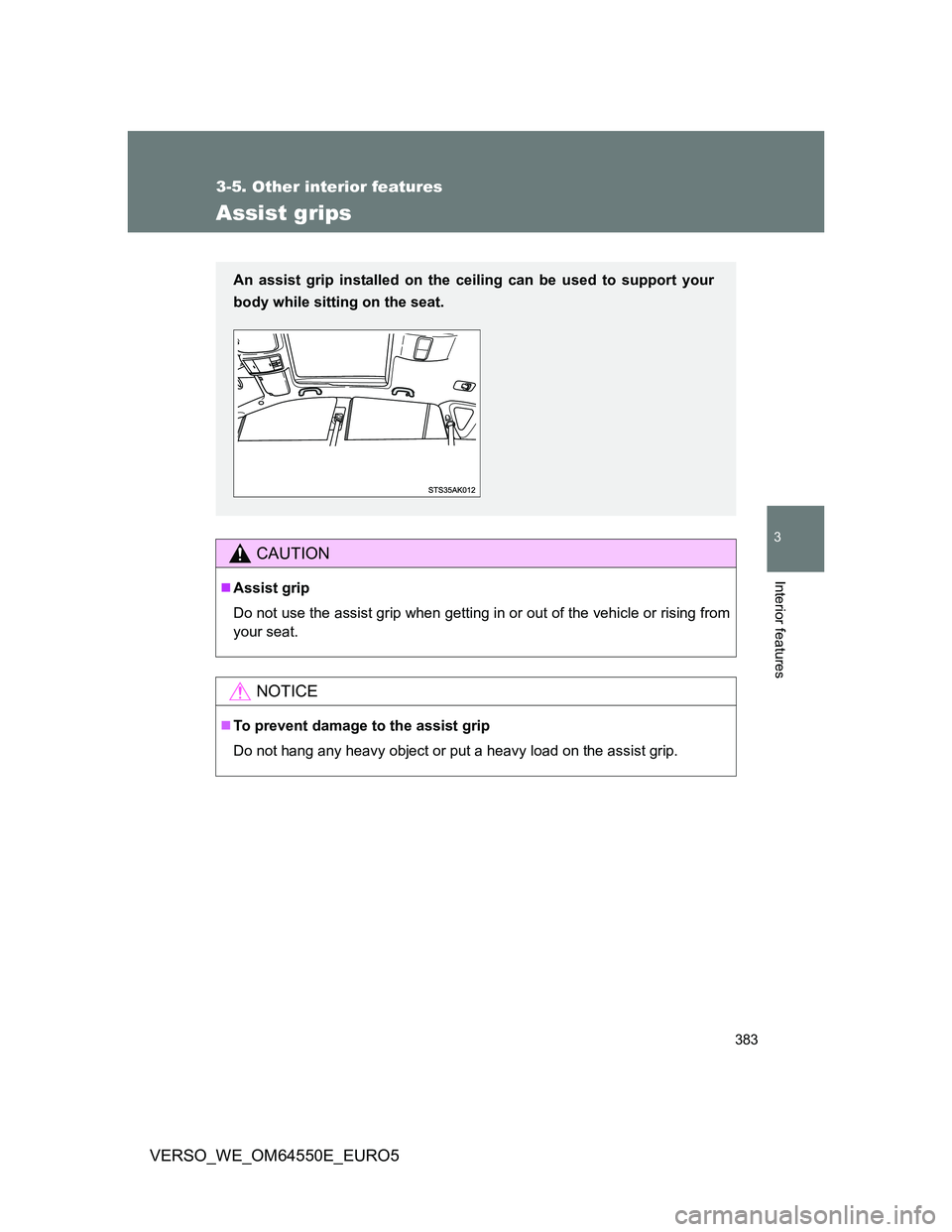

Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

384
3-5. Other interior features
VERSO_WE_OM64550E_EURO5

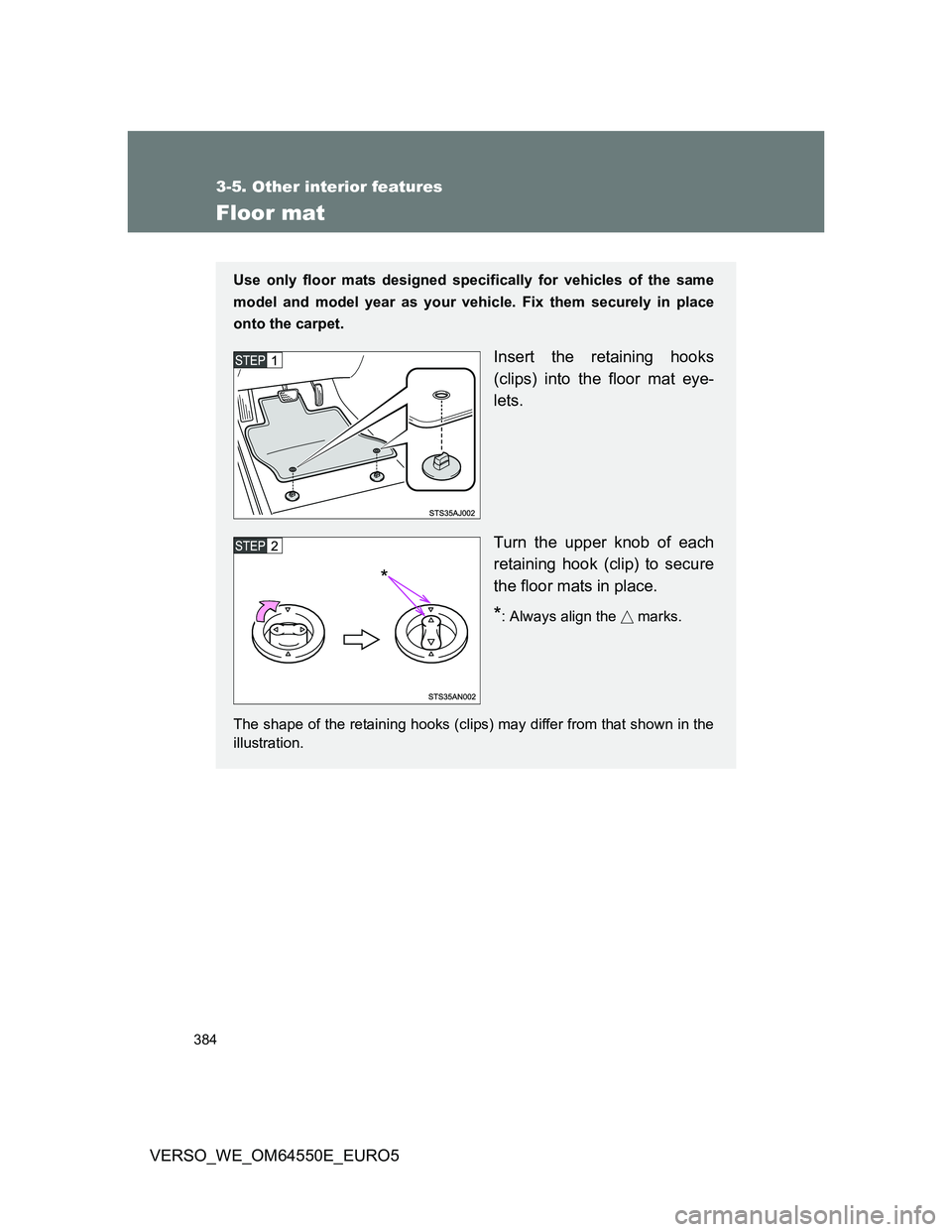

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*

385 3-5. Other interior features
3
Interior features
VERSO_WE_OM64550E_EURO5

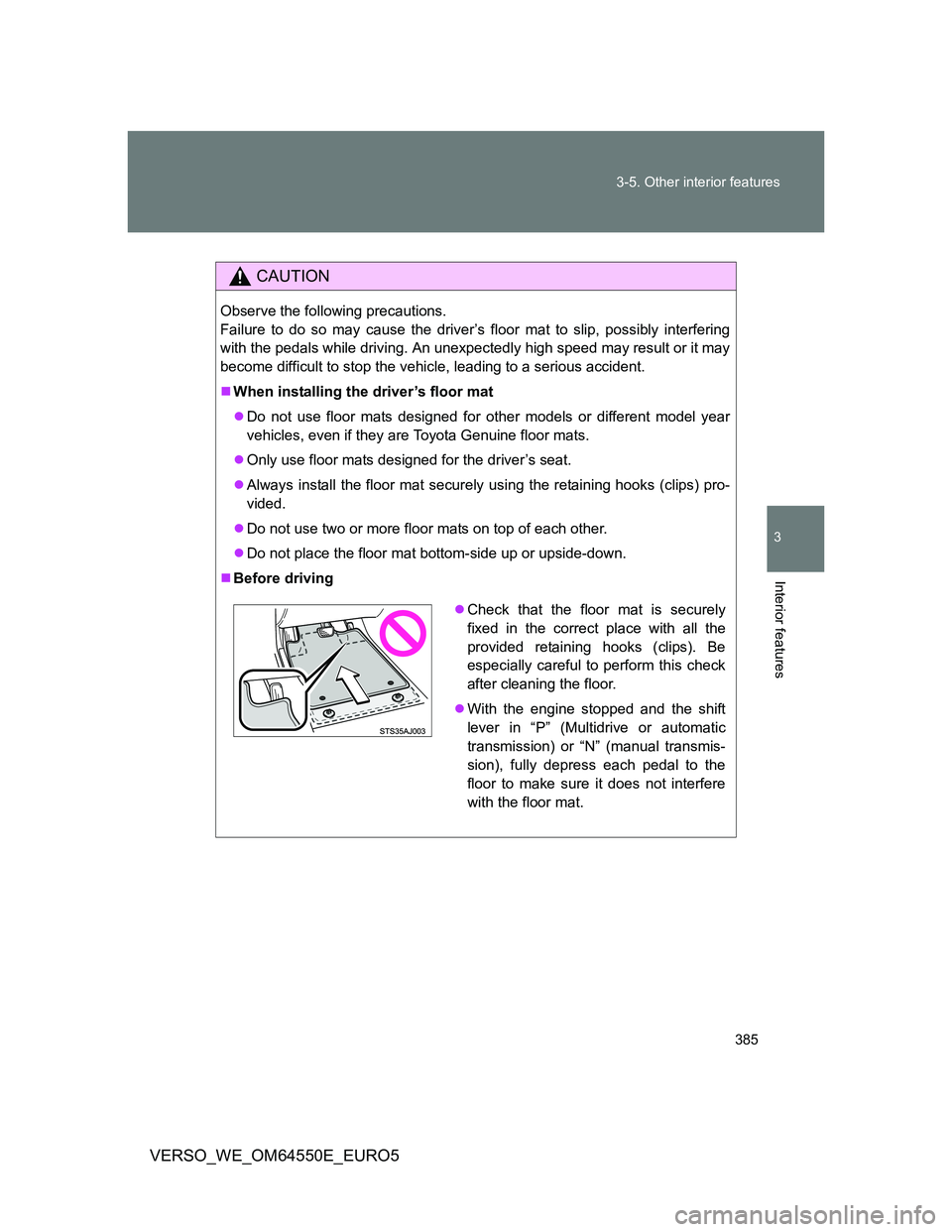

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in “P” (Multidrive or automatic
transmission) or “N” (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

386
3-5. Other interior features
VERSO_WE_OM64550E_EURO5

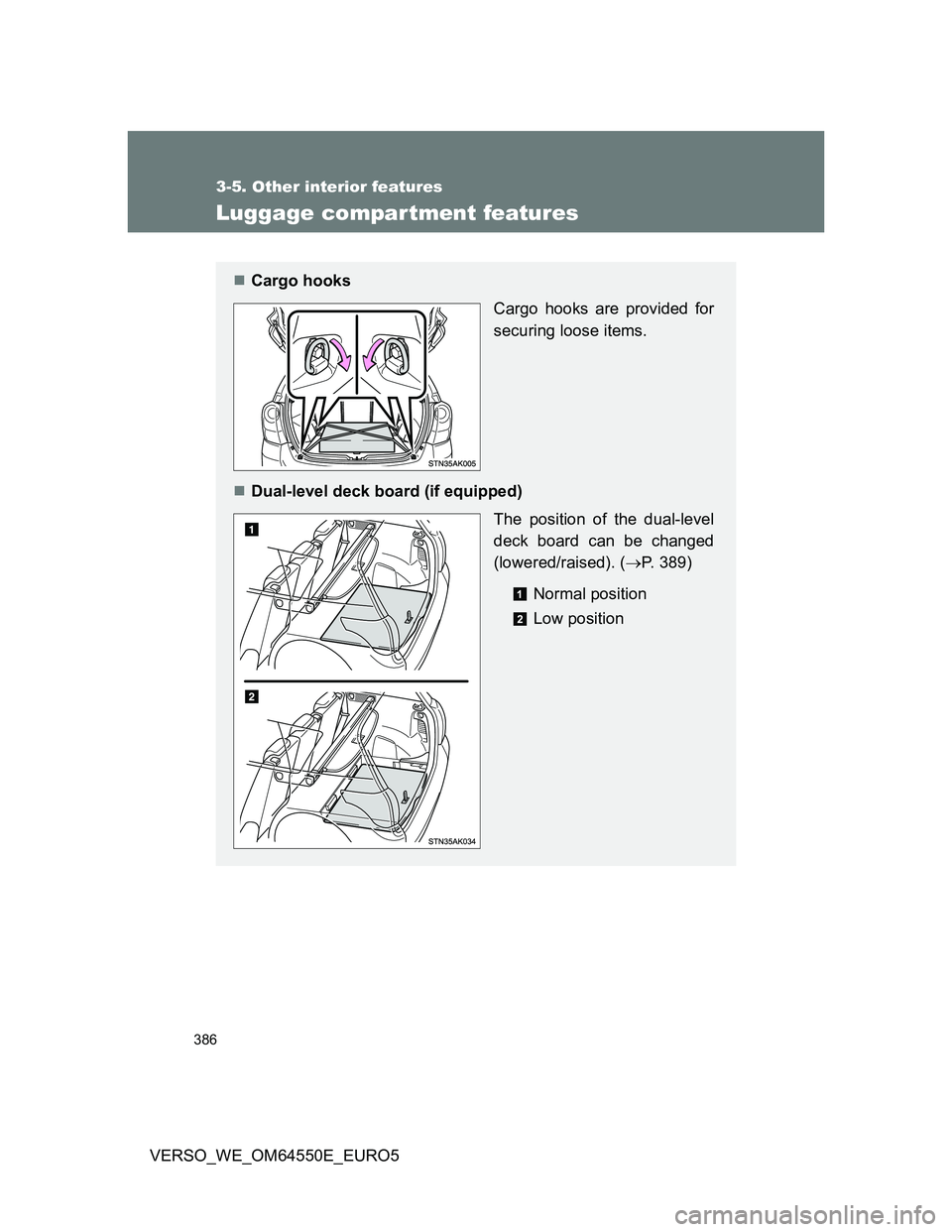

Luggage compar tment features
Cargo hooks
Cargo hooks are provided for
securing loose items.
Dual-level deck board (if equipped)
The position of the dual-level
deck board can be changed
(lowered/raised). (P. 389)
Normal position
Low position

387 3-5. Other interior features
3
Interior features
VERSO_WE_OM64550E_EURO5

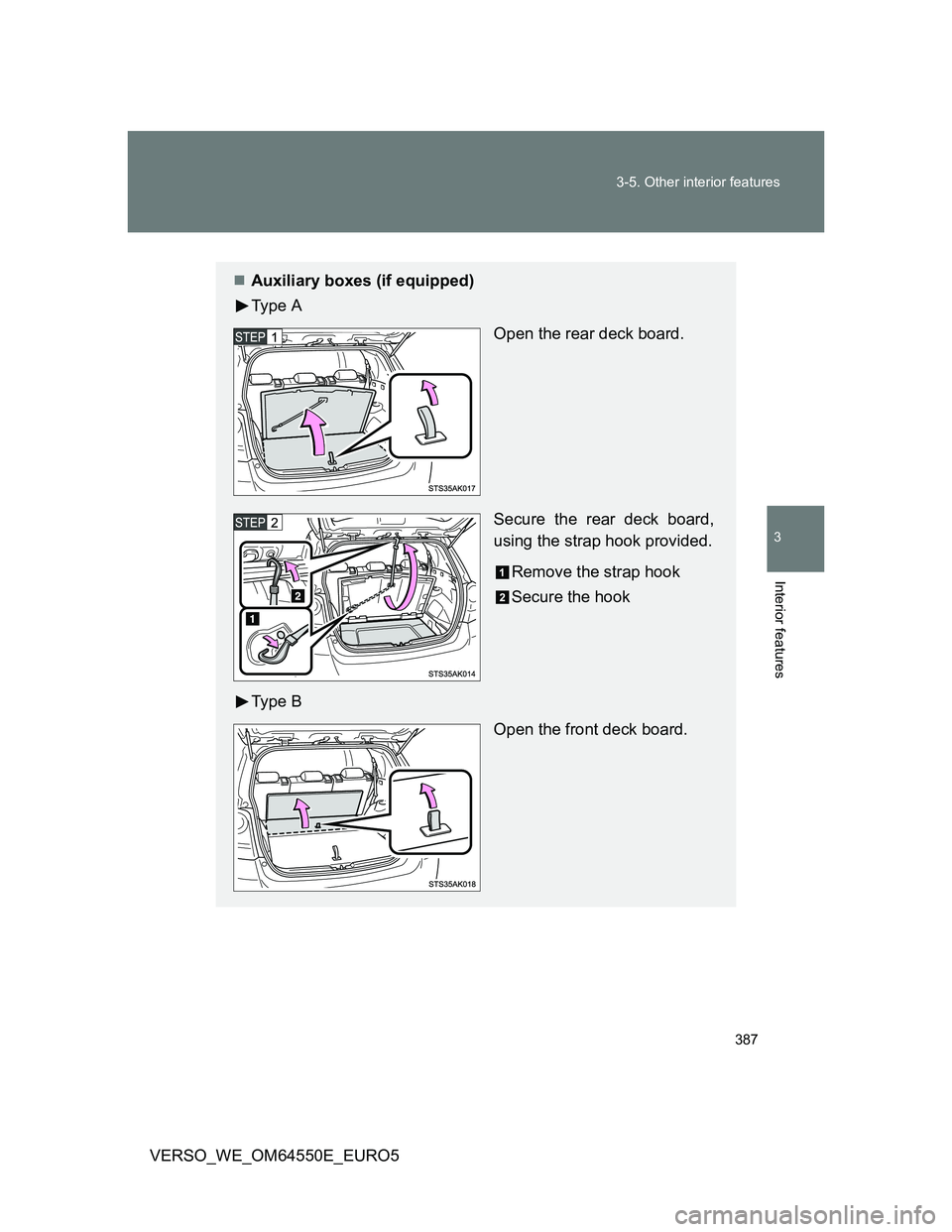

Auxiliary boxes (if equipped)
Ty p e A
Open the rear deck board.
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook
Ty p e B
Open the front deck board.

388 3-5. Other interior features
VERSO_WE_OM64550E_EURO5

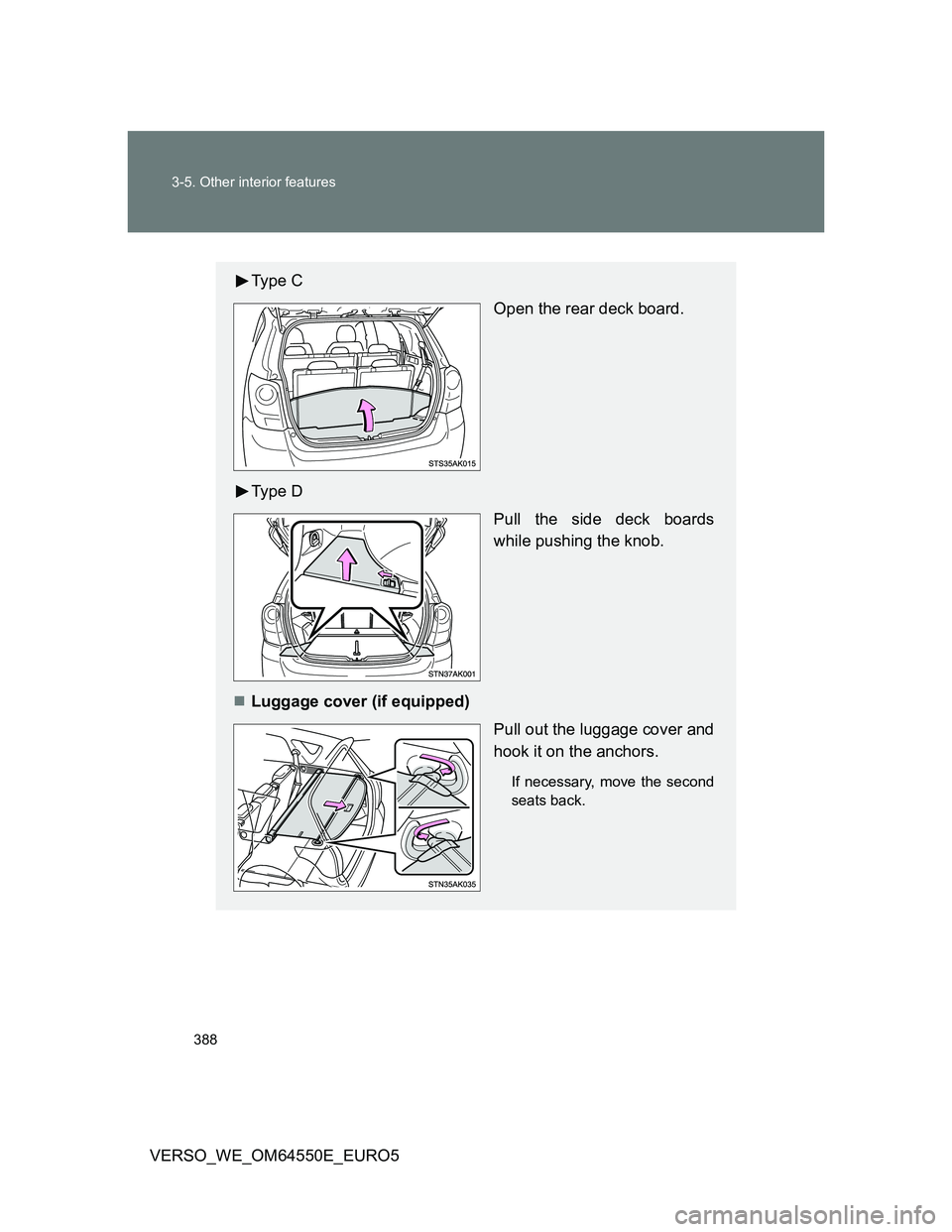

Ty p e C
Open the rear deck board.
Ty p e D
Pull the side deck boards
while pushing the knob.
Luggage cover (if equipped)
Pull out the luggage cover and
hook it on the anchors.
If necessary, move the second
seats back.

389 3-5. Other interior features
3
Interior features
VERSO_WE_OM64550E_EURO5

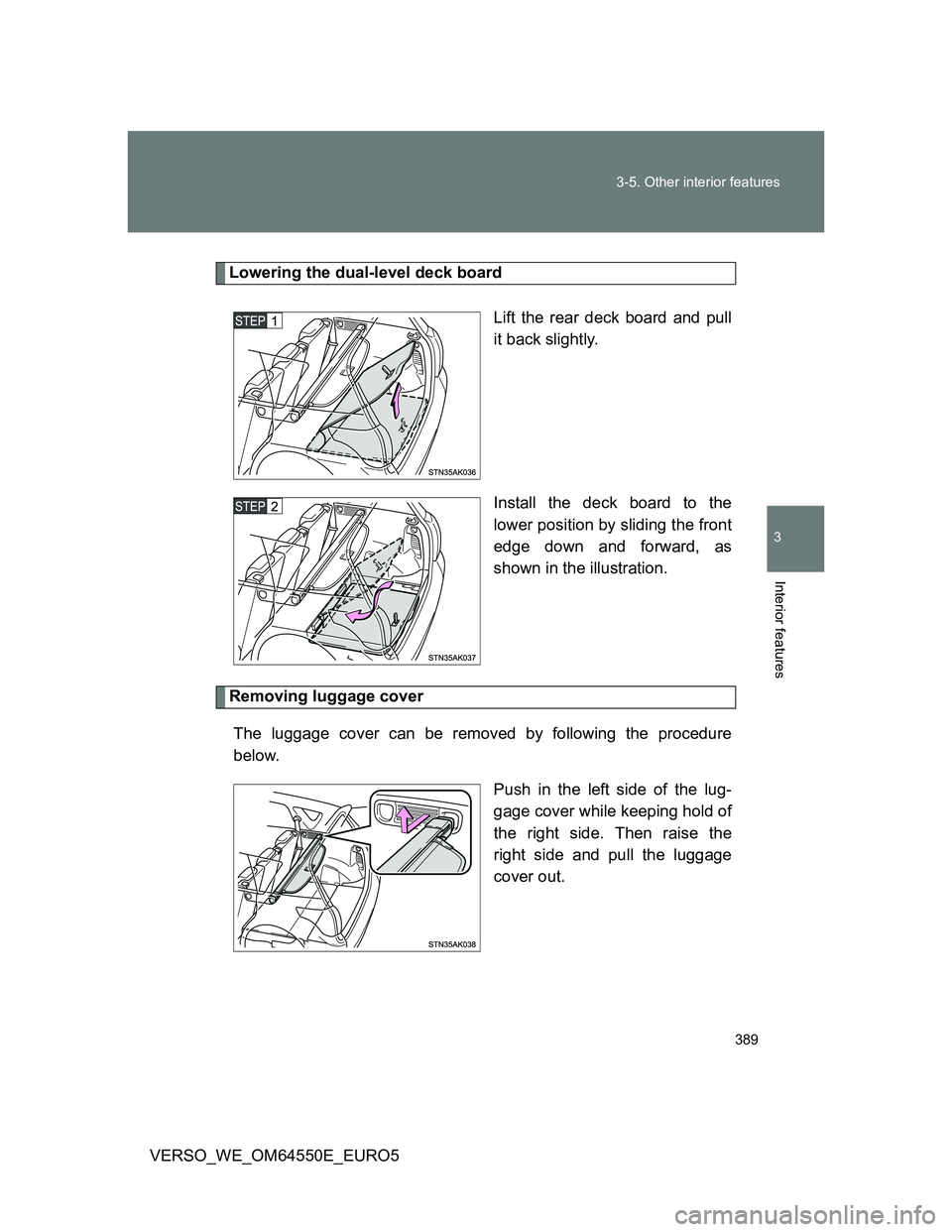

Lowering the dual-level deck board
Lift the rear deck board and pull
it back slightly.
Install the deck board to the
lower position by sliding the front
edge down and forward, as
shown in the illustration.
Removing luggage cover
The luggage cover can be removed by following the procedure
below.
Push in the left side of the lug-
gage cover while keeping hold of
the right side. Then raise the
right side and pull the luggage
cover out.

390 3-5. Other interior features
VERSO_WE_OM64550E_EURO5

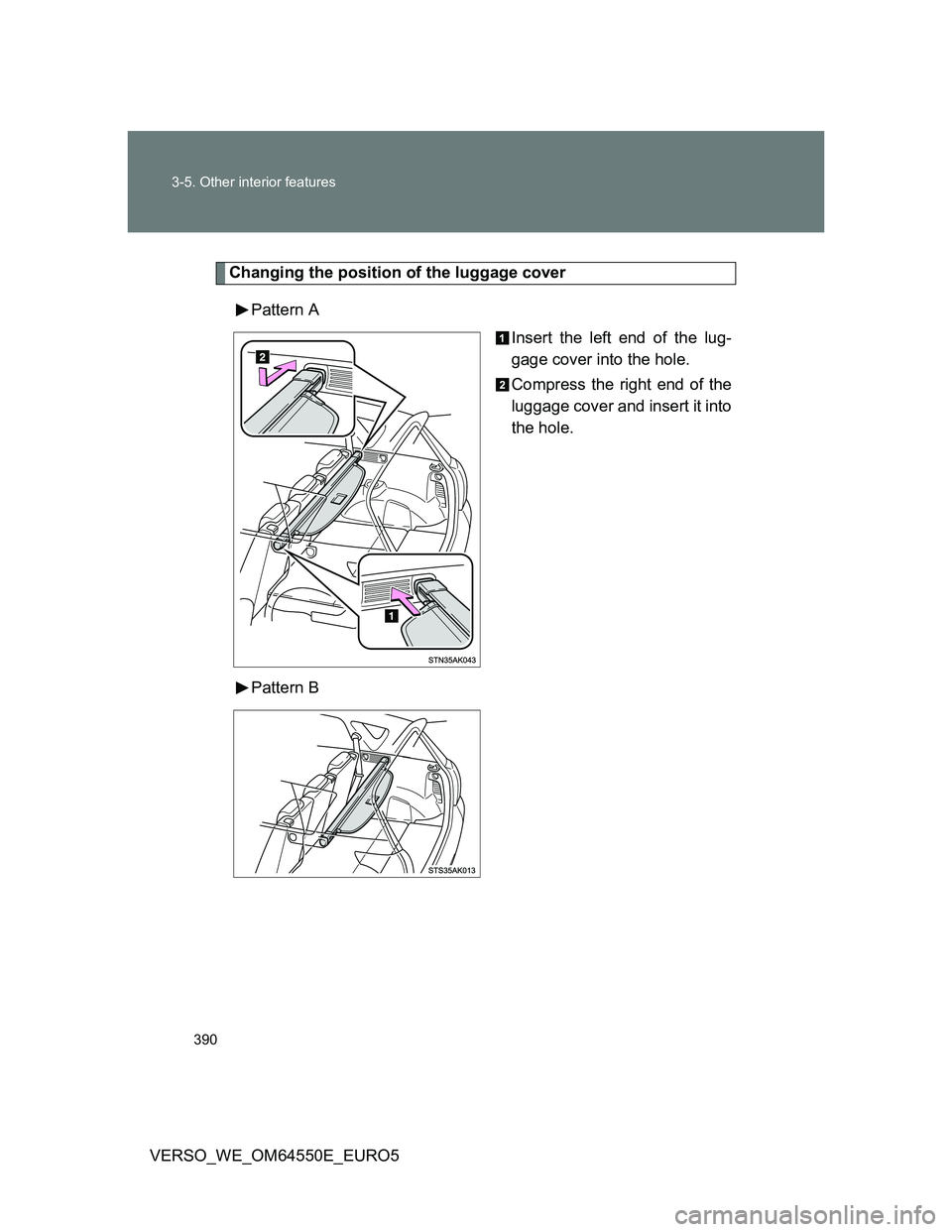

Changing the position of the luggage cover
Pattern A
Insert the left end of the lug-
gage cover into the hole.
Compress the right end of the
luggage cover and insert it into
the hole.
Pattern B
