TOYOTA VERSO 2013 Owners Manual

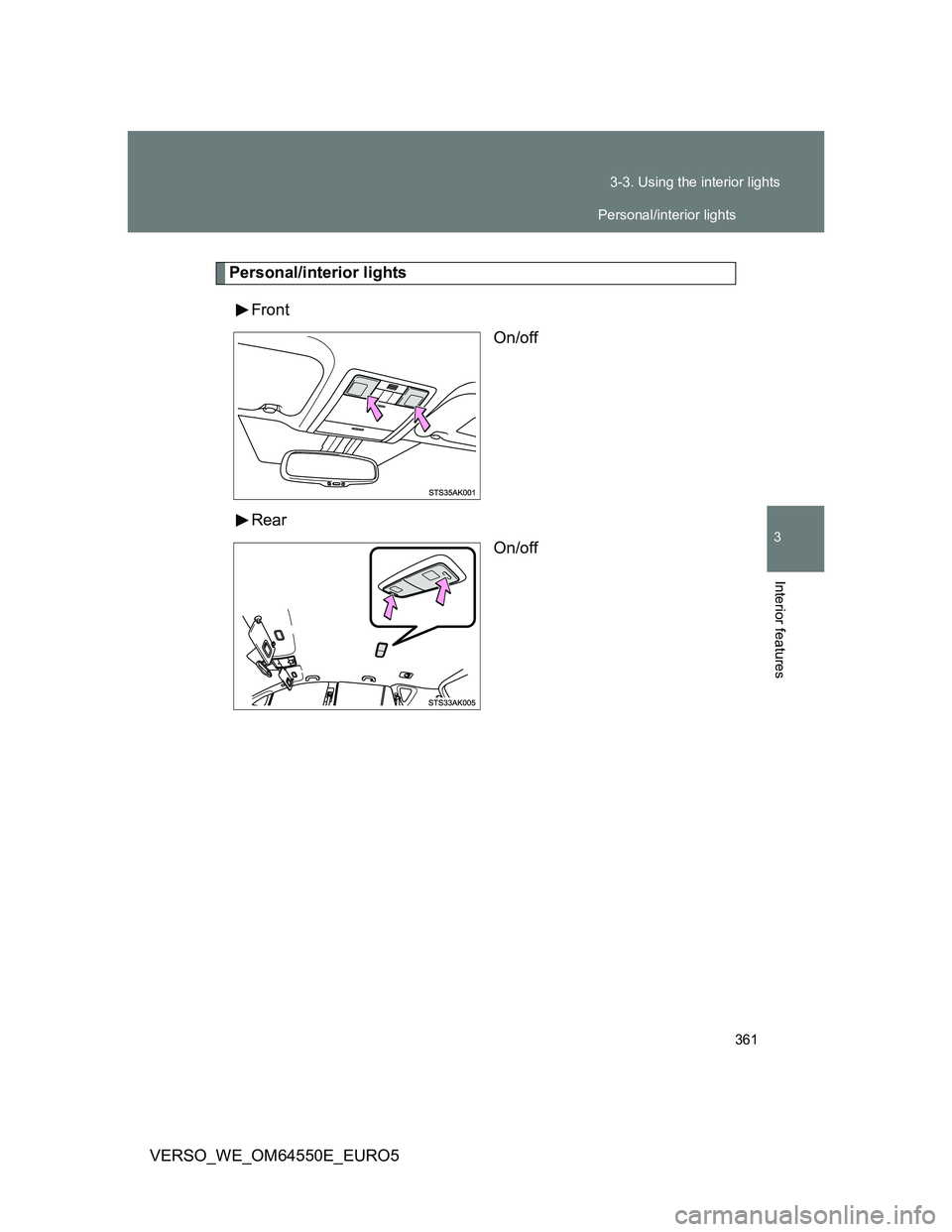

361 3-3. Using the interior lights
3
Interior features
VERSO_WE_OM64550E_EURO5
Personal/interior lights
Front
On/off
Rear
On/off
Personal/interior lights

362 3-3. Using the interior lights
VERSO_WE_OM64550E_EURO5

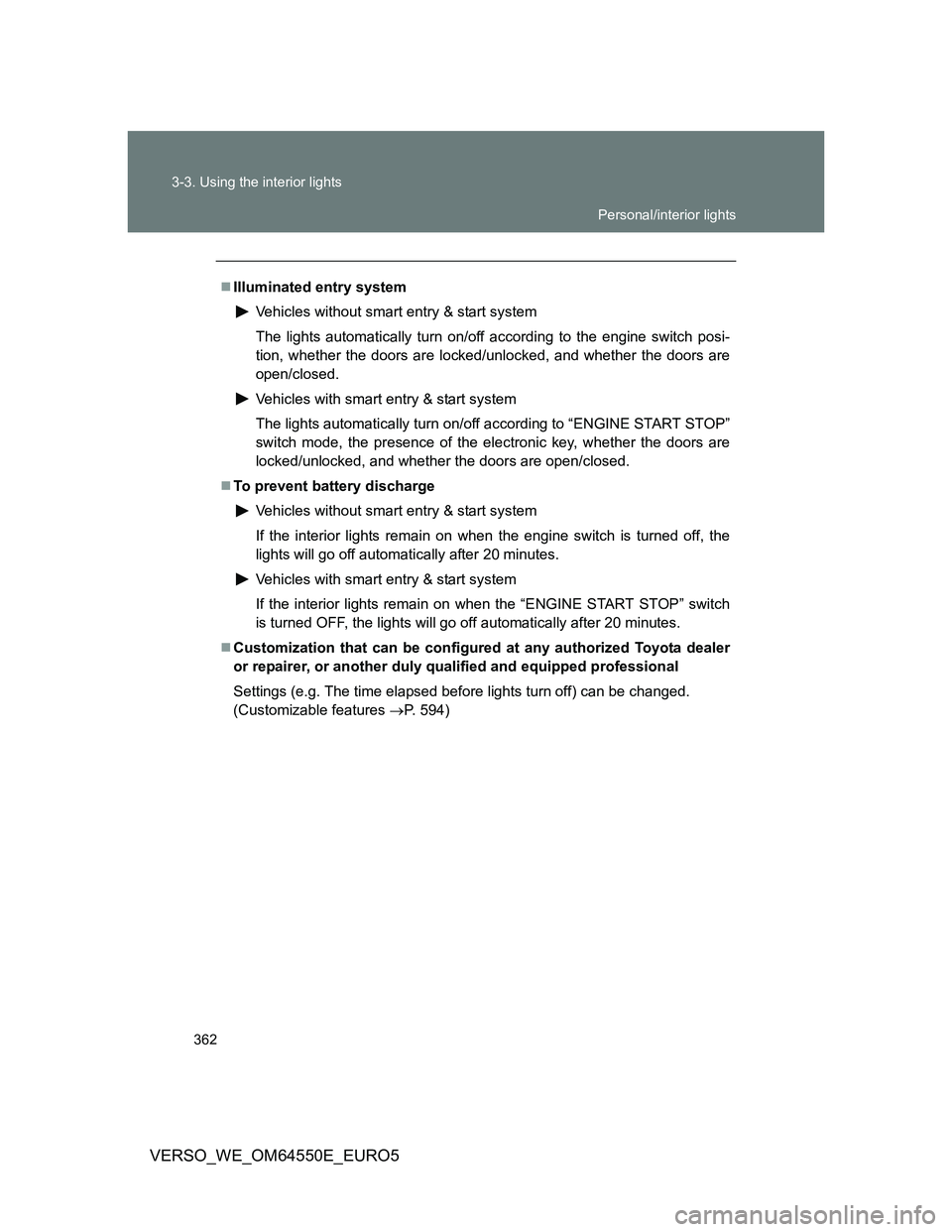

Illuminated entry system
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch posi-
tion, whether the doors are locked/unlocked, and whether the doors are
open/closed.
Vehicles with smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent battery discharge
Vehicles without smart entry & start system
If the interior lights remain on when the engine switch is turned off, the
lights will go off automatically after 20 minutes.
Vehicles with smart entry & start system
If the interior lights remain on when the “ENGINE START STOP” switch
is turned OFF, the lights will go off automatically after 20 minutes.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 594)
Personal/interior lights

363
3
Interior features
VERSO_WE_OM64550E_EURO5

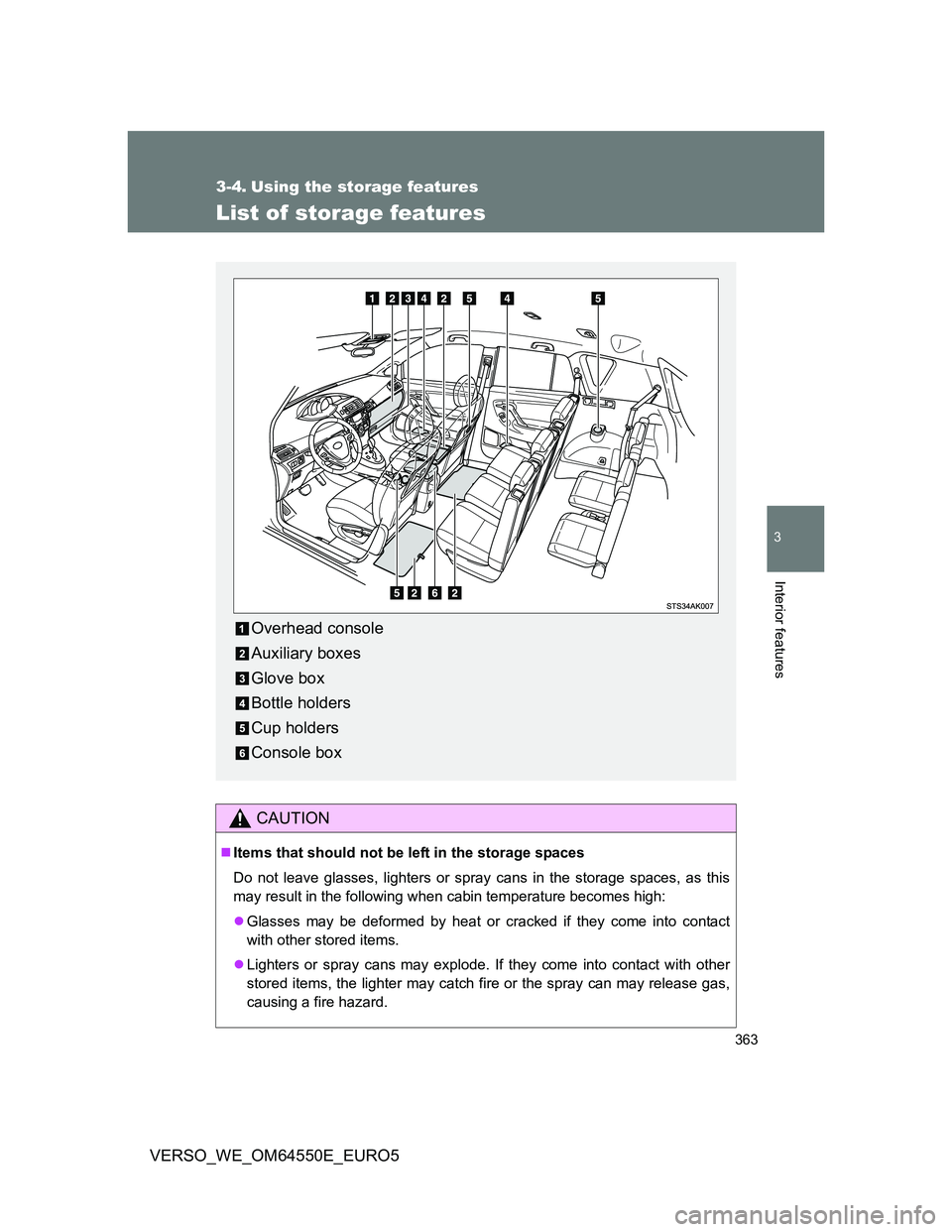

3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Overhead console
Auxiliary boxes
Glove box
Bottle holders
Cup holders
Console box

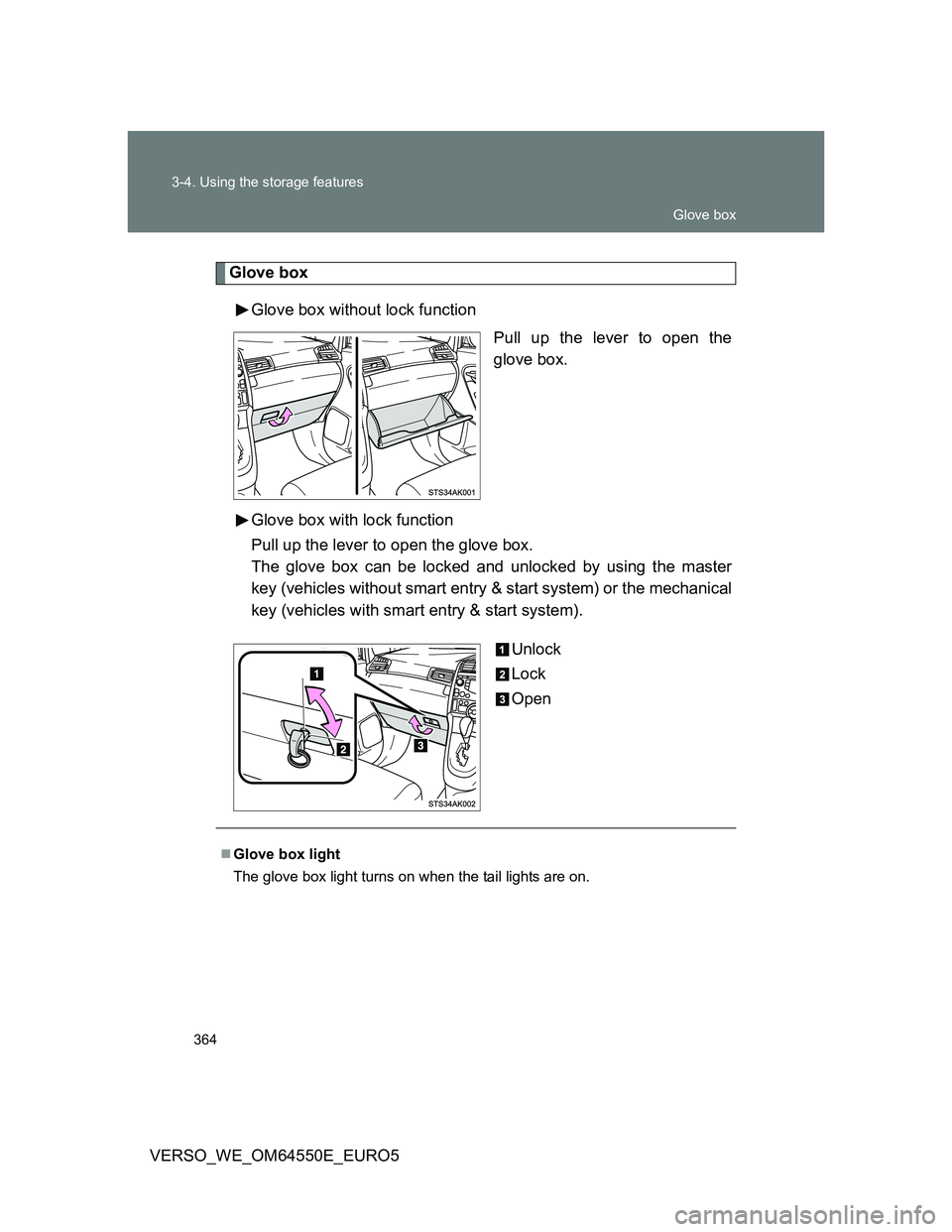

364 3-4. Using the storage features
VERSO_WE_OM64550E_EURO5
Glove box
Glove box without lock function
Pull up the lever to open the
glove box.
Glove box with lock function
Pull up the lever to open the glove box.
The glove box can be locked and unlocked by using the master
key (vehicles without smart entry & start system) or the mechanical
key (vehicles with smart entry & start system).
Unlock
Lock
Open
Glove box light
The glove box light turns on when the tail lights are on.
Glove box

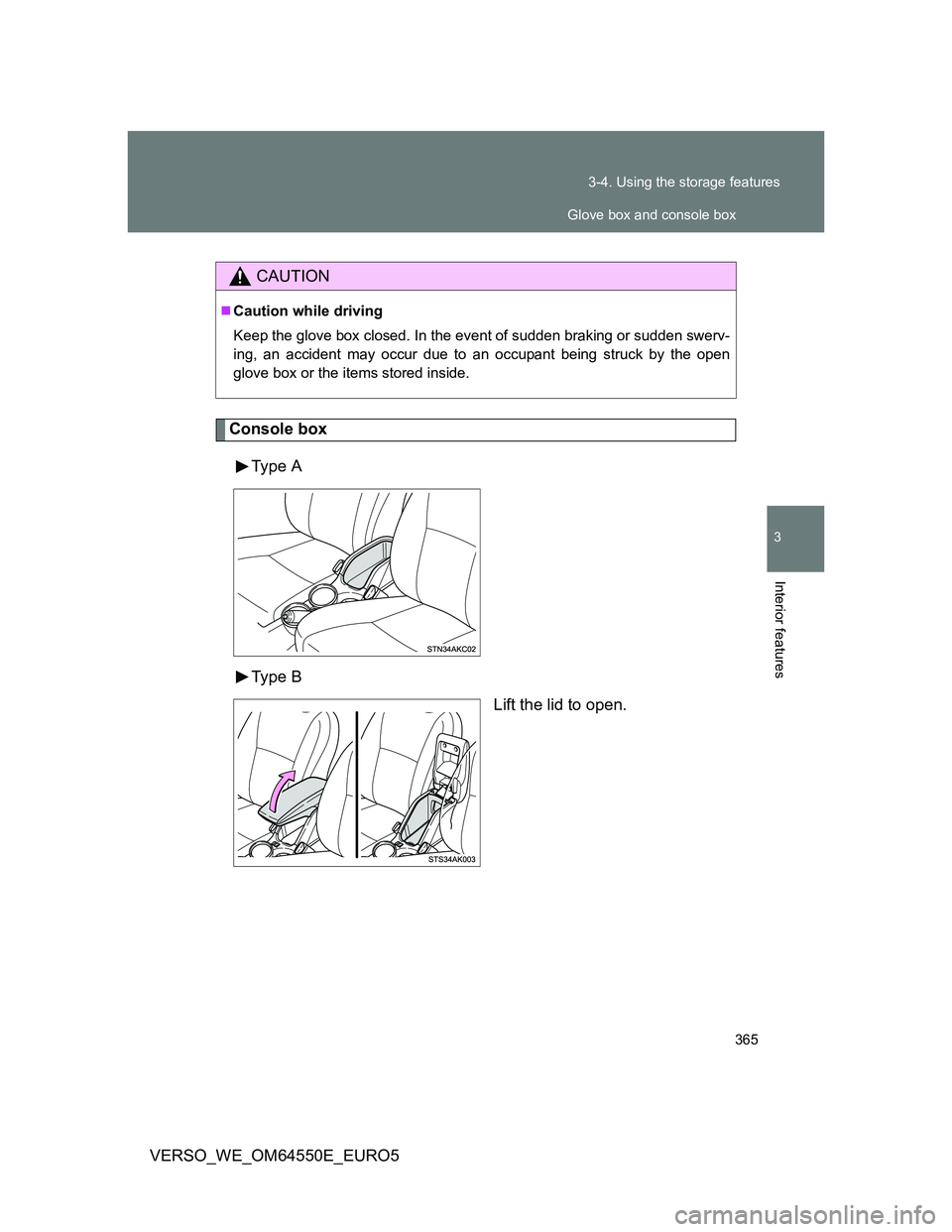

365 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64550E_EURO5
Console box
Type A
Type B
Lift the lid to open.
CAUTION
Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box and console box

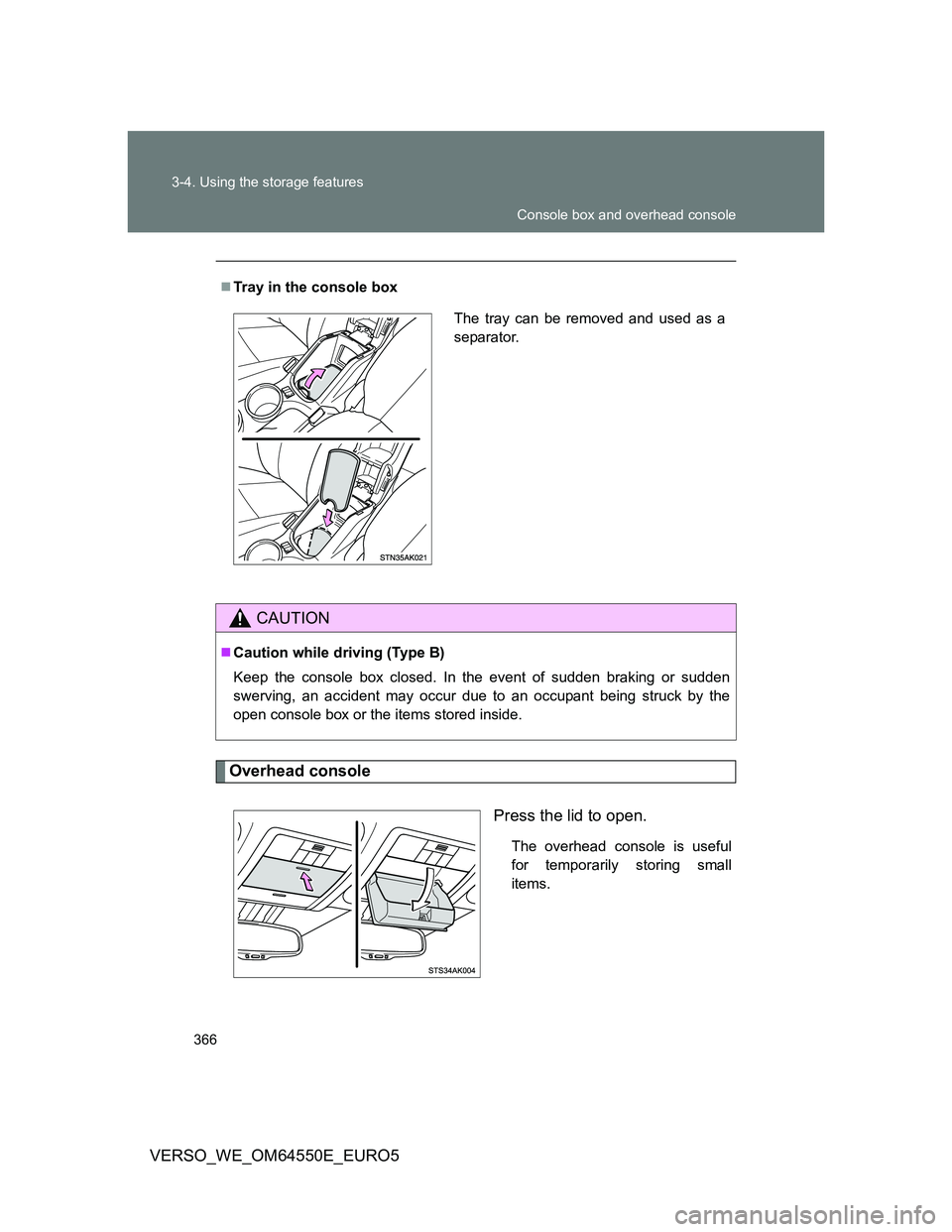

366 3-4. Using the storage features
VERSO_WE_OM64550E_EURO5
Overhead console
Press the lid to open.
The overhead console is useful
for temporarily storing small
items. Tray in the console box
CAUTION
Caution while driving (Type B)
Keep the console box closed. In the event of sudden braking or sudden
swerving, an accident may occur due to an occupant being struck by the
open console box or the items stored inside.
The tray can be removed and used as a
separator.
Console box and overhead console

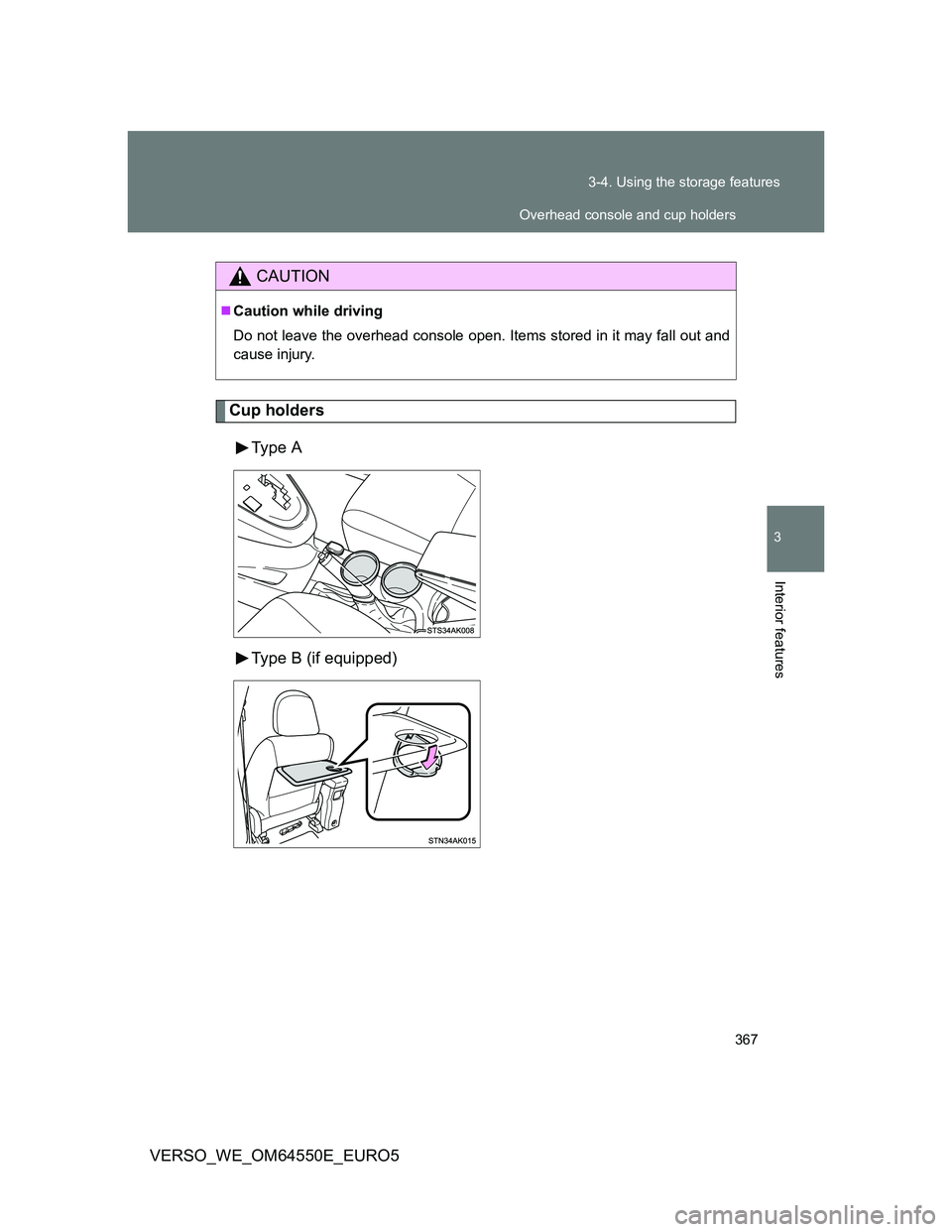

367 3-4. Using the storage features
3
Interior features
VERSO_WE_OM64550E_EURO5
Cup holders
Type A
Type B (if equipped)
CAUTION
Caution while driving
Do not leave the overhead console open. Items stored in it may fall out and
cause injury.
Overhead console and cup holders

368 3-4. Using the storage features

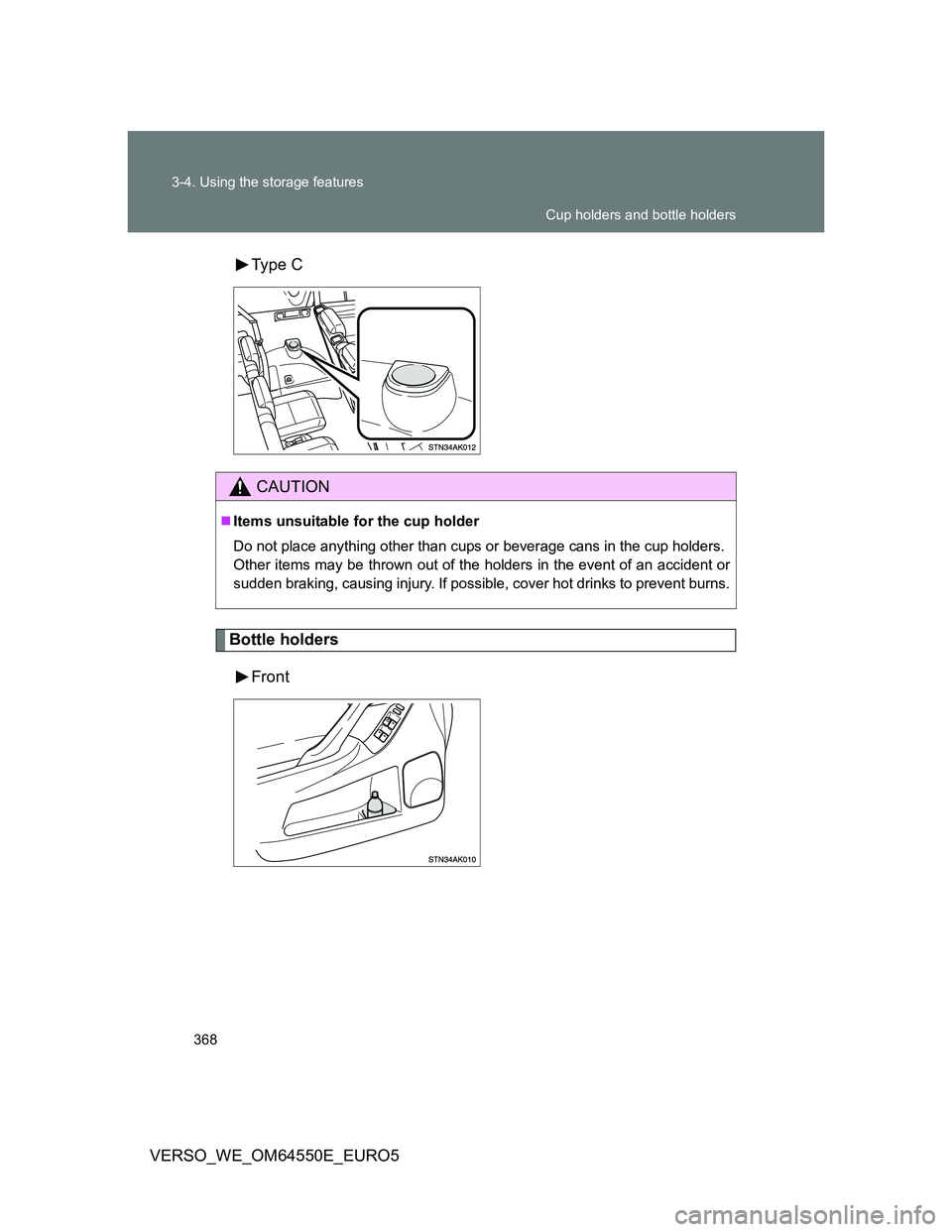

VERSO_WE_OM64550E_EURO5Type C
Bottle holders
Front
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Cup holders and bottle holders

369 3-4. Using the storage features
3
Interior features

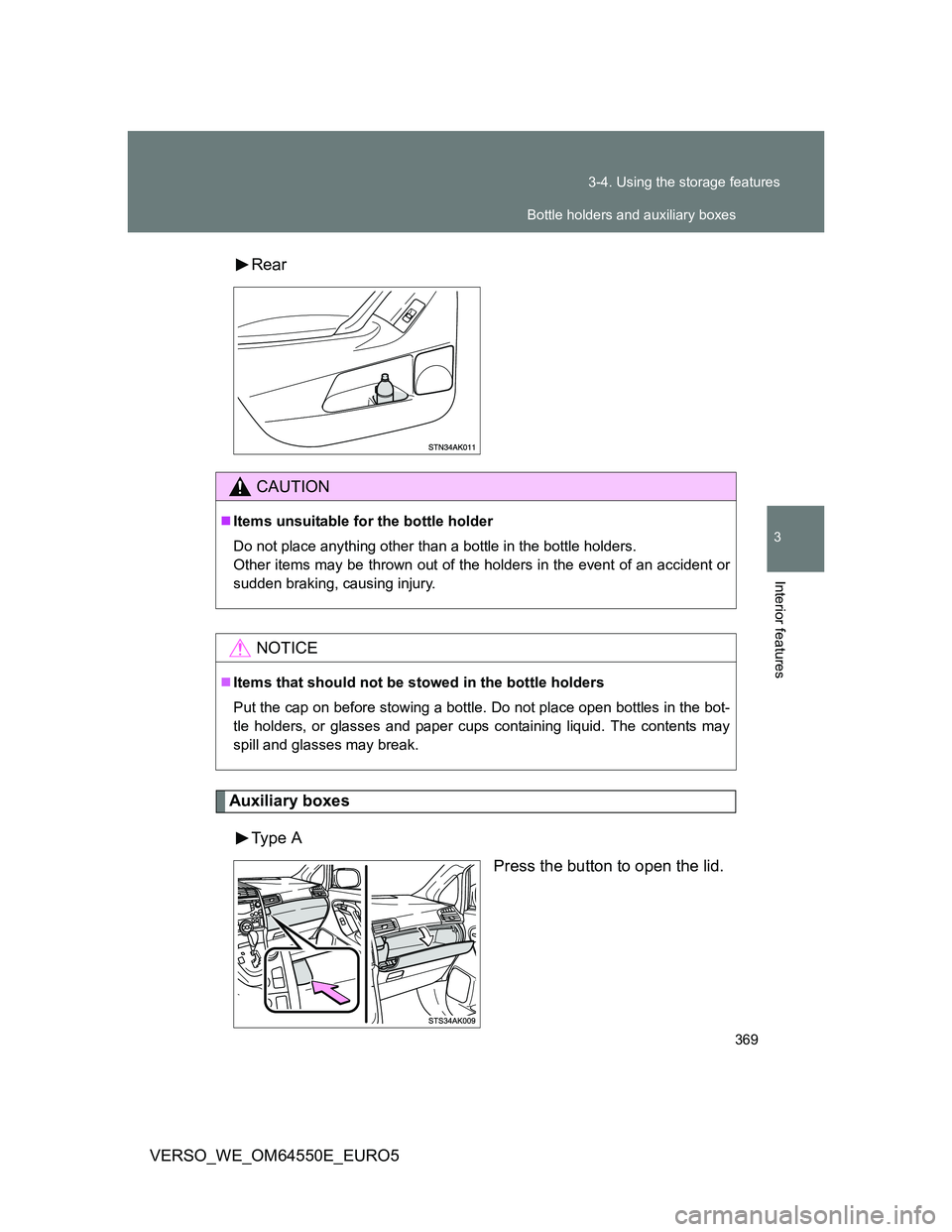

VERSO_WE_OM64550E_EURO5Rear
Auxiliary boxes
Type A
Press the button to open the lid.
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders and auxiliary boxes

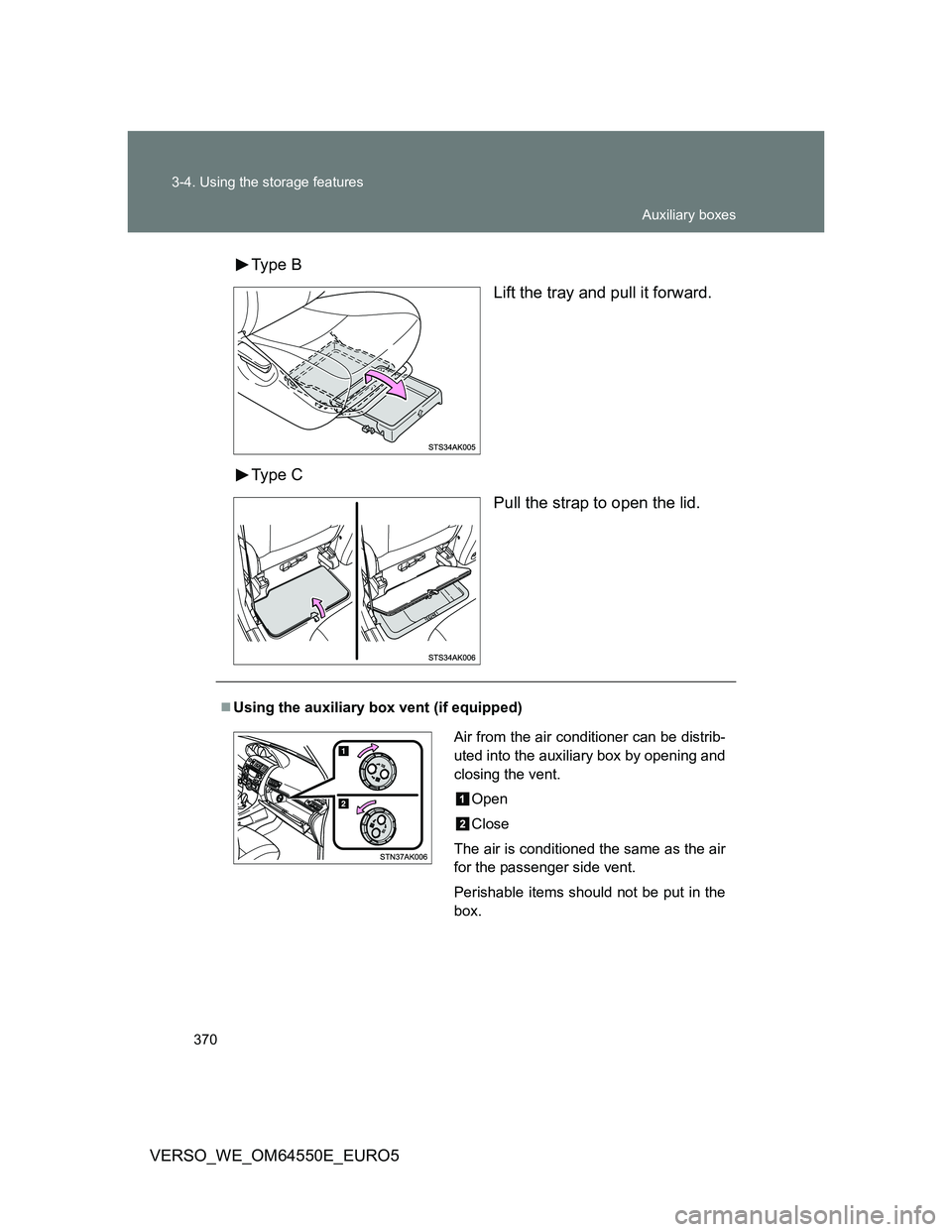

370 3-4. Using the storage features
VERSO_WE_OM64550E_EURO5Type B
Lift the tray and pull it forward.
Type C
Pull the strap to open the lid.
Using the auxiliary box vent (if equipped)
Air from the air conditioner can be distrib-
uted into the auxiliary box by opening and
closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
Auxiliary boxes
