5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

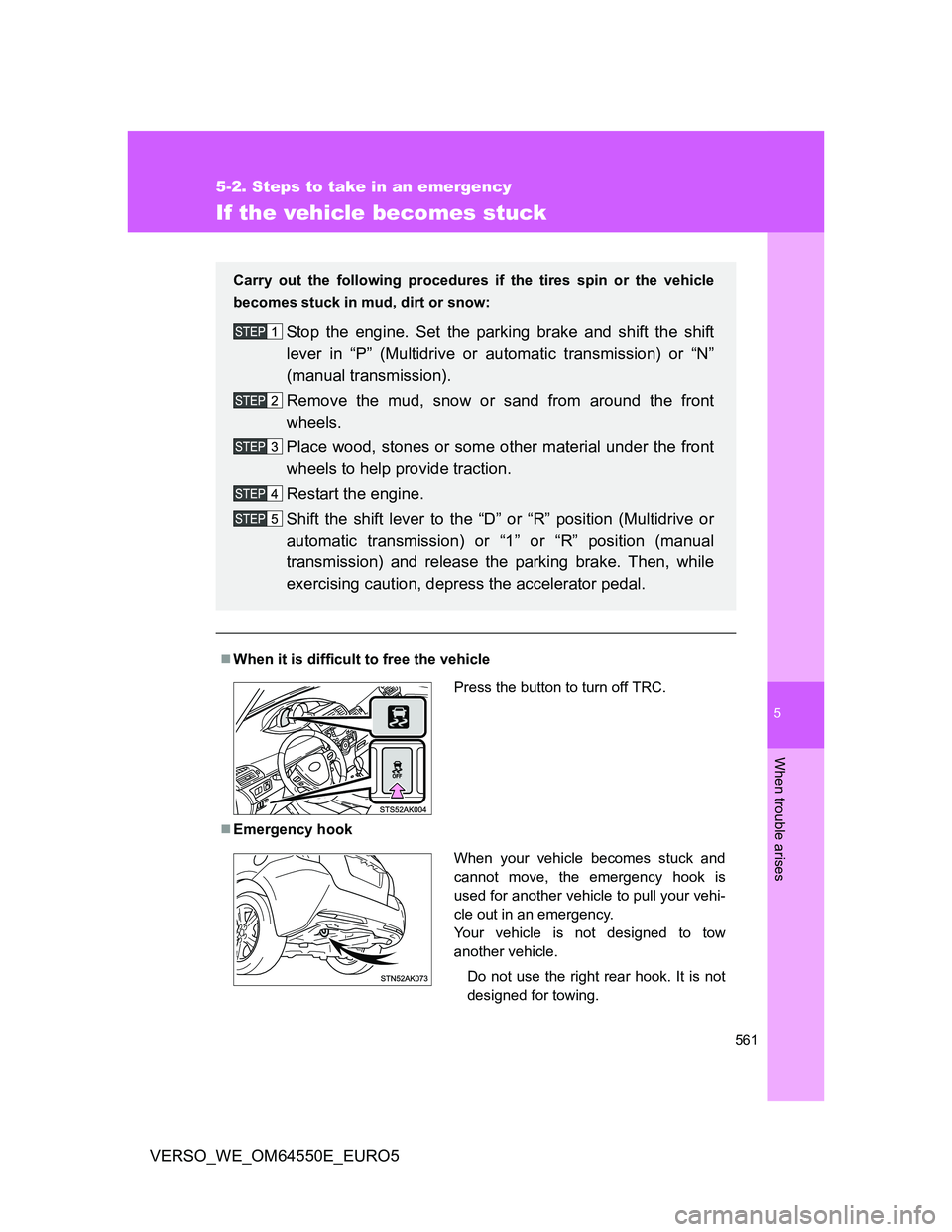

If the vehicle becomes stuck
When it is difficult to free the vehicle
Emergency hook
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Stop the engine. Set the parking brake and shift the shift
lever in “P” (Multidrive or automatic transmission) or “N”
(manual transmission).
Remove the mud, snow or sand from around the front
wheels.
Place wood, stones or some other material under the front
wheels to help provide traction.
Restart the engine.
Shift the shift lever to the “D” or “R” position (Multidrive or
automatic transmission) or “1” or “R” position (manual
transmission) and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
Press the button to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hook is
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
Do not use the right rear hook. It is not
designed for towing.

562 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5

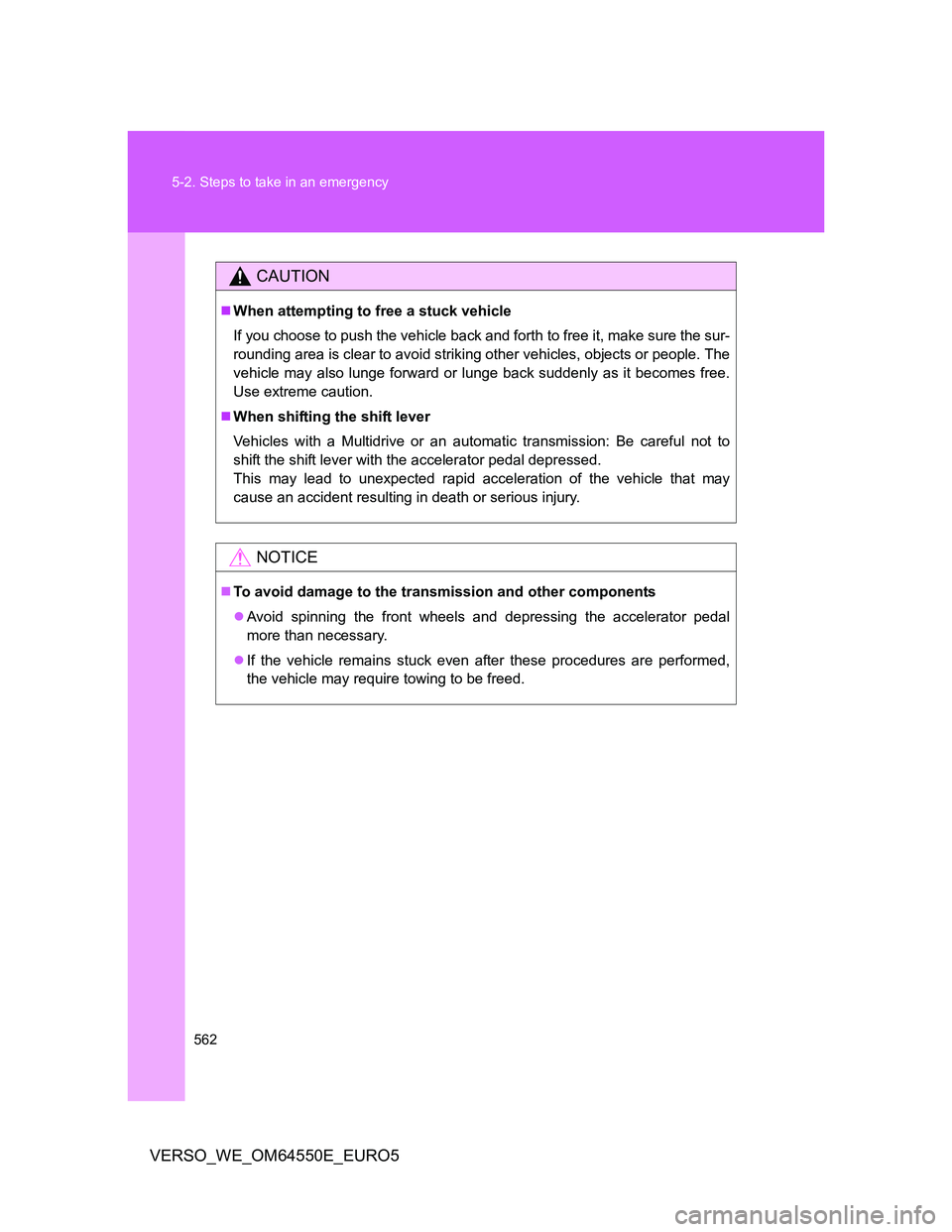

CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
When shifting the shift lever
Vehicles with a Multidrive or an automatic transmission: Be careful not to
shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damage to the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5
563
5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5

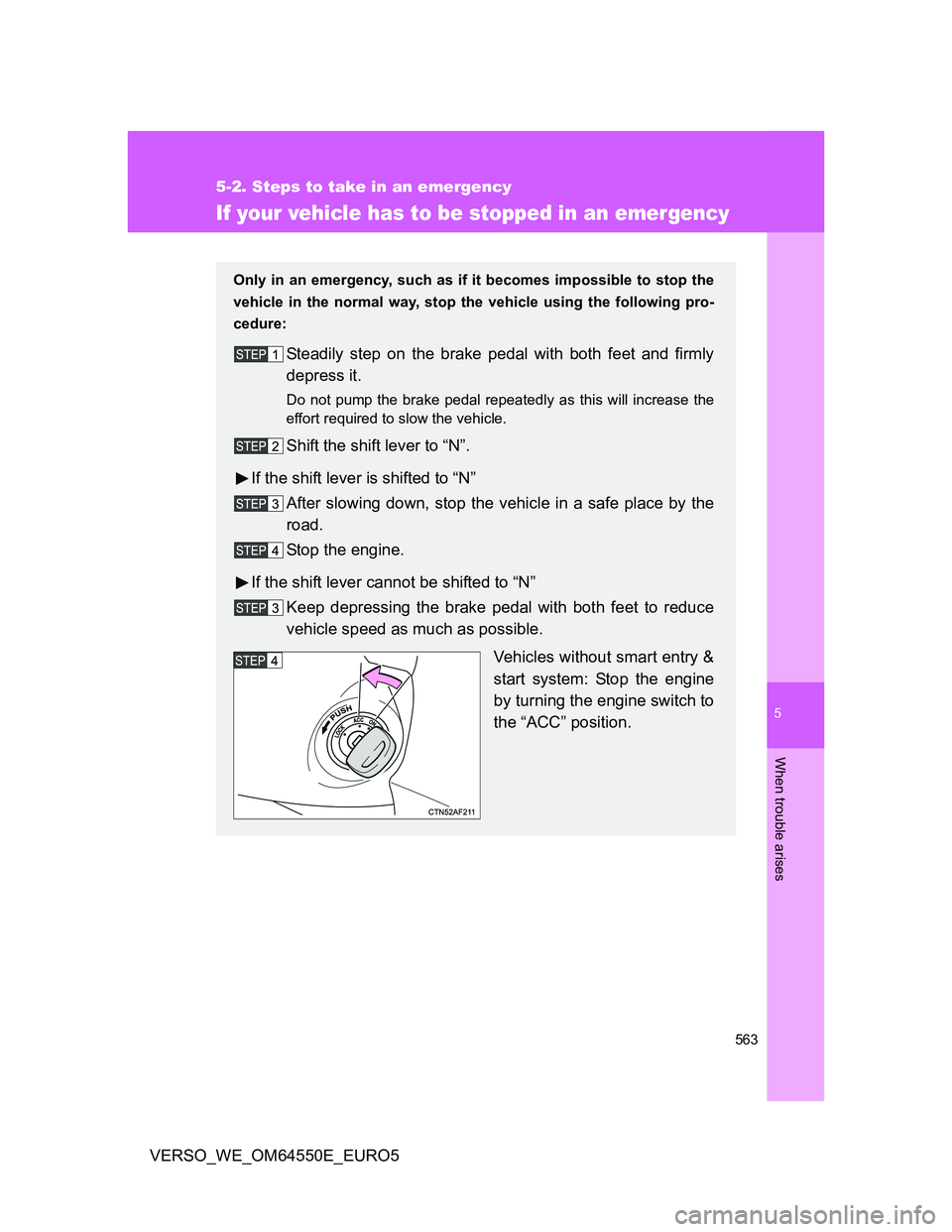

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N”
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to “N”
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.

564 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.

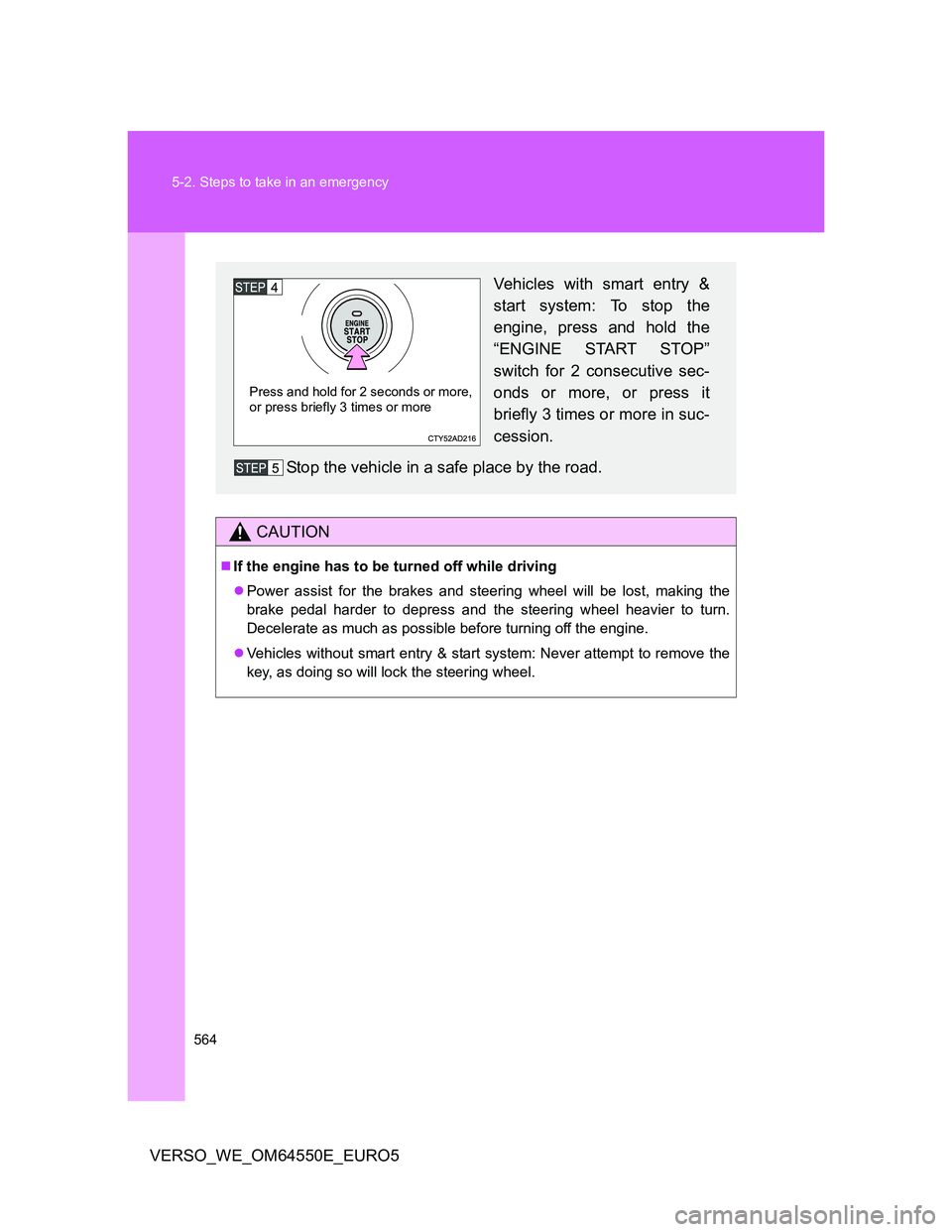

Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 2 seconds or more,
or press briefly 3 times or more

6Vehicle specifications
565
VERSO_WE_OM64550E_EURO5
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 566
Fuel information ................ 590
6-2. Customization
Customizable features ...... 594
6-3. Initialization
Items to initialize ............... 598

566
VERSO_WE_OM64550E_EURO5
6-1. Specifications
Maintenance data (fuel, oil level, etc.)

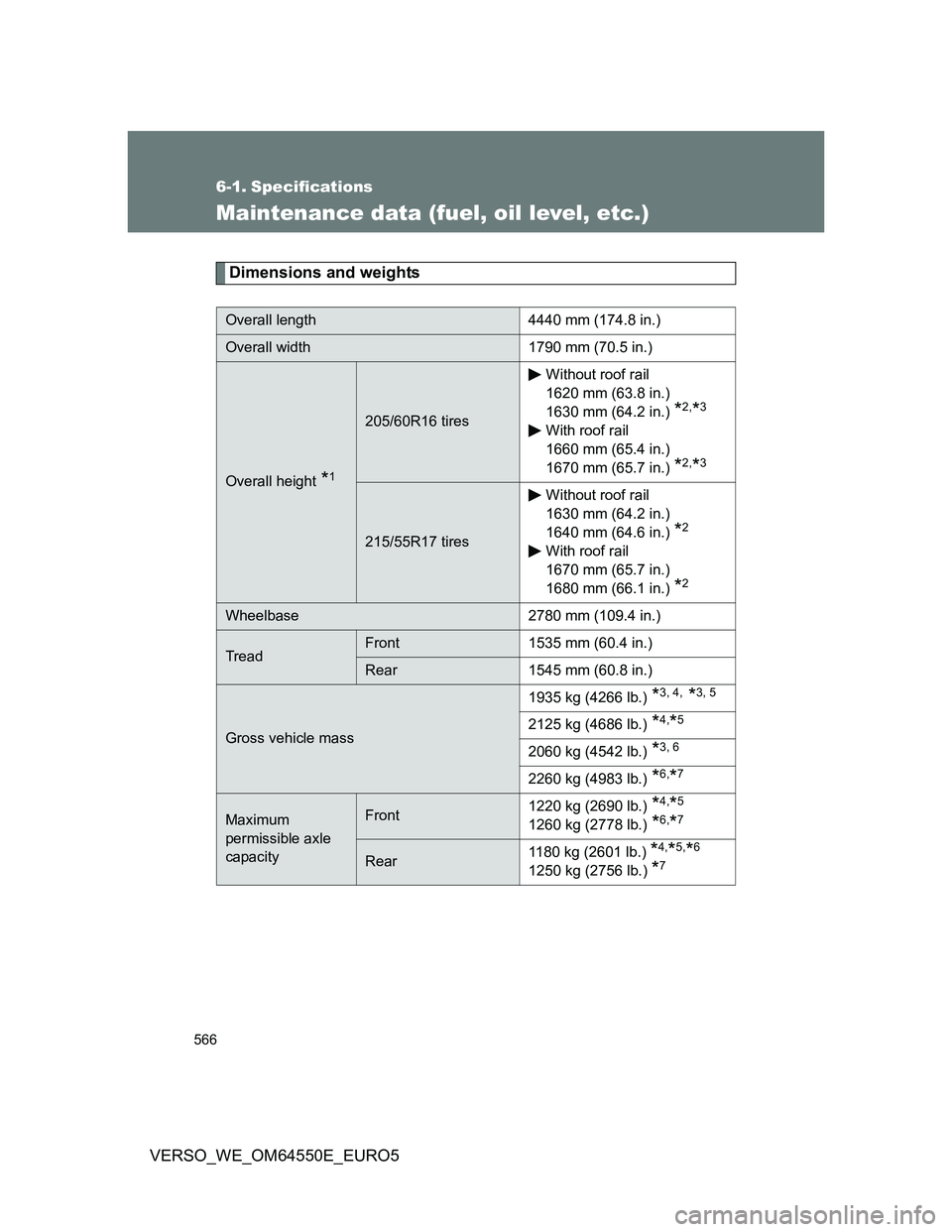

Dimensions and weights
Overall length 4440 mm (174.8 in.)
Overall width 1790 mm (70.5 in.)
Overall height *1
205/60R16 tiresWithout roof rail
1620 mm (63.8 in.)
1630 mm (64.2 in.)
*2,*3
With roof rail
1660 mm (65.4 in.)
1670 mm (65.7 in.)
*2,*3
215/55R17 tiresWithout roof rail
1630 mm (64.2 in.)
1640 mm (64.6 in.)
*2
With roof rail
1670 mm (65.7 in.)
1680 mm (66.1 in.)
*2
Wheelbase 2780 mm (109.4 in.)
TreadFront 1535 mm (60.4 in.)
Rear 1545 mm (60.8 in.)
Gross vehicle mass1935 kg (4266 lb.)
*3, 4, *3, 5
2125 kg (4686 lb.) *4,*5
2060 kg (4542 lb.) *3, 6
2260 kg (4983 lb.) *6,*7
Maximum
permissible axle
capacityFront1220 kg (2690 lb.)
*4,*5
1260 kg (2778 lb.) *6,*7
Rear1180 kg (2601 lb.) *4,*5,*6
1250 kg (2756 lb.) *7

567 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5
*1: Unladen vehicles
*2: Vehicles with rough road area spec
*3: Vehicle category N1 models
*4: 1ZR-FAE engine
*5: 2ZR-FAE engine
*6: 1AD-FTV engine
*7: 2AD-FHV engine
*8: Check the gross combination vehicle mass described on the information tag
(manufacture’s label). (P. 294, 568)
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

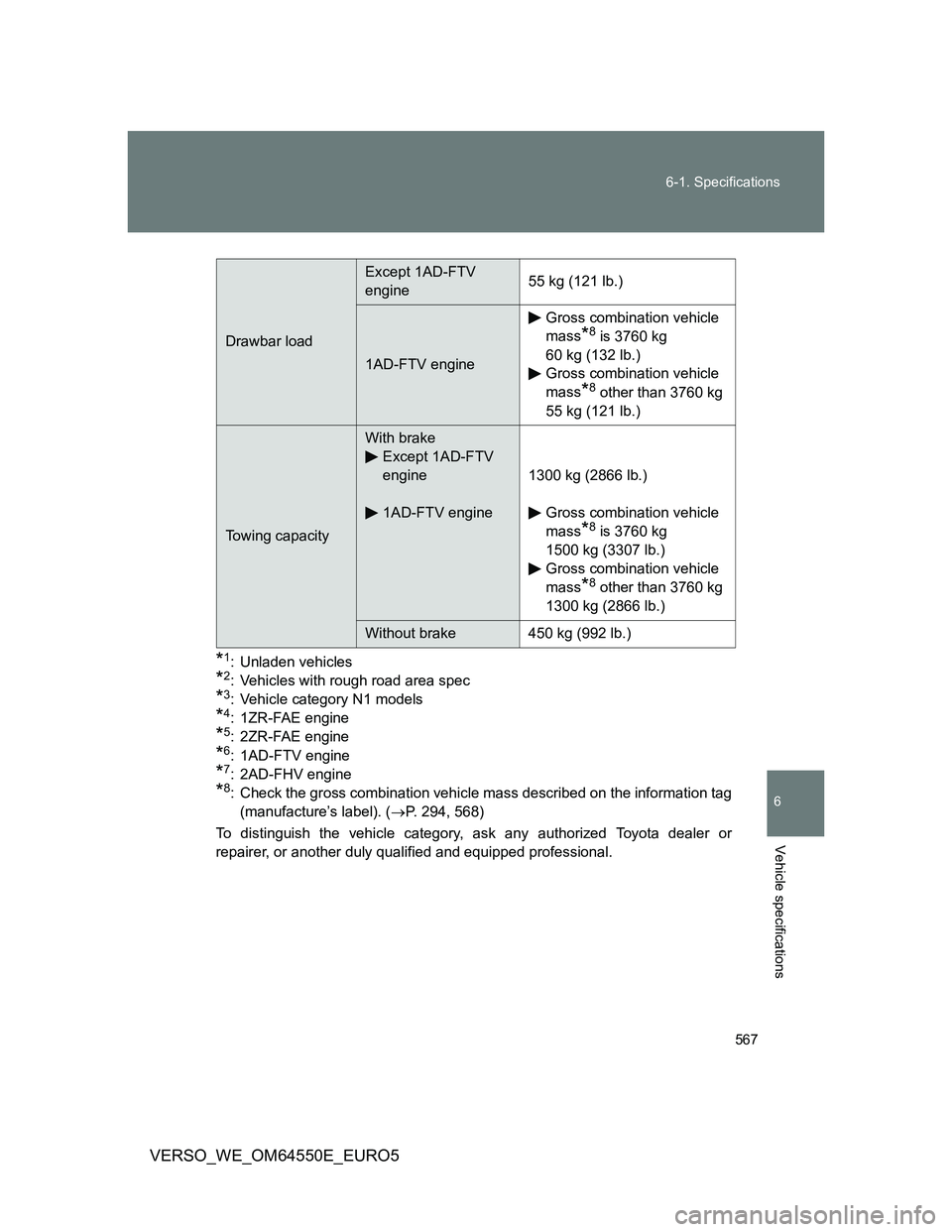

Drawbar load
Except 1AD-FTV
engine55 kg (121 lb.)
1AD-FTV engineGross combination vehicle
mass
*8 is 3760 kg
60 kg (132 lb.)
Gross combination vehicle
mass
*8 other than 3760 kg
55 kg (121 lb.)
Towing capacity
With brake
Except 1AD-FTV
engine
1AD-FTV engine1300 kg (2866 lb.)
Gross combination vehicle
mass
*8 is 3760 kg
1500 kg (3307 lb.)
Gross combination vehicle
mass
*8 other than 3760 kg
1300 kg (2866 lb.)
Without brake 450 kg (992 lb.)

568 6-1. Specifications
VERSO_WE_OM64550E_EURO5

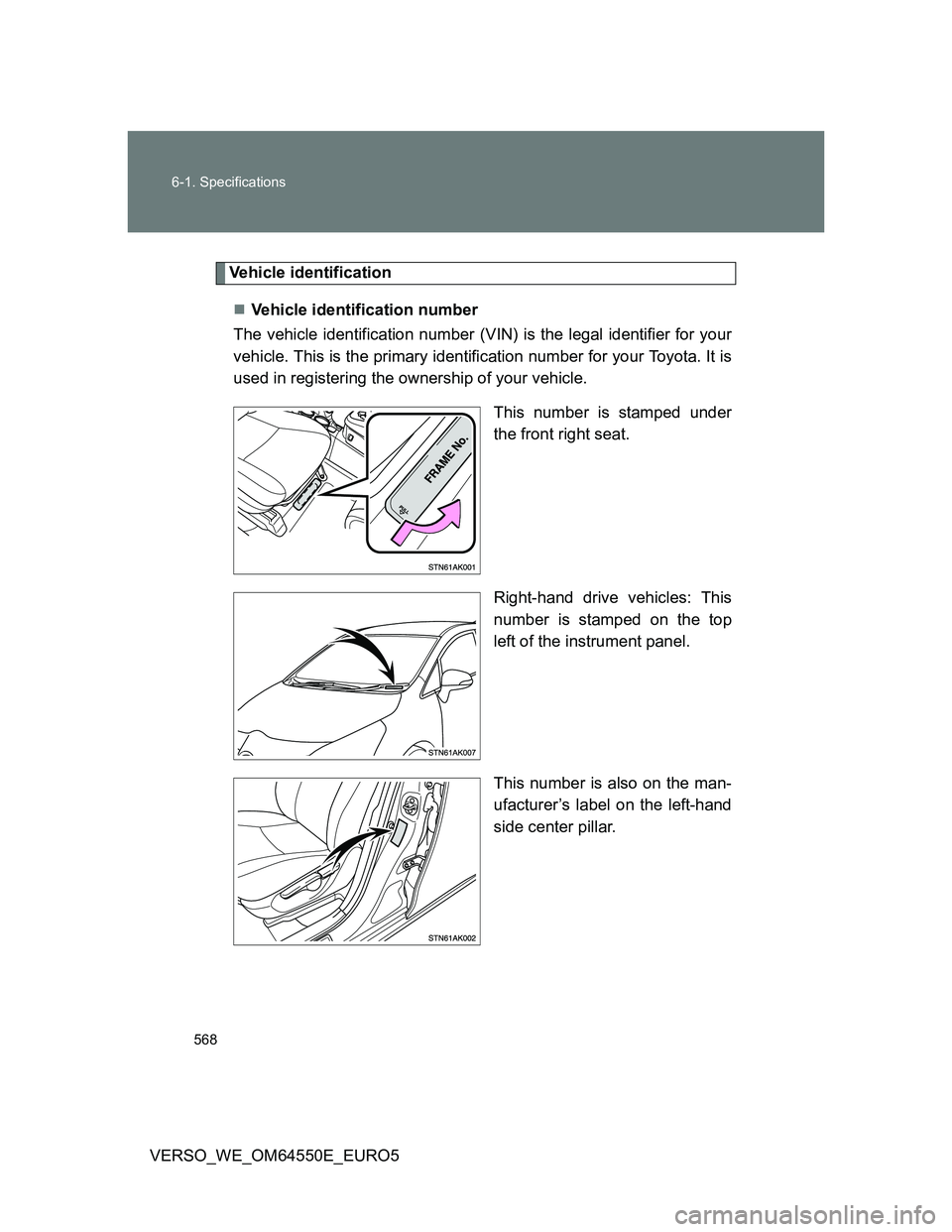

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.

569 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5Engine number

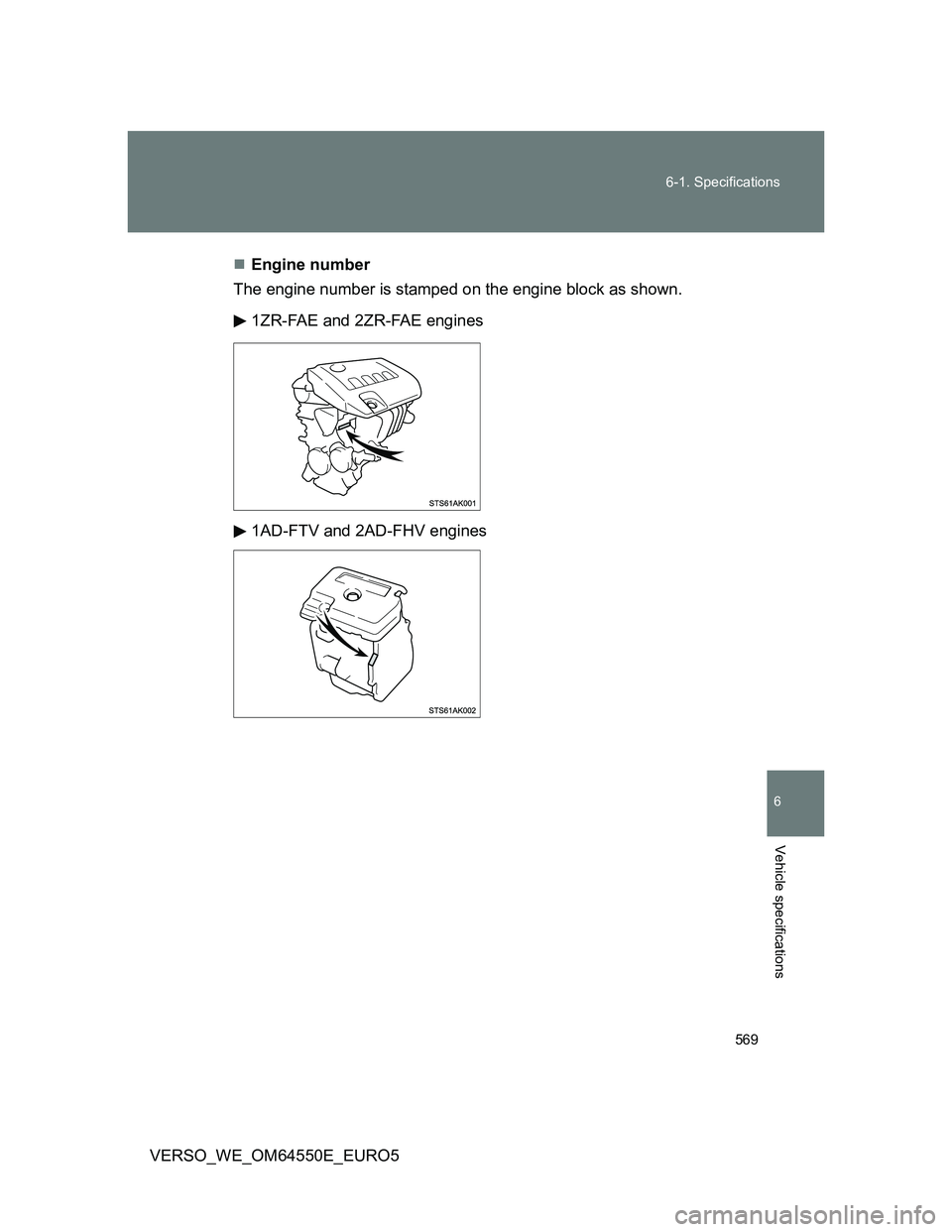

The engine number is stamped on the engine block as shown.
1ZR-FAE and 2ZR-FAE engines
1AD-FTV and 2AD-FHV engines

570 6-1. Specifications
VERSO_WE_OM64550E_EURO5
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu. in.)
Valve clearance
(engine cold)Automatic adjustment

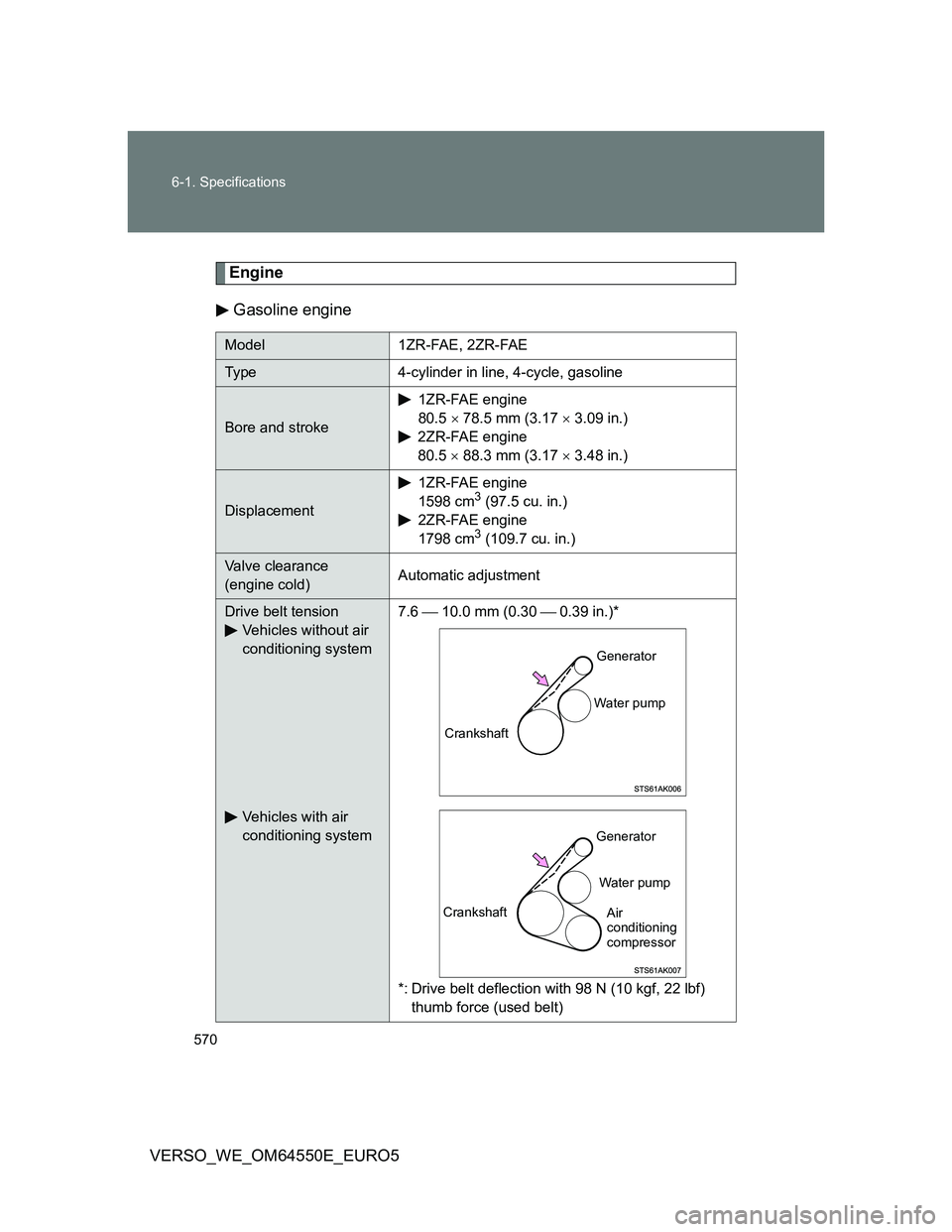

Drive belt tension
Vehicles without air
conditioning system
Vehicles with air
conditioning system7.6  10.0 mm (0.30  0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
CrankshaftGenerator
Water pump
CrankshaftGenerator
Water pump
Air
conditioning
compressor
