TOYOTA VERSO 2013 Owners Manual

581 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5

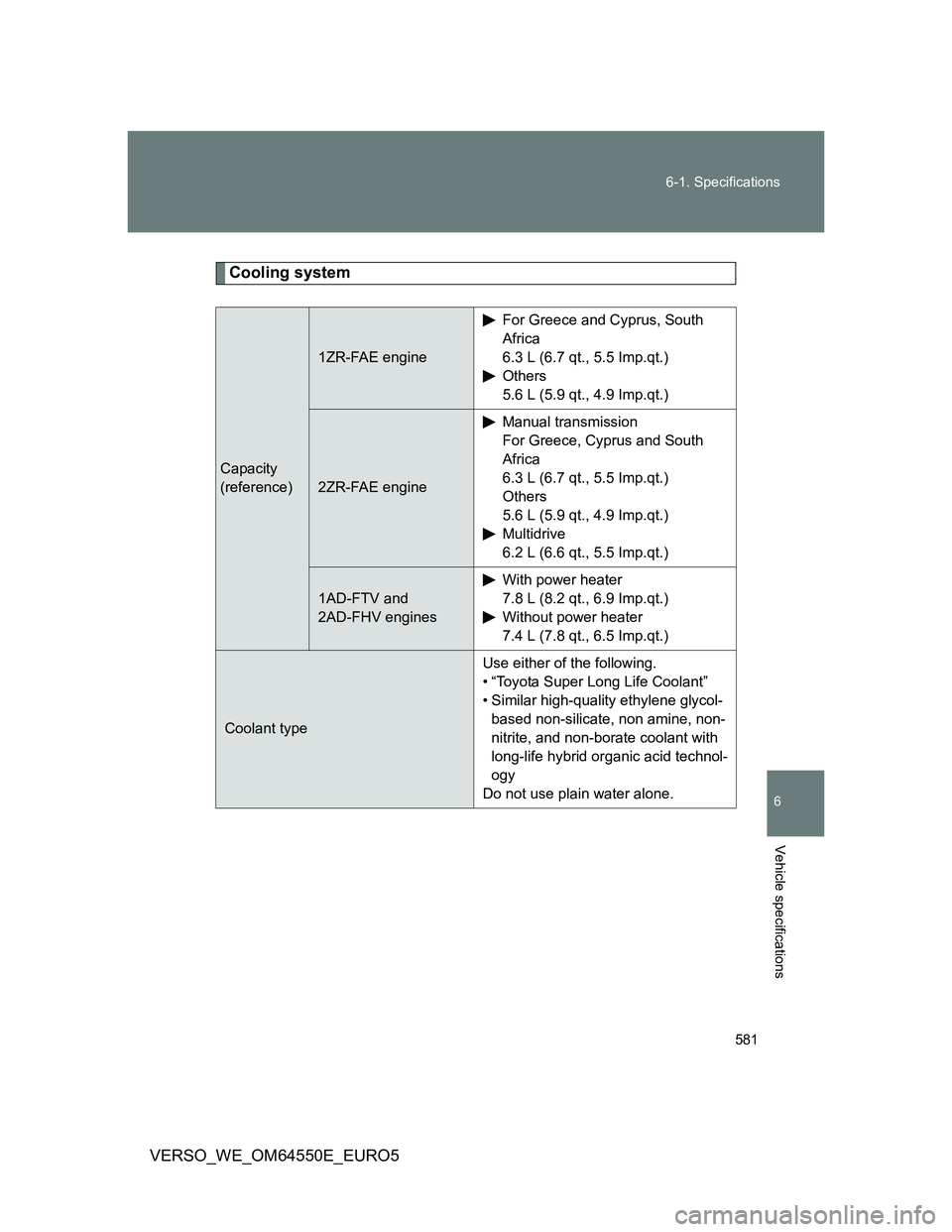

Cooling system
Capacity
(reference)
1ZR-FAE engine
For Greece and Cyprus, South
Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
2ZR-FAE engine
Manual transmission
For Greece, Cyprus and South
Africa
6.3 L (6.7 qt., 5.5 Imp.qt.)
Others
5.6 L (5.9 qt., 4.9 Imp.qt.)
Multidrive
6.2 L (6.6 qt., 5.5 Imp.qt.)
1AD-FTV and
2AD-FHV engines
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

582 6-1. Specifications
VERSO_WE_OM64550E_EURO5

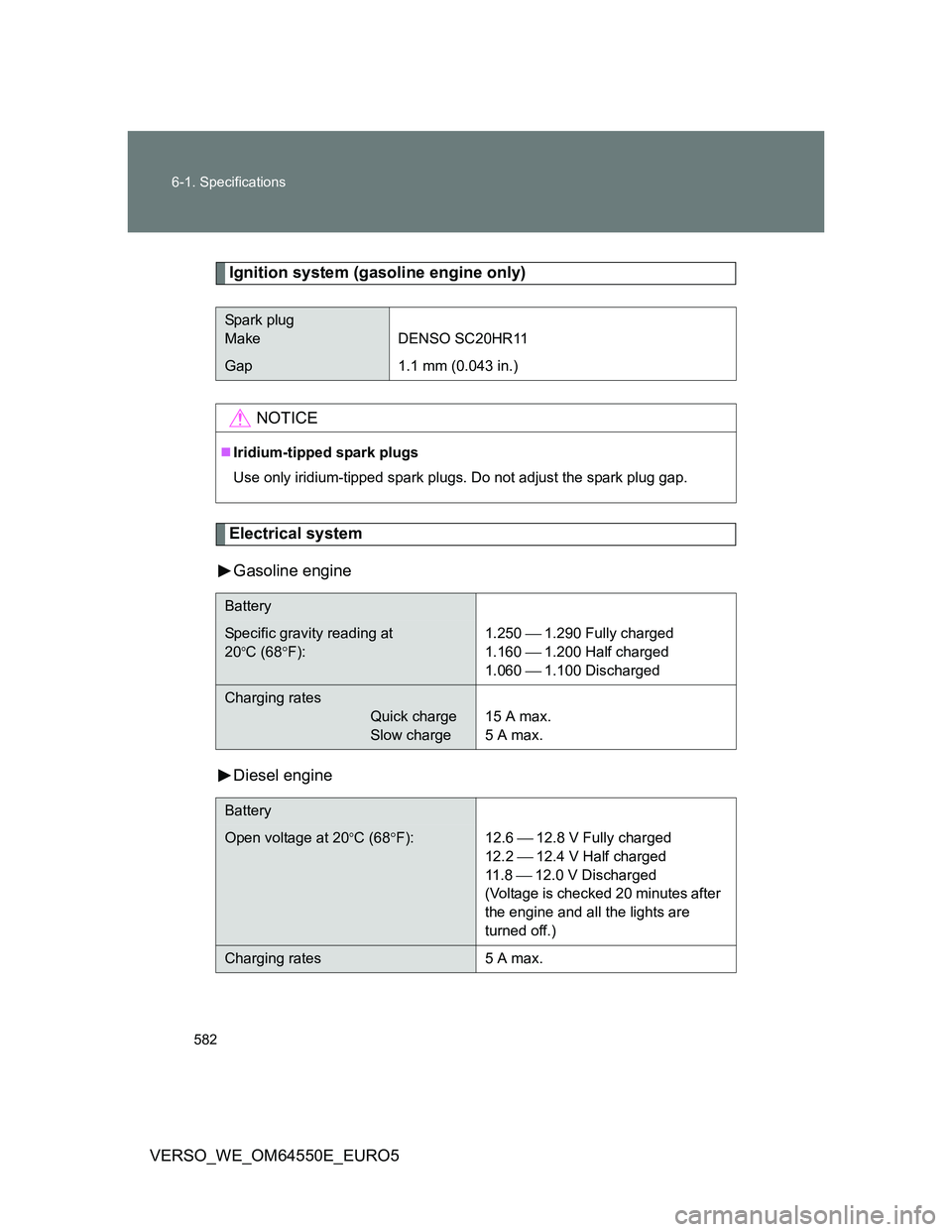

Ignition system (gasoline engine only)
Electrical system
Gasoline engine
Diesel engine
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Battery
Specific gravity reading at
20
C (68F):1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Battery
Open voltage at 20C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.

583 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5

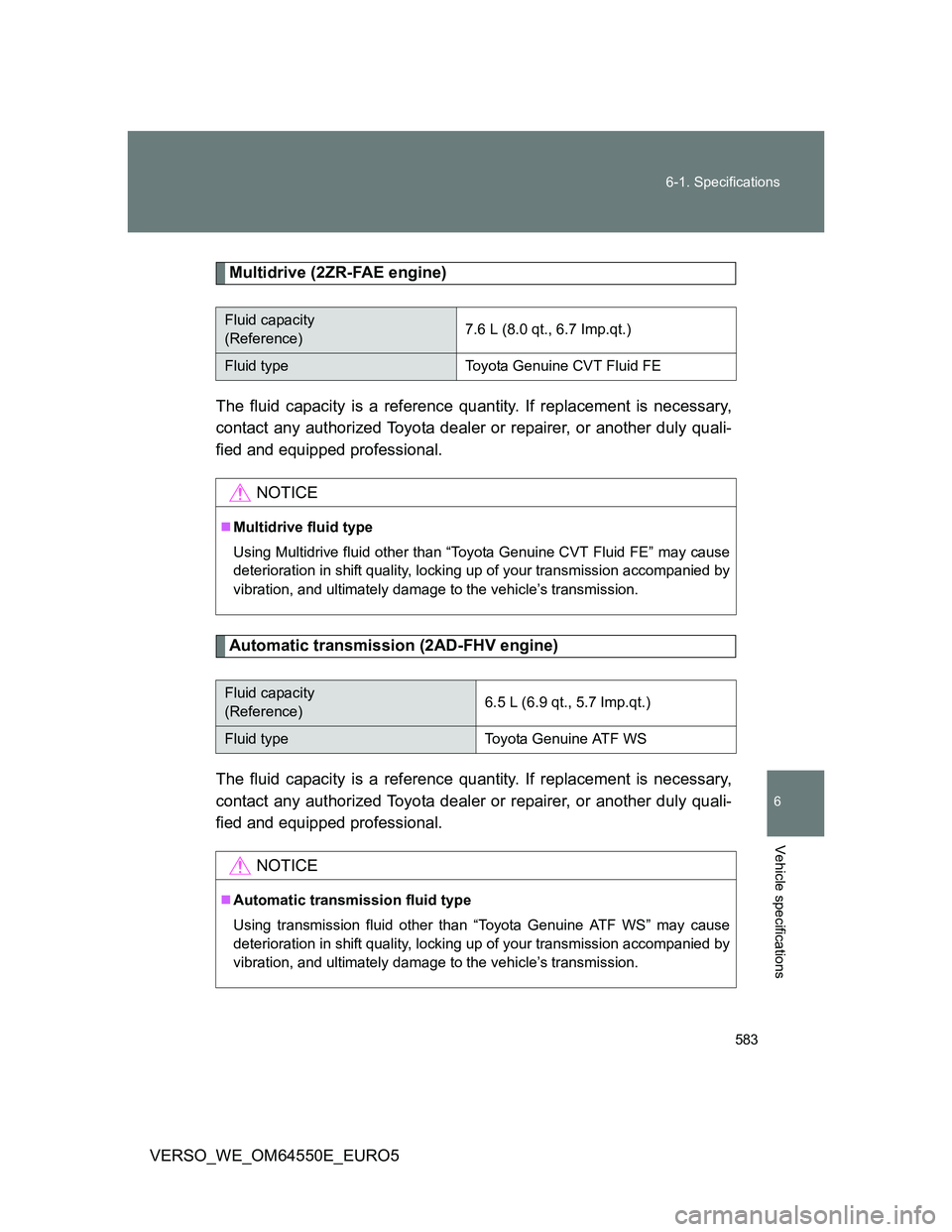

Multidrive (2ZR-FAE engine)
The fluid capacity is a reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Automatic transmission (2AD-FHV engine)
The fluid capacity is a reference quantity. If replacement is necessary,
contact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Fluid capacity
(Reference)7.6 L (8.0 qt., 6.7 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.
Fluid capacity
(Reference)6.5 L (6.9 qt., 5.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage to the vehicle’s transmission.

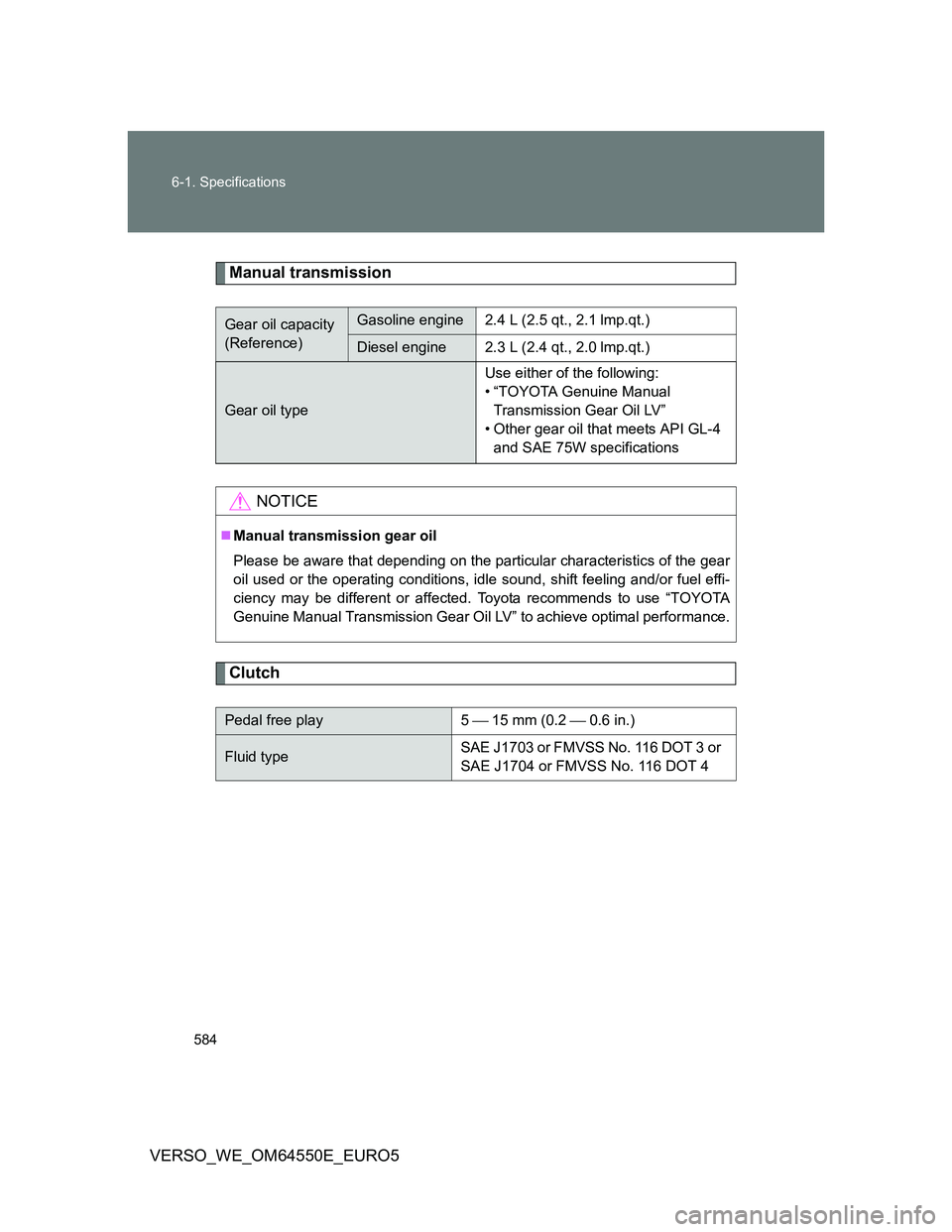

584 6-1. Specifications
VERSO_WE_OM64550E_EURO5
Manual transmission
Clutch
Gear oil capacity
(Reference)Gasoline engine2.4 L (2.5 qt., 2.1 lmp.qt.)
Diesel engine2.3 L (2.4 qt., 2.0 lmp.qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4

585 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5

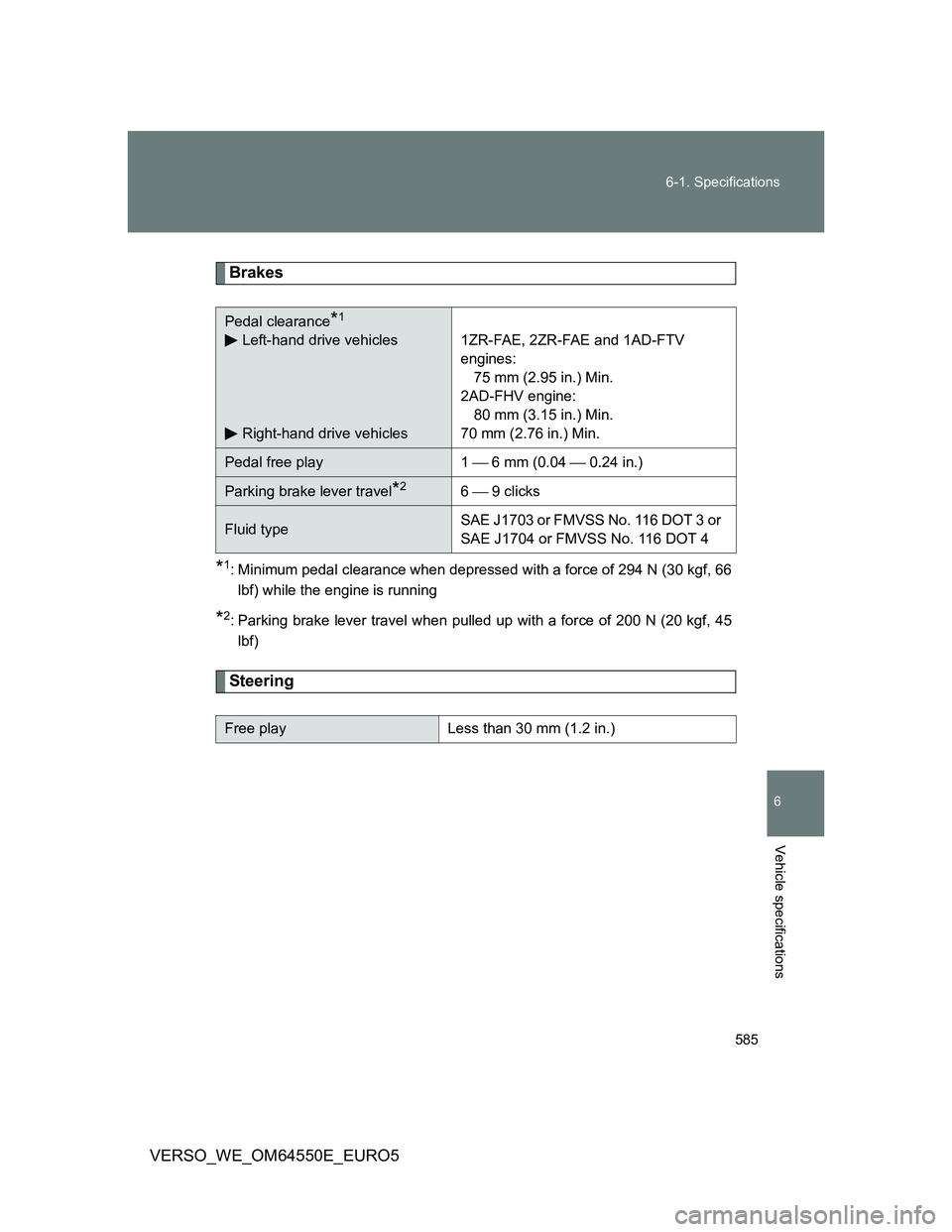

Brakes
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf, 66
lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf, 45
lbf)
Steering
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles1ZR-FAE, 2ZR-FAE and 1AD-FTV
engines:
75 mm (2.95 in.) Min.
2AD-FHV engine:
80 mm (3.15 in.) Min.
70 mm (2.76 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*26  9 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.2 in.)

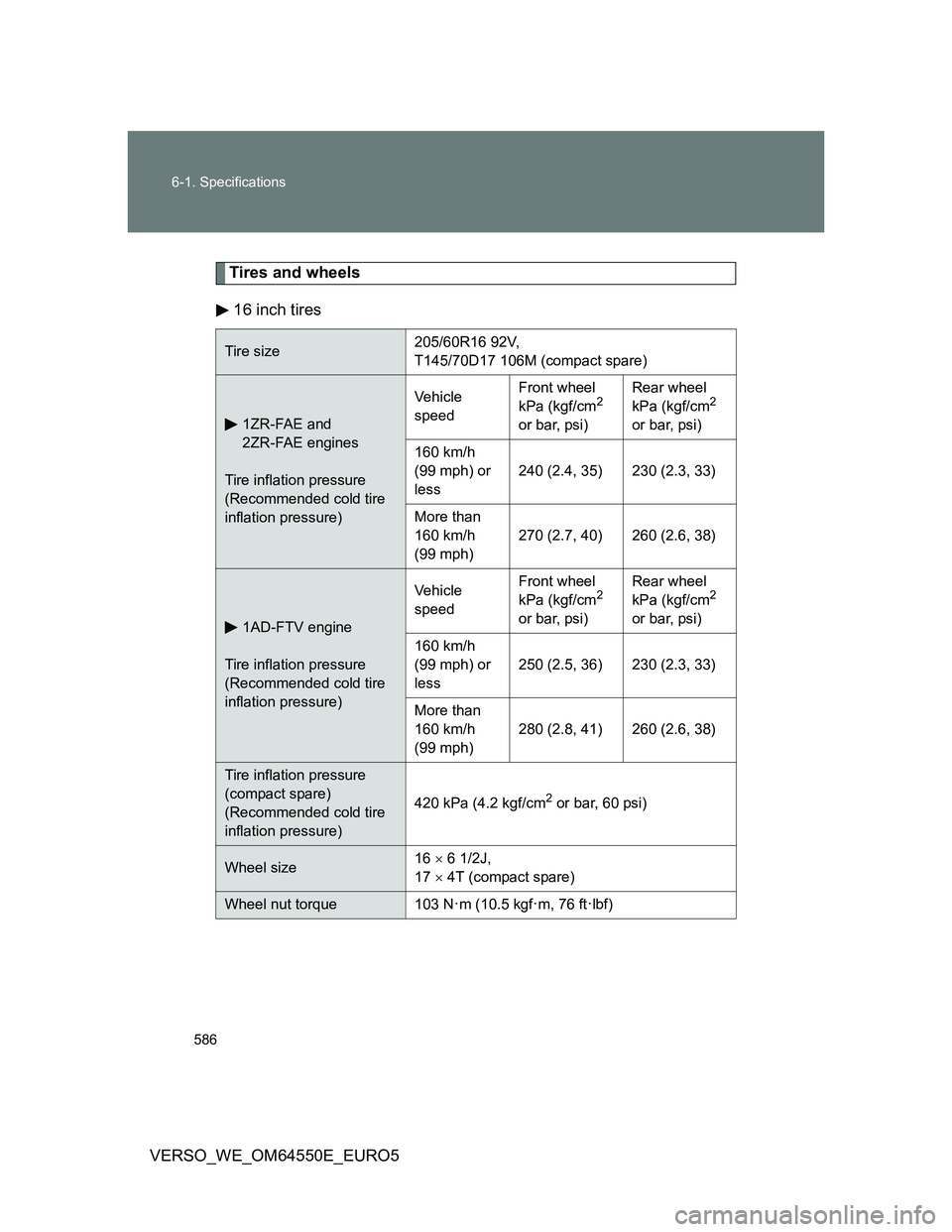

586 6-1. Specifications
VERSO_WE_OM64550E_EURO5
Tires and wheels
16 inch tires
Tire size205/60R16 92V,
T145/70D17 106M (compact spare)
1ZR-FAE and
2ZR-FAE engines
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less240 (2.4, 35) 230 (2.3, 33)
More than
160 km/h
(99 mph)270 (2.7, 40) 260 (2.6, 38)
1AD-FTV engine
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
160 km/h
(99 mph) or
less250 (2.5, 36) 230 (2.3, 33)
More than
160 km/h
(99 mph)280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size16  6 1/2J,
17  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

587 6-1. Specifications
6
Vehicle specifications

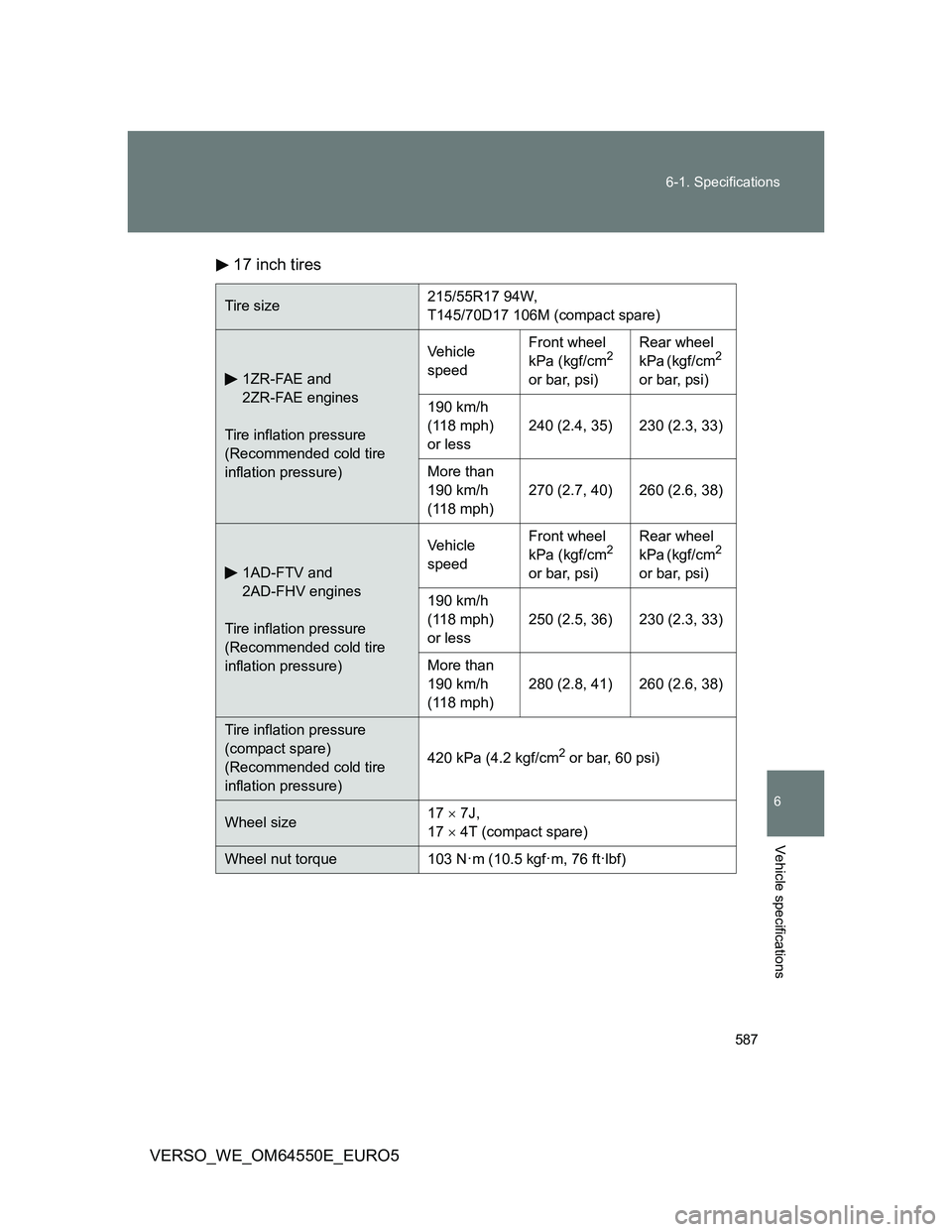

VERSO_WE_OM64550E_EURO517 inch tires
Tire size215/55R17 94W,
T145/70D17 106M (compact spare)
1ZR-FAE and
2ZR-FAE engines
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less240 (2.4, 35) 230 (2.3, 33)
More than
190 km/h
(118 mph)270 (2.7, 40) 260 (2.6, 38)
1AD-FTV and
2AD-FHV engines
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
190 km/h
(118 mph)
or less250 (2.5, 36) 230 (2.3, 33)
More than
190 km/h
(118 mph)280 (2.8, 41) 260 (2.6, 38)
Tire inflation pressure
(compact spare)
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm
2 or bar, 60 psi)
Wheel size17  7J,
17  4T (compact spare)
Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

588 6-1. Specifications
VERSO_WE_OM64550E_EURO5

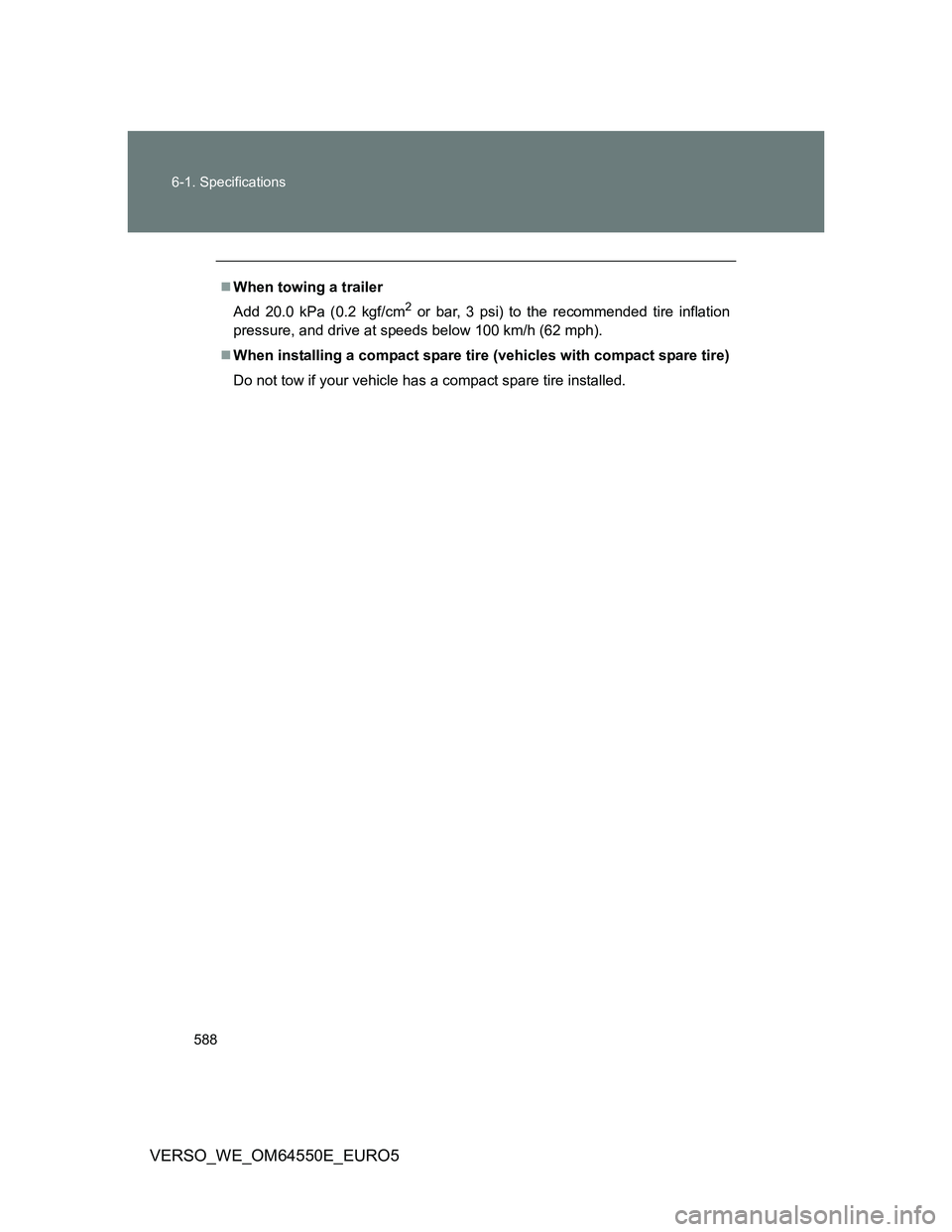

When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
When installing a compact spare tire (vehicles with compact spare tire)
Do not tow if your vehicle has a compact spare tire installed.

589 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5

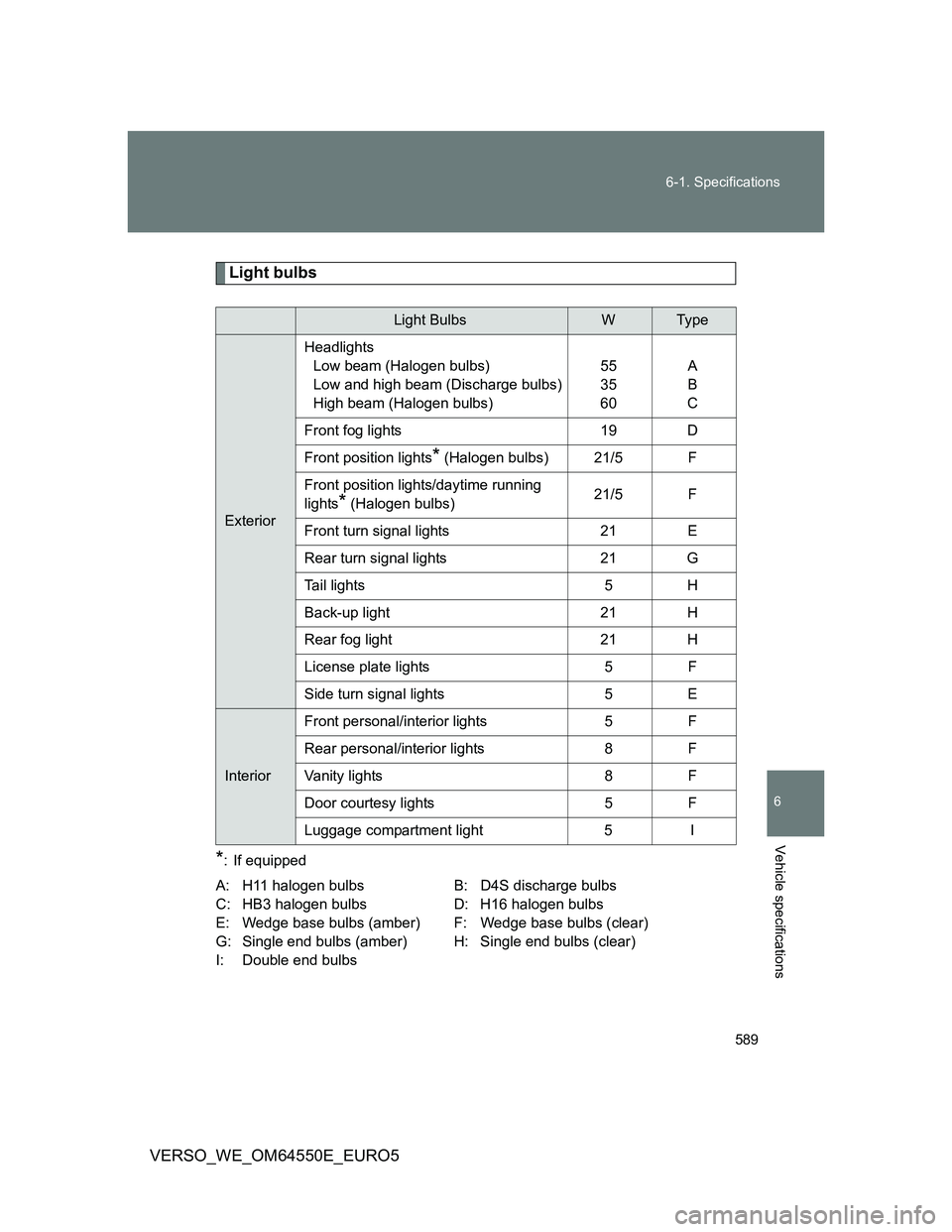

Light bulbs
*: If equipped
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)55
35
60A
B
C
Front fog lights 19 D
Front position lights
* (Halogen bulbs) 21/5 F
Front position lights/daytime running
lights
* (Halogen bulbs)21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
InteriorFront personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I

590
6-1. Specifications
VERSO_WE_OM64550E_EURO5

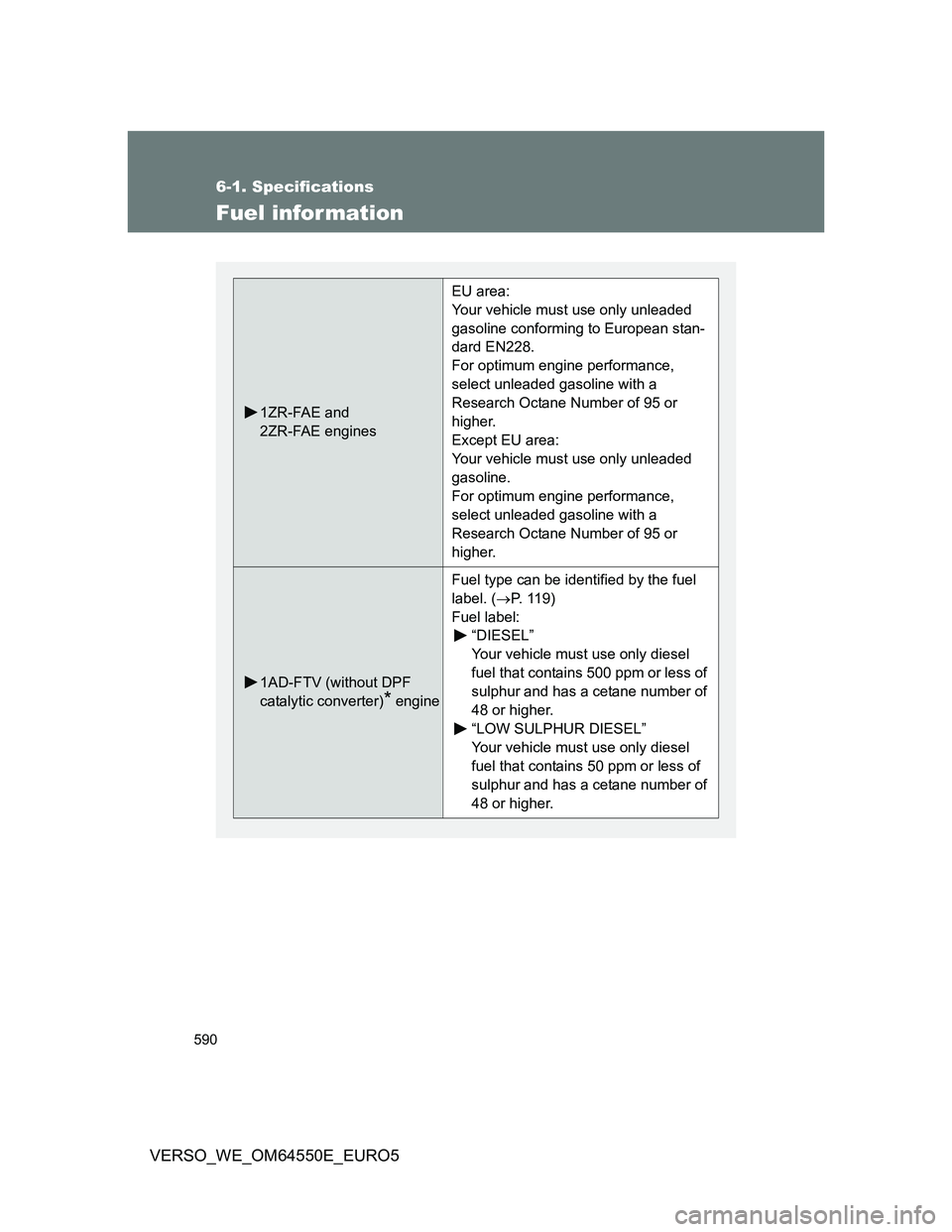

Fuel infor mation
1ZR-FAE and
2ZR-FAE engines
EU area:
Your vehicle must use only unleaded
gasoline conforming to European stan-
dard EN228.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
Except EU area:
Your vehicle must use only unleaded
gasoline.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
1AD-FTV (without DPF
catalytic converter)
* engine
Fuel type can be identified by the fuel
label. (P. 1 1 9 )
Fuel label:
“DIESEL”
Your vehicle must use only diesel
fuel that contains 500 ppm or less of
sulphur and has a cetane number of
48 or higher.
“LOW SULPHUR DIESEL”
Your vehicle must use only diesel
fuel that contains 50 ppm or less of
sulphur and has a cetane number of
48 or higher.
