TOYOTA VERSO 2013 Owners Manual

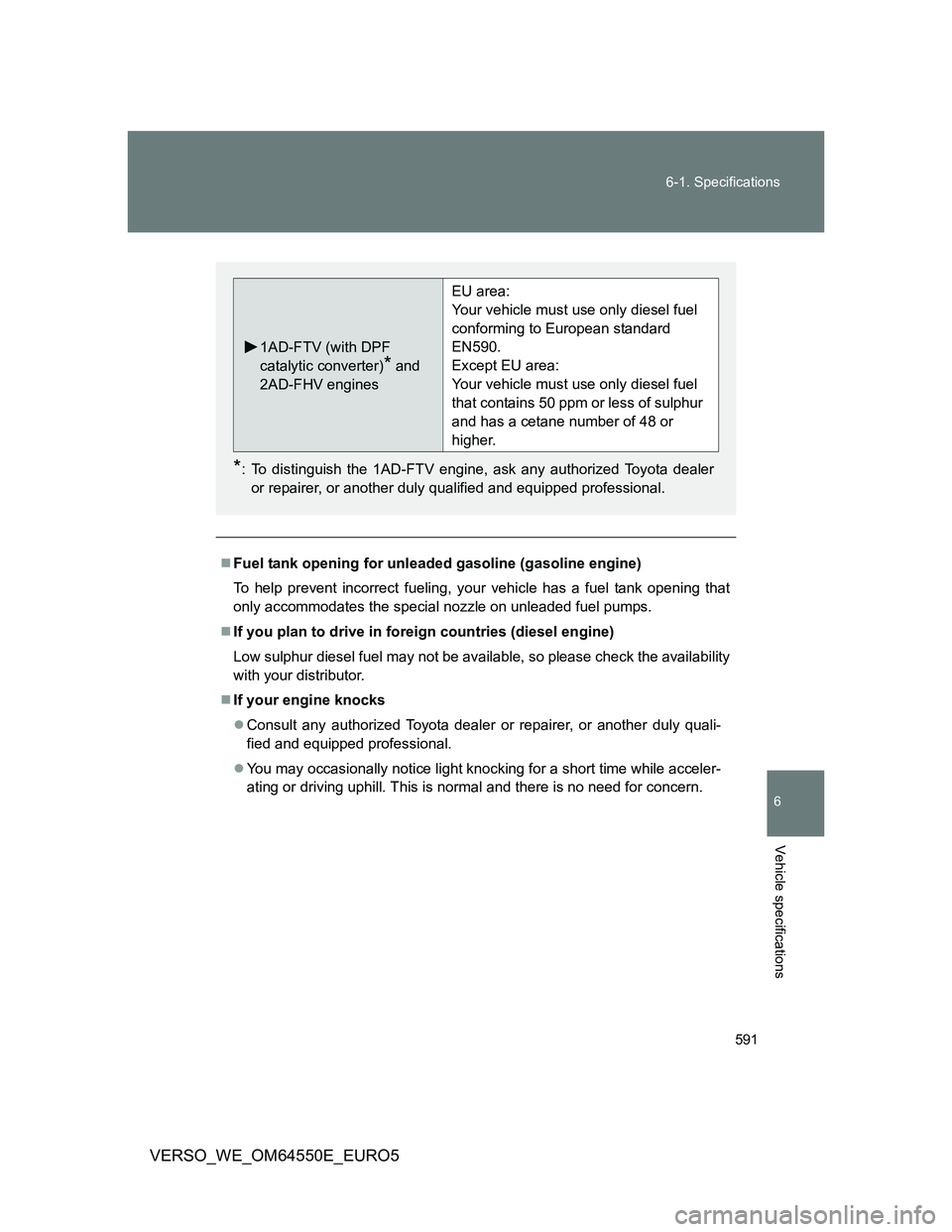

591 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5
Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries (diesel engine)
Low sulphur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
*: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
1AD-FTV (with DPF
catalytic converter)
* and
2AD-FHV engines
EU area:
Your vehicle must use only diesel fuel
conforming to European standard
EN590.
Except EU area:
Your vehicle must use only diesel fuel
that contains 50 ppm or less of sulphur
and has a cetane number of 48 or
higher.

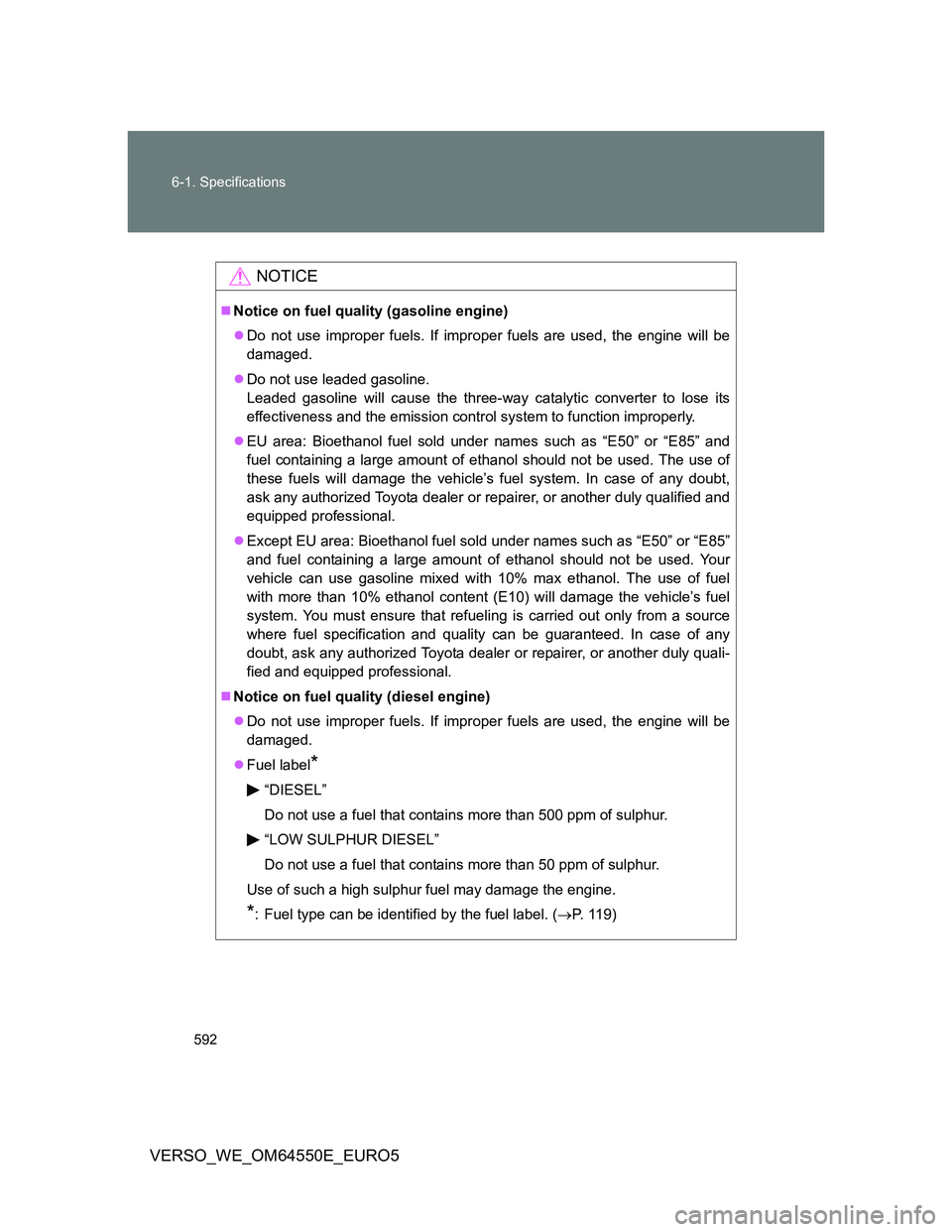

592 6-1. Specifications
VERSO_WE_OM64550E_EURO5
NOTICE
Notice on fuel quality (gasoline engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Notice on fuel quality (diesel engine)
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Fuel label
*
“DIESEL”
Do not use a fuel that contains more than 500 ppm of sulphur.
“LOW SULPHUR DIESEL”
Do not use a fuel that contains more than 50 ppm of sulphur.
Use of such a high sulphur fuel may damage the engine.
*: Fuel type can be identified by the fuel label. (P. 119)

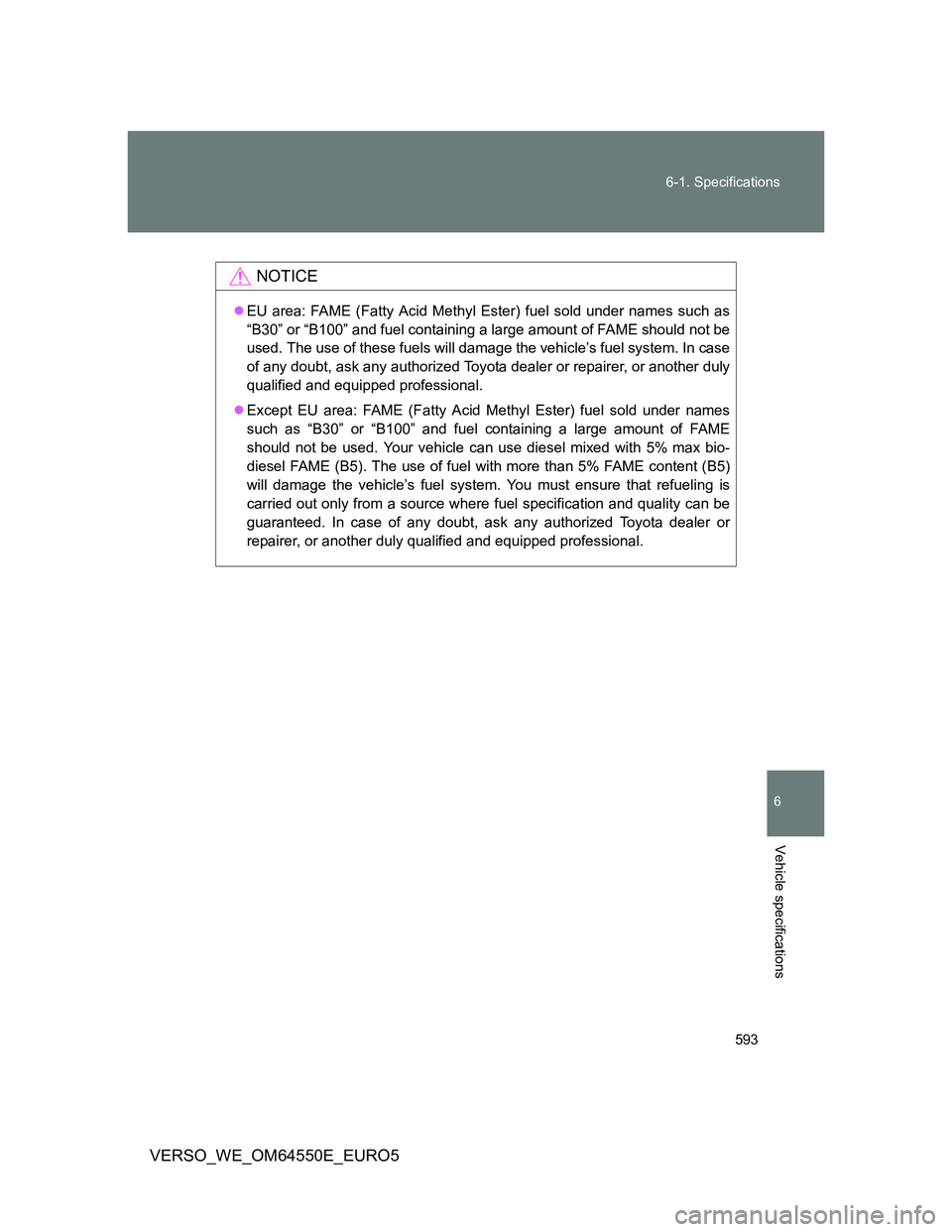

593 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5
NOTICE
EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Except EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names
such as “B30” or “B100” and fuel containing a large amount of FAME
should not be used. Your vehicle can use diesel mixed with 5% max bio-
diesel FAME (B5). The use of fuel with more than 5% FAME content (B5)
will damage the vehicle’s fuel system. You must ensure that refueling is
carried out only from a source where fuel specification and quality can be
guaranteed. In case of any doubt, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

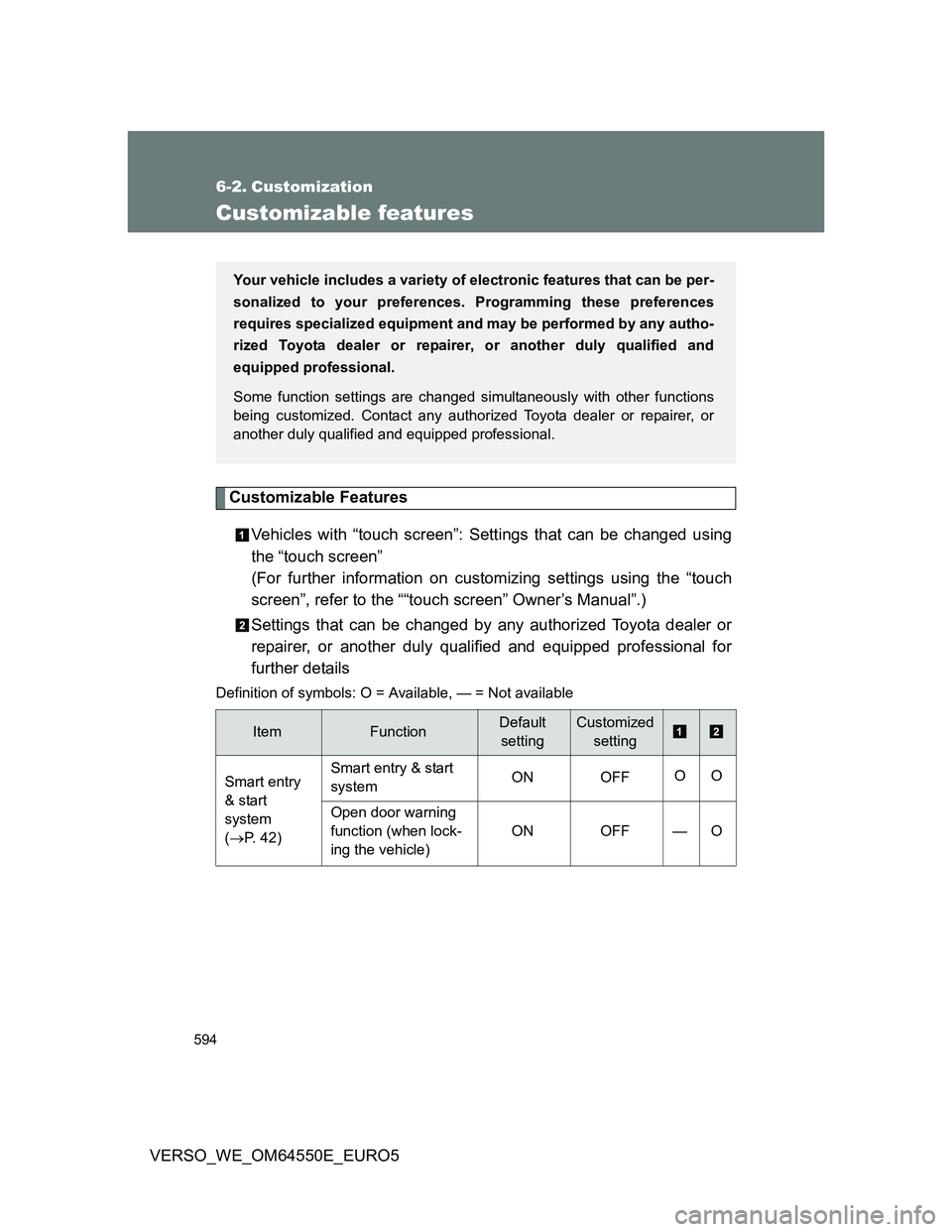

594
VERSO_WE_OM64550E_EURO5
6-2. Customization
Customizable features
Customizable Features
Vehicles with “touch screen”: Settings that can be changed using
the “touch screen”
(For further information on customizing settings using the “touch
screen”, refer to the ““touch screen” Owner’s Manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for
further details
Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart entry
& start
system
(P. 42)Smart entry & start
systemON OFFOO
Open door warning
function (when lock-
ing the vehicle)ON OFF — O
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

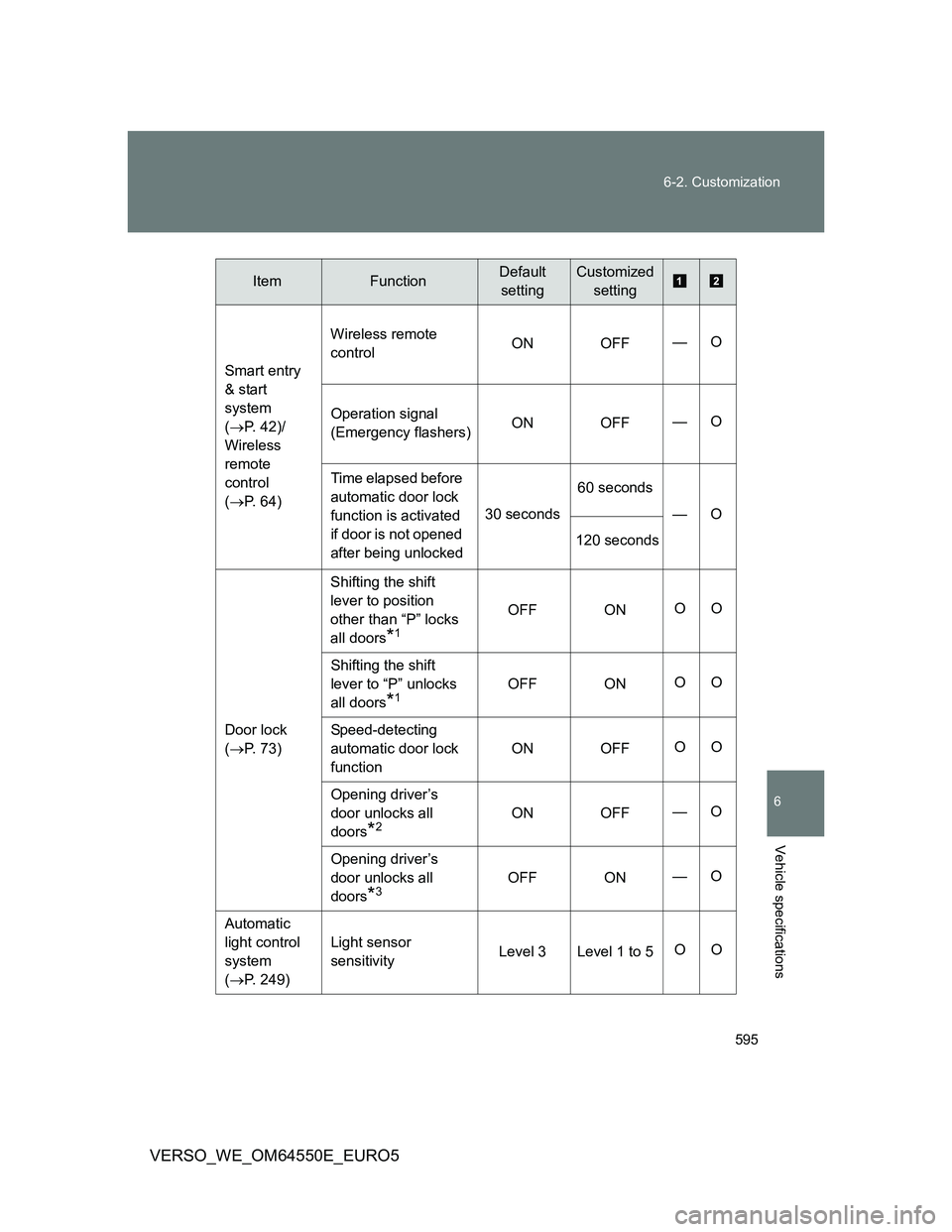

595 6-2. Customization
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5
Smart entry
& start
system
(P. 42)/
Wireless
remote
control
(P. 64)Wireless remote
controlON OFF—O
Operation signal
(Emergency flashers)ON OFF—O
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked30 seconds60 seconds
—O
120 seconds
Door lock
(P. 73)Shifting the shift
lever to position
other than “P” locks
all doors
*1
OFF ONOO
Shifting the shift
lever to “P” unlocks
all doors
*1OFF ONOO
Speed-detecting
automatic door lock
functionON OFFOO
Opening driver’s
door unlocks all
doors
*2ON OFF—O
Opening driver’s
door unlocks all
doors
*3OFF ON—O
Automatic
light control
system
(P. 249)Light sensor
sensitivityLevel 3 Level 1 to 5OO
ItemFunctionDefault
settingCustomized
setting

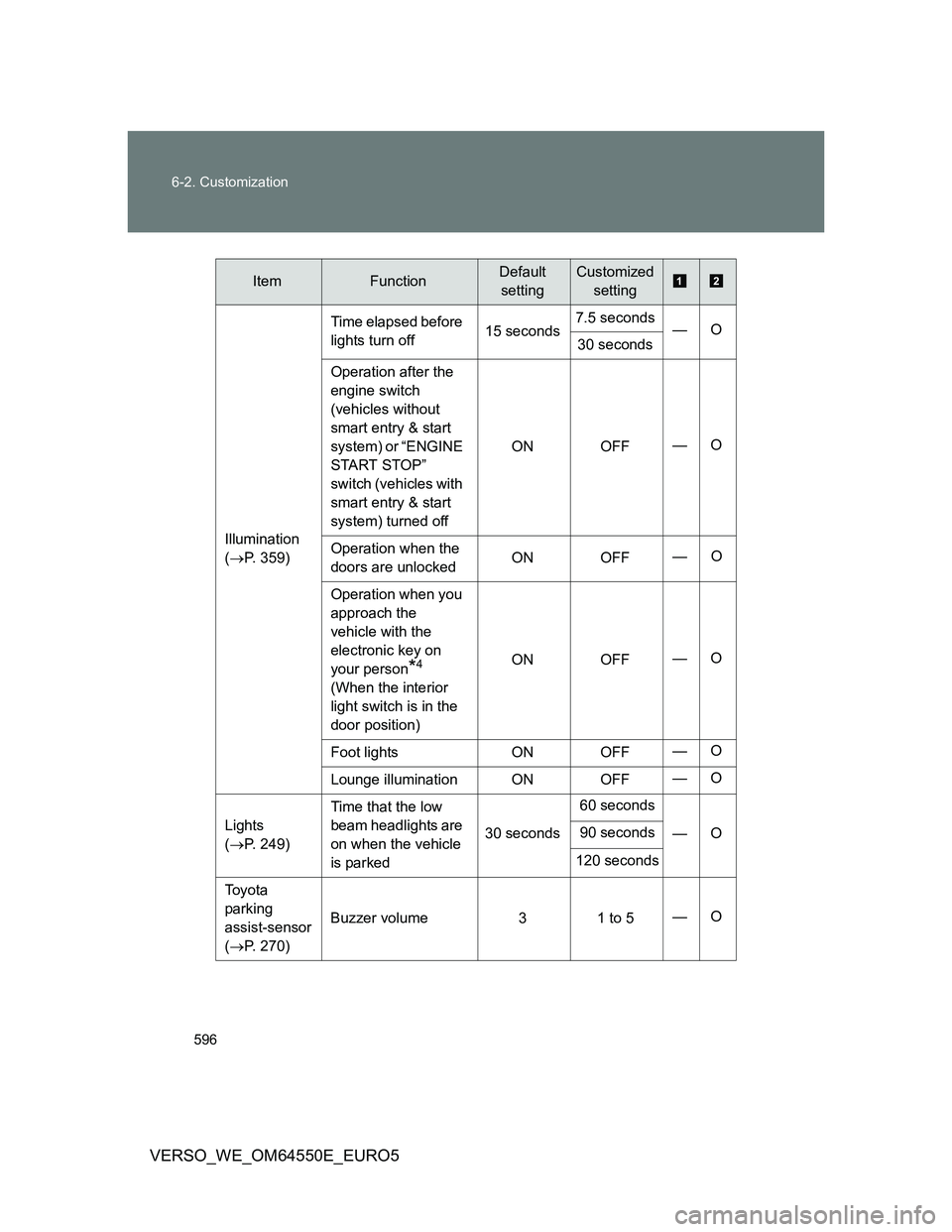

596 6-2. Customization
VERSO_WE_OM64550E_EURO5
Illumination
(P. 359)Time elapsed before
lights turn off15 seconds7.5 seconds
—O
30 seconds
Operation after the
engine switch
(vehicles without
smart entry & start
system) or “ENGINE
START STOP”
switch (vehicles with
smart entry & start
system) turned offON OFF—O
Operation when the
doors are unlockedON OFF—O
Operation when you
approach the
vehicle with the
electronic key on
your person
*4
(When the interior
light switch is in the
door position)ON OFF—O
Foot lights ON OFF—O
Lounge illumination ON OFF—O
Lights
(P. 249)Time that the low
beam headlights are
on when the vehicle
is parked30 seconds60 seconds
—O 90 seconds
120 seconds
Toyota
parking
assist-sensor
(P. 270)Buzzer volume 3 1 to 5—O
ItemFunctionDefault
settingCustomized
setting

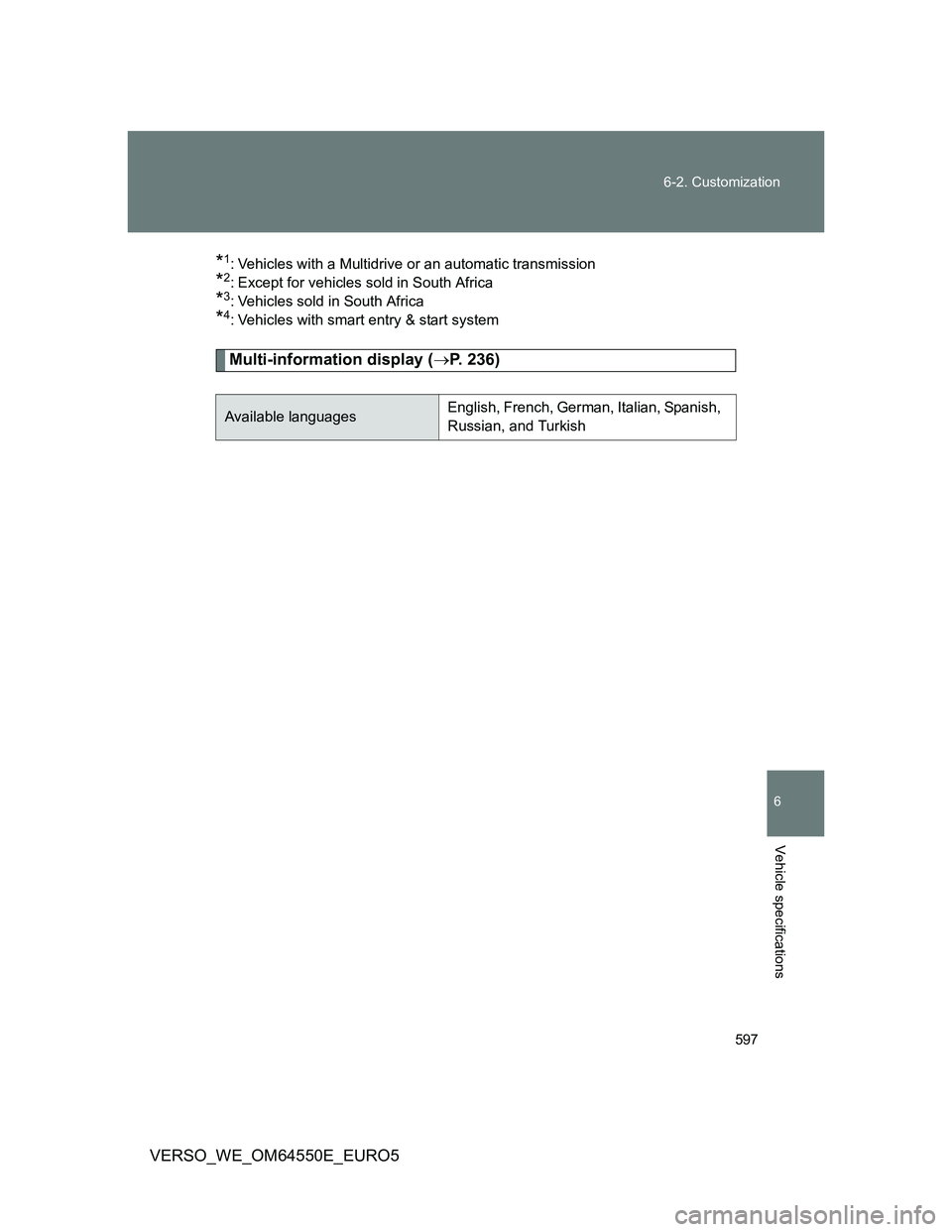

597 6-2. Customization
6
Vehicle specifications
VERSO_WE_OM64550E_EURO5
*1: Vehicles with a Multidrive or an automatic transmission
*2: Except for vehicles sold in South Africa
*3: Vehicles sold in South Africa
*4: Vehicles with smart entry & start system
Multi-information display (P. 236)
Available languagesEnglish, French, German, Italian, Spanish,
Russian, and Turkish

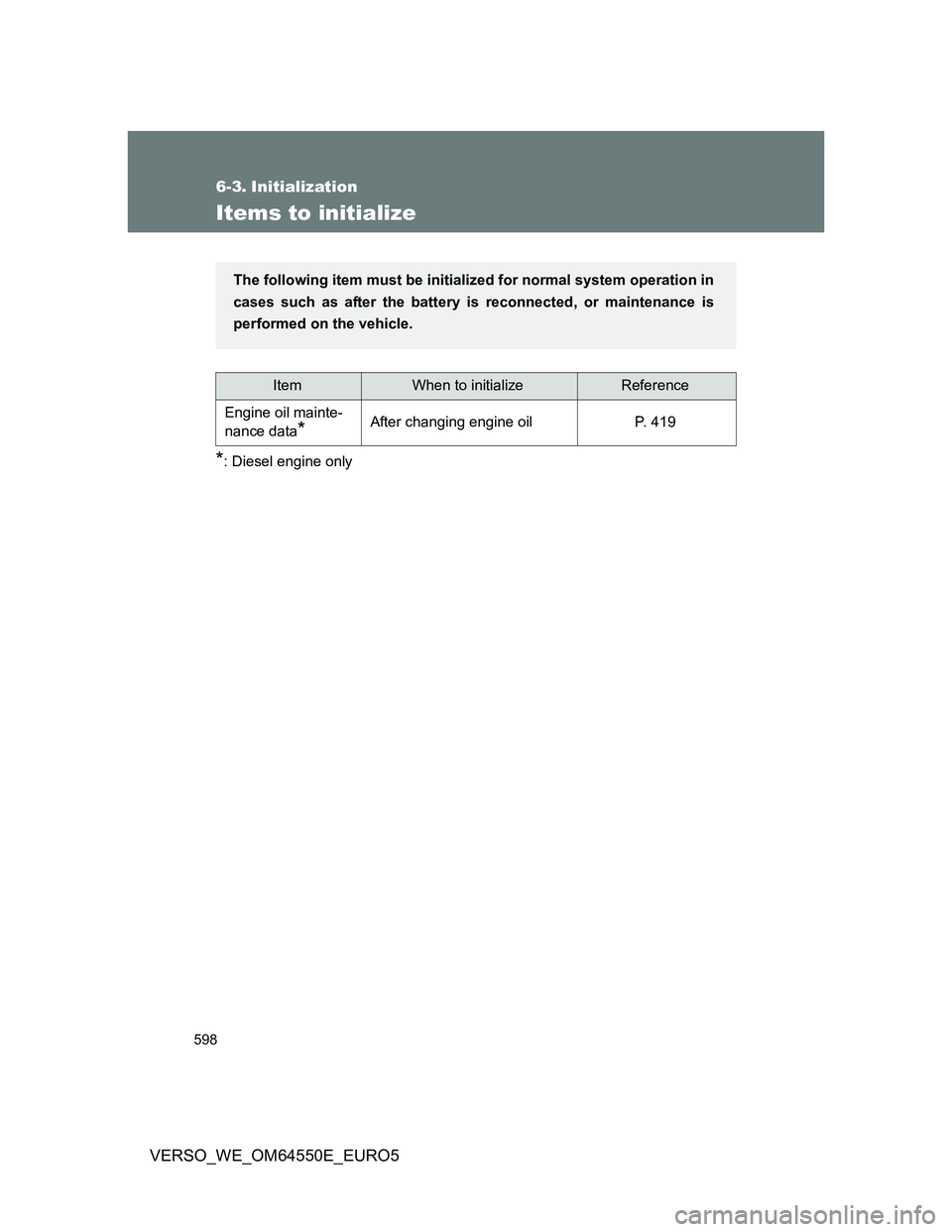

598
VERSO_WE_OM64550E_EURO5
6-3. Initialization
Items to initialize
*: Diesel engine only
ItemWhen to initializeReference
Engine oil mainte-
nance data
*After changing engine oil P. 419
The following item must be initialized for normal system operation in
cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

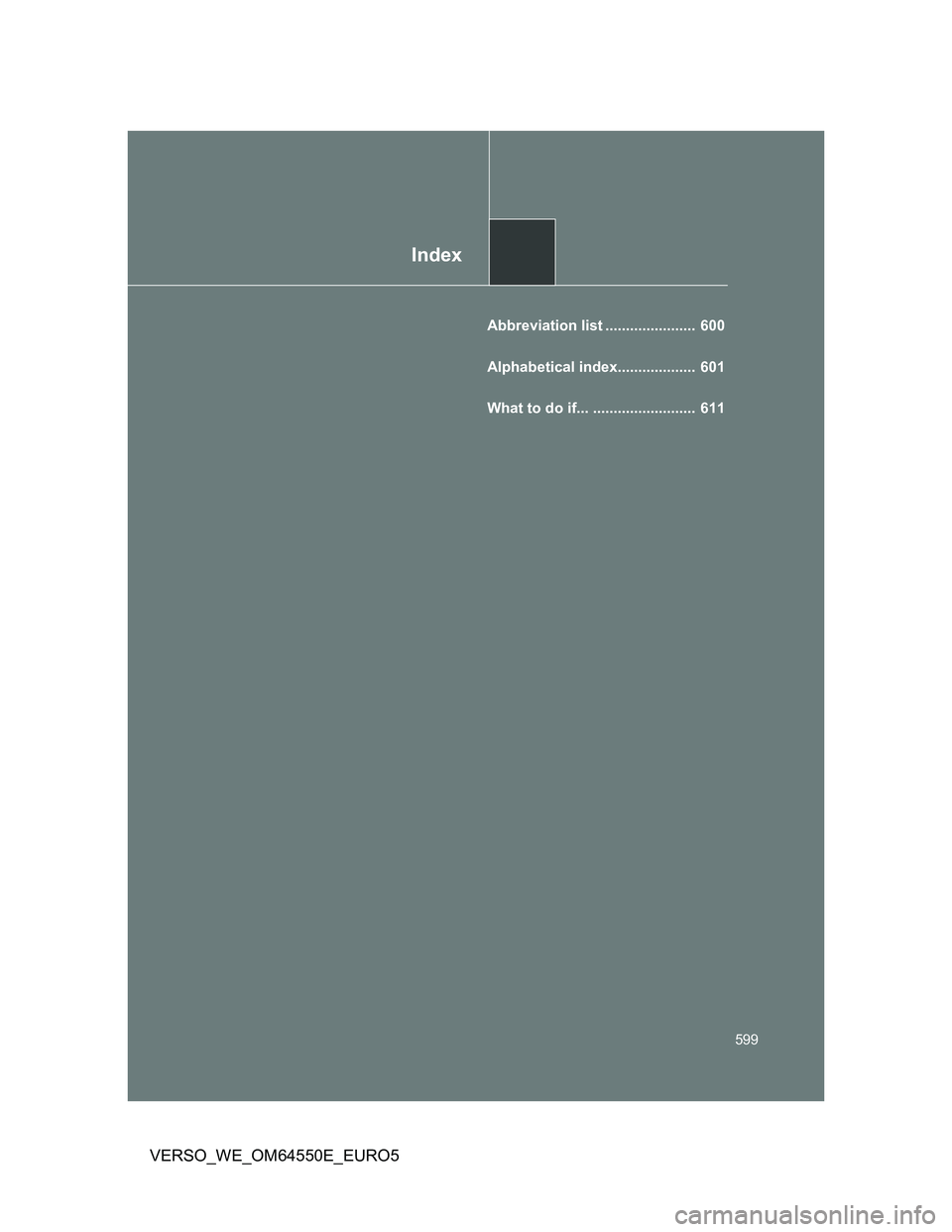

Index
599
VERSO_WE_OM64550E_EURO5
Abbreviation list ...................... 600
Alphabetical index................... 601
What to do if... ......................... 611

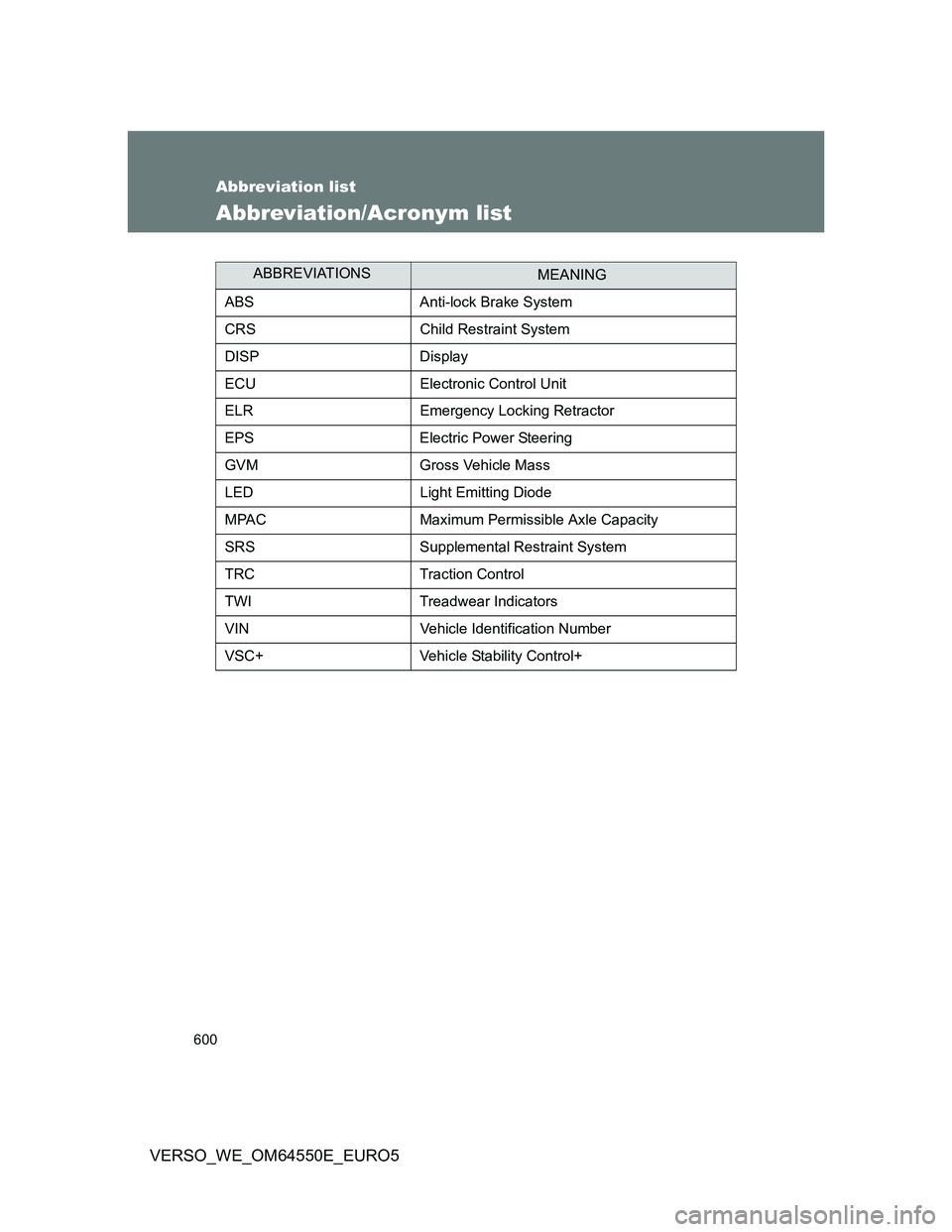

600
VERSO_WE_OM64550E_EURO5
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-lock Brake System
CRS Child Restraint System
DISP Display
ECU Electronic Control Unit
ELR Emergency Locking Retractor
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
MPAC Maximum Permissible Axle Capacity
SRS Supplemental Restraint System
TRC Traction Control
TWI Treadwear Indicators
VIN Vehicle Identification Number
VSC+ Vehicle Stability Control+
