high beam TOYOTA VERSO 2014 Owners Manual

6
Headlights (low beam)2
Headlights (low and high beam)
3
P. 251
P. 251
Pictorial indexExterior
Front fog lights P. 258
Side turn signal lights P. 224
Hood P. 416
Windshield wipers P. 259
Outside rear view
mirrors
P. 109
Headlight cleaners1 P. 262
Headlights (high beam)2
P. 251
Front position lights/
daytime running lights
1
P. 251, 254
Front turn signal lights P. 224
Roof rails1 P. 295
VERSO_WE.book Page 6 Thursday, June 19, 2014 11:31 AM

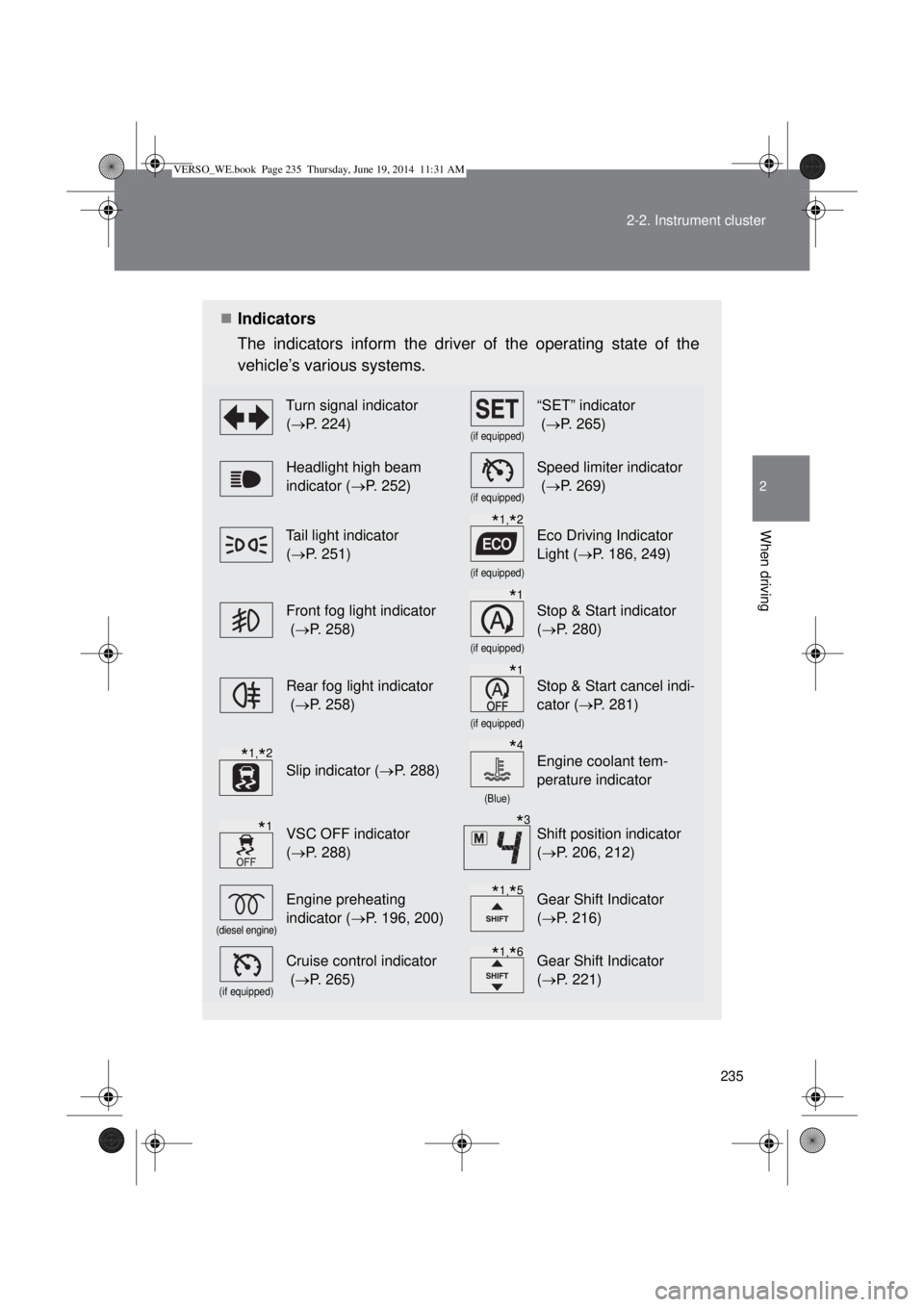

235 2-2. Instrument cluster
2
When driving
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 224)
(if equipped)
“SET” indicator
(P. 265)
Headlight high beam
indicator (P. 252)
(if equipped)
Speed limiter indicator
(P. 269)
Tail light indicator
(P. 251)
(if equipped)
Eco Driving Indicator
Light (P. 186, 249)
Front fog light indicator
(P. 258)
(if equipped)
Stop & Start indicator
(P. 280)
Rear fog light indicator
(P. 258)
(if equipped)
Stop & Start cancel indi-
cator (P. 281)
Slip indicator (P. 288)
(Blue)
Engine coolant tem-
perature indicator
VSC OFF indicator
(P. 288)Shift position indicator
(P. 206, 212)
(diesel engine)
Engine preheating
indicator (P. 196, 200)Gear Shift Indicator
(P. 216)
(if equipped)
Cruise control indicator
(P. 265)Gear Shift Indicator
(P. 221)
*1,*2
*1
*1
*1,*2*4
*1*3
*1,*5
*1,*6
VERSO_WE.book Page 235 Thursday, June 19, 2014 11:31 AM

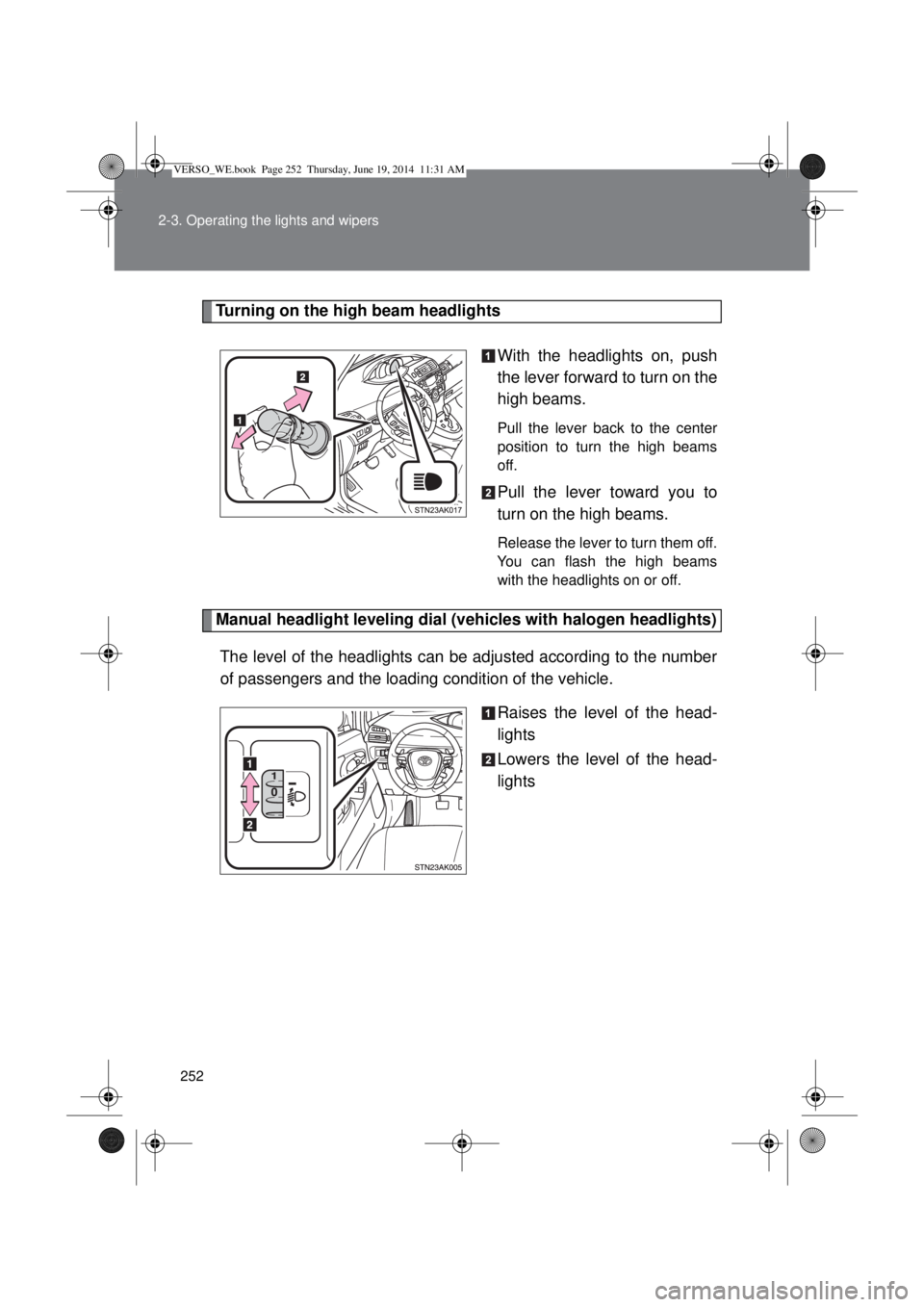

252 2-3. Operating the lights and wipers
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial (vehicles with halogen headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
VERSO_WE.book Page 252 Thursday, June 19, 2014 11:31 AM

477 4-3. Do-it-yourself maintenance
4
Maintenance and care
35 HTR SUB NO.130 A*5
Air conditioning system
50 A*1,*6
36 HTR*150 A Air conditioning system
37 HTR SUB NO.2 30 A Air conditioning system
38 HTR SUB NO.3 30 A Air conditioning system
39PWR OUTLET15 APower outlet
40 ABS NO.2 30 A Anti-lock brake system, VSC+
41 STV HTR
*1,*225 A Power heater
42 EFI NO.430 A
*2Multiport fuel injection system/
sequential multiport fuel injection
system, Automatic transmission
*720 A*1
43 IG2 NO.2*2,*37.5 A Starting system
44EFI NO.2
*2,*310 AMultiport fuel injection system/
sequential multiport fuel injection
system
EFI NO.2
*115 AMultiport fuel injection system/
sequential multiport fuel injection
system, Stop & Start system
45EFI NO.1
*2,*310 AMultiport fuel injection system/
sequential multiport fuel injection
system
EFI NO.1
*17.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
46 H-LP RH HI 10 ARight-hand headlight (high beam)
*8,
right-hand headlight solenoid
*9
47 H-LP LH HI 10 ALeft-hand headlight (high beam)*8,
left-hand headlight solenoid
*9
48 H-LP RH LO10 A
*8Right-hand headlight (low beam)
15 A
*9Right-hand discharge headlight
(low and high beam)
FuseAmpereCircuit
VERSO_WE.book Page 477 Thursday, June 19, 2014 11:31 AM

478 4-3. Do-it-yourself maintenance
*1: Vehicles with diesel engine (1WW-FHV engine)
*2: Vehicles with diesel engine (1AD-FTV and 2AD-FHV engines)
*3: Vehicles with gasoline engine (1ZR-FAE and 2ZR-FAE engines)
*4: Vehicles without smart entry & start system
*5: Vehicles without 1AD-FTV engine and DPF catalytic converter
*6: Vehicles with 1AD-FTV engine and DPF catalytic converter
*7: Vehicles with automatic transmission
*8: Vehicles with halogen headlights
*9: Vehicles with discharge headlights49 H-LP LH LO10 A
*8Left-hand headlight (low beam)
15 A
*9Left-hand discharge headlight (low
and high beam)
50 RDI EFI
*15 ARDI FAN MTR, FAN NO.1, FAN
NO.2
51 CDS EFI
*15 ACDS FAN MTR, FAN NO.1, FAN
NO.2
52 EFI NO.3
*27.5 A Automatic transmission*7
FuseAmpereCircuit
VERSO_WE.book Page 478 Thursday, June 19, 2014 11:31 AM

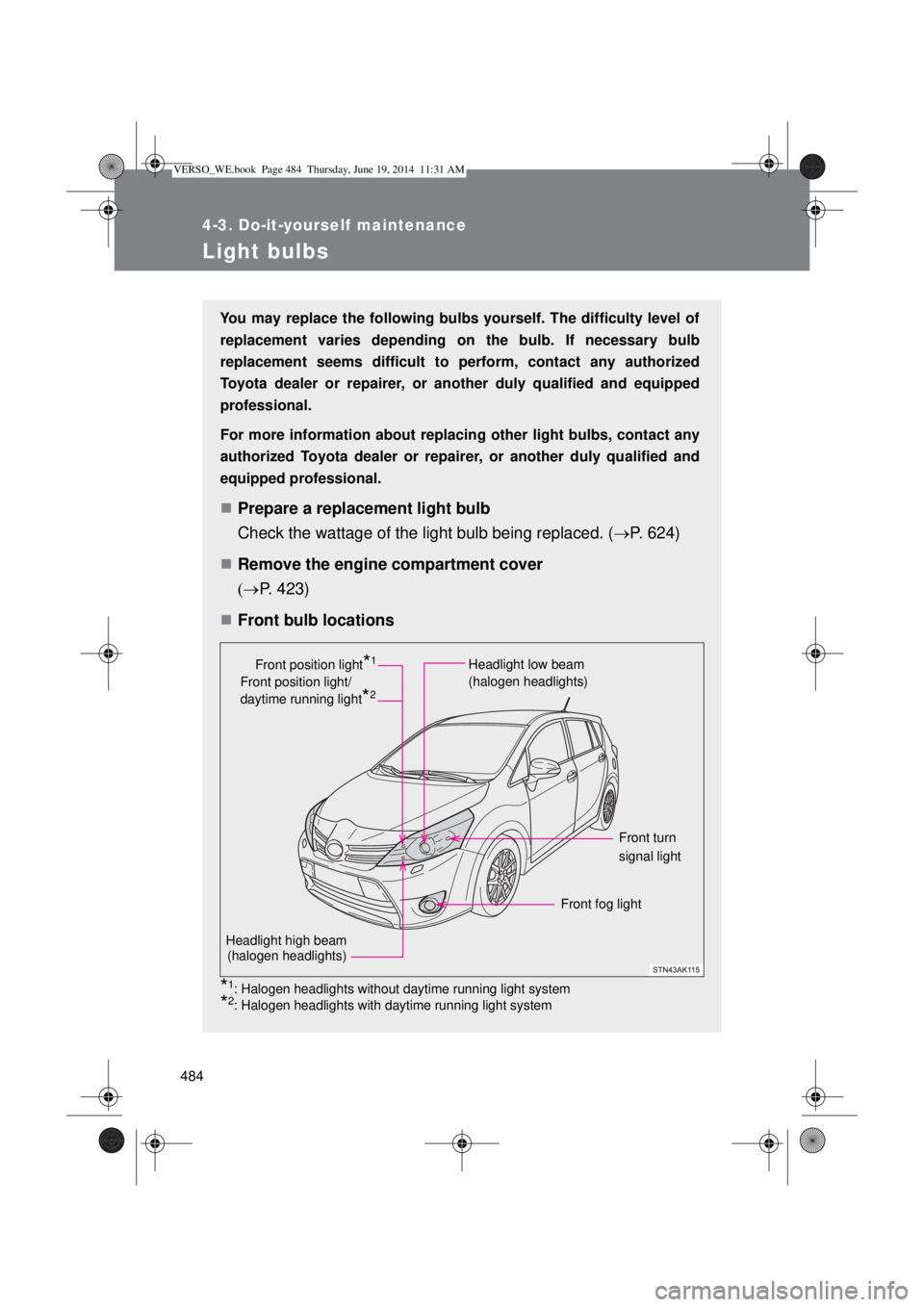

484
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 624)
Remove the engine compartment cover
P. 423)
Front bulb locations
*1: Halogen headlights without daytime running light system
*2: Halogen headlights with daytime running light system
Headlight high beam
(halogen headlights)
Headlight low beam
(halogen headlights)
Front turn
signal light
Front fog light Front position light
*1
Front position light/
daytime running light
*2
VERSO_WE.book Page 484 Thursday, June 19, 2014 11:31 AM

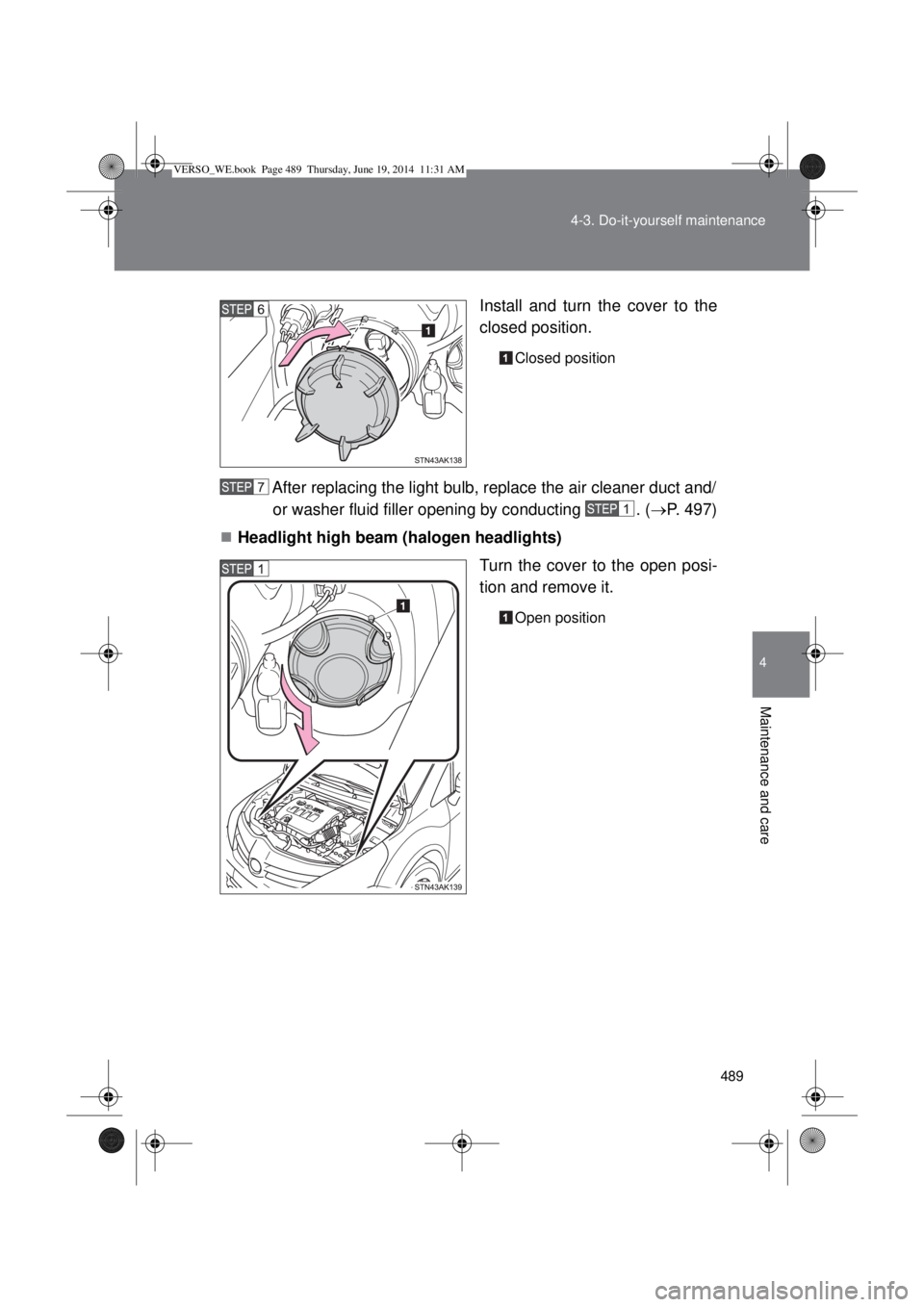

489 4-3. Do-it-yourself maintenance
4
Maintenance and care
Install and turn the cover to the
closed position.
Closed position
After replacing the light bulb, replace the air cleaner duct and/
or washer fluid filler opening by conducting . (P. 497)
Headlight high beam (halogen headlights)
Turn the cover to the open posi-
tion and remove it.
Open position
VERSO_WE.book Page 489 Thursday, June 19, 2014 11:31 AM

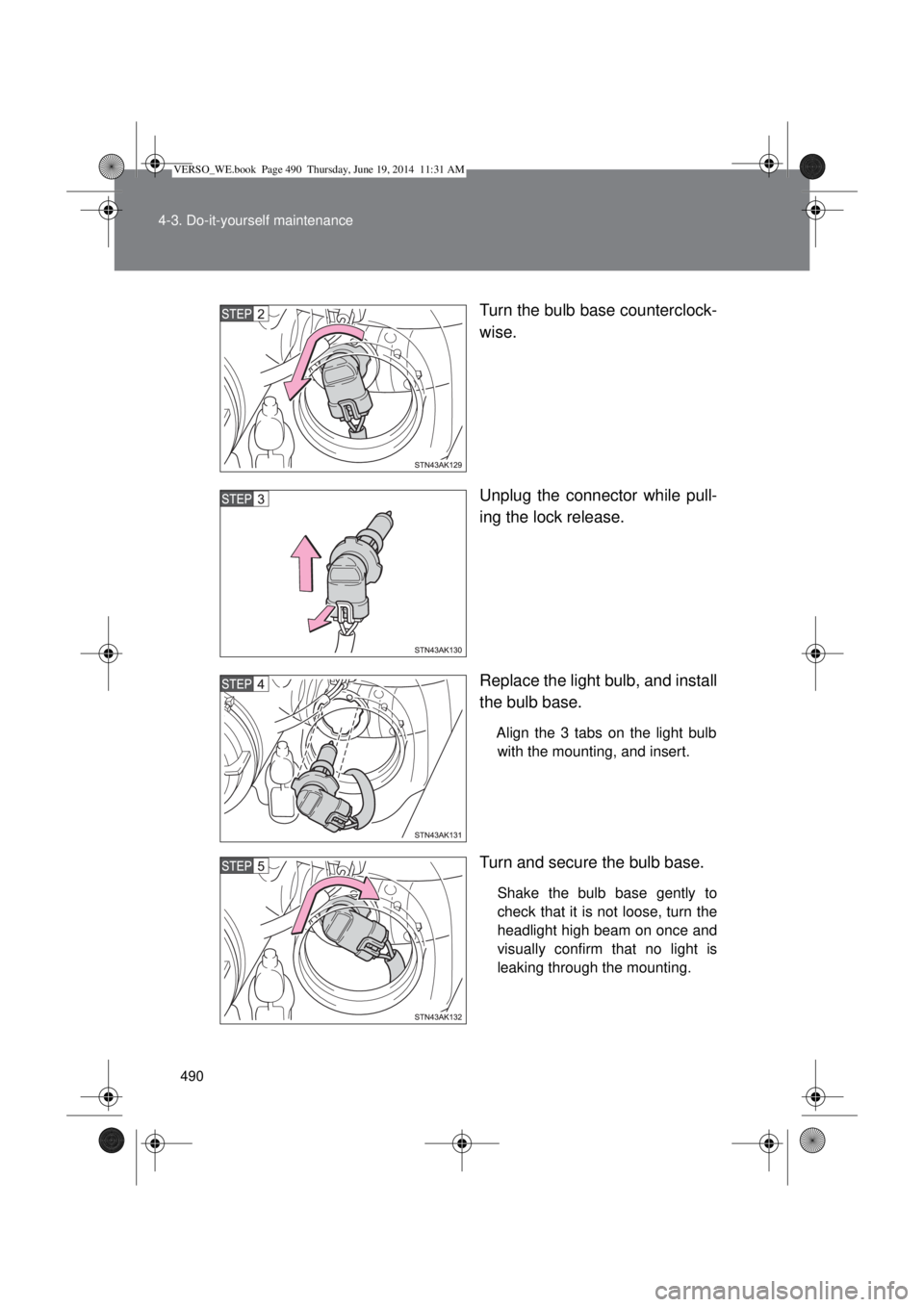

490 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
VERSO_WE.book Page 490 Thursday, June 19, 2014 11:31 AM

624 6-1. Specifications
Light bulbs
*: If equipped
A: H11 halogen bulbs B: D4S discharge bulbs
C: HB3 halogen bulbs D: H16 halogen bulbs
E: Wedge base bulbs (amber) F: Wedge base bulbs (clear)
G: Single end bulbs (amber) H: Single end bulbs (clear)
I: Double end bulbs
Light BulbsWType
ExteriorHeadlights
Low beam (Halogen bulbs)
Low and high beam (Discharge bulbs)
High beam (Halogen bulbs)55
35
60A
B
C
Front fog lights 19 D
Front position lights
* (Halogen bulbs) 21/5 F
Front position lights/daytime running
lights
* (Halogen bulbs)21/5 F
Front turn signal lights 21 E
Rear turn signal lights 21 G
Tail lights 5 H
Back-up light 21 H
Rear fog light 21 H
License plate lights 5 F
Side turn signal lights 5 E
InteriorFront personal/interior lights 5 F
Rear personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 F
Luggage compartment light 5 I
VERSO_WE.book Page 624 Thursday, June 19, 2014 11:31 AM
