TOYOTA VERSO 2015 Owners Manual

361
3-2. Using the audio system
3
Interior features
Using the AUX port
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device. This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press until “AUX” is displayed.
VERSO_WE.book Page 361 Thursday, June 19, 2014 11:31 AM

362
3-2. Using the audio system
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AMFMCD modeiPod or USB memory
*AUX*
*
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Volume
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source
VERSO_WE.book Page 362 Thursday, June 19, 2014 11:31 AM

363 3-2. Using the audio system
3
Interior features
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold down “+” or “-” on to continue increasing or decreasing the
volume.
Silencing a sound
Press and hold .
To cancel, press and hold again.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on
until you hear a beep.
Selecting a track/file or song
Press to select the CD, iPod or USB memory mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder (MP3 and WMA or USB memory)
Press to select the CD or USB memory mode.
Press and hold “” or “” on until you hear a beep.
VERSO_WE.book Page 363 Thursday, June 19, 2014 11:31 AM

364 3-2. Using the audio system
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
VERSO_WE.book Page 364 Thursday, June 19, 2014 11:31 AM

365
3
Interior features
3-3. Using the interior lights

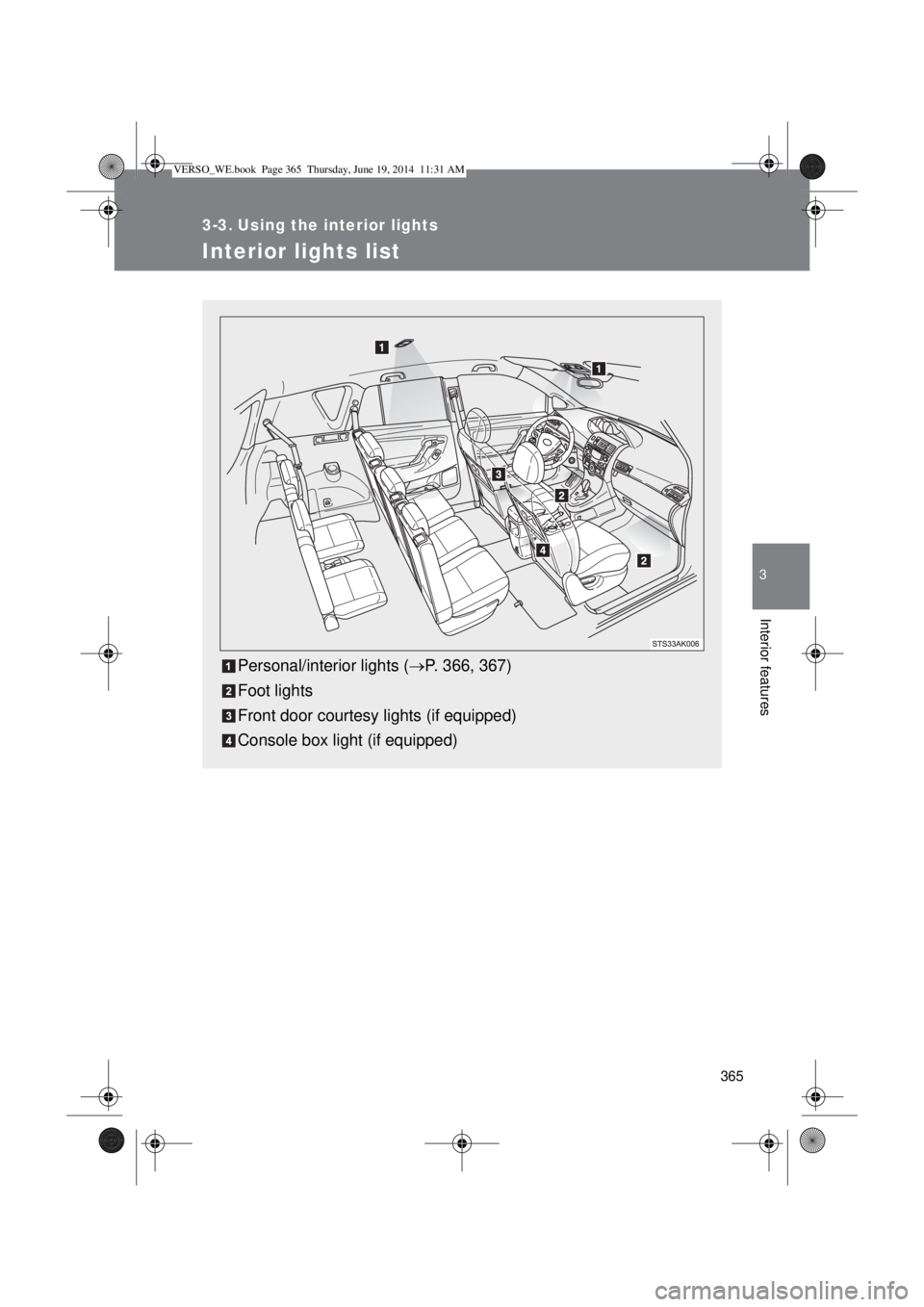

Interior lights list
Personal/interior lights (P. 366, 367)
Foot lights
Front door courtesy lights (if equipped)
Console box light (if equipped)
VERSO_WE.book Page 365 Thursday, June 19, 2014 11:31 AM

366 3-3. Using the interior lights
Personal/interior lights main switch
Off
The personal/interior lights can
be individually turned on or off.
Door position
When neither of the main
switches ( or ) is pressed:
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed. The personal/interior
lights can be individually turned
on when the doors are closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior lights main switch
VERSO_WE.book Page 366 Thursday, June 19, 2014 11:31 AM

367 3-3. Using the interior lights
3
Interior features
Personal/interior lights
Front
On/off
Rear
On/off
Personal/interior lights
VERSO_WE.book Page 367 Thursday, June 19, 2014 11:31 AM

368 3-3. Using the interior lights
Illuminated entry system
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch posi-
tion, whether the doors are locked/unlocked, and whether the doors are
open/closed.
Vehicles with smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
To prevent battery discharge
Vehicles without smart entry & start system
If the interior lights remain on when the engine switch is turned off, the
lights will go off automatically after 20 minutes.
Vehicles with smart entry & start system
If the interior lights remain on when the “ENGINE START STOP” switch
is turned off, the lights will go off automatically after 20 minutes.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 629)
Personal/interior lights
VERSO_WE.book Page 368 Thursday, June 19, 2014 11:31 AM

369
3
Interior features
3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may result in the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Overhead console
Auxiliary boxes
Glove box
Bottle holders
Cup holders
Console box
VERSO_WE.book Page 369 Thursday, June 19, 2014 11:31 AM

370 3-4. Using the storage features
Glove box
Glove box without lock function
Pull up the lever to open the
glove box.
Glove box with lock function
Pull up the lever to open the glove box.
The glove box can be locked and unlocked by using the master
key (vehicles without smart entry & start system) or the mechanical
key (vehicles with smart entry & start system).
Unlock
Lock
Open
Glove box light
The glove box light turns on when the tail lights are on.
Glove box
VERSO_WE.book Page 370 Thursday, June 19, 2014 11:31 AM
