TOYOTA VERSO 2015 Owners Manual

381
3-5. Other interior features
3
Interior features

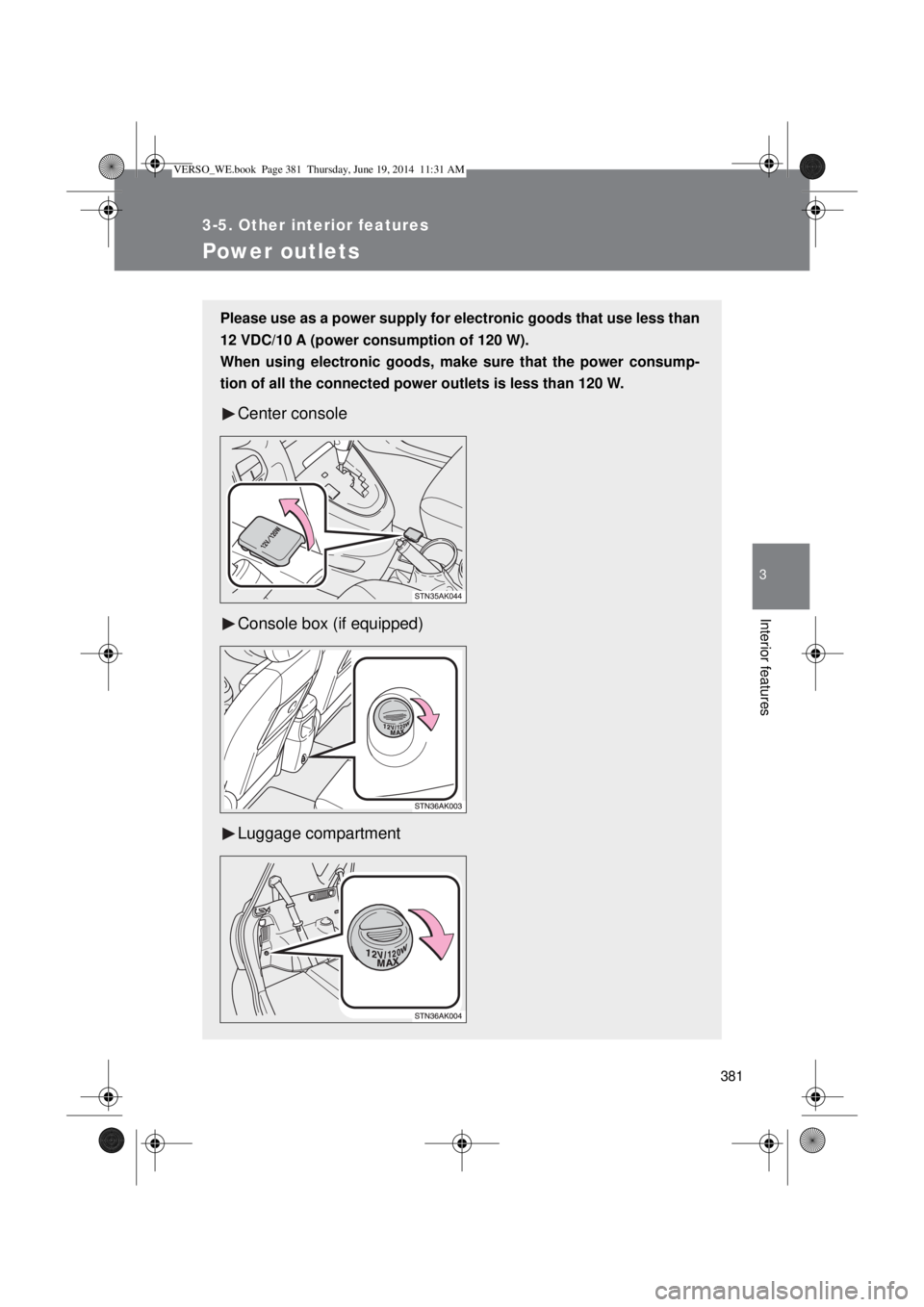

Power outlets
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consump-
tion of all the connected power outlets is less than 120 W.
Center console
Console box (if equipped)
Luggage compartment
VERSO_WE.book Page 381 Thursday, June 19, 2014 11:31 AM

382 3-5. Other interior features
The power outlet can be used when
Vehicles without smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
VERSO_WE.book Page 382 Thursday, June 19, 2014 11:31 AM

383
3-5. Other interior features
3
Interior features
Seat heaters
: If equipped
The seat heaters can be used when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Turn the seat heater off.
Heats the right front seat
Heats the left front seat
The indicator light comes on.
VERSO_WE.book Page 383 Thursday, June 19, 2014 11:31 AM

384 3-5. Other interior features
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters off when the engine is not running.
VERSO_WE.book Page 384 Thursday, June 19, 2014 11:31 AM

385
3-5. Other interior features
3
Interior features
Ar mrests
: If equipped
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.
Front
Rear
Pull the armrest down for use.
VERSO_WE.book Page 385 Thursday, June 19, 2014 11:31 AM

386
3-5. Other interior features
Front seatback tables
: If equipped
Stowing the front seatback table
Pull up the front seatback
table.
Push down the front seatback table.
VERSO_WE.book Page 386 Thursday, June 19, 2014 11:31 AM

387 3-5. Other interior features
3
Interior features
CAUTION
Front seatback table precautions
Failure to follow the precautions below may cause death or serious injury.
Be careful not to get your hands caught in the front seatback table.
Do not use the front seatback table while the vehicle is moving.
Make sure the front seatback table is folded down and locked securely
when not in use.
Do not use the front seatback table while using a child restraint system on
the second seat.
Do not move the front seats.
Do not lean on the front seatback table or put your hands or elbow on it.
NOTICE
To prevent damage to the front seatback table
Do not place more than 2 kg (4.4 lb.) of weight on the front seatback table.
The table could retract unexpectedly, possibly damaging the front seatback
table.
VERSO_WE.book Page 387 Thursday, June 19, 2014 11:31 AM

388
3-5. Other interior features
Rear side sunshades
: If equipped
CAUTION
When the rear side sunshade is being raised or lowered
Do not place fingers or other objects in the fastener section or in the open-
ing.
They may get caught, causing injury.
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.
VERSO_WE.book Page 388 Thursday, June 19, 2014 11:31 AM

389
3-5. Other interior features
3
Interior features
Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.
VERSO_WE.book Page 389 Thursday, June 19, 2014 11:31 AM

390
3-5. Other interior features

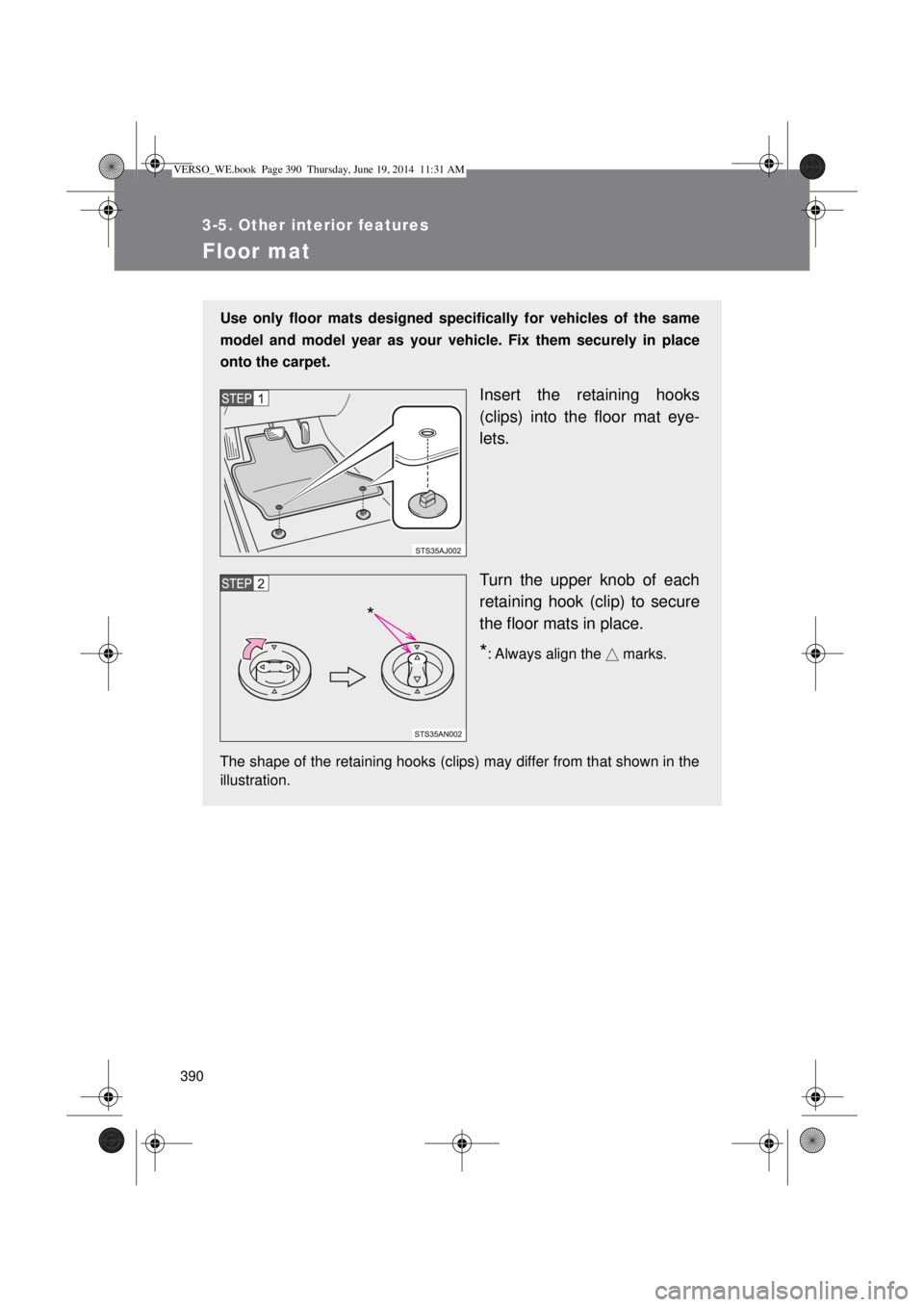

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
*
VERSO_WE.book Page 390 Thursday, June 19, 2014 11:31 AM
