TOYOTA VERSO 2015 Owners Manual

481 4-3. Do-it-yourself maintenance
4
Maintenance and care
*1: Vehicles with diesel engine and automatic transmission
*2: Vehicles without smart entry & start system
*3: Vehicles with 1WW-FHV engine
*4: Vehicles without 1WW-FHV engine20 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system,
VSC+, shift lock system, starting
system
21 SUNROOF 20 A Panoramic roof shade
22 DOOR 25 A Power door lock system
23 ACC-B 25 A CIG, ACC
24 DRL 7.5 A Daytime running lights
25 FR FOG 7.5 A Front fog lights
26 AM1
*27.5 AStarting system
FuseAmpereCircuit
VERSO_WE.book Page 481 Thursday, June 19, 2014 11:31 AM

482 4-3. Do-it-yourself maintenance
Under the instrument panel (type B)
FuseAmpereCircuit
1 WIPER NO.2 7.5 A Charging system
2 POWER 30 A Power windows (driver side)
3 DEF 30 A Rear window defogger, MIR HTR
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 484)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
VERSO_WE.book Page 482 Thursday, June 19, 2014 11:31 AM

483 4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
VERSO_WE.book Page 483 Thursday, June 19, 2014 11:31 AM

484
4-3. Do-it-yourself maintenance

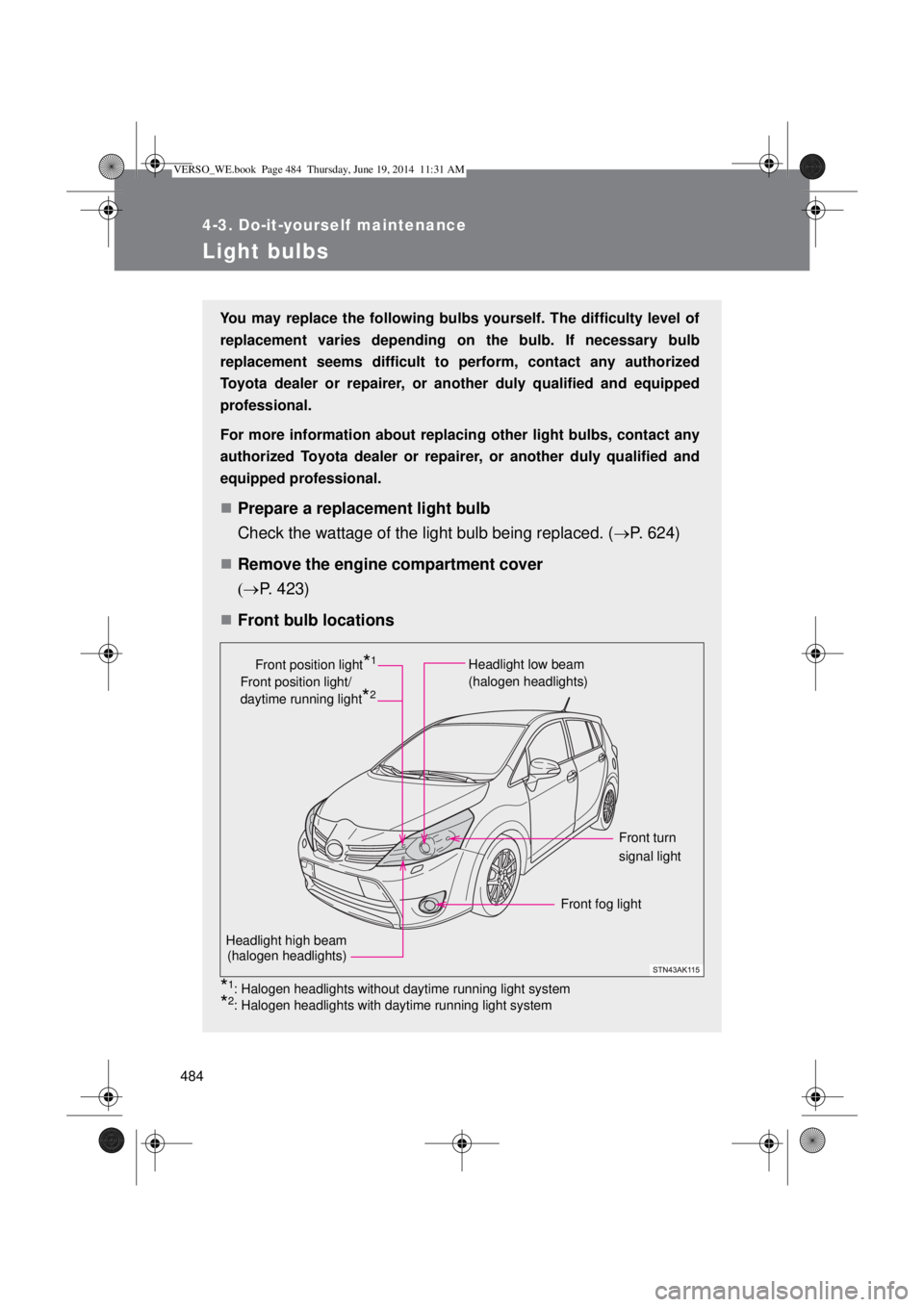

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 624)
Remove the engine compartment cover
P. 423)
Front bulb locations
*1: Halogen headlights without daytime running light system
*2: Halogen headlights with daytime running light system
Headlight high beam
(halogen headlights)
Headlight low beam
(halogen headlights)
Front turn
signal light
Front fog light Front position light
*1
Front position light/
daytime running light
*2
VERSO_WE.book Page 484 Thursday, June 19, 2014 11:31 AM

485 4-3. Do-it-yourself maintenance
4
Maintenance and care

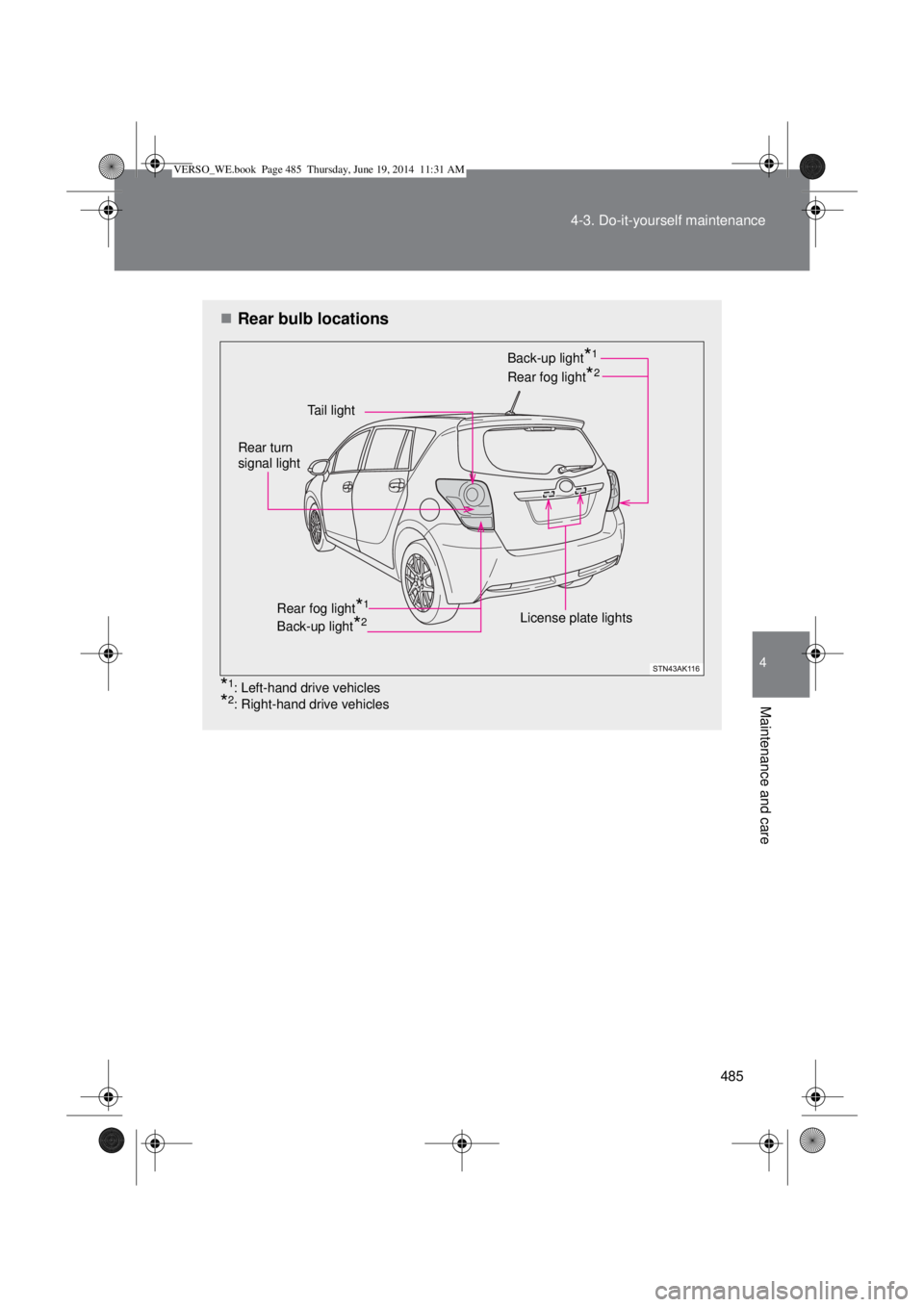

Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Tail light
Rear fog light*2
License plate lights Rear turn
signal light
Back-up light*1
Rear fog light*1
Back-up light*2
VERSO_WE.book Page 485 Thursday, June 19, 2014 11:31 AM

486 4-3. Do-it-yourself maintenance

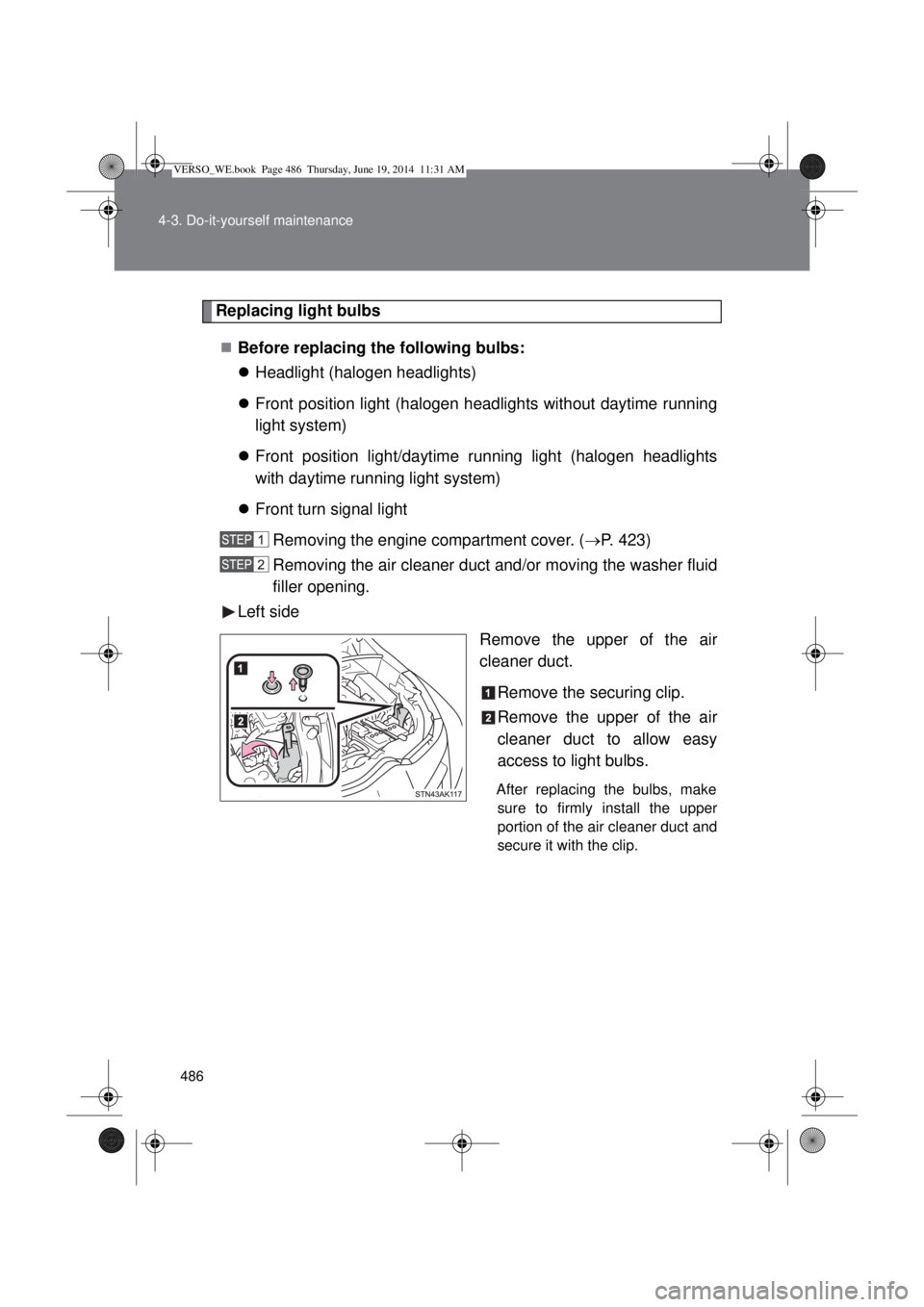

Replacing light bulbs
Before replacing the following bulbs:
Headlight (halogen headlights)
Front position light (halogen headlights without daytime running
light system)
Front position light/daytime running light (halogen headlights
with daytime running light system)
Front turn signal light
Removing the engine compartment cover. (P. 423)
Removing the air cleaner duct and/or moving the washer fluid
filler opening.
Left side
Remove the upper of the air
cleaner duct.
Remove the securing clip.
Remove the upper of the air
cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make
sure to firmly install the upper
portion of the air cleaner duct and
secure it with the clip.
VERSO_WE.book Page 486 Thursday, June 19, 2014 11:31 AM

487 4-3. Do-it-yourself maintenance
4
Maintenance and care

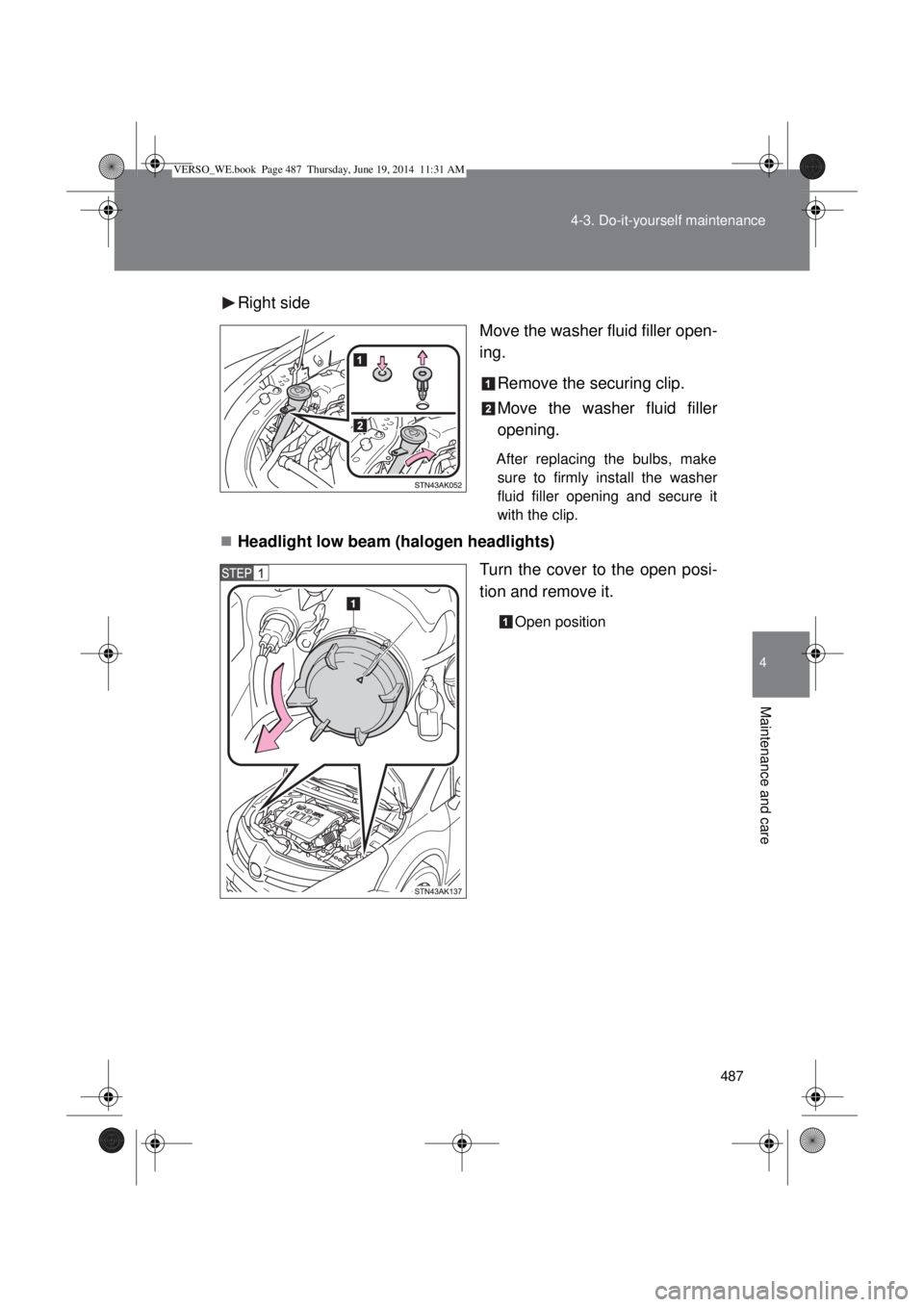

Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.
Headlight low beam (halogen headlights)
Turn the cover to the open posi-
tion and remove it.
Open position
VERSO_WE.book Page 487 Thursday, June 19, 2014 11:31 AM

488 4-3. Do-it-yourself maintenance

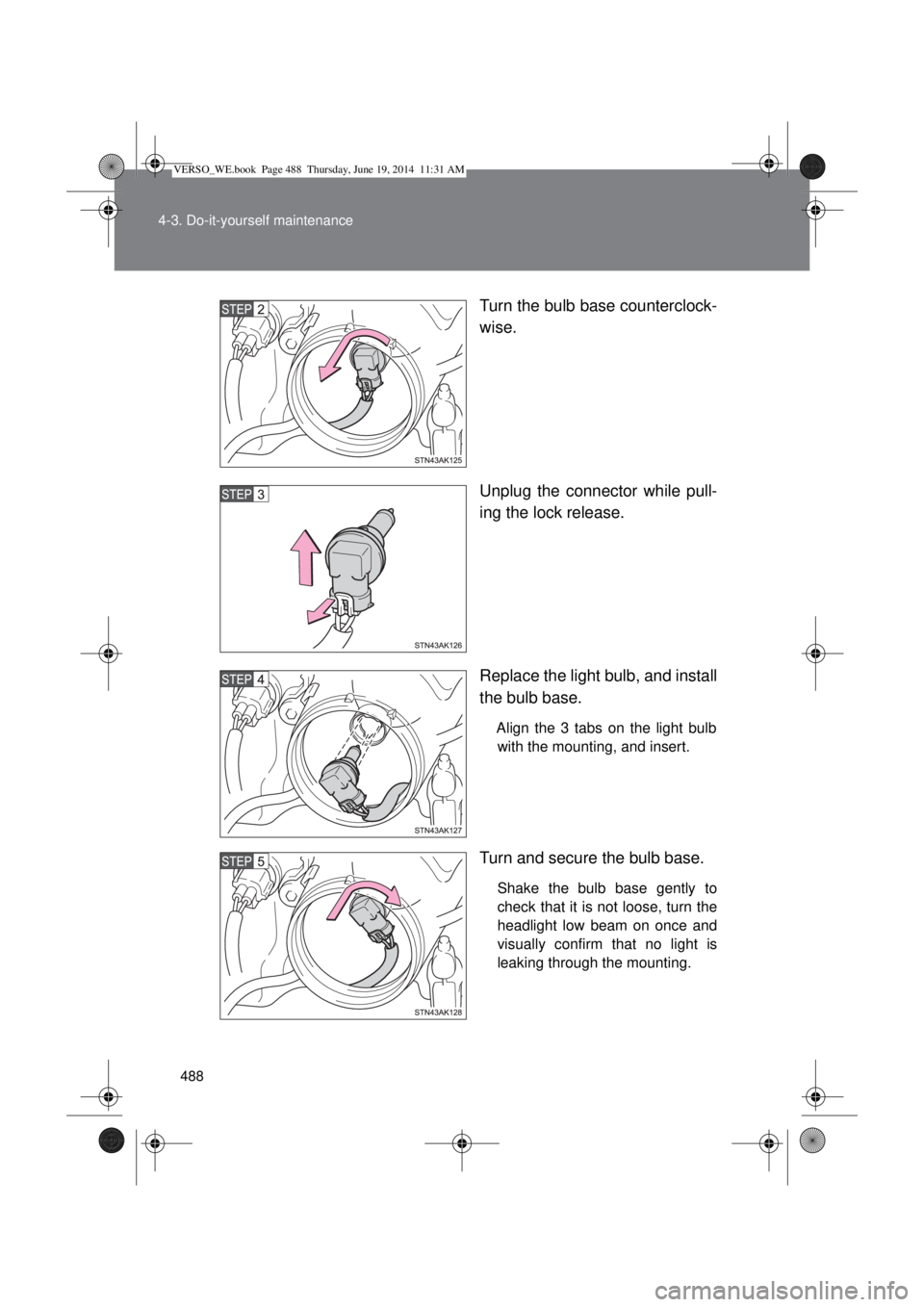

Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
VERSO_WE.book Page 488 Thursday, June 19, 2014 11:31 AM

489 4-3. Do-it-yourself maintenance
4
Maintenance and care

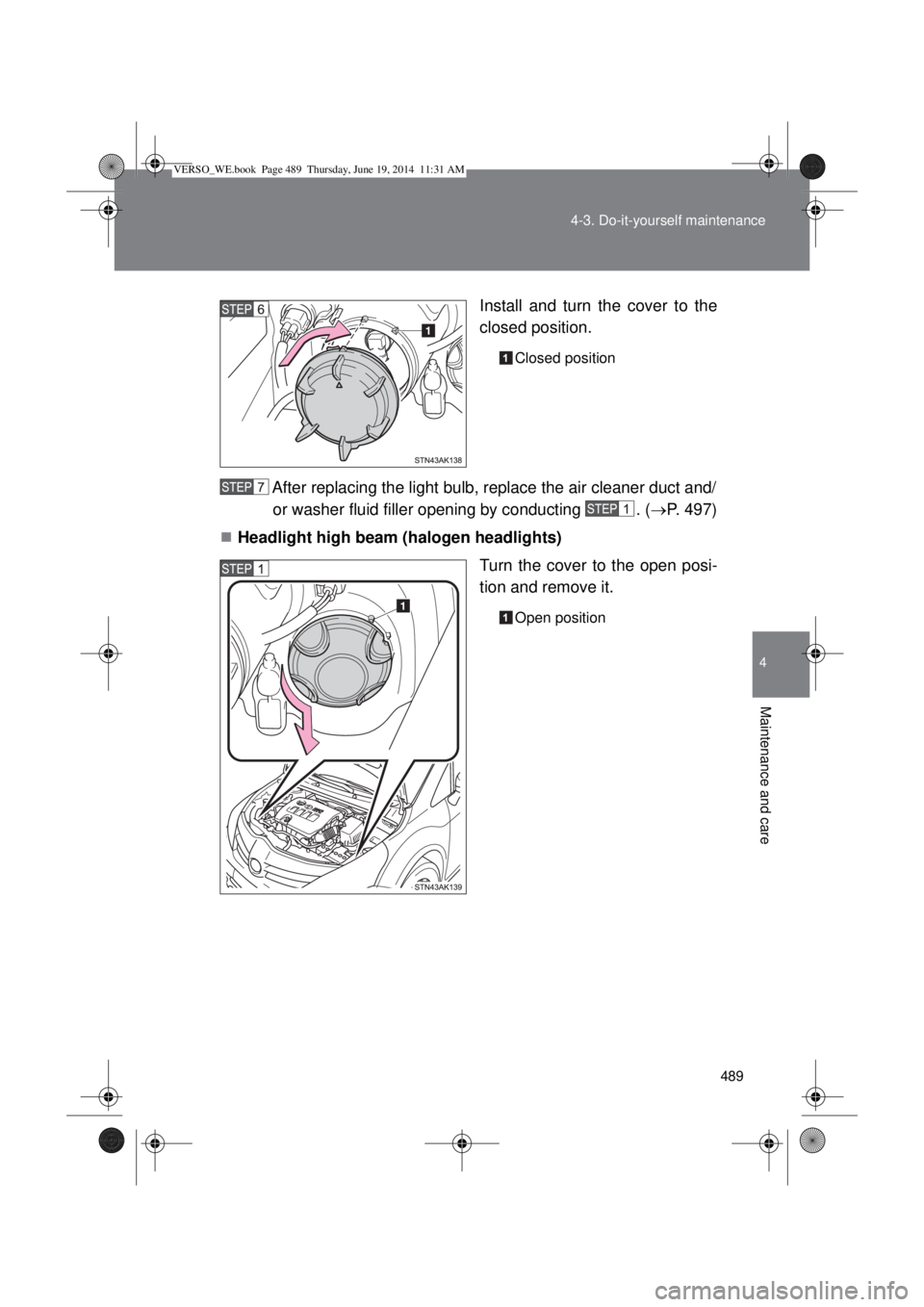

Install and turn the cover to the
closed position.
Closed position
After replacing the light bulb, replace the air cleaner duct and/
or washer fluid filler opening by conducting . (P. 497)
Headlight high beam (halogen headlights)
Turn the cover to the open posi-
tion and remove it.
Open position
VERSO_WE.book Page 489 Thursday, June 19, 2014 11:31 AM

490 4-3. Do-it-yourself maintenance

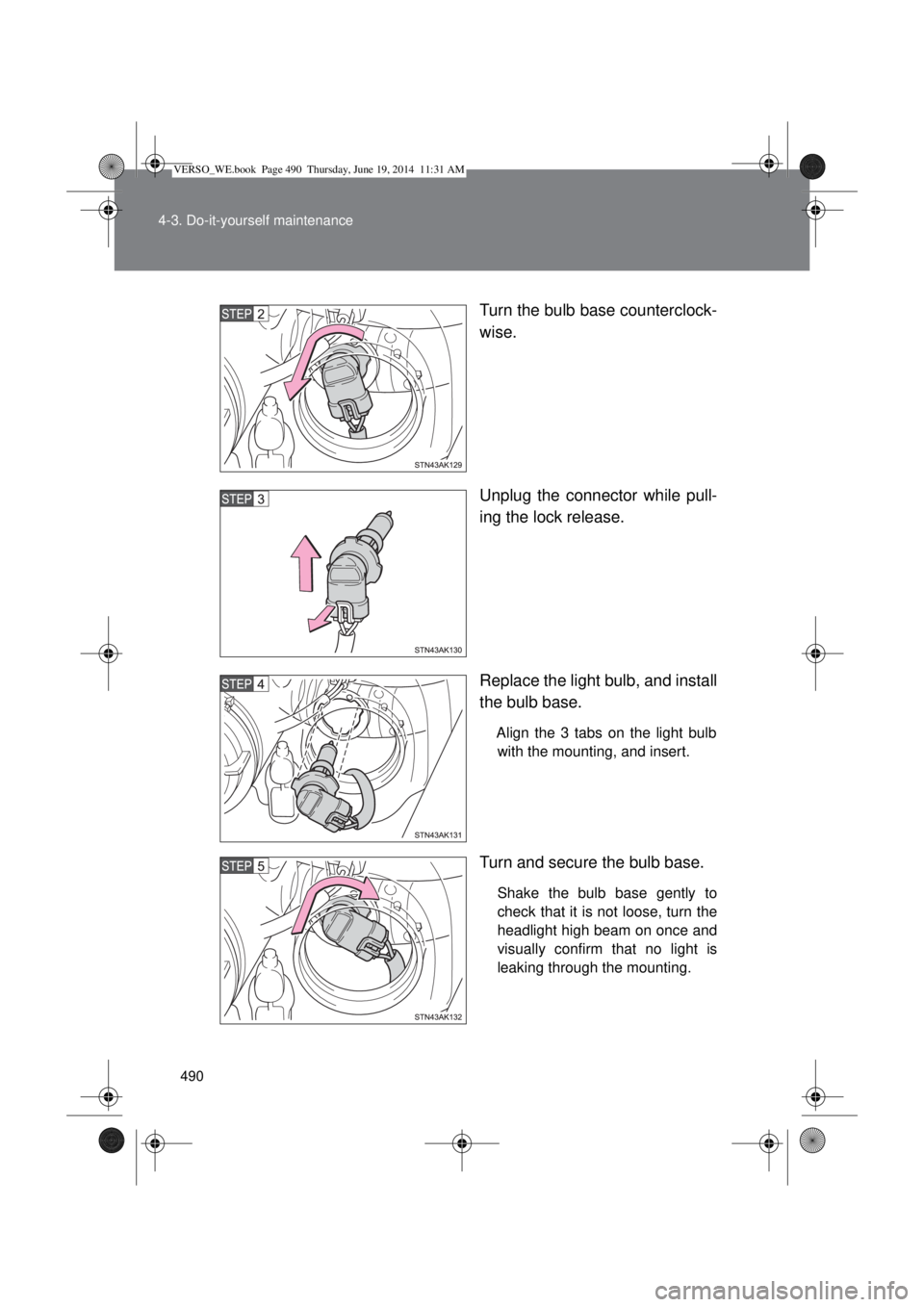

Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
