TOYOTA VERSO 2017 Owners Manual

241
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E

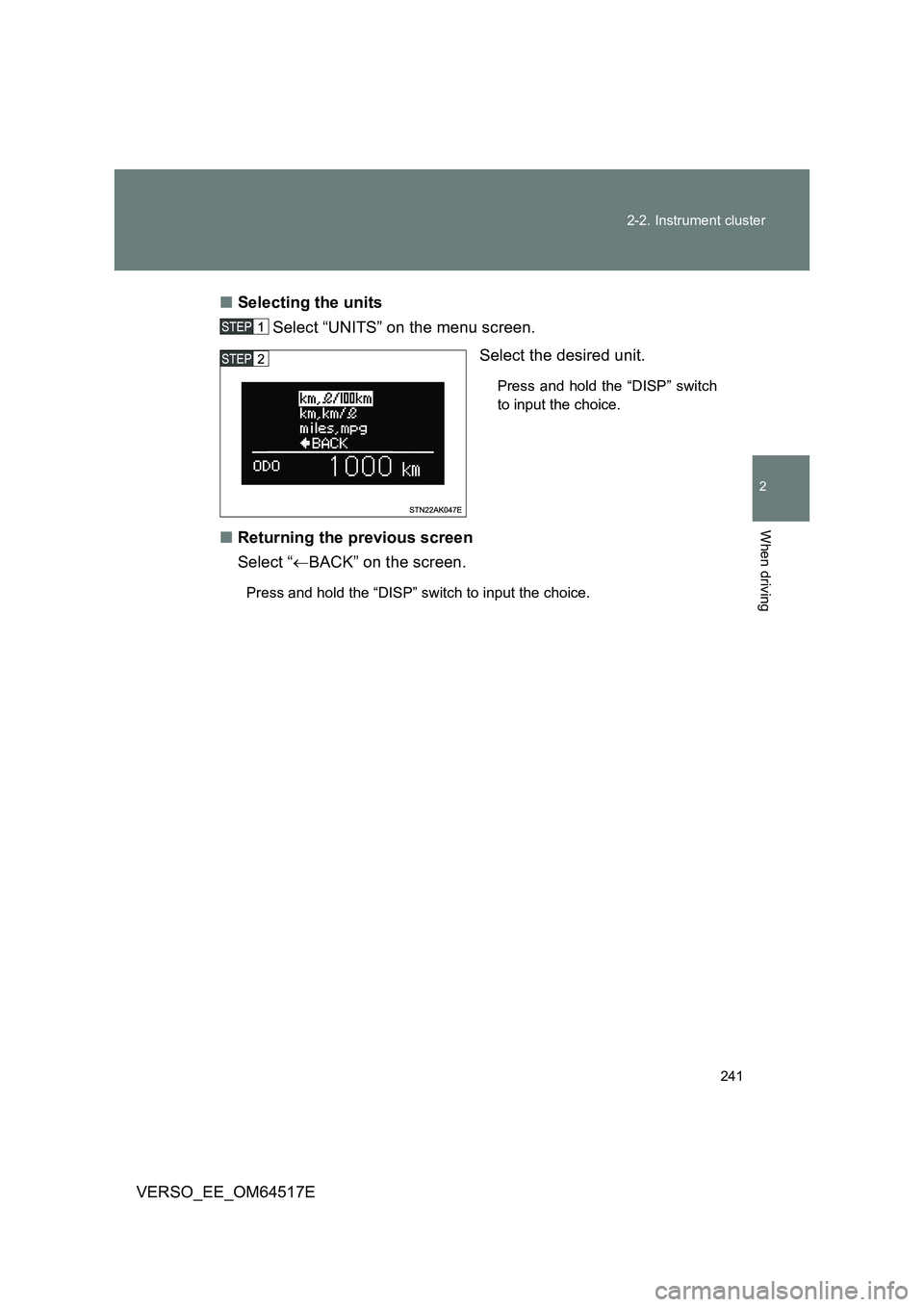

■ Selecting the units
Select “UNITS” on the menu screen.
Select the desired unit.
Press and hold the “DISP” switch
to input the choice.
■ Returning the previous screen
Select “ BACK” on the screen.
Press and hold the “DISP” switch to input the choice.

242
2-2. Instrument cluster
VERSO_EE_OM64517E

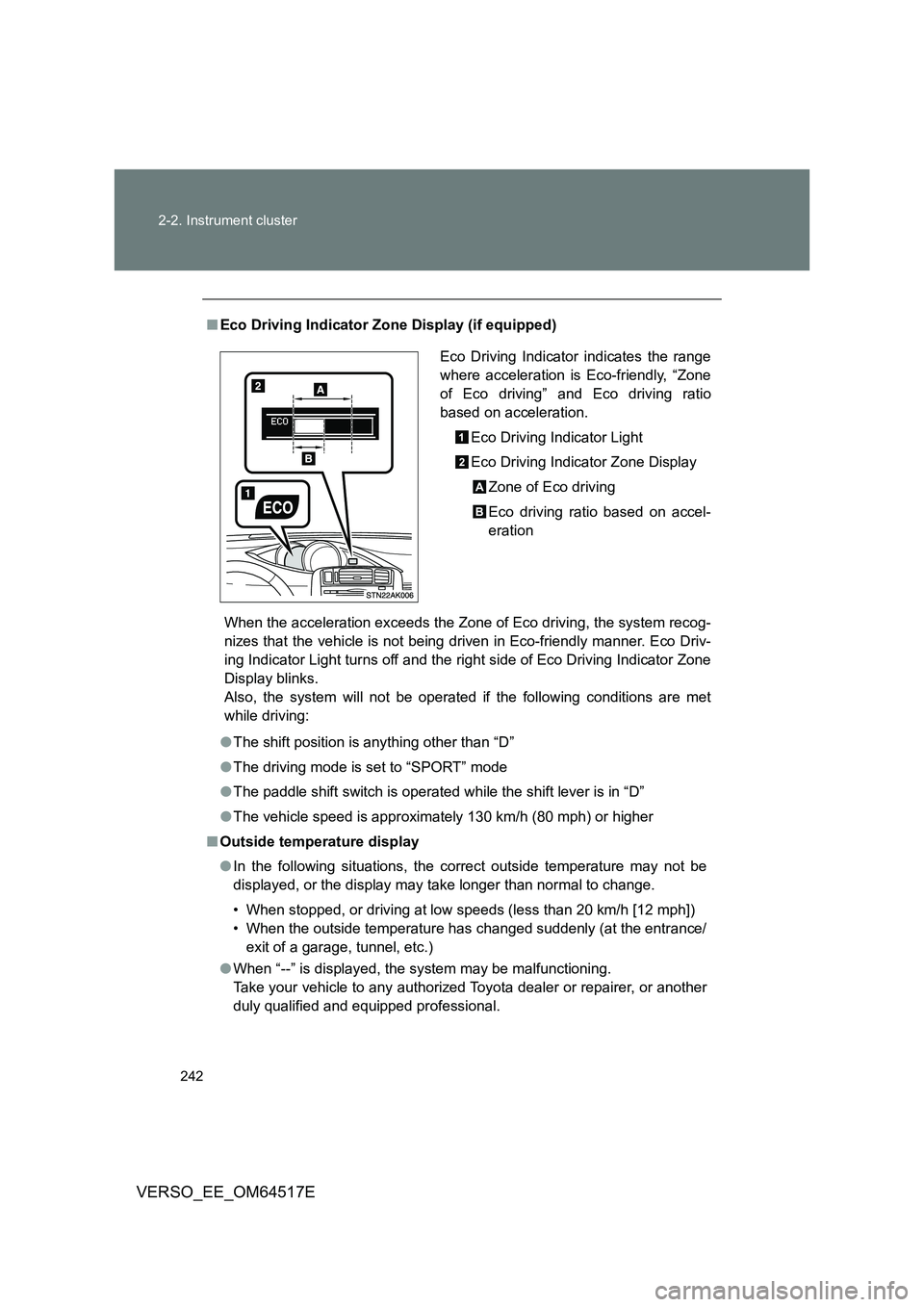

■ Eco Driving Indicator Zone Display (if equipped)
When the acceleration exceeds the Zone of Eco driving, the system recog-
nizes that the vehicle is not being dr iven in Eco-friendly manner. Eco Driv-
ing Indicator Light turns off and the right side of Eco Driving Indicator Zone
Display blinks.
Also, the system will not be operated if the following conditions are met
while driving:
● The shift position is anything other than “D”
● The driving mode is set to “SPORT” mode
● The paddle shift switch is operated while the shift lever is in “D”
● The vehicle speed is approximately 130 km/h (80 mph) or higher
■ Outside temperature display
● In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Eco Driving Indicator indicates the range
where acceleration is Eco-friendly, “Zone
of Eco driving” and Eco driving ratio
based on acceleration.
Eco Driving Indicator Light
Eco Driving Indicator Zone Display
Zone of Eco driving
Eco driving ratio based on accel-
eration

243
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E

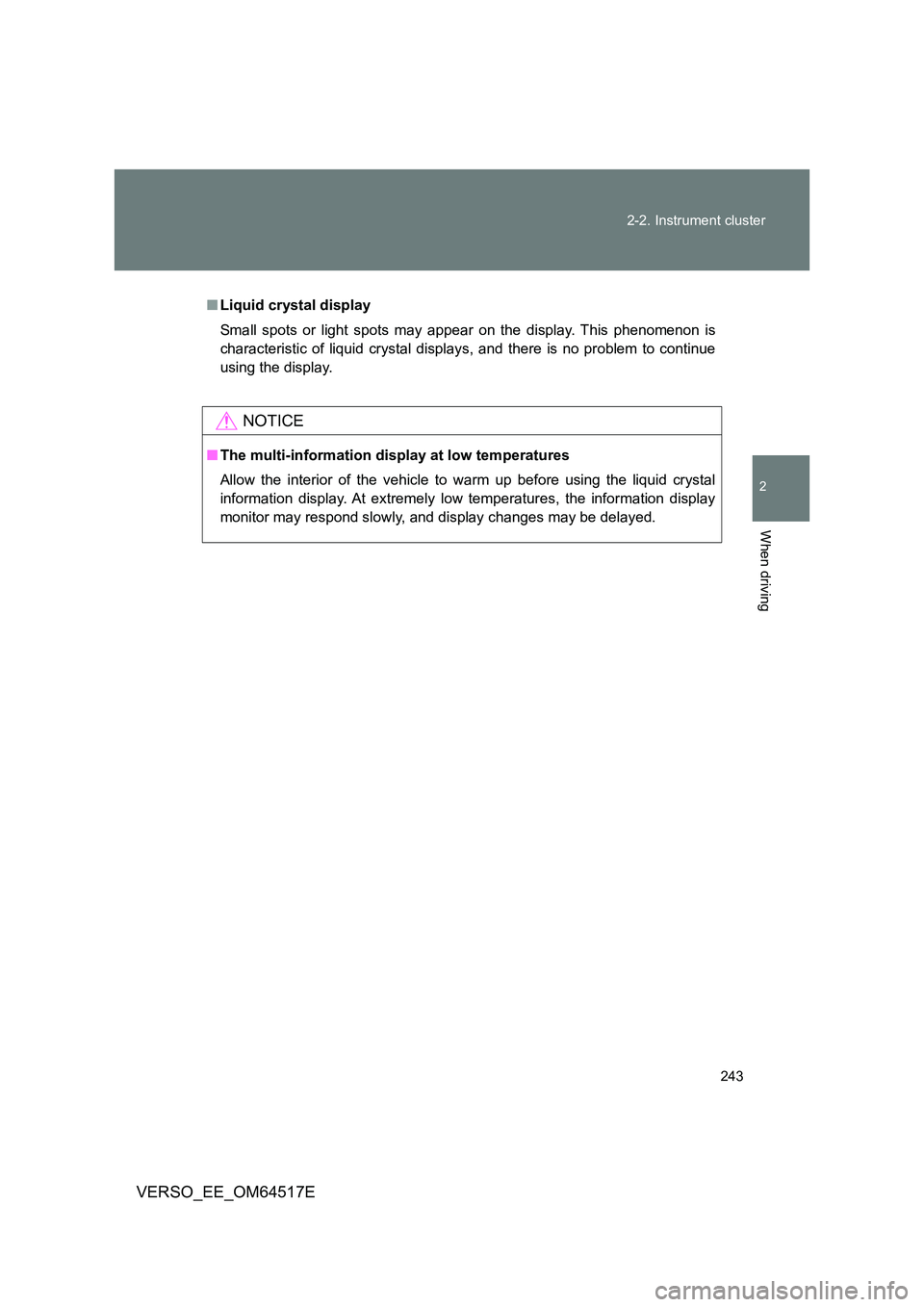

■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
NOTICE
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

244
2-2. Instrument cluster
VERSO_EE_OM64517E

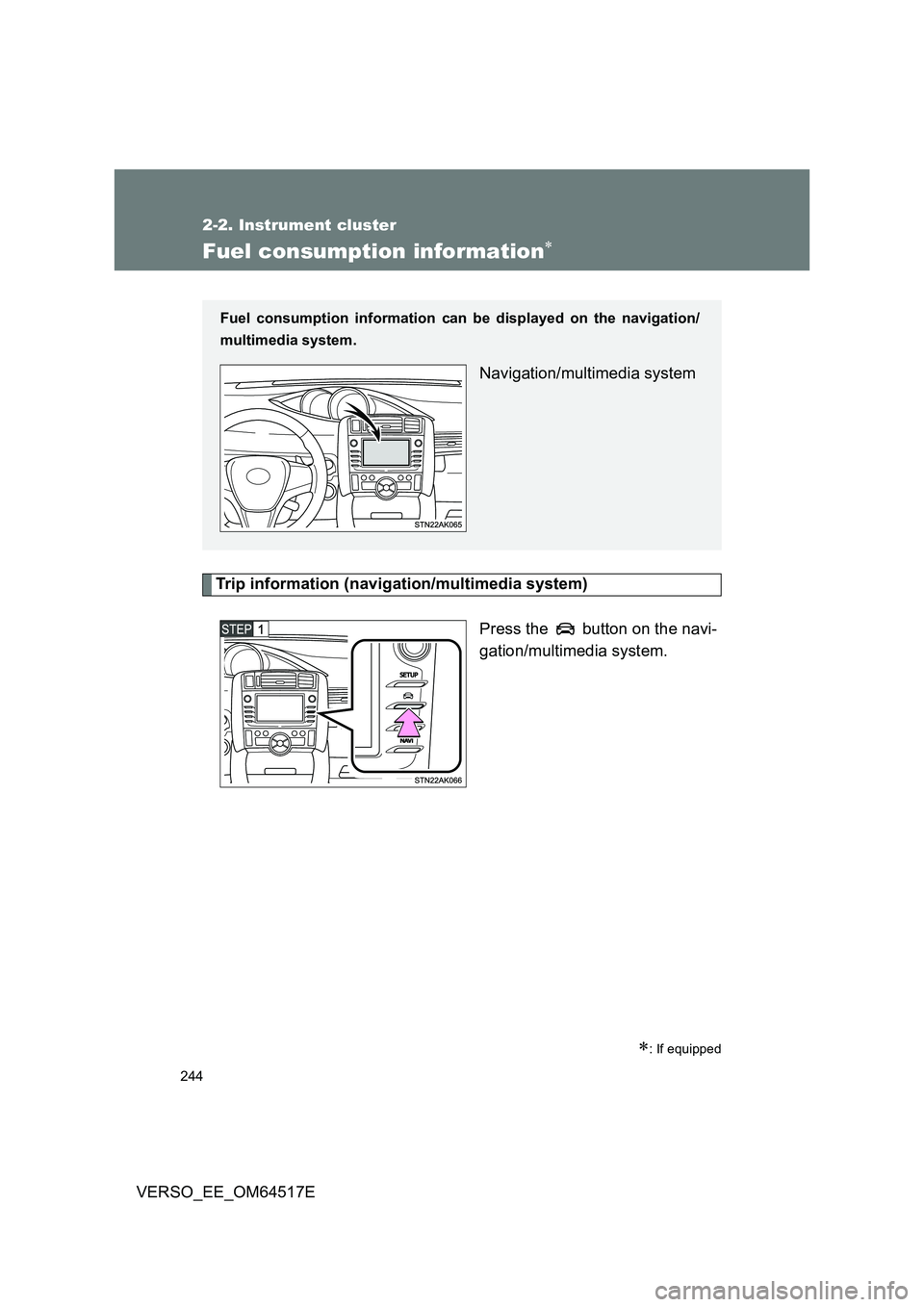

Fuel consumption information
Trip information (navigation/multimedia system)
Press the button on the navi-
gation/multimedia system.
: If equipped
Fuel consumption information can be displayed on the navigation/
multimedia system.
Navigation/multimedia system

245
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E
Select “Trip information”.
Average vehicle speed since
the engine was started.
Cruising range ( P. 247)
Fuel consumption in the past
15 minutes
Elapsed time since the engine
was started.
Resetting the consumption
data
Vehicles without smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position. Use the displayed
average fuel consumption as a reference.
Vehicles with smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the “ENGINE
START STOP” switch was last turned to IGNITION ON mode. Use
the displayed average fuel consumption as a reference.
These images are examples only, and may vary slightly from actual con-
ditions.

246
2-2. Instrument cluster
VERSO_EE_OM64517E

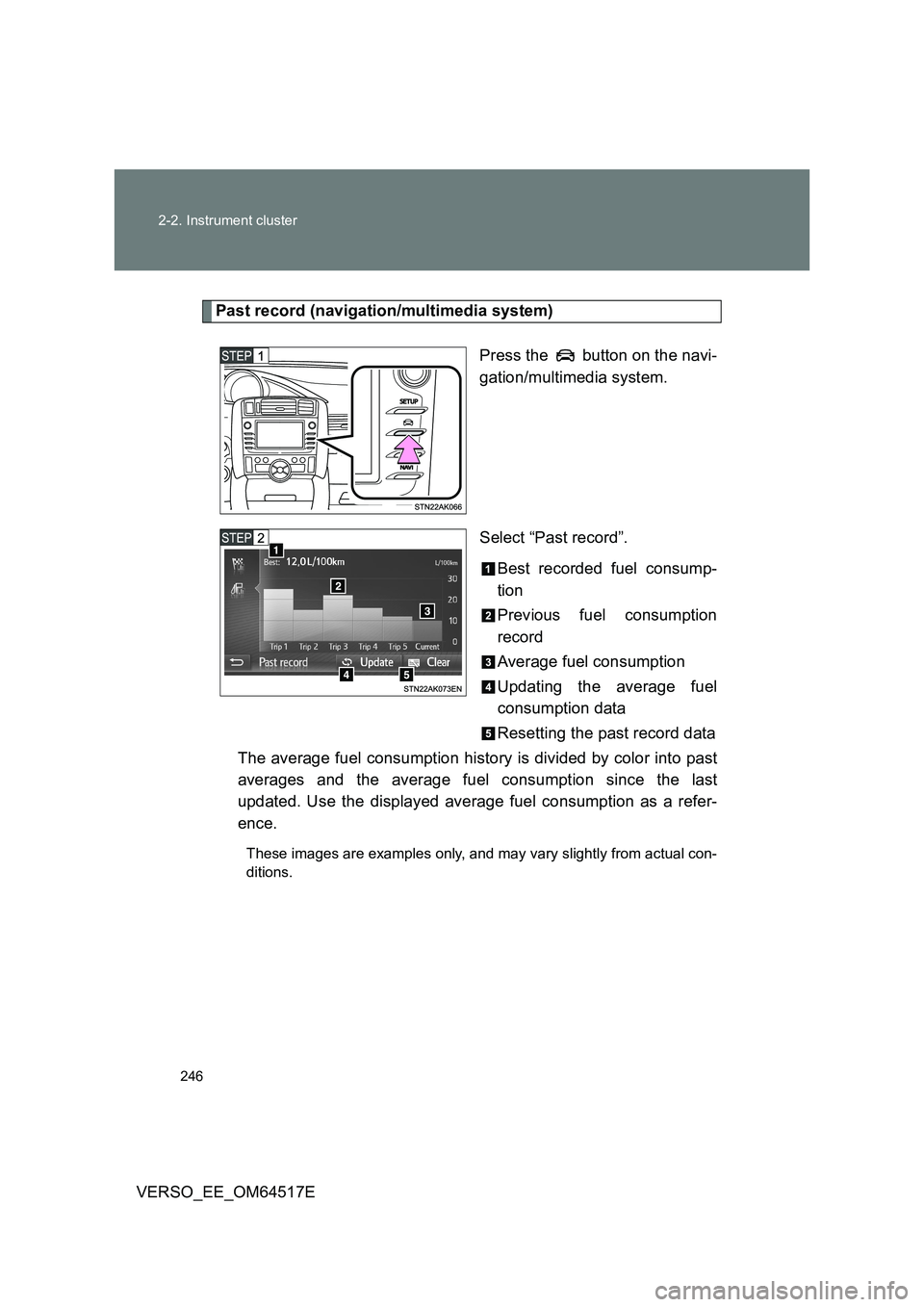

Past record (navigation/multimedia system)
Press the button on the navi-
gation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last
updated. Use the displayed average fuel consumption as a refer-
ence.
These images are examples only, and may vary slightly from actual con-
ditions.

247
2-2. Instrument cluster
2
When driving
VERSO_EE_OM64517E

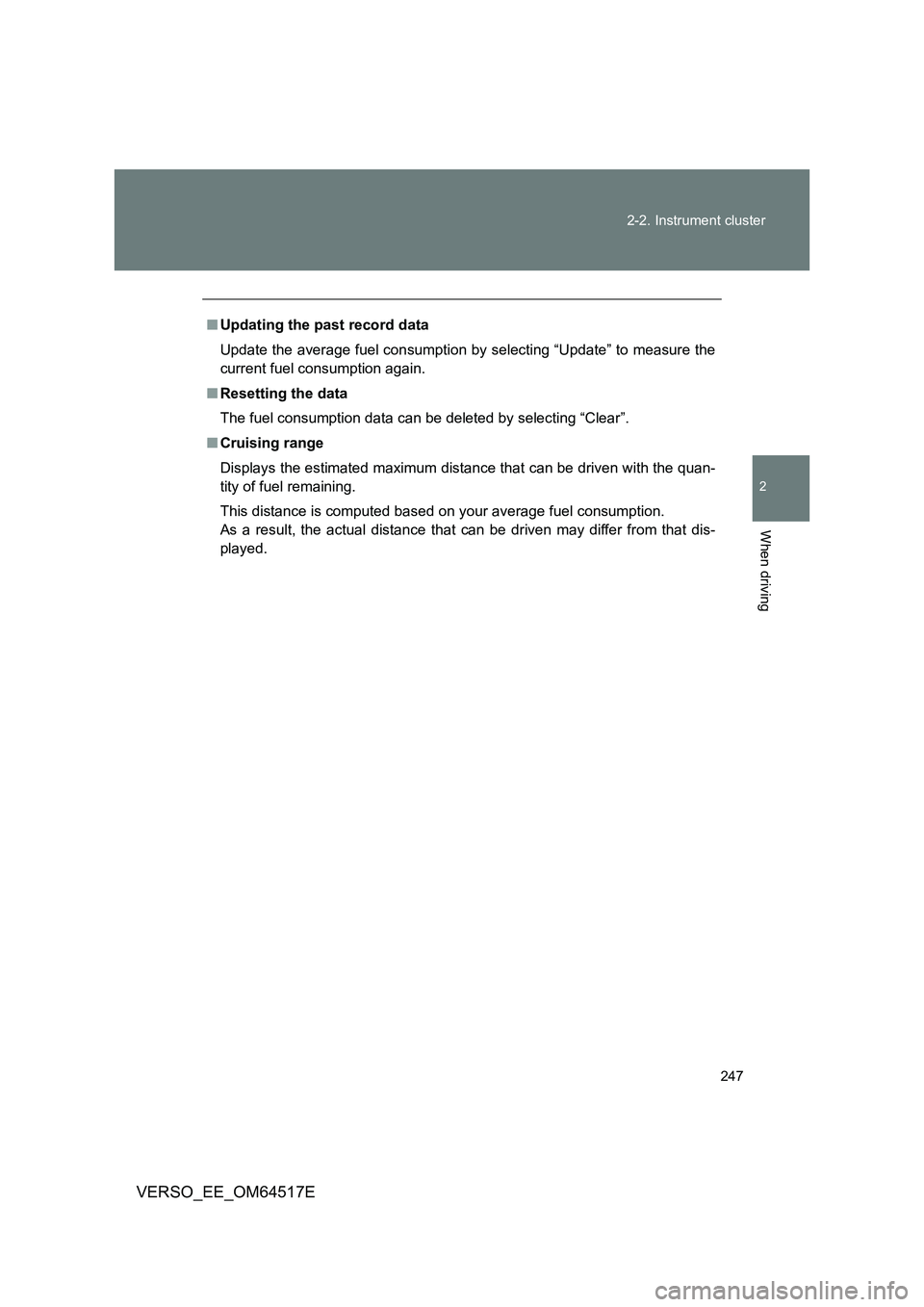

■ Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

248
VERSO_EE_OM64517E
2-3. Operating the lights and wipers

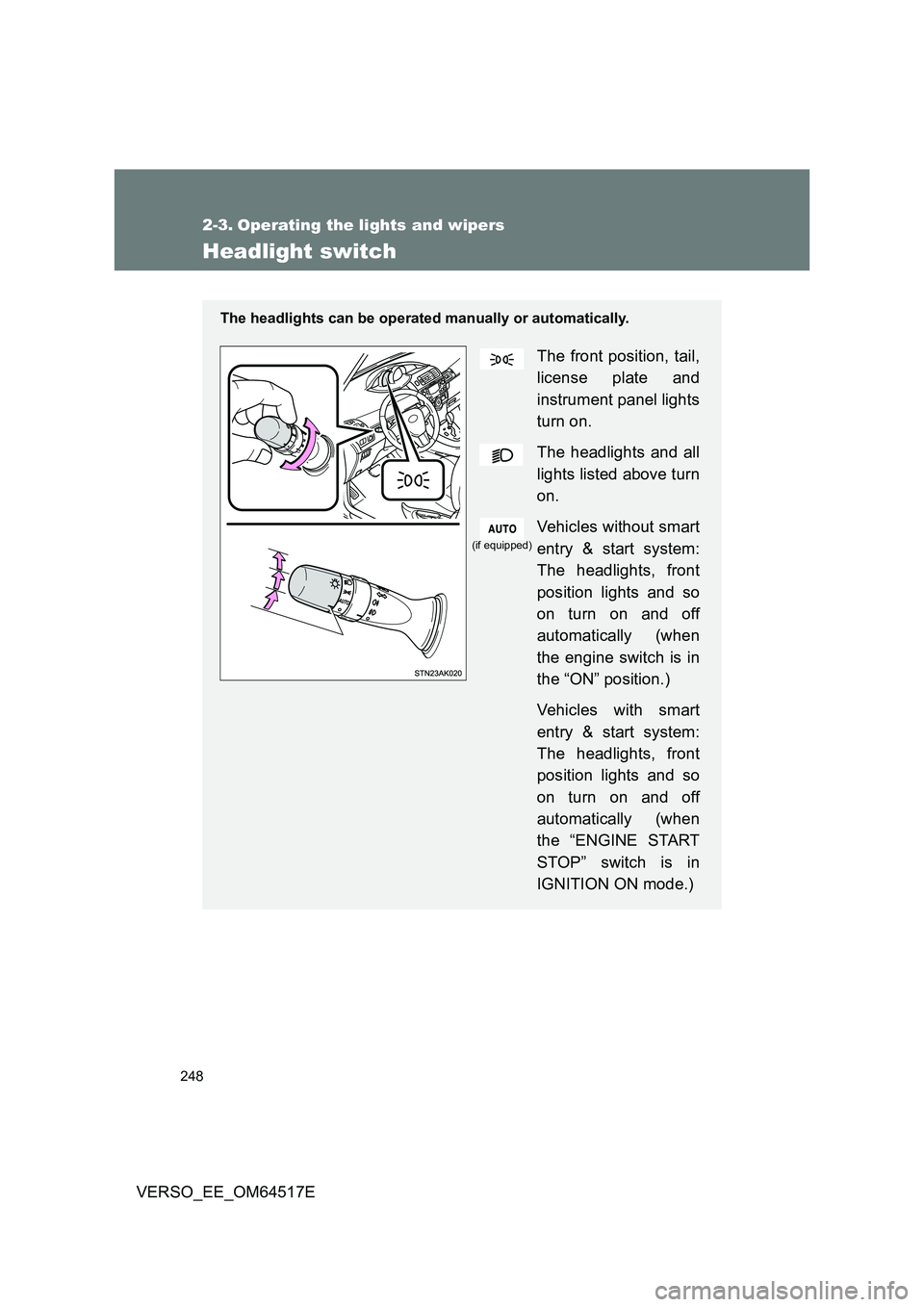

Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
Vehicles without smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the engine switch is in
the “ON” position.)
Vehicles with smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the “ENGINE START
STOP” switch is in
IGNITION ON mode.)
(if equipped)

249
2-3. Operating the lights and wipers
2
When driving
VERSO_EE_OM64517E

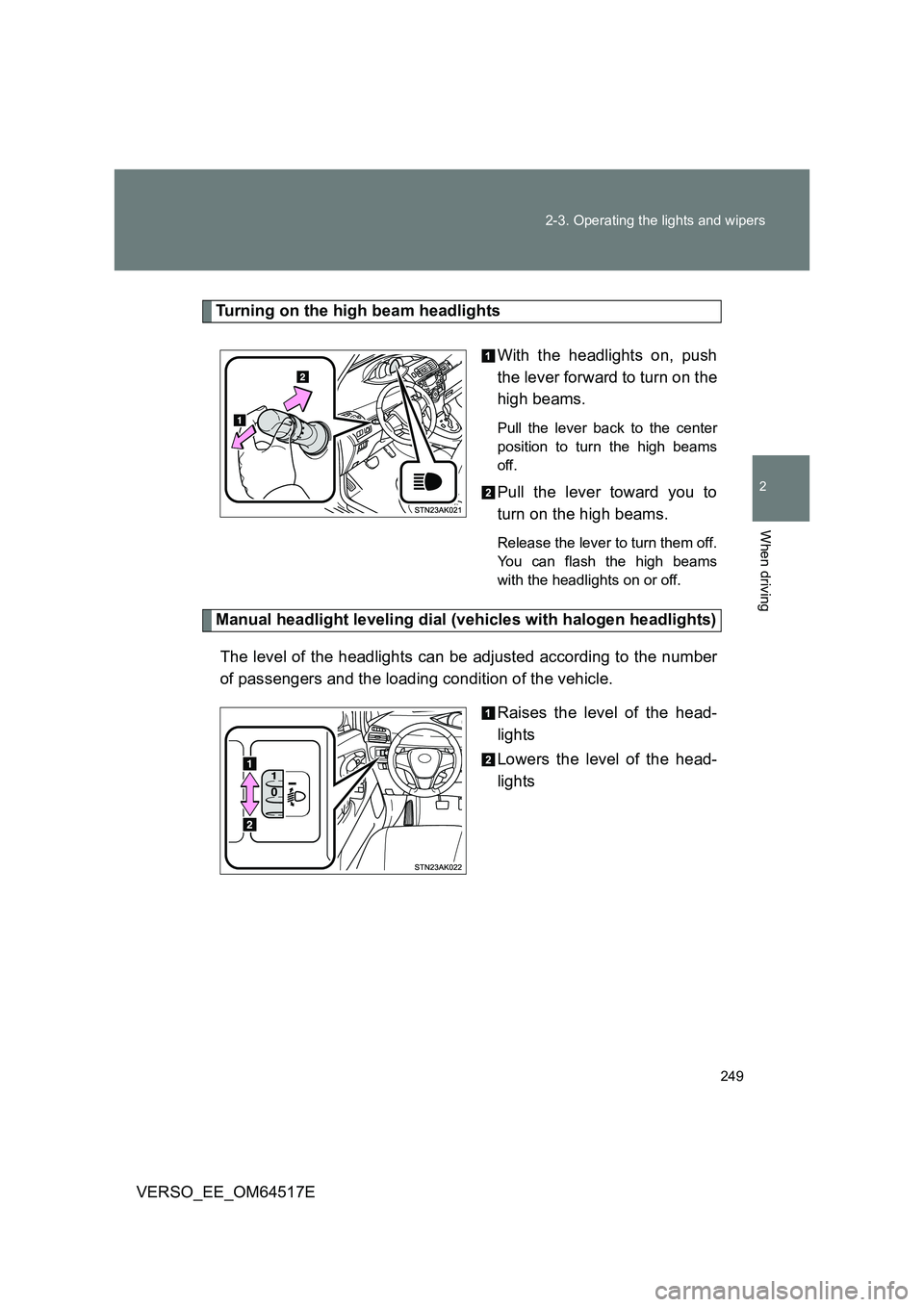

Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial (vehicles with halogen headlights)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights

250
2-3. Operating the lights and wipers
VERSO_EE_OM64517E

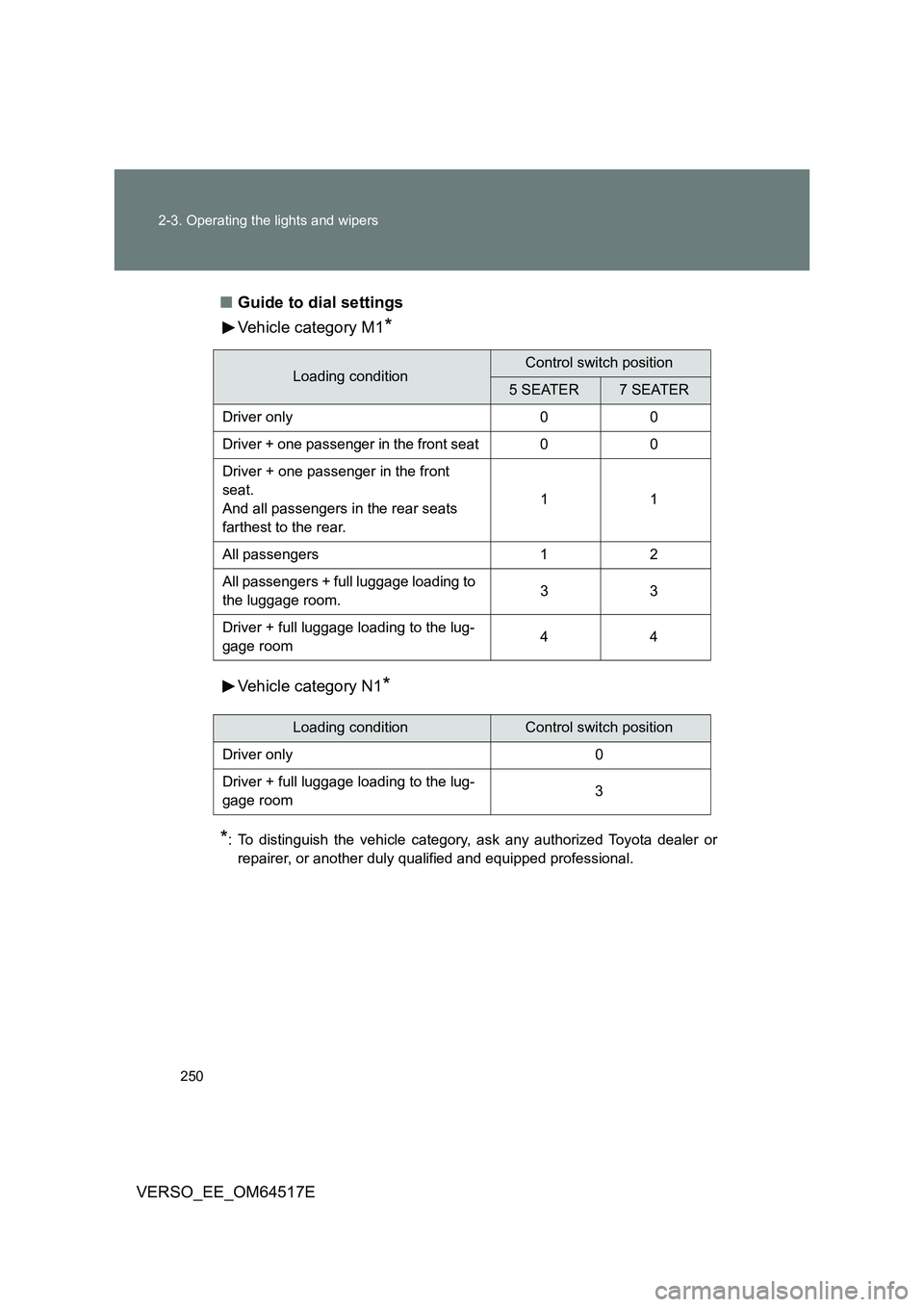

■ Guide to dial settings
Vehicle category M1*
Vehicle category N1*
*: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Loading conditionControl switch position
5 SEATER7 SEATER
Driver only 0 0
Driver + one passenger in the front seat 0 0
Driver + one passenger in the front
seat.
And all passengers in the rear seats
farthest to the rear.
11
All passengers 1 2
All passengers + full luggage loading to
the luggage room. 33
Driver + full luggage loading to the lug-
gage room 44
Loading conditionControl switch position
Driver only 0
Driver + full luggage loading to the lug-
gage room 3
