4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

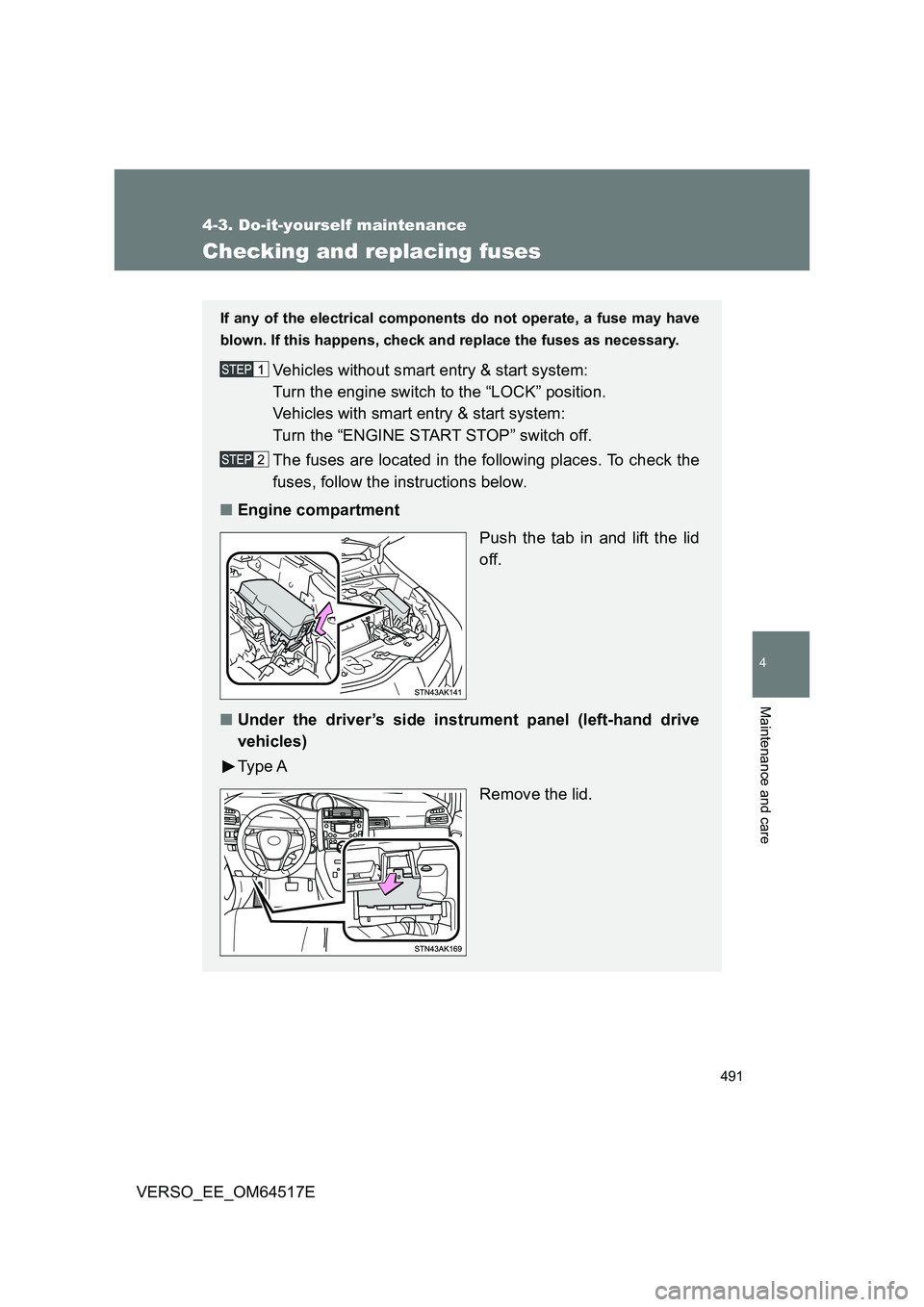

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch off.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
■ Engine compartment
Push the tab in and lift the lid
off.
■ Under the driver’s side instrument panel (left-hand drive
vehicles)
Ty p e A
Remove the lid.

492
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

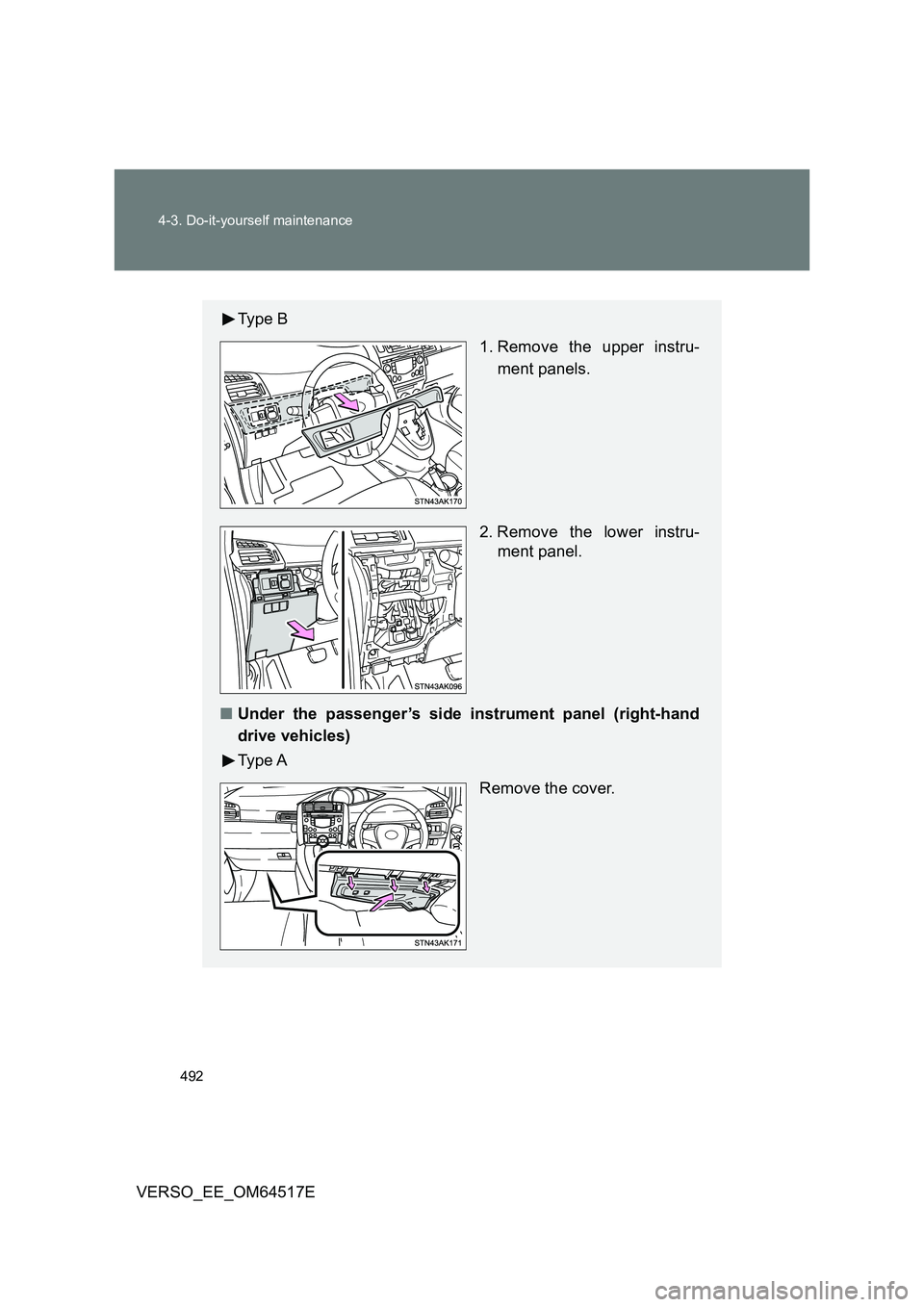

Ty p e B
1. Remove the upper instru-
ment panels.
2. Remove the lower instru-
ment panel.
■ Under the passenger’s side instrument panel (right-hand
drive vehicles)
Ty p e A
Remove the cover.

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

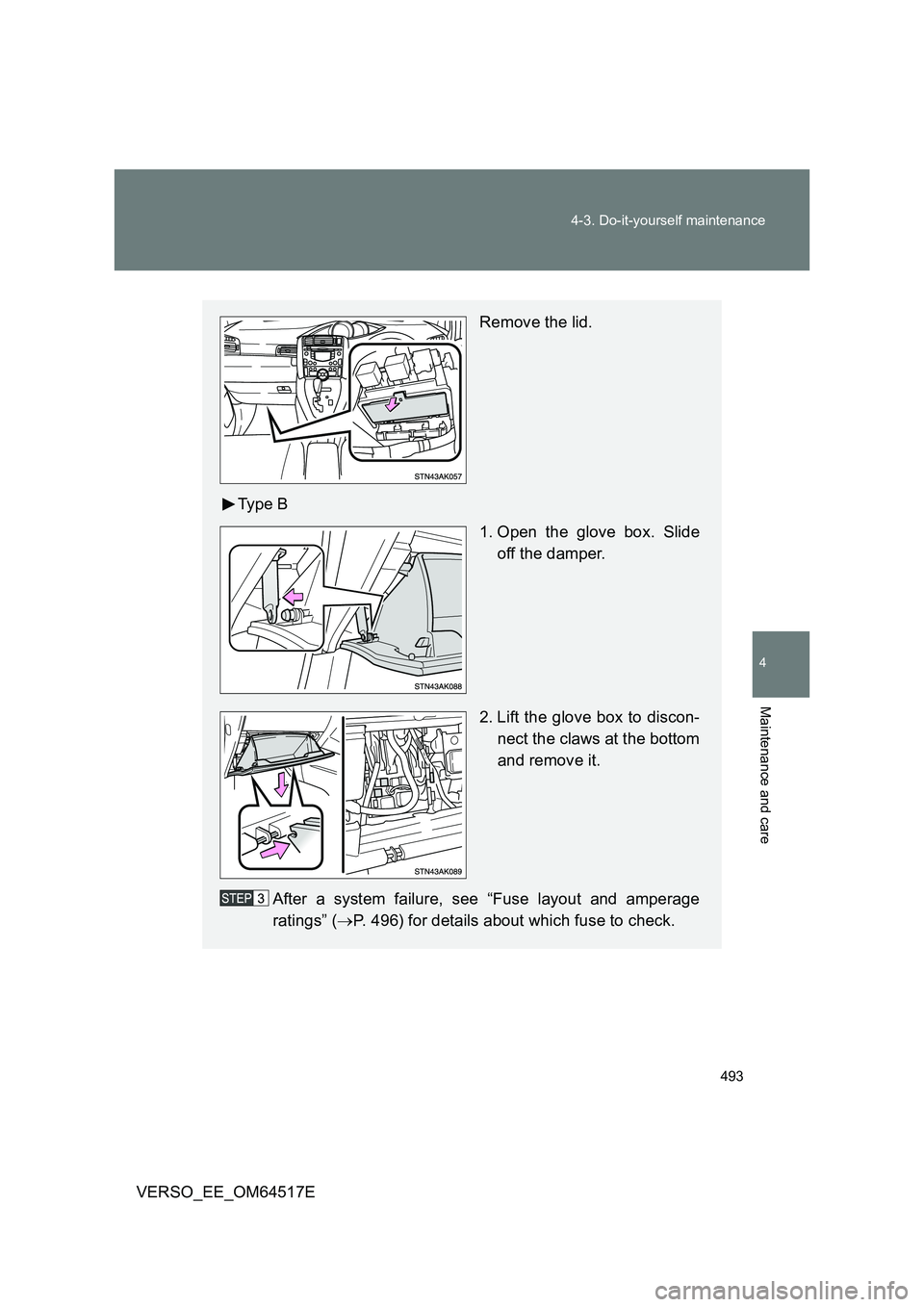

Remove the lid.
Ty p e B
1. Open the glove box. Slide
off the damper.
2. Lift the glove box to discon-
nect the claws at the bottom
and remove it.
After a system failure, see “Fuse layout and amperage
ratings” ( P. 496) for details about which fuse to check.

494
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

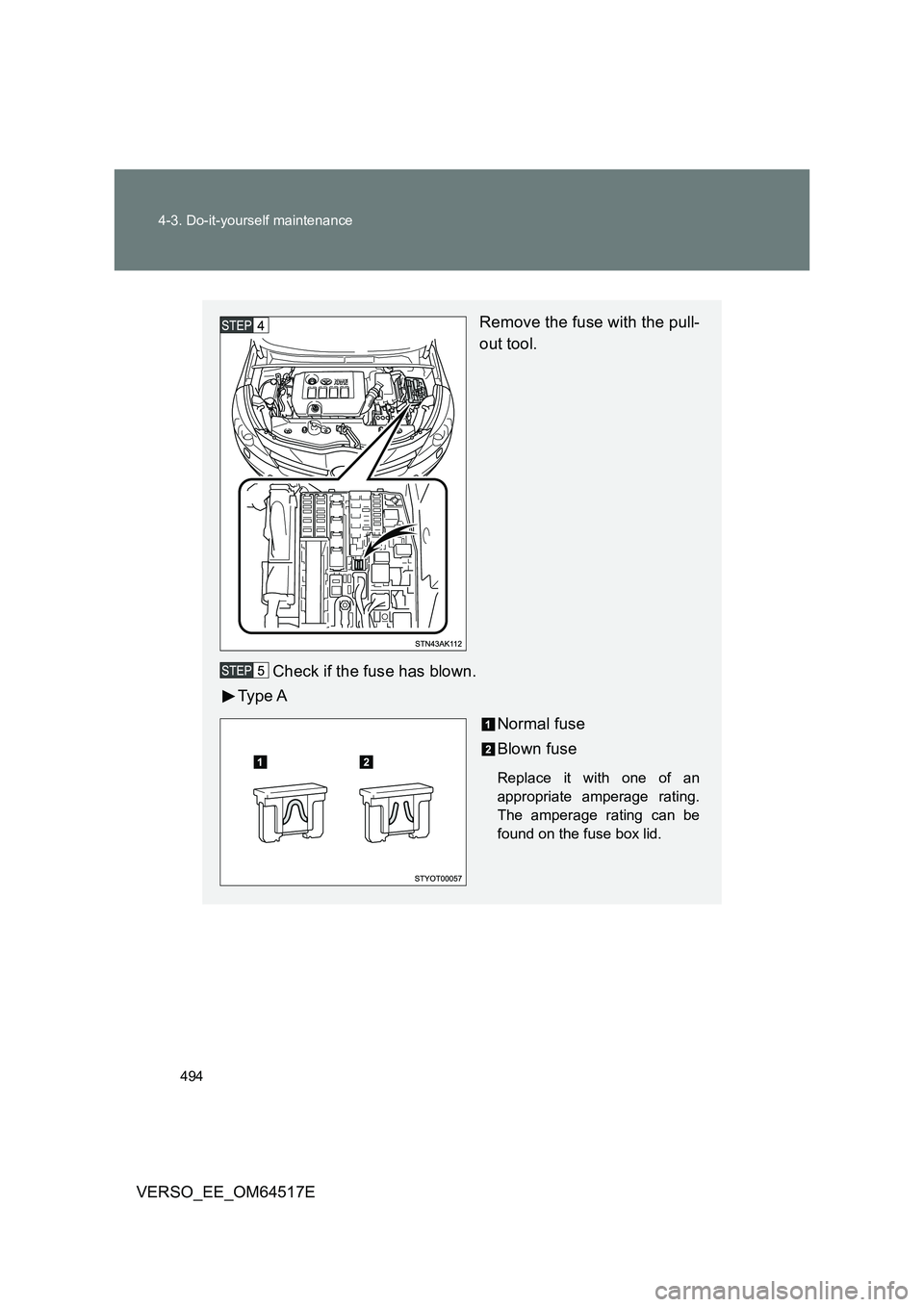

Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

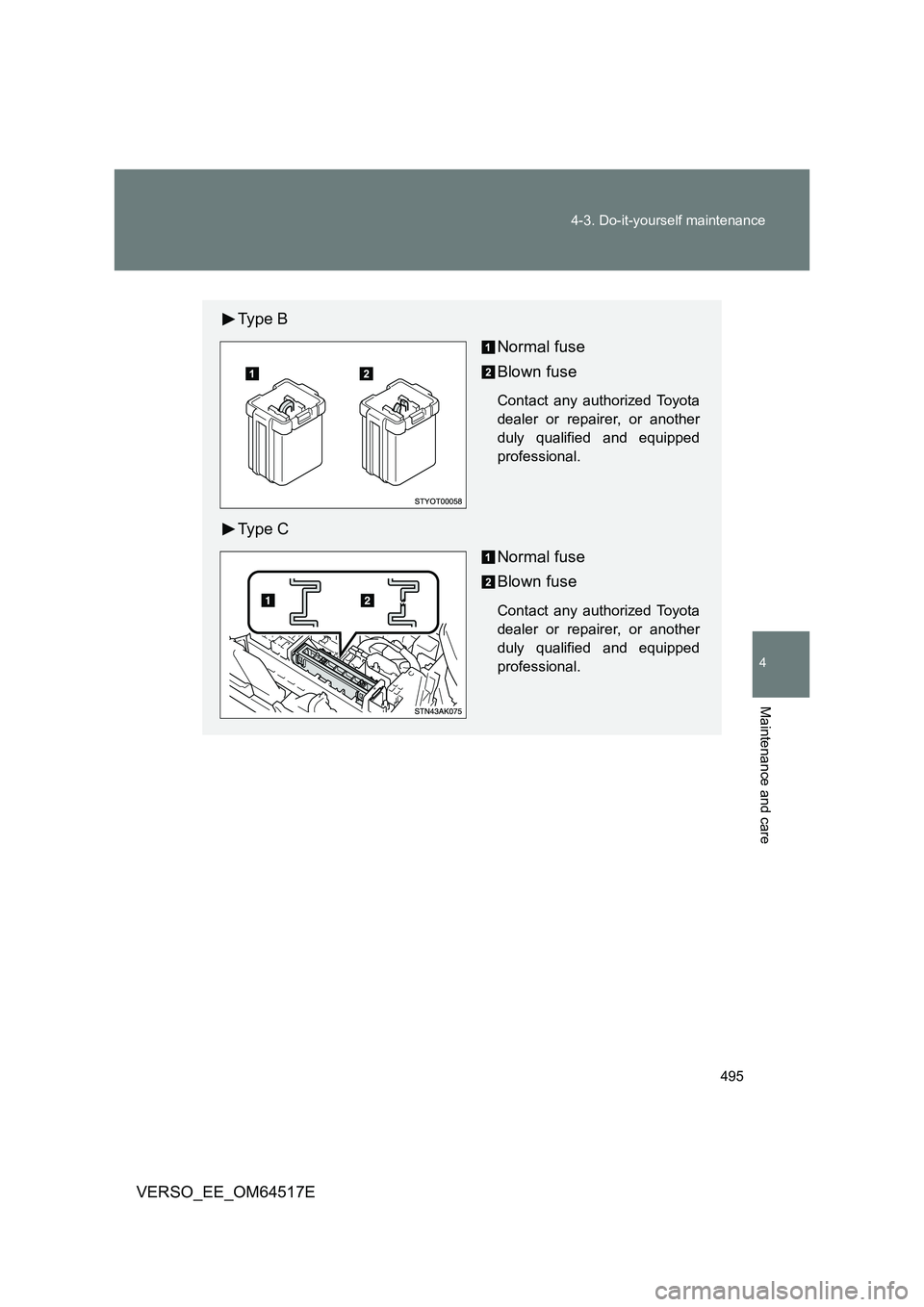

Ty p e B
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.

496
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

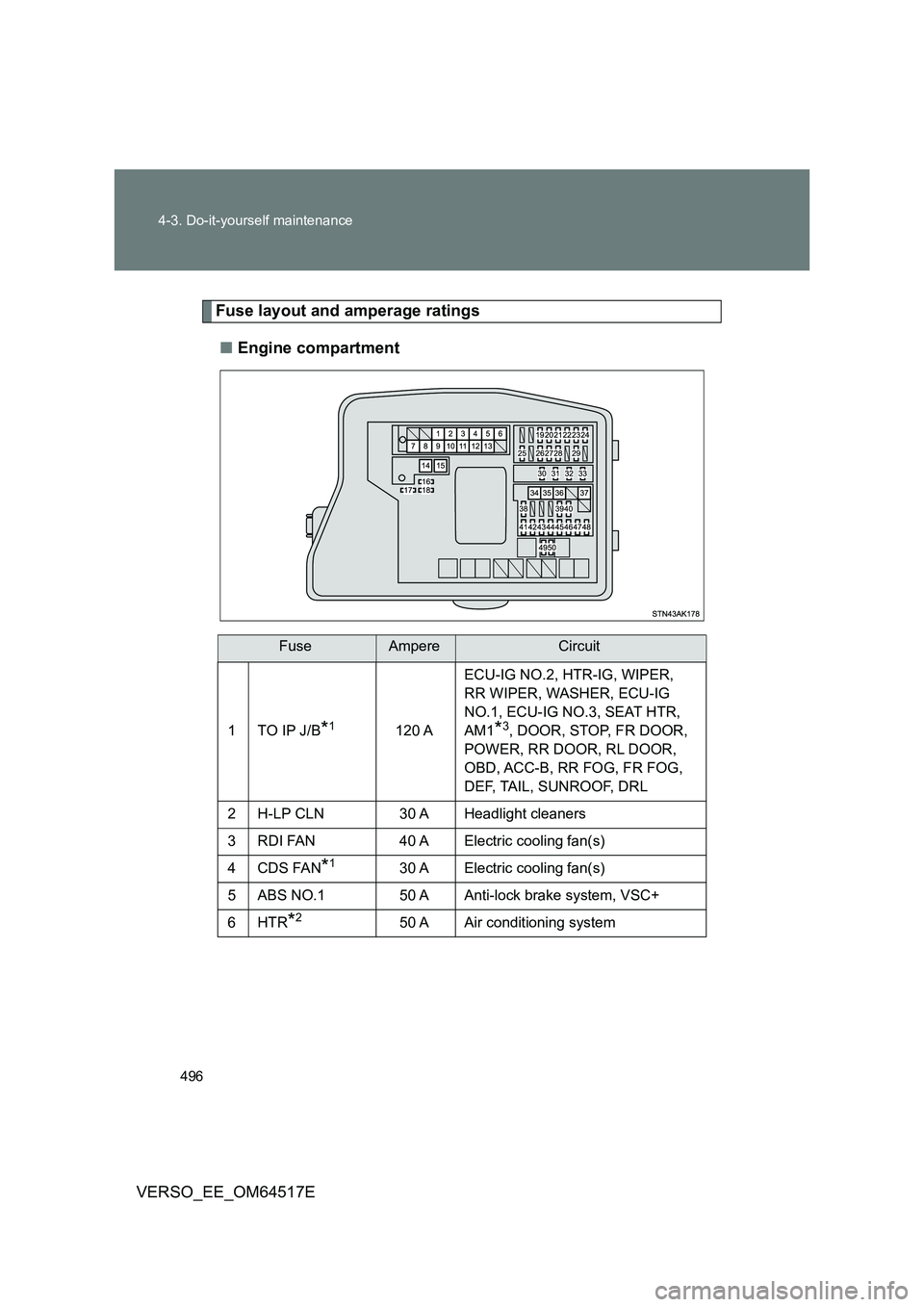

Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1TO IP J/B*1120 A
ECU-IG NO.2, HTR-IG, WIPER,
RR WIPER, WASHER, ECU-IG
NO.1, ECU-IG NO.3, SEAT HTR,
AM1*3, DOOR, STOP, FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
DEF, TAIL, SUNROOF, DRL
2H-LP CLN30 A Headlight cleaners
3RDI FAN40 A Electric cooling fan(s)
4CDS FAN*130 A Electric cooling fan(s)
5 ABS NO.1 50 A Anti-lock brake system, VSC+
6HTR*250 A Air conditioning system

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

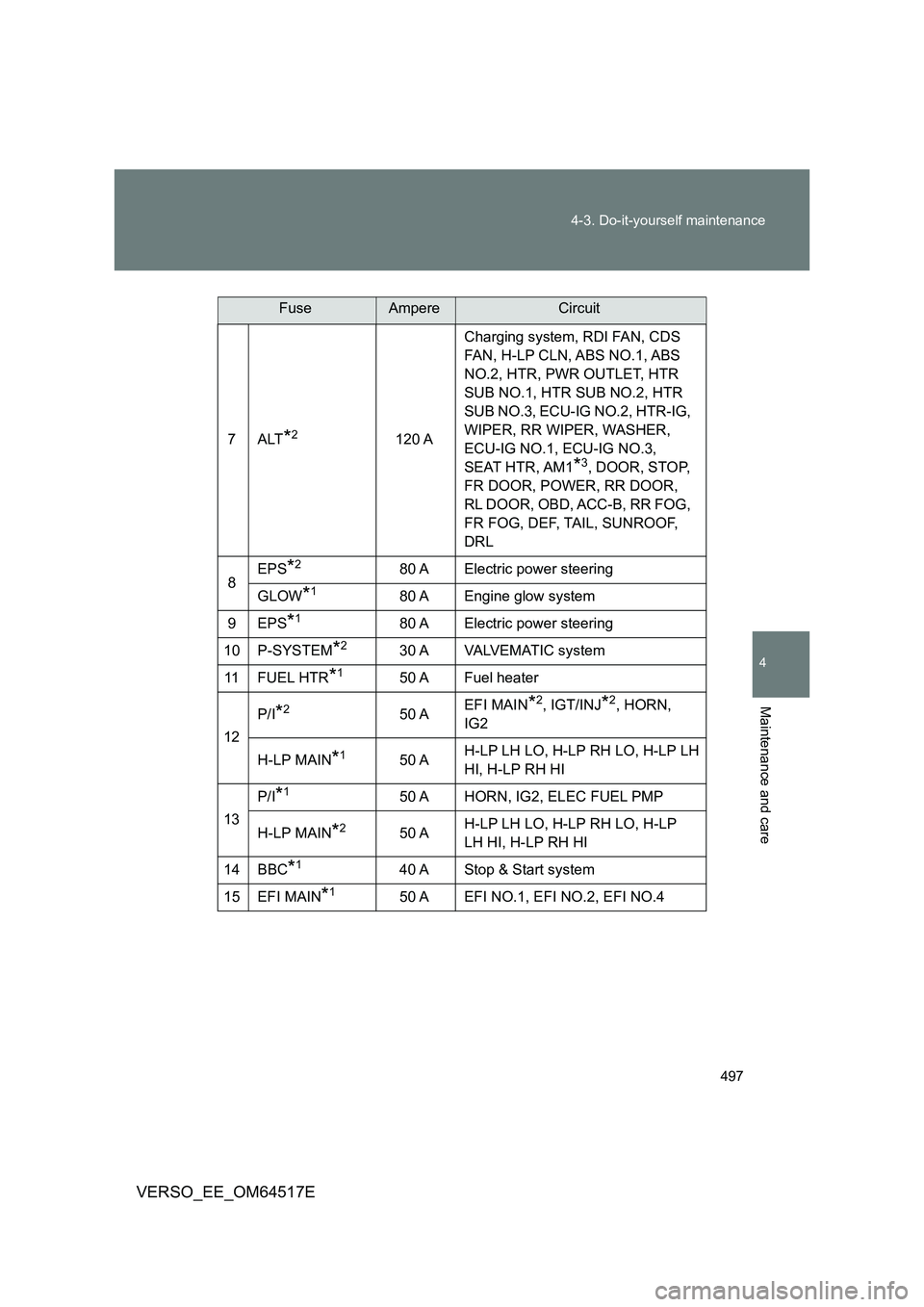

7ALT*2120 A
Charging system, RDI FAN, CDS
FAN, H-LP CLN, ABS NO.1, ABS
NO.2, HTR, PWR OUTLET, HTR
SUB NO.1, HTR SUB NO.2, HTR
SUB NO.3, ECU-IG NO.2, HTR-IG,
WIPER, RR WIPER, WASHER,
ECU-IG NO.1, ECU-IG NO.3,
SEAT HTR, AM1*3, DOOR, STOP,
FR DOOR, POWER, RR DOOR,
RL DOOR, OBD, ACC-B, RR FOG,
FR FOG, DEF, TAIL, SUNROOF,
DRL
8 EPS*280 A Electric power steering
GLOW*180 A Engine glow system
9 EPS*180 A Electric power steering
10 P-SYSTEM*230 A VALVEMATIC system
11 F U E L H T R*150 A Fuel heater
12
P/I*250 A EFI MAIN*2, IGT/INJ*2, HORN,
IG2
H-LP MAIN*150 A H-LP LH LO, H-LP RH LO, H-LP LH
HI, H-LP RH HI
13
P/I*150 A HORN, IG2, ELEC FUEL PMP
H-LP MAIN*250 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
14 BBC*140 A Stop & Start system
15 EFI MAIN*150 A EFI NO.1, EFI NO.2, EFI NO.4
FuseAmpereCircuit

498
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E

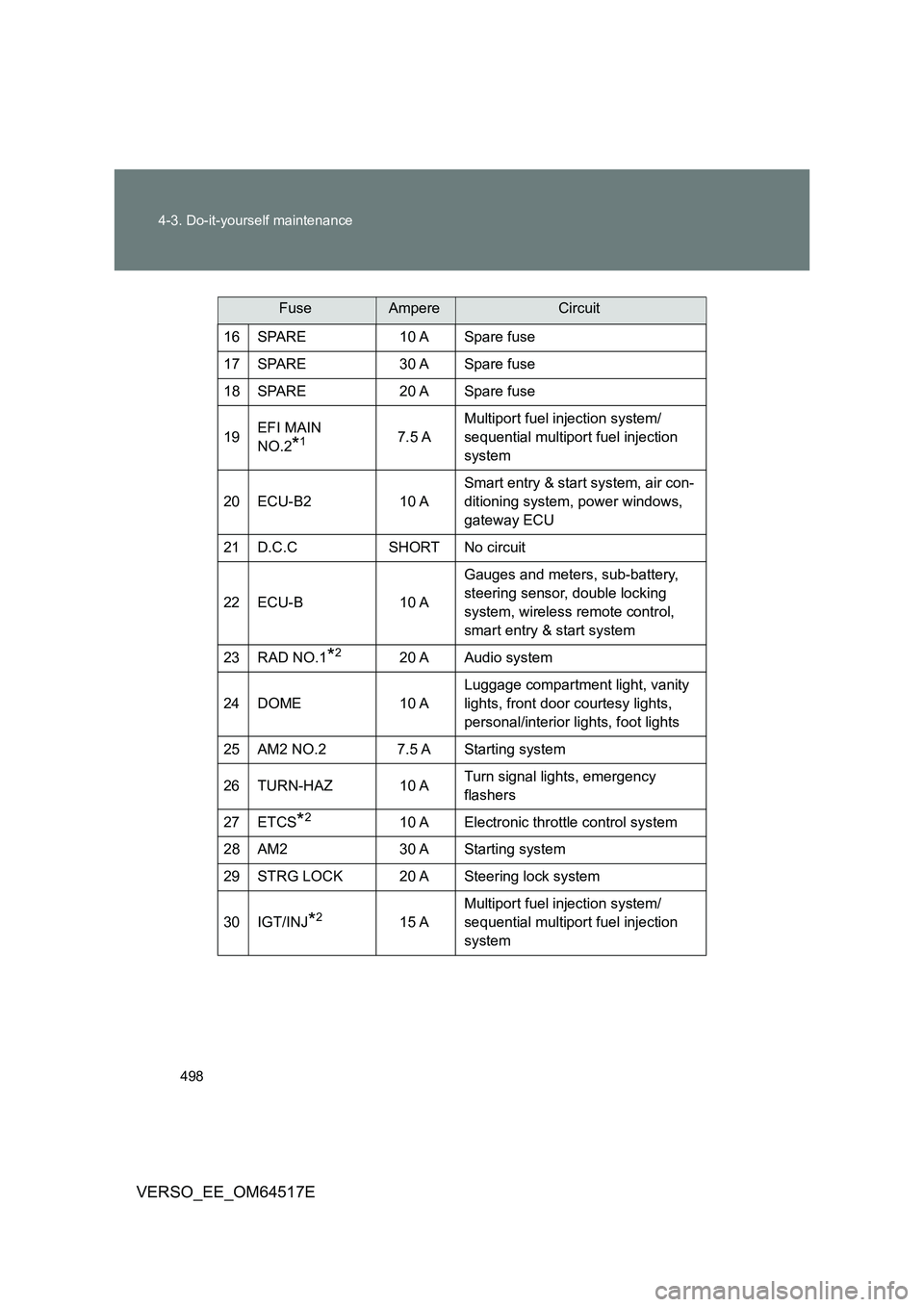

16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
18 SPARE 20 A Spare fuse
19 EFI MAIN
NO.2*17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 A
Smart entry & start system, air con-
ditioning system, power windows,
gateway ECU
21 D.C.C SHORT No circuit
22 ECU-B 10 A
Gauges and meters, sub-battery,
steering sensor, double locking
system, wireless remote control,
smart entry & start system
23 RAD NO.1*220 A Audio system
24 DOME 10 A
Luggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
25 AM2 NO.2 7.5 A Starting system
26 TURN-HAZ 10 A Turn signal lights, emergency
flashers
27 ETCS*210 A Electronic throttle control system
28 AM2 30 A Starting system
29 STRG LOCK 20 A Steering lock system
30 IGT/INJ*215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64517E

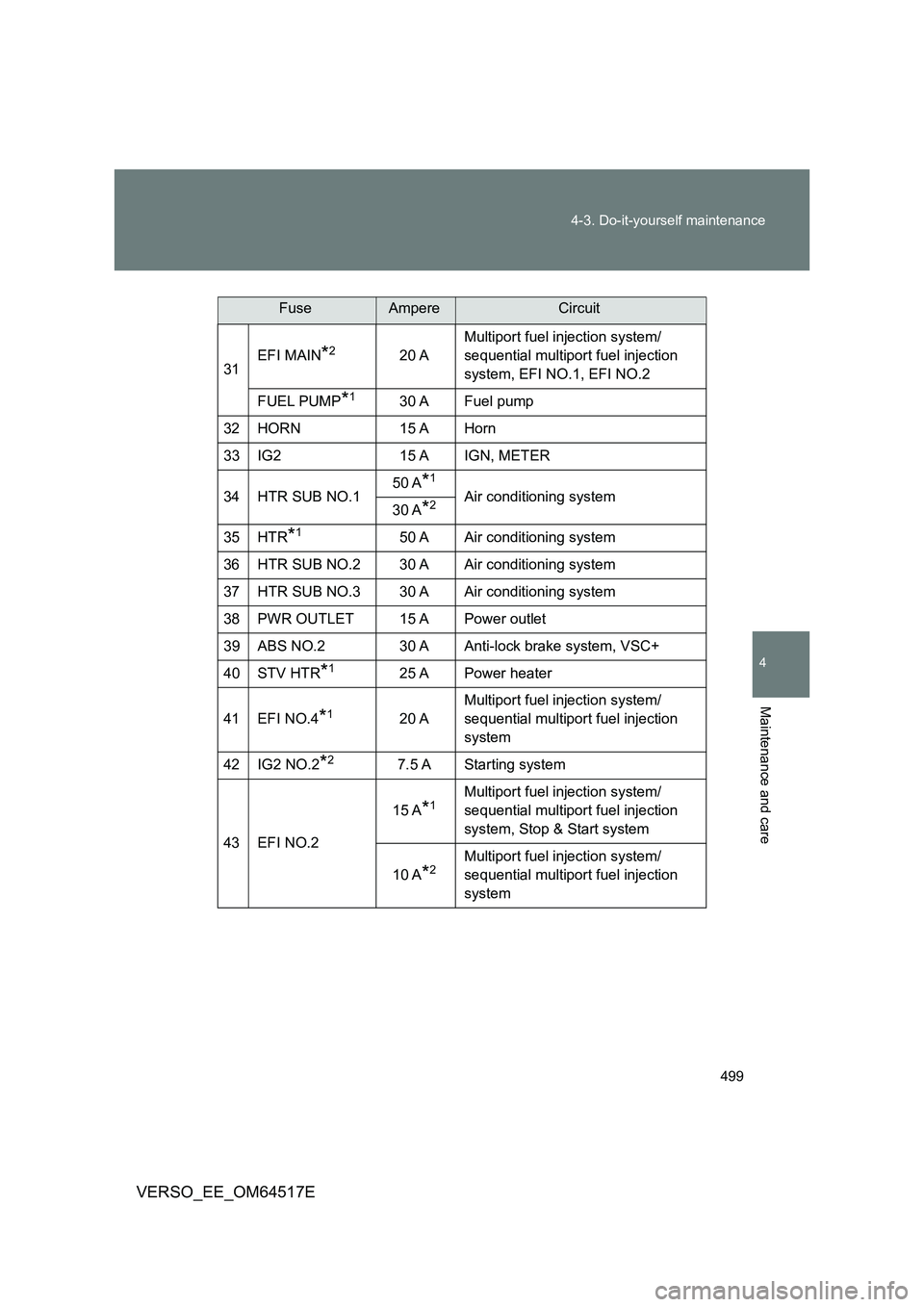

31 EFI MAIN*220 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL PUMP*130 A Fuel pump
32 HORN 15 A Horn
33 IG2 15 A IGN, METER
34 HTR SUB NO.1 50 A*1
Air conditioning system 30 A*2
35 HTR*150 A Air conditioning system
36 HTR SUB NO.2 30 A Air conditioning system
37 HTR SUB NO.3 30 A Air conditioning system
38PWR OUTLET15 APower outlet
39 ABS NO.2 30 A Anti-lock brake system, VSC+
40 STV HTR*125 A Power heater
41 EFI NO.4*120 A
Multiport fuel injection system/
sequential multiport fuel injection
system
42 IG2 NO.2*27.5 A Starting system
43 EFI NO.2
15 A*1Multiport fuel injection system/
sequential multiport fuel injection
system, Stop & Start system
10 A*2Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

500
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles without smart entry & start system
*4: Vehicles with halogen headlights
*5: Vehicles with discharge headlights

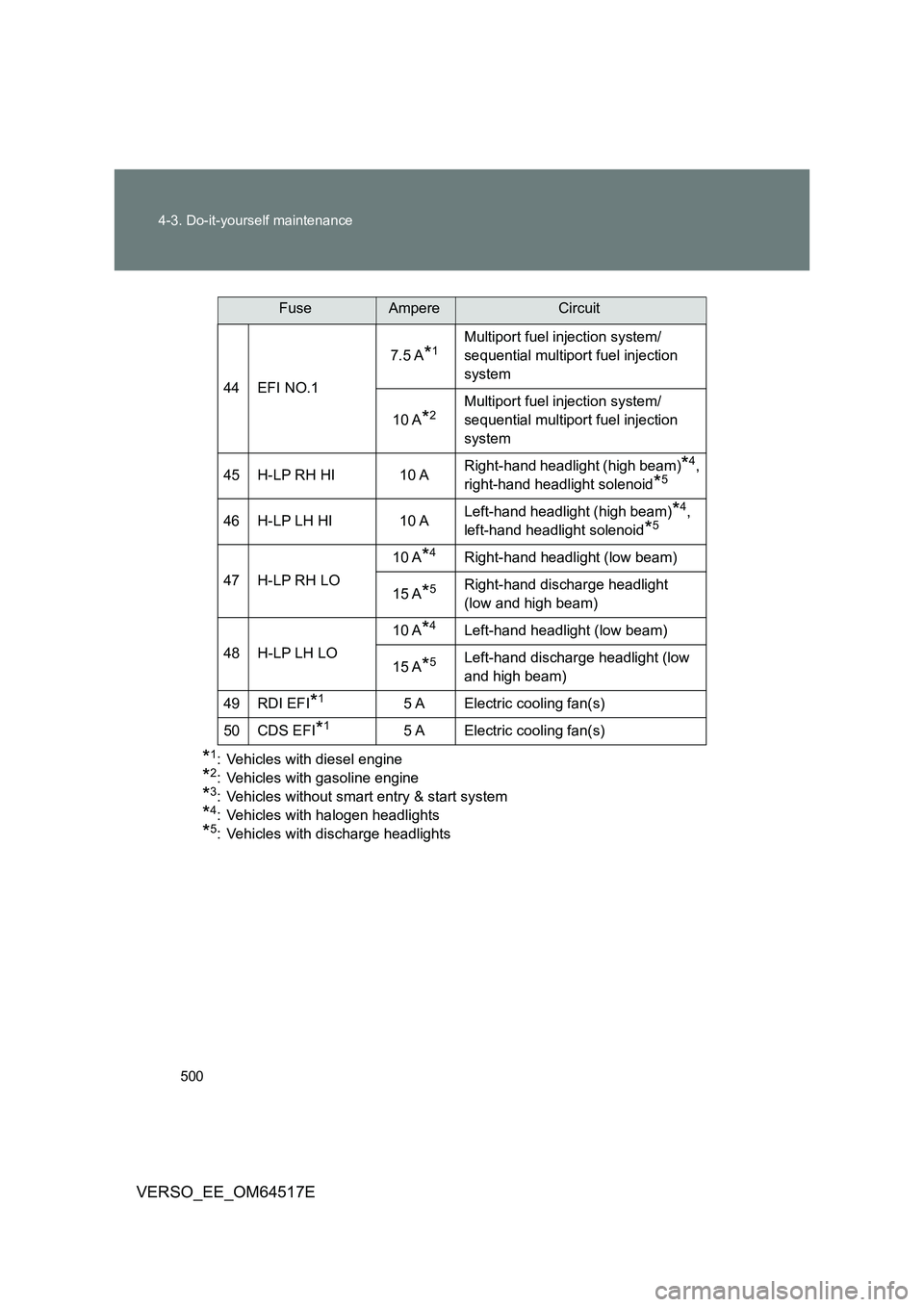

44 EFI NO.1
7.5 A*1Multiport fuel injection system/
sequential multiport fuel injection
system
10 A*2Multiport fuel injection system/
sequential multiport fuel injection
system
45 H-LP RH HI 10 A Right-hand headlight (high beam)*4,
right-hand headlight solenoid*5
46 H-LP LH HI 10 A Left-hand headlight (high beam)*4,
left-hand headlight solenoid*5
47 H-LP RH LO
10 A*4Right-hand headlight (low beam)
15 A*5Right-hand discharge headlight
(low and high beam)
48 H-LP LH LO
10 A*4Left-hand headlight (low beam)
15 A*5Left-hand discharge headlight (low
and high beam)
49 RDI EFI*15 A Electric cooling fan(s)
50 CDS EFI*15 A Electric cooling fan(s)
FuseAmpereCircuit
