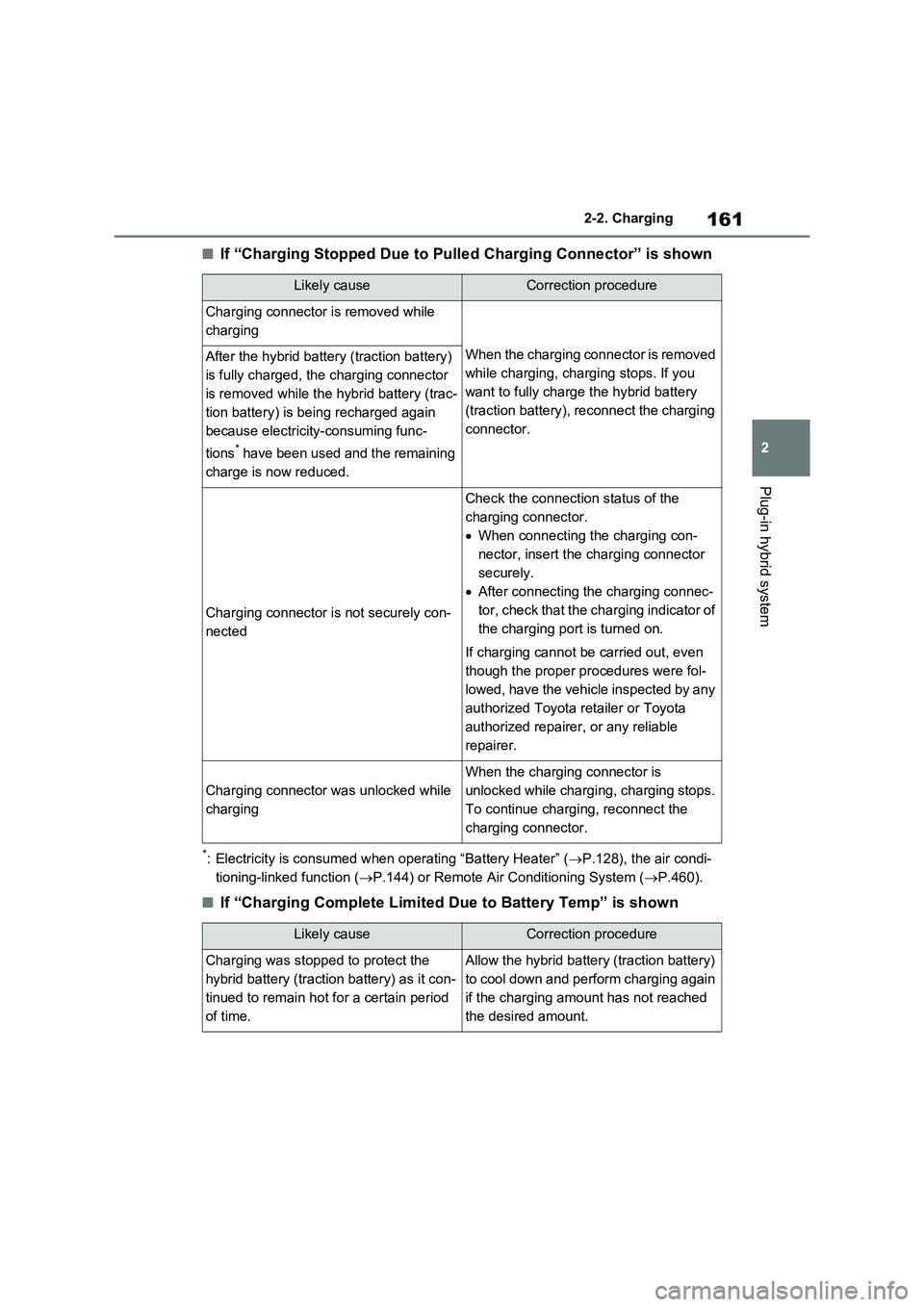

Page 161 of 664

TOYOTA VERSO S 2011  Owners Manual 161
2 2-2. Charging
Plug-in hybrid system
■If “Charging Stopped Due to Pulled Charging Connector” is shown
*: Electricity is consumed when operating “Battery Heater” (P.128), the air cond

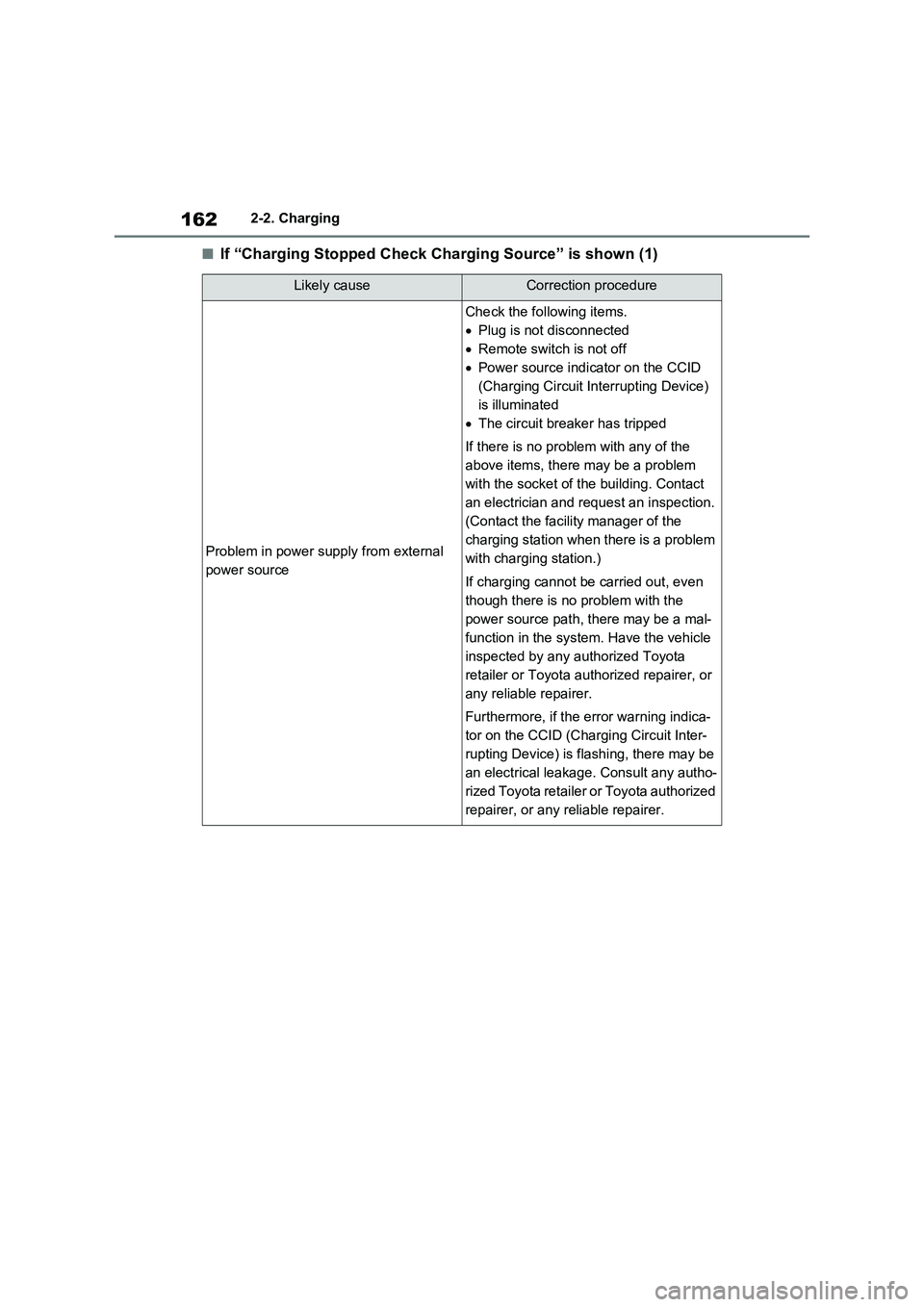

Page 162 of 664

TOYOTA VERSO S 2011  Owners Manual 1622-2. Charging
■If “Charging Stopped Check Charging Source” is shown (1)
Likely causeCorrection procedure
Problem in power supply from external
power source
Check the following items.
Plug

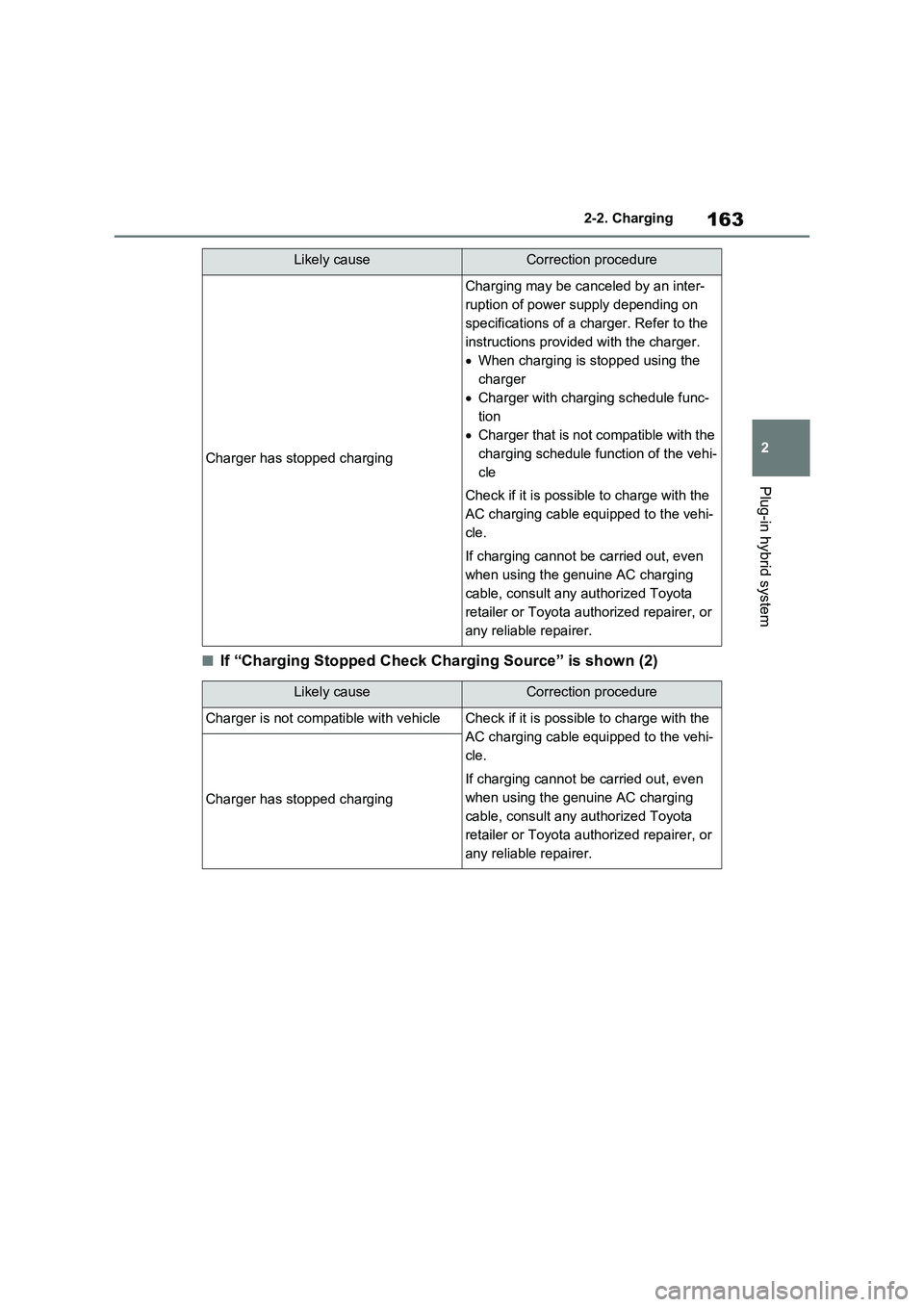

Page 163 of 664

TOYOTA VERSO S 2011  Owners Manual 163
2 2-2. Charging
Plug-in hybrid system
■If “Charging Stopped Check Charging Source” is shown (2)
Charger has stopped charging
Charging may be canceled by an inter-
ruption of power supply dep

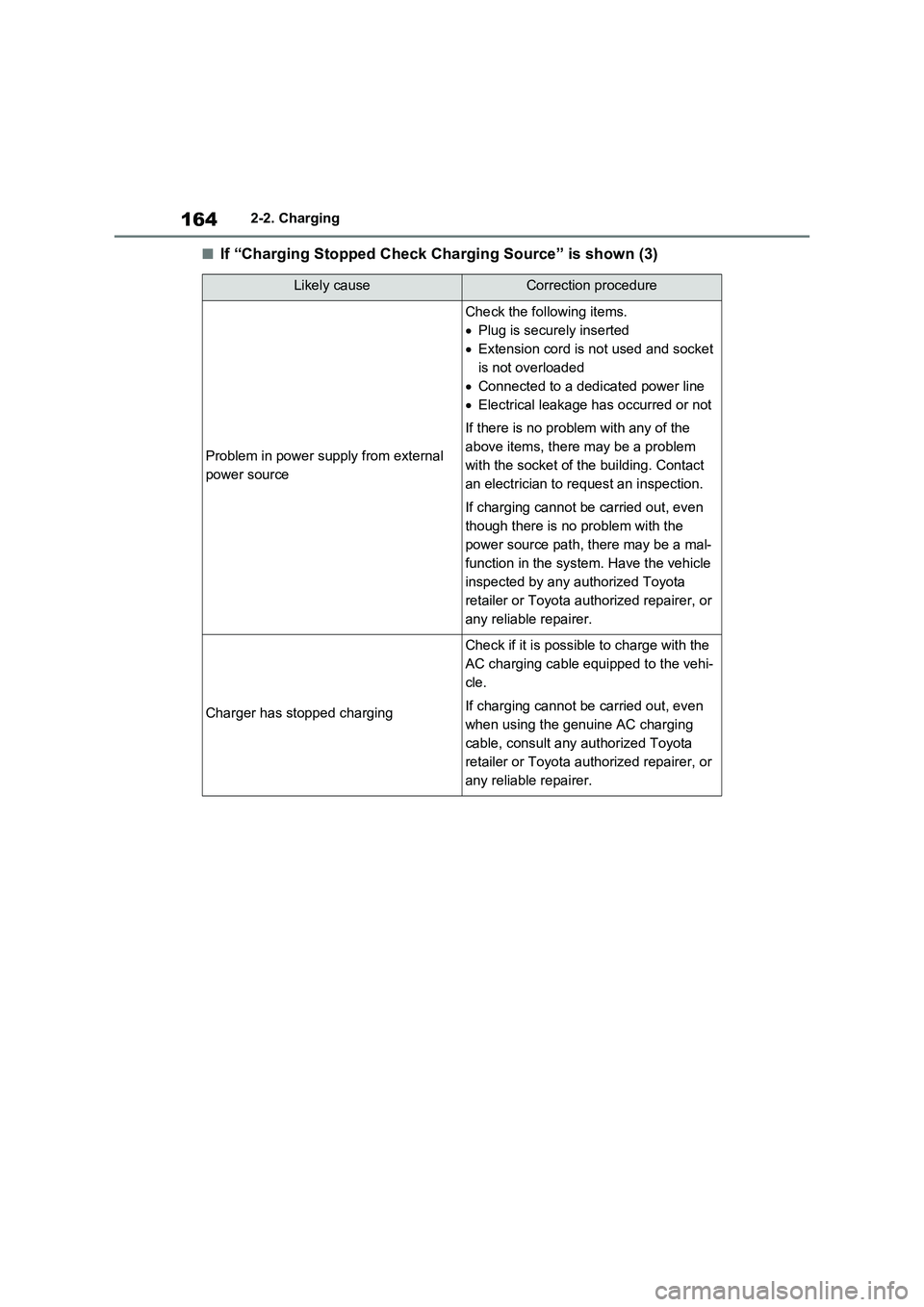

Page 164 of 664

TOYOTA VERSO S 2011  Owners Manual 1642-2. Charging
■If “Charging Stopped Check Charging Source” is shown (3)
Likely causeCorrection procedure
Problem in power supply from external
power source
Check the following items.
Plug

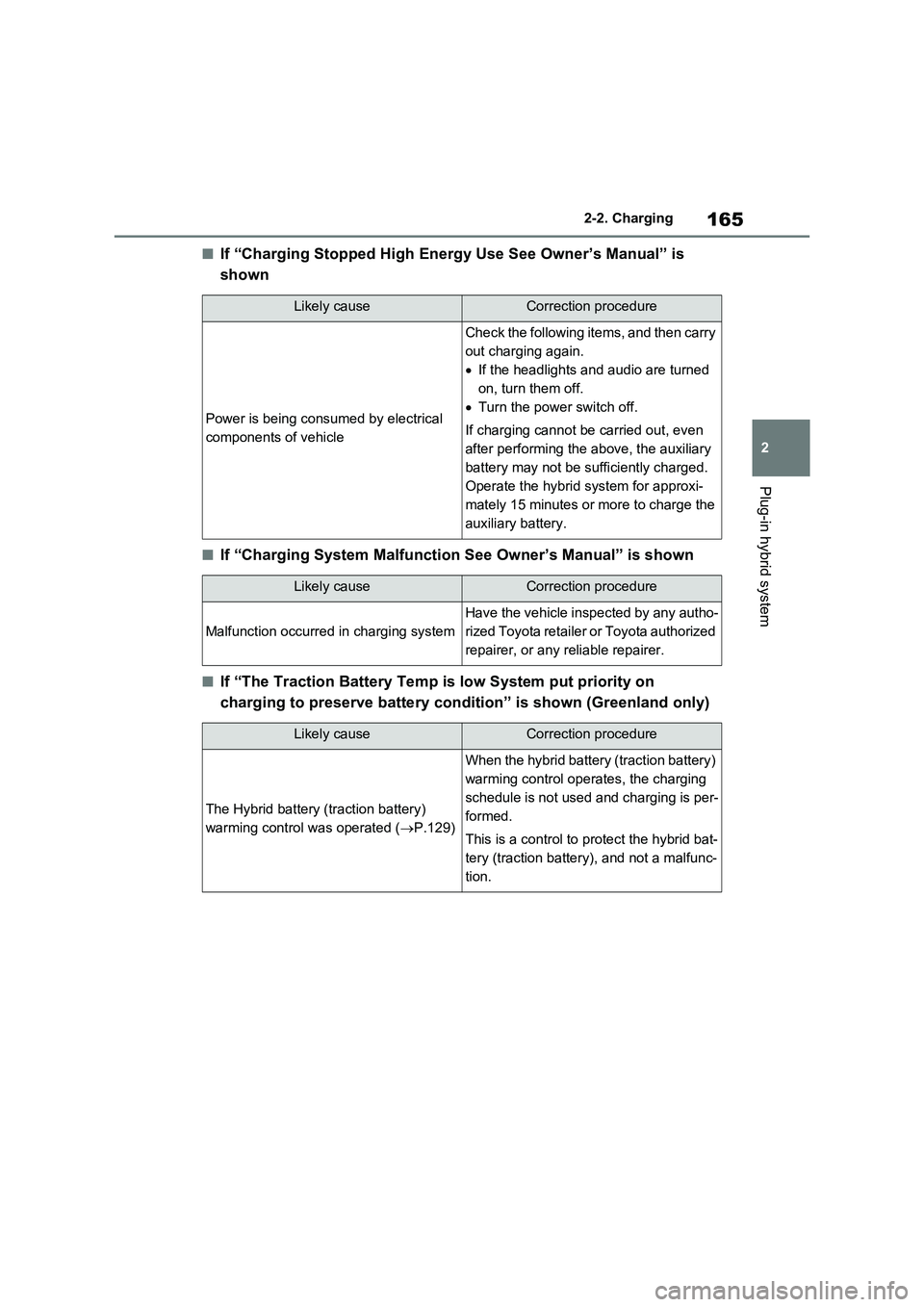

Page 165 of 664

TOYOTA VERSO S 2011  Owners Manual 165
2 2-2. Charging
Plug-in hybrid system
■If “Charging Stopped High Energy Use See Owner’s Manual” is
shown
■If “Charging System Malfunction See Owner’s Manual” is shown
■If “The

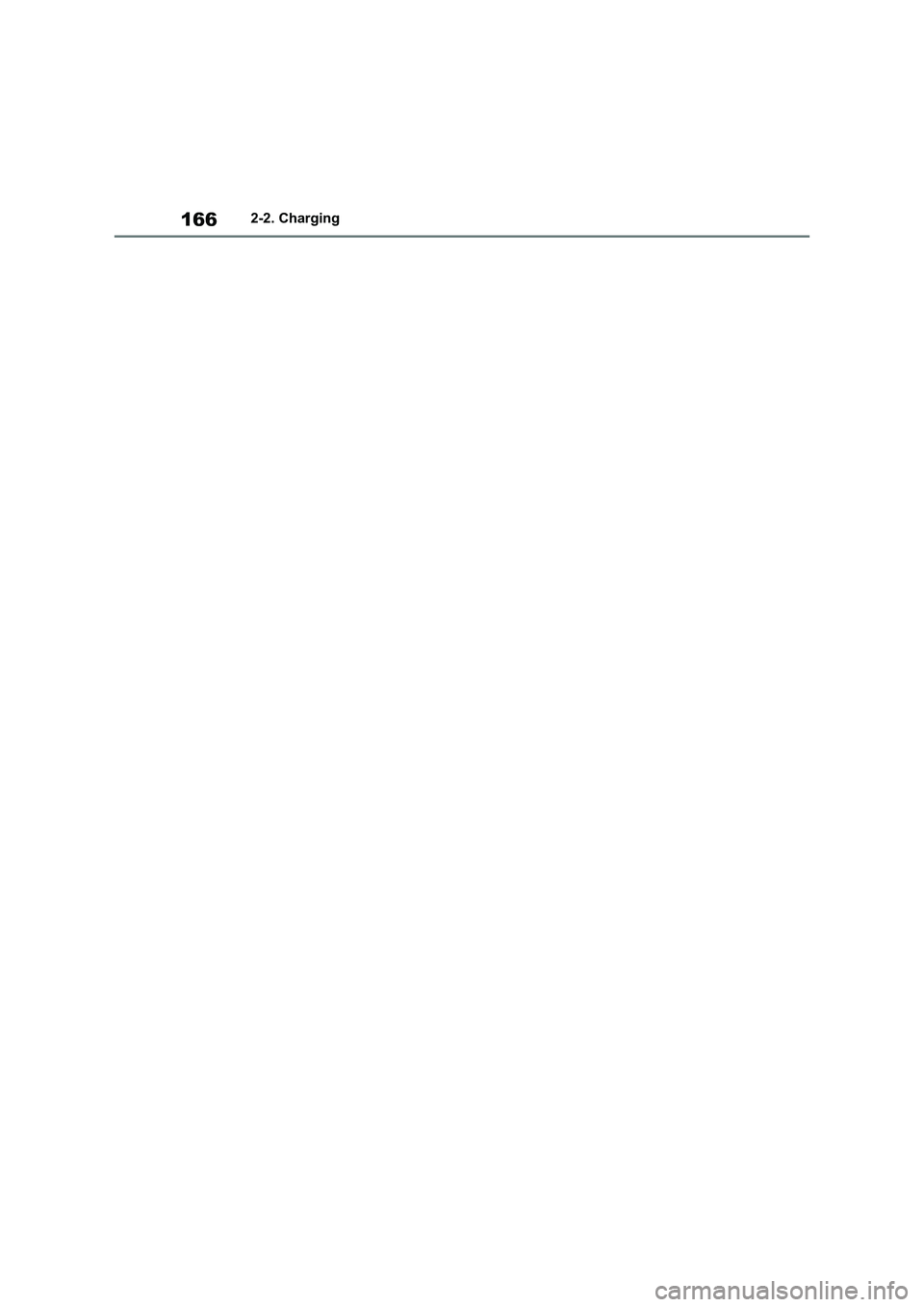

Page 166 of 664

TOYOTA VERSO S 2011  Owners Manual 1662-2. Charging

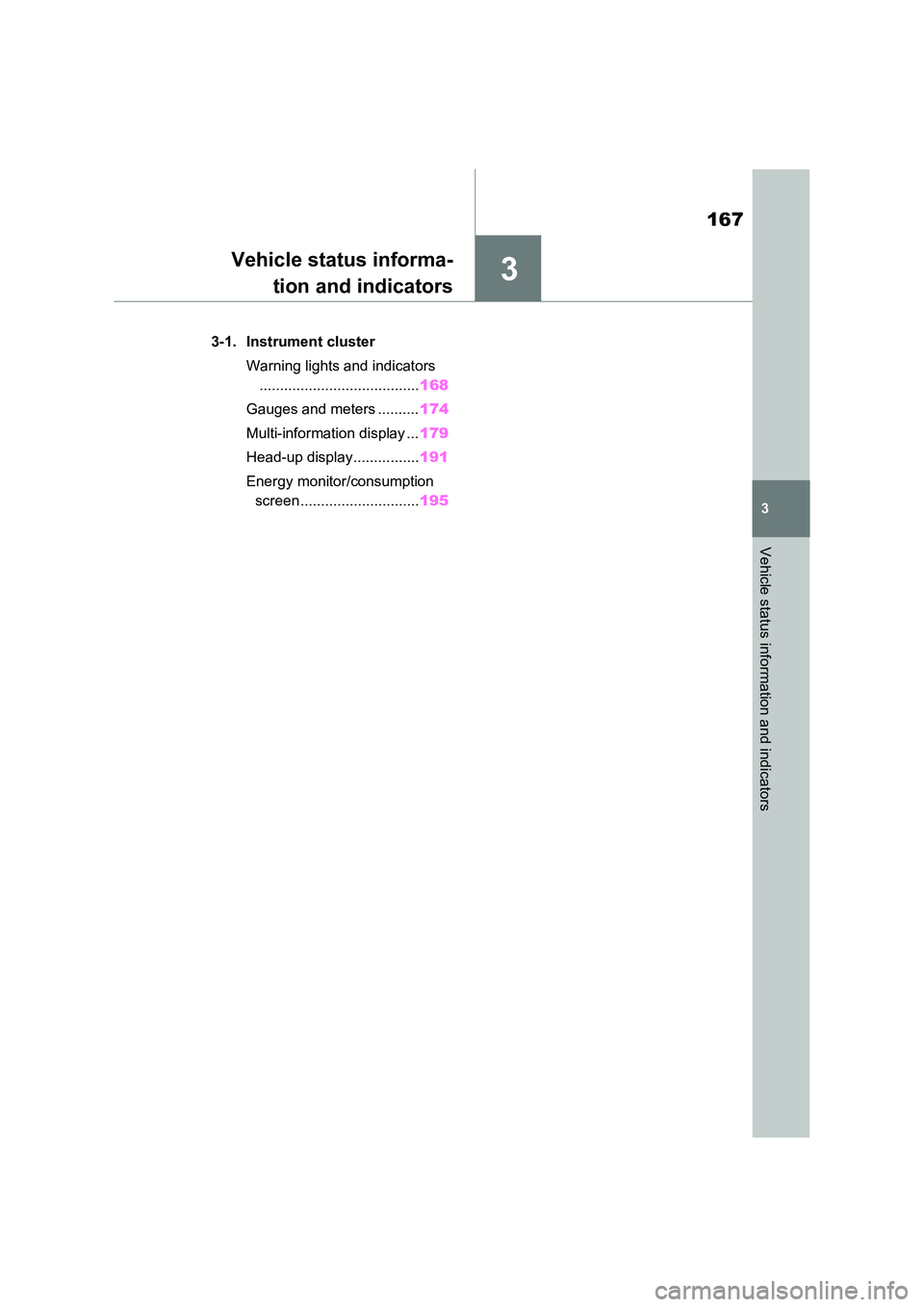

Page 167 of 664

TOYOTA VERSO S 2011  Owners Manual 3
167
3
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
3-1. Instrument cluster
Warning lights and indicators
....................................... 168
Gaug

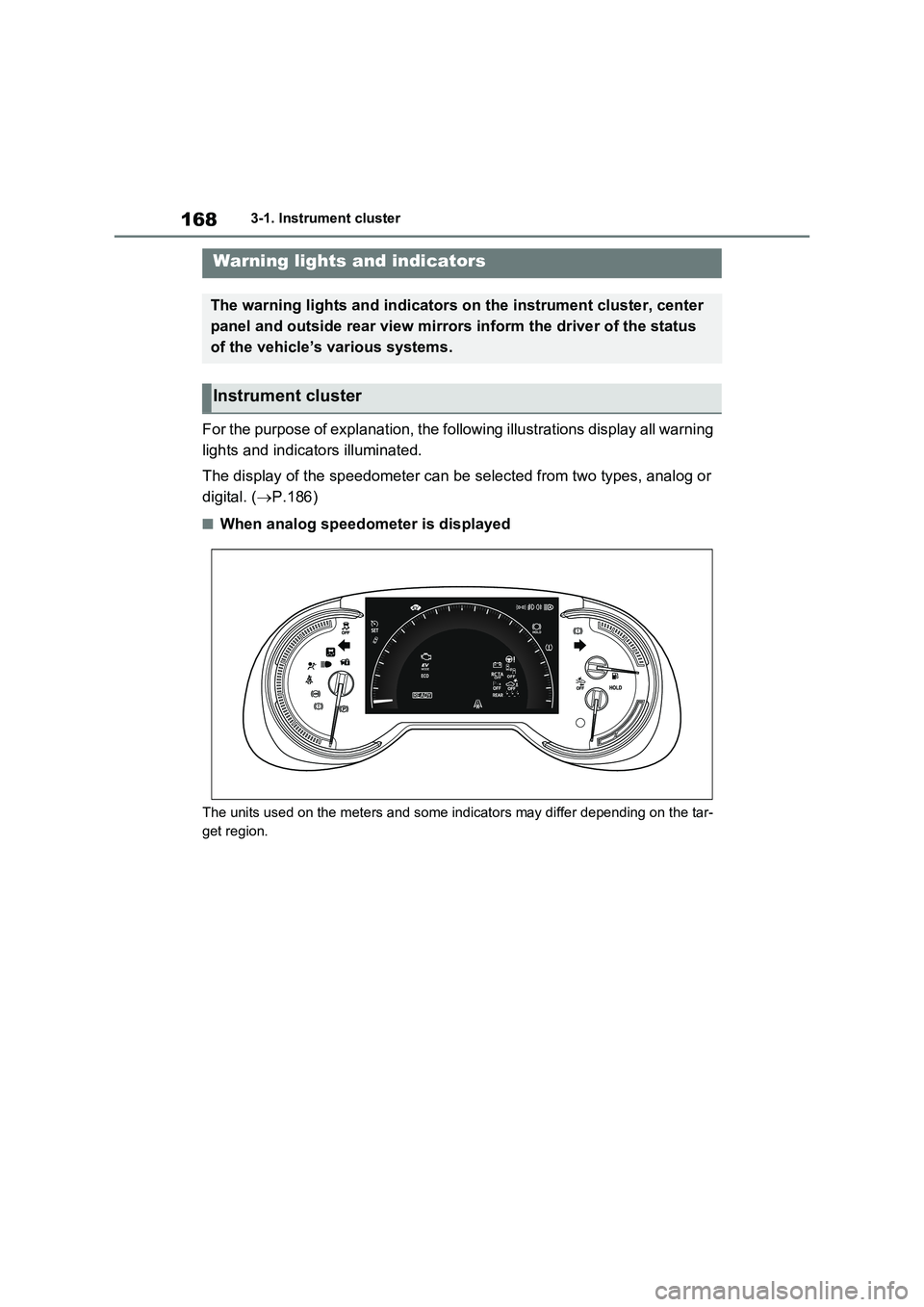

Page 168 of 664

TOYOTA VERSO S 2011  Owners Manual 1683-1. Instrument cluster
3-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
The display of the speedomete

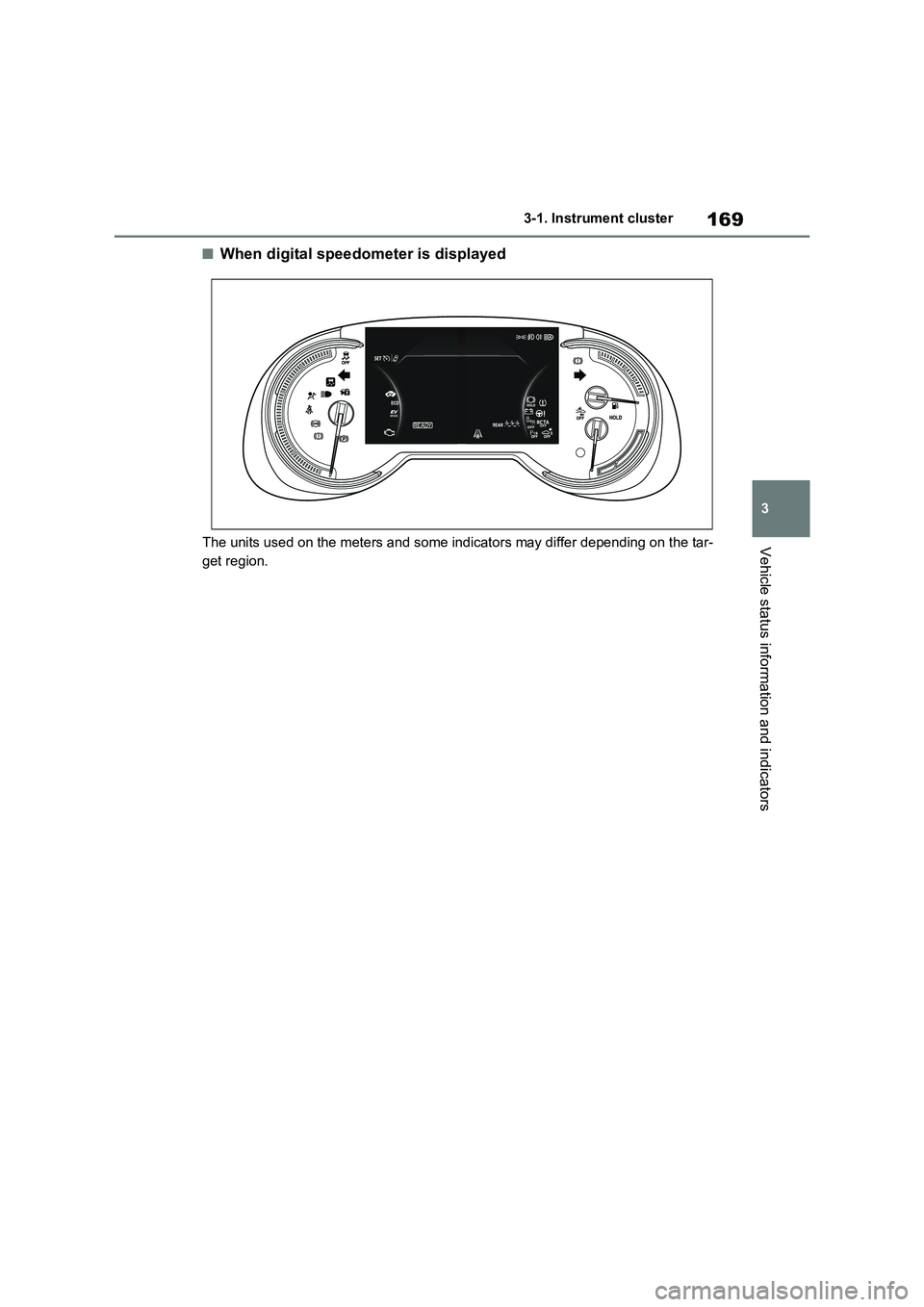

Page 169 of 664

TOYOTA VERSO S 2011  Owners Manual 169
3 3-1. Instrument cluster
Vehicle status information and indicators
■When digital speedometer is displayed
The units used on the meters and some indicators may differ depending on the tar-
get r

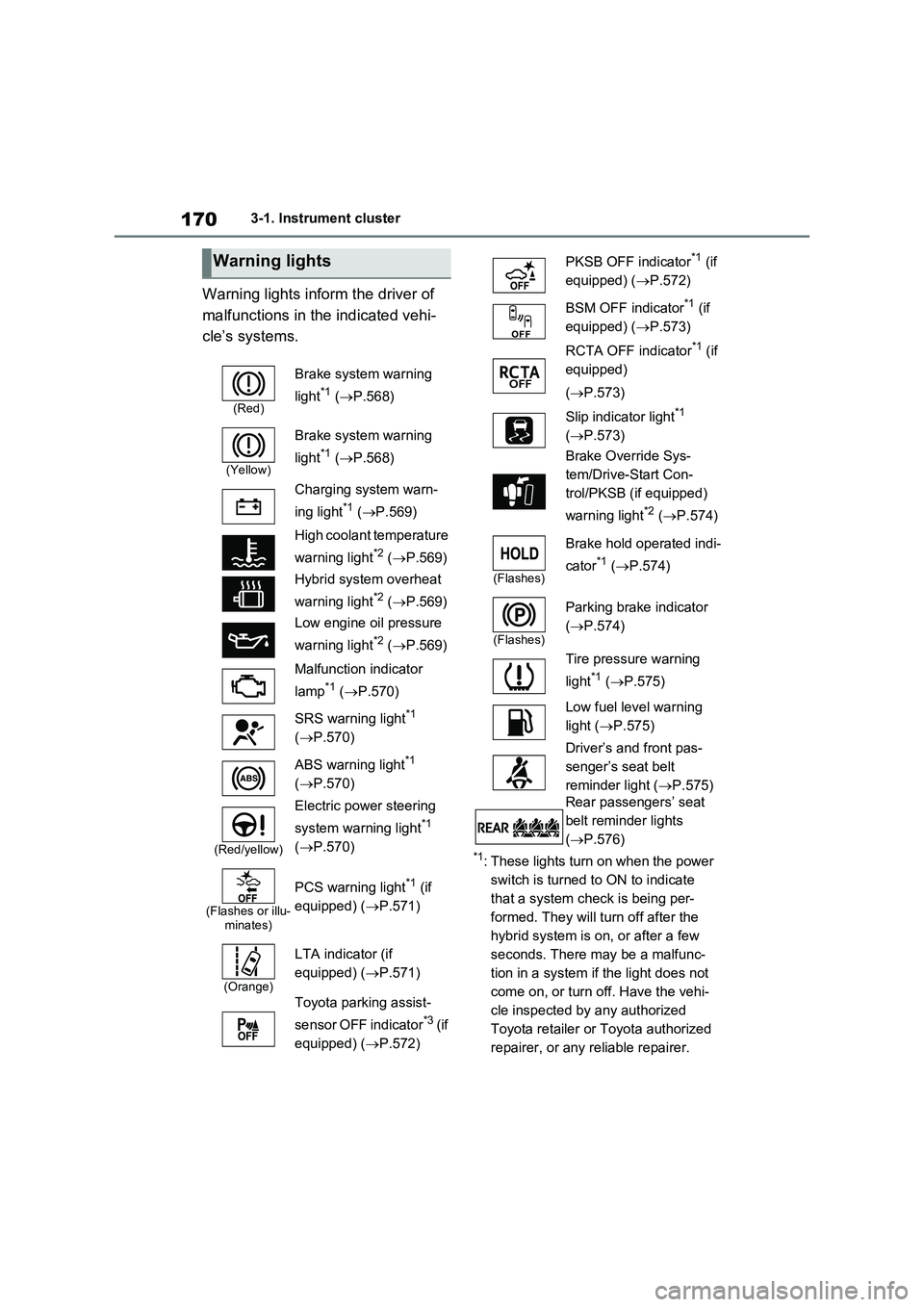

Page 170 of 664

TOYOTA VERSO S 2011  Owners Manual 1703-1. Instrument cluster
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
*1: These lights turn on when the power
switch is turned to ON to indicate
that a
