411 4-3. Do-it-yourself maintenance
4
Maintenance and care

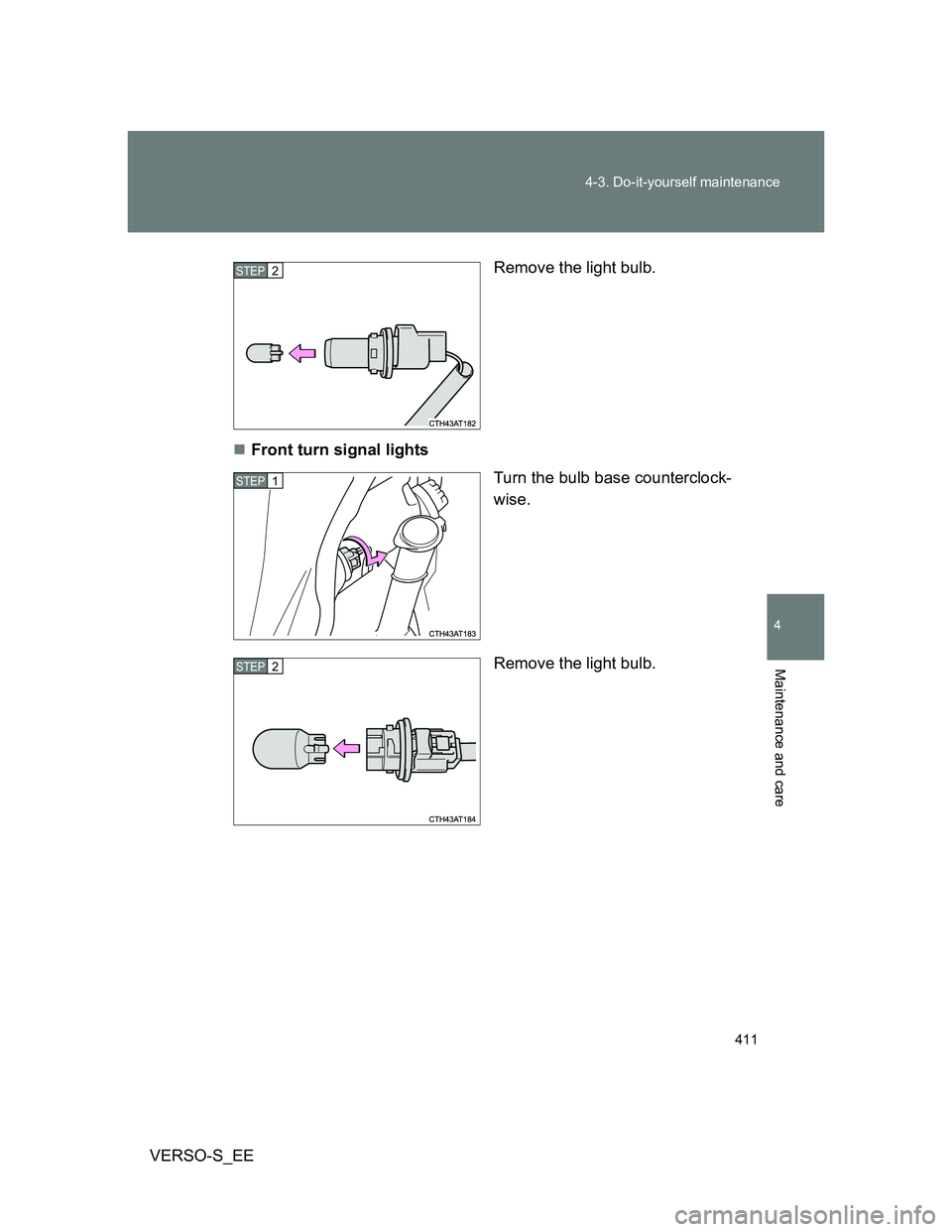

VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

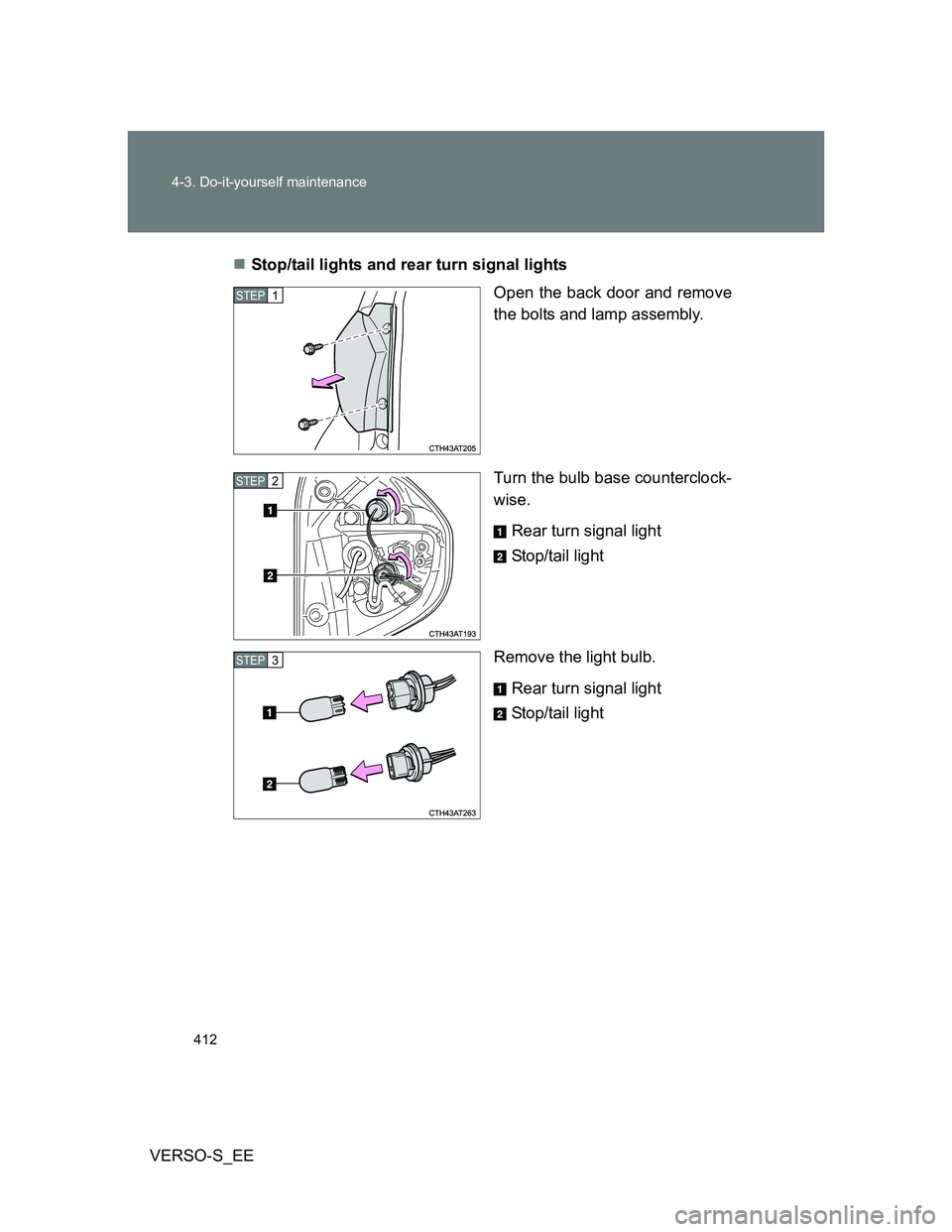

412 4-3. Do-it-yourself maintenance
VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

413 4-3. Do-it-yourself maintenance
4
Maintenance and care

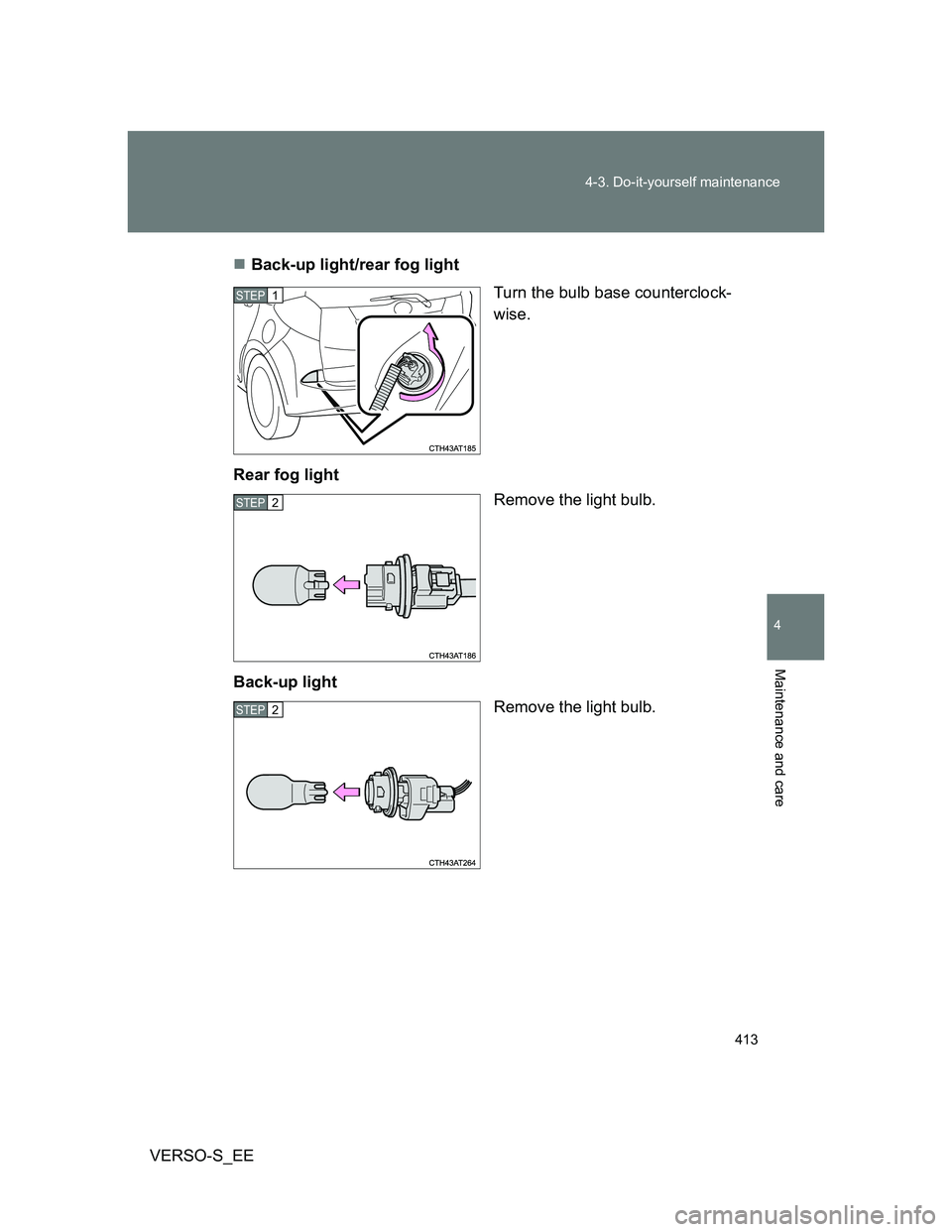

VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

414 4-3. Do-it-yourself maintenance

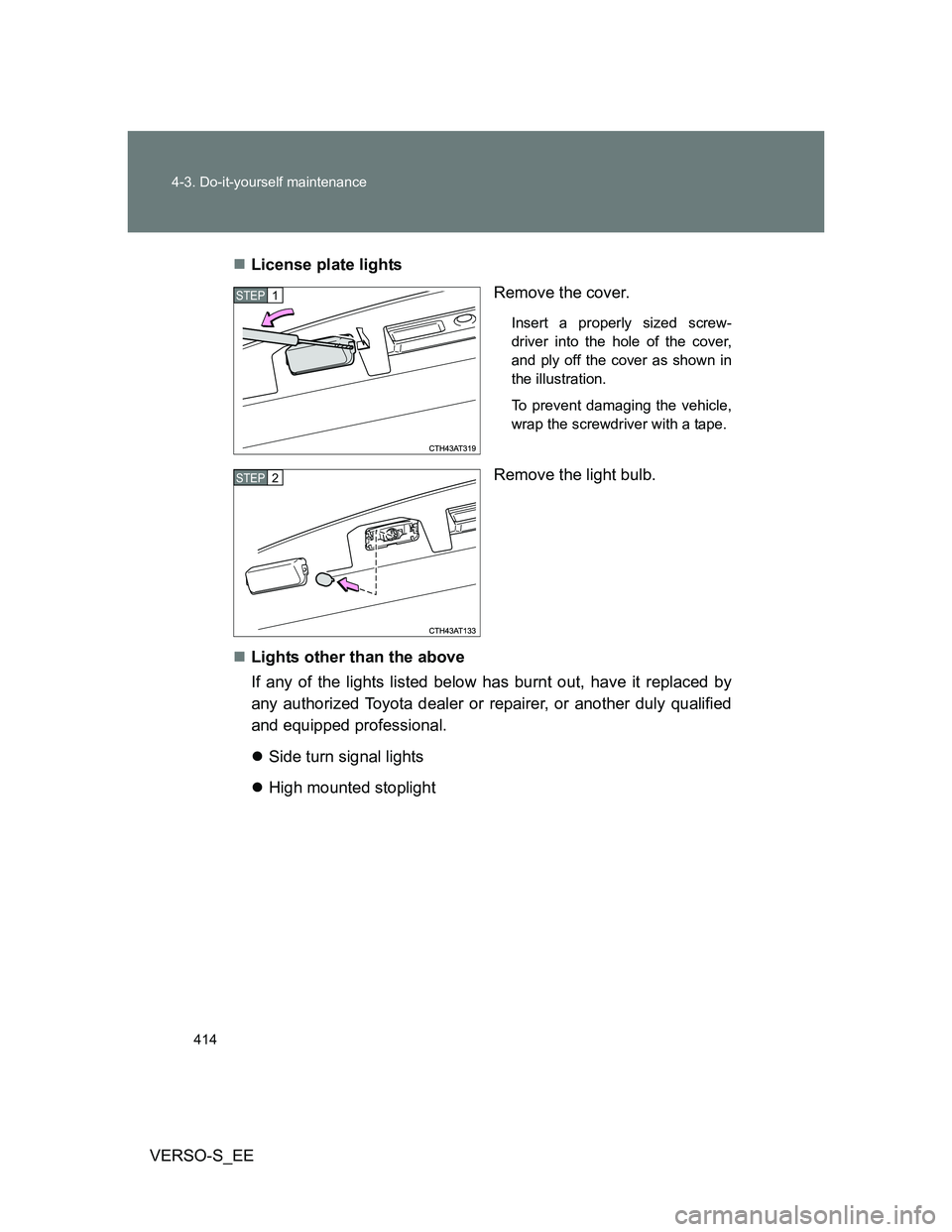

VERSO-S_EELicense plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
STEP1
STEP2

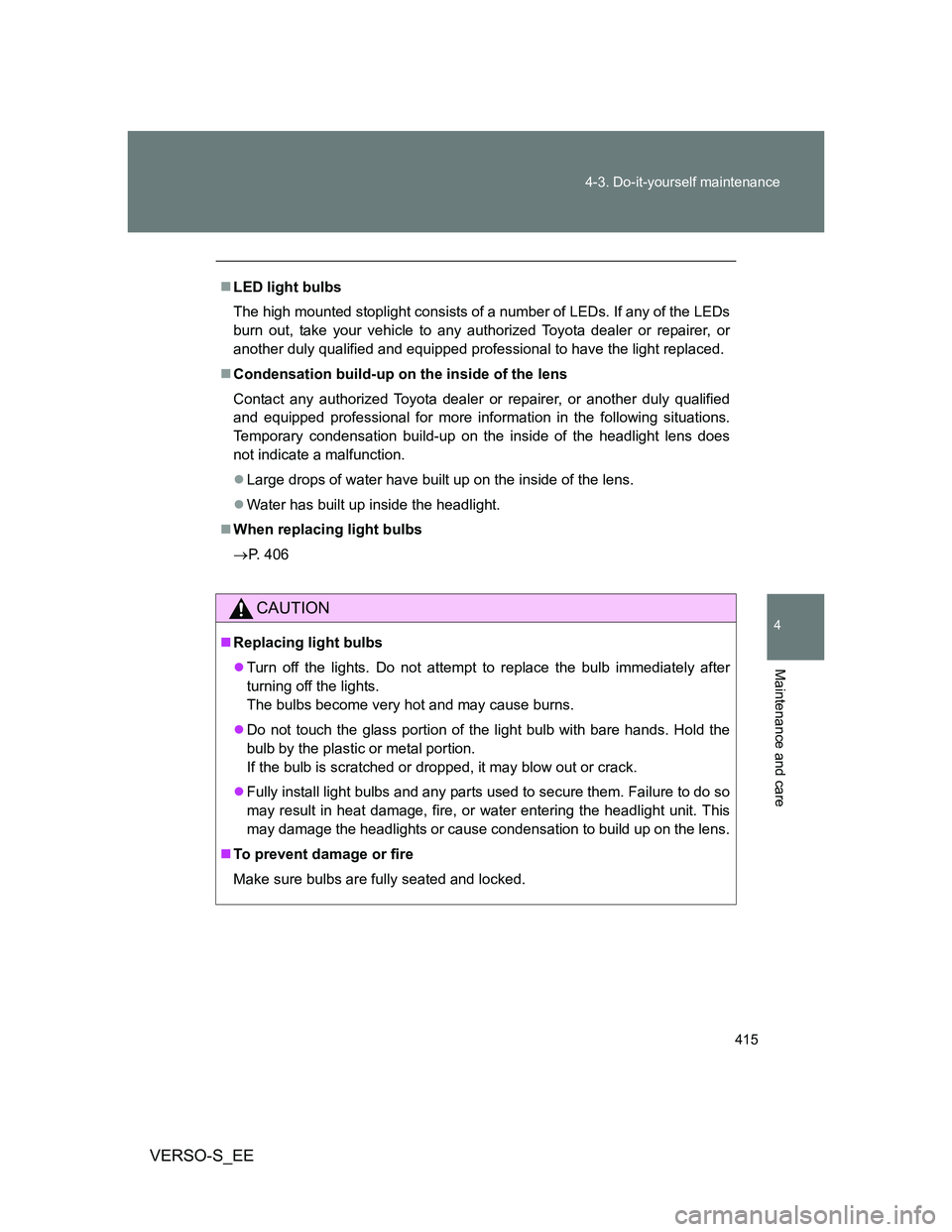

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 406
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

416 4-3. Do-it-yourself maintenance
VERSO-S_EE

5When trouble arises
417
VERSO-S_EE

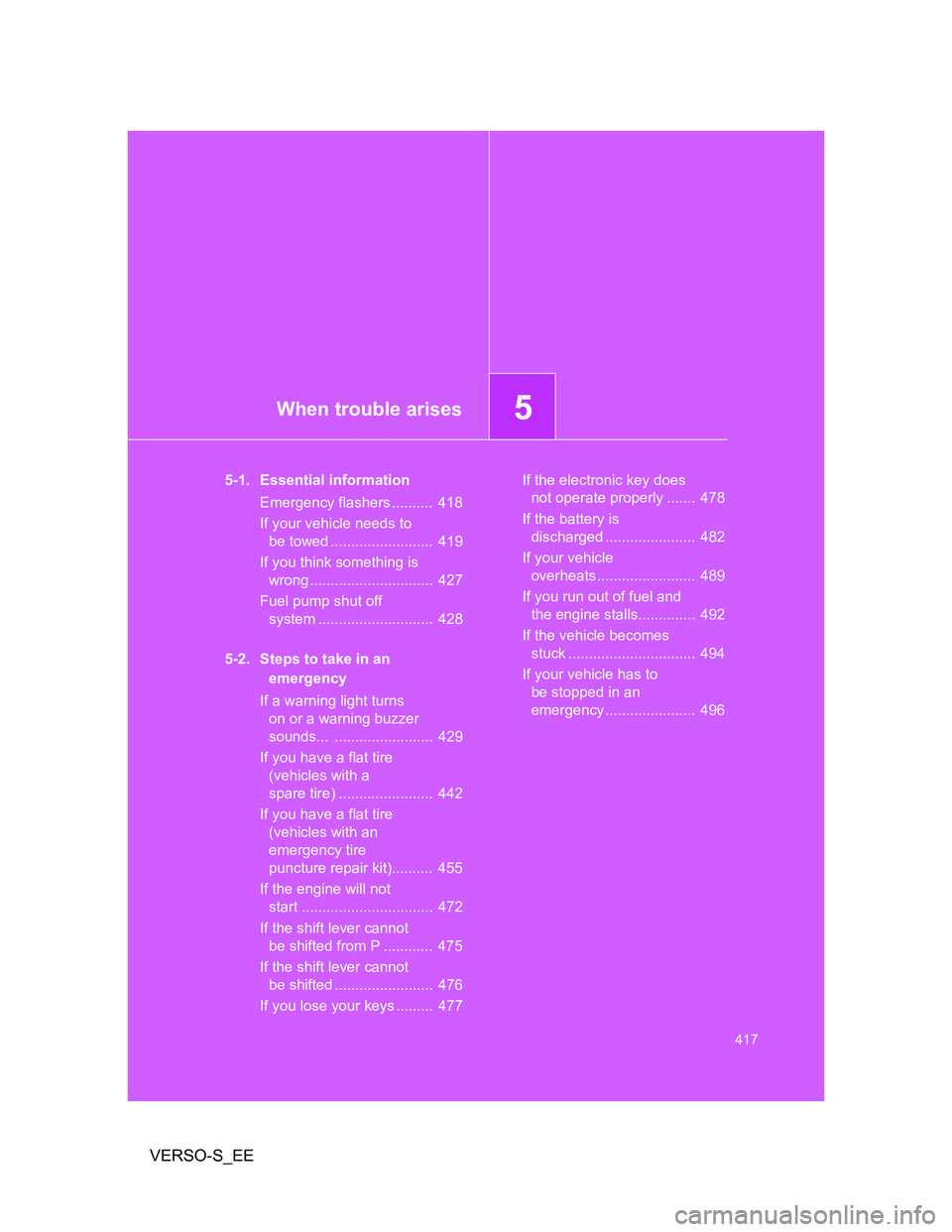

5-1. Essential information
Emergency flashers .......... 418
If your vehicle needs to
be towed ......................... 419
If you think something is
wrong .............................. 427
Fuel pump shut off
system ............................ 428
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ........................ 429
If you have a flat tire
(vehicles with a
spare tire) ....................... 442
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit).......... 455
If the engine will not
start ................................ 472
If the shift lever cannot
be shifted from P ............ 475
If the shift lever cannot
be shifted ........................ 476
If you lose your keys ......... 477If the electronic key does
not operate properly ....... 478
If the battery is
discharged ...................... 482
If your vehicle
overheats ........................ 489
If you run out of fuel and
the engine stalls.............. 492
If the vehicle becomes
stuck ............................... 494
If your vehicle has to
be stopped in an
emergency ...................... 496

418
VERSO-S_EE
5-1. Essential information

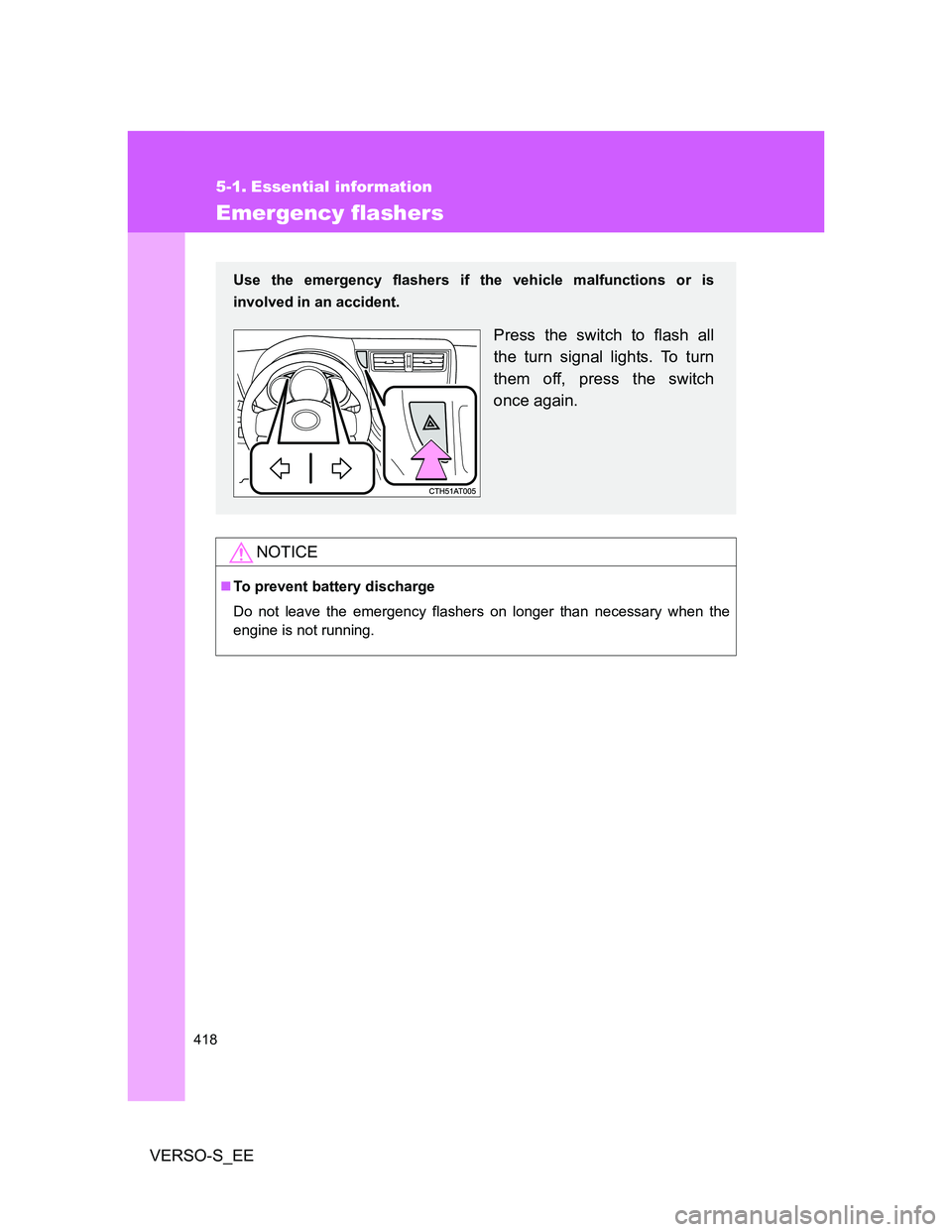

Emergency flashers
NOTICE
To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
419
5-1. Essential information
When trouble arises
VERSO-S_EE

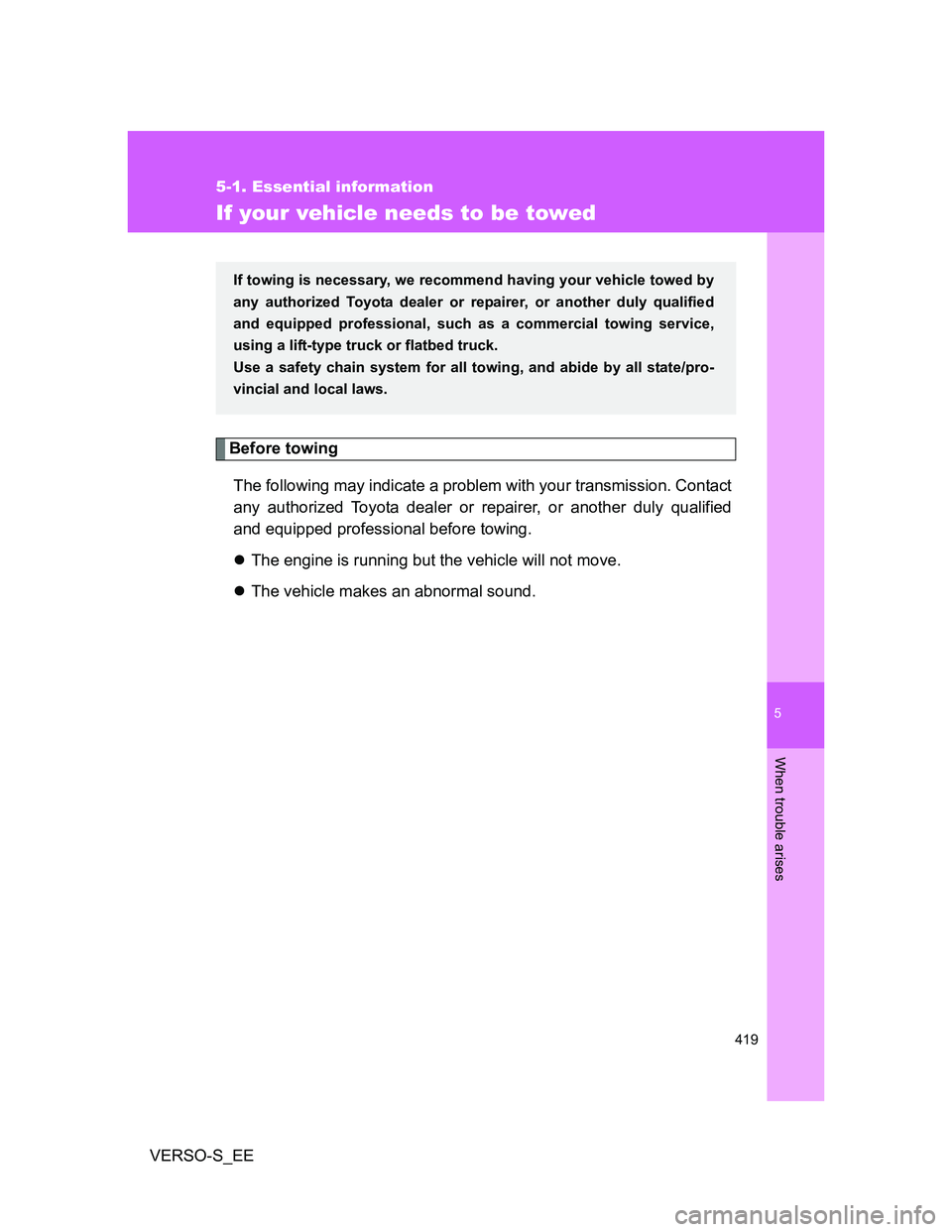

If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional before towing.
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as a commercial towing service,
using a lift-type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.

420 5-1. Essential information
VERSO-S_EE

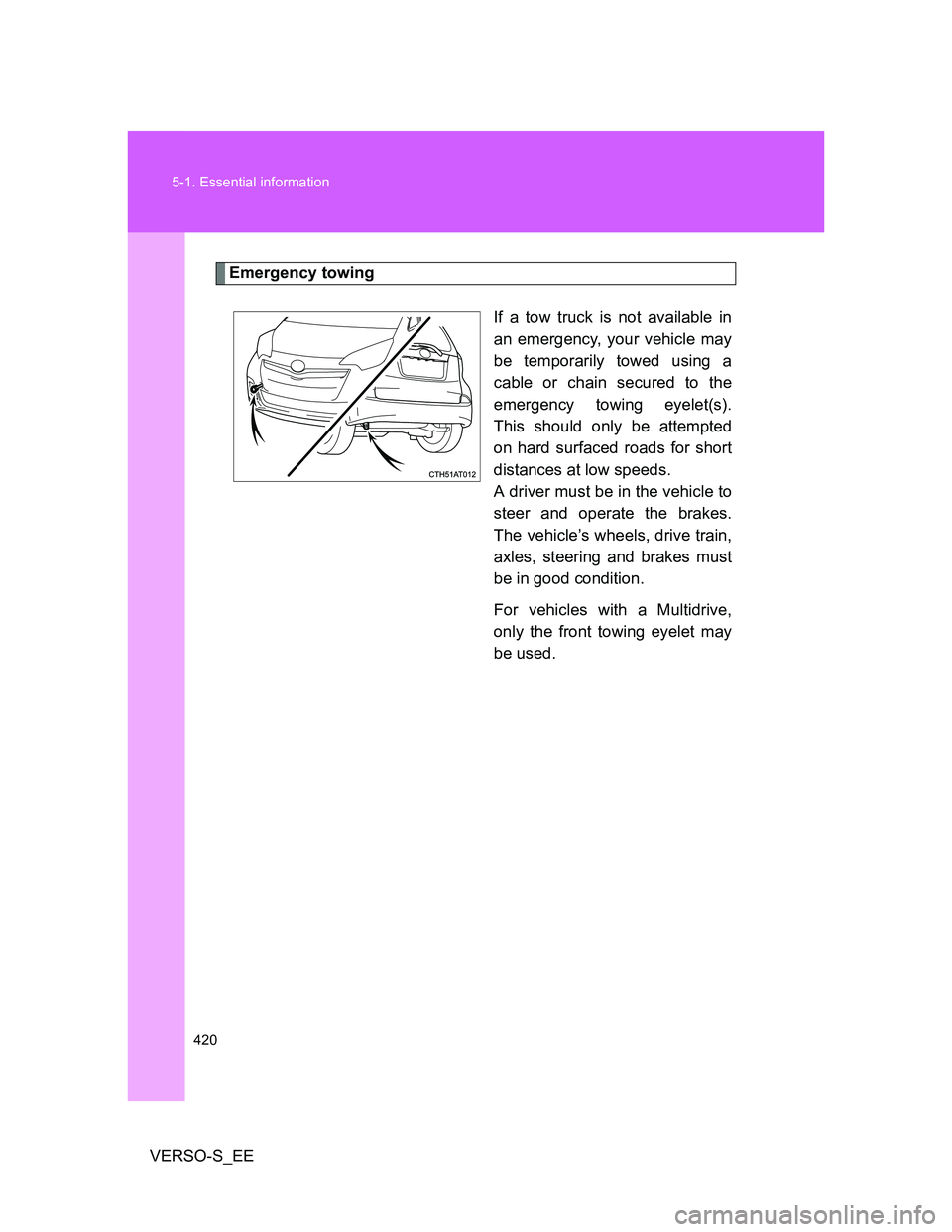

Emergency towing
If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
For vehicles with a Multidrive,
only the front towing eyelet may
be used.
