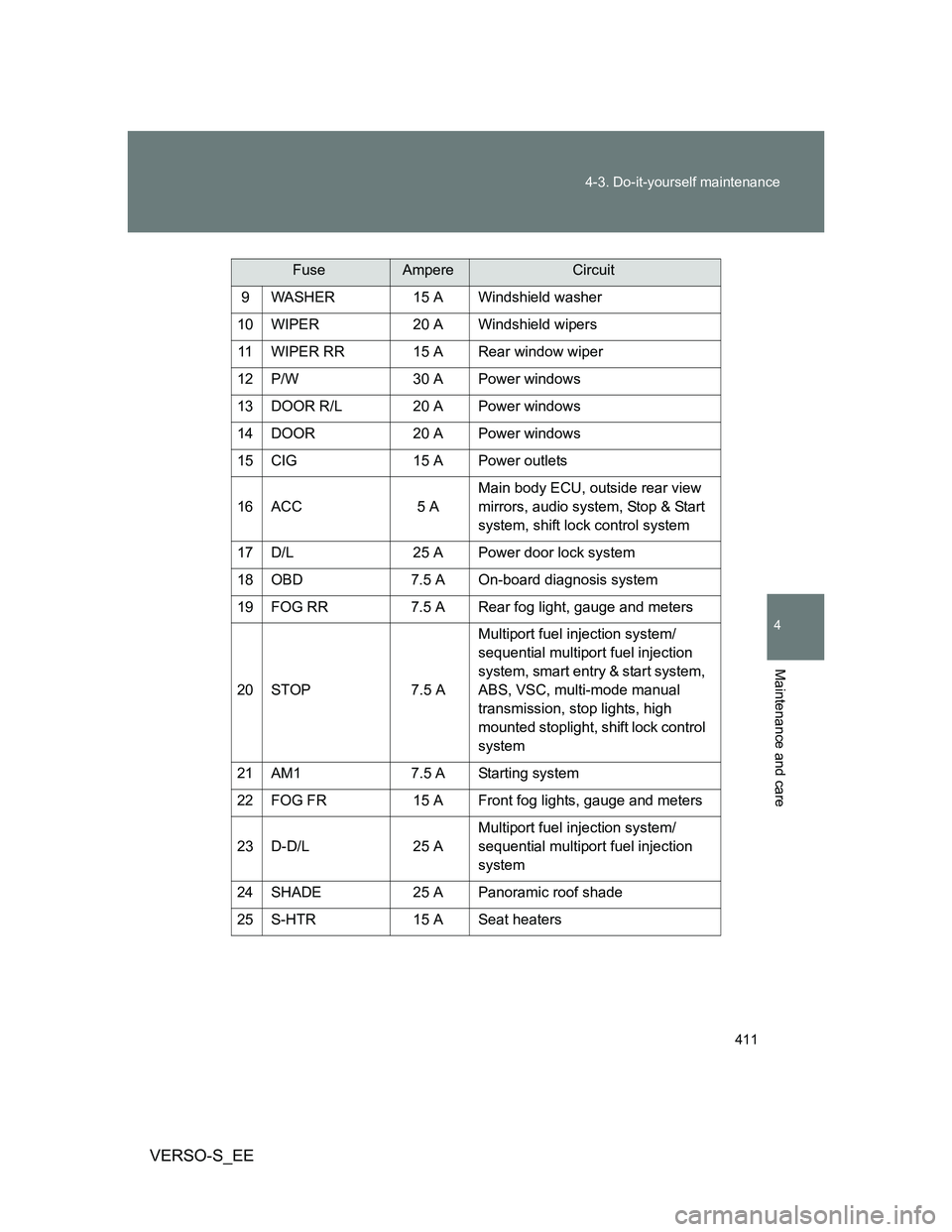

411 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE
9 WASHER 15 A Windshield washer
10 WIPER 20 A Windshield wipers
11 WIPER RR 15 A Rear window wiper
12 P/W 30 A Power windows
13 DOOR R/L 20 A Power windows
14 DOOR 20 A Power windows
15 CIG 15 A Power outlets
16 ACC 5 AMain body ECU, outside rear view
mirrors, audio system, Stop & Start
system, shift lock control system
17 D/L 25 A Power door lock system
18 OBD 7.5 A On-board diagnosis system
19 FOG RR 7.5 A Rear fog light, gauge and meters
20 STOP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart entry & start system,
ABS, VSC, multi-mode manual
transmission, stop lights, high
mounted stoplight, shift lock control
system
21 AM1 7.5 A Starting system
22 FOG FR 15 A Front fog lights, gauge and meters
23 D-D/L 25 AMultiport fuel injection system/
sequential multiport fuel injection
system
24 SHADE 25 A Panoramic roof shade
25 S-HTR 15 A Seat heaters
FuseAmpereCircuit

412 4-3. Do-it-yourself maintenance
VERSO-S_EE
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 413)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EE

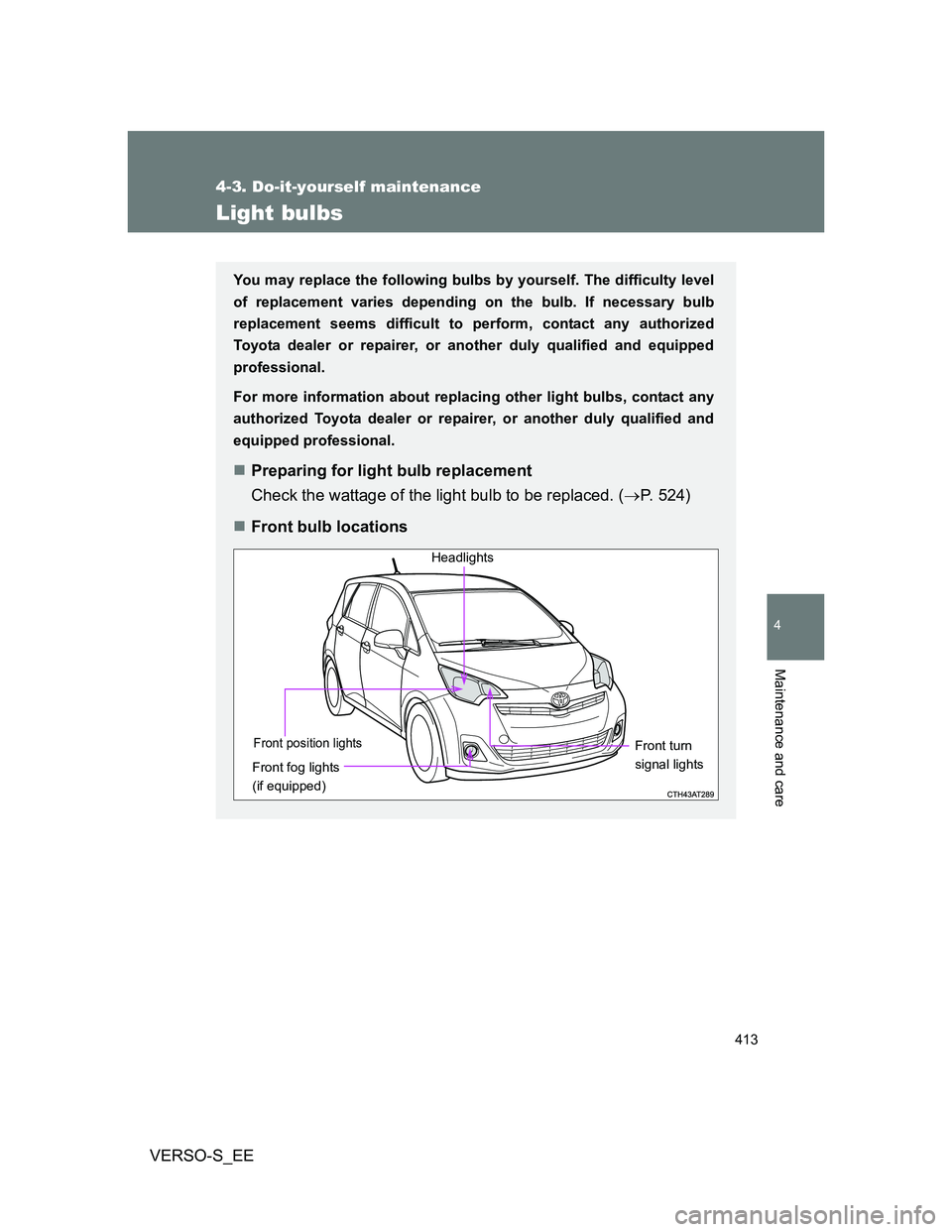

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
For more information about replacing other light bulbs, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 524)
Front bulb locations
Front position lights
Front fog lights
(if equipped)
Headlights
Front turn
signal lights

414 4-3. Do-it-yourself maintenance
VERSO-S_EE
Replacing light bulbs
Headlights
Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic) Stop/tail lights
License plate
lights
Rear turn signal lights
STEP1
STEP2

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EERemove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
Front fog lights (if equipped)
Vehicles without a front
spoiler
Remove the 2 screws and a clip.
Vehicles with a front spoiler
Remove the 3 screws and a clip.
The front spoiler will come off on
that side when the screws are
removed.
*: Vehicles with a front
spoiler only
Remove the grommet.
STEP3
STEP1
*
STEP2

416 4-3. Do-it-yourself maintenance

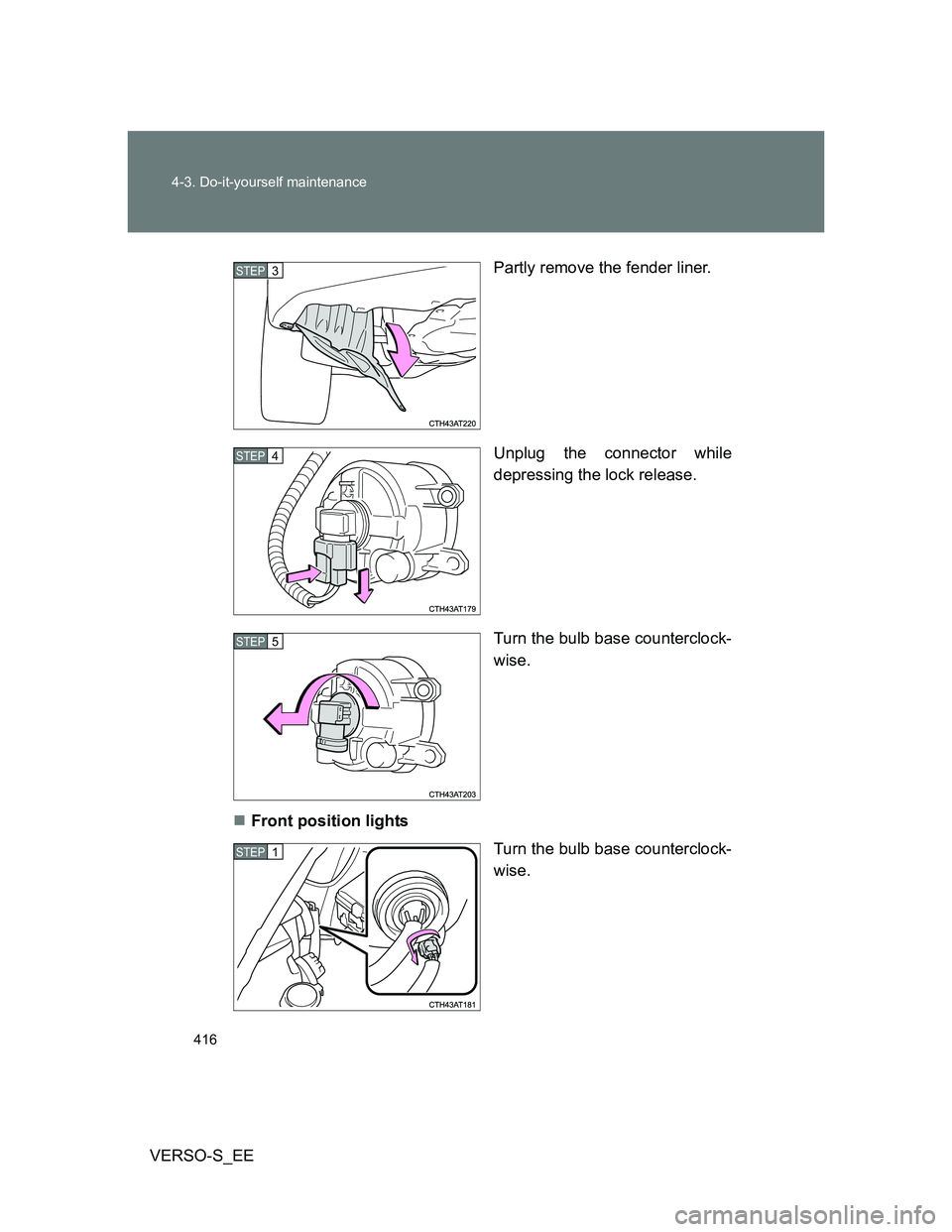

VERSO-S_EEPartly remove the fender liner.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Front position lights
Turn the bulb base counterclock-
wise.
STEP3
STEP4
STEP5
STEP1

417 4-3. Do-it-yourself maintenance
4
Maintenance and care

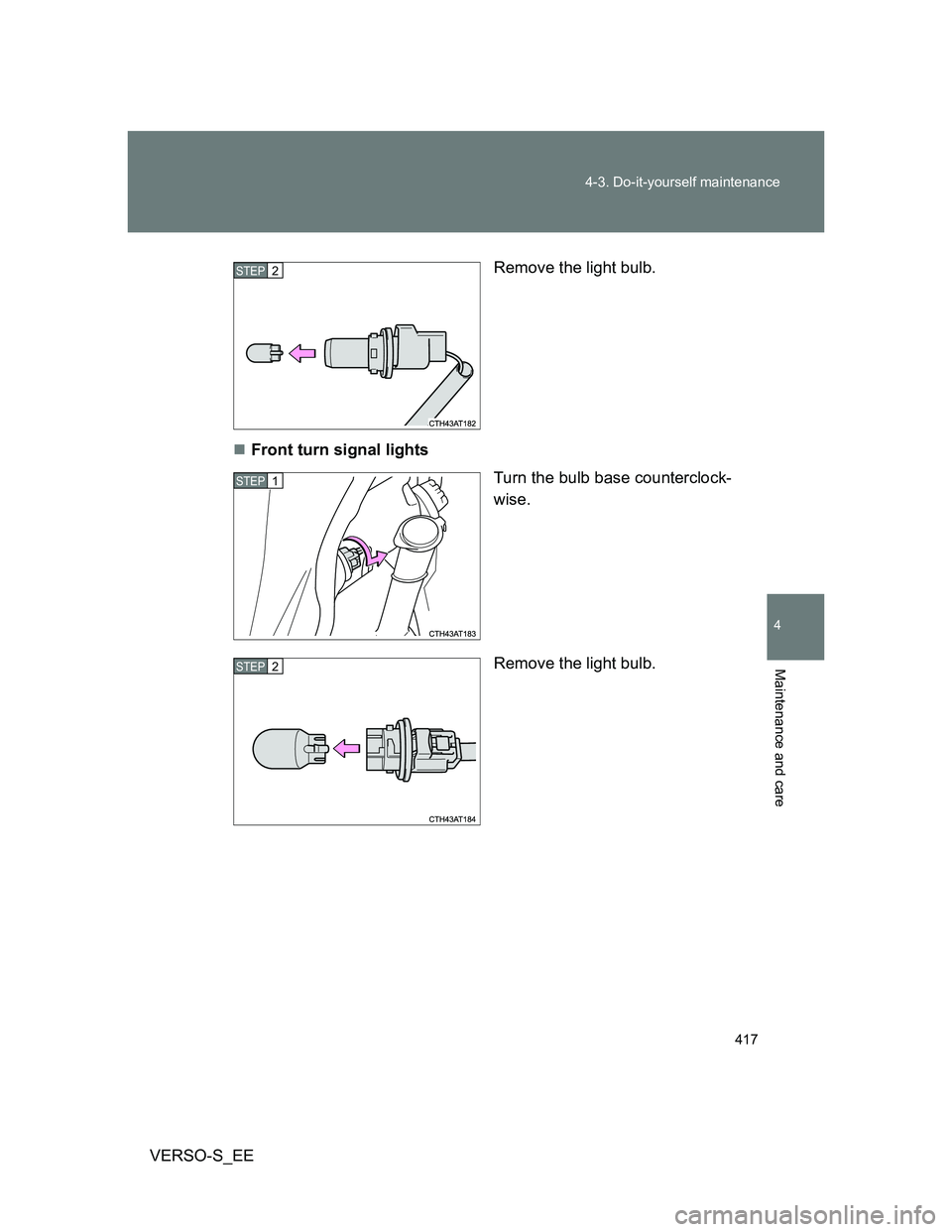

VERSO-S_EERemove the light bulb.
Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP2
STEP1
STEP2

418 4-3. Do-it-yourself maintenance
VERSO-S_EEStop/tail lights and rear turn signal lights
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail light
Remove the light bulb.
Rear turn signal light
Stop/tail light
STEP1
STEP2
STEP3

419 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO-S_EEBack-up light/rear fog light
Turn the bulb base counterclock-
wise.
Rear fog light
Remove the light bulb.
Back-up light
Remove the light bulb.
STEP1
STEP2
STEP2

420 4-3. Do-it-yourself maintenance

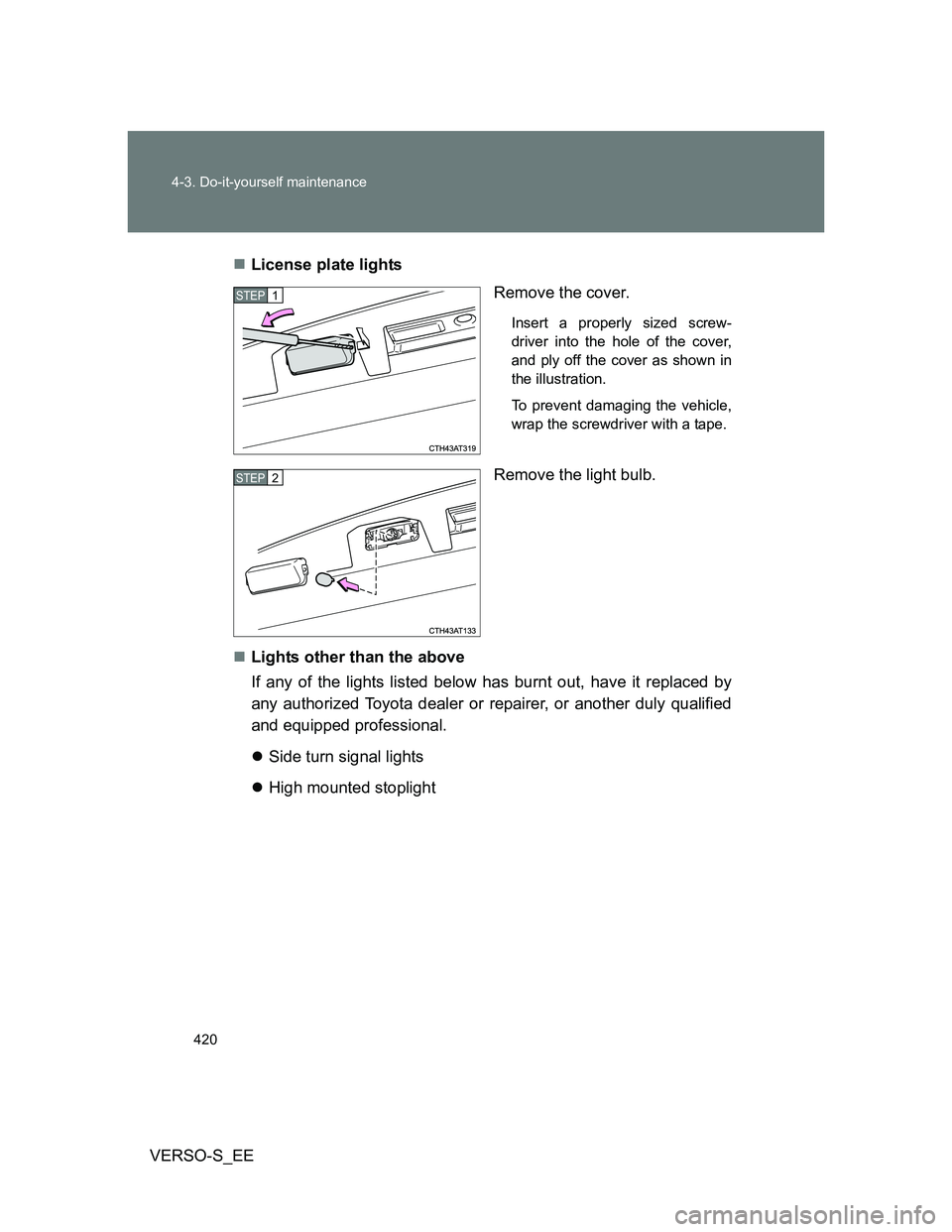

VERSO-S_EELicense plate lights
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights
High mounted stoplight
STEP1
STEP2
