81 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO-S_EE

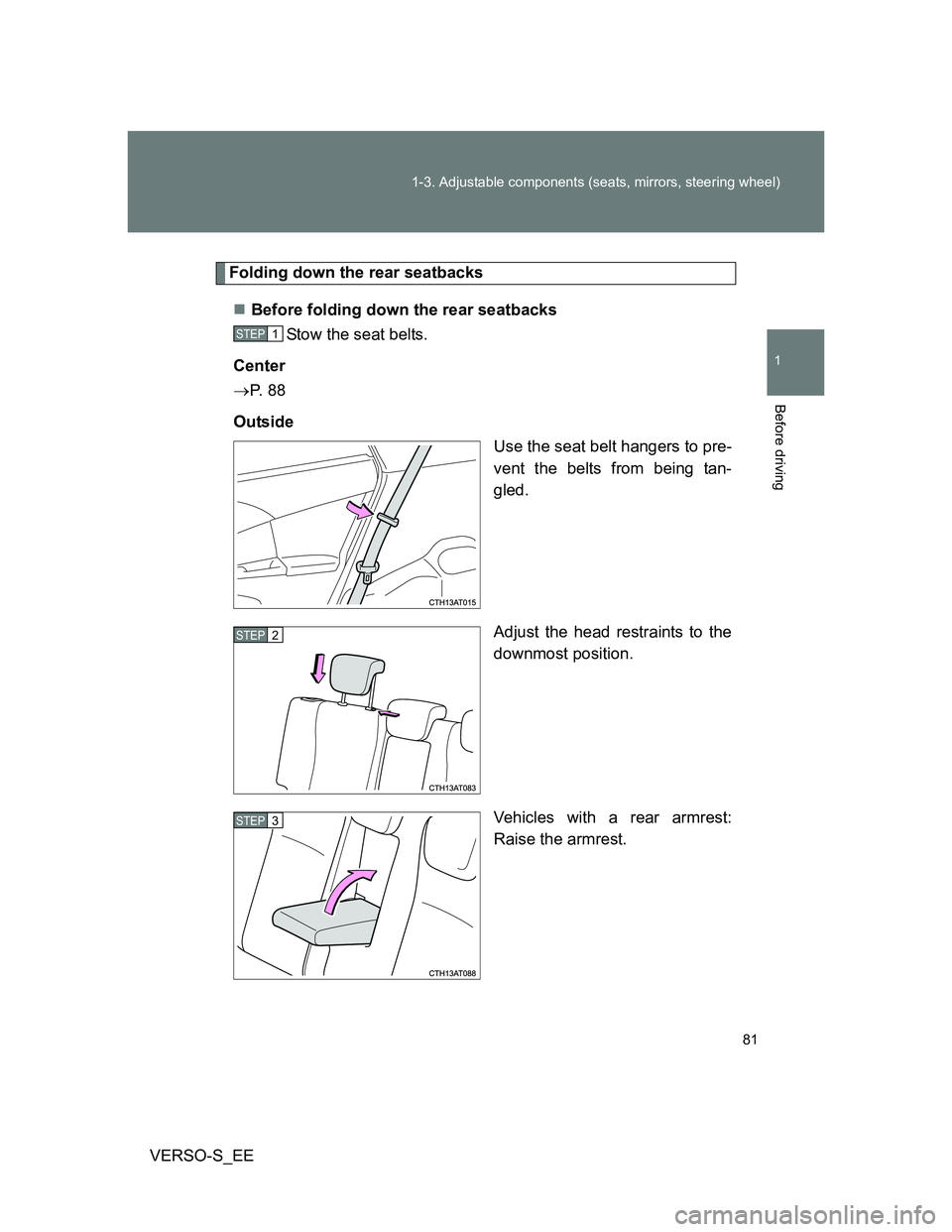

Folding down the rear seatbacks
Before folding down the rear seatbacks
Stow the seat belts.
Center
P. 8 8
Outside
Use the seat belt hangers to pre-
vent the belts from being tan-
gled.
Adjust the head restraints to the
downmost position.
Vehicles with a rear armrest:
Raise the armrest.
STEP1
STEP2
STEP3

82 1-3. Adjustable components (seats, mirrors, steering wheel)

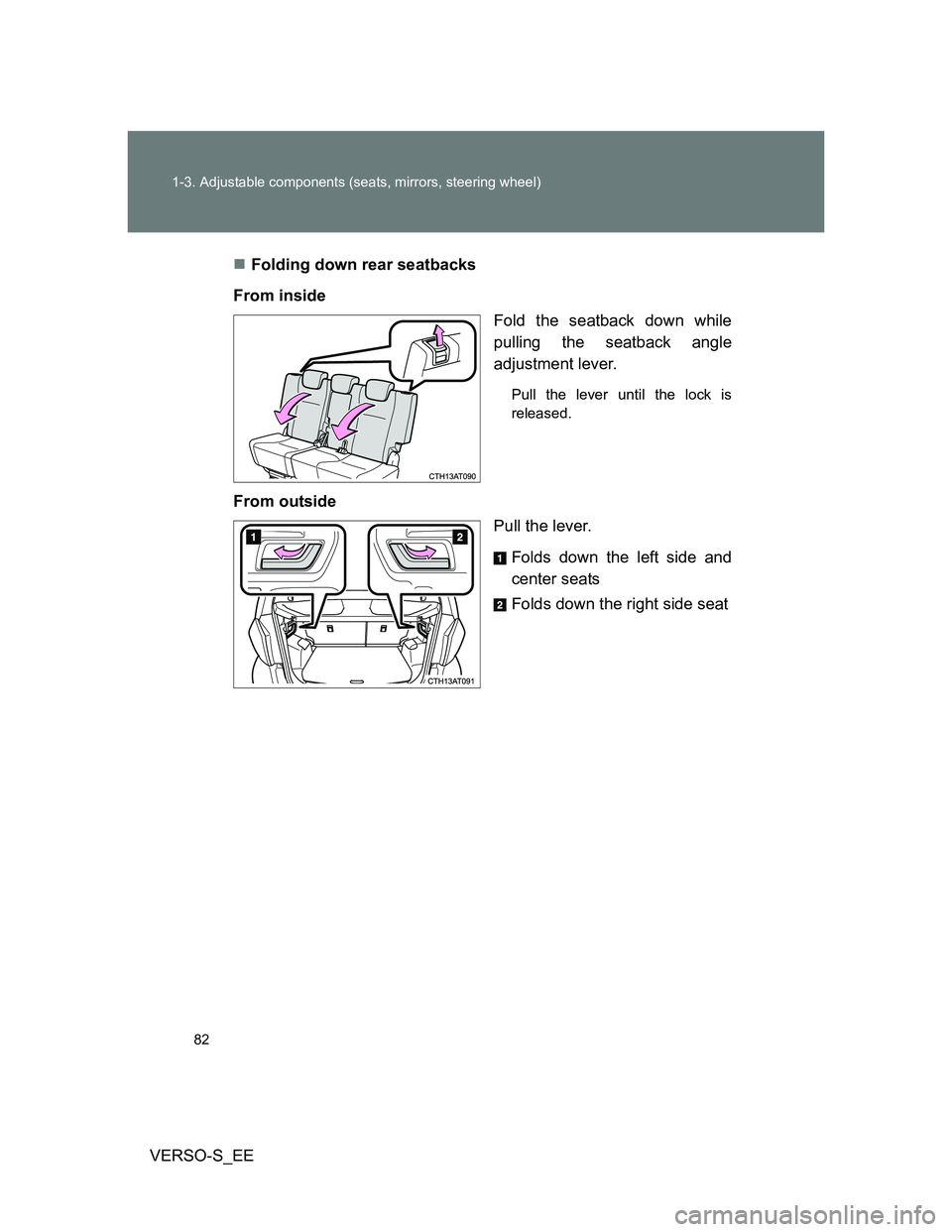

VERSO-S_EEFolding down rear seatbacks
From inside
Fold the seatback down while
pulling the seatback angle
adjustment lever.
Pull the lever until the lock is
released.
From outside
Pull the lever.
Folds down the left side and
center seats
Folds down the right side seat

83 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
VERSO-S_EE

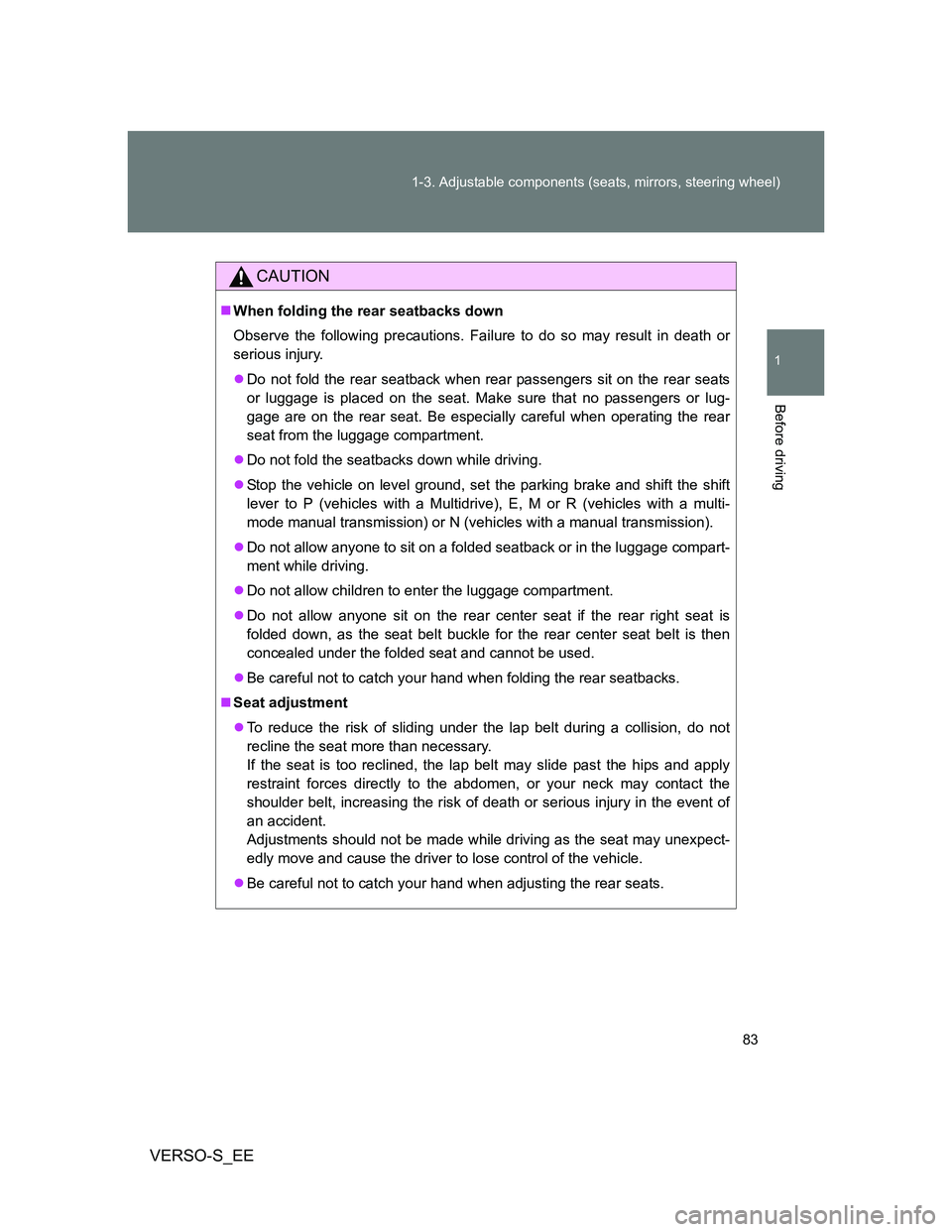

CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the rear seatback when rear passengers sit on the rear seats
or luggage is placed on the seat. Make sure that no passengers or lug-
gage are on the rear seat. Be especially careful when operating the rear
seat from the luggage compartment.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (vehicles with a Multidrive), E, M or R (vehicles with a multi-
mode manual transmission) or N (vehicles with a manual transmission).
Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
Do not allow children to enter the luggage compartment.
Do not allow anyone sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
Be careful not to catch your hand when folding the rear seatbacks.
Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
Be careful not to catch your hand when adjusting the rear seats.

84 1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO-S_EE
CAUTION
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
Check that the seat belts are not twisted or caught in the seatback.
NOTICE
Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatbacks.

85
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VERSO-S_EE

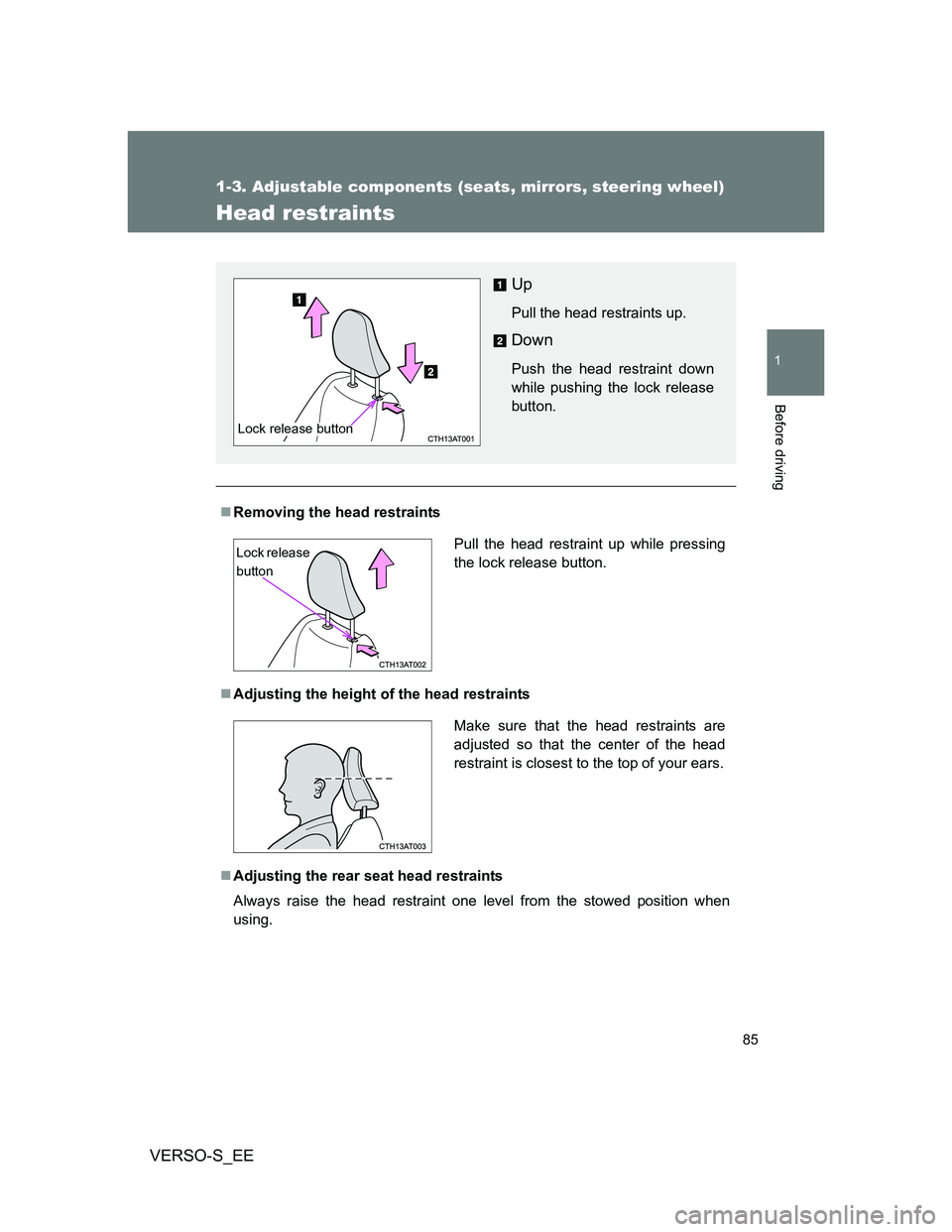

Head restraints
Removing the head restraints
Adjusting the height of the head restraints
Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Pull the head restraint up while pressing
the lock release button.Lock release
button
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

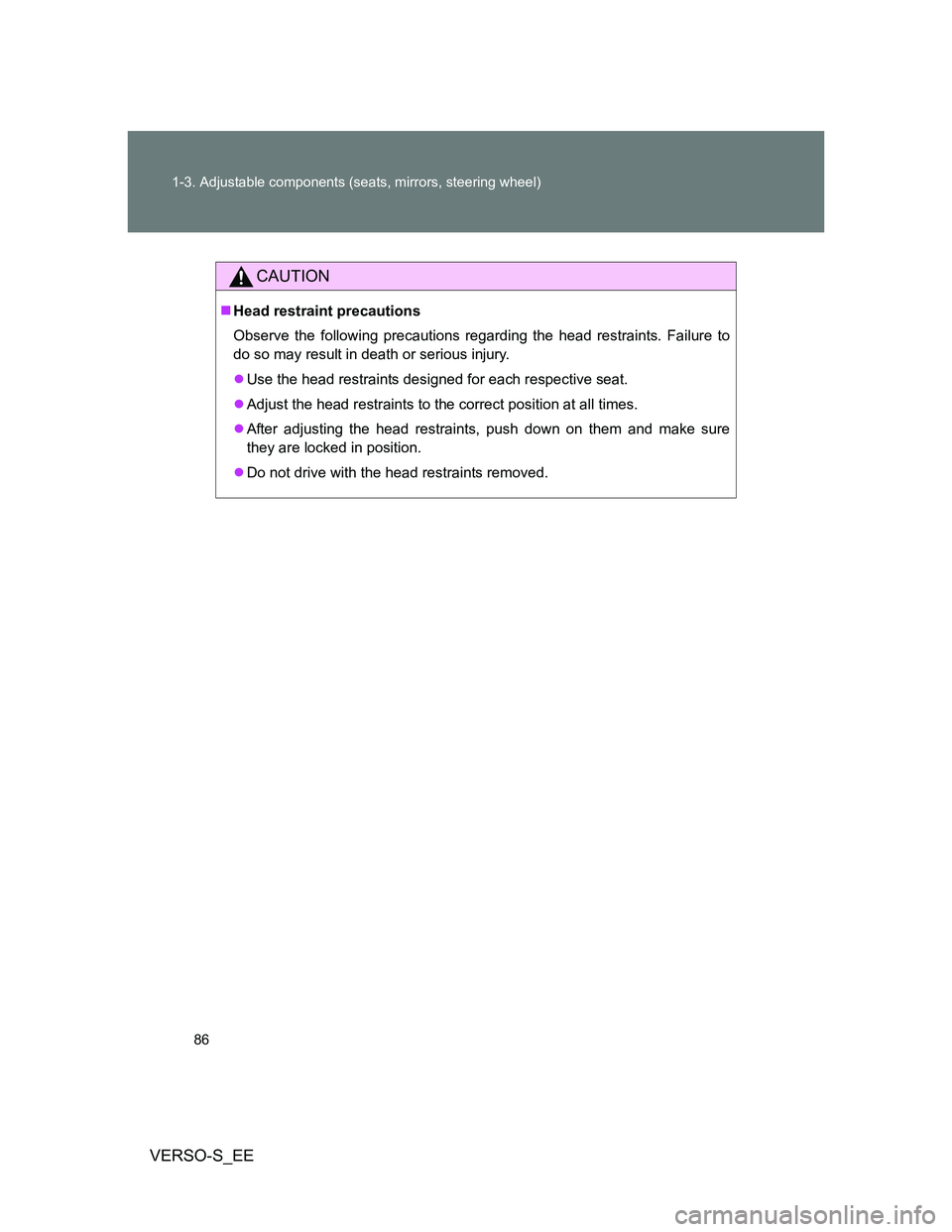

86 1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO-S_EE
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.

87
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
VERSO-S_EE

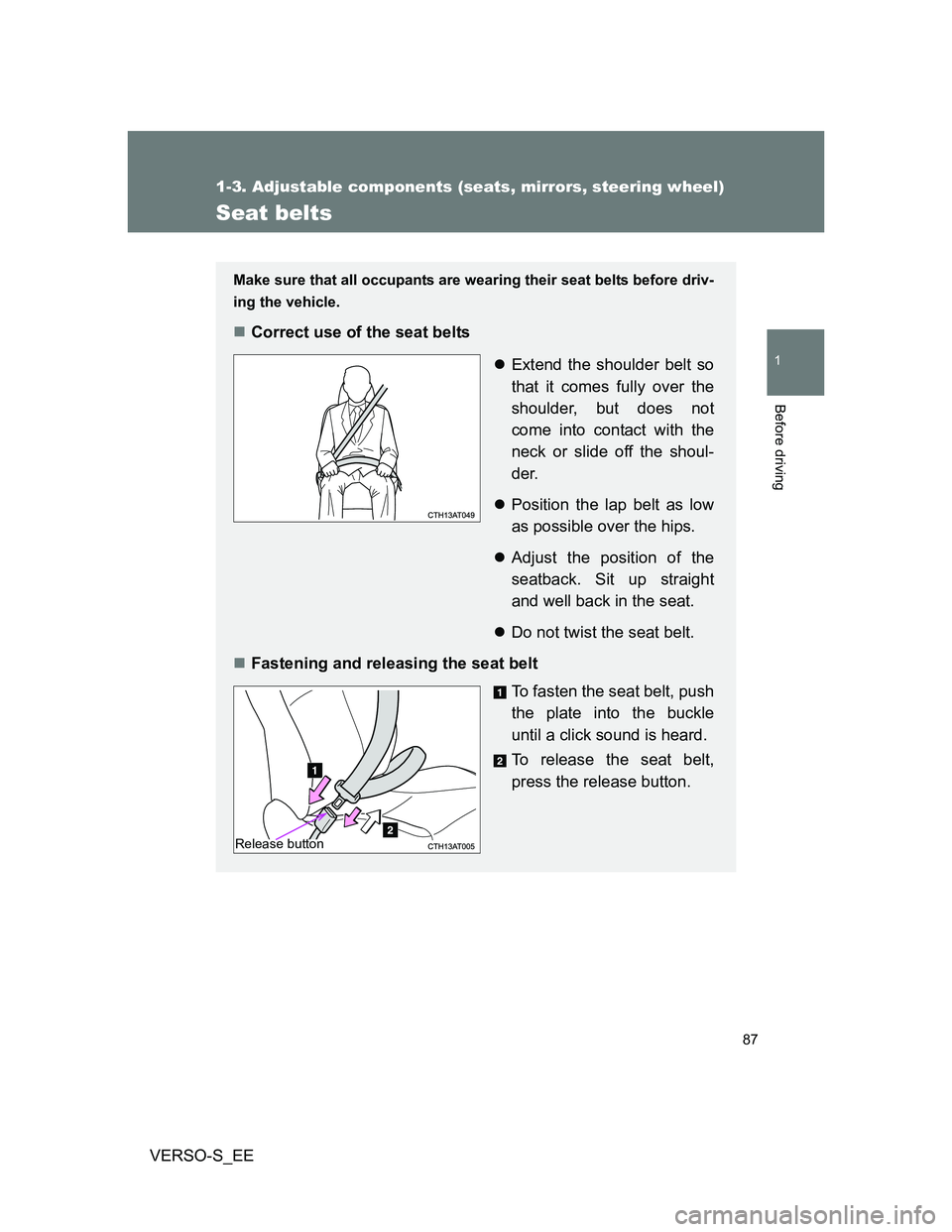

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

88 1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO-S_EE

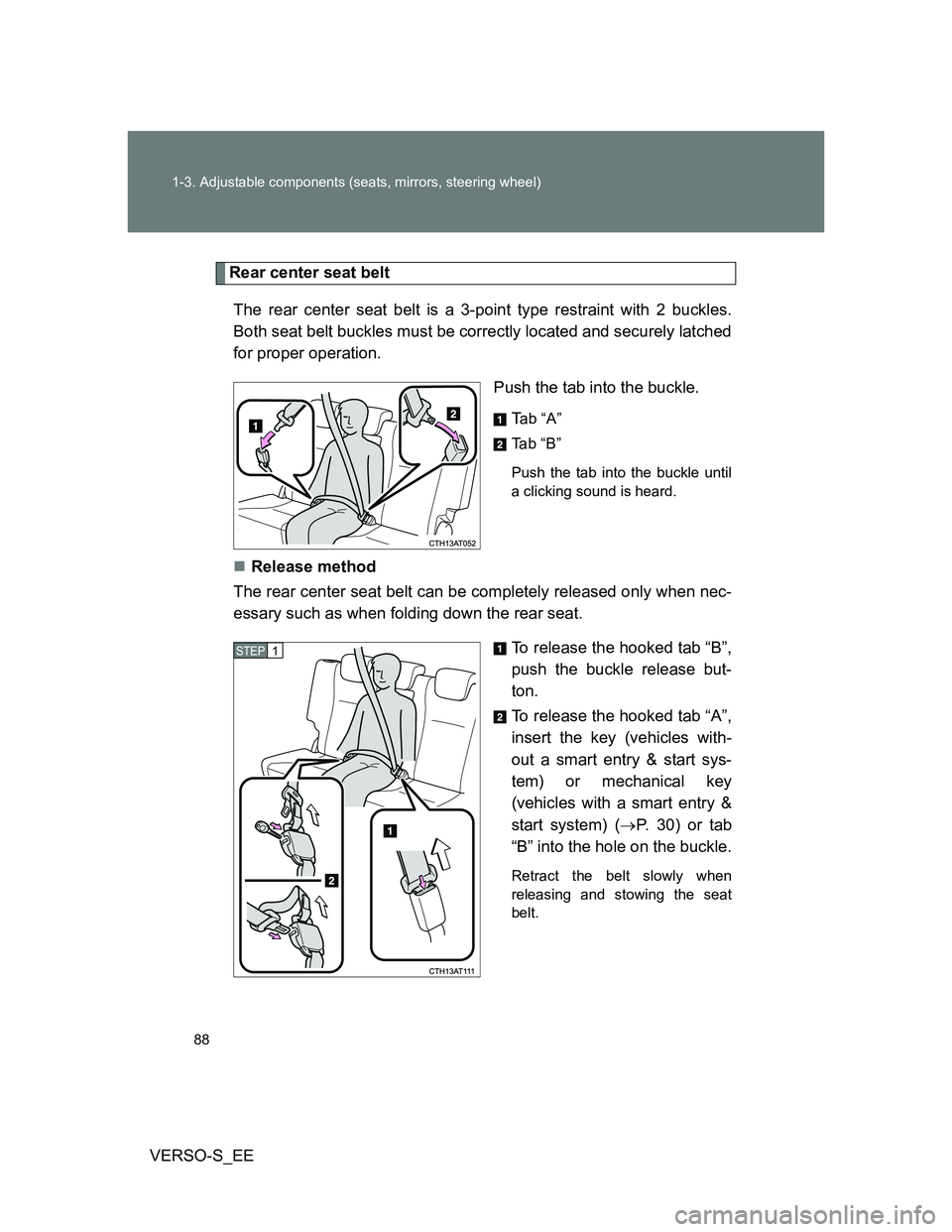

Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely latched
for proper operation.
Push the tab into the buckle.
T
ab “A”
Ta b “ B ”
Push the tab into the buckle until
a clicking sound is heard.
Release method
The rear center seat belt can be completely released only when nec-
essary such as when folding down the rear seat.
To release the hooked tab “B”,
push the buckle release but-
ton.
To release the hooked tab “A”,
insert the key (vehicles with-
out a smart entry & start sys-
tem) or mechanical key
(vehicles with a smart entry &
start system) (P. 3 0 ) o r t a b
“B” into the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
STEP1

89 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

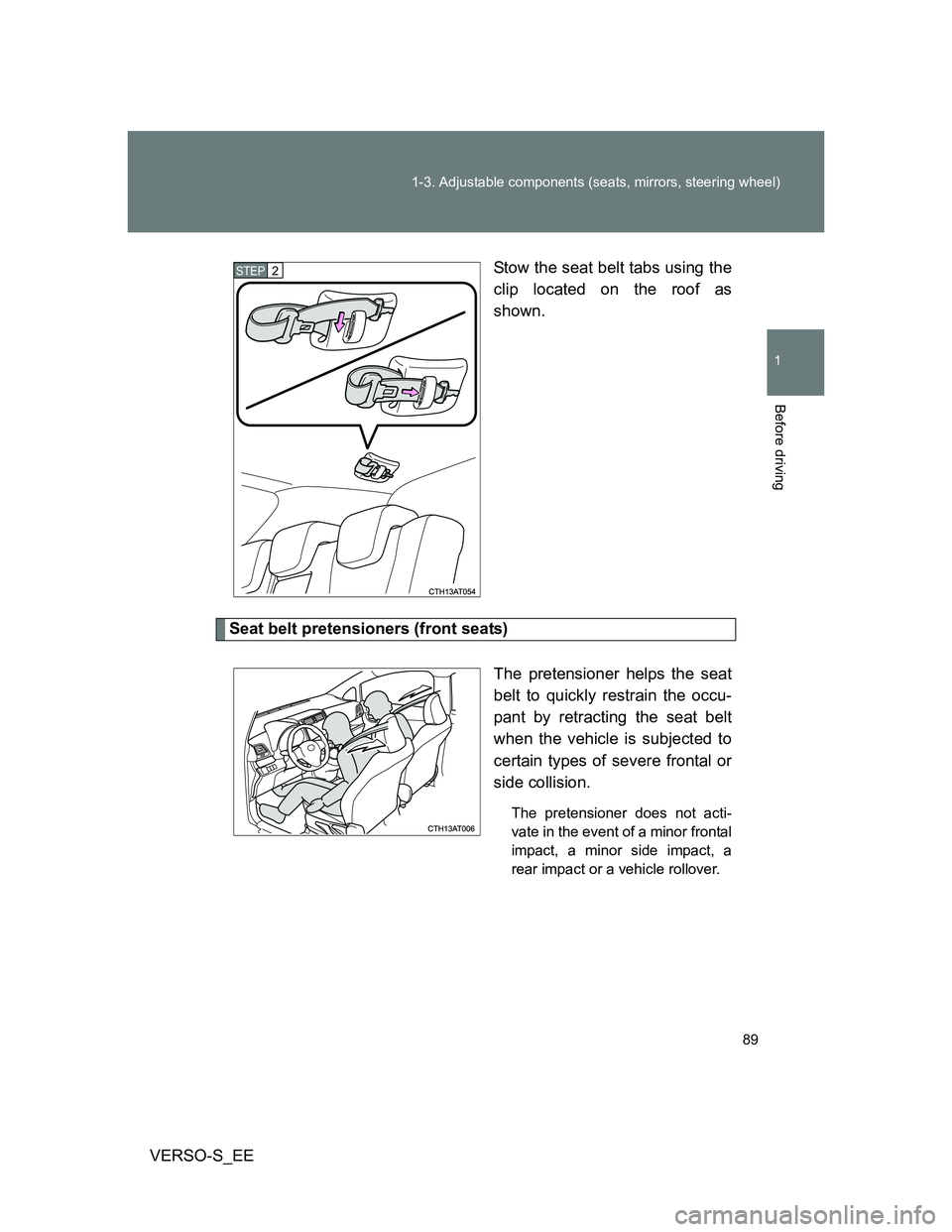

VERSO-S_EEStow the seat belt tabs using the
clip located on the roof as
shown.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioner does not acti-
vate in the event of a minor frontal
impact, a minor side impact, a
rear impact or a vehicle rollover.
STEP2

90 1-3. Adjustable components (seats, mirrors, steering wheel)
VERSO-S_EE

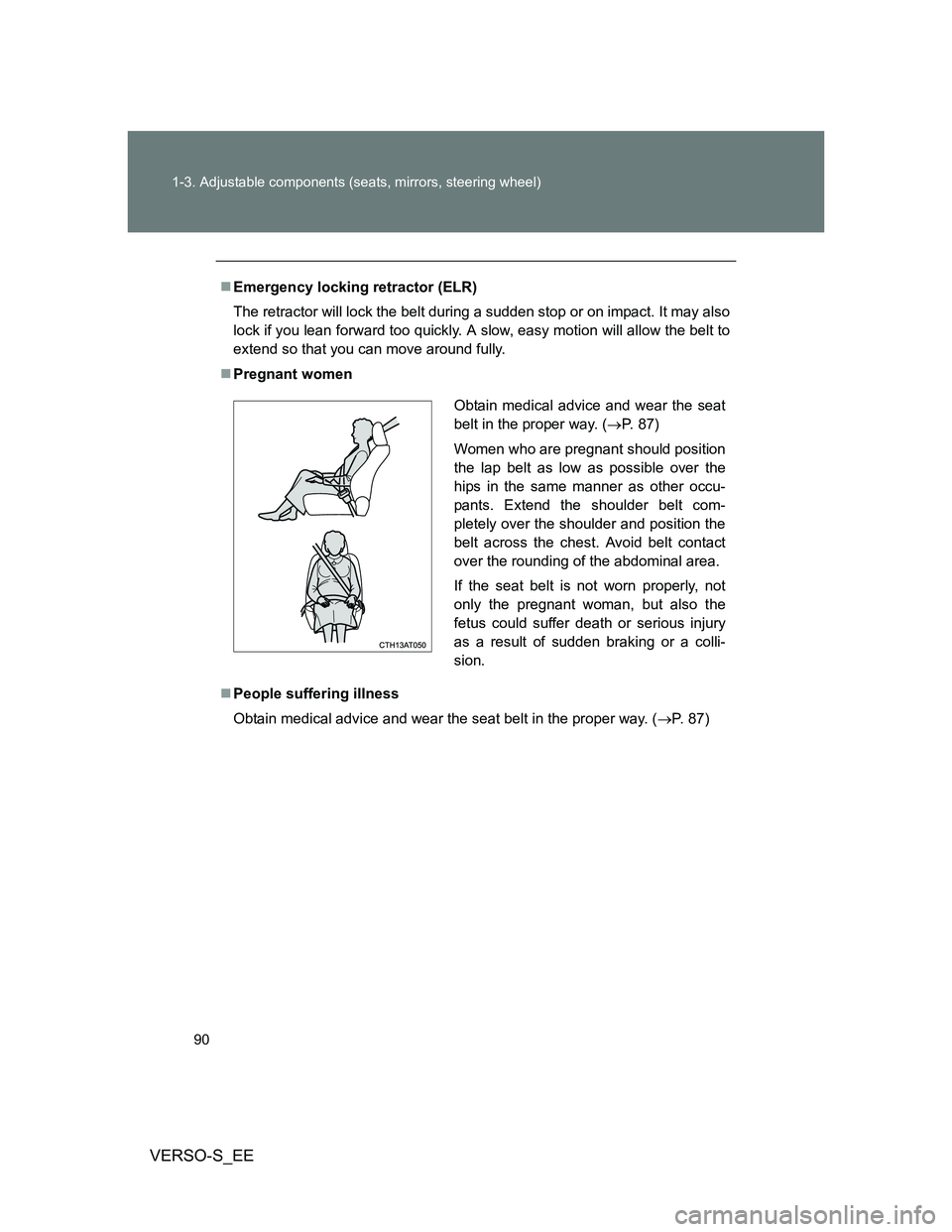

Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 87)
Obtain medical advice and wear the seat
belt in the proper way. (P. 87)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
