411 4-3. Do-it-yourself maintenance
4
Maintenance and care
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 414) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pullout
tool.
The pullout tool is located on
the back of the type A fuse box
cover.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP3
STEP4
STEP5

412 4-3. Do-it-yourself maintenance
Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e E
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.

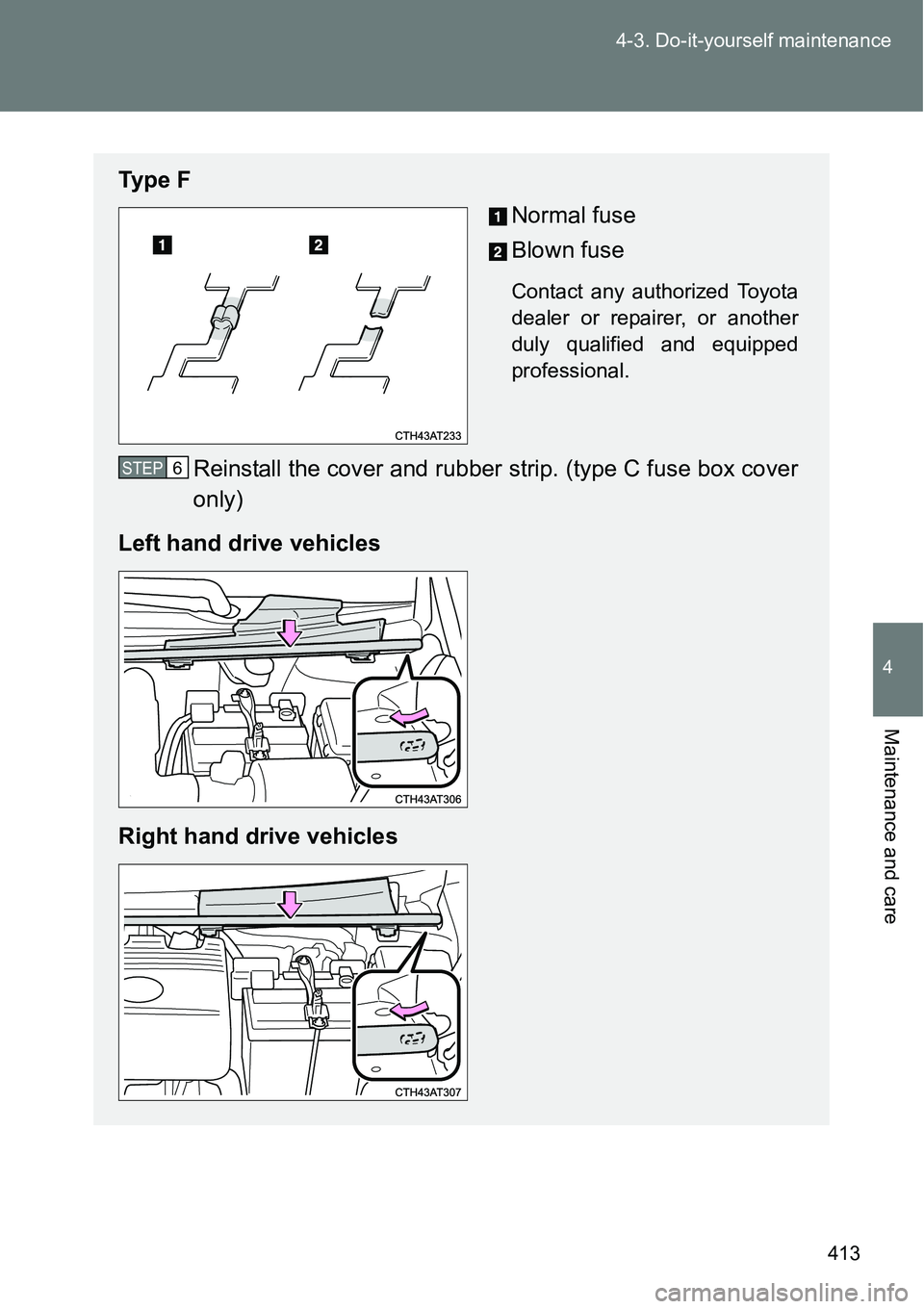

413 4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e F
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Reinstall the cover and rubber strip. (type C fuse box cover
only)
Left hand drive vehicles
Right hand drive vehiclesSTEP6

414 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
Engine compartment
Ty p e A
FuseAmpereCircuit
1EFI MAIN
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
ECD MAIN
*230 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2
2 EFI NO.3 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 HORN 10 A Horn
4 EFI NO.2 10 AStop & Start system, multiport fuel
injection system/sequential multi-
port fuel injection system

415 4-3. Do-it-yourself maintenance
4
Maintenance and care
5 IG2 10 ASmart entry & start system, multi-
port fuel injection system/sequen-
tial multiport fuel injection system,
SRS airbag system, steering lock
system, stop lights, Stop & Start
system
6 IGN 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
7MET 7.5 AGauge and meters, Stop & Start
system
8PWR HTR
*225 APower heater, multiport fuel injec-
tion system/sequential multiport
fuel injection system
9 EPS 50 A Electric power steering
10 ABS NO.2 30 A ABS, VSC
11 DEF 30 A Rear window defogger
12 SPARE 10 A Spare fuse
13 PTC 80 APTC heater, outside rear view mir-
ror defoggers
14 HTR 40 A Air conditioning system
15 H-LP CLN 30 A
16 RDI FAN 30 A Electric cooling fan
17 ABS NO.1 50 A ABS, VSC
18 BBC
*340 A Stop & Start system
19 ST 30 A Starting system
20 AMP 15 A
21 D/L NO.2 25 A
Power door lock
22 D.C.C. 30 A DOME, ECU-B NO.1
23 STR LOCK 20 A Steering lock system
FuseAmpereCircuit

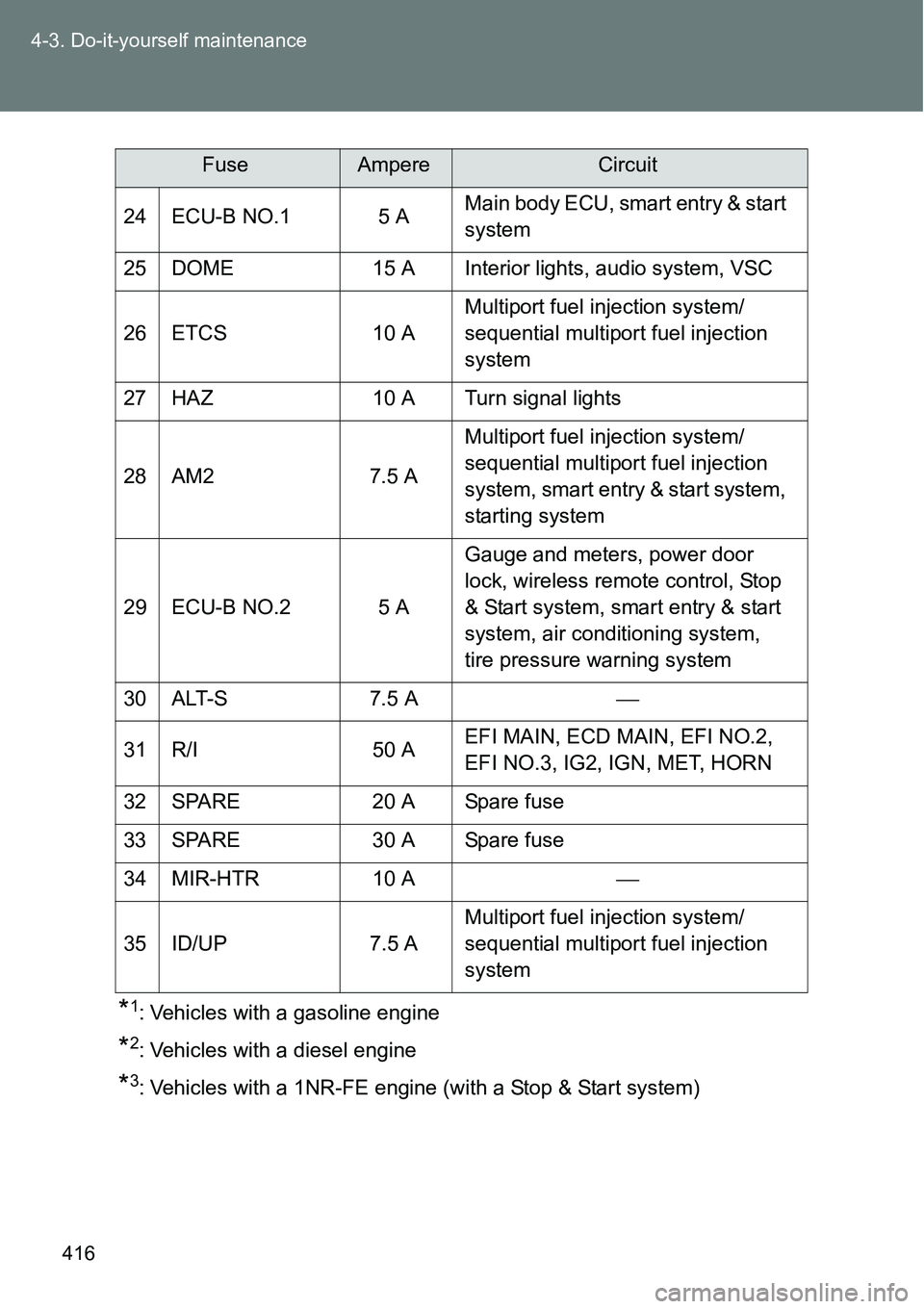

416 4-3. Do-it-yourself maintenance
*1: Vehicles with a gasoline engine
*2: Vehicles with a diesel engine
*3: Vehicles with a 1NR-FE engine (with a Stop & Start system) 24 ECU-B NO.1 5 AMain body ECU, smart entry & start
system
25 DOME 15 A Interior lights, audio system, VSC
26 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
27 HAZ 10 A Turn signal lights
28 AM2 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart entry & start system,
starting system
29 ECU-B NO.2 5 AGauge and meters, power door
lock, wireless remote control, Stop
& Start system, smart entry & start
system, air conditioning system,
tire pressure warning system
30 ALT-S 7.5 A
31 R/I 50 AEFI MAIN, ECD MAIN, EFI NO.2,
EFI NO.3, IG2, IGN, MET, HORN
32 SPARE 20 A Spare fuse
33 SPARE 30 A Spare fuse
34 MIR-HTR 10 A
35 ID/UP 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

417 4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e B
FuseAmpereCircuit
1EU-DRL 7.5 A
2S-HORN 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 H-LP MAIN 7.5 A Headlights
4 H-LP RH HI 10 A Right-hand headlight (high beam)
5H-LP LH HI 10 ALeft-hand headlight (high beam),
gauge and meters
6 H-LP RH LO 10 A Right-hand headlight (low beam)
7 H-LP LH LO 10 ALeft-hand headlight (low beam),
manual headlight leveling dial

418 4-3. Do-it-yourself maintenance
Type C (vehicles with a gasoline engine)
FuseAmpereCircuit
1 ALT 120 AEPS, ABS NO.2, DEF, PTC, HTR,
RDI FAN, ABS NO.1, TAIL NO.2,
PANEL, DOOR R/R, DOOR P,
ECU-IG NO.1, ECU-IG NO.2, A/C,
GAUGE, WASHER, WIPER,
WIPER RR, P/W, DOOR R/L,
DOOR, CIG, ACC, D/L, OBD, FOG
RR, STOP, AM1, FOG FR, D-D/L,
SHADE, S-HTR
2MAIN 80 ABBC, ST, D/L NO.2, D.C.C., STR
LOCK, ETCS, HAZ, AM2, ECU-B
NO.2, R/I, S-HORN, H-LP MAIN,
H-LP RH HI, H-LP LH HI, H-LP RH
LO, H-LP LH LO

419 4-3. Do-it-yourself maintenance
4
Maintenance and care
Type C (vehicles with a diesel engine)
FuseAmpereCircuit
1 ALT 120 APWR HTR, EPS, ABS NO.2, DEF,
PTC, HTR, RDI FAN, ABS NO.1,
TAIL NO.2, PANEL, DOOR R/R,
DOOR P, ECU-IG NO.1, ECU-IG
NO.2, A/C, GAUGE, WASHER,
WIPER, WIPER RR, P/W, DOOR
R/L, DOOR, CIG, ACC, D/L, OBD,
FOG RR, STOP, AM1, FOG FR,
D-D/L, SHADE, S-HTR
2MAIN 80 AST, D/L NO.2, D.C.C., STR LOCK,
ETCS, HAZ, AM2, ECU-B NO.2,
R/I, H-LP MAIN, H-LP RH HI, H-LP
LH HI, H-LP RH LO, H-LP LH LO,
MMT
3 GLOW DC/DC 80 A Engine glow system

420 4-3. Do-it-yourself maintenance
Under the instrument panel
FuseAmpereCircuit
1 TAIL NO.2 10 A
Front position lights, tail lights,
license plate lights, front fog lights,
rear fog light, multiport fuel injection
system/sequential multiport fuel
injection system, gauge and meters
2 PANEL 5 AGauge and meters, instrument
panel lights, switch illumination
3 DOOR R/R 20 A Power windows
4 DOOR P 20 A Power windows
5 ECU-IG NO.1 5 AElectric cooling fan, rear window
defogger, electric power steering,
main body ECU, windshield wipers,
VSC, tire pressure warning system
6 ECU-IG NO.2 5 A ABS, VSC, Stop & Start system
7A/C 7.5 AAir conditioning system, power
heater, rear window defogger, out-
side rear view mirror defoggers
8 GAUGE 10 ABack-up light, shift lock control sys-
tem, rear seat belt reminder lights,
auto anti-glare inside rear view mir-
ror, Multidrive, audio system, pan-
oramic roof shade, multiport fuel
injection system/sequential multi-
port fuel injection system, rain sen-
sor
