TOYOTA xB 2006 Accessories, Audio & Navigation (in English)

xB - Security

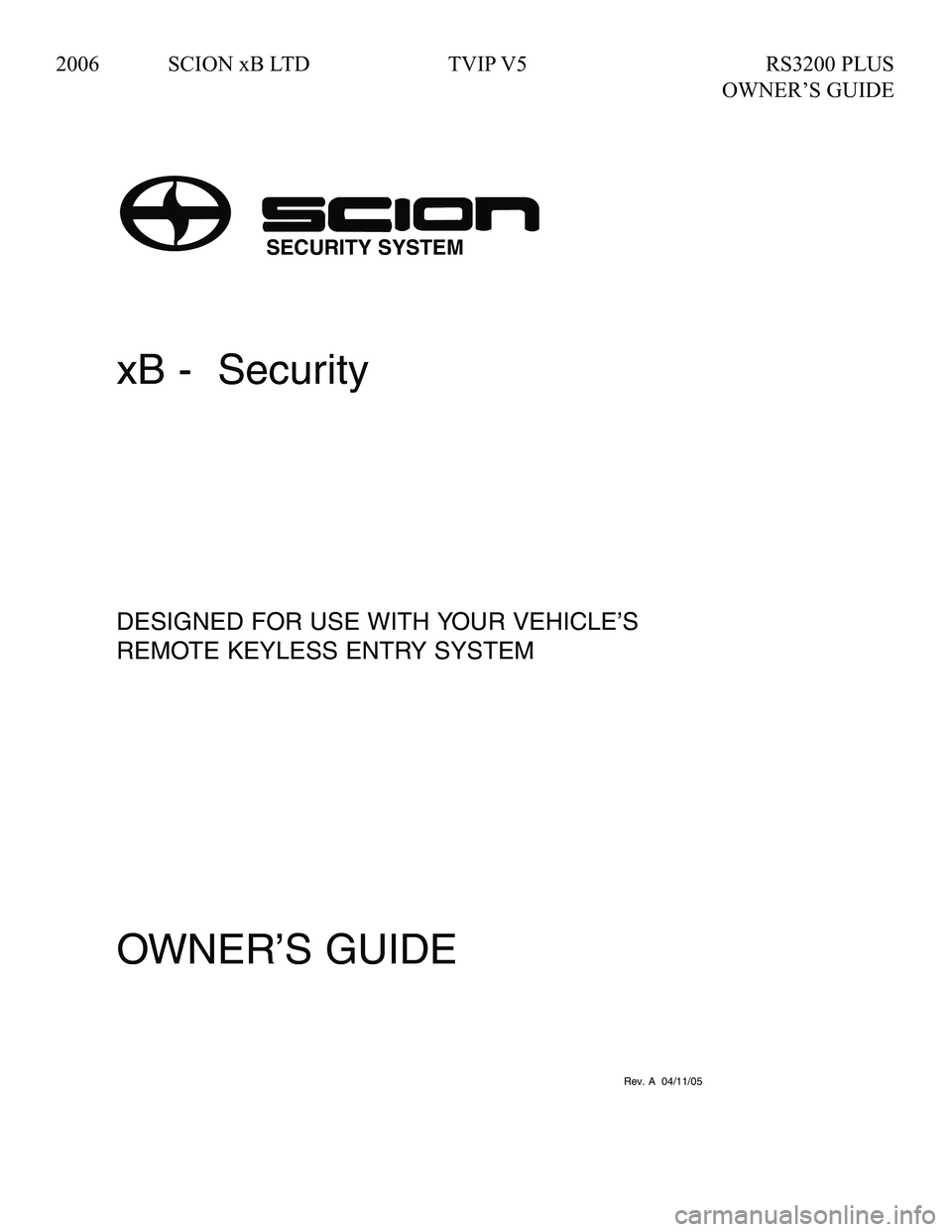

DESIGNED FOR USE WITH YOUR VEHICLE’S
REMOTE KEYLESS ENTRY SYSTEM
OWNER’S GUIDE
090002-28650700Rev. A 04/11/05
SECURITY SYSTEM
2006 SCION xB LTD TVIP V5 RS3200 PLUS
OWNER’S GUIDE

To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.

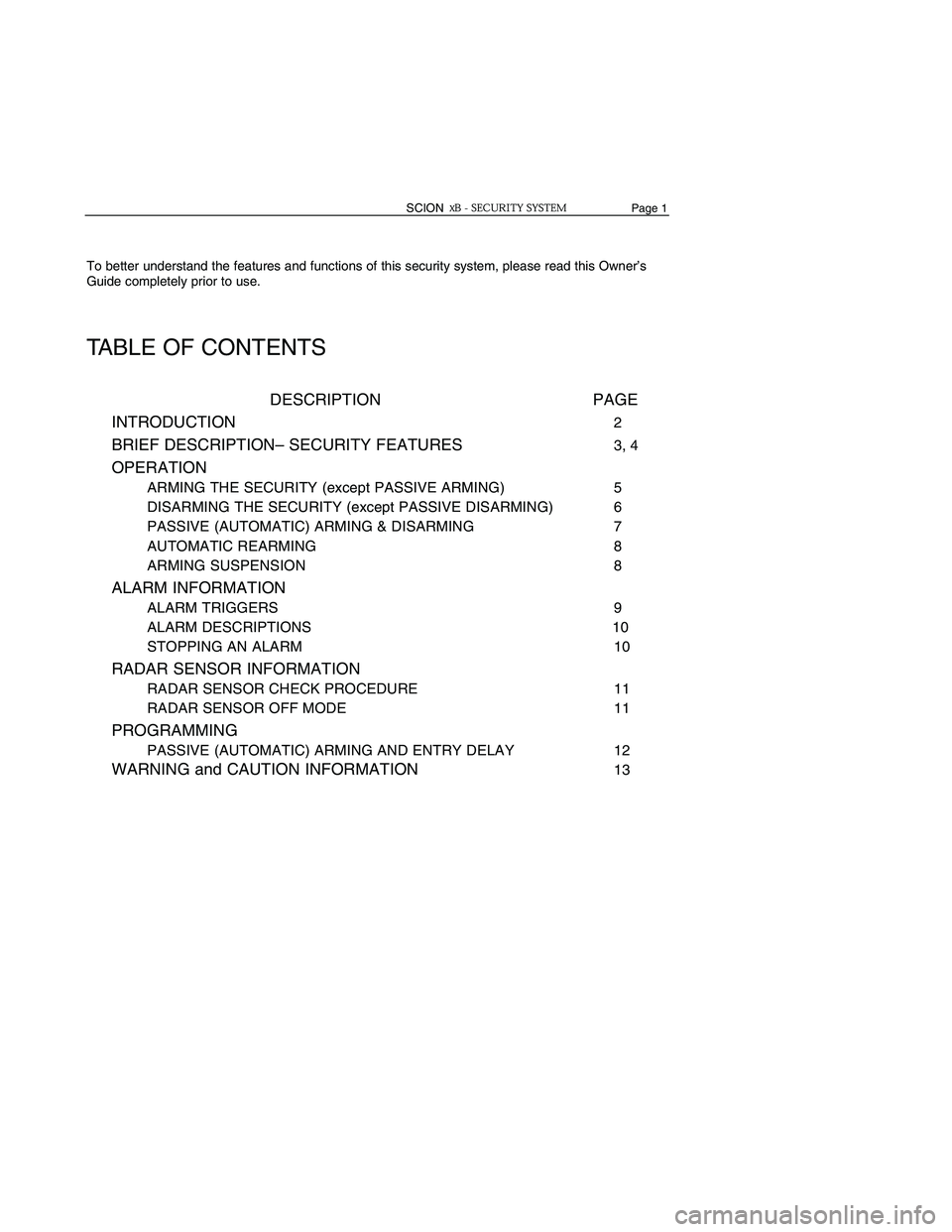

TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
BRIEF DESCRIPTION– SECURITY FEATURES3, 4
OPERATION

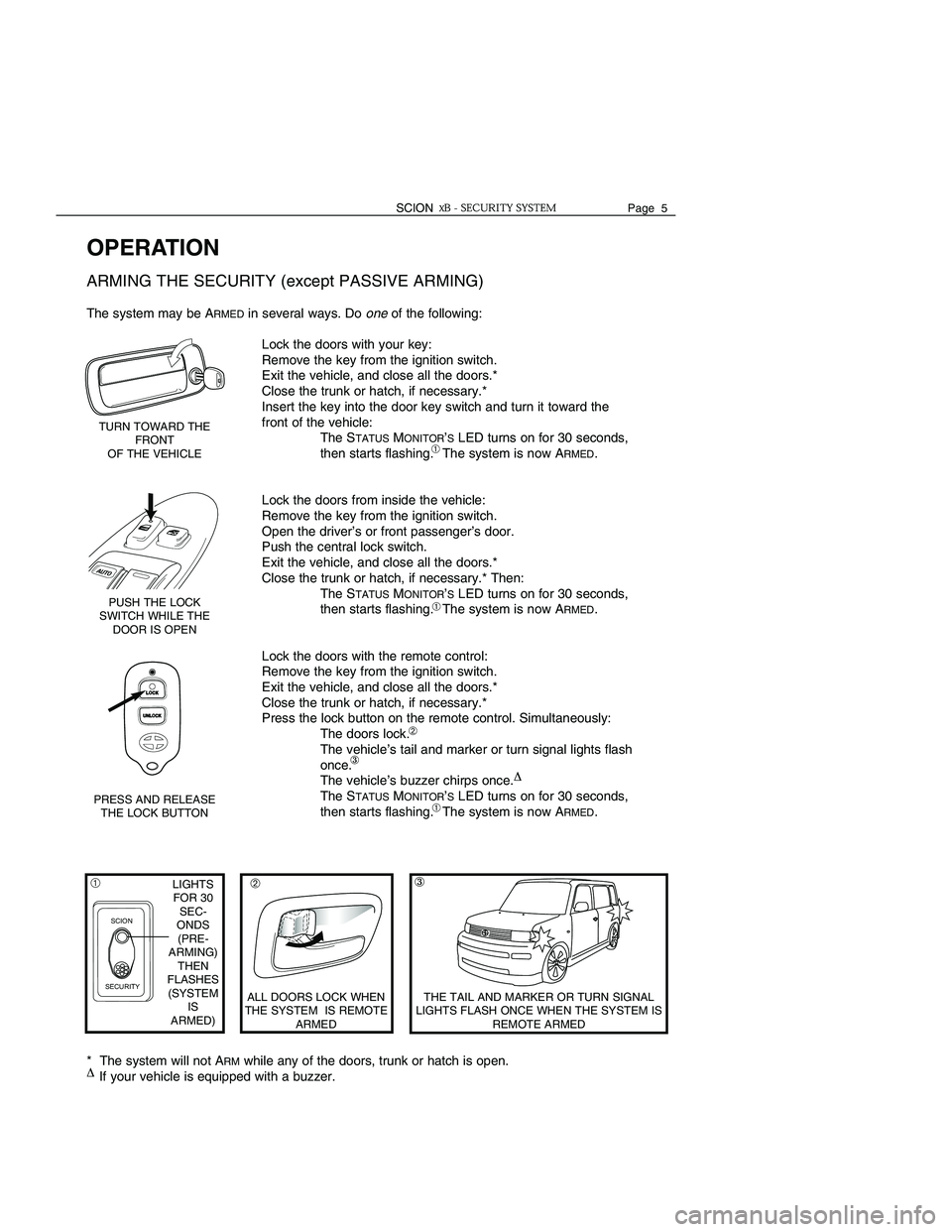

ARMING THE SECURITY (except PASSIVE ARMING) 5

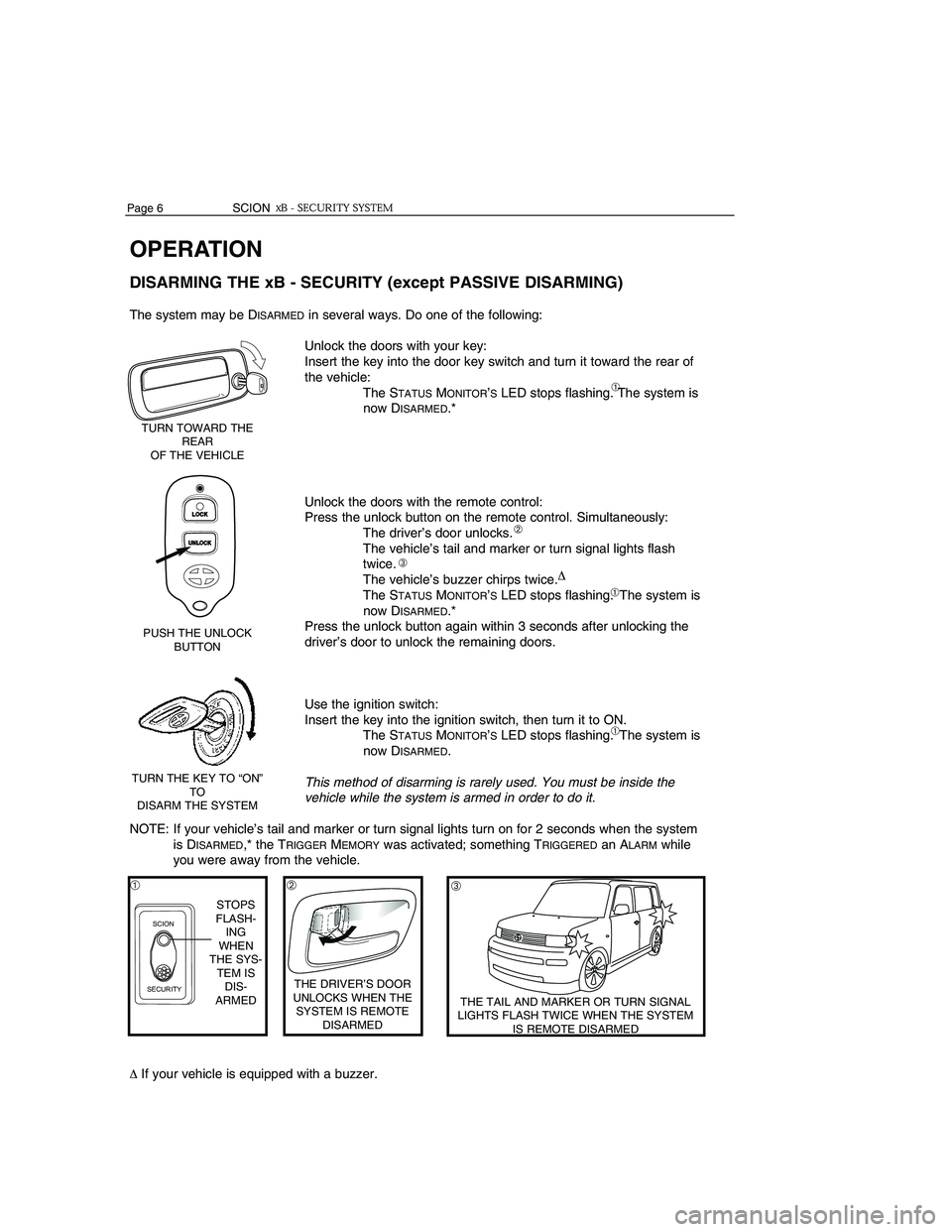

DISARMING THE SECURITY (except PASSIVE DISARMING) 6

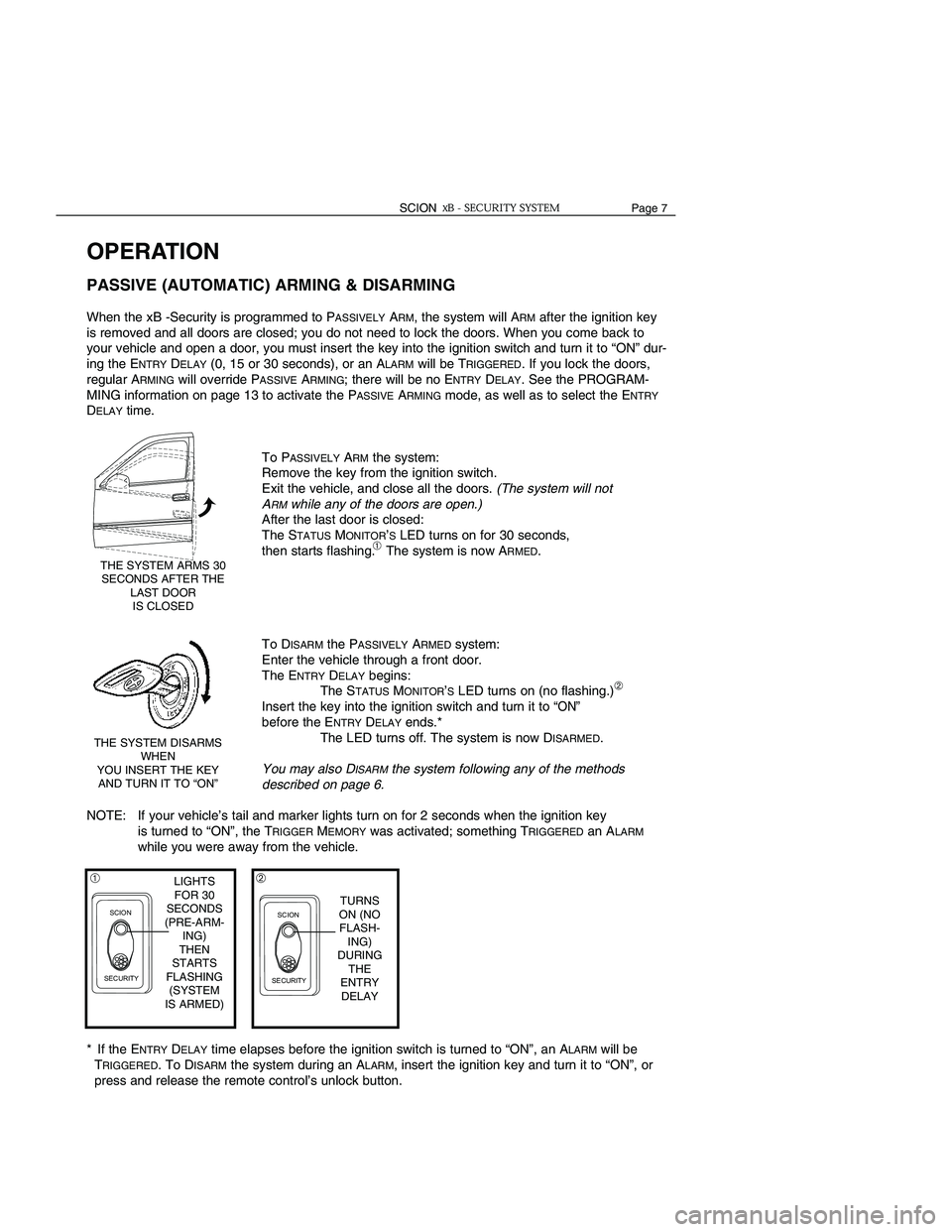

PASSIVE (AUTOMATIC) ARMING & DISARMING 7

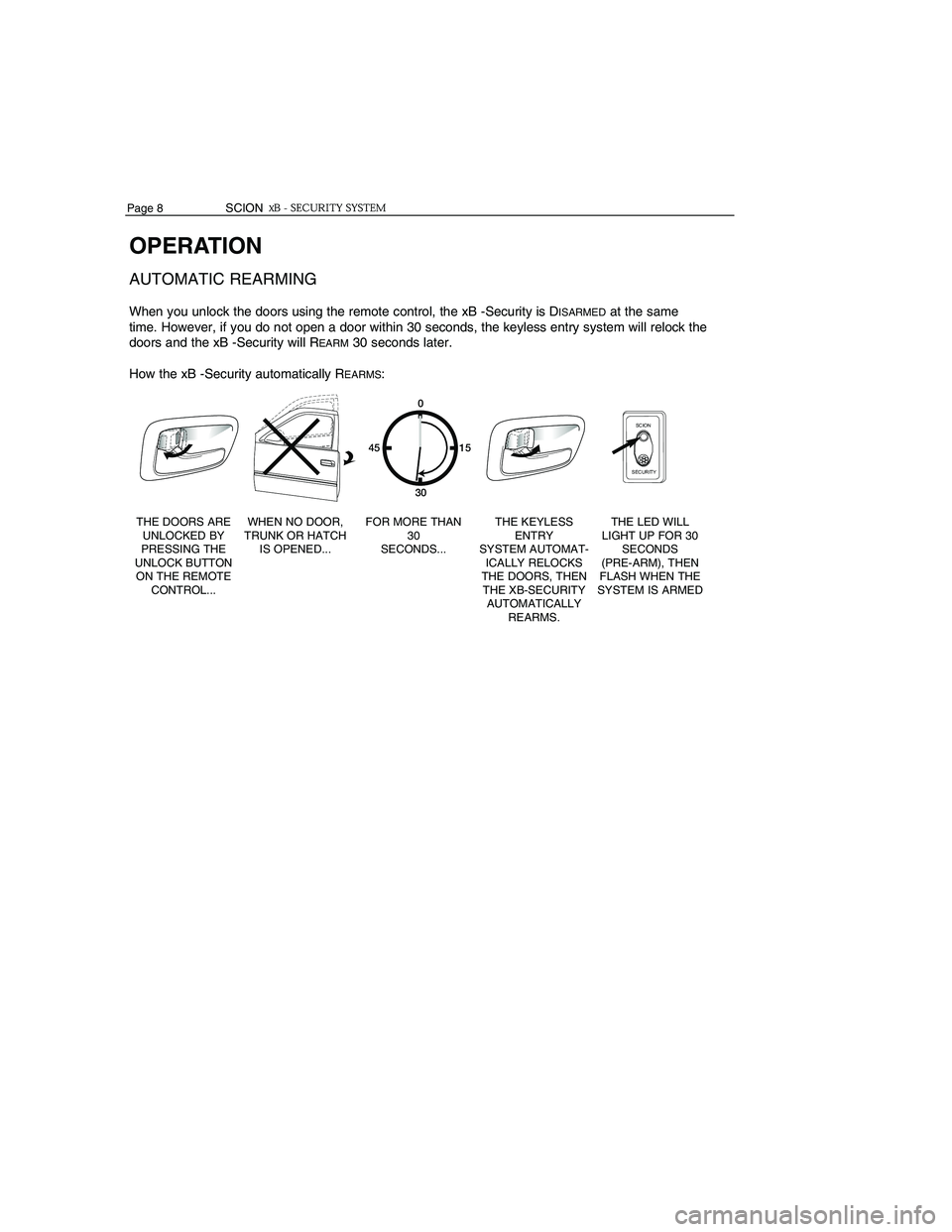

AUTOMATIC REARMING 8
ARMING SUSPENSION 8
ALARM INFORMATION

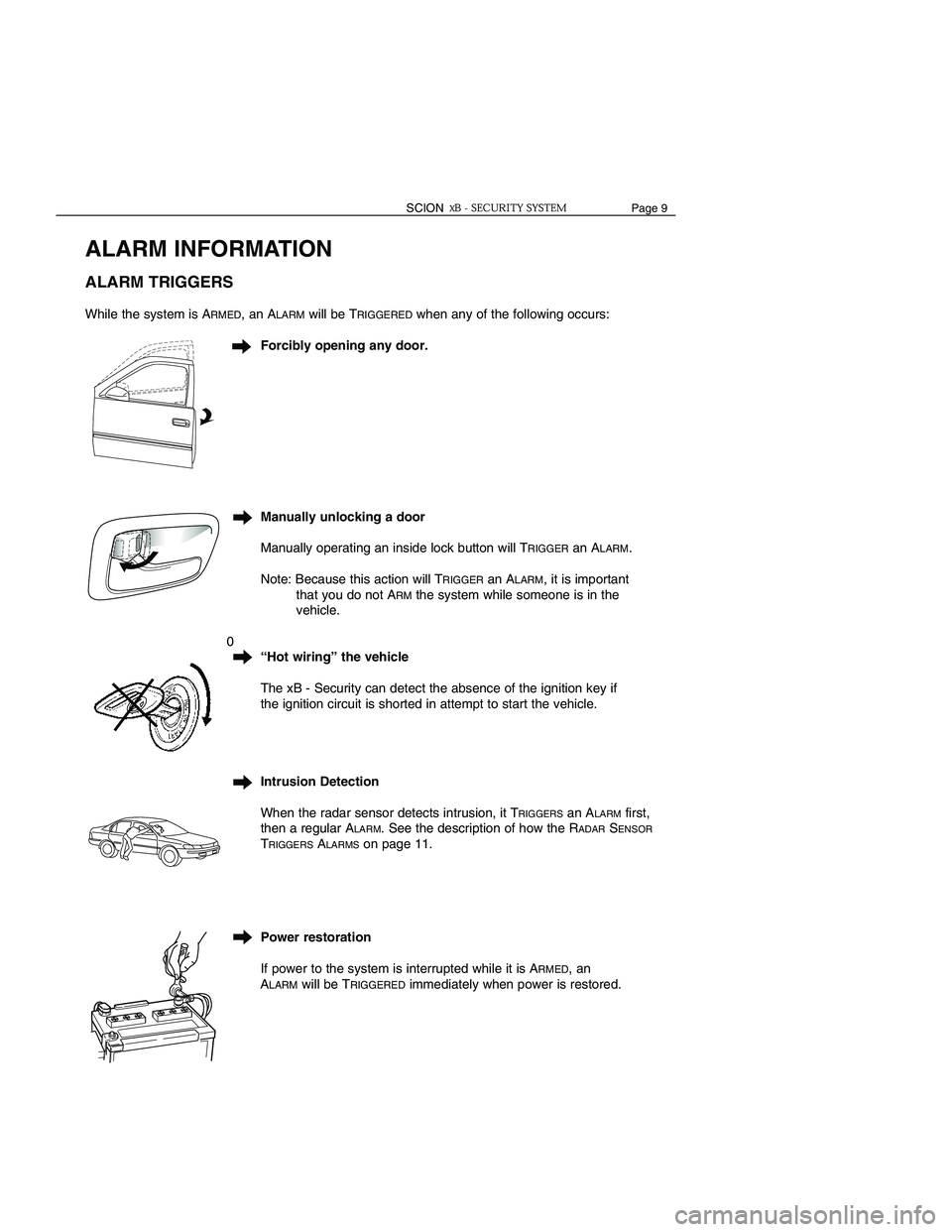

ALARM TRIGGERS9
ALARM DESCRIPTIONS 10
STOPPING AN ALARM 10
RADAR SENSOR INFORMATION
RADAR SENSOR CHECK PROCEDURE11
RADAR SENSOR OFF MODE 11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY12
WARNING and CAUTION INFORMATION13
SCIONPage 1

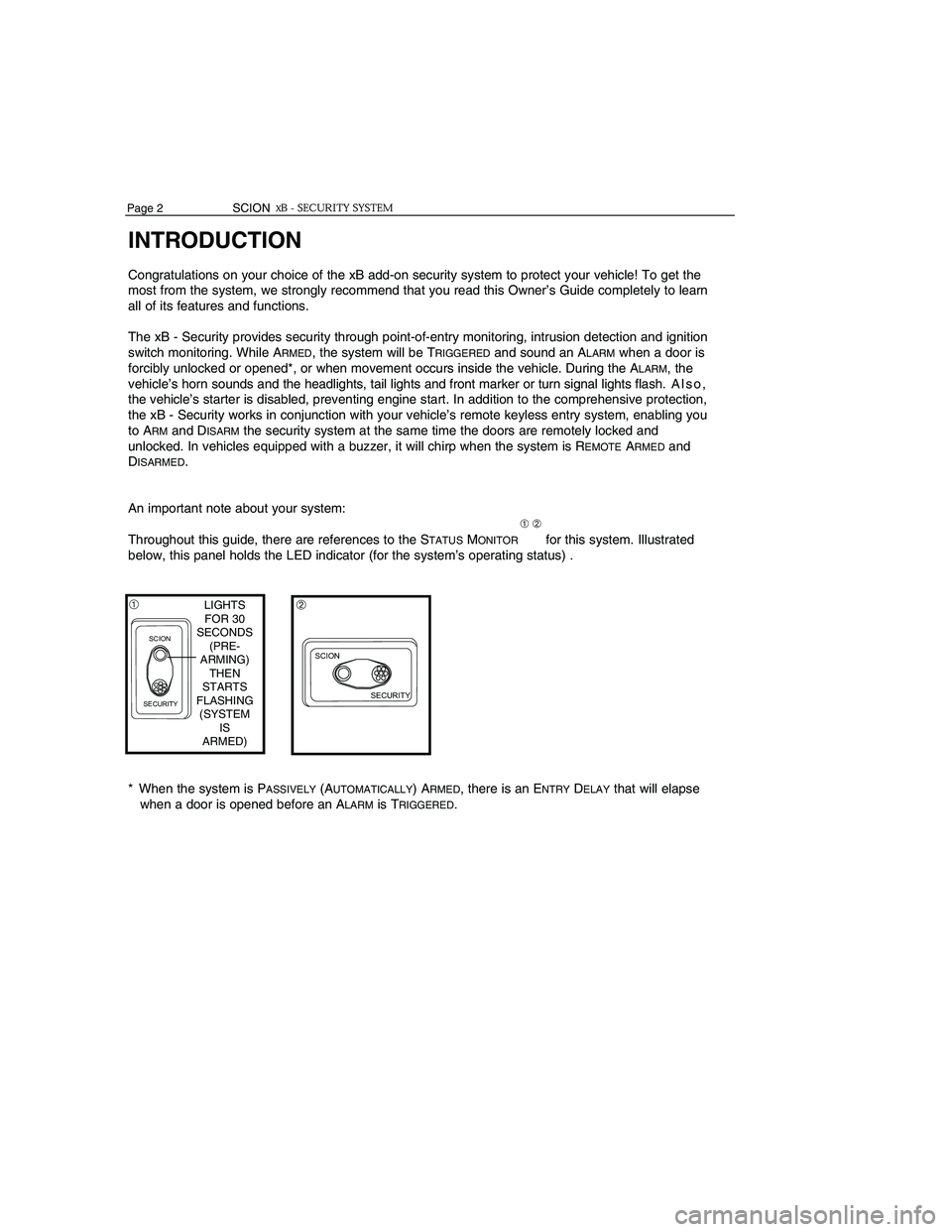

INTRODUCTION
Congratulations on your choice of the xB add-on security system to protect your vehicle! To get the
most from the system, we strongly recommend that you read this Owner’s Guide completely to learn
all of its features and functions.
The xB - Security provides security through point-of-entry monitoring, intrusion detection and ignition
switch monitoring. While A
RMED, the system will be TRIGGEREDand sound an ALARMwhen a door is
forcibly unlocked or opened*, or when movement occurs inside the vehicle. During the A
LARM, the
vehicle’s horn sounds and the headlights, tail lights and front marker or turn signal lights flash. A l s o ,
the vehicle’s starter is disabled, preventing engine start. In addition to the comprehensive protection,
the xB - Security works in conjunction with your vehicle’s remote keyless entry system, enabling you
to A
RMand DISARMthe security system at the same time the doors are remotely locked and
unlocked. In vehicles equipped with a buzzer, it will chirp when the system is R
EMOTEARMEDand
D
ISARMED.
An important note about your system:
Throughout this guide, there are references to the S
TATUSMONITORfor this system. Illustrated
below, this panel holds the LED indicator (for the system’s operating status) .
* When the system is P
ASSIVELY(AUTOMATICALLY) ARMED, there is an ENTRYDELAYthat will elapse
when a door is opened before an A
LARMis TRIGGERED.
Page 2 SCIONSCIONPage 13
Warning
•This product is applicable only to vehicles with 12V DC, negative grounding specifications. Do
not use in vehicles with 24V specifications. Otherwise, damage to the unit or a fire may result.
•Never attempt to disassemble or modify the product. Otherwise, an accident, fire or electric
shock may result.
•When replacing fuses, be sure to use fuses with the same specified capacity (amperage.)
Otherwise, damage to the unit or vehicle, fire or electric shock may result.
•If an abnormal condition occurs, such as liquids spilling onto the product, or the product
emits smoke or strange odors, stop using it immediately and consult the dealer from whom you
purchased the product. Continued use of the product before corrective actions are taken may
result in an accident, injury or fire.
•Never pull the plastic bag over your head. Otherwise, a serious injury or death from suffocation
may occur.
Caution
•Do not use this product for applications other than in-vehicle use. Otherwise, an electric shock
or injury may result.
•Do not allow children to play with the remote controls. Otherwise, the doors may be locked or
unlocked, the security system armed or disarmed, or an alarm triggered unintentionally.
•If this product is dropped or its case is damaged, disconnect the power supply lead and
contact the dealer from whom you purchased it to obtain service. Otherwise, a fire or electric
shock may result.
SCION
SECURITY
SCION
SECURITY
LIGHTS FOR 30
SECONDS (PRE-
ARMING) THEN
STARTS
FLASHING (SYSTEM IS
ARMED)� �
� �

PROGRAMMING
The xB -Security is factory-set to not PASSIVELYARM. To change the system’s operation for PASSIVE
ARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For more
information on this feature, please refer to page 7.
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin: Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 SCION SCIONPage 3
a. Close the driver’s door. b.
Lock and unlock all
doors 3 times by key
or remote control.
b.Lock then unlock the
driver’s door inside lock
button 1 time.
a. Close, then Open the driver’s door:
2 times = P
ASSIVEARMINGOFF
3 times = P
ASSIVEARMINGON,
0 Sec. E
NTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. E
NTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. E
NTRYDELAY
c. Open and close the driver’s door.
c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door. d.
Lock , then unlock
the driver’s door
inside lock button
3 times .

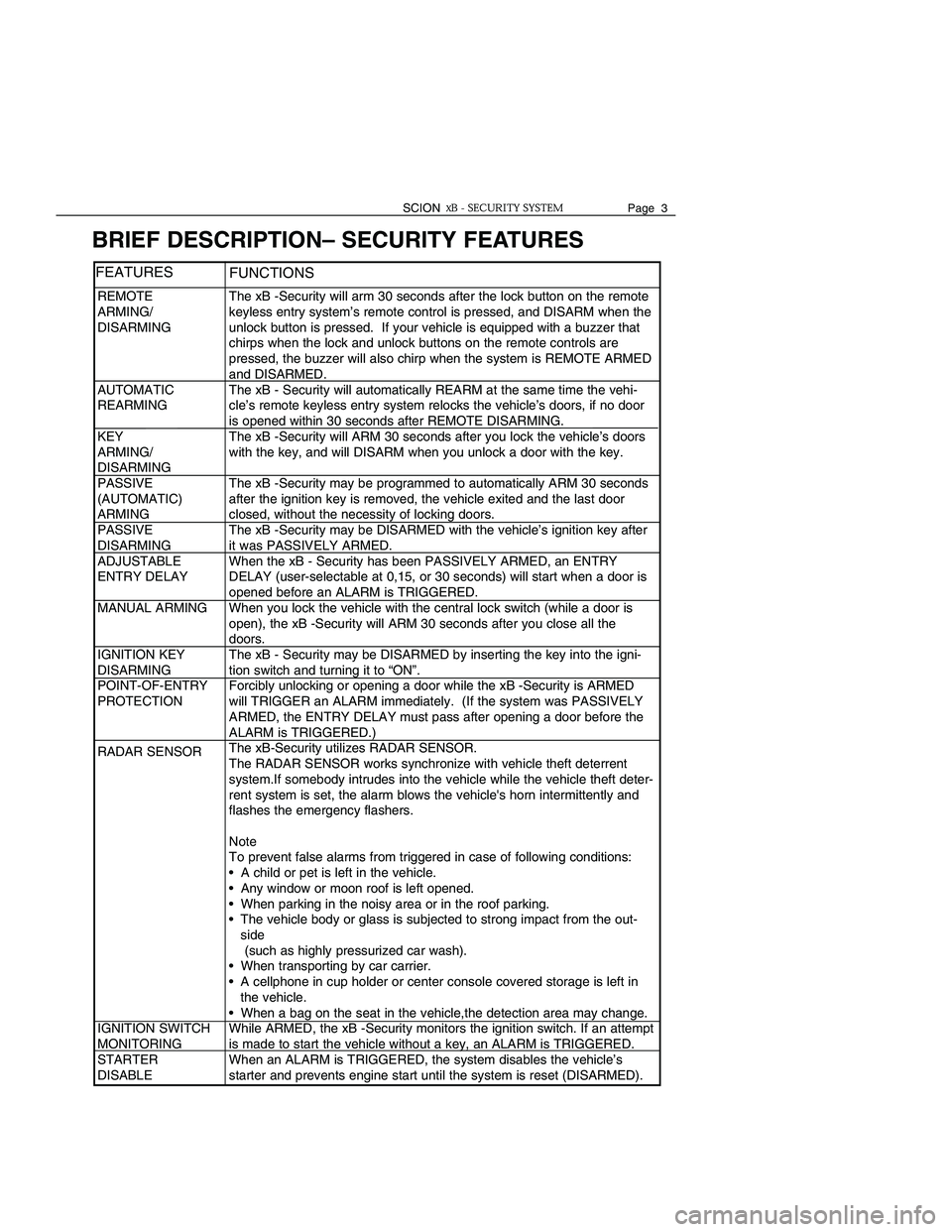

BRIEF DESCRIPTION– SECURITY FEATURES
2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.
f. The system locks the door in 2 seconds; if this does
not happen, start over. g. Unlock the driver’s
door knob.
The xB -Security will arm 30 seconds after the lock button on the remote
keyless entry system’s remote control is pressed, and DISARM when the
unlock button is pressed. If your vehicle is equipped with a buzzer that
chirps when the lock and unlock buttons on the remote controls are
pressed, the buzzer will also chirp when the system is REMOTE ARMED
and DISARMED.
The xB - Security will automatically REARM at the same time the vehi-
cle’s remote keyless entry system relocks the vehicle’s doors, if no door
is opened within 30 seconds after REMOTE DISARMING.
The xB -Security will ARM 30 seconds after you lock the vehicle’s doors
with the key, and will DISARM when you unlock a door with the key.
The xB -Security may be programmed to automatically ARM 30 seconds
after the ignition key is removed, the vehicle exited and the last door
closed, without the necessity of locking doors.
The xB -Security may be DISARMED with the vehicle’s ignition key after
it was PASSIVELY ARMED.
When the xB - Security has been PASSIVELY ARMED, an ENTRY
DELAY (user-selectable at 0,15, or 30 seconds) will start when a door is
opened before an ALARM is TRIGGERED.
When you lock the vehicle with the central lock switch (while a door is
open), the xB -Security will ARM 30 seconds after you close all the
doors.
The xB - Security may be DISARMED by inserting the key into the igni-
tion switch and turning it to “ON”.
Forcibly unlocking or opening a door while the xB -Security is ARMED
will TRIGGER an ALARM immediately. (If the system was PASSIVELY
ARMED, the ENTRY DELAY must pass after opening a door before the
ALARM is TRIGGERED.)
The xB-Security utilizes RADAR SENSOR.
The RADAR SENSOR works synchronize with vehicle theft deterrent
system.If somebody intrudes into the vehicle while the vehicle theft deter-
rent system is set, the alarm blows the vehicle's horn intermittently and
flashes the emergency flashers.
Note
To prevent false alarms from triggered in case of following conditions:
• A child or pet is left in the vehicle.
• Any window or moon roof is left opened.
• When parking in the noisy area or in the roof parking.
• The vehicle body or glass is subjected to strong impact from the out-
side
(such as highly pressurized car wash).
• When transporting by car carrier.
• A cellphone in cup holder or center console covered storage is left in
the vehicle.
• When a bag on the seat in the vehicle,the detection area may change.
While ARMED, the xB -Security monitors the ignition switch. If an attempt
is made to start the vehicle without a key, an ALARM is TRIGGERED.
When an ALARM is TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (DISARMED).
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
RADAR SENSOR
IGNITION SWITCH
MONITORING
STARTER
DISABLE
FEATURES
FUNCTIONS

FORCED LOCK
DURING ALARM
TRIGGER
MEMORY
EXTERIOR
LIGHT
ACTIVATION
BUZZER
ACTIVATION
HORN ACTIVATE
POWER LOSS
MEMORY
STATUS
MONITOR
Page 4 SCIONSCIONPage 11

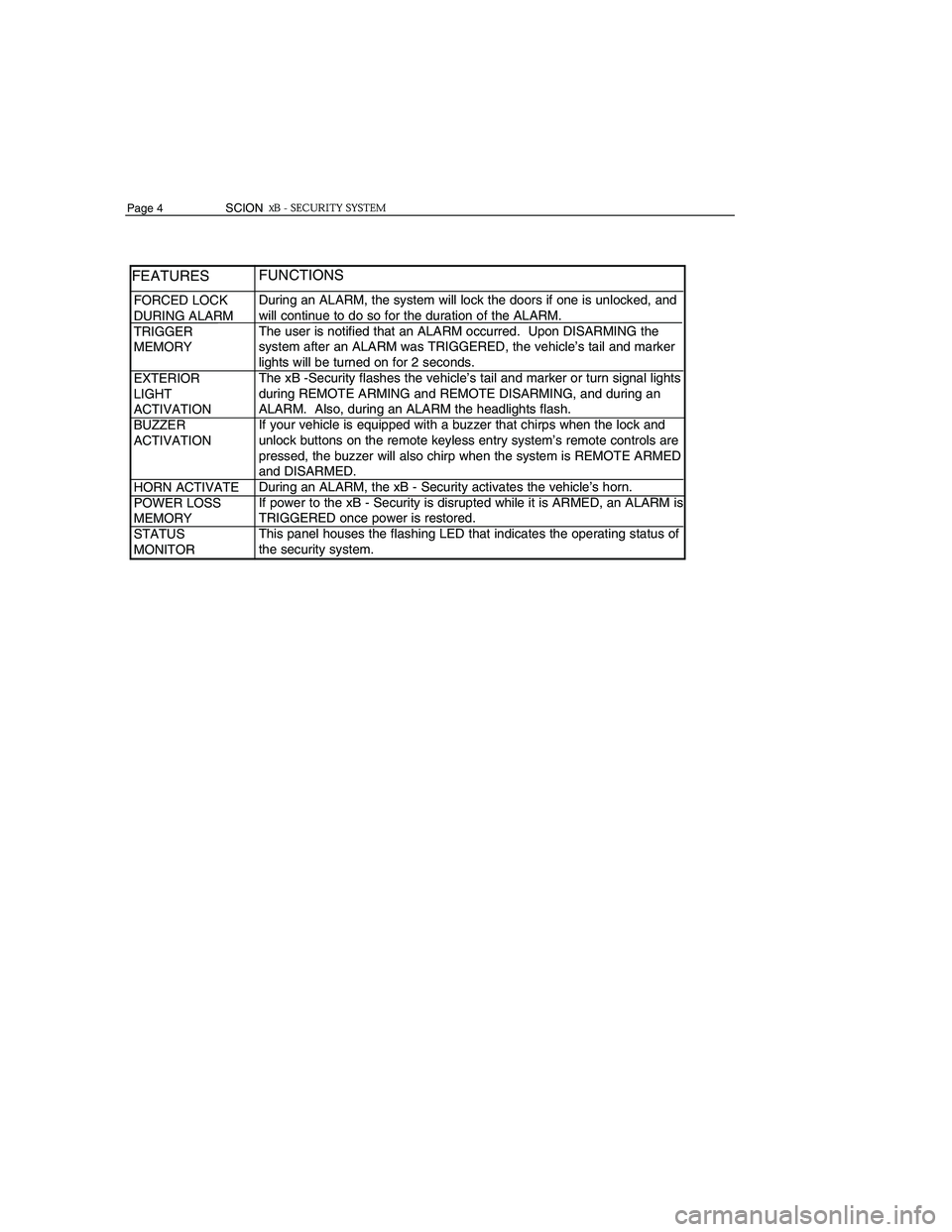

During an ALARM, the system will lock the doors if one is unlocked, and
will continue to do so for the duration of the ALARM.
The user is notified that an ALARM occurred. Upon DISARMING the
system after an ALARM was TRIGGERED, the vehicle’s tail and marker
lights will be turned on for 2 seconds.
The xB -Security flashes the vehicle’s tail and marker or turn signal lights
during REMOTE ARMING and REMOTE DISARMING, and during an
ALARM. Also, during an ALARM the headlights flash.
If your vehicle is equipped with a buzzer that chirps when the lock and
unlock buttons on the remote keyless entry system’s remote controls are
pressed, the buzzer will also chirp when the system is REMOTE ARMED
and DISARMED.
During an ALARM, the xB - Security activates the vehicle’s horn.
If power to the xB - Security is disrupted while it is ARMED, an ALARM is
TRIGGERED once power is restored.
This panel houses the flashing LED that indicates the operating status of
the security system.
FEATURES FUNCTIONSRADAR SENSOR INFORMATION
RADAR SENSOR CHECK PROCEDURE
1. ARMthe system.
Press the LOCK button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door is open.)
2. Wait until the S
TATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. Move inside the vehicle. When movement occurs inside the vehicle, an alarm will be triggered
immediately. If sensor detects 2nd movement within 60 seconds after
the 1st warn away alarm trigger, then a regular ALARM activates for 60
seconds.
Note: If you find that the system does not perform as expected, contact your Toyota dealer for more information.
4. D
ISARMthe system to stop the ALARM.
Press the UNLOCK button on the remote control or use the key to
DISARM the system.
RADAR SENSOR OFF MODE
THE RADAR SENSOR CAN BE DEACTIVATED. PERFORM THE FOLLOWING:
1. Open the driver’s door .The LED turns off. The system is now DISARMED.
2. Lock, then unlock the driver’s door inside lock button 3 times, within 5 seconds.
The LED flash quickly.
3. Close the driver’s door.
4. ARM
THE SYSTEM WITH THE REMOTE CONTROL OR KEY WHILE THELED IS
BLINKING.THE RADAR SENSOR WILL DEACTIVATE DURING ARMING.
NOTE: IF YOU DISARM THE SYSTEM AFTER YOU SET THE RADAR SENSOROFF, YOU HAVE TO REPEAT THE ABOVE PROCEDURE WHEN YOU ARM
THE SYSTEM IF YOU WANT TO DEACTIVATE THE RADAR SENSOR AGAIN.
THE SYSTEM WILL AUTOMATICALLY CANCEL THE RADAR SENSOR OFF
MODE WHEN DISARMED.
SCION
SECURITY

Page 10 SCIONSCIONPage 5
ALARM INFORMATION
ALARM DESCRIPTIONS
Regular ALARM
When an ALARMis triggered in any way other than initial detection by the RADARSENSOR,
the following occur: The horn sounds repeatedly for 60 seconds.
The headlights flash repeatedly for 60 seconds.
The tail and marker or turn signal lights flash repeatedly for 60 seconds.
The starter is disabled (no engine start) until the system is D
ISARMED.
The door lock will be relocked if someone reaches in and unlocks the inside lock button.
After 60 seconds of A
LARM, the system will REARMand continue to protect the vehicle.
STOPPING AN ALARM
Simply DISARMthe system using the remote control or key as described on page 6.
THE HORN SOUNDS
FOR 60 SECONDS
HEAD LIGHTS FLASH
FOR 60 SECONDS
THE STARTER IS DIS-
ABLED UNTIL THE SYSTEM IS DISARMED
MARKER OR TURNSIGNAL LIGHTS FLASH
FOR 60 SECONDS
TAIL OR TURN SIG-
NAL LIGHTS FLASH FOR 60 SECONDS�
�
OPERATION
ARMING THE SECURITY (except PASSIVE ARMING)
The system may be ARMEDin several ways. Do one of the following:
Lock the doors with your key:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Insert the key into the door key switch and turn it toward the
front of the vehicle: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch.
Open the driver’s or front passenger’s door.
Push the central lock switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.* Then: The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
Lock the doors with the remote control:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors.*
Close the trunk or hatch, if necessary.*
Press the lock button on the remote control. Simultaneously: The doors lock.
The vehicle’s tail and marker or turn signal lights flash
once.
The vehicle’s buzzer chirps once. 6
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
* The system will not A
RMwhile any of the doors, trunk or hatch is open.
6 If your vehicle is equipped with a buzzer.
SCION
SECURITY
TURN TOWARD THE
FRONT
OF THE VEHICLE
PRESS AND RELEASE THE LOCK BUTTON
PUSH THE LOCK
SWITCH WHILE THE DOOR IS OPEN
LIGHTSFOR 30 SEC-
ONDS (PRE-
ARMING) THEN
FLASHES (SYSTEM IS
ARMED)
THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH ONCE WHEN THE SYSTEM IS REMOTE ARMED
ALL DOORS LOCK WHEN
THE SYSTEM IS REMOTE ARMED
� � �
�
�
�
�
�

Page 6 SCIONSCIONPage 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
Forcibly opening any door.
Manually unlocking a door
Manually operating an inside lock button will T
RIGGERan ALARM.
Note: Because this action will T
RIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
0 “Hot wiring” the vehicle
The xB - Security can detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
Intrusion Detection
When the radar sensor detects intrusion, it T
RIGGERSan ALARMfirst,
then a regular A
LARM. See the description of how the RADARSENSOR
TRIGGERSALARMSon page 11.
Power restoration
If power to the system is interrupted while it is A
RMED, an
A
LARMwill be TRIGGEREDimmediately when power is restored.
OPERATION
DISARMING THE xB - SECURITY (except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle: The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously: The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice. 6
The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON. The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system is D
ISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle.
6 If your vehicle is equipped with a buzzer.
SCION
SECURITY
TURN TOWARD THE
REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO
DISARM THE SYSTEM
THE DRIVER’S DOOR
UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH TWICE WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCKBUTTON
STOPS
FLASH- ING
WHEN
THE SYS- TEM IS DIS-
ARMED
� �
�
�
�
� �
�

OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the xB -Security is DISARMEDat the same
time. However, if you do not open a door within 30 seconds, the keyless entry system will relock the
doors and the xB -Security will R
EARM30 seconds later.
How the xB -Security automatically R
EARMS:
Page 8 SCIONSCIONPage 7
0
15
30
45
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON ON THE REMOTE CONTROL... WHEN NO DOOR,
TRUNK OR HATCH IS OPENED... FOR MORE THAN
30
SECONDS... THE KEYLESS
ENTRY
SYSTEM AUTOMAT- ICALLY RELOCKS
THE DOORS, THEN THE XB-SECURITY AUTOMATICALLY REARMS. THE LED WILL
LIGHT UP FOR 30 SECONDS
(PRE-ARM), THEN
FLASH WHEN THE
SYSTEM IS ARMED
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the xB -Security is programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors are closed; you do not need to lock the doors. When you come back to
your vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” dur-
ing the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock the doors,
regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the PROGRAM-
MING information on page 13 to activate the P
ASSIVEARMINGmode, as well as to select the ENTRY
DELAYtime.
To P
ASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RMwhile any of the doors are open.)
After the last door is closed:
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
To D
ISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key is turned to “ON”, the T
RIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle.
* If the E
NTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST DOOR IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTSFOR 30
SECONDS
(PRE-ARM- ING)
THEN
STARTS
FLASHING (SYSTEM
IS ARMED)
SCION
SECURITY
TURNS
ON (NO FLASH- ING)
DURING THE
ENTRY DELAY
�
�
�
�
SCION
SECURITY

OPERATION
AUTOMATIC REARMING
When you unlock the doors using the remote control, the xB -Security is DISARMEDat the same
time. However, if you do not open a door within 30 seconds, the keyless entry system will relock the
doors and the xB -Security will R
EARM30 seconds later.
How the xB -Security automatically R
EARMS:
Page 8 SCIONSCIONPage 7
0
15
30
45
THE DOORS ARE
UNLOCKED BY
PRESSING THE
UNLOCK BUTTON ON THE REMOTE CONTROL... WHEN NO DOOR,
TRUNK OR HATCH IS OPENED... FOR MORE THAN
30
SECONDS... THE KEYLESS
ENTRY
SYSTEM AUTOMAT- ICALLY RELOCKS
THE DOORS, THEN THE XB-SECURITY AUTOMATICALLY REARMS. THE LED WILL
LIGHT UP FOR 30 SECONDS
(PRE-ARM), THEN
FLASH WHEN THE
SYSTEM IS ARMED
OPERATION
PASSIVE (AUTOMATIC) ARMING & DISARMING
When the xB -Security is programmed to PASSIVELYARM, the system will ARMafter the ignition key
is removed and all doors are closed; you do not need to lock the doors. When you come back to
your vehicle and open a door, you must insert the key into the ignition switch and turn it to “ON” dur-
ing the E
NTRYDELAY(0, 15 or 30 seconds), or an ALARMwill be TRIGGERED. If you lock the doors,
regular A
RMINGwill override PASSIVEARMING; there will be no ENTRYDELAY. See the PROGRAM-
MING information on page 13 to activate the P
ASSIVEARMINGmode, as well as to select the ENTRY
DELAYtime.
To P
ASSIVELYARMthe system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
A
RMwhile any of the doors are open.)
After the last door is closed:
The S
TATUSMONITOR’SLED turns on for 30 seconds,
then starts flashing. The system is now A
RMED.
To D
ISARMthe PASSIVELYARMEDsystem:
Enter the vehicle through a front door.
The E
NTRYDELAYbegins:
The S
TATUSMONITOR’SLED turns on (no flashing.)
Insert the key into the ignition switch and turn it to
“ON”
before the ENTRYDELAYends.*
The LED turns off. The system is now D
ISARMED.
You may also D
ISARMthe system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key is turned to “ON”, the T
RIGGERMEMORYwas activated; something TRIGGEREDan ALARM
while you were away from the vehicle.
* If the E
NTRYDELAYtime elapses before the ignition switch is turned to “ON”, an ALARMwill be
T
RIGGERED. To DISARMthe system during an ALARM, insert the ignition key and turn it to “ON”, or
press and release the remote control’s unlock button.
THE SYSTEM ARMS 30 SECONDS AFTER THE LAST DOOR IS CLOSED
THE SYSTEM DISARMS WHEN
YOU INSERT THE KEY AND TURN IT TO “ON”
SCION
SECURITY
LIGHTSFOR 30
SECONDS
(PRE-ARM- ING)
THEN
STARTS
FLASHING (SYSTEM
IS ARMED)
SCION
SECURITY
TURNS
ON (NO FLASH- ING)
DURING THE
ENTRY DELAY
�
�
�
�
SCION
SECURITY

Page 6 SCIONSCIONPage 9
ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARMwill be TRIGGEREDwhen any of the following occurs:
Forcibly opening any door.
Manually unlocking a door
Manually operating an inside lock button will T
RIGGERan ALARM.
Note: Because this action will T
RIGGERan ALARM, it is important
that you do not A
RMthe system while someone is in the
vehicle.
0 “Hot wiring” the vehicle
The xB - Security can detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.
Intrusion Detection
When the radar sensor detects intrusion, it T
RIGGERSan ALARMfirst,
then a regular A
LARM. See the description of how the RADARSENSOR
TRIGGERSALARMSon page 11.
Power restoration
If power to the system is interrupted while it is A
RMED, an
A
LARMwill be TRIGGEREDimmediately when power is restored.
OPERATION
DISARMING THE xB - SECURITY (except PASSIVE DISARMING)
The system may be DISARMEDin several ways. Do one of the following:
Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear of
the vehicle: The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously: The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash
twice.
The vehicle’s buzzer chirps twice. 6
The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.*
Press the unlock button again within 3 seconds after unlocking the
driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON. The S
TATUSMONITOR’SLED stops flashing. The system is
now D
ISARMED.
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system is D
ISARMED,* the TRIGGERMEMORYwas activated; something TRIGGEREDan ALARMwhile
you were away from the vehicle.
6 If your vehicle is equipped with a buzzer.
SCION
SECURITY
TURN TOWARD THE
REAR
OF THE VEHICLE
TURN THE KEY TO “ON” TO
DISARM THE SYSTEM
THE DRIVER’S DOOR
UNLOCKS WHEN THE SYSTEM IS REMOTE DISARMED THE TAIL AND MARKER OR TURN SIGNAL
LIGHTS FLASH TWICE WHEN THE SYSTEM IS REMOTE DISARMED
PUSH THE UNLOCKBUTTON
STOPS
FLASH- ING
WHEN
THE SYS- TEM IS DIS-
ARMED
� �
�
�
�
� �
�
