TOYOTA xB 2006 Warranties & Maintenance Guides (in English)

Scheduled Maintenance Guide
2006
www.scion .com
Printed in U.S.A. 4/04
00505-S2005-SMG

You Are Entitled to Three
Complimentary Oil Changes for Your 2005 Scion
These oil changes must be obtained within 3 years or 36,000 miles
(whichever occurs first) of your vehicle’s original in-service date.
To set up an appointment for a complimentary oil change, call your
Scion dealership or participating Toyota dealership. See page 2 to
determine how often you should change your vehicle’s oil.
After performing a complimentary oil change, the dealership will
c omplete one of the boxes below. Remember that changing the oil
is just one of the maintenance services that should be performed
r egularly on your Scion. Make sure that all the other services rec-
ommended in this booklet are performed on your car as well.
Please note that you are responsible for the cost of any other ser-
vices performed at the time of your complimentary oil changes,
including other maintenance services listed in the scheduled
maintenance log.

This publication pertains to the following Scion models:
› 2005 & 2006 xA
› 2005 & 2006 xB
› 2005 & 2006 tC
Complimentary Oil Change #1
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Complimentary Oil Change #2
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE:
Complimentary Oil Change #3
DEALERSERVICEVERIFICATION:
D
AT E:MILEAGE:

ow that you’ve got your Scion on the road, you want to make
sure it keeps going. That’s where scheduled maintenance
c omes in. Taking your car in for regular service will help your
ride run better and last longer. It will keep your repair bills down, too.
This booklet makes it easy to keep your Scion running smoothly. It lists
all the factory-recommended services and tells you when your vehicle
needs them. Be sure to look this booklet over carefully and keep it in
y our glove box. Do what it says and your Scion should be happy for
many miles to come.
Complimentary Oil Changes
To help you get started with regular maintenance, Scion provides your
v ehicle’s first three oil changes on a complimentary basis. To find out
how to obtain your complimentary oil changes, see page 3.
Remember that changing the oil is just one of the maintenance ser-
vices that should be performed regularly on your Scion. Make sure that
all the other services recommended in this booklet are performed on
y our car as well.
Put It In Writing
To help you keep track of your Scion’s service history, each mainte-
nance chart in this booklet includes:
› Boxes to check for each service item performed
› Space for the maintenance provider to include a service
verification stamp
› Space to write the date and mileage that service is performed
Documenting your service history may make your car worth more when
y ou’re ready to sell. There’s a reason smart people write things down.
In addition to scheduled maintenance, your vehicle requires
general maintenance such as fluid checks and visual inspections.
These procedures are explained in the “Vehicle Maintenance and
Care” section of the
Owner’s Manual. To keep your Scion out of
trouble, be sure to perform these procedures regularly.
Scion is a marque of Toyota Motor Sales, U.S.A., Inc.
i

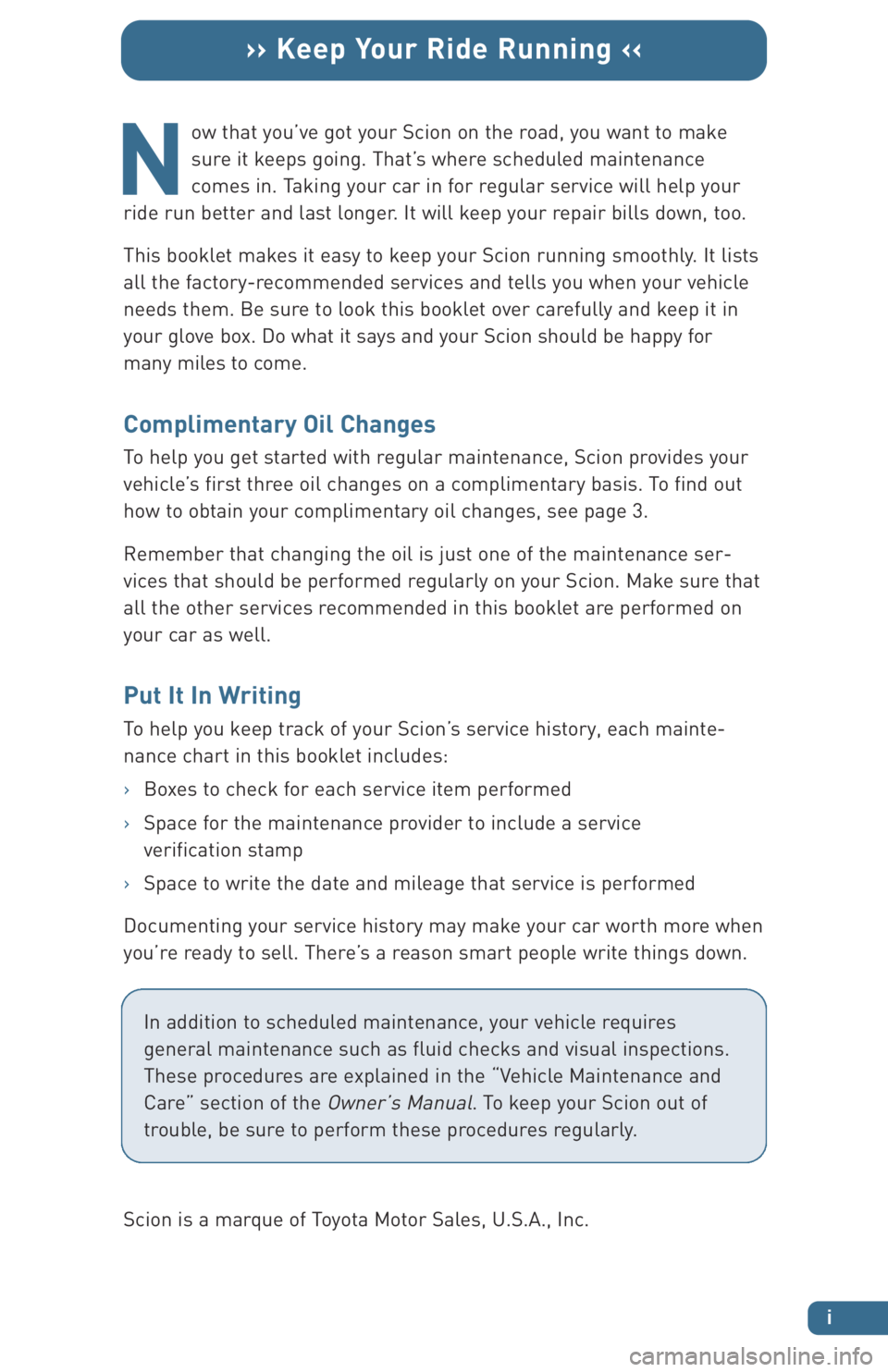

›› Keep Your Ride Running ‹‹
N

ii

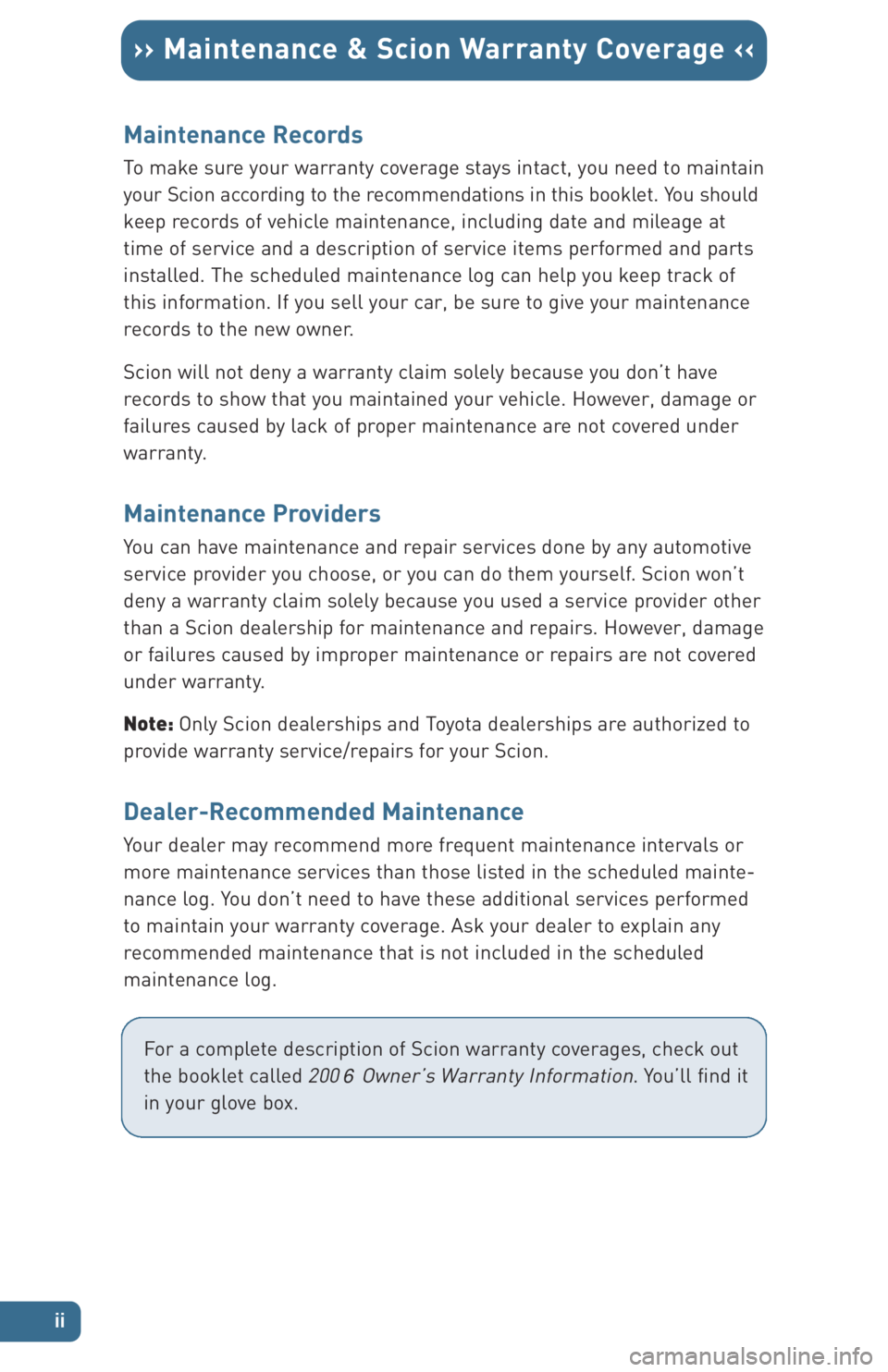

›› Maintenance & Scion Warranty Coverage ‹‹
Maintenance Records
To make sure your warranty coverage stays intact, you need to maintain
y our Scion according to the recommendations in this booklet. You should
k eep records of vehicle maintenance, including date and mileage at
time of service and a description of service items performed and parts
installed. The scheduled maintenance log can help you keep track of
this information. If you sell your car, be sure to give your maintenance
re co rds to the new owner.
Scion will not deny a warranty claim solely because you don’t have
re co rds to show that you maintained your vehicle. However, damage or
f ailures caused by lack of proper maintenance are not covered under
warranty.
Maintenance Providers
Y ou can have maintenance and repair services done by any automotive
service provider you choose, or you can do them yourself. Scion won’t
deny a warranty claim solely because you used a service provider other
than a Scion dealership for maintenance and repairs. However, damage
or failures caused by improper maintenance or repairs are not covered
under warranty.
Note: Only Scion dealerships and Toyota dealerships are authorized to
provide warranty service/repairs for your Scion.
Dealer-Recommended Maintenance
Y our dealer may recommend more frequent maintenance intervals or
more maintenance services than those listed in the scheduled mainte-
nance log. You don’t need to have these additional services performed
to maintain your warranty coverage. Ask your dealer to explain any
re commended maintenance that is not included in the scheduled
maintenance log.
For a complete description of Scion warranty coverages, check out
the booklet called
200 6 Owner’s Warranty Information. You’ll find it
in your glove box.

1
›› Table of Contents ‹‹
Using the Maintenance Log Charts2
Complimentary Oil Changes 3
Scheduled Maintenance Log 4
Explanation of Maintenance Items 20
V ehicle Identification 23

2
›› Using the Maintenance Log Charts
Miles or Months?
Scion recommends obtaining scheduled maintenance for your vehicle
every 5,000 miles or six months, whichever comes first.
F or example:
› If you drive 5,000 miles in less than six months, you should obtain
maintenance at 5,000 miles— don’t wait until six months.
› If at six months you have driven less than 5,000 miles, you should
obtain maintenance at six months— don’t wait until 5,000 miles.
Be sure to keep an eye on your mileage so that you obtain maintenance
when recommended. If you are a low-mileage driver, mark your calen-
dar to remind yourself to obtain maintenance every six months.
Special Operating Conditions
In addition to standard maintenance items, the maintenance log indi-
ca tes services that should be performed on vehicles that are driven
under especially demanding conditions. These “special operating con-
ditions” and their required maintenance items are clearly indicated in
each chart.
Note: You should perform these additional maintenance services if you
drive
primarilyunder any of the special operating conditions indicated.
If you drive only occasionally under these conditions, it is not necessary
to perform the additional services.

To help you get started with regular maintenance, Scion provides your
v ehicle’s first three oil changes on a complimentary basis. While they
don’t have to be your initial three oil changes, the oil changes must be
obtained within 3 years or 36,000 miles (whichever occurs first) of your
v ehicle’s original in-service date. If you bought your Scion used and the
previous owner did not use all three oil changes, you are entitled to the
r emaining complimentary oil changes if your car is still within 3 years
or 36,000 miles of its original in-service date.
To obtain a complimentary oil change, call a Scion dealership or partici-
pating Toyota dealership to make an appointment. The dealership will
v erify that the service was performed by completing one of the boxes
on the inside back cover of this booklet.
Complimentary oil changes include change of engine oil and oil filter
only. You are responsible for the cost of any other services performed
at the time of your complimentary oil changes, including other mainte-
nance services listed in the scheduled maintenance log.
3
Complimentary Oil Changes ‹‹

4

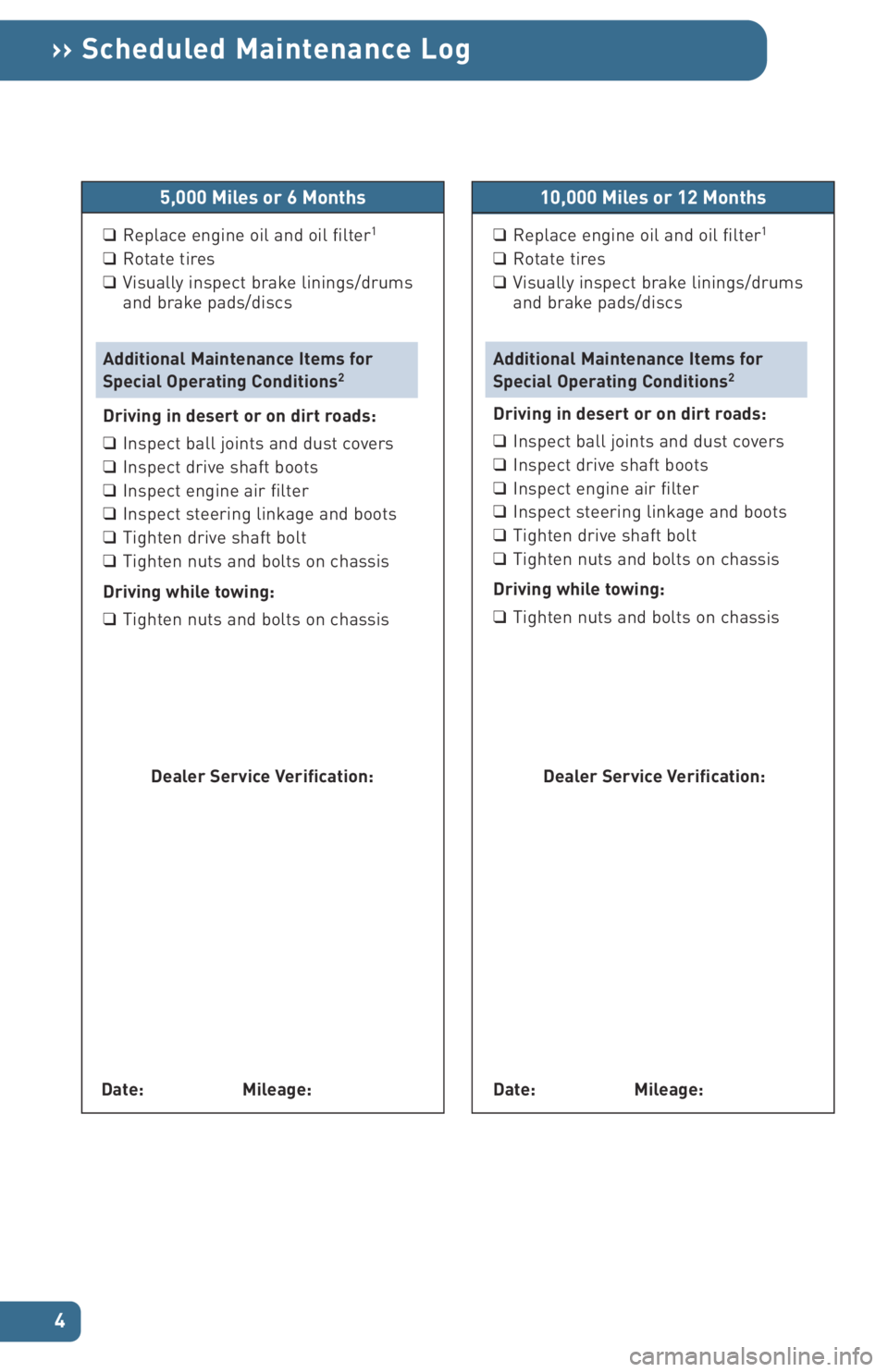

›› Scheduled Maintenance Log
5,000 Miles or 6 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
10,000 Miles or 12 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:

5

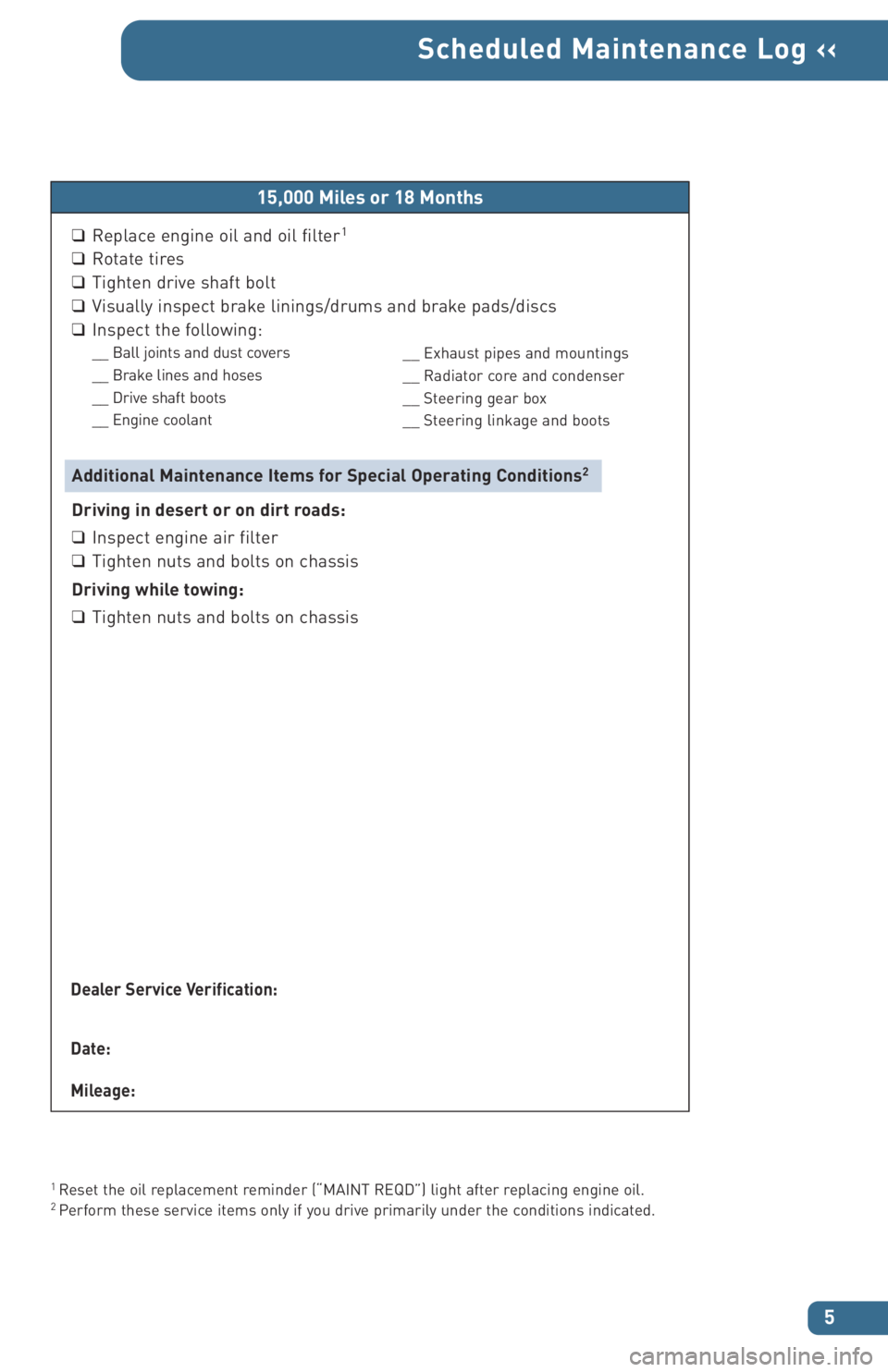

Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.
15,000 Miles or 18 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Tighten drive shaft bolt
❑ Visually inspect brake linings/drums and brake pads/discs
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
__ Exhaust pipes and mountings
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
Dealer Service Verification:
Date:
Mileage:

6
›› Scheduled Maintenance Log
20,000 Miles or 24 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
25,000 Miles or 30 Months
❑Replace engine oil and oil filter1
❑Rotate tires
❑ Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving in desert or on dirt roads:
❑ Inspect ball joints and dust covers
❑ Inspect drive shaft boots
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten drive shaft bolt
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:
