To better understand the features and functions of this security system, please read this Owner’s
Guide completely prior to use.
TABLE OF CONTENTS
DESCRIPTION PAGE
INTRODUCTION
2
BRIEF DESCRIPTION– SECURITY FEATURES3, 4
OPERATION
ARMING THE SECURITY (except PASSIVE ARMING) 5
DISARMING THE SECURITY (except PASSIVE DISARMING) 6
PASSIVE (AUTOMATIC) ARMING & DISARMING 7
AUTOMATIC REARMING 8
ARMING SUSPENSION 8
ALARM INFORMATION
ALARM TRIGGERS9
ALARM DESCRIPTIONS 10
STOPPING AN ALARM 10
RADAR SENSOR INFORMATION
RADAR SENSOR CHECK PROCEDURE11
RADAR SENSOR OFF MODE 11
PROGRAMMING
PASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY12
WARNING and CAUTION INFORMATION13
SCIONPage 1
Page 4 of 15

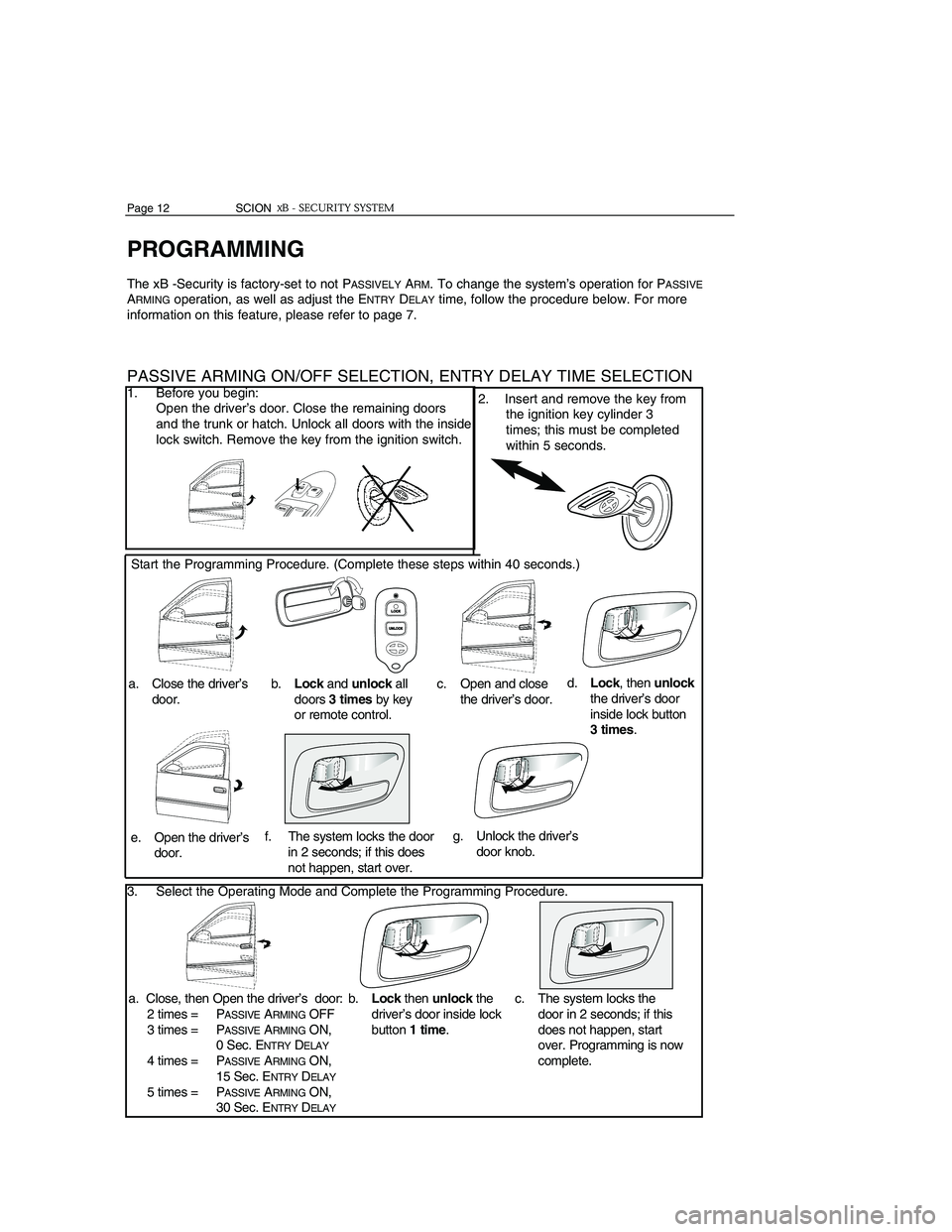

PROGRAMMING
The xB -Security is factory-set to not PASSIVELYARM. To change the system’s operation for PASSIVE
ARMINGoperation, as well as adjust the ENTRYDELAYtime, follow the procedure below. For more
information on this feature, please refer to page 7.
PASSIVE ARMING ON/OFF SELECTION, ENTRY DELAY TIME SELECTION
1. Before you begin: Open the driver’s door. Close the remaining doors
and the trunk or hatch. Unlock all doors with the inside
lock switch. Remove the key from the ignition switch.
Start the Programming Procedure. (Complete these steps within 40 seconds.)
3. Select the Operating Mode and Complete the Programming Procedure.
Page 12 SCION SCIONPage 3
a. Close the driver’s door. b.
Lock and unlock all
doors 3 times by key
or remote control.
b.Lock then unlock the
driver’s door inside lock
button 1 time.
a. Close, then Open the driver’s door:
2 times = P
ASSIVEARMINGOFF
3 times = P
ASSIVEARMINGON,
0 Sec. E
NTRYDELAY
4 times = PASSIVEARMINGON,
15 Sec. E
NTRYDELAY
5 times = PASSIVEARMINGON,
30 Sec. E
NTRYDELAY
c. Open and close the driver’s door.
c.The system locks the
door in 2 seconds; if this
does not happen, start
over. Programming is now
complete.
e. Open the driver’s
door. d.
Lock , then unlock
the driver’s door
inside lock button
3 times .
BRIEF DESCRIPTION– SECURITY FEATURES
2. Insert and remove the key from
the ignition key cylinder 3
times; this must be completed
within 5 seconds.
f. The system locks the door in 2 seconds; if this does
not happen, start over. g. Unlock the driver’s
door knob.
The xB -Security will arm 30 seconds after the lock button on the remote
keyless entry system’s remote control is pressed, and DISARM when the
unlock button is pressed. If your vehicle is equipped with a buzzer that
chirps when the lock and unlock buttons on the remote controls are
pressed, the buzzer will also chirp when the system is REMOTE ARMED
and DISARMED.
The xB - Security will automatically REARM at the same time the vehi-
cle’s remote keyless entry system relocks the vehicle’s doors, if no door
is opened within 30 seconds after REMOTE DISARMING.
The xB -Security will ARM 30 seconds after you lock the vehicle’s doors
with the key, and will DISARM when you unlock a door with the key.
The xB -Security may be programmed to automatically ARM 30 seconds
after the ignition key is removed, the vehicle exited and the last door
closed, without the necessity of locking doors.
The xB -Security may be DISARMED with the vehicle’s ignition key after
it was PASSIVELY ARMED.
When the xB - Security has been PASSIVELY ARMED, an ENTRY
DELAY (user-selectable at 0,15, or 30 seconds) will start when a door is
opened before an ALARM is TRIGGERED.
When you lock the vehicle with the central lock switch (while a door is
open), the xB -Security will ARM 30 seconds after you close all the
doors.
The xB - Security may be DISARMED by inserting the key into the igni-
tion switch and turning it to “ON”.
Forcibly unlocking or opening a door while the xB -Security is ARMED
will TRIGGER an ALARM immediately. (If the system was PASSIVELY
ARMED, the ENTRY DELAY must pass after opening a door before the
ALARM is TRIGGERED.)
The xB-Security utilizes RADAR SENSOR.
The RADAR SENSOR works synchronize with vehicle theft deterrent
system.If somebody intrudes into the vehicle while the vehicle theft deter-
rent system is set, the alarm blows the vehicle's horn intermittently and
flashes the emergency flashers.
Note
To prevent false alarms from triggered in case of following conditions:
• A child or pet is left in the vehicle.
• Any window or moon roof is left opened.
• When parking in the noisy area or in the roof parking.
• The vehicle body or glass is subjected to strong impact from the out-
side
(such as highly pressurized car wash).
• When transporting by car carrier.
• A cellphone in cup holder or center console covered storage is left in
the vehicle.
• When a bag on the seat in the vehicle,the detection area may change.
While ARMED, the xB -Security monitors the ignition switch. If an attempt
is made to start the vehicle without a key, an ALARM is TRIGGERED.
When an ALARM is TRIGGERED, the system disables the vehicle’s
starter and prevents engine start until the system is reset (DISARMED).
REMOTE
ARMING/
DISARMING
AUTOMATIC
REARMING
KEY
ARMING/
DISARMING
PASSIVE
(AUTOMATIC)
ARMING
PASSIVE
DISARMING
ADJUSTABLE
ENTRY DELAY
MANUAL ARMING
IGNITION KEY
DISARMING
POINT-OF-ENTRY
PROTECTION
RADAR SENSOR
IGNITION SWITCH
MONITORING
STARTER
DISABLE
FEATURES
FUNCTIONS
Page 5 of 15
FORCED LOCK
DURING ALARM
TRIGGER
MEMORY
EXTERIOR
LIGHT
ACTIVATION
BUZZER
ACTIVATION
HORN ACTIVATE
POWER LOSS
MEMORY
STATUS
MONITOR
Page 4 SCIONSCIONPage 11
During an ALARM, the system will lock the doors if one is unlocked, and
will continue to do so for the duration of the ALARM.
The user is notified that an ALARM occurred. Upon DISARMING the
system after an ALARM was TRIGGERED, the vehicle’s tail and marker
lights will be turned on for 2 seconds.
The xB -Security flashes the vehicle’s tail and marker or turn signal lights
during REMOTE ARMING and REMOTE DISARMING, and during an
ALARM. Also, during an ALARM the headlights flash.
If your vehicle is equipped with a buzzer that chirps when the lock and
unlock buttons on the remote keyless entry system’s remote controls are
pressed, the buzzer will also chirp when the system is REMOTE ARMED
and DISARMED.
During an ALARM, the xB - Security activates the vehicle’s horn.
If power to the xB - Security is disrupted while it is ARMED, an ALARM is
TRIGGERED once power is restored.
This panel houses the flashing LED that indicates the operating status of
the security system.
FEATURES FUNCTIONSRADAR SENSOR INFORMATION

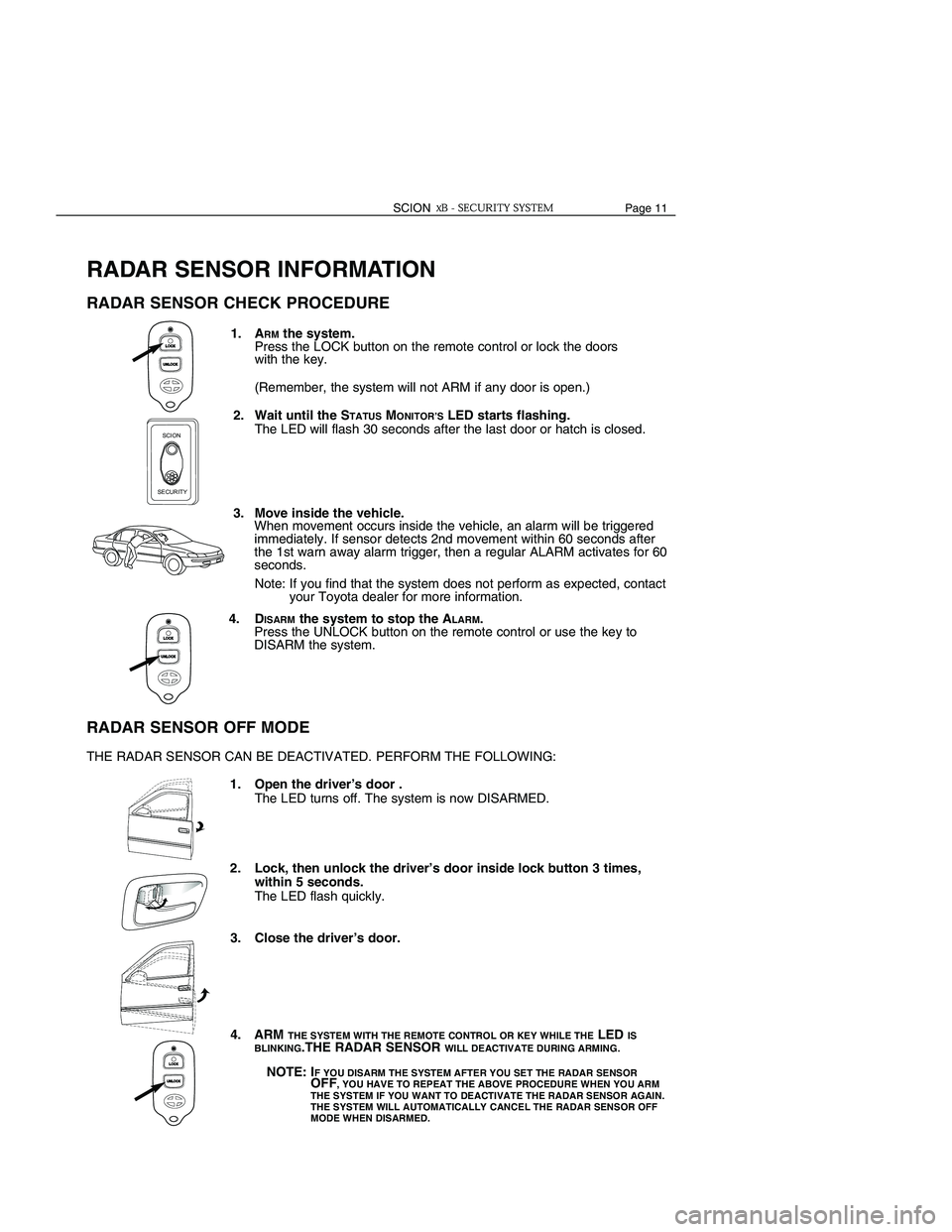

RADAR SENSOR CHECK PROCEDURE
1. ARMthe system.
Press the LOCK button on the remote control or lock the doors
with the key.
(Remember, the system will not ARM if any door is open.)
2. Wait until the S
TATUSMONITOR’SLED starts flashing.
The LED will flash 30 seconds after the last door or hatch is closed.
3. Move inside the vehicle. When movement occurs inside the vehicle, an alarm will be triggered
immediately. If sensor detects 2nd movement within 60 seconds after
the 1st warn away alarm trigger, then a regular ALARM activates for 60
seconds.
Note: If you find that the system does not perform as expected, contact your Toyota dealer for more information.
4. D
ISARMthe system to stop the ALARM.
Press the UNLOCK button on the remote control or use the key to
DISARM the system.
RADAR SENSOR OFF MODE
THE RADAR SENSOR CAN BE DEACTIVATED. PERFORM THE FOLLOWING:
1. Open the driver’s door .The LED turns off. The system is now DISARMED.
2. Lock, then unlock the driver’s door inside lock button 3 times, within 5 seconds.
The LED flash quickly.
3. Close the driver’s door.
4. ARM
THE SYSTEM WITH THE REMOTE CONTROL OR KEY WHILE THELED IS
BLINKING.THE RADAR SENSOR WILL DEACTIVATE DURING ARMING.
NOTE: IF YOU DISARM THE SYSTEM AFTER YOU SET THE RADAR SENSOROFF, YOU HAVE TO REPEAT THE ABOVE PROCEDURE WHEN YOU ARM
THE SYSTEM IF YOU WANT TO DEACTIVATE THE RADAR SENSOR AGAIN.
THE SYSTEM WILL AUTOMATICALLY CANCEL THE RADAR SENSOR OFF
MODE WHEN DISARMED.
SCION
SECURITY
Page 6 of 15
Page 10 SCIONSCIONPage 5
ALARM INFORMATION

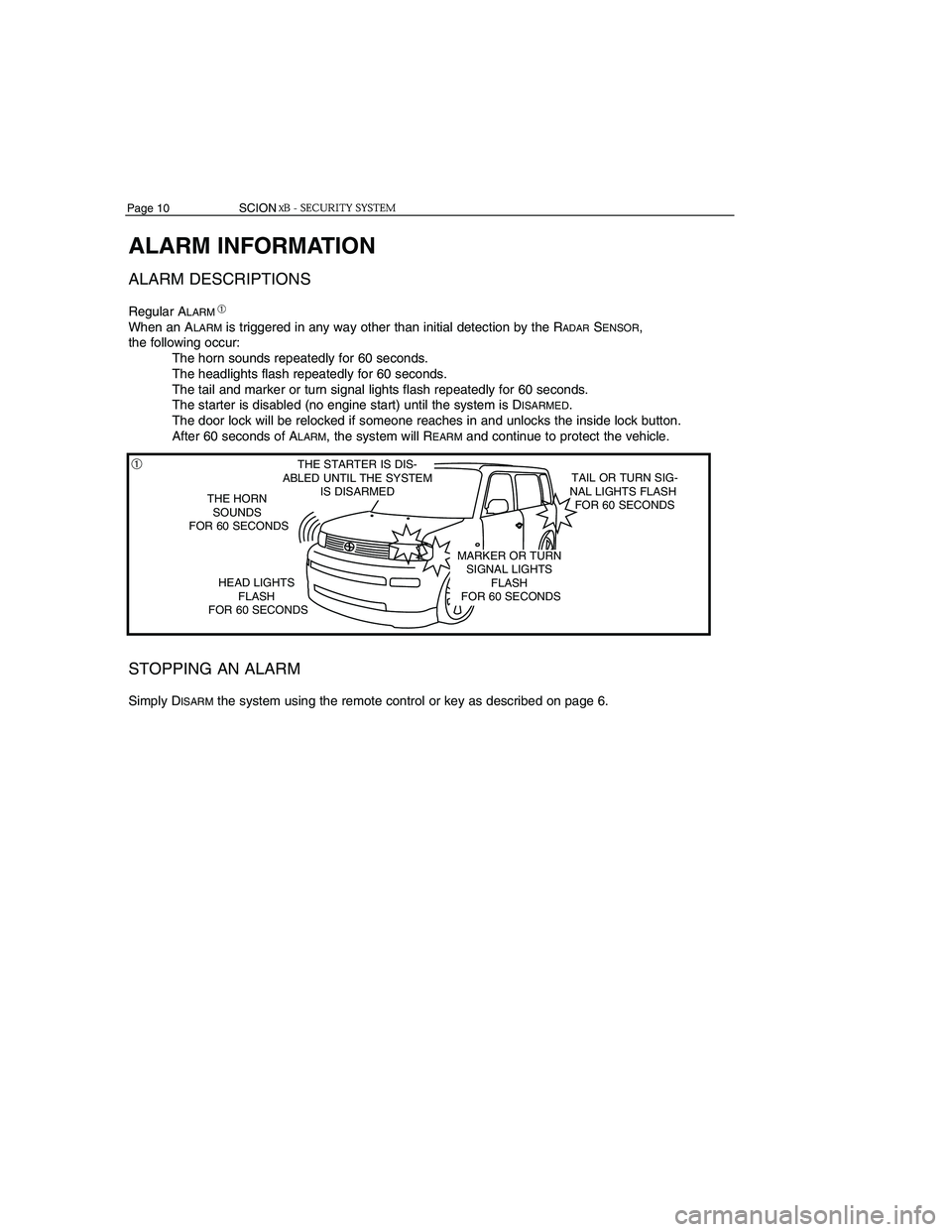

ALARM DESCRIPTIONS
