Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal−to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.
—Reinstalling wheel nuts
SY41017
7. Reinstall all the wheel nuts fin- ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire and see if you can tighten them
more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loosen and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.

172
—Lowering your vehicle
SY41018
8. Lower the vehicle completelyand tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench to
tighten the nuts. Do not use other
tools or any additional leverage other
than your hands, such as a hammer,
pipe or your foot. Make sure the
wrench is securely engaged over the
nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION
 When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
9. Restow all the tools and jack se-
curely. Then secure the flat tire
with the flat tire net in the lug-
gage compartment as follows.
CAUTION
Before driving, make sure all the
tools and jack are securely in
place in their storage location to
reduce the possibility of person-
al injury during a collision or
sudden braking.
—Stowing flat tire

173
40B020
Remove the deck boxes and stow
them away somewhere in the vehicle.
40B021
Put the flat tire on the center of the
luggage floor. Then hold the deck
boards (with the front side facing to-
ward the back of the vehicle) between
the rear seatback and flat tire.
40B022
Wrap the flat tire with the flat tire net
and hook the strap on the rear center
head restraint.

174

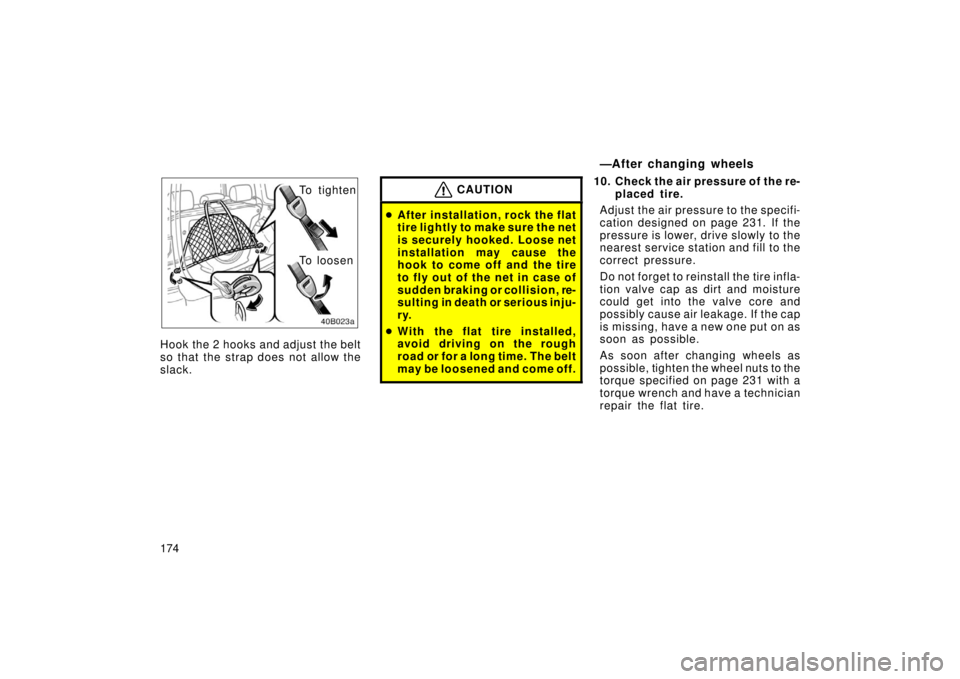

40B023a
To tighten
To loosen
Hook the 2 hooks and adjust the belt
so that the strap does not allow the
slack.CAUTION
 After installation, rock the flat
tire lightly to make sure the net
is securely hooked. Loose net
installation may cause the
hook to come off and the tire
to fly out of the net in case of
sudden braking or collision, re-
sulting in death or serious inju-
ry.
 With the flat tire installed,
avoid driving on the rough
r o a d or f o r a lo n g t i m e . T h e be l t
may be loosened and come off.
—After changing wheels
10. Check the air pressure of the re-
placed tire.
Adjust the air pressu re to the specifi-
cation designed on page 231. If the
pressure is lower, dr ive slowly to the
nearest service station and fill to the
correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 231 with a
torque wrench and have a technician
repair the flat tire.

175
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Turn off the traction control system to
become unstuck to allow the tires to
spin enough to remove the vehicle from
the obstruction. (For details, see “Trac-
tion control system” on page 99.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.

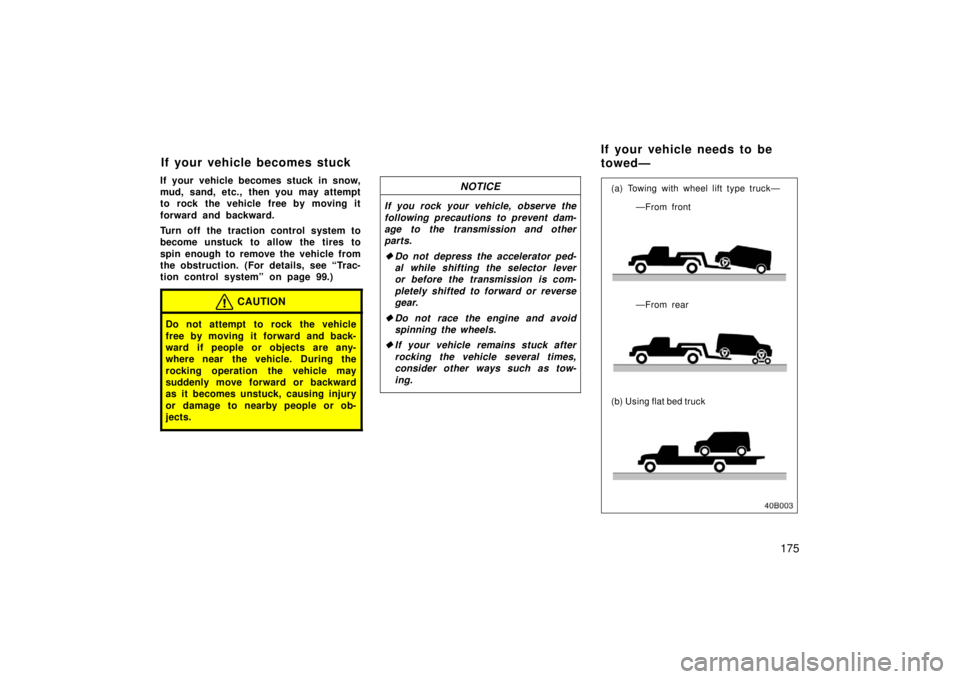

(a) Towing with wheel lift type truck—
—From rear
(b) Using flat bed truck —From front
If your vehicle becomes stuck If your vehicle needs to be
towed—

176
If towing is necessary, we recommend
you to have it done by your Scion deal-
er or a commercial tow truck service.
In consultation with them, have your
vehicle towed using either (a) or (b).
Only when you cannot receive a towing
service from a Scion dealer or commer-
cial tow truck service, tow your vehicle
carefully in accordance with the instruc-
tions given in “—Emergency towing” on
page 177.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following few
precautions are observed. If necessary,
show this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.(a) Towing with wheel lift type truck
From front—
Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the ignition
key in the “ACC” position and put the
transmission in neutral.
NOTICE
Do not tow with the key removed or
in the “LOCK” position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck

177

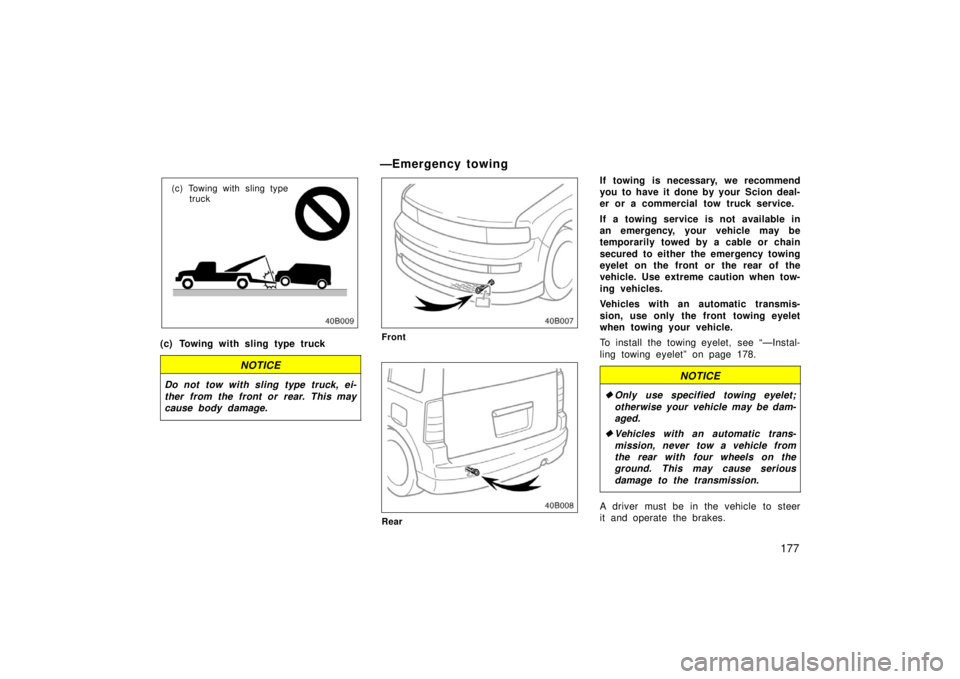

(c) Towing with sling typetruck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
Front
Rear
If towing is necessary, we recommend
you to have it done by your Scion deal-
er or a commercial tow truck service.
If a towing service is not available in
an emergency, your vehicle may be
temporarily towed by a cable or chain
secured to either the emergency towing
eyelet on the front or the rear of the
vehicle. Use extreme caution when tow-
ing vehicles.
Vehicles with an automatic transmis-
sion, use only the front towing eyelet
when towing your vehicle.
To install the towing eyelet, see “—Instal-
ling towing eyelet” on page 178.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
 Vehicles with an automatic trans-
mission, never tow a vehicle from
the rear with four wheels on the
ground. This may cause serious
damage to the transmission.
A driver must be in the vehicle to steer
it and operate the brakes.

178
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelets and towing cable or
chain. The eyelets and towing cable
or chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
40B017
1. Remove the towing eyelet as shown in the illustration.
—Installing towing eyelet

179
40B013
RearFront

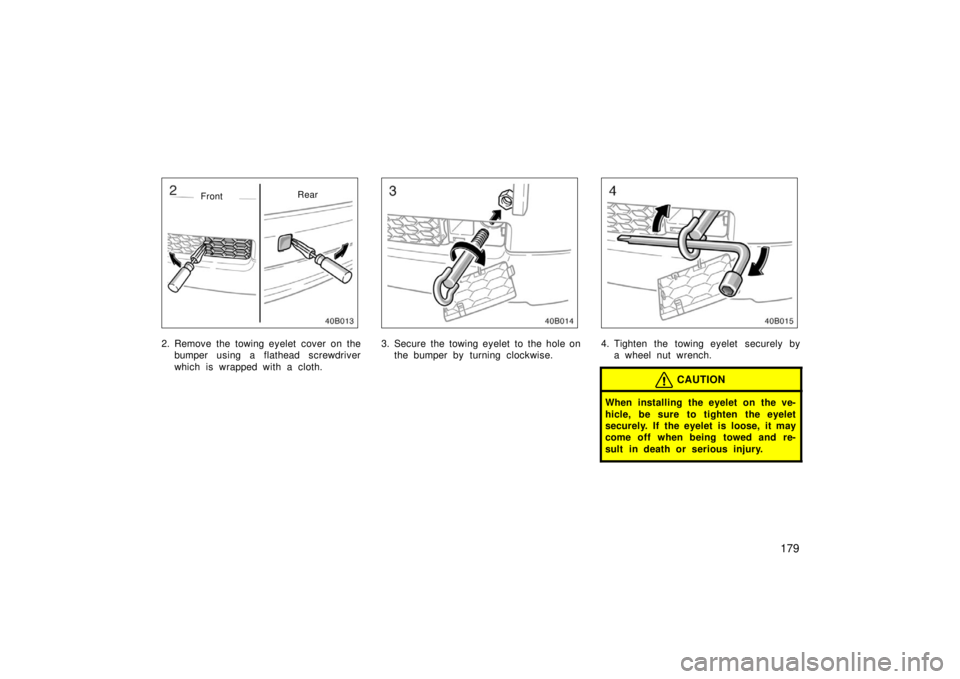

2. Remove the towing eyelet cover on thebumper using a flathead screwdriver
which is wrapped with a cloth.
40B014
3. Secure the towing eyelet to the hole onthe bumper by turning clockwise.
40B015
4. Tighten the towing eyelet securely bya wheel nut wrench.
CAUTION
When installing the eyelet on the ve-
hicle, be sure to tighten the eyelet
securely. If the eyelet is loose, it may
come off when being towed and re-
sult in death or serious injury.

180
If you cannot move the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flathead screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can move out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Scion dealer as soon as possible.
If you lose your keys
You can purchase a new key at your
Scion dealer if you can give them the
key number.
See the suggestion given in “Keys” on
page 8.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Scion
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
If you cannot shift automatic
transmission selector lever
