Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Applies to vehicles equipped with manual transmission.
30,000 Miles or 36 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs (xA and xB)
3
❑Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
5
❑Replace manual transmission oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor vent
system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

11
Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.
60,000 Miles or 72 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace spark plugs (xA and xB)3
❑Replace engine air filter
❑ Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts5
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
❑ Replace transmission fluid or oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Front differential oil
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
v ent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

15
Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.5 Applies to vehicles equipped with manual transmission.
90,000 Miles or 108 Months
❑ Replace engine oil and oil filter1
❑ Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs (xA and xB)
3
❑ Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑ Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
5
❑ Replace manual transmission oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel
tank band and fuel tank vapor vent
system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

19
Scheduled Maintenance Log ‹‹
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil.2 Perform these service items only if you drive primarily under the conditions indicated.3 Required under the terms of the Emission Control Warranty.4 Inspect thickness measurement and disc runout.
120,000 Miles or 144 Months
❑ Replace engine oil and oil filter1
❑Rotate tires
❑ Replace engine air filter
❑ Replace spark plugs
3
❑Tighten drive shaft bolt
❑ Inspect the following:
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and
brake pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions2
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑ Replace front differential oil
❑ Replace transmission fluid and oil
❑ Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Front differential oil
__ Fuel lines and connections, fuel
tank band and fuel tank vapor
v ent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil

22

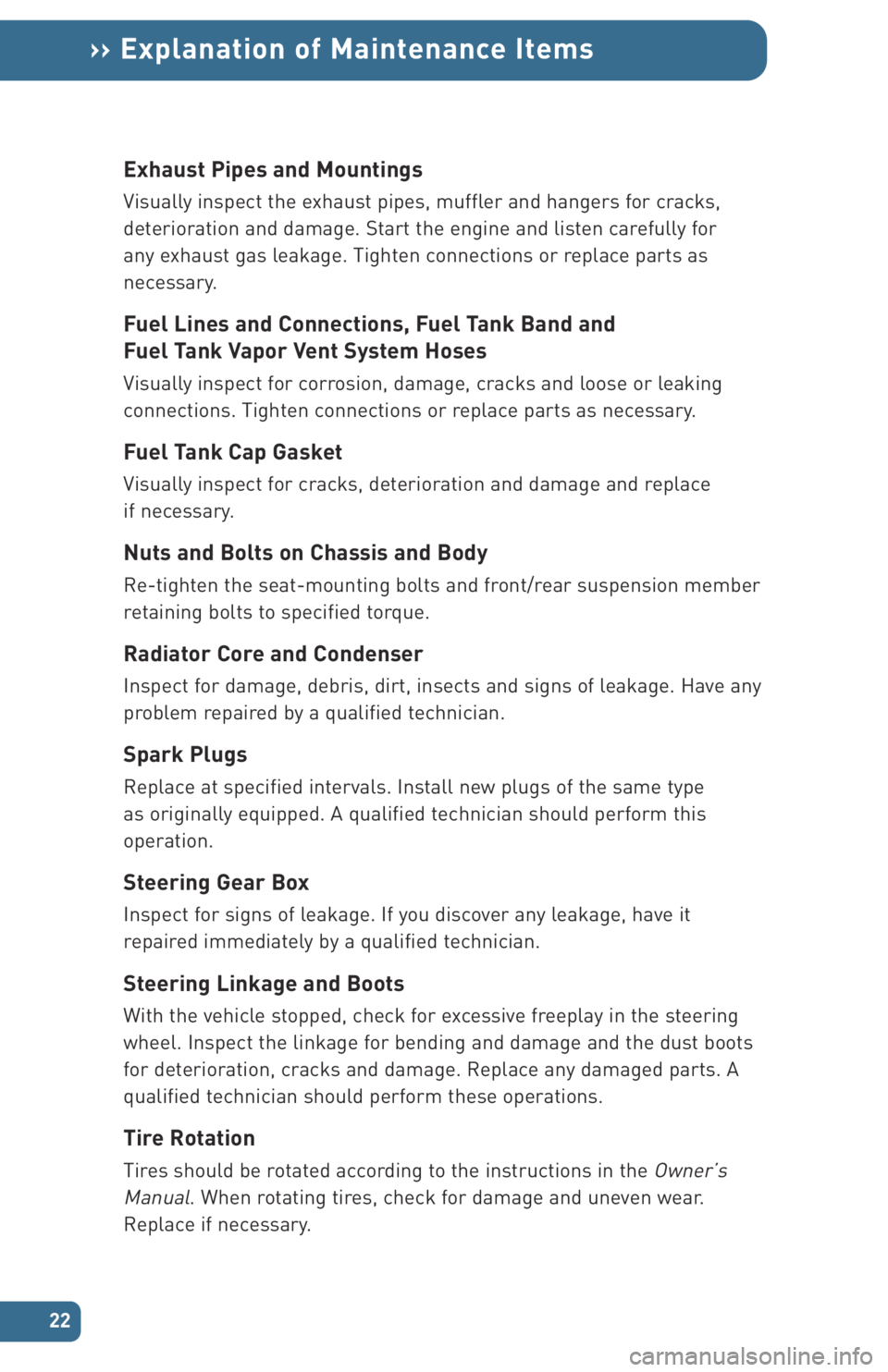

›› Explanation of Maintenance Items
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks,
deterioration and damage. Start the engine and listen carefully for
any exhaust gas leakage. Tighten connections or replace parts as
necessary.
Fuel Lines and Connections, Fuel Tank Band and
F uel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cracks and loose or leaking
connections. Tighten connections or replace parts as necessary.
F uel Tank Cap Gasket
Visually inspect for cracks, deterioration and damage and replace
if necessary.
Nuts and Bolts on Chassis and Body
Re-tighten the seat-mounting bolts and front/rear suspension member
re taining bolts to specified torque.
Radiator Core and Condenser
Inspect for damage, debris, dirt, insects and signs of leakage. Have any
problem repaired by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new plugs of the same type
as originally equipped. A qualified technician should perform this
operation.
Steering Gear Box
Inspect for signs of leakage. If you discover any leakage, have it
r epaired immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering
wheel. Inspect the linkage for bending and damage and the dust boots
for deterioration, cracks and damage. Replace any damaged parts. A
qualified technician should perform these operations.
Tire Rotation
Tires should be rotated according to the instructions in the Owner’s
Manual
. When rotating tires, check for damage and uneven wear.
Replace if necessary.
