(c) Front Passenger ’s Seat BeltReminder Light and Buzzer
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to the
“ON” or “START” position, the reminder
light comes on if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer. (d) Engine Oil Replacement Reminder
Light
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 16 seconds
after the ignition key is turned to the “ON”
position. If you continue driving without
engine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on when the ignition key
is turned to the “ON” position. The light
will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible. The system must be reset after the en-
gine oil replacement. Reset the system by
following the procedure below:
1. Turn the ignition key to the “OFF” posi- tion with the trip meter A reading
shown. (For details, see “Odometer and
two trip meters” on page 97.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
keep flashing.

104
(e) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is running, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible. If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Scion dealer as soon as
possible to service the vehicle.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Scion deal-
er to check your vehicle’s emission control
system and OBD (On −Board Diagnostics)
system before taking your vehicle for the
inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 232.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes very low. Fill up the
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.

105
(h) Low Engine Oil Pressure WarningLight
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Scion dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti −
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if the
systems malfunction, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warning light system.
Contact your Scion dealer as soon as
possible to service the vehicle.When the ignition key is turned to the
“ON” position, the light does not come
on or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Scion dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(j) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.

106
(k) SRS Warning Light
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags, SRS side
airbags, curtain shield airbags and seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sensor
assemblies, curtain shield airbag sensor
assemblies, driver ’s seat position sensor,
driver’s seat belt buckle switch, front pas-
senger occupant classification system,
“AIR BAG ON” indicator light, “AIR BAG
OFF” indicator light, front passenger ’s seat
position sensor, front passenger ’s seat
belt buckle switch, seat belt pretensioner
assemblies, inflators, interconnecting wir-
ing and power sources.If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Scion dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds or flashes.
The light comes on or starts flashing
while you are driving.
The SRS warning light and “AIR BAG
OFF” indicator light will come on if there
is a malfunction in the front passenger
occupant classification system.
(l) Electric Power Steering System Warning Light
The light comes on when the ignition key
is turned to the “ON” positron. If the elec-
tric power steering system warning light
works properly, the light turns off after a
few seconds. If the system has malfunc-
tions, the light comes on again. If the following conditions occur, this
indicates a malfunction somewhere in
the components monitored by the warn-
ing light system. Contact your Scion
dealer as soon as possible to service
the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
The light stays on while you are driv-
ing.
CAUTION
If the electric power steering system
warning light comes on, take your ve-
hicle to Scion dealer as soon as pos-
sible. In this case, more effort is re-
quired for the steering wheel to turn
than usual. Drive your vehicle while
firmly gripping the steering wheel.

107
(m) “VSC OFF” Warning Light
The light warns that there is a problem
somewhere in the vehicle stability control
system or traction control system.
The light will come on when the ignition
key is turned to the “ON” position, and
will go off after a few seconds.
If the light comes on while you are driv-
ing, the vehicle stability control system
and/or traction control system do not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving.
In the following cases, contact your Scion
dealer:
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on.
The light comes on while you are driv-
ing.(n) Tire Pressure Warning Light
This light comes on when the ignition key
is turned to the “ON” position. If the tire
pressure warning system works properly
and tire inflation pressure is appropriate,
the light goes off after a few seconds.
This light comes on or flashes in the fol-
lowing cases when the ignition key is
turned to the “ON” position.
When the low tire inflation pressure
is detected while driving...
If any tire has low inflation pressure,
the light comes on.
The light goes off after the tire inflation
pressure is adjusted to a specified lev-
el.
When initializing the system...
When ready to be initialized, the light
blinks three times.
When the system malfunctions...
If the system malfunctions, the light
comes on after blinking for 1 minute.
Although it is no problem to continue
driving, have your vehicle checked by
your Scion dealer as soon as possible.(o) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position.
(p) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.

108
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light)1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to the “ON” posi- tion, but do not start the engine.
All the service reminder indicators except
the open door warning light should come
on. The “ABS”, “VSC OFF”, tire pressure
warning light, electric power steering sys-
tem warning light, “MAINT REQD” remind-
er light and slip indicator light go off after
a few seconds. The SRS warning light
goes off after about 6 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Scion
dealer as soon as possible.

109
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Automatic transmission 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Manual transmission 11 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Traction control system 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Vehicle stability control system 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire pressure warning system 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Cruise control 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 7

11 0
17XB001a

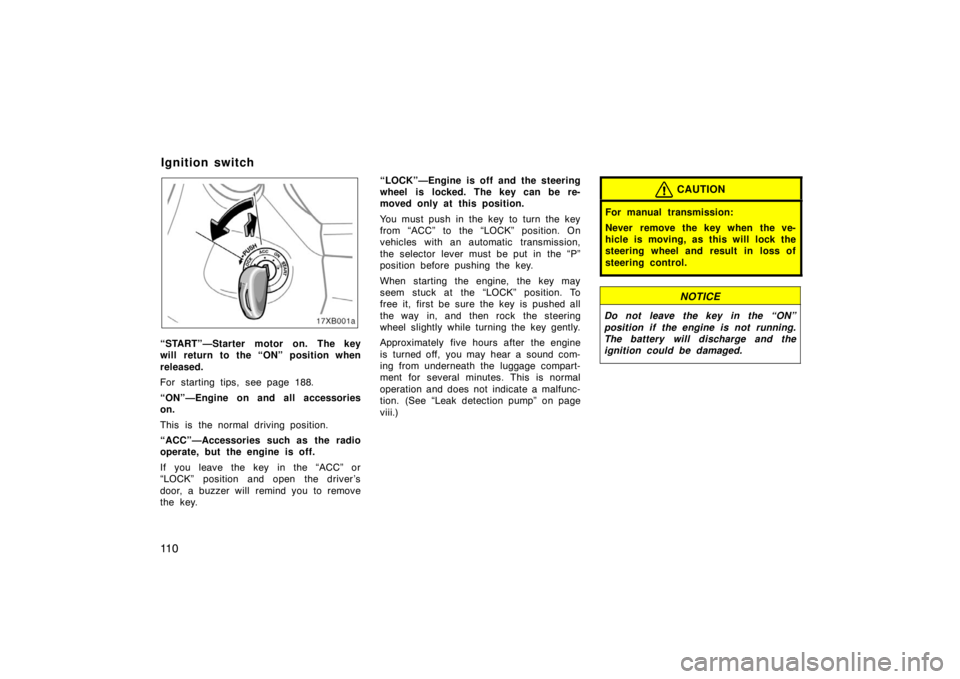

“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 188.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the key
from “ACC” to the “LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be put in the “P”
position before pushing the key.
When starting the engine, the key may
seem stuck at the “LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
Approximately five hours after the engine
is turned off, you may hear a sound com-
ing from underneath the luggage compart-
ment for several minutes. This is normal
operation and does not indicate a malfunc-
tion. (See “Leak detection pump” on page
viii.)
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the “ON”
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch

111
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position).

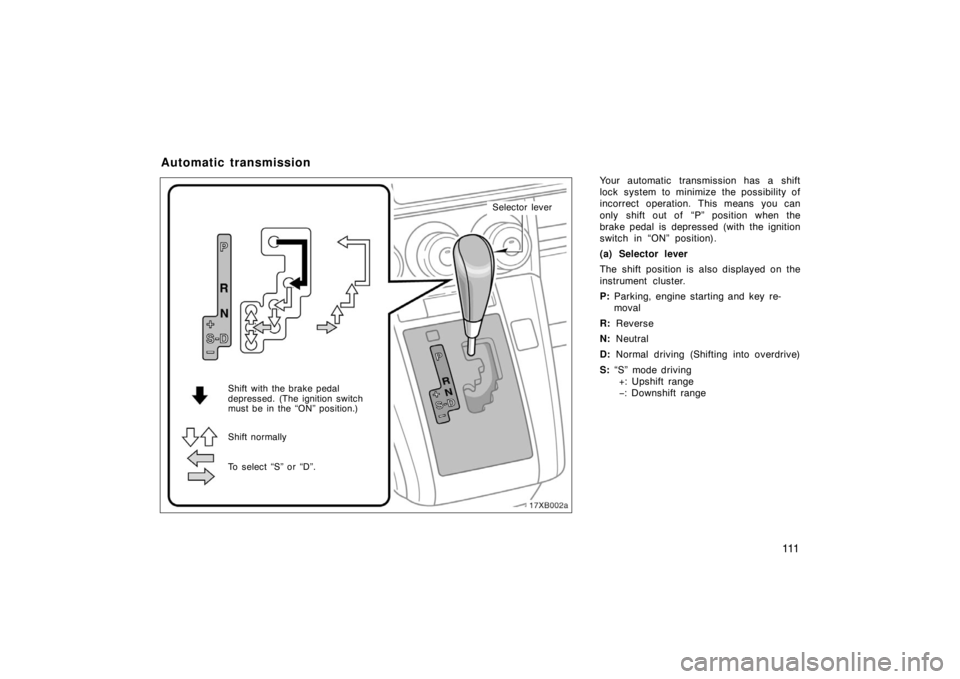

(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P: Parking, engine starting and key re-
moval
R: Reverse
N: Neutral
D: Normal driving (Shifting into overdrive)
S: “S” mode driving
+: Upshift range
−: Downshift range
Automatic transmission
17XB002a
Shift with the brake pedal
depressed. (The ignition switch
must be in the “ON” position.)
Shift normally
To select “S” or “D”.
Selector lever

11 2
(b) Normal driving1. Start the engine as instructed in “How to start the engine” on page 188. The
transmission must be in “P” or “N”.
2. With your foot holding down the brake pedal, shift the selector lever to “D”.
When the lever is in the “D” position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always use the “D” position for better fuel
economy and quieter driving. In this posi-
tion, shifting into the overdrive gear is
possible. If the engine coolant temperature
is low, the transmission will not shift into
the overdrive gear even in the “D” posi-
tion.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting. (c) Driving in “S” mode

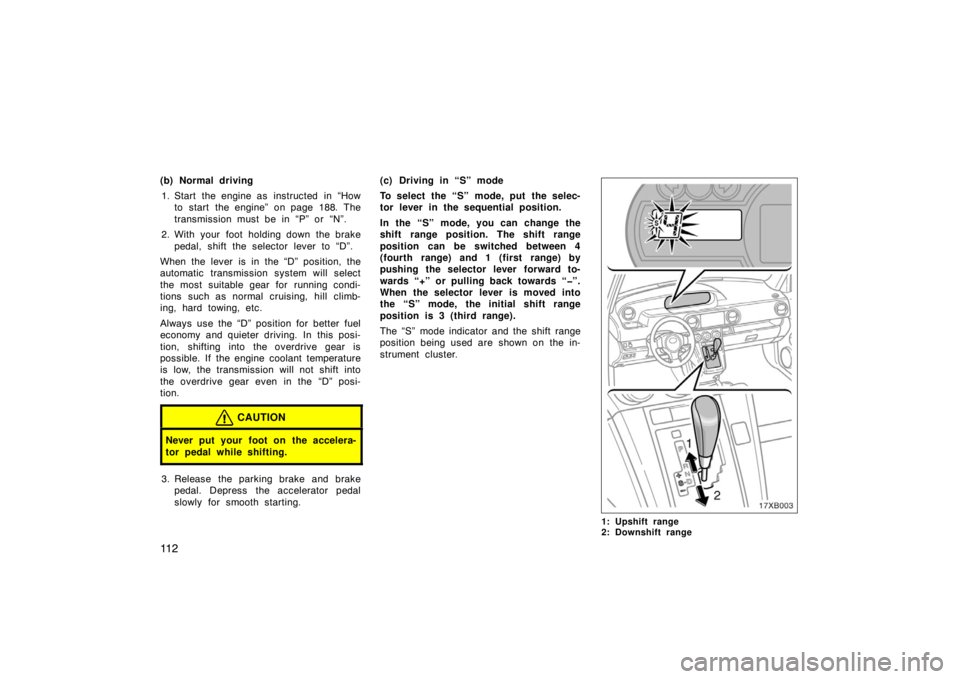

To select the “S” mode, put the selec-
tor lever in the sequential position.
In the “S” mode, you can change the
shift range position. The shift range
position can be switched between 4
(fourth range) and 1 (first range) by
pushing the selector lever forward to-
wards “+” or pulling back towards “”.
When the selector lever is moved into
the “S” mode, the initial shift range
position is 3 (third range).
The “S” mode indicator and the shift range
position being used are shown on the in-
strument cluster.
1: Upshift range
2: Downshift range
