Fan speed selector
Turn the dial to adjust the fan speed—to
the right to increase, to the left to de-
crease.
Temperature selector
Turn the dial to adjust the temperature—to
the right to warm, to the left to cool.
Air flow selector
Turn the dial to select the vents used for
air flow.1. Panel— Air flows mainly from the
instrument panel vents.
2. Bilevel— Air flows from both the floor
vents and the instrument panel vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view. In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
5. Windshield— Air flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
In this position, air intake selector
mode changes to FRESH automatically
to clean up the front view quickly. It is
not possible to return to RECIRCULATE
in this position.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
For details about air flow selector settings,
see “Air flow selector settings” on page
135.

134
Air intake selector
Press the button to select the air source.1. RECIRCULATE— Recirculates the air in-
side the vehicle.
2. FRESH— Draws outside air into the
system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system. “A/C” button
To turn on the air conditioning, press the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

135
Air flow selector settingsOperating tips
To cool off your Scion after it has been
parked in the hot sun, drive with the
windows open for a few minutes. This
vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.

136
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “0”.
If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.
Heating
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—FLOOR
Air conditioning—OFF
For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.
Press the “A/C” button on for dehumidi-
fied heating.
Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.
Air conditioning
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— To w a r d s blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—ON
For quick cooling, turn the temperature
selector dial fully towards blue zone
and change the air intake selector
mode to RECIRCULATE.

137
Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— Towards red zone to
heat; blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to RE-
CIRCULATE in this position. Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to: Fan speed— Any setting except “0”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view. When turning the air flow selector to wind-
shield or floor/windshield position, air in-
take selector mode changes to FRESH
automatically to clean up the front view
quickly. It is not possible to return to RE-
CIRCULATE in this position.
Press the “A/C” button for dehumidified
heating. This setting clears the front view
more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

13818XB004
Open
Close

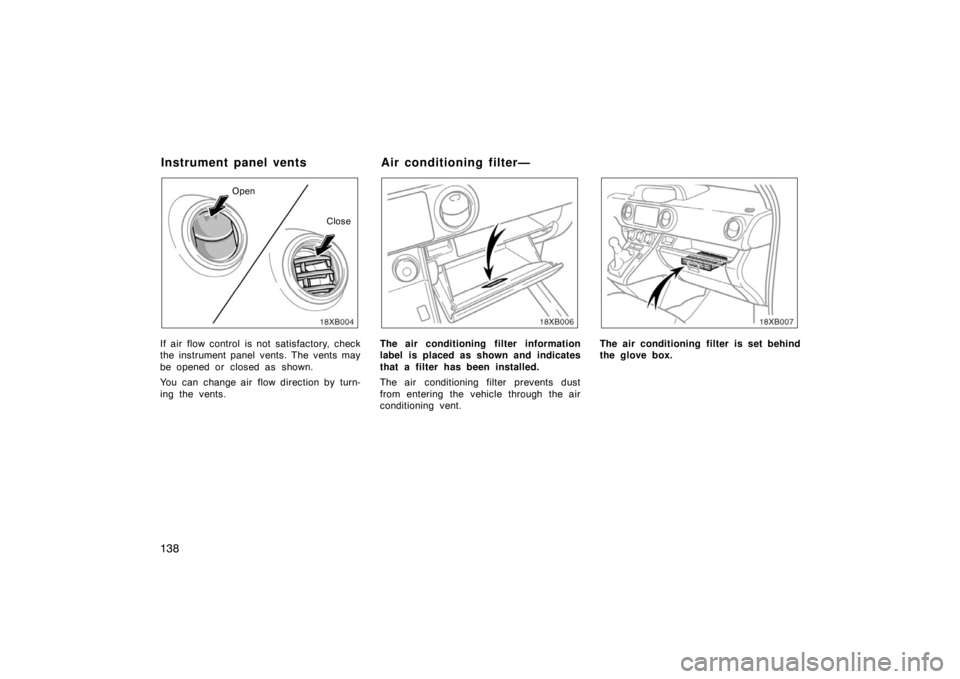

If air flow control is not satisfactory, check
the instrument panel vents. The vents may
be opened or closed as shown.
You can change air flow direction by turn-
ing the vents.
18XB006
The air conditioning filter information
label is placed as shown and indicates
that a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is set behind
the glove box.
Instrument panel vents Air conditioning filter—

139
The air conditioning filter may clog af-
ter long use. The filter may need to be
cleaned or replaced if the air flow of
the air conditioner and heater experi-
ences extreme reductions in operating
efficiency, or if the windows begin to
fog up easily.
To maintain the air conditioning efficiency,
inspect, clean and replace the air condi-
tioning filter according to the maintenance
schedule. In dusty areas or areas with
heavy traffic flow, such as inner city or
desert areas, more frequent cleaning or
early replacement may be required. (For
scheduled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.)

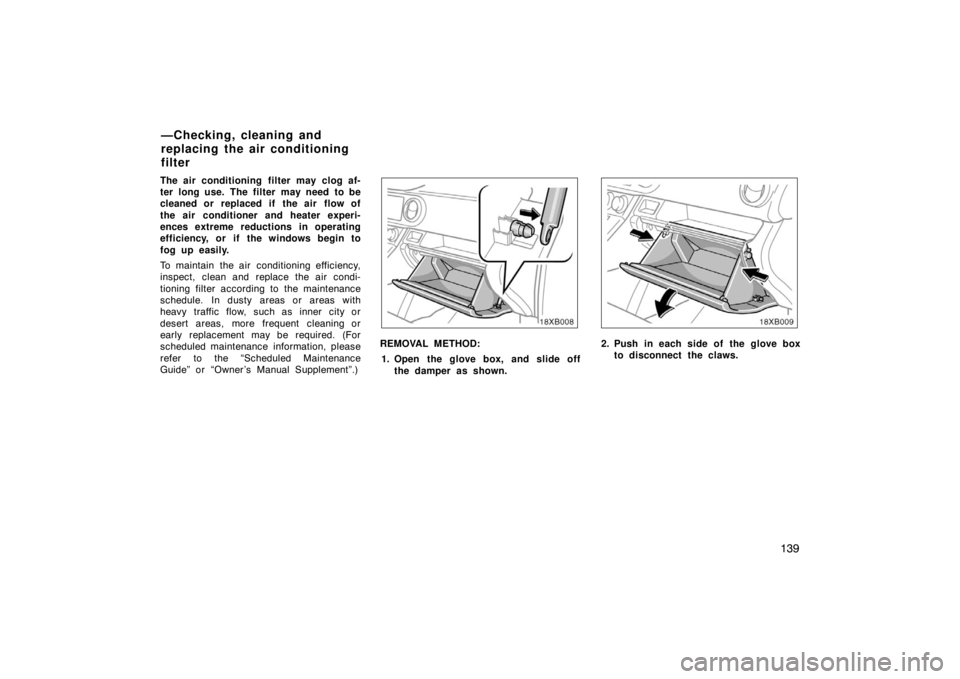

REMOVAL METHOD:1. Open the glove box, and slide off the damper as shown.2. Push in each side of the glove boxto disconnect the claws.
—Checking, cleaning and
replacing the air conditioning
filter

140

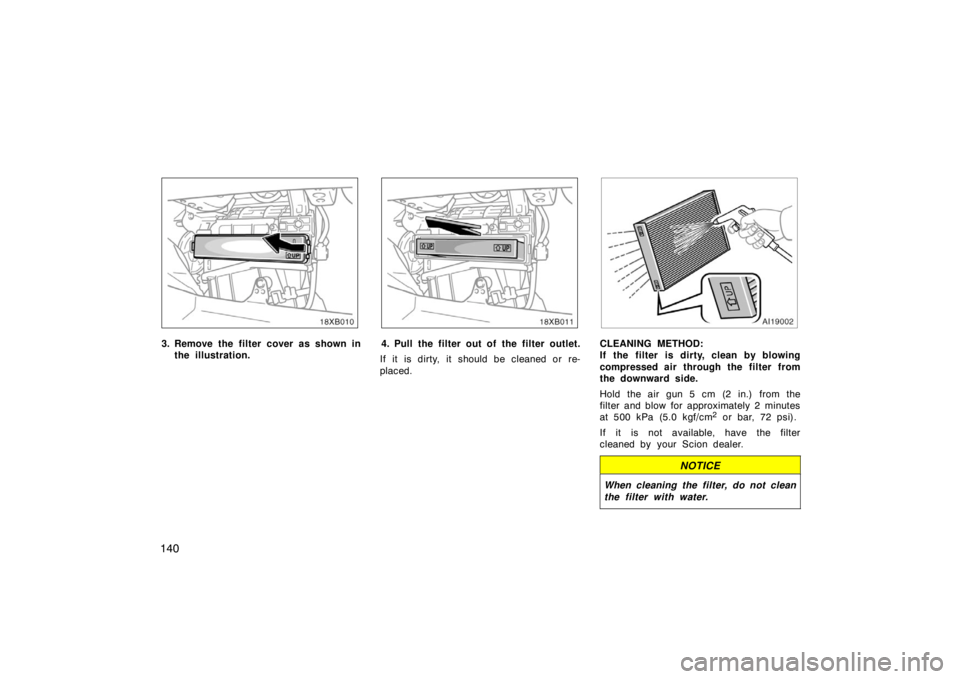

3. Remove the filter cover as shown inthe illustration.4. Pull the filter out of the filter outlet.
If it is dirty, it should be cleaned or re-
placed.CLEANING METHOD:
If the filter is dirty, clean by blowing
compressed air through the filter from
the downward side.
Hold the air gun 5 cm (2 in.) from the
filter and blow for approximately 2 minutes
at 500 kPa (5.0 kgf/cm
2 or bar, 72 psi).
If it is not available, have the filter
cleaned by your Scion dealer.
NOTICE
When cleaning the filter, do not clean
the filter with water.

141

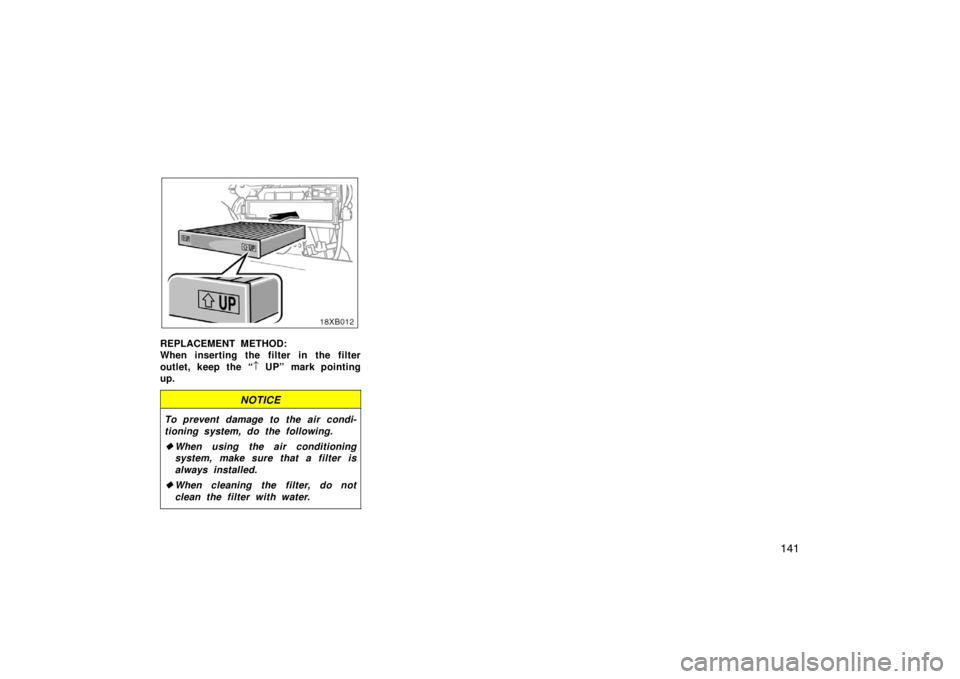

REPLACEMENT METHOD:
When inserting the filter in the filter
outlet, keep the “↑ UP” mark pointing
up.
NOTICE
To prevent damage to the air condi-
tioning system, do the following.
 When using the air conditioning
system, make sure that a filter is
always installed.
 When cleaning the filter, do not
clean the filter with water.
