TOYOTA xB 2009 Owners Manual (in English)

xB
QUICK
REFERENCE
GUIDE
GET INFORMED.
ROLL.
EMAIL
www.scion.com
> Contact
-
CHAT
www.scion.com
> Have a Question? > Contact
-
PHONE
1.866.70.SCION
-
MAIL
SCION
19001 S. Western Ave.
D102, P.O. Box 2742
Torrance, CA 90509-2742
USA
-
WEB
www.scion.com
-
©2009 Scion, a marque of
Toyota Motor Sales, U.S.A., Inc.
00505-QRG09-XB
2009
412291M1.qxd 3/21/08 8:23 AM Page 1

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.

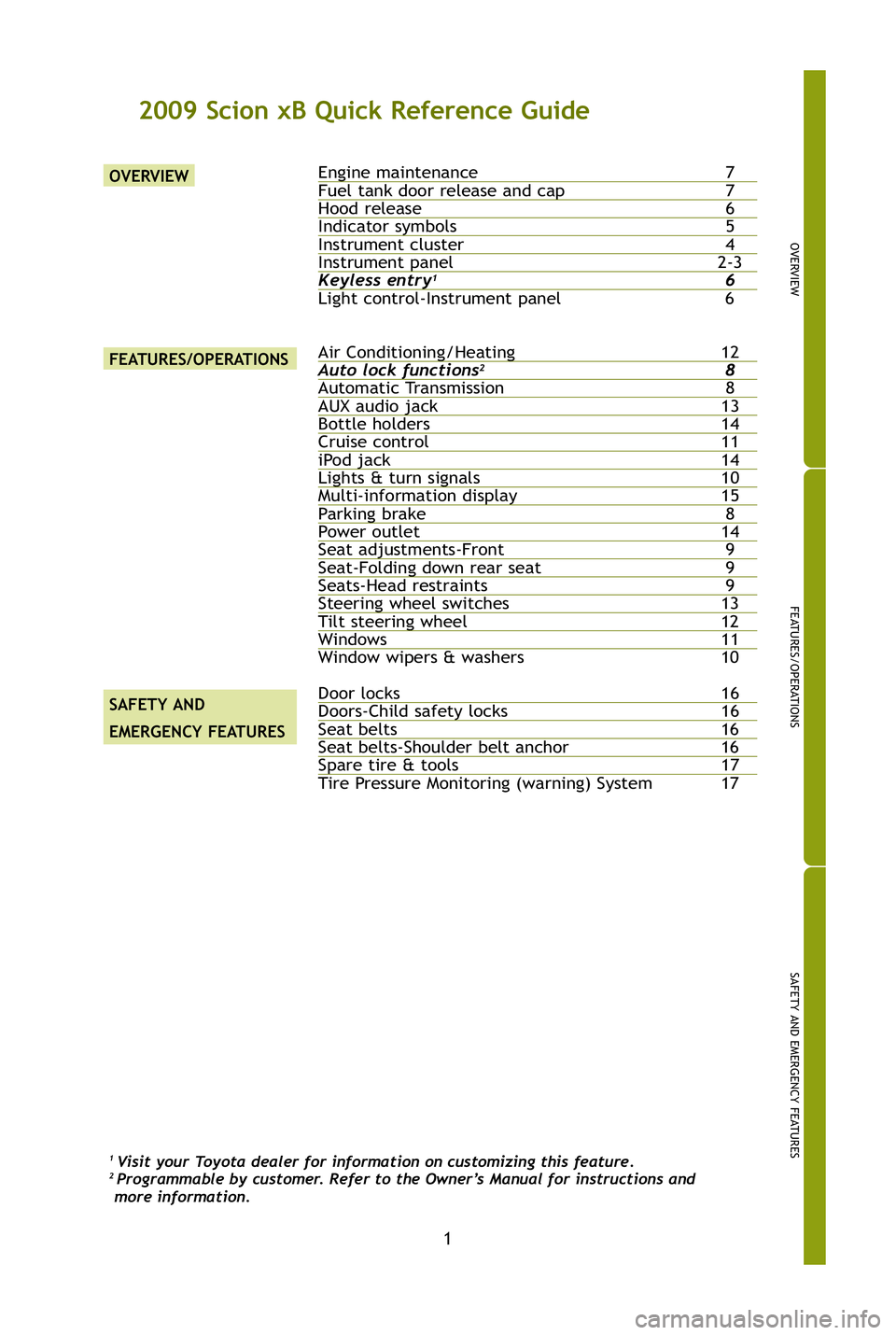

2009 Scion xB Quick Reference Guide
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap7Hood release 6Indicator symbols5Instrument cluster4Instrument panel2-3Keyless entry16
Light control-Instrument panel 6
Air Conditioning/Heating12Auto lock functions28Automatic Transmission 8AUX audio jack13Bottle holders14Cruise control11iPod jack14Lights & turn signals10Multi-information display15Parking brake8Power outlet 14Seat adjustments-Front9Seat-Folding down rear seat9Seats-Head restraints 9Steering wheel switches13Tilt steering wheel12Windows 11
Window wipers & washers 10
Door locks 16Doors-Child safety locks16Seat belts16Seat belts-Shoulder belt anchor16Spare tire & tools17
Tire Pressure Monitoring (warning) System 17
412xxxM2.qxd 3/20/08 3:20 PM Page 1

2

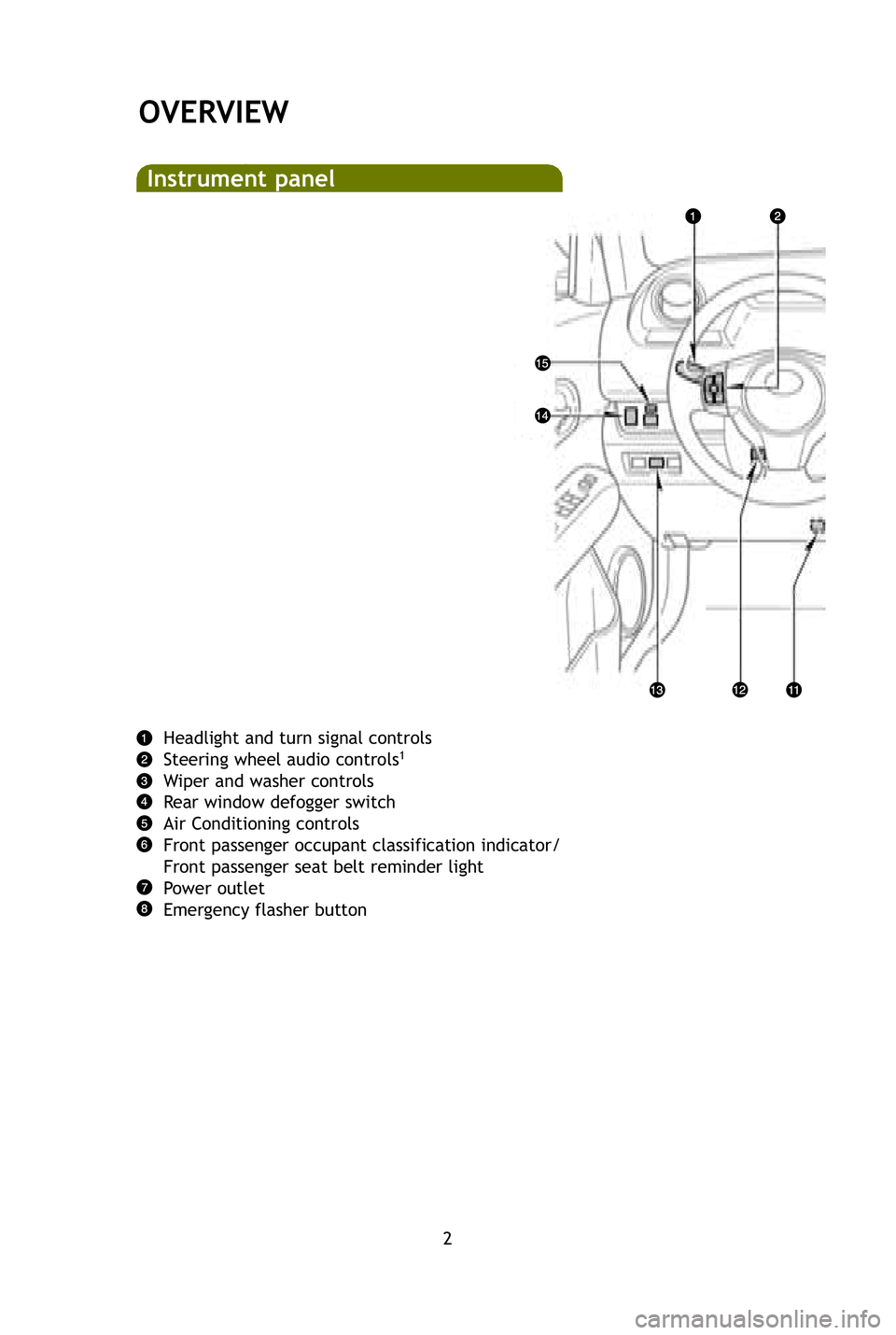

Instrument panel
Headlight and turn signal controls
Steering wheel audio controls1
Wiper and washer controls
Rear window defogger switch
Air Conditioning controls
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
Power outlet
Emergency flasher button
OVERVIEW
412xxxM2.qxd 3/20/08 3:20 PM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

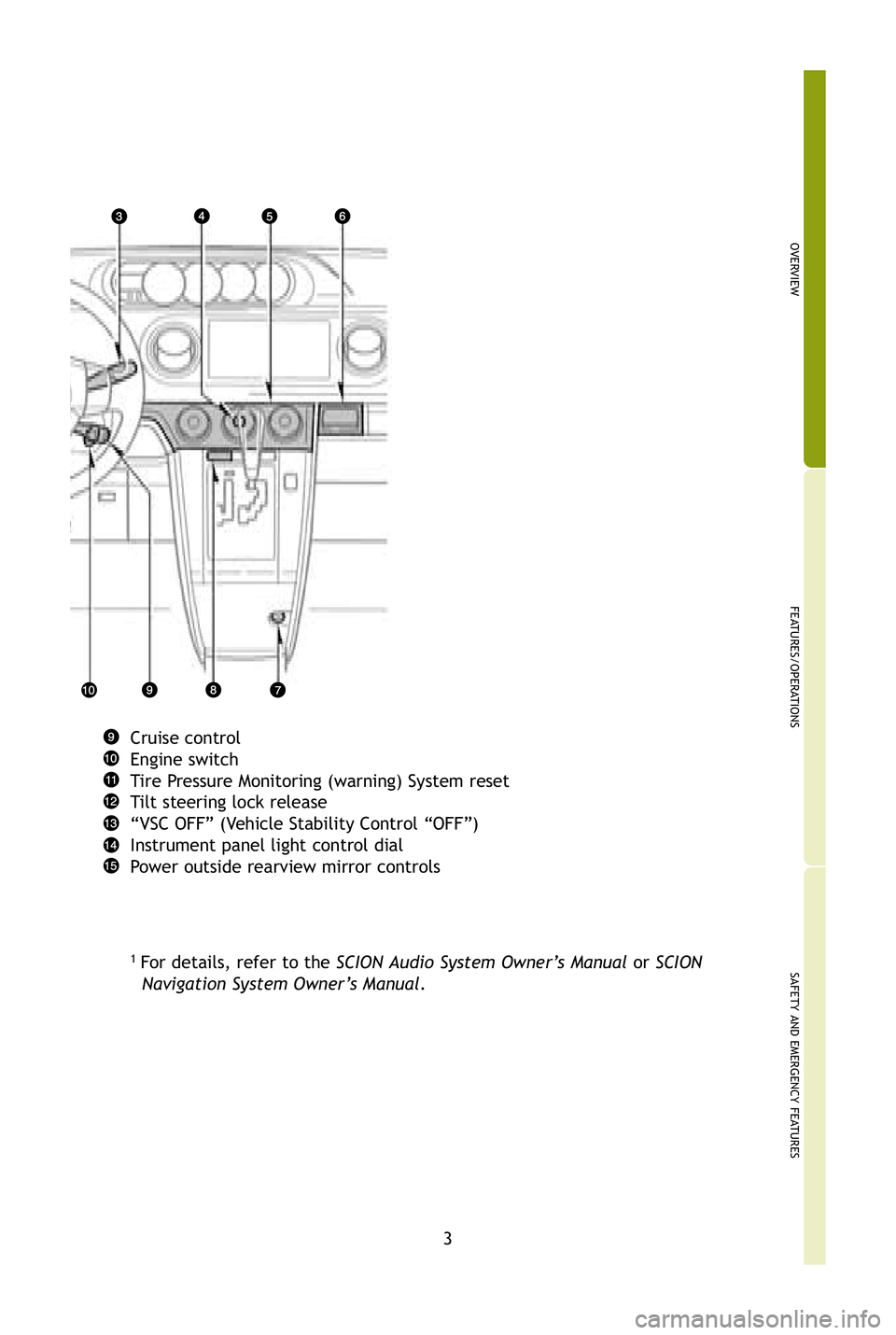

Cruise control
Engine switch
Tire Pressure Monitoring (warning) System reset
Tilt steering lock release
“VSC OFF” (Vehicle Stability Control “OFF”)
Instrument panel light control dial
Power outside rearview mirror controls
1 For details, refer to the SCION Audio System Owner’s Manual or SCION
Navigation System Owner’s Manual .
412xxxM2.qxd 3/20/08 3:20 PM Page 3

4

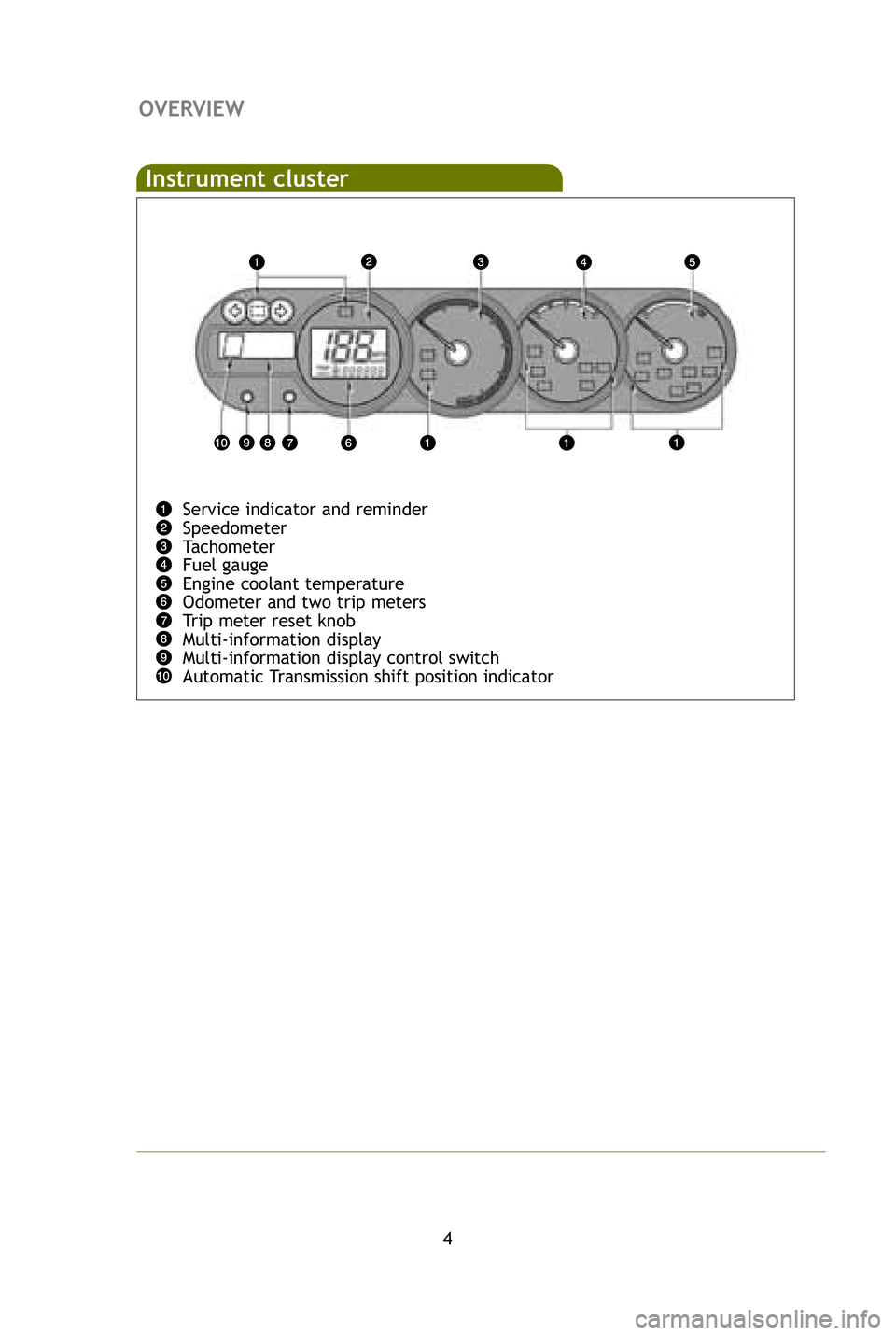

Instrument cluster
Service indicator and reminder
Speedometer
Tachometer
Fuel gauge
Engine coolant temperature
Odometer and two trip meters
Trip meter reset knob
Multi-information display
Multi-information display control switch
Automatic Transmission shift position indicator
OVERVIEW
412xxxM2.qxd 3/20/08 3:20 PM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

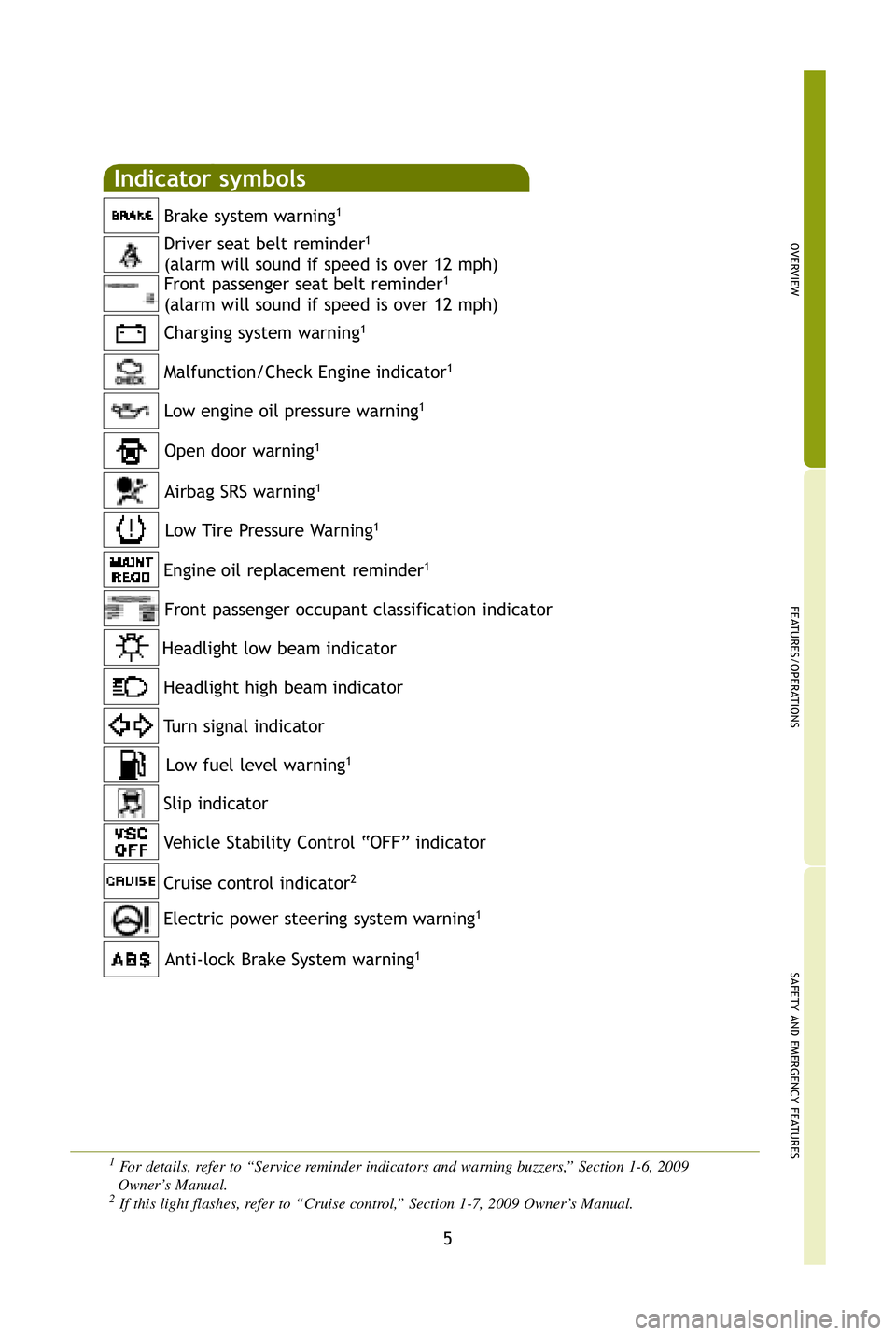

Low engine oil pressure warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Brake
system warning
1
Charging system warning1
Anti-lock Brake System warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning1
Low Tire Pressure Wa r n i n g1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicator
Tu r n signal indicator
Headlight
high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator
Vehicle Stability Control “OFF” indicator
Airbag
SRS warning
1
Low fuel level warning1
1
For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6, 2009
Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2009 Owner’s Manual.
412291M2_r2.qxd 3/24/08 10:07 PM Page 5

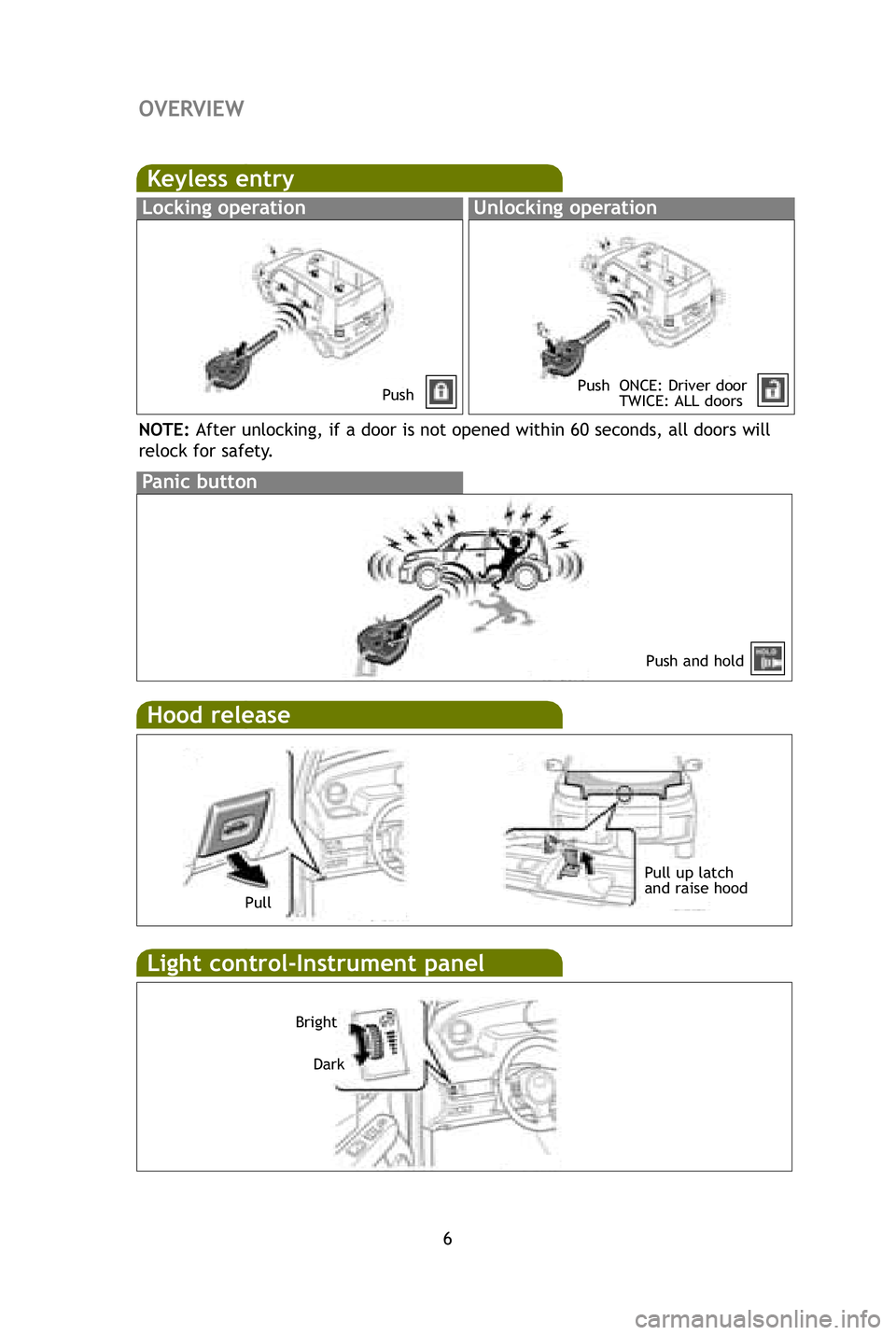

6
Keyless entry
Locking operationUnlocking operation
NOTE:After unlocking, if a door is not opened within 60 seconds, all doors wi\
ll
relock for safety.
PushPush ONCE: Driver door TWICE: ALL doors
Panic button
Push and hold
Hood release
Pull Pull up latch
and raise hood
Light control-Instrument panel
Bright
Dark
OVERVIEW
412xxxM2.qxd 3/20/08 3:20 PM Page 6

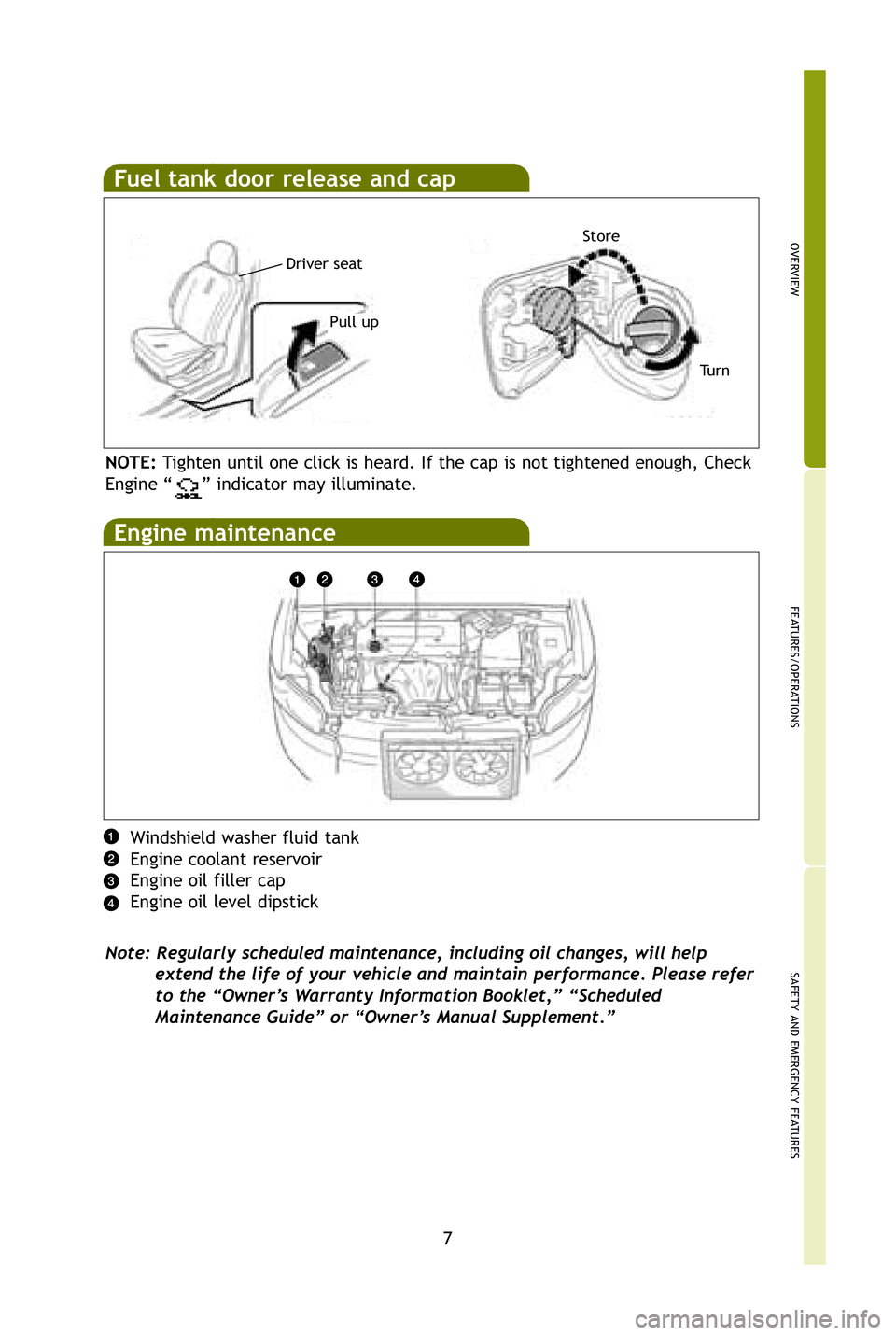

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Fuel tank door release and cap
Pull upStore
Tu r n
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Owner’s Warranty Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual Supplement.”
Engine maintenance
Driver seat
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Che\
ck
Engine “ ” indicator may illuminate.
412xxxM2.qxd 3/20/08 3:20 PM Page 7

8

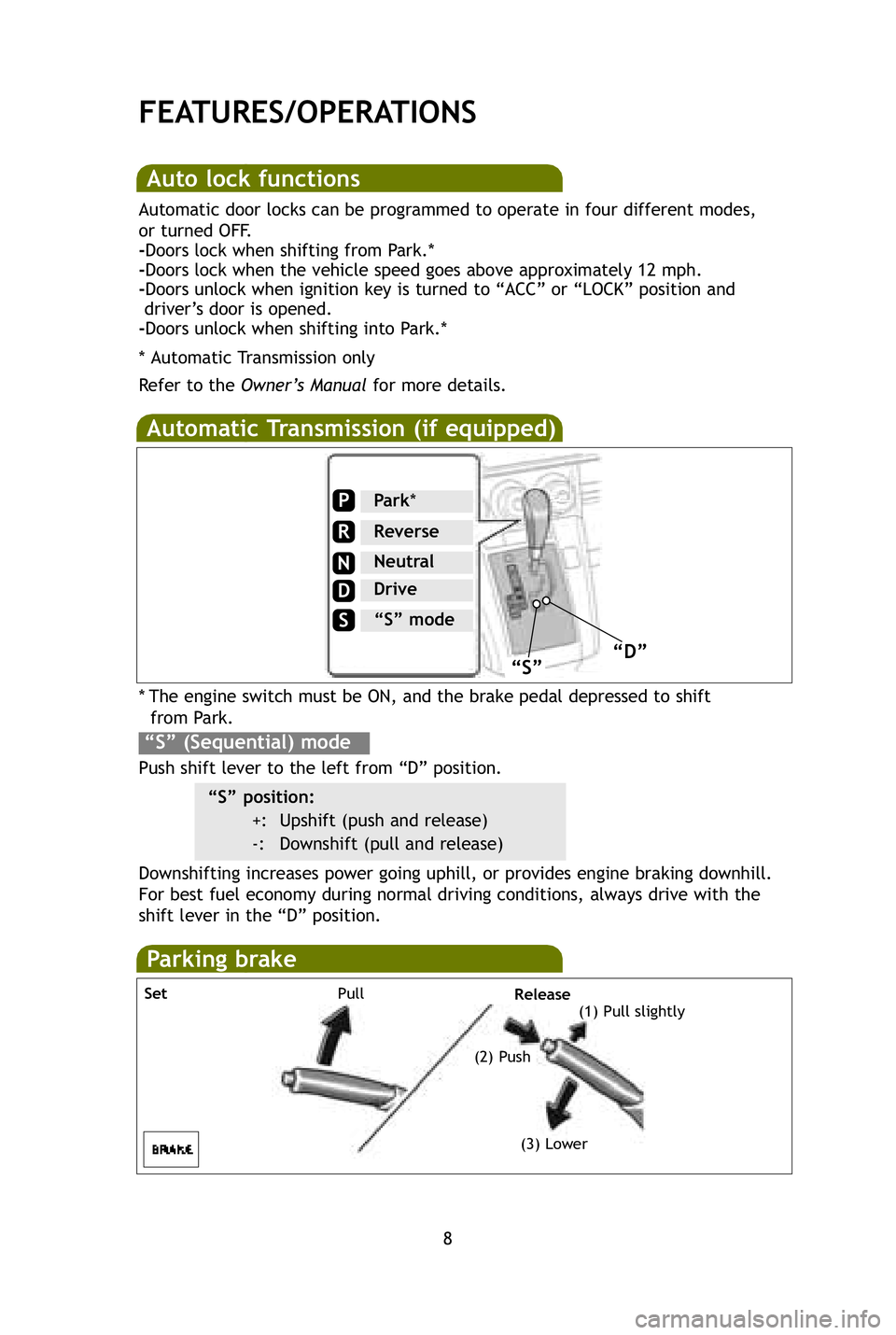

Auto lock functions
Automatic door locks can be programmed to operate in four different mode\
s,
or turned OFF.
-Doors lock when shifting from Park.*
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when ignition key is turned to “ACC” or “LOCK” \
position anddriver’s door is opened.
-Doors unlock when shifting into Park.*
* Automatic Transmission only
Refer to the Owner’s Manual for more details.
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the
shift lever in the “D” position.
“S” position:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Push shift lever to the left from “D” position. * The engine switch must be ON, and the brake pedal depressed to shiftfrom Park.
Parking brake
Pull
(2) Push (1) Pull slightly
(3) Lower
Set
Release
Park*
Reverse
Neutral
Drive
P
R
N
D
N
S“S” mode
“S” “D”
FEATURES/OPERATIONS
412xxxM2.qxd 3/20/08 3:20 PM Page 8

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

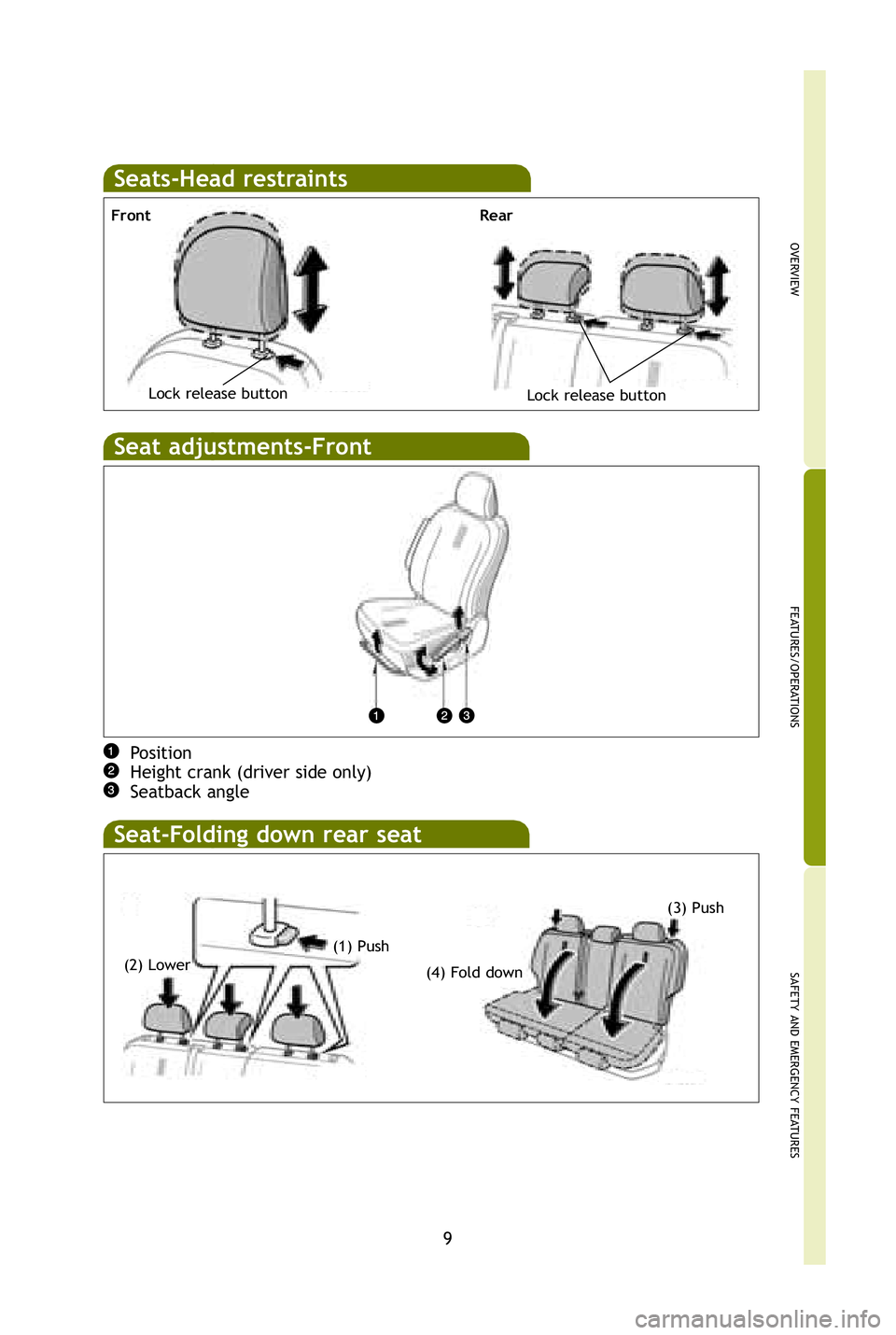

Seats-Head restraints
Lock release buttonLock release button
Front Rear
Seat adjustments-Front
Position
Height crank (driver side only)
Seatback angle
Seat-Folding down rear seat
(2) Lower
(1) Push(4) Fold down (3) Push
412xxxM2.qxd 3/20/08 3:20 PM Page 9
