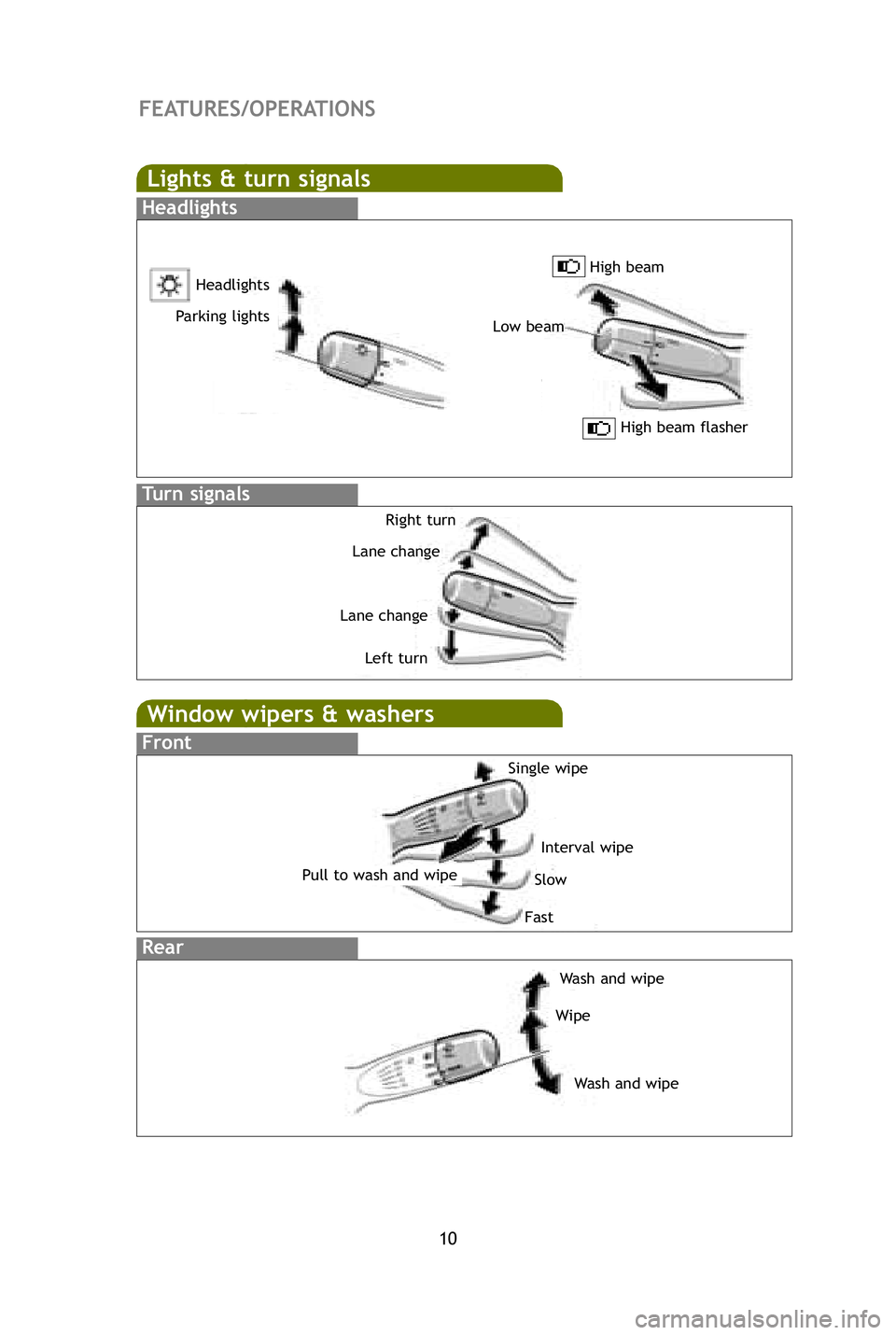

Window wipers & washers
Interval wipe
Slow
Fast
Pull to wash and wipe Single
wipe
Front
Rear
Wa s h and wipe
Wipe
Wa s h and wipe
Lig hts & turn signals
T urn signals
Headlig hts
Headlights
Parking lights
Right turn
Lane change
Lane change
Left turnLow beam
High beam flasher
High beam
FEATURES/OPERAT I O N S
412291M2_r2.qxd 3/24/08 10:08 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

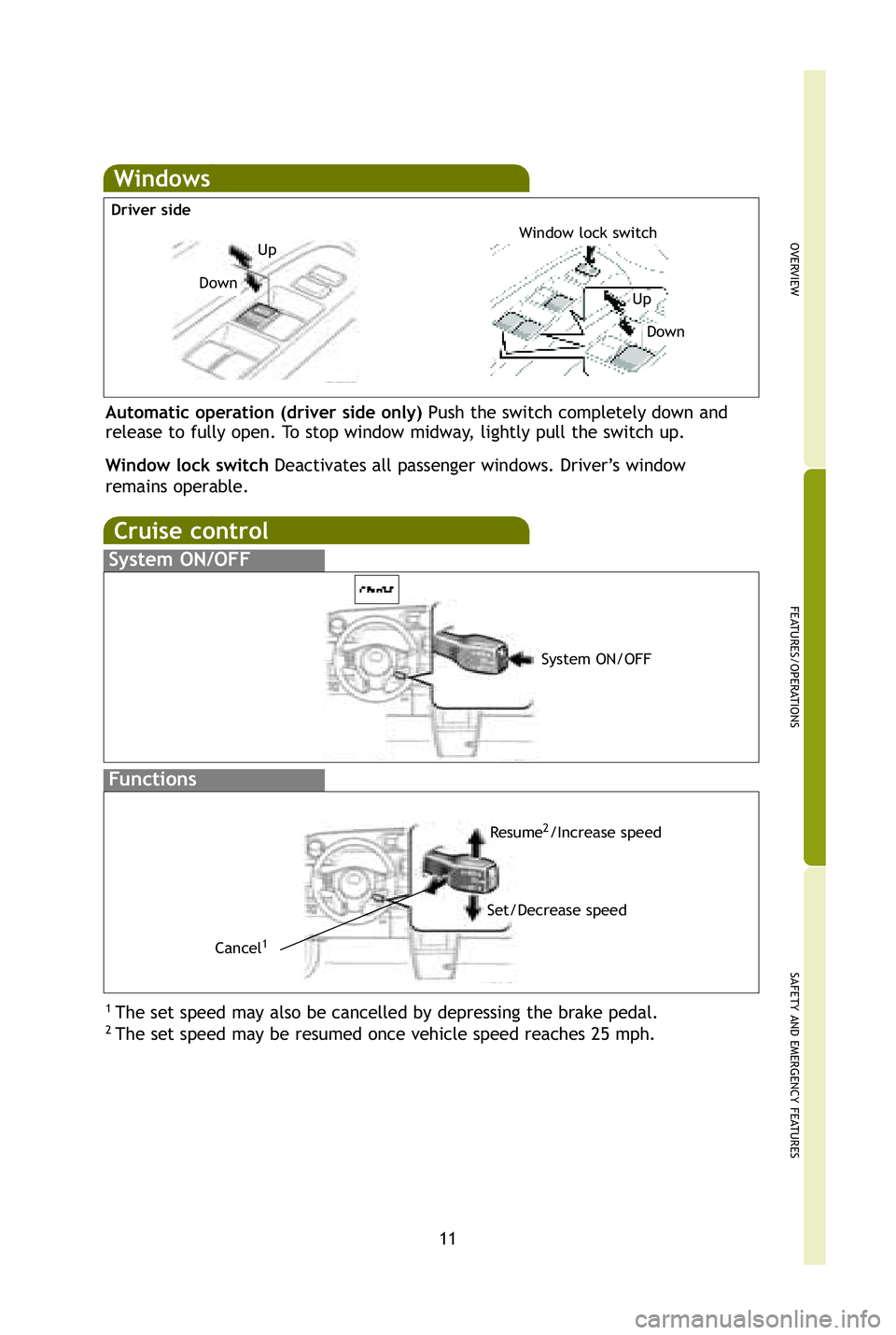

Windows
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop window midway, lightly pull the switch up.
Window lock switc h Deactivates all passenger windows. Driver’s window
remains operable.
Up
UpDown
Down
Driver side
Window lock switch
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System
ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
412xxxM2.qxd 3/20/08 3:20 PM Page 11

12

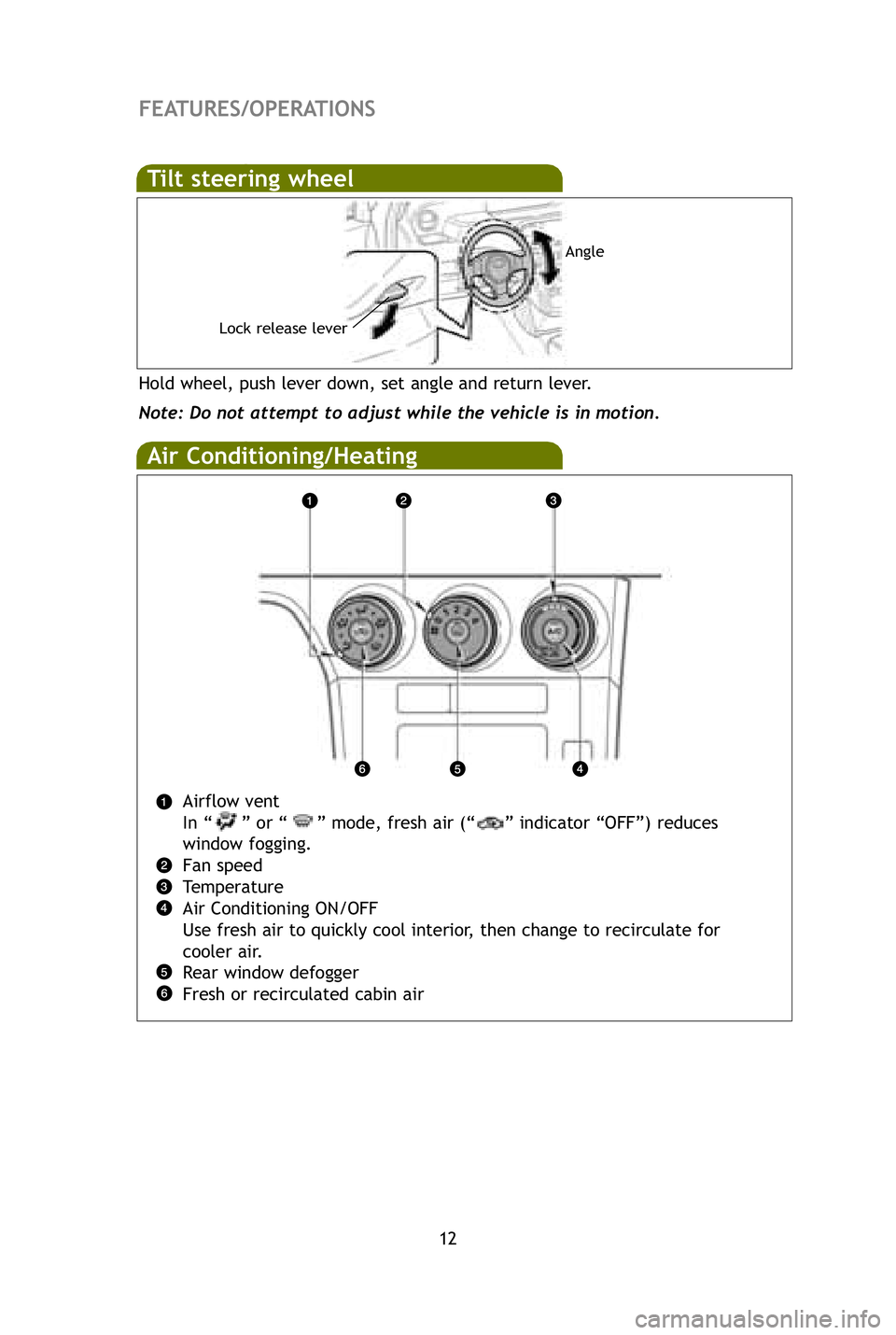

Air Conditioning/Heating
Airflow vent
In “ ” or “ ” mode, fresh air (“ ” indica\
tor “OFF”) reduces
window fogging.
Fan speed
Temperature
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Rear window defogger
Fresh or recirculated cabin air
Hold wheel, push lever down, set angle and return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt steering w heel
Lock release lever
Angle
FEATURES/OPERAT I O N S
412xxxM2.qxd 3/20/08 3:20 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

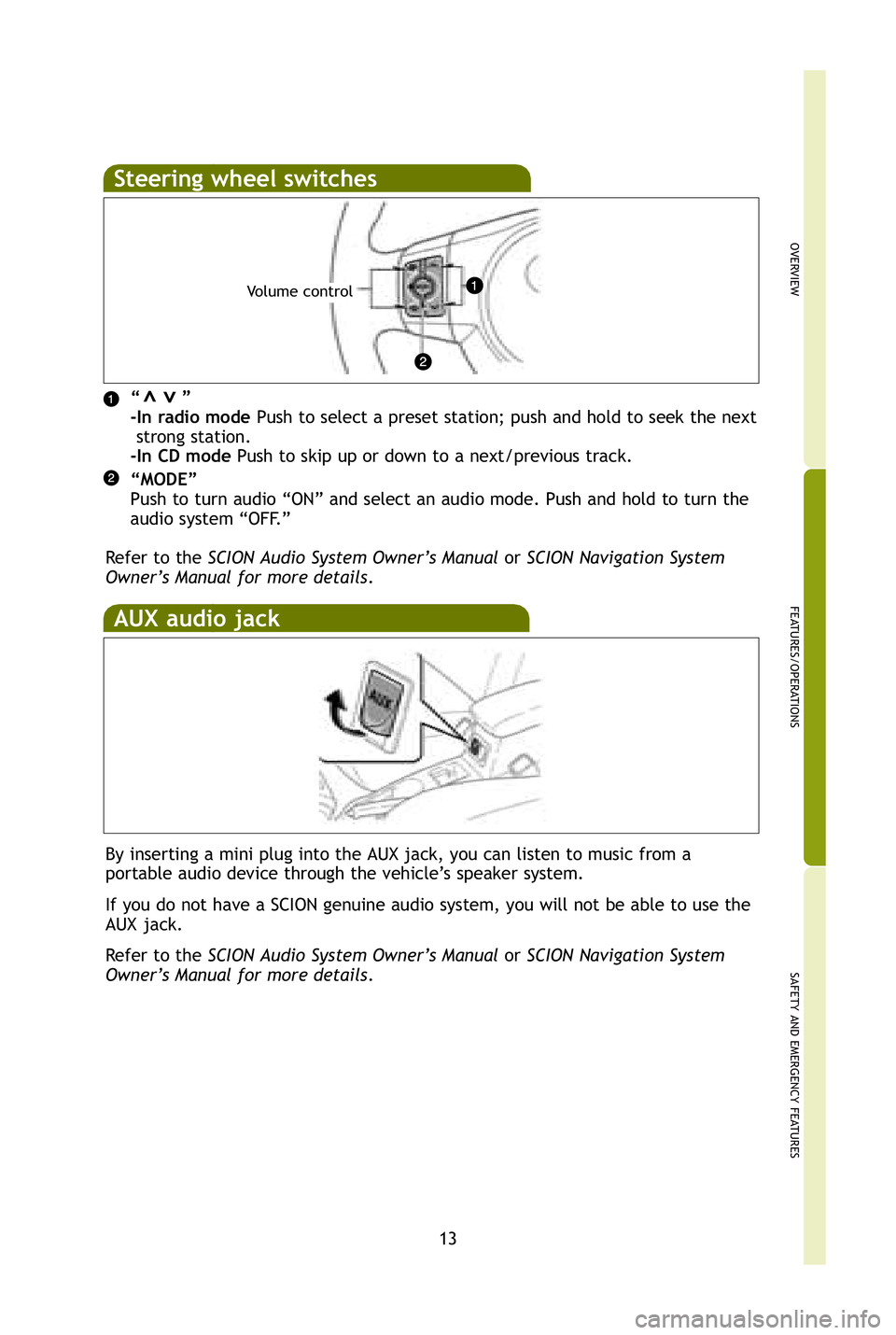

Steering wheel switch es
“ ”
-In radio mode Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio “ON” and select an audio mode. Push and hold to\
turn the
audio system “OFF.”
Refer to the SCION Audio System Owner’s Manual or SCION Navigation System
Owner’s Manual for more details .>>
AUX audio jack
By inserting a mini plug into the AUX jack, you can listen to music from\
a
portable audio device through the vehicle’s speaker system.
If you do not have a SCION genuine audio system, you will not be able to\
use the
AUX jack.
Refer to the SCION Audio System Owner’s Manual or SCION Navigation System
Owner’s Manual for more details .
Volume control
412xxxM2.qxd 3/20/08 3:20 PM Page 13

14

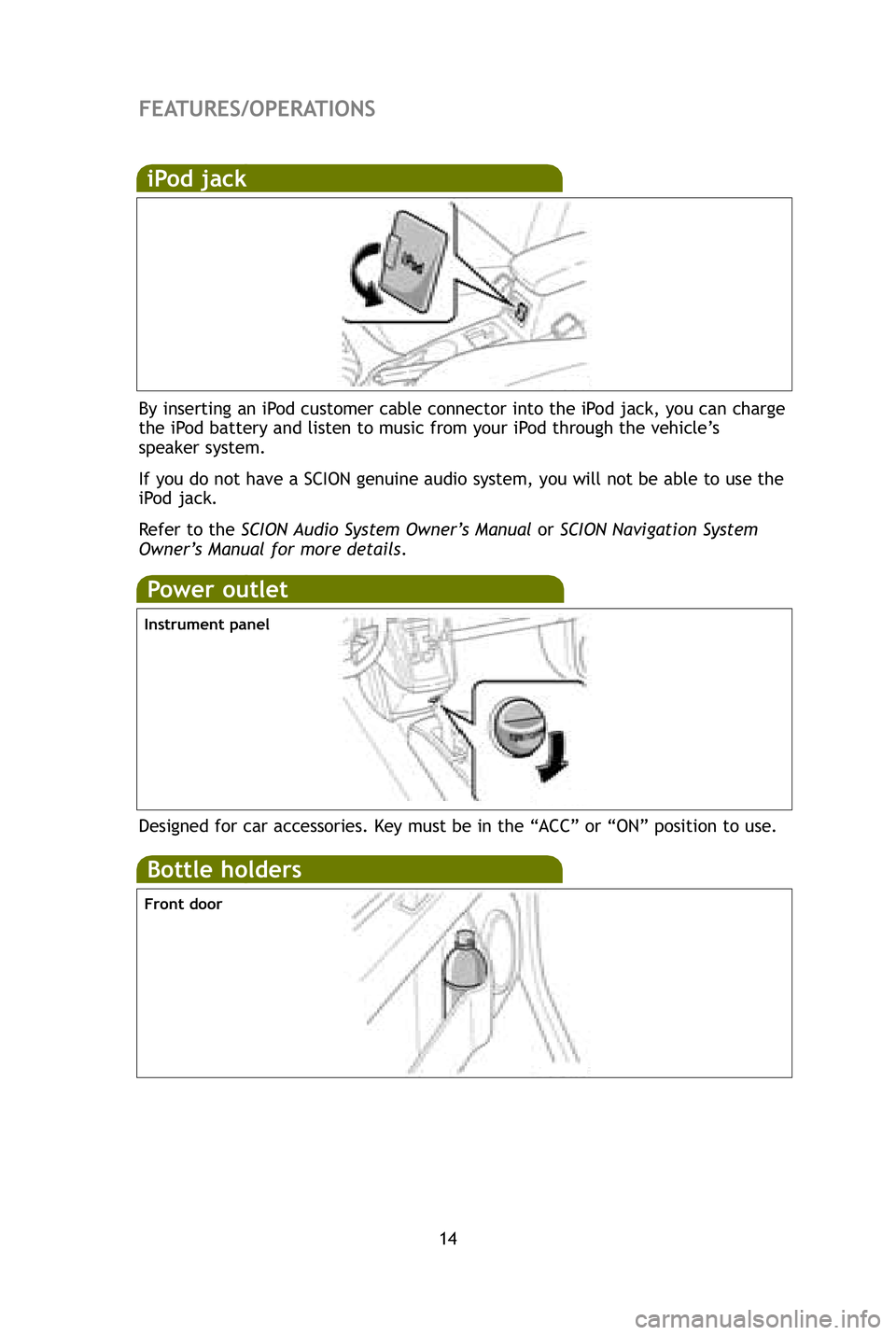

iPod jack
By inserting an iPod customer cable connector into the iPod jack, you can charge
the iPod battery and listen to music from your iPod through the vehicle’s
speaker system.
If you do not have a SCION genuine audio system, you will not be able to\
use the
iPod jack.
Refer to the SCION Audio System Owner’s Manual or SCION Navigation System
Owner’s Manual for more details .
Power outlet
Instrument panel
Designed for car accessories. Key must be in the “ACC” or “ON” position to use.
Bottle holders
Front door
FEATURES/OPERAT I O N S
412xxxM2.qxd 3/20/08 3:20 PM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

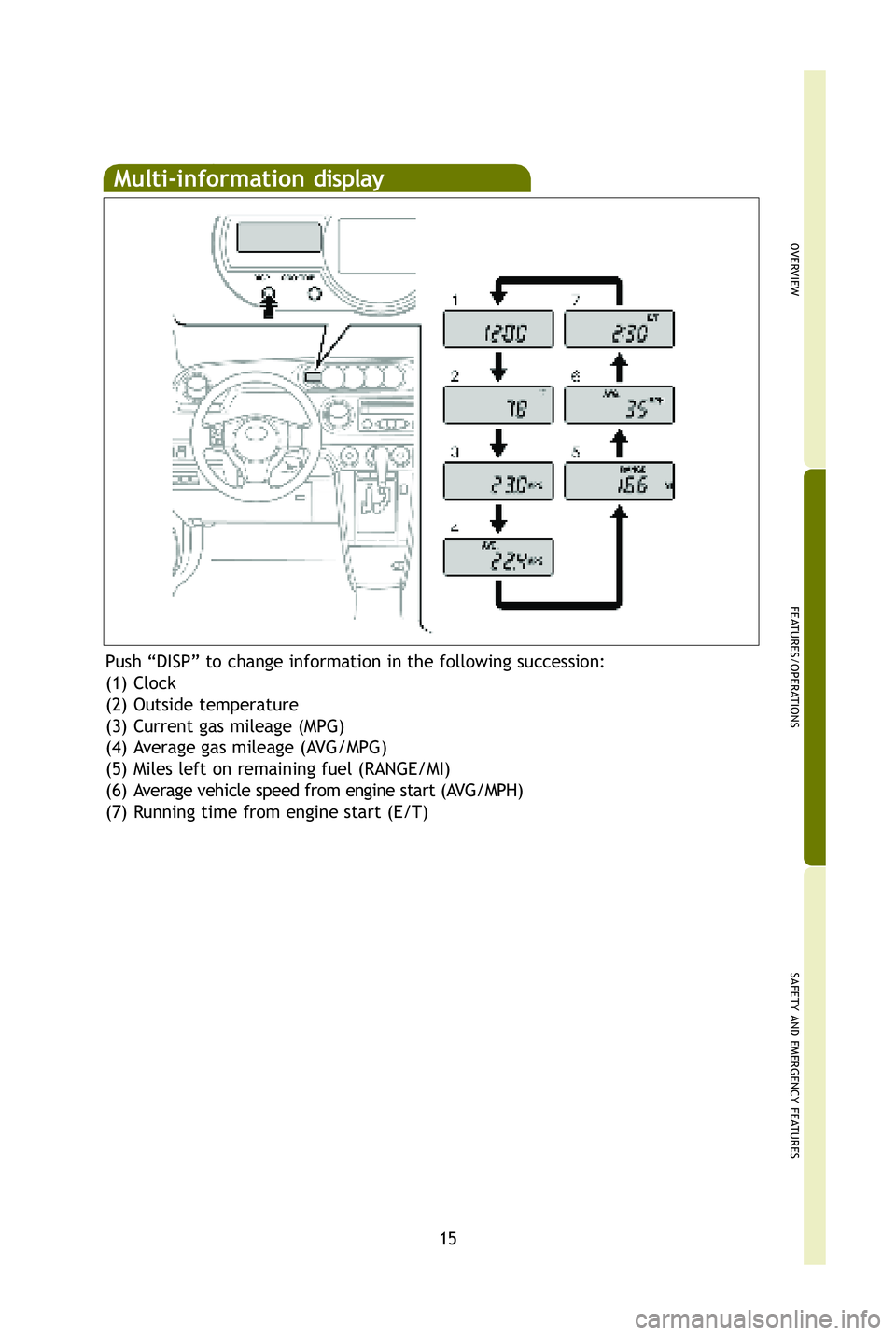

Multi-information display
Push “DISP” to change information in the following succession:
(1) Clock
(2) Outside temperature
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Miles left on remaining fuel (RANGE/MI)
(6) Average vehicle speed from engine start (AVG/MPH)
(7) Running time from engine start (E/T)
412xxxM2.qxd 3/20/08 3:20 PM Page 15

16

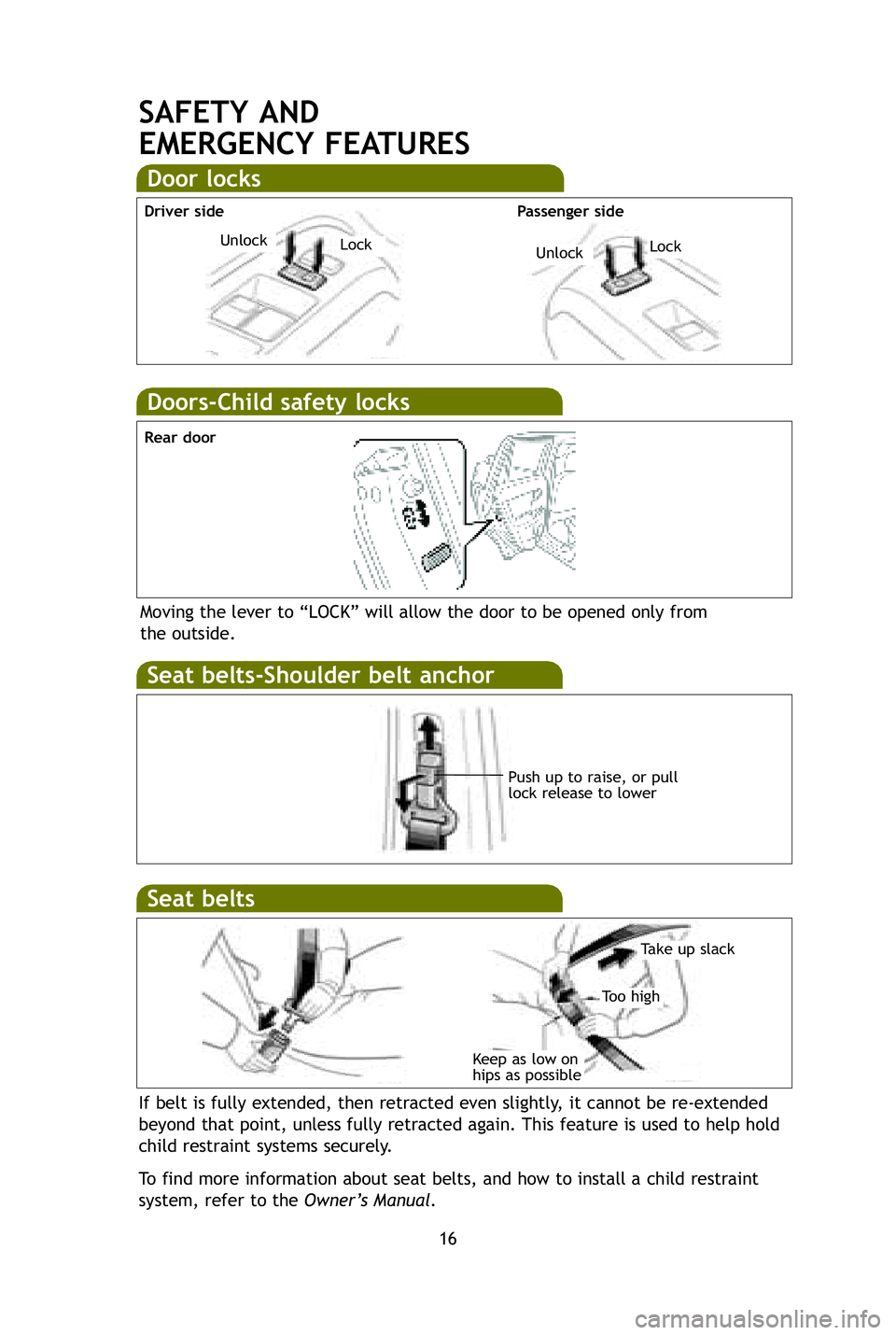

Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to be opened only f\
rom
the outside.
Seat belts-Shoulder belt anc hor
Push up to raise, or pull
lock release to lower
SAFETY AND
EMERGENCY F EATURES
Rear door
Door locks
UnlockLock
Driver side
Passenger sideUnlockLock
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to\
help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child res\
traint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
412xxxM2.qxd 3/20/08 3:20 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009
Scion xB
!A word about safe ve hicle operations
This
Quick Reference Guide is a summary of basic vehicle operations. It
contains brief descriptions of fundamental operations so you can locate \
and
use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the Owner’s
Manual located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will have a
better understanding of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish
you many years of satisfied driving in your new Scion xB.
This Quick Reference Guide is not a full description of Scion xB
o p erations. Every Scion xB owner s hould review t he Owner’s Manual th at
accom panies th is vehicle.
P ay s pecial attention to t he boxed information hig hligh ted in yellow
t h rough out the Owner’s Manual . Eac h box contains safe o perating
instructions to hel p you avoid injury or equi pment malfunction.
A ll information in t his Quick Reference Guide is current at the time of
p rinting. Toyota reserves t he righ t to make c hanges at any time
with out notice.

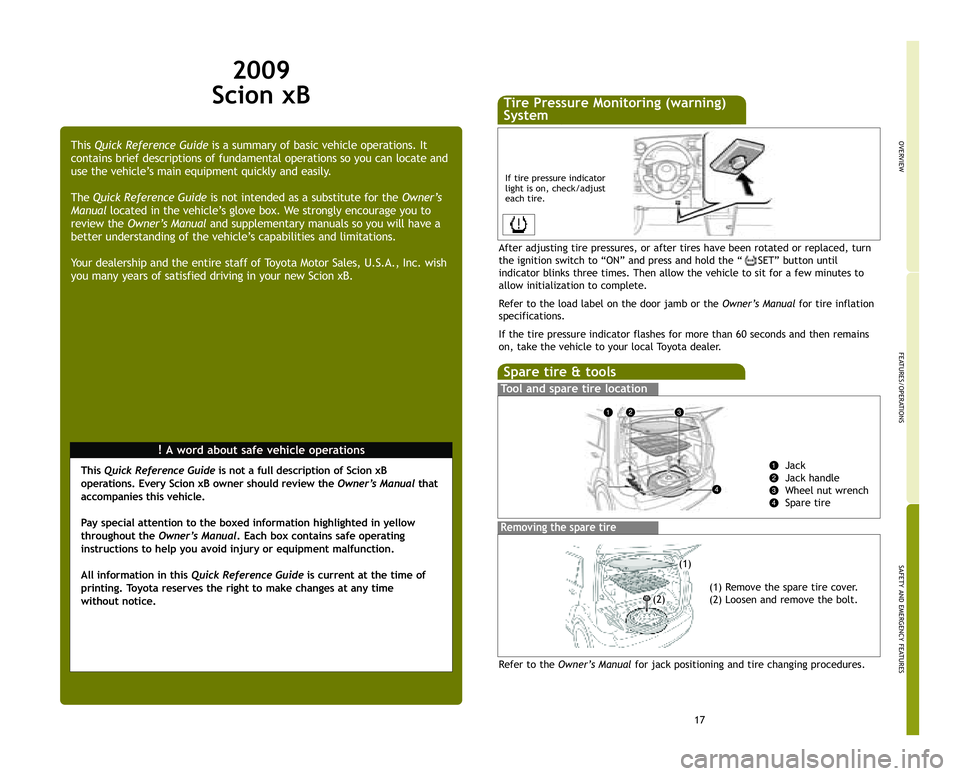

Spare tire & tools
Tool and s pare tire location
Removing t he spare tire
Jack
Jack handle
Wheel nut wrench
Spare tire
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn
the ignition switch to “ON” and press and hold the “ SET” button until
indicator blinks three times. Then allow the vehicle to sit for a few mi\
nutes to
allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains
on, take the vehicle to your local Toyota dealer.
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
(1)
(2)
If tire pressure indicator
light is on, check/adjust
each tire.
T ire Pressure Monitoring (warning)
System
