TOYOTA xB 2010 Accessories, Audio & Navigation (in English)

AUDIO/VIDEO SYSTEM
250
V573_E
z Vehicles with smart entry and start
system—
The connected iPod will be turned
off about two minutes after the
“ENGINE START STOP” switch is
turned off.
z Vehicles without smart entry and
start system—
The connected iPod will be turned
off about two minutes after the en-
gine switch is turned to the LOCK
position. (b) Playing your iPod

Push the “AV” button and touch
“iPod” if your iPod is already con-
nected. The iPod will start playing.

AUDIO/VIDEO SYSTEM
251
V573_E

(c) Operating your iPod
z Playing your iPod

Push the “AV” button and touch
“AUDIO” to display this screen.
Touch “ ►
II” to pause playback.
Touch “ ►
II” again to resume playback.


INFORMATION
z Depending on the number of mu-
sic files stored on your iPod, and
the software version, there may
be times when the system does
not respond immediately or func-
tion properly when performing
operations at the operation
screen.
z “OK to disconnect.”, displays on
the iPod unit. However, in order to
protect your iPod, it is recom-
mended that the Dock Connector
to USB Cable not be disconnected
during music playback.
z Vehicles with smart entry and
start system—
If the system does not function
properly, disconnect your iPod
from the Dock Connector to USB
Cable and then turn the “ENGINE
START STOP” switch off. Turn the
iPod off then back on. Turn the
“ENGINE START STOP” switch
back to the ACCESSORY or
IGNITION ON mode and then
connect the iPod to the Dock
Connector to USB Cable again.
z Vehicles without smart entry and
start system—
If the system does not function
properly, disconnect your iPod
from the Dock Connector to USB
Cable then turn the engine switch
off. Turn the iPod off then back
on. Turn the engine switch back
to the ACC or ON position and
then connect the iPod to the Dock
Connector to USB Cable again.
z You cannot operate the iPod
Equalizer on products. We rec-
ommend that you set the iPod
Equalizer to off, before connect-
ing the iPod to this unit.

AUDIO/VIDEO SYSTEM
252
V573_E
z Selecting a desired music file




“ S ” or “T” button of
“TRACK/TUNE” /“►►
I” or “I◄◄ ”: These
buttons are used for direct access to a
desired audio track. Push the “S ” or
“ T ” button of “TRACK/TUNE” or touch
“ ►►
I” or “I◄◄ ” until the desired track
number appears on the screen. When
operation of the button or the screen is
complete, the player will start playing the
selected track from the beginning.
Fast forward: Push and hold the “S ”
button of “TRACK/TUNE” or continue
touching “ ►►
I” to fast forward the player.
When you release the button, the player
will resume playing from that position.
Reverse: Push and hold the “T ” button
of “TRACK/TUNE” or continue touching
“
I◄◄ ” to reverse the player. When you
release the button, the player will resume
playing.

“TRACK LIST”: When “TRACK LIST”
is touched, the list of files in which the
music files currently being played back is
displayed. The music file currently being
played back displays at the top.
Touch a music file to play back the se-
lected file.

AUDIO/VIDEO SYSTEM
253
V573_E

z Searching for the desired music
file from the Music menu
The desired music file can be searched
for by displaying the track play list from
the Music menu.

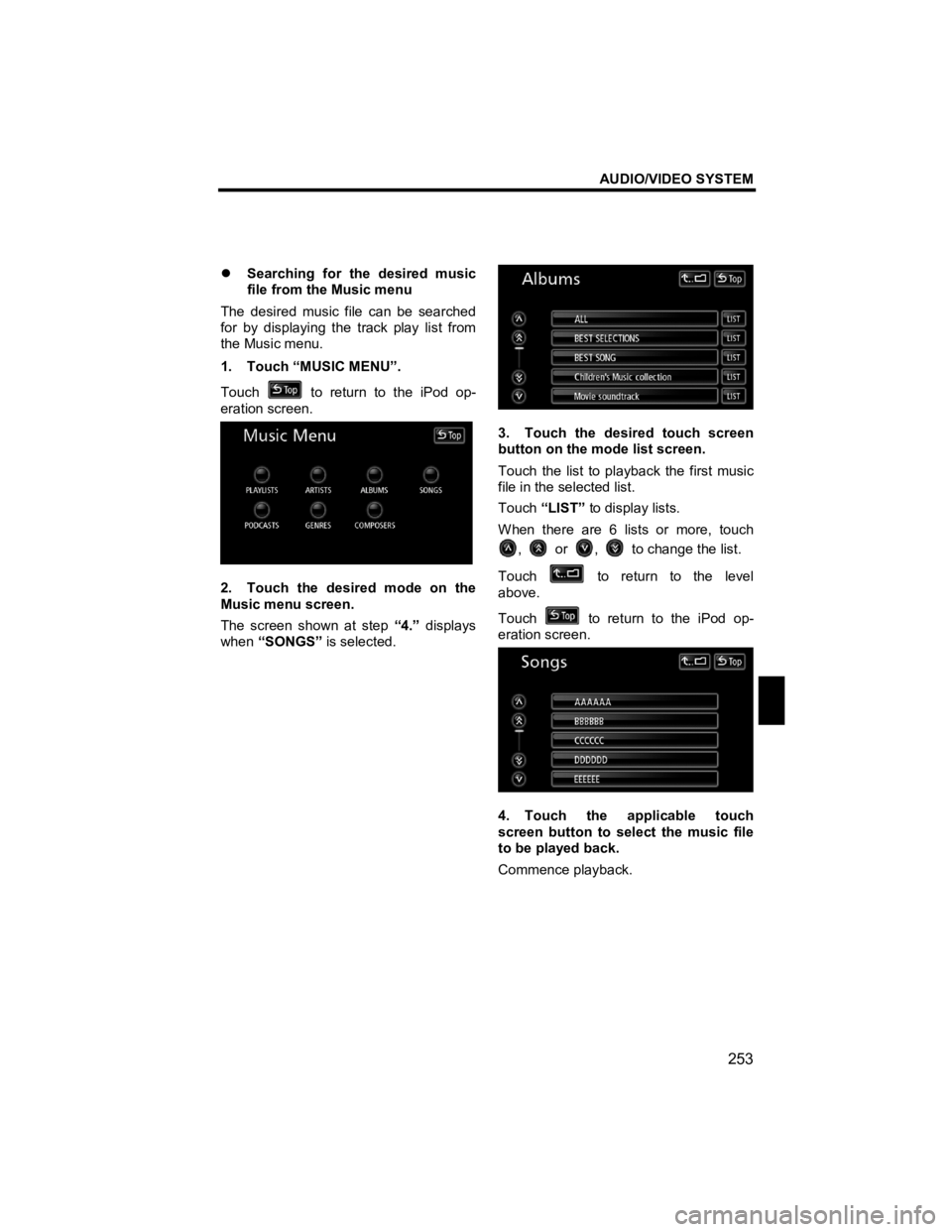

1. Touch “MUSIC MENU”.
Touch
to return to the iPod op-
eration screen.

2. Touch the desired mode on the
Music menu screen.
The screen shown at step “4.” displays
when “SONGS” is selected.


3. Touch the desired touch screen
button on the mode list screen.
Touch the list to playback the first music
file in the selected list.
Touch “LIST” to display lists.
When there are 6 lists or more, touch
, or , to change the list.
Touch
to return to the level
above.
Touch
to return to the iPod op-
eration screen.

4. Touch the applicable touch
screen button to select the music file
to be played back.
Commence playback.

AUDIO/VIDEO SYSTEM
254
V573_E
z Searching for the desired music
files from play mode
Played back music files can be changed
in various individual modes.

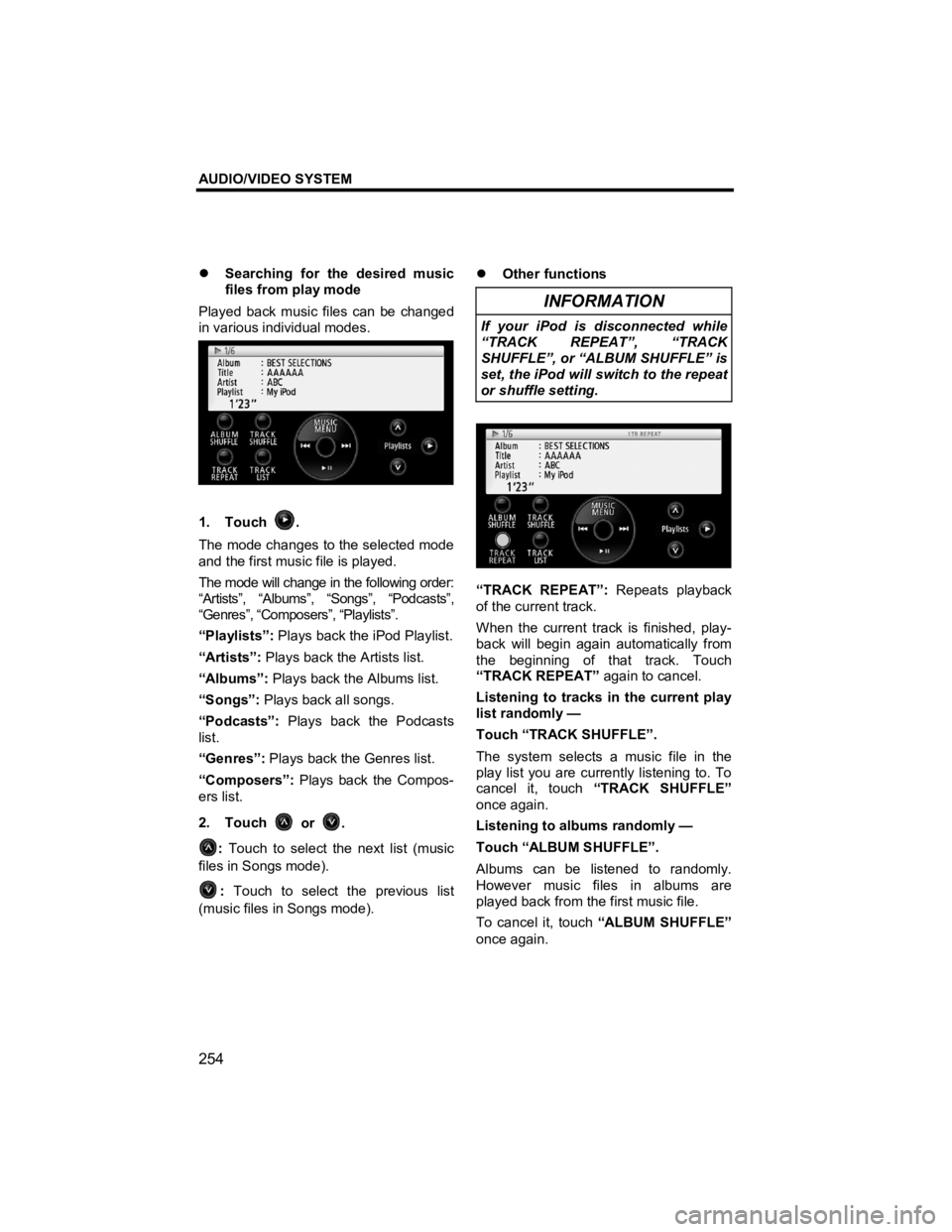

1. Touch .
The mode changes to the selected mode
and the first music file is played.
The mode will change in the following order:
“Artists”, “Albums”, “Songs”, “Podcasts”,
“Genres”, “Composers”, “Playlists”.
“Playlists”: Plays back the iPod Playlist.
“Artists”: Plays back the Artists list.
“Albums”: Plays back the Albums list.
“Songs”: Plays back all songs.
“Podcasts”: Plays back the Podcasts
list.
“Genres”: Plays back the Genres list.
“Composers”: Plays back the Compos-
ers list.
2. Touch
or .
: Touch to select the next list (music
files in Songs mode).
: Touch to select the previous list
(music files in Songs mode).

z
Other functions
INFORMATION
If your iPod is disconnected while
“TRACK REPEAT”, “TRACK
SHUFFLE”, or “ALBUM SHUFFLE” is
set, the iPod will switch to the repeat
or shuffle setting.


“TRACK REPEAT”: Repeats playback
of the current track.
When the current track is finished, play-
back will begin again automatically from
the beginning of that track. Touch
“TRACK REPEAT” again to cancel.
Listening to tracks in the current play
list randomly —
Touch “TRACK SHUFFLE”.
The system selects a music file in the
play list you are currently listening to. To
cancel it, touch “TRACK SHUFFLE”
once again.
Listening to albums randomly —
Touch “ALBUM SHUFFLE”.
Albums can be listened to randomly.
However music files in albums are
played back from the first music file.
To cancel it, touch “ALBUM SHUFFLE”
once again.

AUDIO/VIDEO SYSTEM
255
V573_E

z Supported iPods
The table below shows the tested iPods and iPhones. Depending on its condition,
the iPod or iPhone may not operate properly.
Model Software versioniTunes tagging compatibility
iPod 5th generation 1.3 –
iPod classic 1.1.2 c
iPod classic (2008) 2.0.1 c
iPod classic (2009) 2.0.4 c
iPod nano 1st generation 1.3.1 –
iPod nano 2nd generation 1.1.3 –
iPod nano 3rd generation 1.1.3 c
iPod nano 4th generation 1.0.4 c
iPod nano 5th generation 1.0.2 c
iPod touch 1st generation (Ser.1.0) 1.1.5 –
iPod touch 1st generation (Ser.2.0) 2.2.1 c
iPod touch 1st generation (Ser.3.0) 3.1.3 c
iPod touch 2nd generation 3.1.2 c
iPod touch 2nd generation (2009) 3.1.3 c
iPhone 3.1.3 c
iPhone 3G 3.1.3 c
iPhone 3GS 3.1.3 c
c: Compatible –: Incompatible
INFORMATION
z iPod is a trademark of Apple Inc., regist ered in the U.S. and other countries.
z iPhone is a trademark of Apple Inc.
z The use of iPods is authorized for the copying and playback of
non −copyrighted material or material for which legal copying and playback
is authorized for personal use by individuals. Copyright infringements are
prohibited by law.
z “Made for iPod” means that an electronic accessory
has been designed to connect specifically to iPod and
has been certified by the developer to meet Apple per-
formance standards.
z “Works with iPhone” means that an electronic acces-
sory
has been designed to connect specifically to
iPhone and has been certified by the developer to meet
Apple performance standards.
z Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards.

AUDIO/VIDEO SYSTEM
256
V573_E



To play a video from a commercially
available Video device, connect the de-
vice to the Video cable’s RCA terminals.
Using an Apple Composite AV Cable
allows iPod video to be played. For
safety reasons, videos can be played
only when the ignition is switched to ON
or ACC and the vehicle is completely
stopped with the parking brake set. (If
the Video mode is activated while the
vehicle is in motion, only the audio will
be played. If the commercially available
Rear Seat LCD Monitor is connected, the
video is shown on the Rear Seat LCD
Monitor only.)

INFORMATION
Do not connect the USB connector
of the Apple Composite AV Cable to
the USB port when the RCA termi-
nals are connected.
z

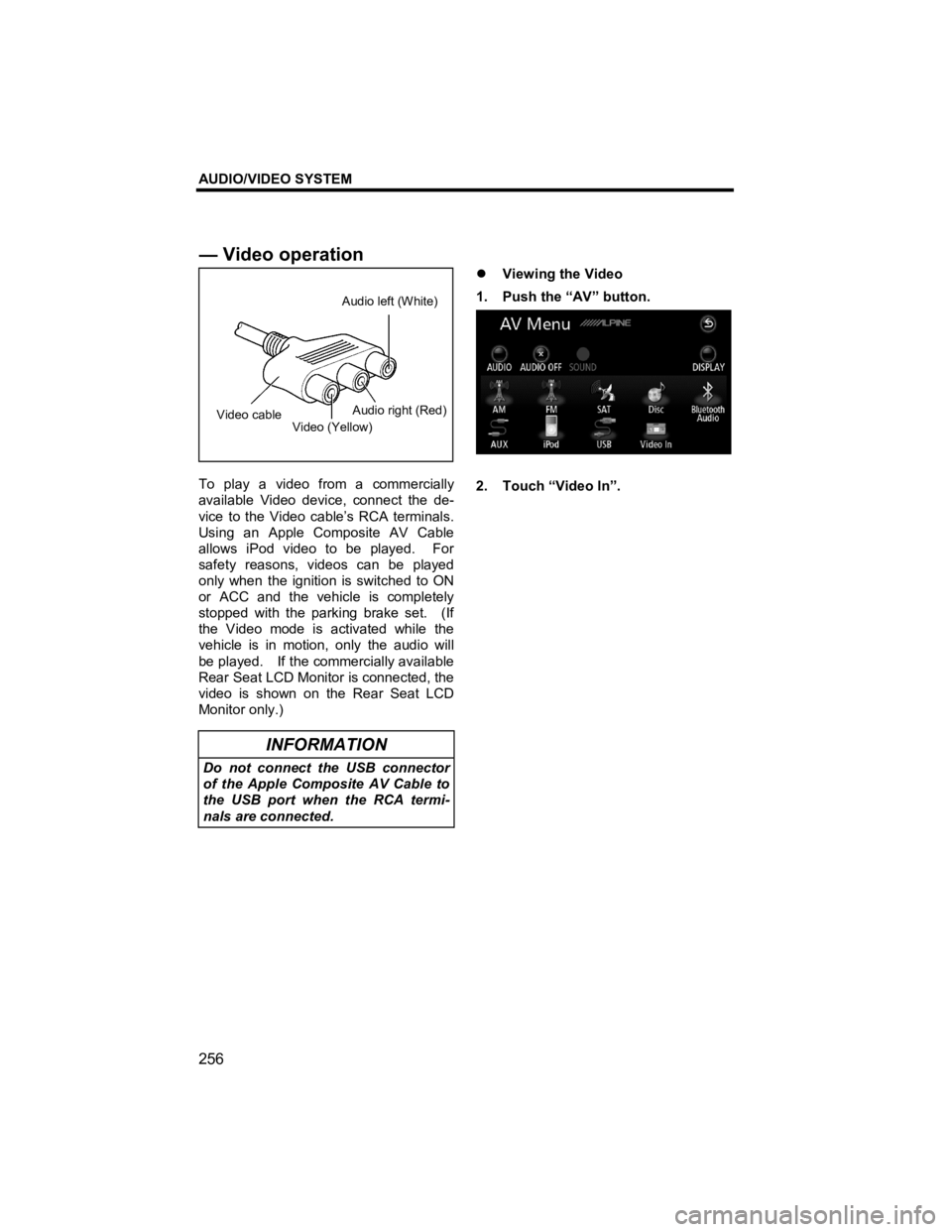

Viewing the Video
1. Push the “AV” button.

2. Touch “Video In”.



— Video o
peration
Video cable Video (Yellow) Audio left (White)Audio right (Red)

AUDIO/VIDEO SYSTEM
257
V573_E

z Selecting screen size

1. Touch “Wide”.

2. Touch “Normal”, “Wide1”, or
“Wide2”.
“Normal”: Displays the 3 (H) × 4 (W)
screen with the remaining area at both
edges in black.
“Wide1”: Displays the 3 (H) × 4 (W)
screen with the screen widened left and
right in the same ratio to fill the display
horizontally.
“Wide2”: Displays the 3 (H) × 4 (W)
screen with the screen stretched verti-
cally and horizontally in the same ratio to
fill the display.
Change to this mode to display a 9 (H) ×
16 (W) screen.
When you touch
, the previous
screen returns.
z Showing the short menu
Touch the display to show the short
menu.
z Hiding the short menu
Touch “OK” to hide the short menu.

Some parts of the audio/video system
can be adjusted with the switches on the
steering wheel.
Depending on the model or grade,
steering wheel switches may not be
available.
Details of the specific switches, controls,
and features are described below.
Volume control switches
“” “” switches
“MODE” switch
Audio/video remote
controls —
—Steering switches

AUDIO/VIDEO SYSTEM
258
V573_E
Volume control switch
Push “+” side to increase the volume.
The volume continues to increase while
the switch is being pressed.
Push “– ” side to decrease the volume.
The volume continues to decrease while
the switch is being pressed.
“” “” switches
Radio
To select a preset station:
Quickly push and release the “
” or
“
” switch. Do this again to select the
next preset station.
To seek a station:
Push and hold the “
” or “” switch
until you hear a beep. Do this again to
find the next station. If you push either
the “
” or “” switch in seek mode,
the seek mode will cancel.
CD/DVD player, Bluetooth
® audio,
USB player and iPod player
Use this switch to skip up or down to a
different track, file or chapter in either
direction.
To select a desired track, file or chapter:
Quickly push and release the “
” or
“
” switch until the track, file or chapter
you want to play is set. If you want to
return to the beginning of the current
track, file or chapter, push the “
”
switch once, quickly.
MP3/WMA disc, USB memory device,
Bluetooth
® audio and iPod
To select a desired folder, album, or mode:
Push and hold the “
” or “” switch until
you hear a beep. Repeat this until the
folder, album, or mode you want to listen to
is set.
DVD player
To fast-forward or reverse:
Push and hold the “
” or “” switch
until after you hear a beep.
When the switch is released, the DVD
player will resume normal playback.
“MODE” switch
Each time you push the “MODE” switch,
the system changed the audio mode.
To turn the audio/video system on, push
the “MODE” switch.
To turn the audio/video system off, push
and hold the “MODE” switch until you
hear a beep.

AUDIO/VIDEO SYSTEM
259
V573_E


NOTICE
To ensure correct audio/video sys-
tem operations:
z Be careful not to spill beverages
over the audio/video system.
z Do not put anything other than an
appropriate disc into the CD/DVD
player slot.
z The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the
audio/video system which you are
listening to. However, this does
not indicate a malfunction.
Radio reception
Usually, the problem with radio reception
does not mean there is a problem with
your radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or telephone wires can in-
terfere with AM signals. And of course,
radio signals have a limited range, and
the farther you are from a station, the
weaker its signal will be. In addition,
reception conditions change constantly
as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a
problem with your radio: FM
Fading and drifting stations
— Gener-
ally, the effective range of FM is about
25 miles (40 km). Once outside this
range, you may notice fading and drifting,
which increase with the distance from
the radio transmitter. They are often
accompanied by distortion.
Multi-path — FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel
each other out, causing a momentary
flutter or loss of reception.
Static and fluttering — These occur
when signals are blocked by buildings,
trees, or other large objects. Increasing
the bass level may reduce static and
fluttering.
AM
Fading — AM broadcasts are reflected
by the upper atmosphere — especially at
night. These reflected signals can in-
terfere with those received directly from
the radio station, causing the radio sta-
tion to sound alternately strong and
weak.
Station interference — When a re-
flected signal and a signal received di-
rectly from a radio station are very nearly
the same frequency, they can interfere
with each other, making it difficult to hear
the broadcast.
Static — AM is easily affected by exter-
nal sources of electrical noise, such as
high tension power lines, lightening, or
electrical motors. This results in static.

Audio/video system
o
perating hints
