11
11

If you press
this button
down for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function).
If you release
the button
during
operations
of the non-
stop SEEK
function, this
will change
to the SEEK
function. The
PT Y selection
function is
cancelled
when the non-
stop SEEK
function is in
effect.
XM
Satellite
Radio
broadcast
Switches
over to
the next
preset
channel.
If you remove
your hand from
the button
for less than
1.5 seconds,
T YPE SEEK is
initiated.
When
the SEEK
function is
in effect,
channels
that are
being
tuned
in can
continue
to be
listened
to.
If you press
down on this
button for 1.5
seconds or
longer, the
SEEK function
continues
to be active
during the time
the button is
pressed down.
When you
release your
hand from the
button, you
will continue
to receive the
channel that
was tuned in.
AUXNothing
happens.
Nothing
happens.
A / VNothing
happens.
Nothing
happens.

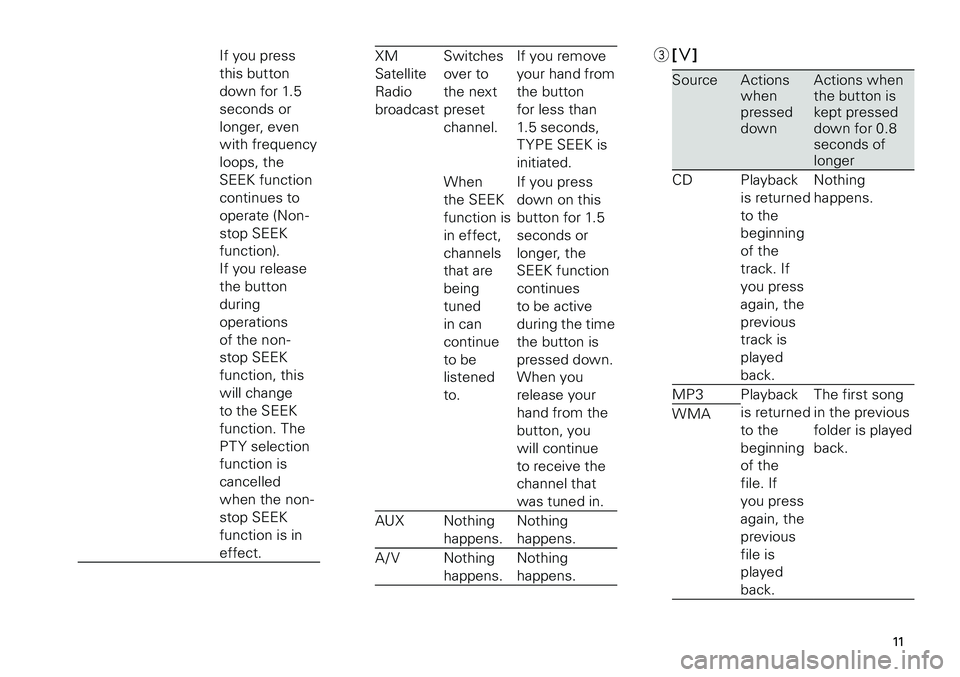

3 [∨]
SourceActions when pressed down
Actions when the button is kept pressed down for 0.8 seconds of longer
CDPlayback
is returned
to the
beginning
of the
track. If
you press
again, the
previous
track is
played
back.
Nothing
happens.
MP3Playback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.
The first song
in the previous
folder is played
back.
WMA

1
1

USBPlayback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.
The first song
in the previous
folder is played
back.
iPodPlayback
is returned
to the
beginning
of the
file. If
you press
again, the
previous
file is
played
back.
Nothing
happens.
PandoraThe
previous
station is
tuned in.
Nothing
happens.
Bluetooth
audio
Playback
is returned
to the
beginning
of the
track. If
you press
again, the
previous
track is
played
back.
The first song
of the previous
album is
played back.
AMPlayback
is
switched
over to the
previous
preset
channel.
If you remove
your hand from
the button for
less than 1.5
seconds and
a station is
detected, it is
tuned in.
HD Radio
broadcast
If you press
down on this
button for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function). If
you release
the button
during
operations of
the non-stop
SEEK function,
this will
change to the
SEEK function.

13
13

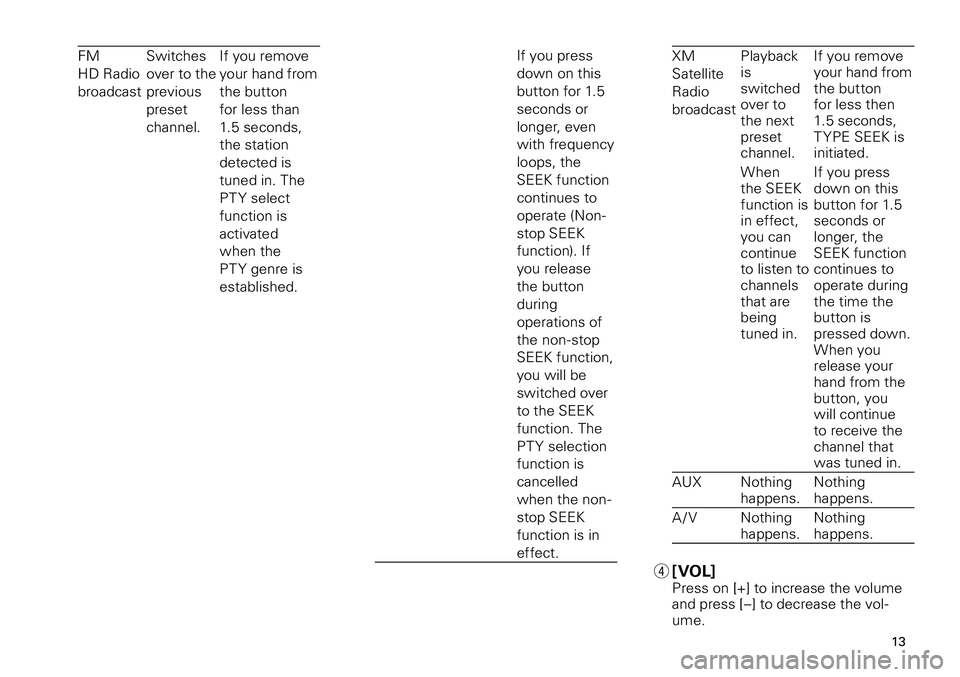

FM
HD Radio
broadcast
Switches
over to the
previous
preset
channel.
If you remove
your hand from
the button
for less than
1.5 seconds,
the station
detected is
tuned in. The
PT Y select
function is
activated
when the
PT Y genre is
established.
If you press
down on this
button for 1.5
seconds or
longer, even
with frequency
loops, the
SEEK function
continues to
operate (Non-
stop SEEK
function). If
you release
the button
during
operations of
the non-stop
SEEK function,
you will be
switched over
to the SEEK
function. The
PT Y selection
function is
cancelled
when the non-
stop SEEK
function is in
effect.
XM
Satellite
Radio
broadcast
Playback is switched over to the next preset channel.
If you remove your hand from the button for less then 1.5 seconds, T YPE SEEK is initiated.
When the SEEK function is in effect, you can continue to listen to channels that are being tuned in.
If you press down on this button for 1.5 seconds or longer, the SEEK function continues to operate during the time the button is pressed down. When you release your hand from the button, you will continue to receive the channel that was tuned in.
AUXNothing happens.Nothing happens.
A / VNothing happens.Nothing happens.
4 [VOL]Press on [+] to increase the volume and press [–] to decrease the vol-ume.

14
14

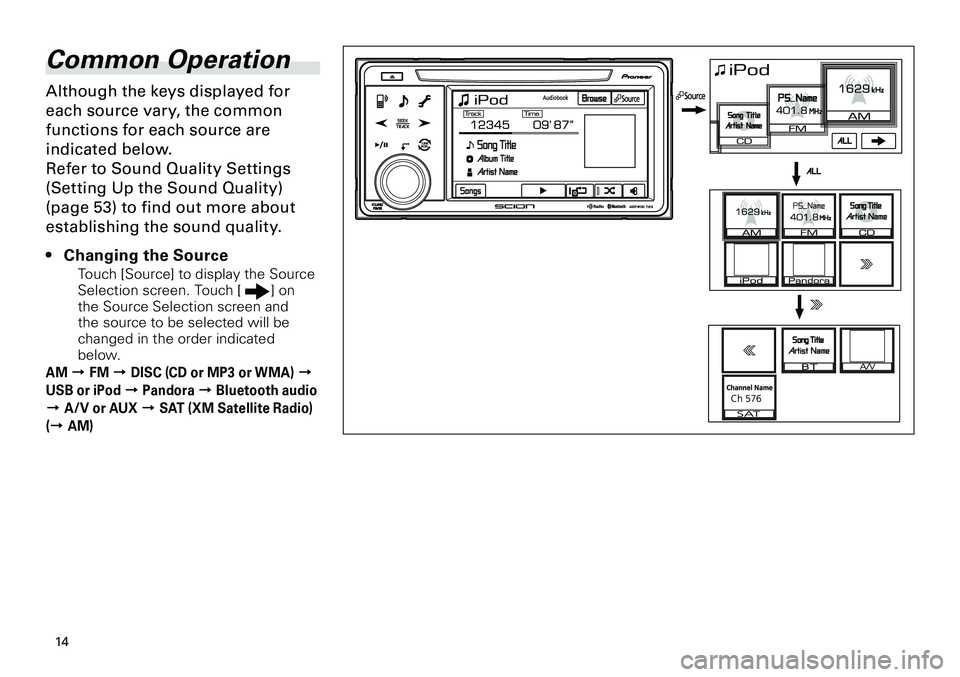

Common Operation
Although the keys displayed for
each source vary, the common
functions for each source are
indicated below.
Refer to Sound Quality Settings
(Setting Up the Sound Quality)
(page 53) to find out more about
establishing the sound quality.
Changing the Source
Touch [Source] to display the Source Selection screen. Touch [] on the Source Selection screen and the source to be selected will be changed in the order indicated below.
AM d FM d DISC (CD or MP3 or WMA) d
USB or iPod d Pandora d Bluetooth audio
d A/V or AUX d SAT (XM Satellite Radio)
(d AM)
•

15
15

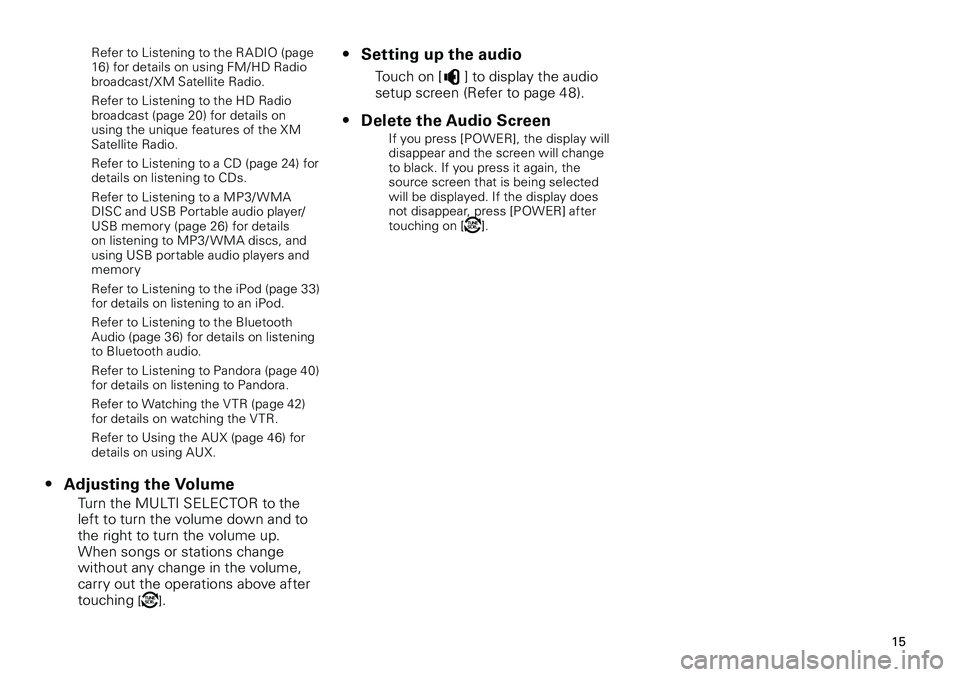

Refer to Listening to the RADIO (page 16) for details on using FM/HD Radio broadcast / XM Satellite Radio.
Refer to Listening to the HD Radio broadcast (page 20) for details on using the unique features of the XM Satellite Radio.
Refer to Listening to a CD (page 24) for details on listening to CDs.
Refer to Listening to a MP3/ WMA DISC and USB Portable audio player/USB memory (page 26) for details on listening to MP3/ WMA discs, and using USB portable audio players and memory
Refer to Listening to the iPod (page 33) for details on listening to an iPod.
Refer to Listening to the Bluetooth Audio (page 36) for details on listening to Bluetooth audio.
Refer to Listening to Pandora (page 40) for details on listening to Pandora.
Refer to Watching the V TR (page 42) for details on watching the V TR.
Refer to Using the AUX (page 46) for details on using AUX.
Adjusting the Volume
Turn the MULTI SELECTOR to the left to turn the volume down and to the right to turn the volume up. When songs or stations change without any change in the volume, carry out the operations above after touching [].
•
Setting up the audio
Touch on [] to display the audio setup screen (Refer to page 48).
Delete the Audio Screen
If you press [POWER], the display will disappear and the screen will change to black. If you press it again, the source screen that is being selected will be displayed. If the display does not disappear, press [POWER] after touching on [].
•
•

16
16

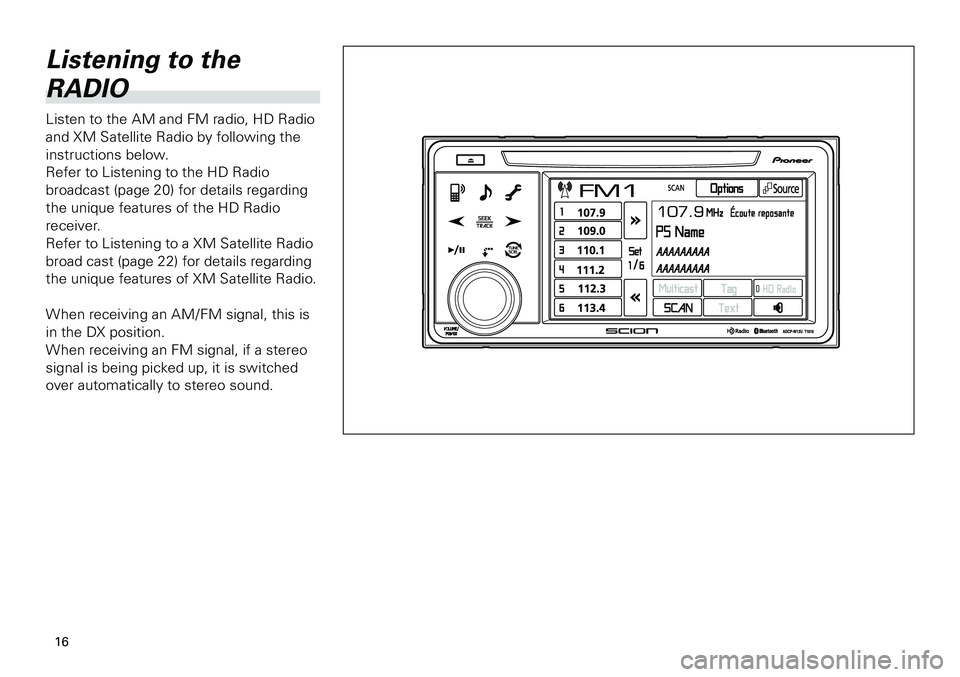

Listening to the
RADIO
Listen to the AM and FM radio, HD Radio
and XM Satellite Radio by following the
instructions below.
Refer to Listening to the HD Radio
broadcast (page 20) for details regarding
the unique features of the HD Radio
receiver.
Refer to Listening to a XM Satellite Radio
broad cast (page 22) for details regarding
the unique features of XM Satellite Radio.
When receiving an AM/FM signal, this is
in the DX position.
When receiving an FM signal, if a stereo
signal is being picked up, it is switched
over automatically to stereo sound.

17
17

Changing the Frequency
Manually
Touch [] and then, after chang-ing the MULTI SELECTOR to TUNE mode, turn the MULTI SELECTOR to the right to increase the frequency and to the left to decrease the fre-quency.• If the volume fluctuates, touch [] to change to the TUNE mode, where you can change the frequency.
Searching for Frequencies That
Can Be Tuned In
Touch either [] or [] to search in either ascending or descending order for stations that can be tuned in. When a station is detected, that station will be tuned in. If you press down on either of these for 1.5 seconds or longer, even with frequency loops, the SEEK function continues to operate (Non-stop SEEK function). If you release either during operations of the Non-Stop SEEK function, the SEEK function will take over.For FM, the PT Y select function is activated when the PT Y genre is established. However, when the Non-Stop SEEK function is active, the PT Y selection function is can-
celled.
•
•
Listening to Preset Channels
Touch [Presets] to display the Preset screen. Touch on any channel from 1 to 6 on the Preset screen. Frequencies recorded on the preset channel will be tuned in. Touch [>>] to switch the display to the next preset page, and [<<] to switch the display to the previous preset page.
The pages change in the order of AM d FM1 d FM2 d SAT1 d SAT2 d SAT3 (d Return to AM). (SAT is only displayed when the SAT unit is con-nected.)
Recording the current frequency
on the preset channel
Touch any channel from 1 to 6 on the Preset screen, continuing to touch the channel for 1.7 seconds or longer.
NOTICE
You can store up to 6 stations
per band.
Temporarily Muting the Sound
Touch [] to temporarily mute the sound. Touch [] to resume audio output.
•
•
•
Searching for Frequencies That
Can be Tuned In (Only for FM/
HD Radio / XM Satellite Radio)
Touch [SCAN] to search for frequen-cies that can be tuned in. Audio output will be produced in 5 -second snippets for stations that have been located. If you touch on [SCAN] again during the time of the audio output from the station you want to listen to, that station will be tuned in. When setting the PT Y genre, audio from stations applicable to the PT Y genre that has been set up is output continuously in 5 -second snippets. If you again touch [SCAN], the broad-cast being output will continue to be tuned in and you will be able to select a PT Y genre. If you loop the search for stations without touching [SCAN], a beeping sound will be emitted and the last radio station to be picked up will be tuned in and then you will be able to select a PT Y genre (Only for XM Satellite Radio). Audio broadcasts cor-responding to the current categories are continuously output in 5 -second snippets. If you touch [SCAN] again, you will continue to receive the broad-cast being output. If you loop the detection of stations without touching [SCAN], you will hear a beeping sound and the last station to be received will be tuned in.
•

18
18

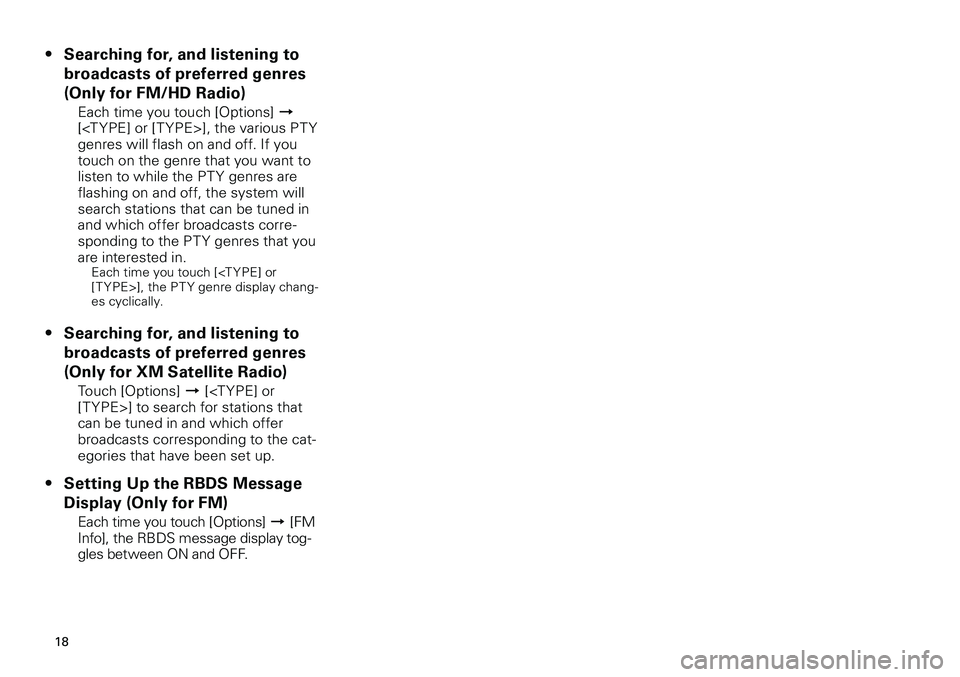

Searching for, and listening to
broadcasts of preferred genres
(Only for FM/HD Radio)
Each time you touch [Options] d [], the various PT Y genres will flash on and off. If you touch on the genre that you want to listen to while the PT Y genres are flashing on and off, the system will search stations that can be tuned in and which offer broadcasts corre-sponding to the PT Y genres that you are interested in. Each time you touch [], the PT Y genre display chang-es cyclically.
Searching for, and listening to
broadcasts of preferred genres
(Only for XM Satellite Radio)
Touch [Options] d [] to search for stations that can be tuned in and which offer broadcasts corresponding to the cat-
egories that have been set up.
Setting Up the RBDS Message
Display (Only for FM)
Each time you touch [Options] d [FM Info], the RBDS message display tog-gles between ON and OFF.
•
•
•

19
19

0
0

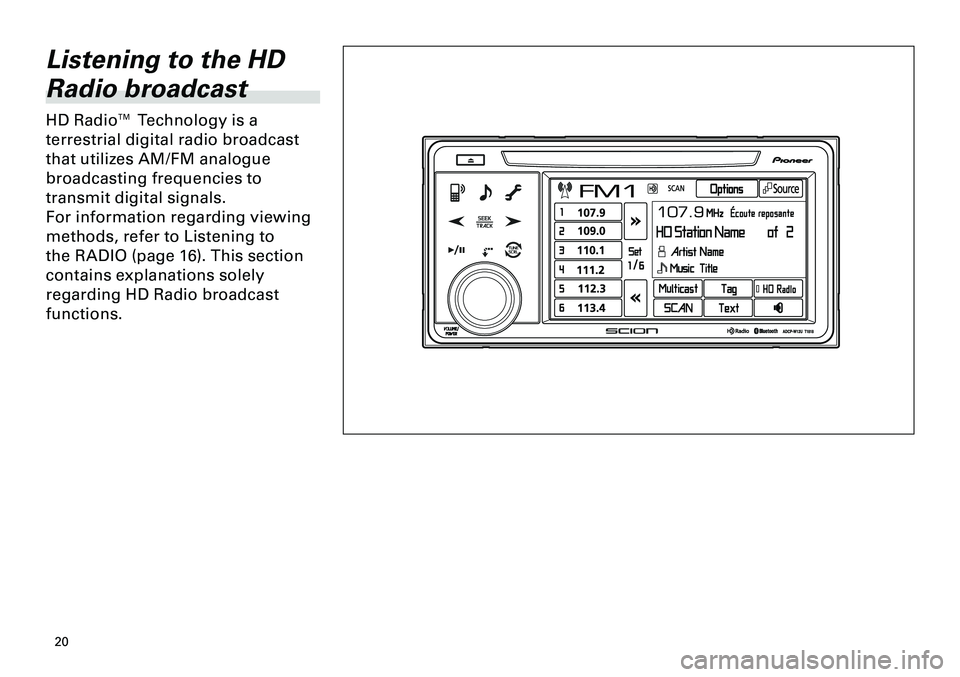

Listening to the HD
Radio broadcast
HD Radio™ Technology is a
terrestrial digital radio broadcast
that utilizes AM/FM analogue
broadcasting frequencies to
transmit digital signals.
For information regarding viewing
methods, refer to Listening to
the RADIO (page 16). This section
contains explanations solely
regarding HD Radio broadcast
functions.
