TOYOTA xB 2012 Owners Manual (in English)

271
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G11U_(U)
■
Parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

272 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G11U_(U)
■Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G11U_(U)
■
Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2

274 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G11U_(U)
■License plate lights
Open the back door and remove
the trim board.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
STEP 1
STEP 2

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G11U_(U)
■
LED light bulbs
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Scion dealer to
have the light replaced.
■ Condensation build-up on th e inside of the lens
Contact your Scion dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

276 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G11U_(U)

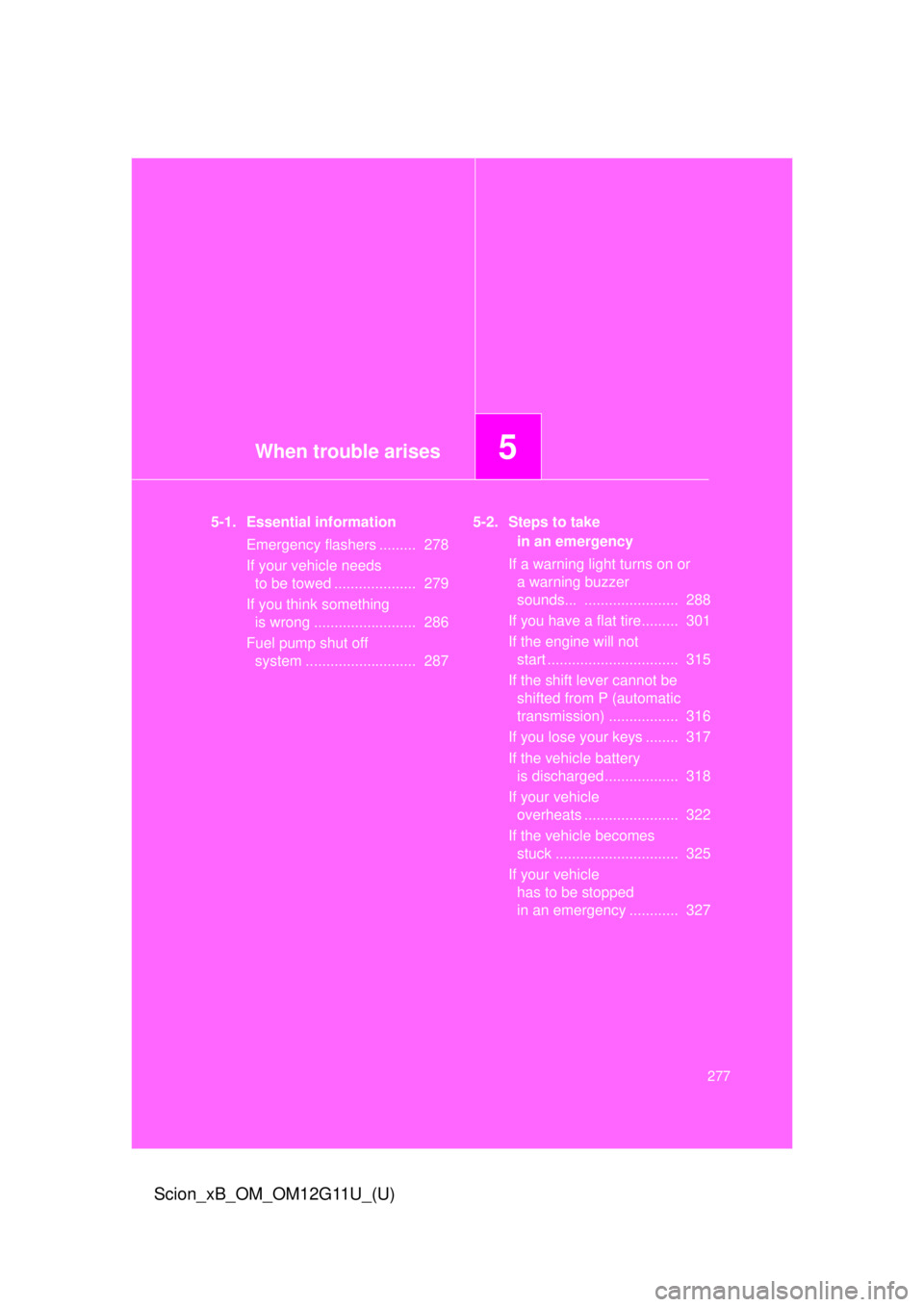

When trouble arises5
277
Scion_xB_OM_OM12G11U_(U)
5-1. Essential informationEmergency flashers ......... 278
If your vehicle needs to be towed .................... 279
If you think something is wrong ......................... 286
Fuel pump shut off system ........................... 287 5-2.
Steps to take
in an emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 288
If you have a flat tire......... 301
If the engine will not start ................................ 315
If the shift lever cannot be shifted from P (automatic
transmission) ................. 316
If you lose your keys ........ 317
If the vehicle battery is discharged .................. 318
If your vehicle overheats ....................... 322
If the vehicle becomes stuck .............................. 325
If your vehicle has to be stopped
in an emergency ............ 327

278
Scion_xB_OM_OM12G11U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
279
5-1. Essential information
Scion_xB_OM_OM12G11U_(U)
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Scion dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Scion dealer or a commercial towing service, using a lift-type
truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.

280 5-1. Essential information
Scion_xB_OM_OM12G11U_(U)
Emergency towingIf a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
For vehicles with an automatic
transmission, only the front tow-
ing eyelet may be used.
