TOYOTA xB 2012 Owners Manual (in English)

5
When trouble arises
301
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

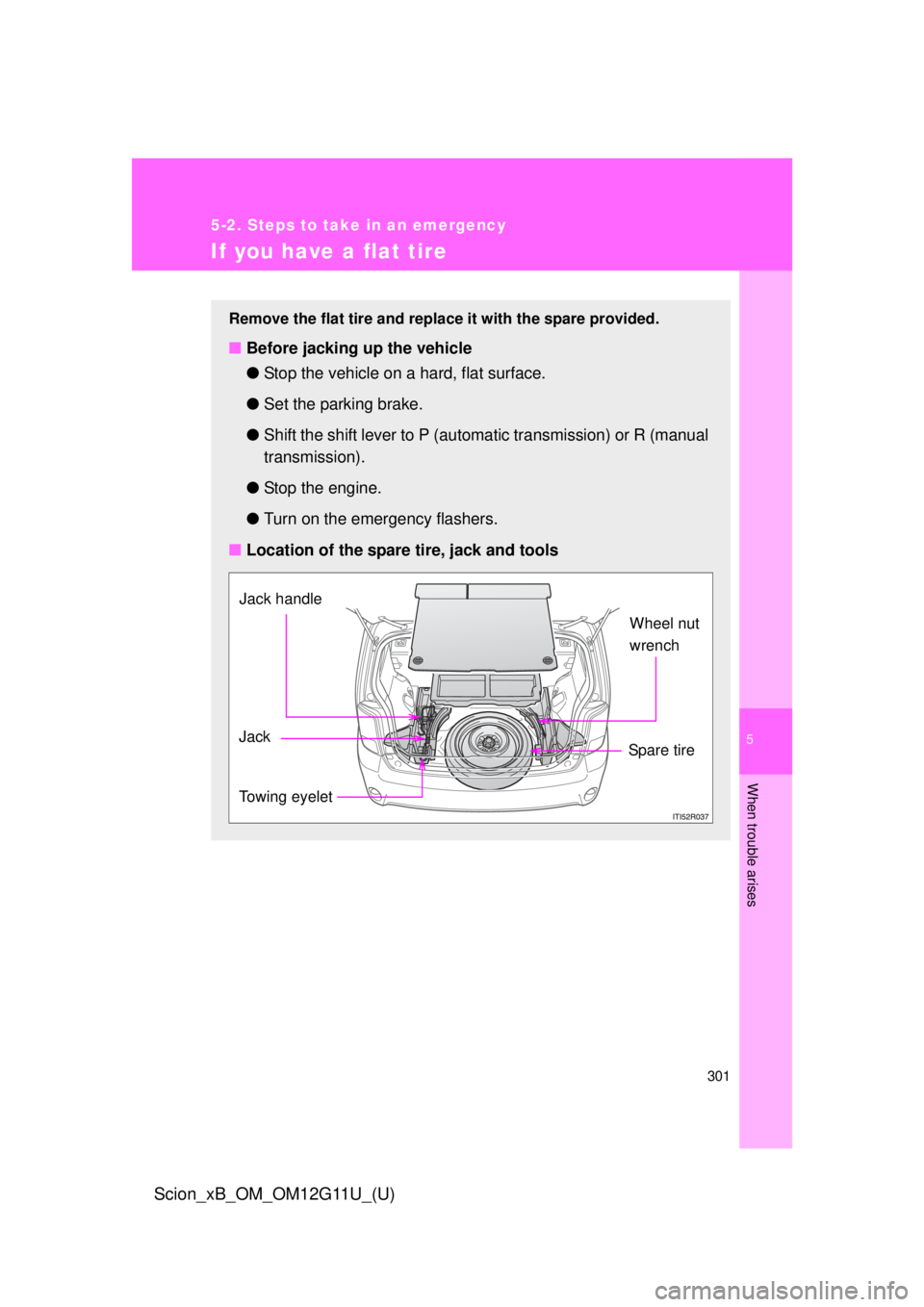

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (automatic transmission) or R (manual
transmission).
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Towing eyelet
Jack Wheel nut
wrench
Jack handle
Spare tire

302 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

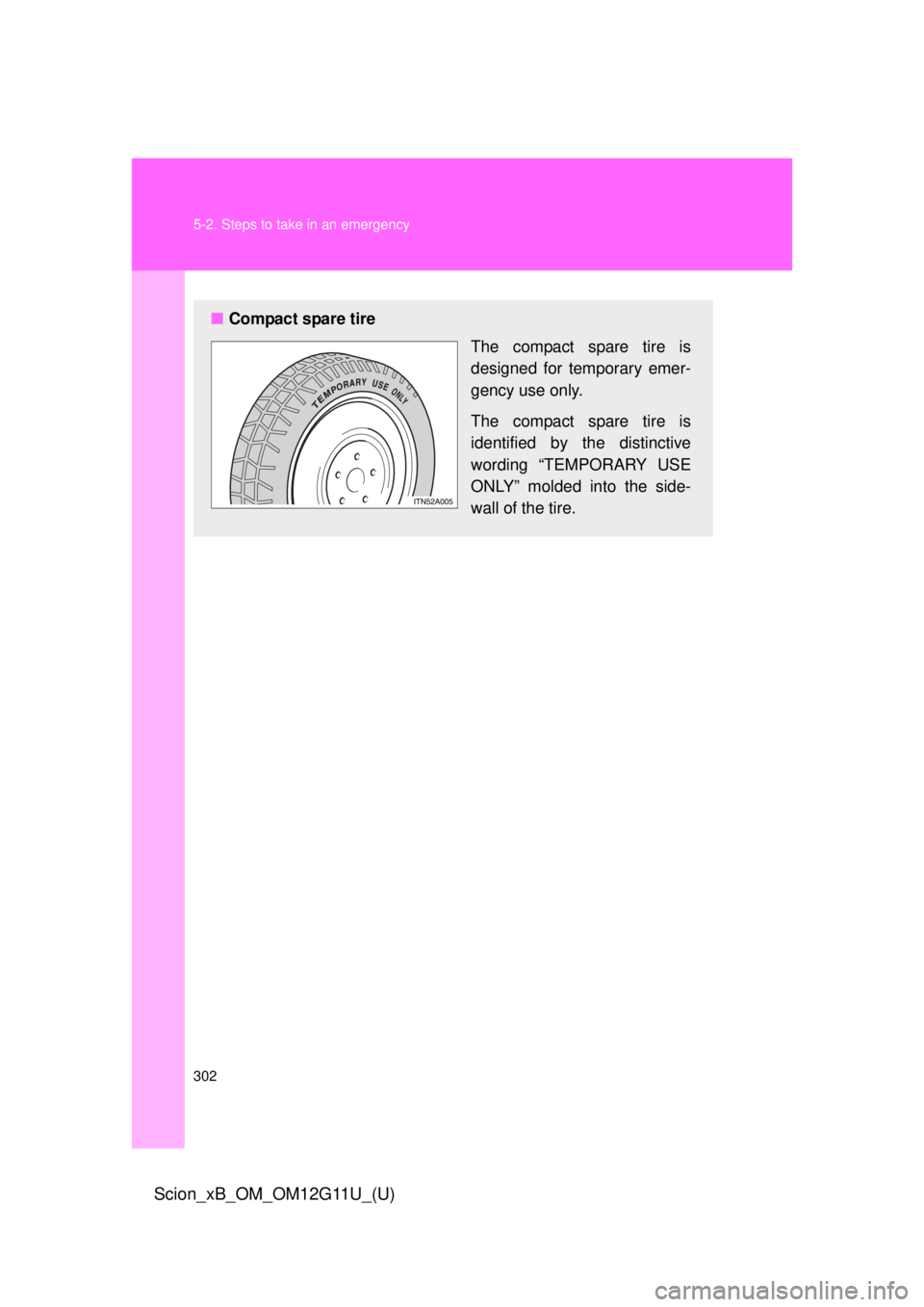

■Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording “TEMPORARY USE
ONLY” molded into the side-
wall of the tire.

5
When trouble arises
303
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

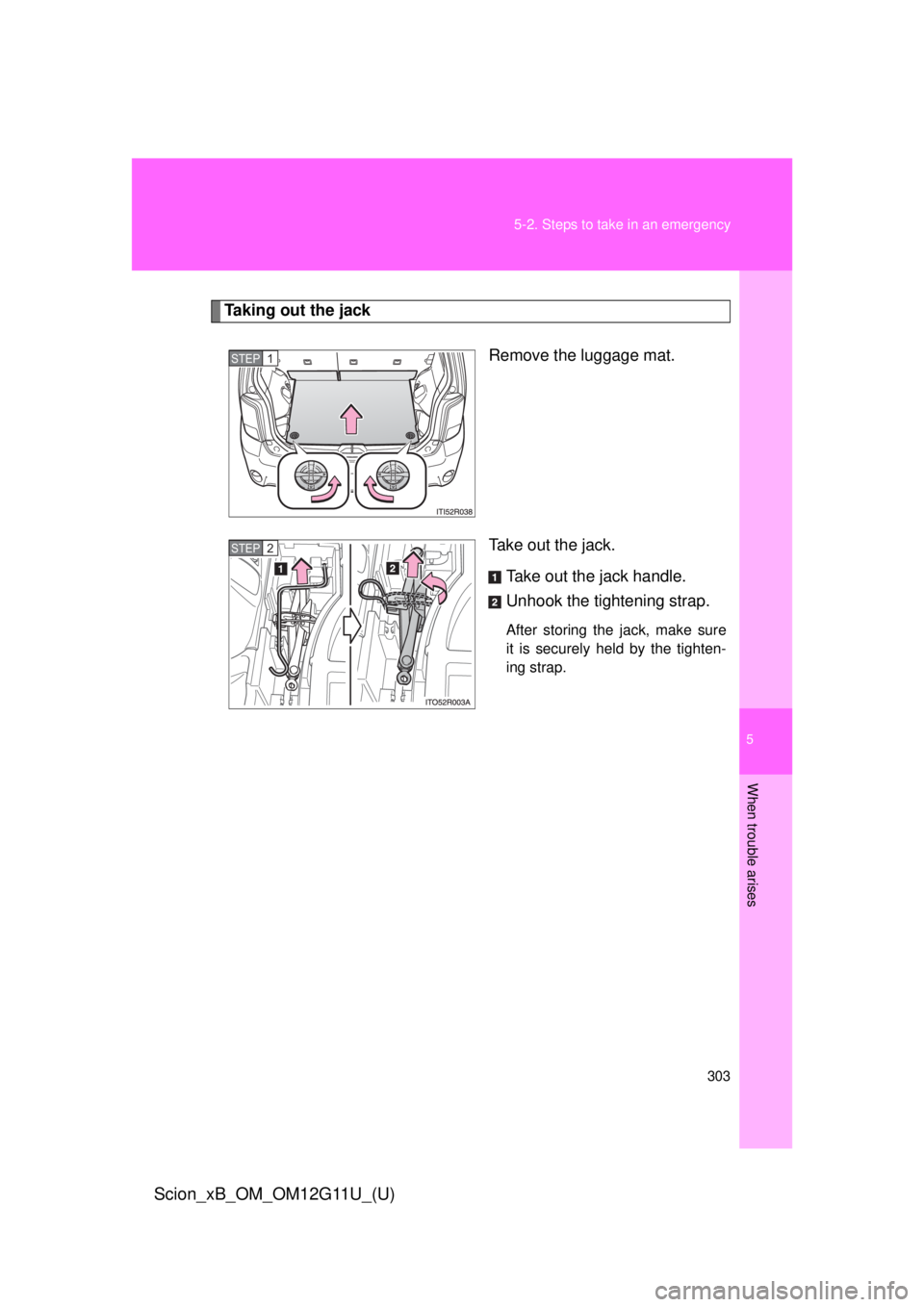

Taking out the jack
Remove the luggage mat.
Take out the jack.Take out the jack handle.
Unhook the tightening strap.
After storing the jack, make sure
it is securely held by the tighten-
ing strap.
STEP 1
STEP 2

304 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)
Taking out the spare tireRemove the luggage mat.
Remove the center auxiliary
boxes.
Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2
STEP 3

5
When trouble arises
305
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

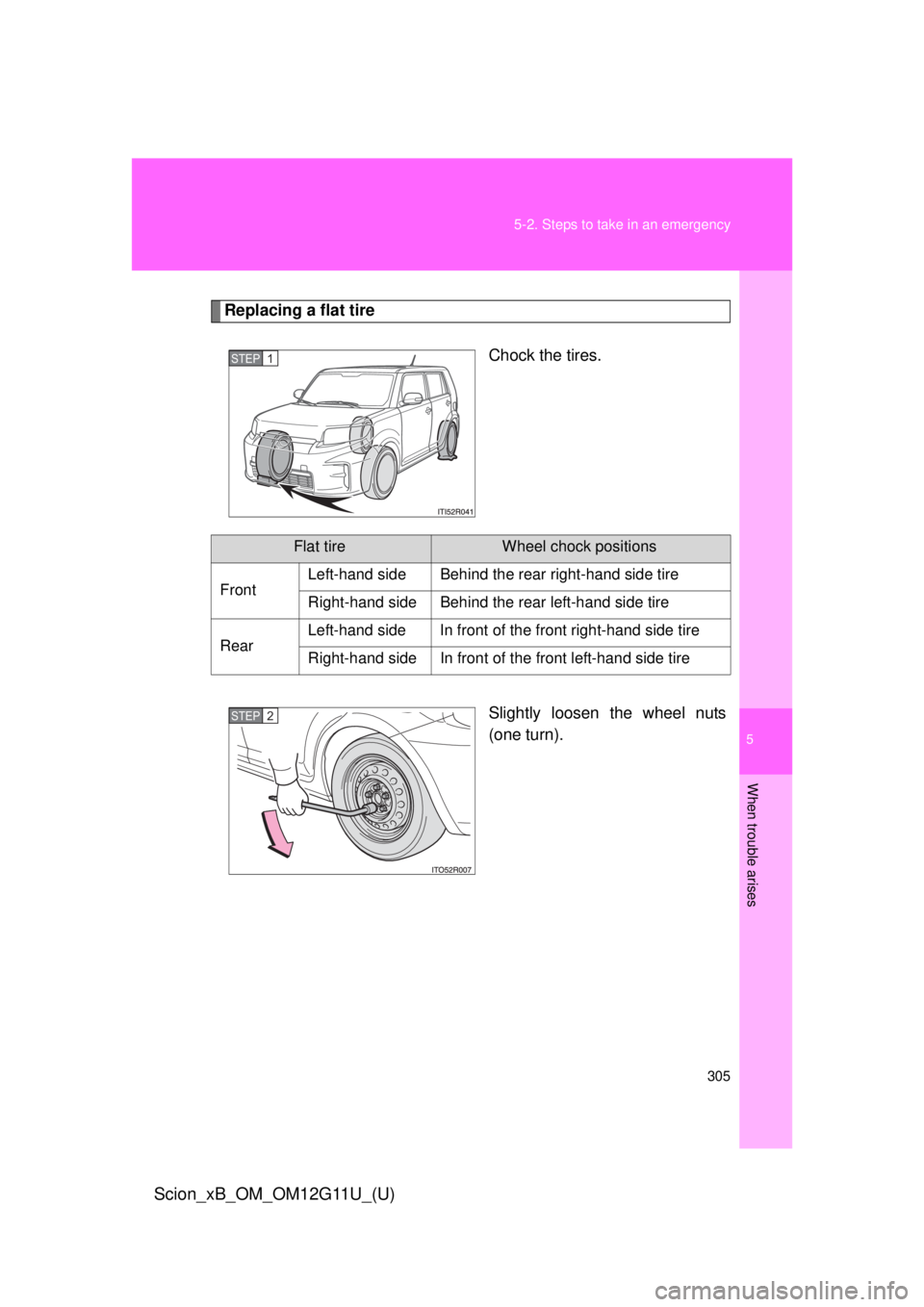

Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Flat tireWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of
the front left-hand side tire
STEP 2

306 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

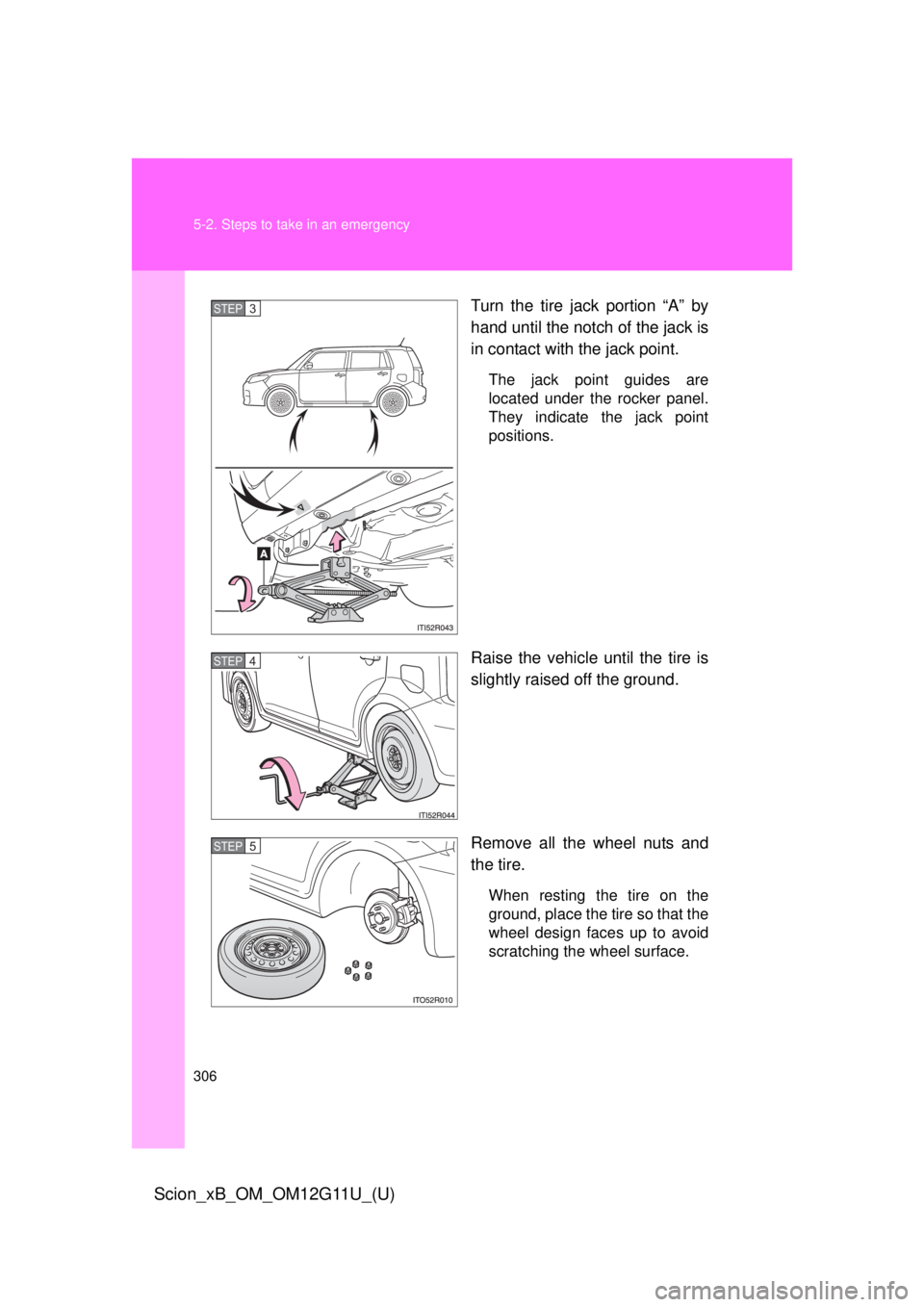

Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack point guides are
located under the rocker panel.
They indicate the jack point
positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 3
STEP 4
STEP 5

5
When trouble arises
307
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

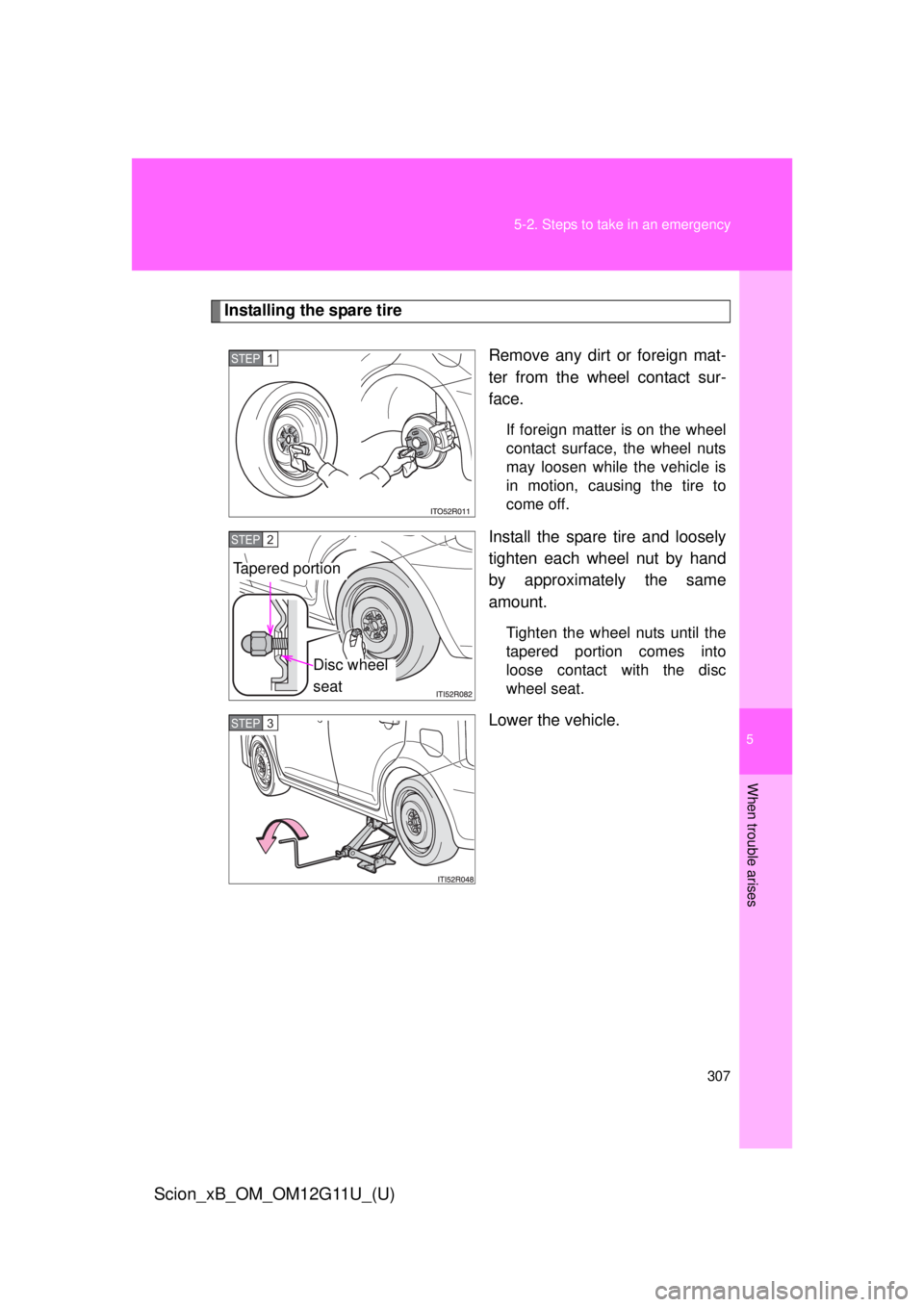

Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, causing the tire to
come off.
Install the spare tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
STEP 1
STEP 2
Tapered portion
Disc wheel
seat
STEP 3

308 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

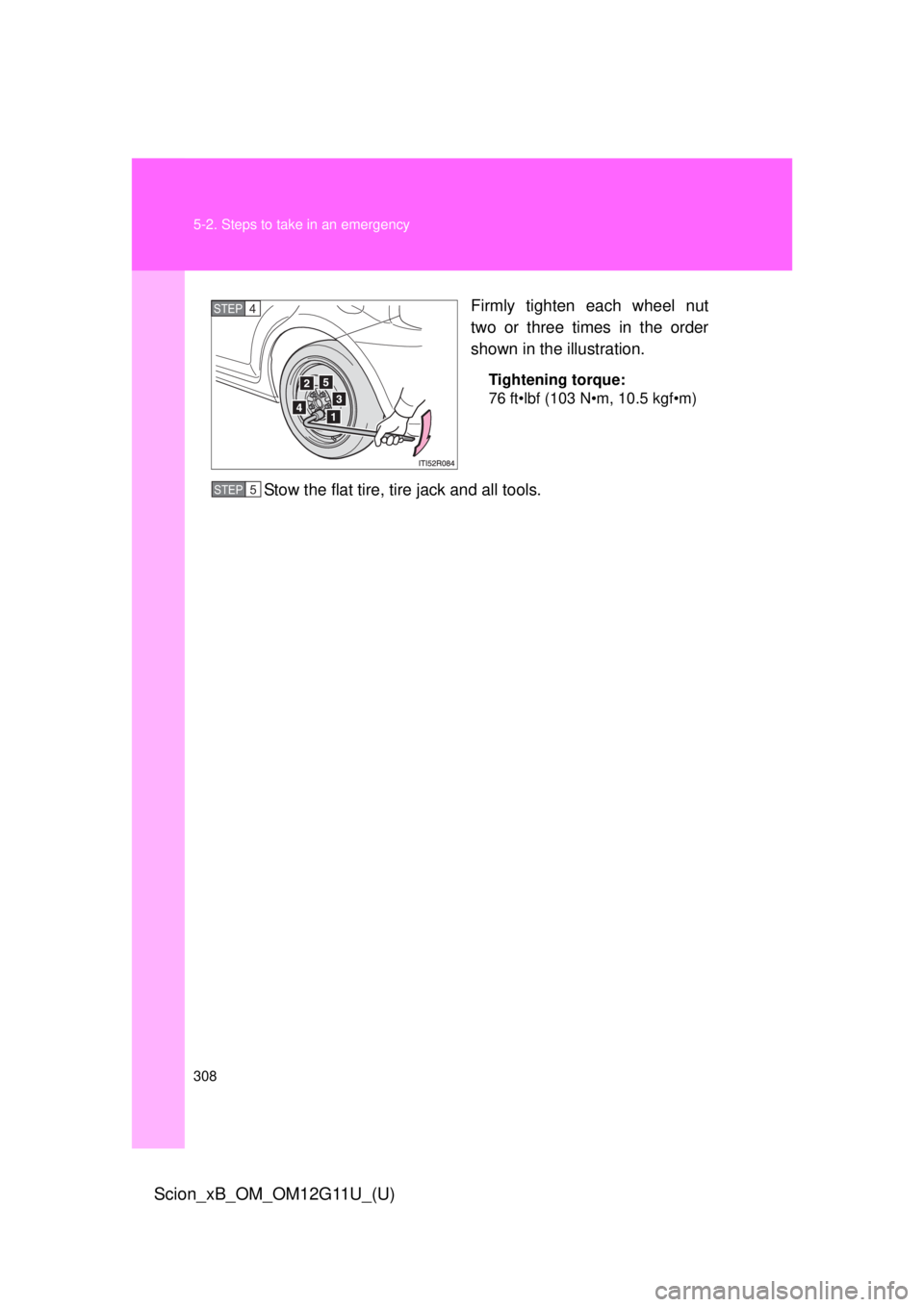

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP 4
STEP 5

5
When trouble arises
309
5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)

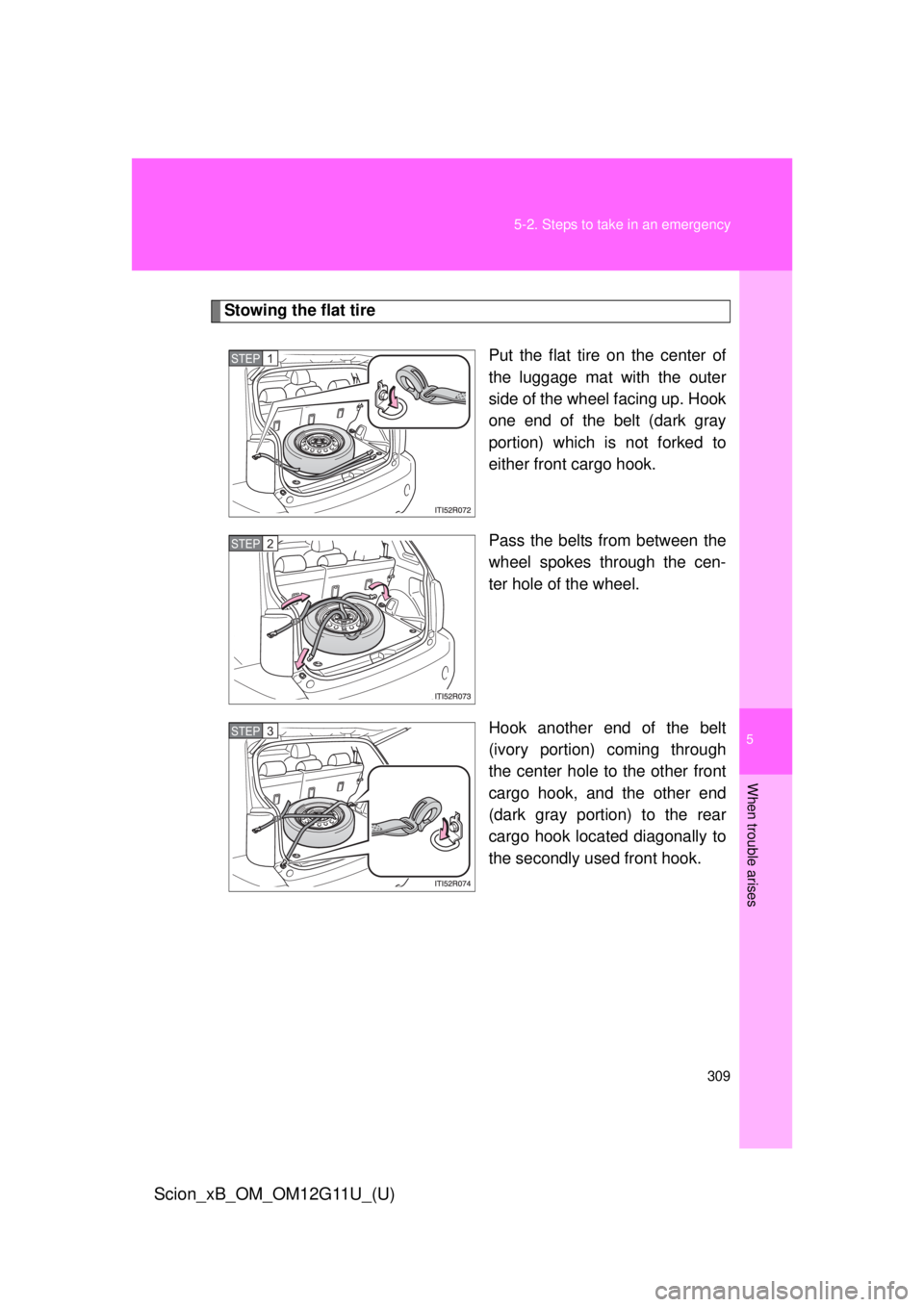

Stowing the flat tire
Put the flat tire on the center of
the luggage mat with the outer
side of the wheel facing up. Hook
one end of the belt (dark gray
portion) which is not forked to
either front cargo hook.
Pass the belts from between the
wheel spokes through the cen-
ter hole of the wheel.
Hook another end of the belt
(ivory portion) coming through
the center hole to the other front
cargo hook, and the other end
(dark gray portion) to the rear
cargo hook located diagonally to
the secondly used front hook.
STEP 1
STEP 2
STEP 3

310 5-2. Steps to take in an emergency
Scion_xB_OM_OM12G11U_(U)
Make sure the flat tire is stowed
securely by tightening the belt
firmly using the adjuster.STEP 4
■The compact spare tire
●The compact spare tire saves in your luggage compartment.
●Its lighter weight helps to enhance fuel economy.
●It permits easier installation in case of a flat tire.
●Make sure to check the tire inflation pressu re of the compact spare
tire. ( P. 338)
■After completing the tire change
The tire pressure warnin g system must be reset. ( P. 237)
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warn ing system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the
light remains on.
