About iPod
Reproducing and playing back
non-copyrighted material and
material that can legally be
reproduced and played back for
private use is permitted with the
iPod. Infringement of copyright is
legally prohibited.
Apple® and iTunes® are registered
trademarks of Apple Inc.
iPhone, iPod, iPod classic,
iPod nano, and iPod touch
are trademarks of Apple Inc.,
registered in the U.S. and other
countries.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Please note that the
use of this accessory with iPod
or iPhone may af fect wireless
performance.
•
•
•
•
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards.
In this manual, iPod and iPhone
will be referred to as iPod.
About XM Radio
XM, SIRIUS and all related marks
and logos are trademarks of Sirius
XM Radio Inc. and its subsidiaries.
All rights reserved.
Service not
available in Alaska and Hawaii.
About Pandora®
internet radio
Pandora is a registered trademark
of Pandora Media, Inc. •
•
About HD Radio ™
Technology
HD Radio Technology manufac-
tured under license from iBiq-
uity Digital Corporation. U.S. and
Foreign Patents. HD Radio
TM and
the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiq-
uity Digital Corp.
About Bluetooth

The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by PIONEER
CORPORATION is under license.
Other trademarks and trade names
are those of their respective owners.

0
0

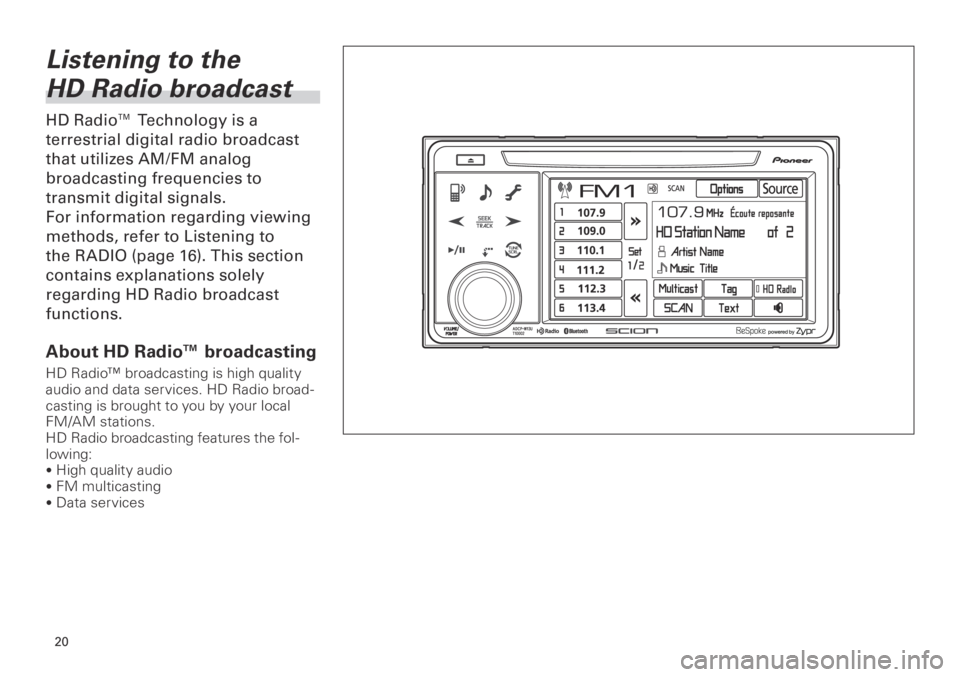

Listening to the
HD Radio broadcast
HD Radio™ Technology is a
terrestrial digital radio broadcast
that utilizes AM/FM analog
broadcasting frequencies to
transmit digital signals.
For information regarding viewing
methods, refer to Listening to
the RADIO (page 16). This section
contains explanations solely
regarding HD Radio broadcast
functions.
About HD Radio™ broadcasting
HD Radio™ broadcasting is high quality
audio and data services. HD Radio broad-
casting is brought to you by your local
FM/AM stations.
HD Ra d

io broadcasting features the fol-
lowing:
• High quality audio• FM multicasting• Data services

1
1
(MPS)
(MPS)
(MPS)
(SPS)
(SPS)
Program Service Data: Contributes to the
superior user experience of HD Radio
Technology. Presents song name, artist,
station IDs, HD2/HD3 Channel Guide, and
other relevant data streams.
Adjacent to traditional main stations are extra
local FM channels. These HD2/HD3 Channels
provide new, original music as well as deep
cuts into traditional genre.
iTunes® Tagging provides you the opportunity
to discover a wide range of content and the
means to “tag” that content for later review
and purchase from the iTunes
® Store
Storing Song Information that
is Being Tuned In on HD Radio
Broadcast
If you touch [Tag] while the HD Radio
broadcast signal is being received,
the tag information of the song that
is being broadcast is stored.
Sometimes when songs are being
toggled and the like, tag information
cannot be accessed very effectively or
multiple tags are recorded.
Viewing HD Radio Broadcast
Text Information
Touch [Text] to display the Text Display
screen, where music, title, artist
name, album title and genre name are
displayed.
Touch [Additional Information] to dis-
play the Additional Information screen.
Touch [
] or [] to scroll the page.
Touch [
] to return to the HD Radio
Screen.
Setting up the HD Radio
Broadcast Reception Method
Touch on [HD Radio] to switch over
to analog mode and tune in analog
broadcasts. Touch [HD Radio] again
to switch over to digital mode and
tune in digital broadcasts.
Multicast Channel Support
When receiving the HD Radio
Broadcast signal and tuning in a
Multicast Channel-supported broad-
•
•
•
•cast in something other than analog,
the following actions will occur each
time you touch on [Multicast].
When receiving
MPS signal The next SPS is
tuned in.
When receiving
SPS signal The next SPS is
tuned in.
When receiving
last SPS MPS is tuned in.
NOTICE
When an analog station is
received, tuning down operation
is conducted within the analog
broadcasting. (
6d 2)
If a digital broadcast is not yet
received, tuning-up operation
tunes in the next analog station.
( 2 d 6)•
•

3
3
NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio
Services (Music and Talk) of
only XM Satellite Radio and
*Text Information linked to the
respective Audio Service.
*Text Information includes,
Station Name, (Artist) Name,
(Song) Title and Category
Name.
Sirius XM Satellite Radio
Inc. is solely responsible for
providing services over the air
to XM receivers.
•
•
CAUTION
This XM tuner is awarded
a Type Approval Certificate
from XM Satellite Radio Inc.
as a proof of compliance for
the services XM Satellite
Radio provides.
•
How to subscribe to
XM Satellite Radio

NOTICE
All fees and programming
are the responsibility of XM
Satellite Radio and are subject
to change.
Listeners can subscribe by visiting
the website at
w w w.siriusxm.com or by calling
Listener Care toll-free at
(86 6

)-635- 3  9.
Customers should have their
RADIO ID ready. Display the RADIO ID
Each XM tuner is identified with a
unique RADIO ID. You will need the
Radio ID when activating XM service
or when reporting a problem.
How to display RADIO IDIf you select CH 000, the ID
Code is displayed.
Select the Channel Number
zero (000) by turning the MULTI
KNOB or pressing it to the lef t
or right.
The RADIO ID is displayed as 8
alphanumeric characters.
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
If you select another Channel,
display of the ID Code is
canceled.
•

0
0

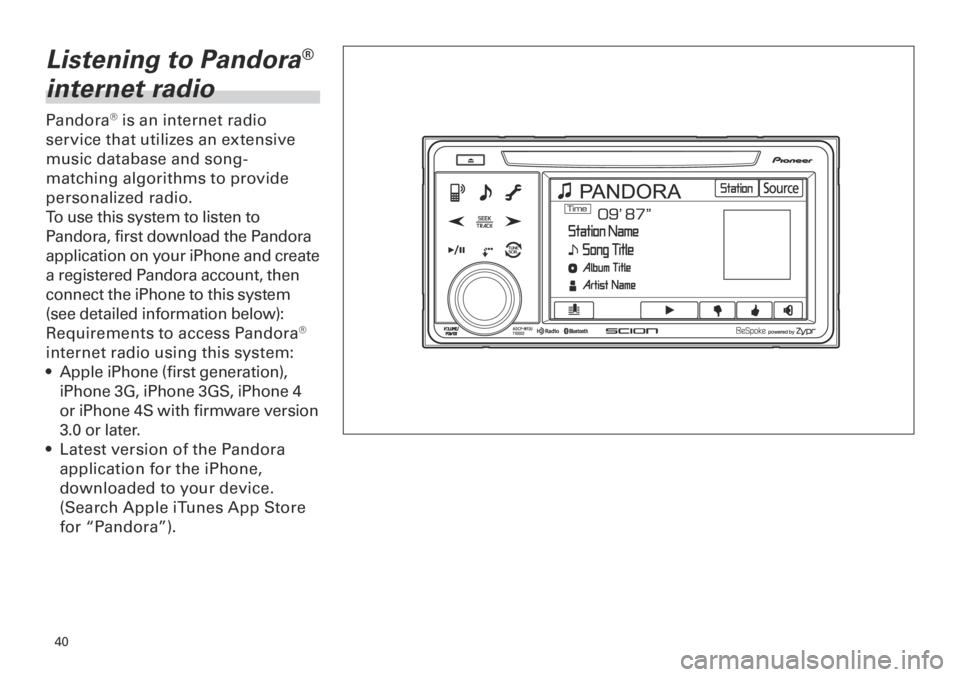

Listening to Pandora®
internet radio
Pandora® is an internet radio
service that utilizes an extensive
music database and song-
matching algorithms to provide
personalized radio.
To use this system to listen to
Pandora, first download the Pandora
application on your iPhone and create
a registered Pandora account, then
connect the iPhone to this system
(see detailed information below):
Requirements to access Pandora
®
internet radio using this system: Apple iPhone (first generation),
iPho
ne 3G, iPhone 3GS, iPhone
or iPhone S with firmware version
3.0 or later.
Latest version of the Pandora
application for the iPhone,
downloaded to your device.
(Search Apple iTunes App Store
for “Pandora”).
•
•

1
1
Current Pandora account (Free
account and paid accounts
available from Pandora; create a
free account online at http://www.
pandora.com/register or through
the Pandora application for the
iPhone).
iPhone Data Plan.
Note: if the Data Plan for your iPhone
does not provide for unlimited data
usage, additional charges from the cel-
lular phone carrier may
apply for accessing the Pandora
service via its 3G, GSM/EDGE and/or
CDMA networks.
Connection to the Internet via
3G, GSM/EDGE, CDMA or WiFi
network.
Refer to Connecting the iPod
(iPhone) (page 31) for information
regarding how to connect iPhone.
Limitations: Access to the Pandora
® internet
radio will depend on the
availability of a cellular and/or
WiFi network for purposes of
allowing your iPhone to connect
to the Internet.
Ability of this system to access
Pandora
® is subject to change
without notice and could be
•
•
•
•
•
•
af fected by any of the following:
compatibility issues with future
firmware versions of iPhones;
compatibility issues with
future firmware versions of
the Pandora application for the
iPhone; changes to the internet
radio service by Pandora;
discontinuation of the internet
radio service by Pandora.
Certain functionality of Pandora
®
is not available when accessing
the service through this system,
including, but not limited to,
creating new stations, deleting
stations, emailing current
stations, buying songs from
iTunes, viewing additional
text information, logging in to
Pandora
®, and adjusting Cell
Network Audio Quality.
Pandora® internet radio is a internet radio
service not affiliated with Pioneer and
SCION. More information is available
at http://www.pandora.com. Pandora,
the Pandora logo, and the Pandora
trade dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
•
NOTICE
Park your vehicle in a safe place
before attempting to use the
iPhone and launch the Pandora
®
application installed on the
phone.
You will not be able to control
Pandora by your iPhone while
listening Pandora.

5
5

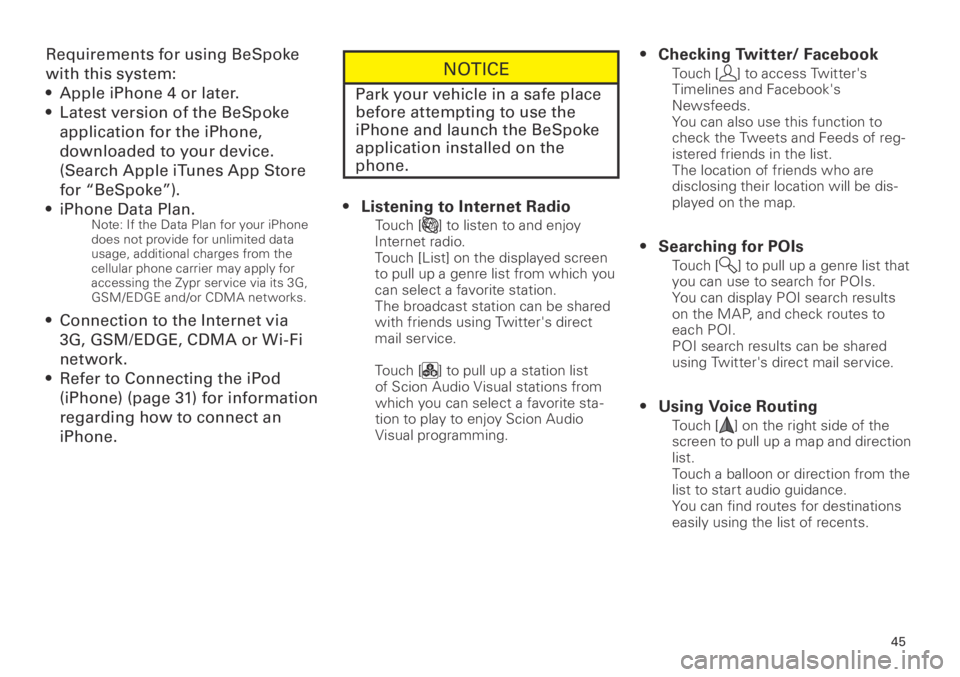

Requirements for using BeSpoke
with this system:Appl
e iPhone  or later.
Latest version of the BeSpoke
application for the iPhone,
downloaded to your device.
(Search Apple iTunes App Store
for “BeSpoke”).
iPhone Data Plan.
Note: If the Data Plan for your iPhone
does not provide for unlimited data
usage, additional charges from the
cellular phone carrier may apply for
accessing the Zypr service via its 3G,
GSM/EDGE and/or CDMA networks.
Connection to the Internet via
3G, GSM/EDGE, CDMA or Wi-Fi
network.
Refer to Connecting the iPod
(iPhone) (page 31) for information
regarding how to connect an
iPhone.
•
•
•
•
•
NOTICE
Park your vehicle in a safe place
before attempting to use the
iPhone and launch the BeSpoke
application installed on the
phone.
Listening to Internet Radio
Touch [] to listen to and enjoy
Internet radio.
Touch [List] on the displayed screen
to pull up a genre list from which you
can select a favorite station.
The broadcast station can be shared
with friends using Twitter's direct
mail service.
Touch [
] to pull up a station list
of Scion Audio Visual stations from
which you can select a favorite sta-
tion to play to enjoy Scion Audio
Visual programming.
• Checking Twitter/ Facebook
Touch [] to access Twitter's
Timelines and Facebook's
Newsfeeds.
You can also use this function to
check the Tweets and Feeds of reg-
istered friends in the list.
The location of friends who are
disclosing their location will be dis-
played on the map.
Searching for POIs
Touch [] to pull up a genre list that
you can use to search for POIs.
You can display POI search results
on the MAP, and check routes to
each POI.
POI search results can be shared
using Twitter's direct mail service.
Using Voice Routing
Touch [] on the right side of the
screen to pull up a map and direction
list.
Touch a balloon or direction from the
list to start audio guidance.
You can find routes for destinations
easily using the list of recents.
•
•
•
