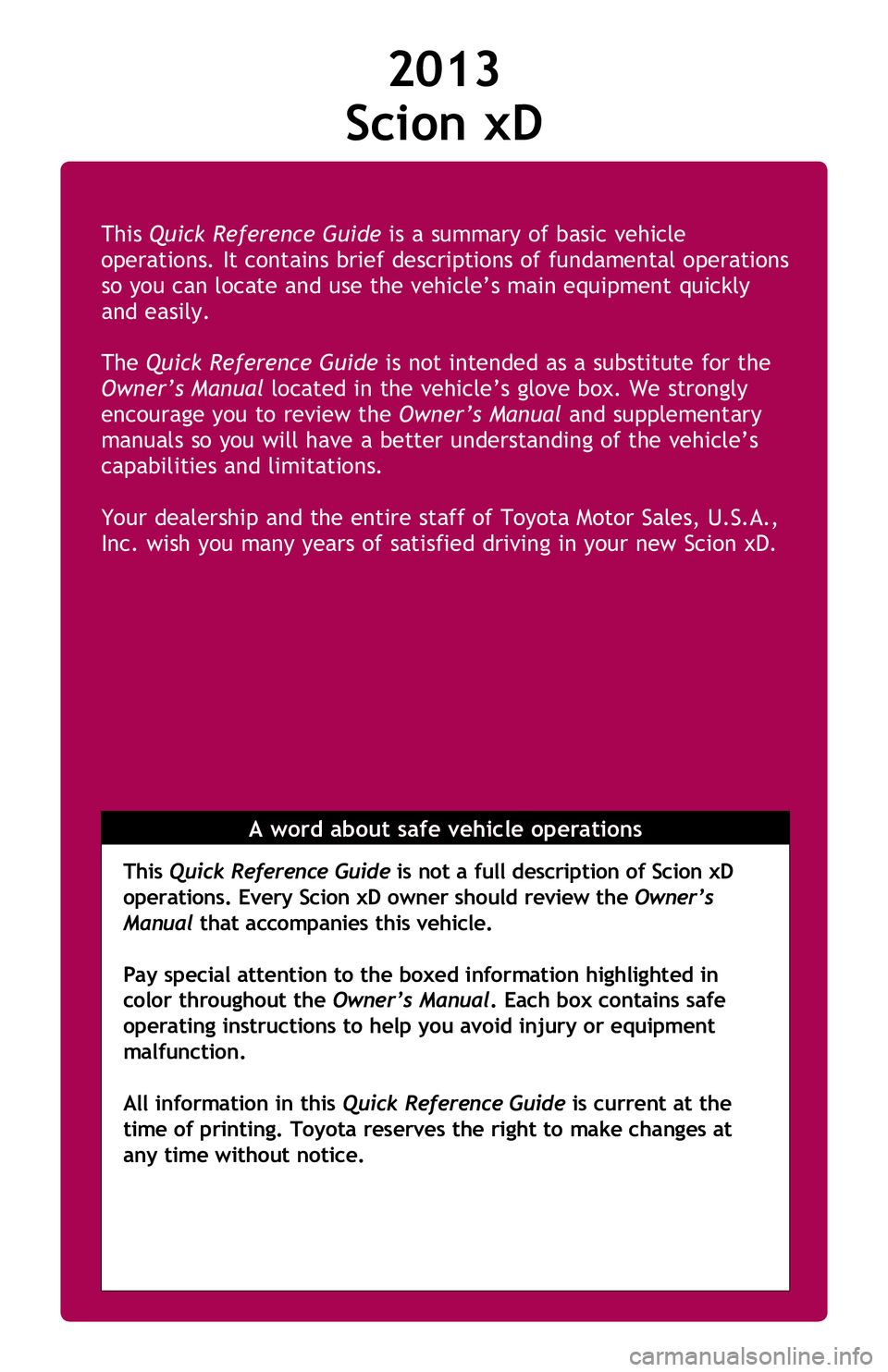

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xD.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Scion xD
operations. Every Scion xD owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Scion xD
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY
FEATURES

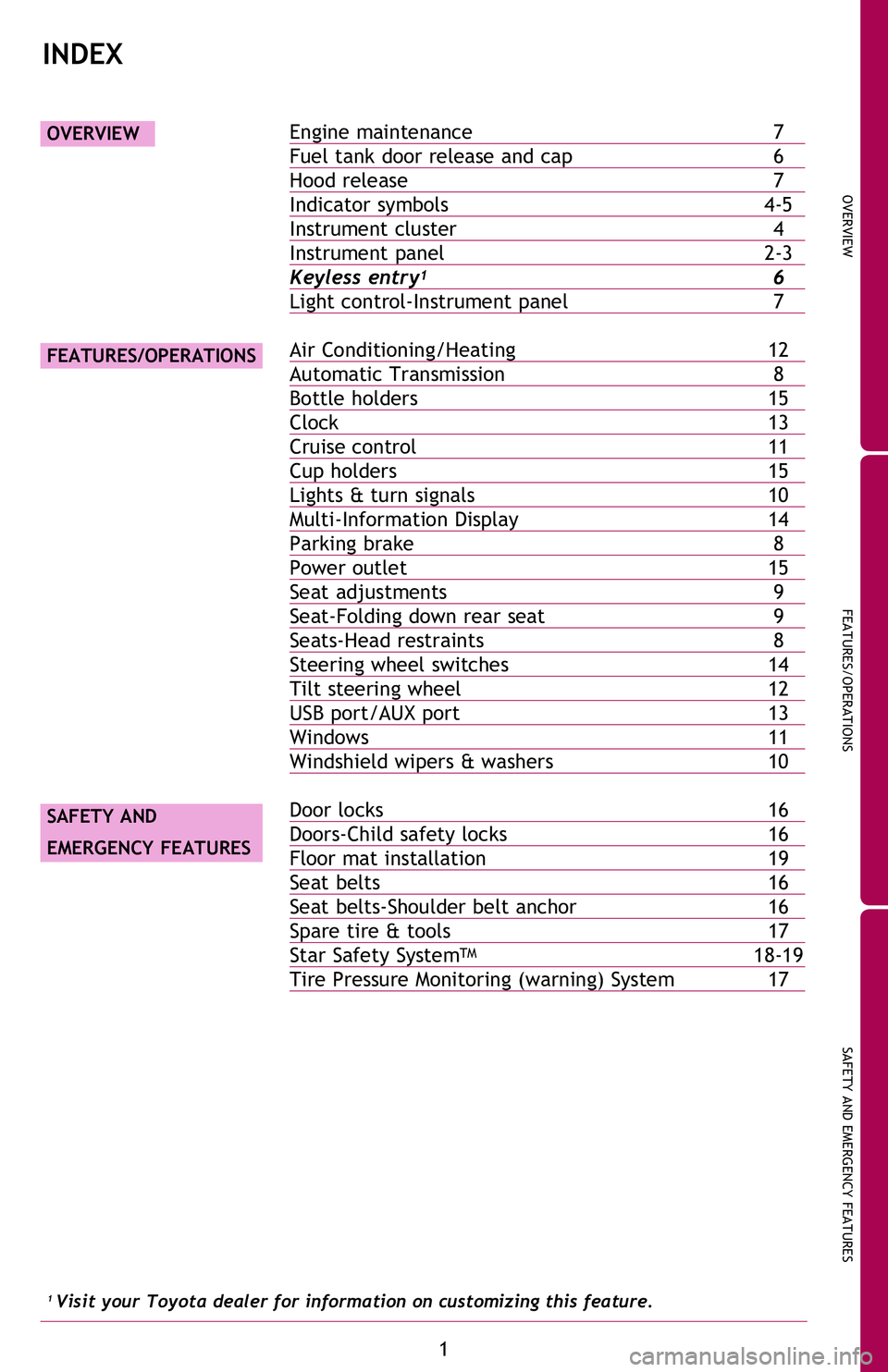

INDEX
1 Visit your Toyota dealer for information on customizing this feature.
2013Scion-xD.indd 28/6/12 8:47 PM
Page 3 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Scion xD
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 7
Air Conditioning/Heating 12
Automatic Transmission 8
Bottle holders 15
Clock 13
Cruise control 11
Cup holders 15
Lights & turn signals 10
Multi-Information Display 14
Parking brake 8
Power outlet 15
Seat adjustments 9
Seat-Folding down rear seat 9
Seats-Head restraints 8
Steering wheel switches 14
Tilt steering wheel 12
USB port/AUX port 13
Windows 11
Windshield wipers & washers 10
Door locks 16
Doors-Child safety locks 16
Floor mat installation 19
Seat belts 16
Seat belts-Shoulder belt anchor 16
Spare tire & tools 17
Star Safety System
TM 18-19
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.
2013Scion-xD.indd 18/6/12 8:47 PM
Page 4 of 24
2
OVERVIEW
Steering wheel audio controls*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger seat belt
reminder lightAir Conditioning controls
Rear window defogger button
12V DC power outlet
USB port/AUX port*
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
* For details, refer to the SCION Audio System Owner’s Manual or SCION Navigation
System Owner’s Manual .

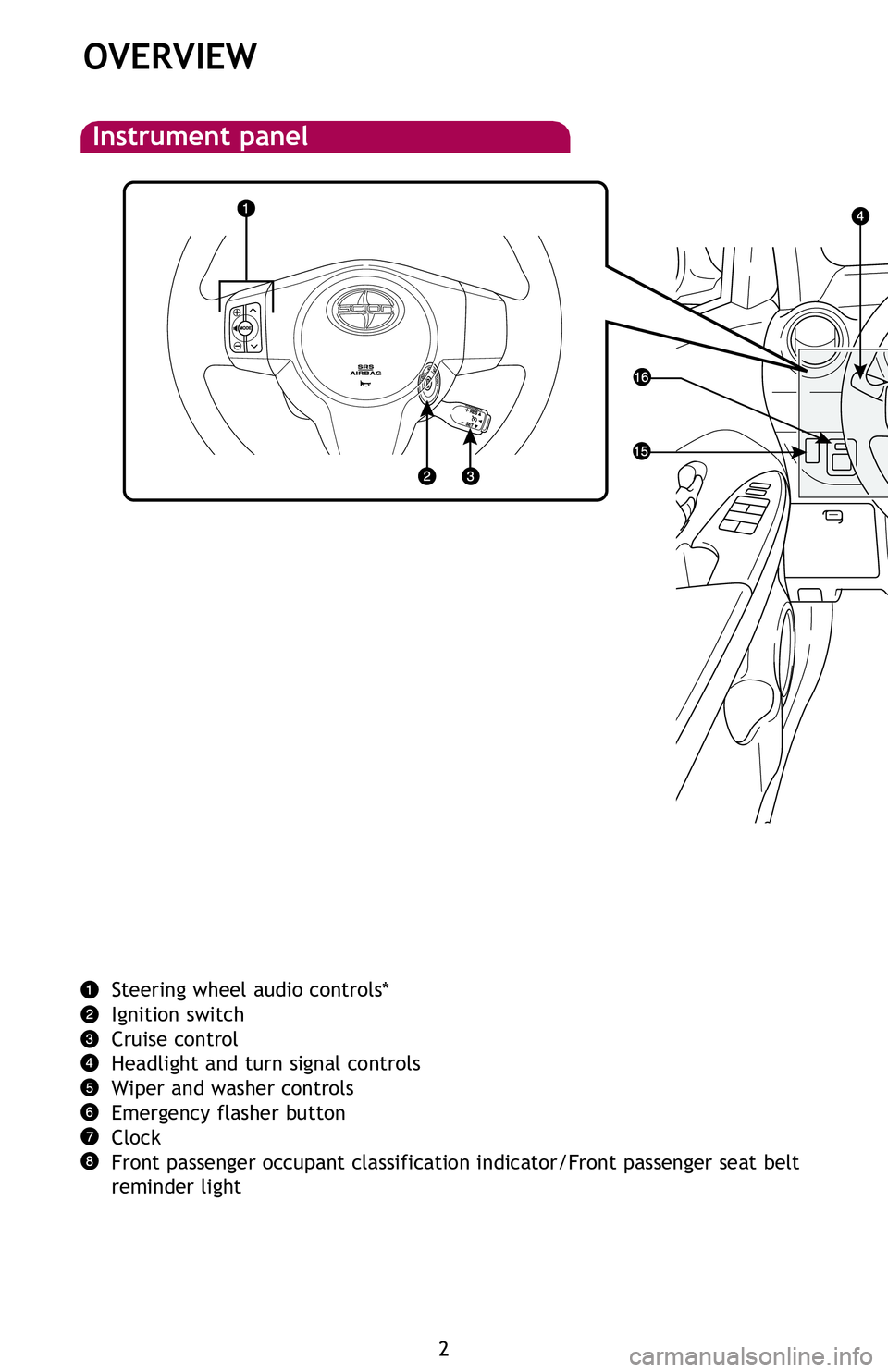

Instrument panel
2013Scion-xD.indd 28/6/12 8:47 PM
Page 5 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
OVERVIEW
Steering wheel audio controls*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger seat belt
reminder lightAir Conditioning controls
Rear window defogger button
12V DC power outlet
USB port/AUX port*
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
*
For details, refer to the SCION Audio System Owner’s Manual or SCION Navigation
System Owner’s Manual .
2013Scion-xD.indd 38/6/12 8:47 PM
Page 6 of 24
4
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols

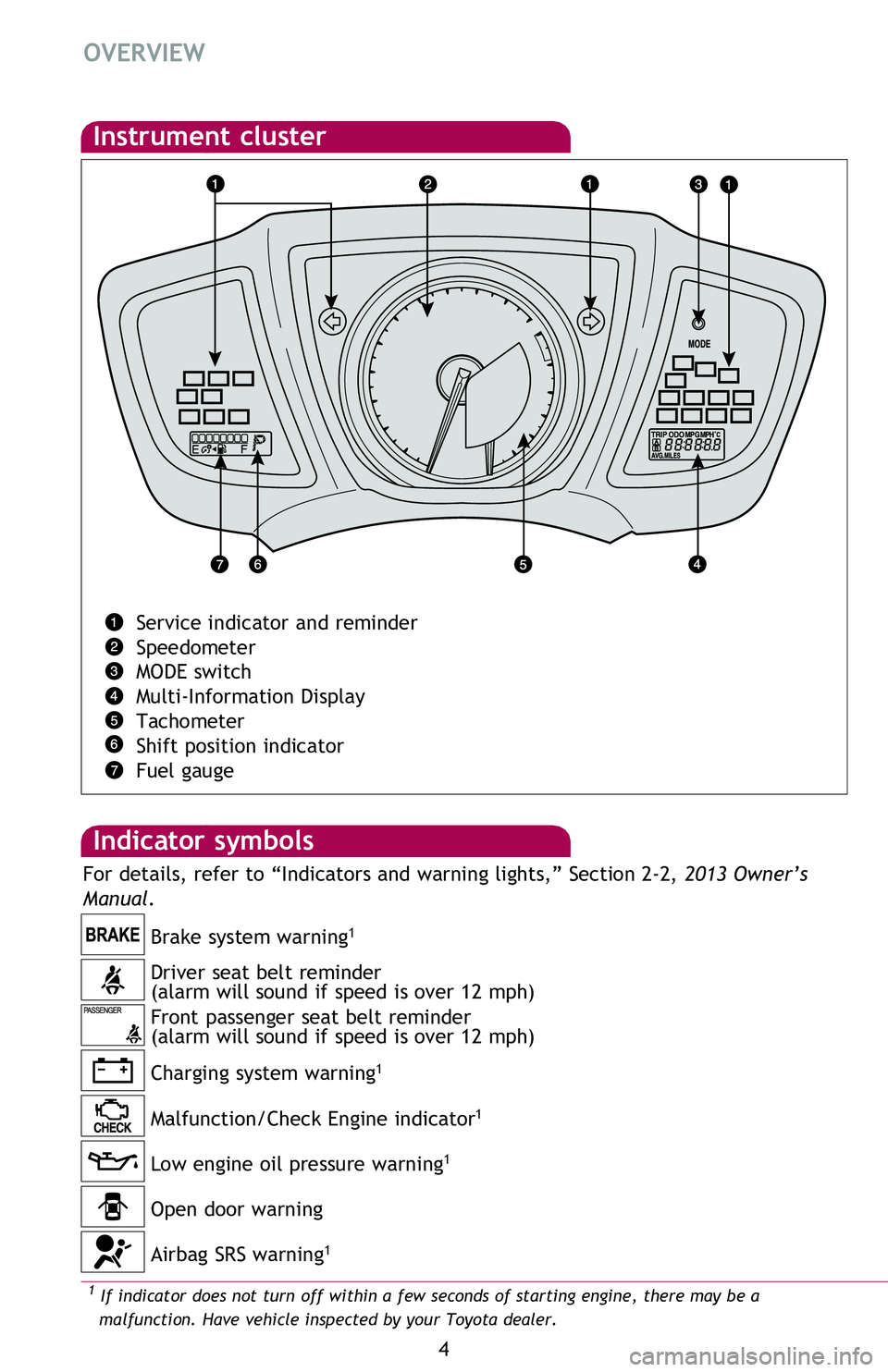

Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-Information Display
Tachometer
Shift position indicator
Fuel gauge
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Open door warning
Airbag SRS warning
1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
2013Scion-xD.indd 48/6/12 8:47 PM
Page 7 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Anti-lock Brake System warning1
Maintenance/Service required indicator1
Front passenger occupant classification indicator
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator1
Low fuel level warning

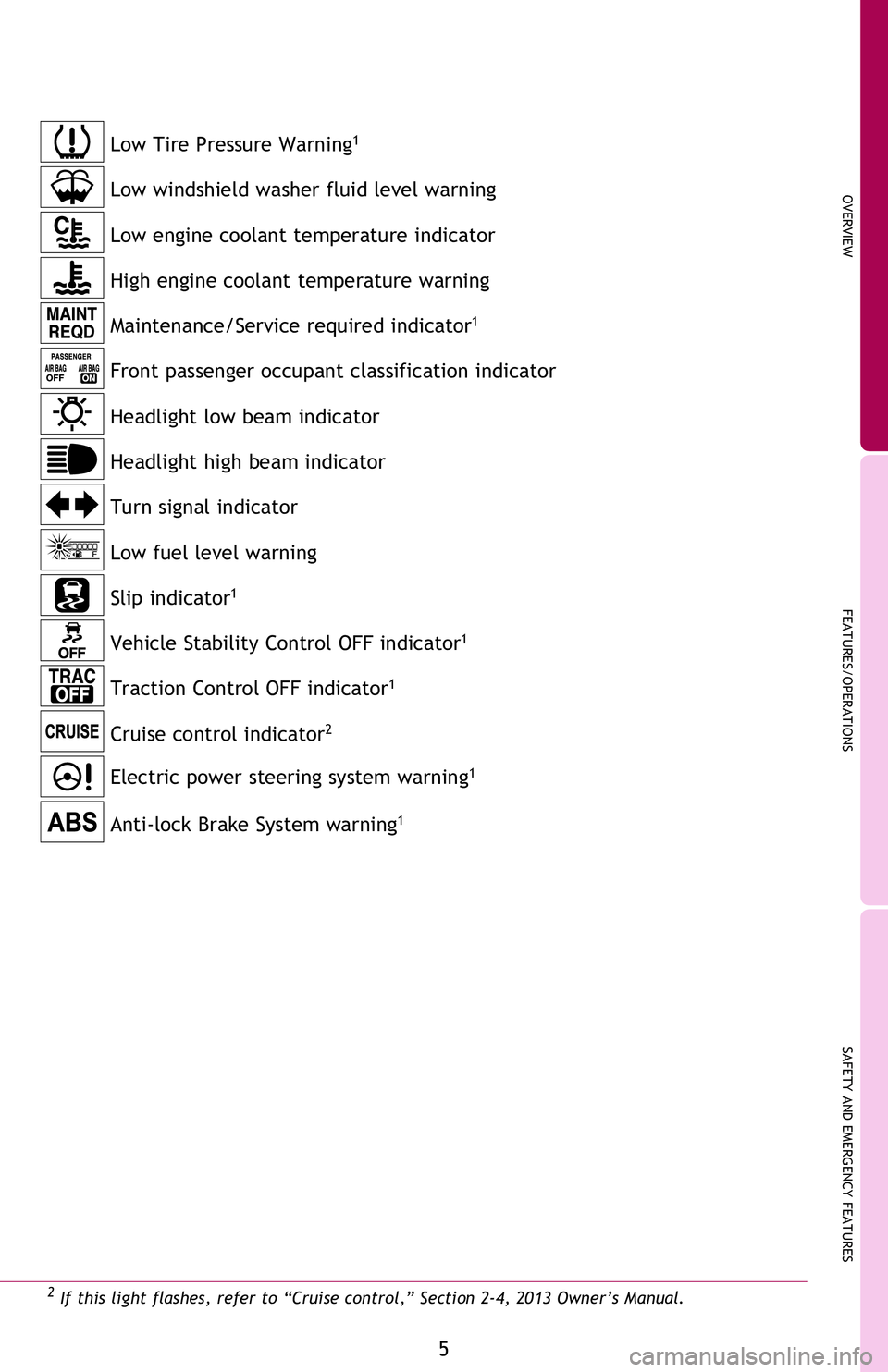

High engine coolant temperature warning Low engine coolant temperature indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Traction Control OFF indicator1
Low Tire Pressure Warning1
Low windshield washer fluid level warning
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
2013Scion-xD.indd 58/6/12 8:47 PM
Page 8 of 24
6
OVERVIEW
Fuel tank door release and cap
StoreTurn to open

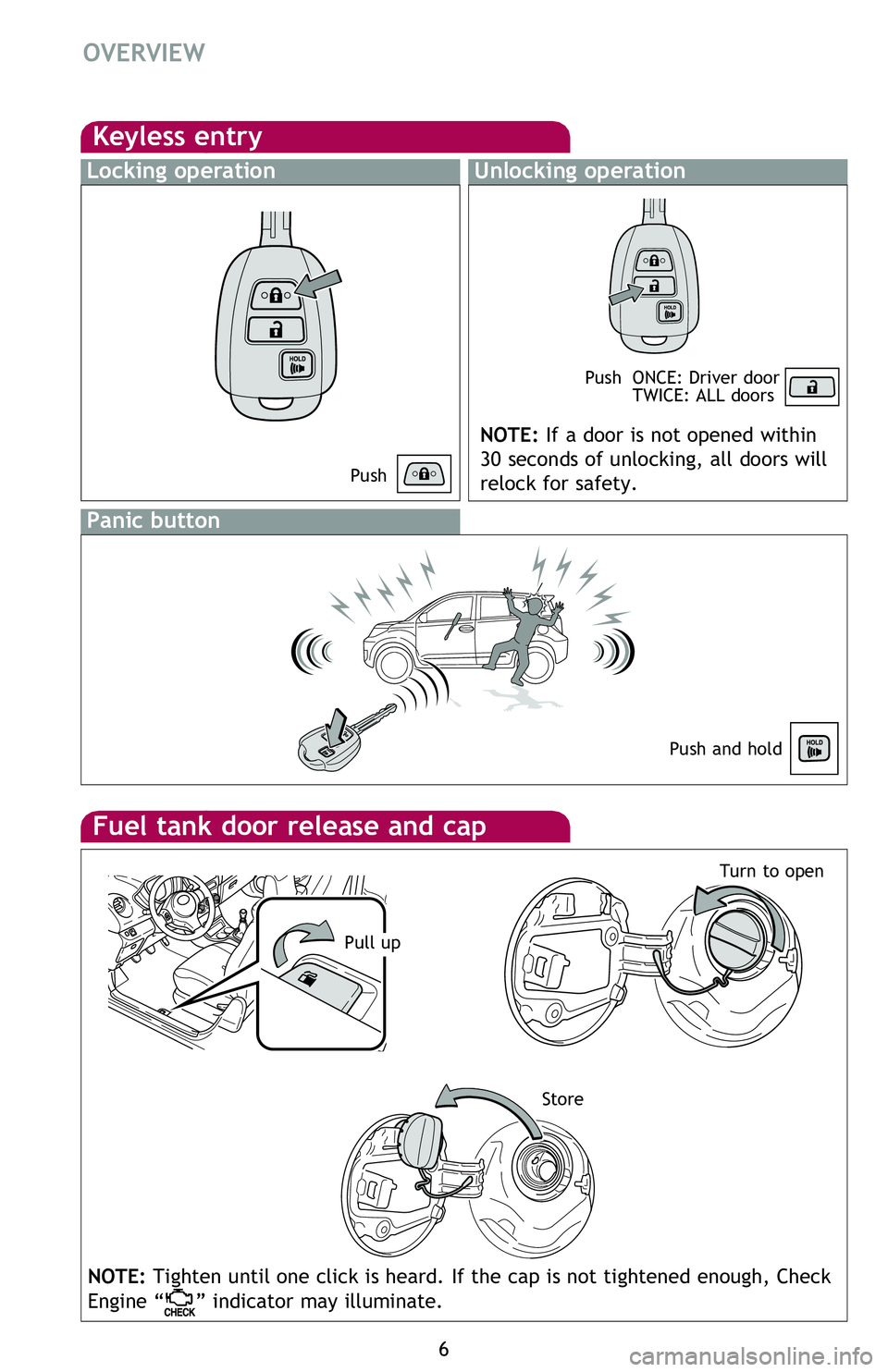

Keyless entry
Locking operationUnlocking operation
NOTE: If a door is not opened within
30 seconds of unlocking, all doors will
relock for safety.
Push
Push
ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.
Hood release
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Pull up
2013Scion-xD.indd 68/6/12 8:47 PM
Page 9 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Turn to open
NOTE: If a door is not opened within
30 seconds of unlocking, all doors will
relock for safety.
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “
” indicator may illuminate.

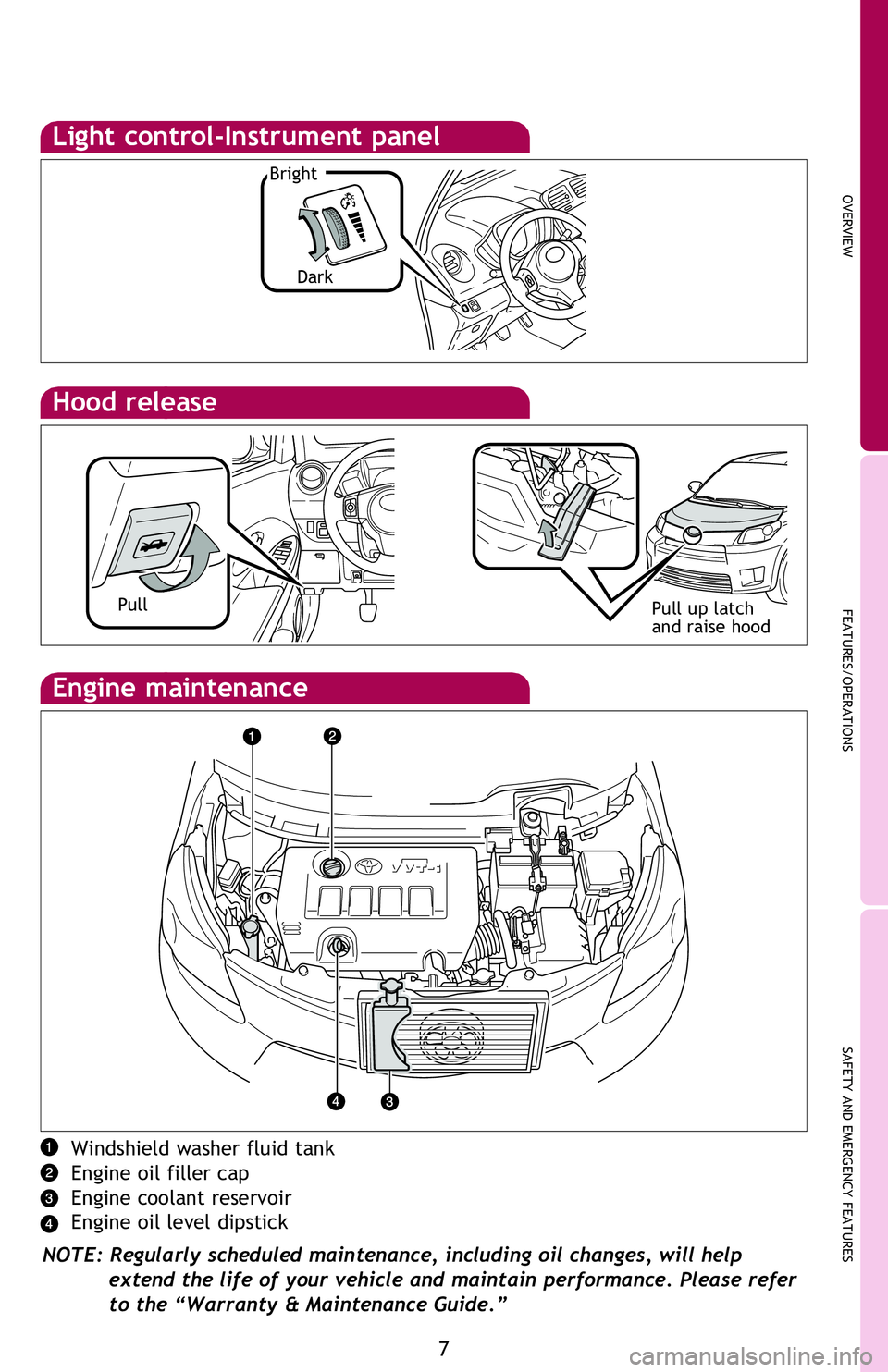

Hood release
PullPull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
2013Scion-xD.indd 78/6/12 8:47 PM
Page 10 of 24
8
FEATURES/OPERATIONS

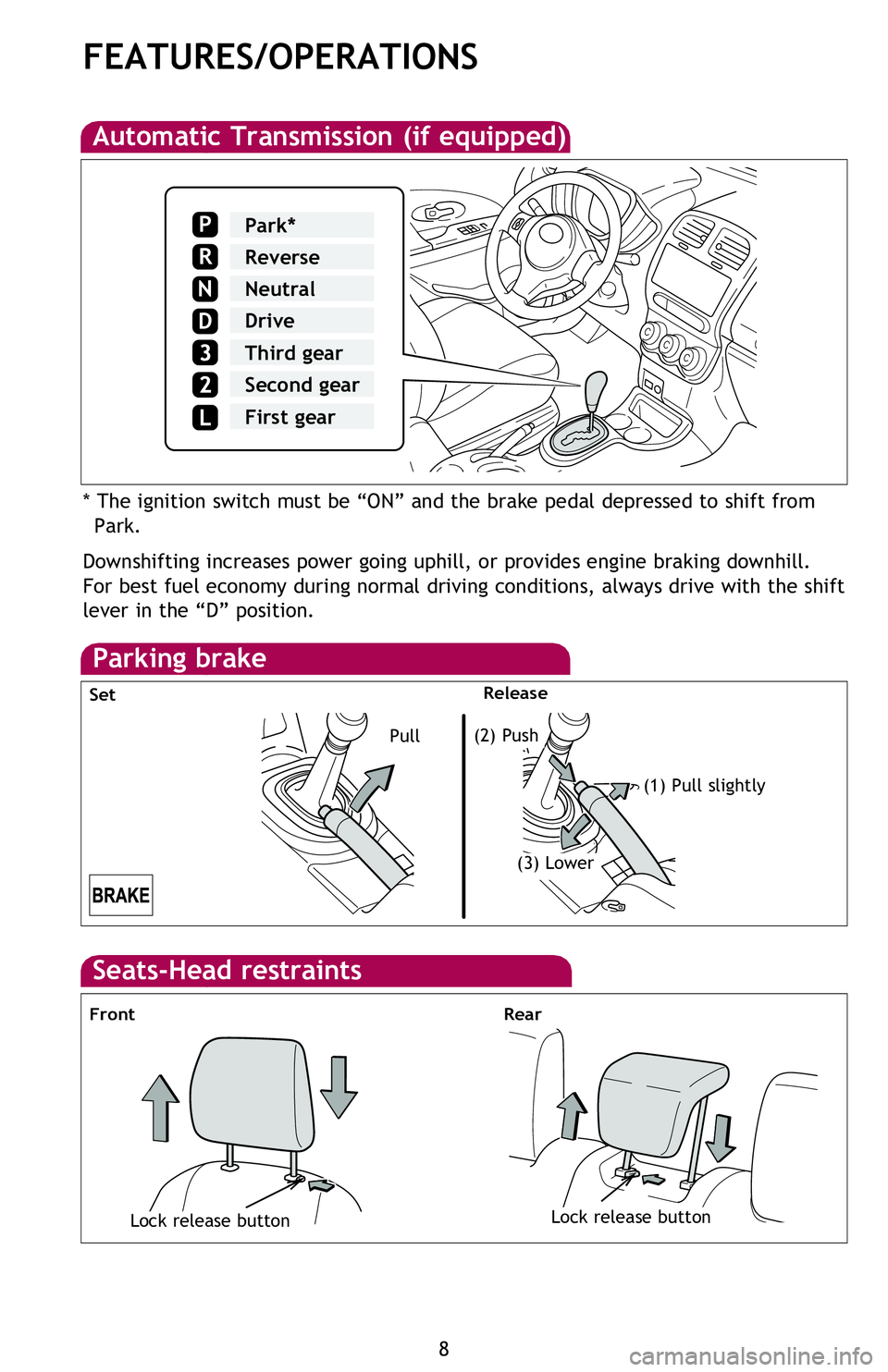

Automatic Transmission (if equipped)
