TOYOTA xB 2013 Accessories, Audio & Navigation (in English)

11

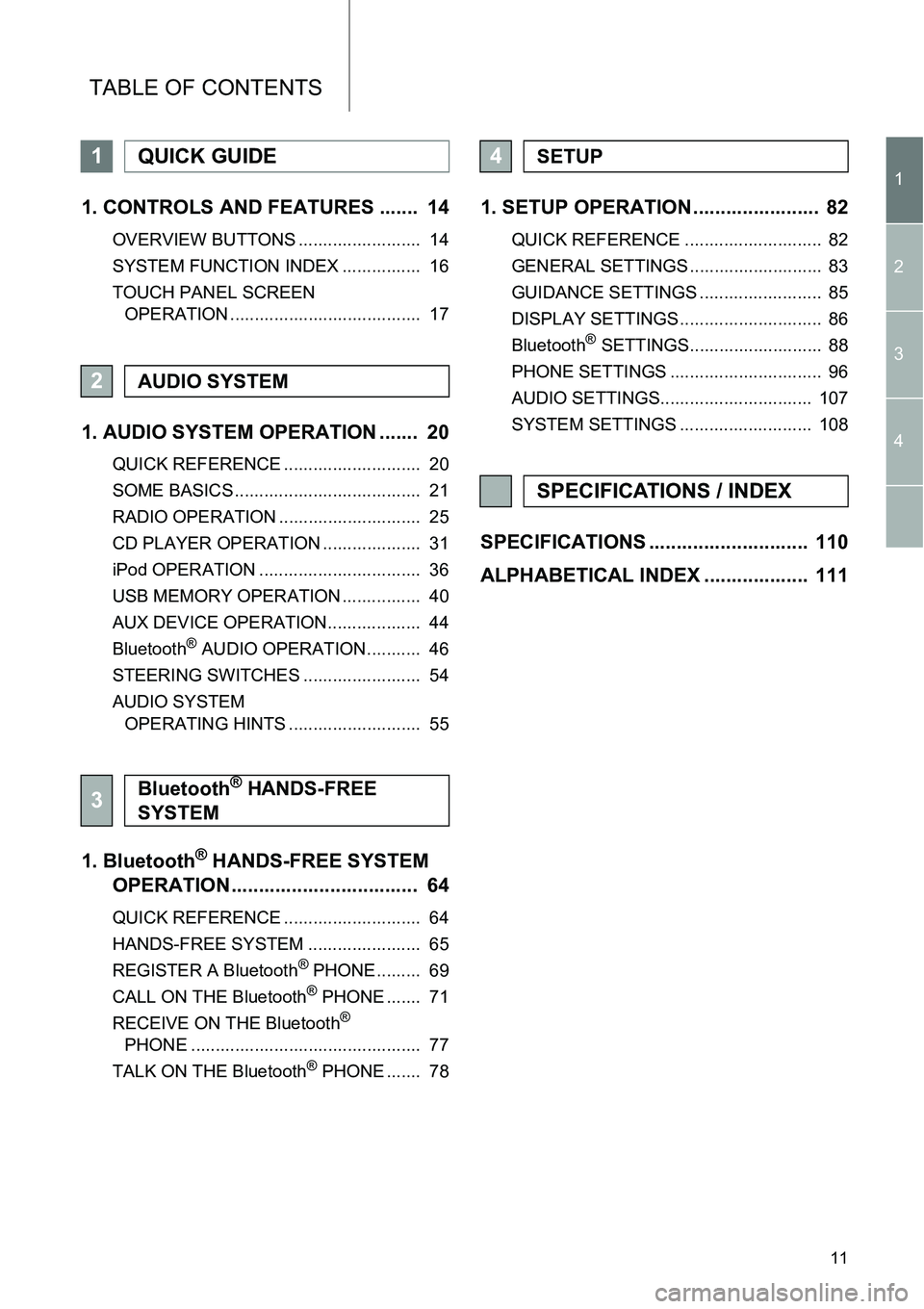

TABLE OF CONTENTS
1
2
3
4
1. CONTROLS AND FEATURES ....... 14
OVERVIEW BUTTONS ......................... 14
SYSTEM FUNCTION INDEX ................ 16
TOUCH PANEL SCREEN
OPERATION ....................................... 17
1. AUDIO SYSTEM OPERATION ....... 20
QUICK REFERENCE ............................ 20
SOME BASICS ...................................... 21
RADIO OPERATION ............................. 25
CD PLAYER OPERATION .................... 31
iPod OPERATION ................................. 36
USB MEMORY OPERATION ................ 40
AUX DEVICE OPERATION................... 44
Bluetooth
® AUDIO OPERATION........... 46
STEERING SWITCHES ........................ 54
AUDIO SYSTEM
OPERATING HINTS ........................... 55
1. Bluetooth® HANDS-FREE SYSTEM
OPERATION.................................. 64
QUICK REFERENCE ............................ 64
HANDS-FREE SYSTEM ....................... 65
REGISTER A Bluetooth
® PHONE......... 69
CALL ON THE Bluetooth® PHONE ....... 71
RECEIVE ON THE Bluetooth®
PHONE ............................................... 77
TALK ON THE Bluetooth
® PHONE ....... 78
1. SETUP OPERATION ....................... 82
QUICK REFERENCE ............................ 82
GENERAL SETTINGS ........................... 83
GUIDANCE SETTINGS ......................... 85
DISPLAY SETTINGS ............................. 86
Bluetooth
® SETTINGS........................... 88
PHONE SETTINGS ............................... 96
AUDIO SETTINGS............................... 107
SYSTEM SETTINGS ........................... 108
SPECIFICATIONS ............................. 110
ALPHABETICAL INDEX ................... 111
1QUICK GUIDE
2AUDIO SYSTEM
3Bluetooth® HANDS-FREE
SYSTEM
4SETUP
SPECIFICATIONS / INDEX

12

13
1
1
2
3
4

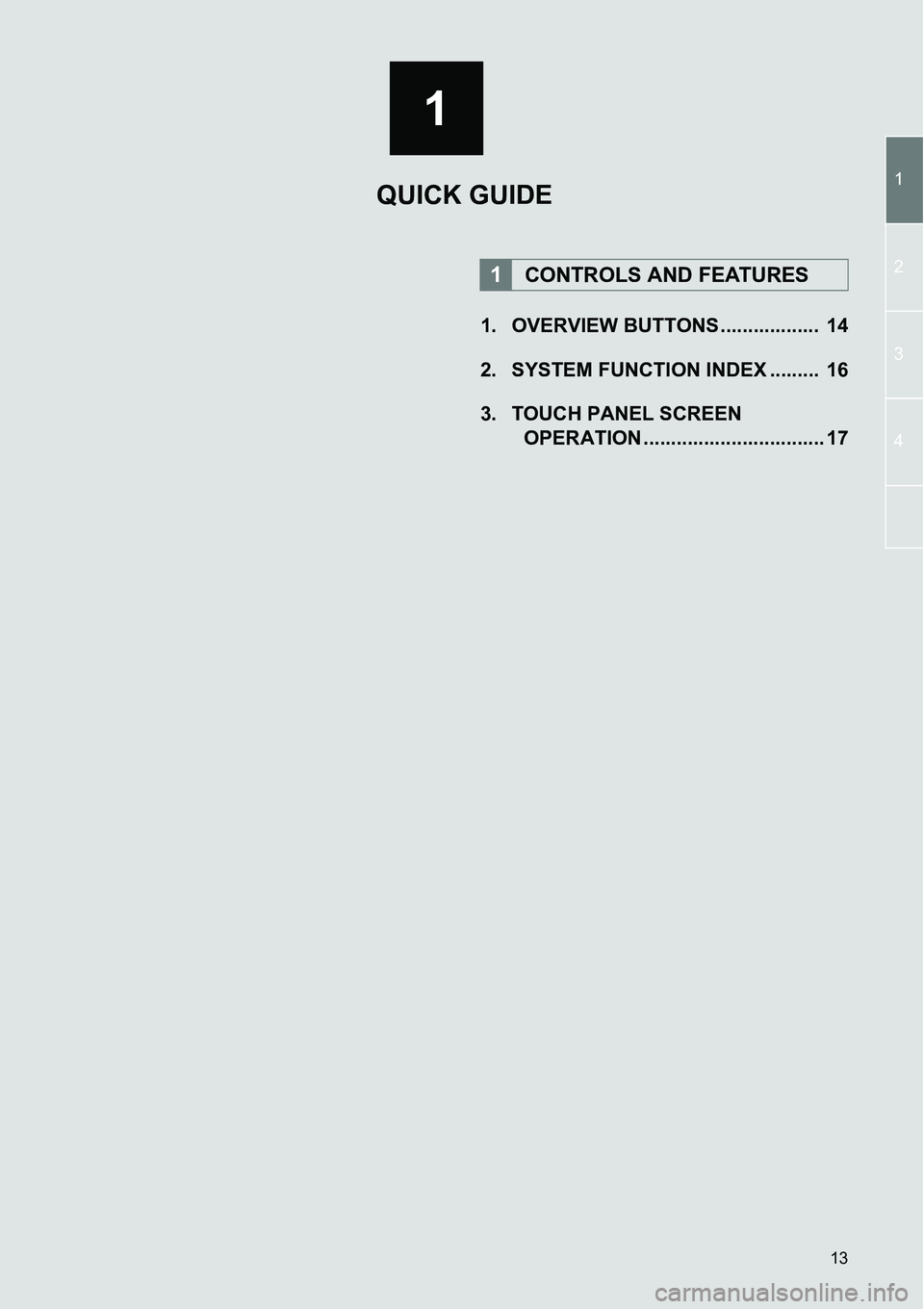

1. OVERVIEW BUTTONS .................. 14
2. SYSTEM FUNCTION INDEX ......... 16
3. TOUCH PANEL SCREEN
OPERATION ................................. 17
1CONTROLS AND FEATURES
QUICK GUIDE

14
1. CONTROLS AND FEATURES

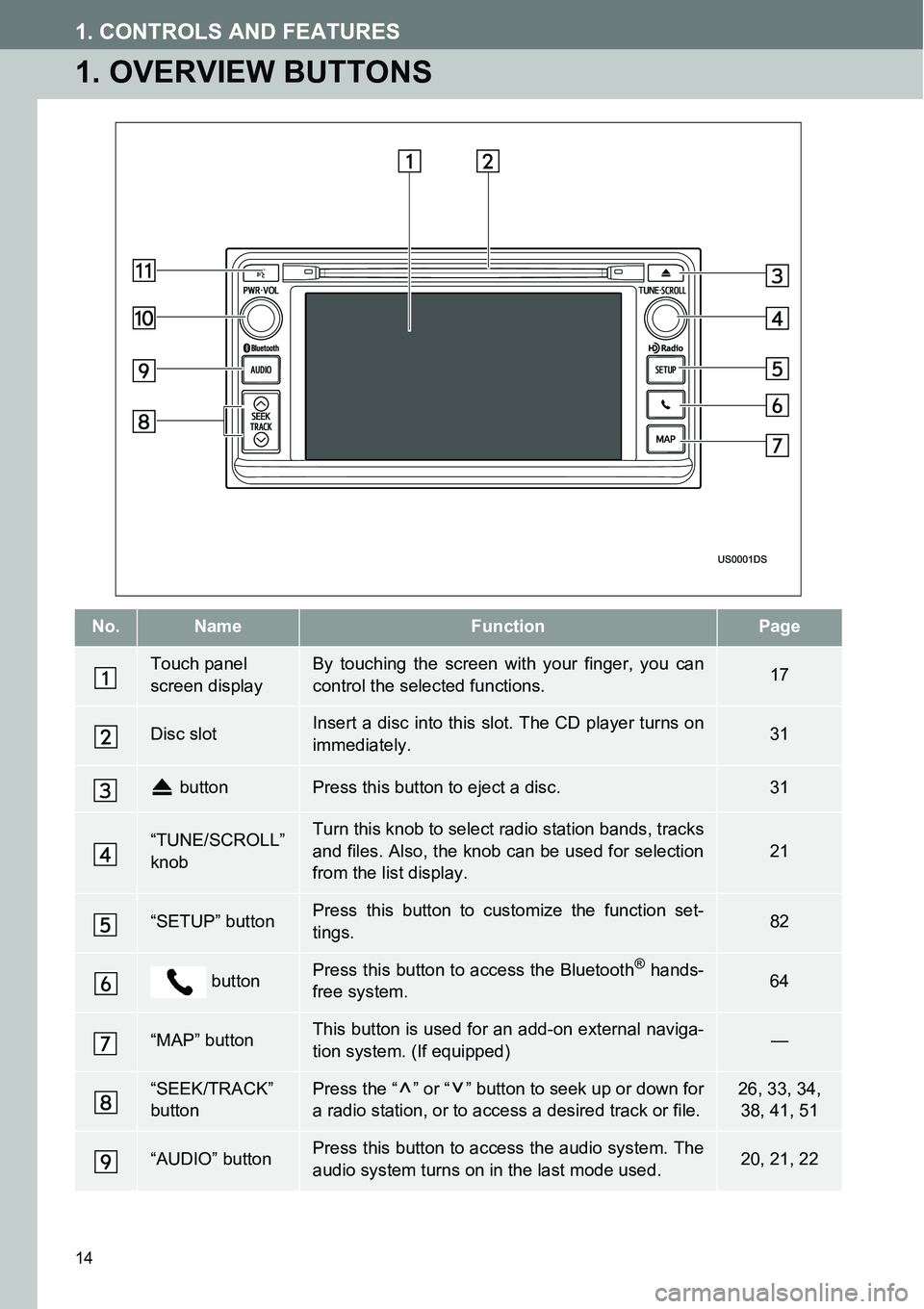

1. OVERVIEW BUTTONS
No.NameFunctionPage
Touch panel
screen displayBy touching the screen with your finger, you can
control the selected functions.17
Disc slotInsert a disc into this slot. The CD player turns on
immediately.31
buttonPress this button to eject a disc.31
“TUNE/SCROLL”
knobTurn this knob to select radio station bands, tracks
and files. Also, the knob can be used for selection
from the list display.21
“SETUP” buttonPress this button to customize the function set-
tings.82
buttonPress this button to access the Bluetooth® hands-
free system.64
“MAP” buttonThis button is used for an add-on external naviga-
tion system. (If equipped)—
“SEEK/TRACK”
buttonPress the “ ” or “ ” button to seek up or down for
a radio station, or to access a desired track or file.26, 33, 34,
38, 41, 51
“AUDIO” buttonPress this button to access the audio system. The
audio system turns on in the last mode used.20, 21, 22

15
1. CONTROLS AND FEATURES
1
QUICK GUIDE

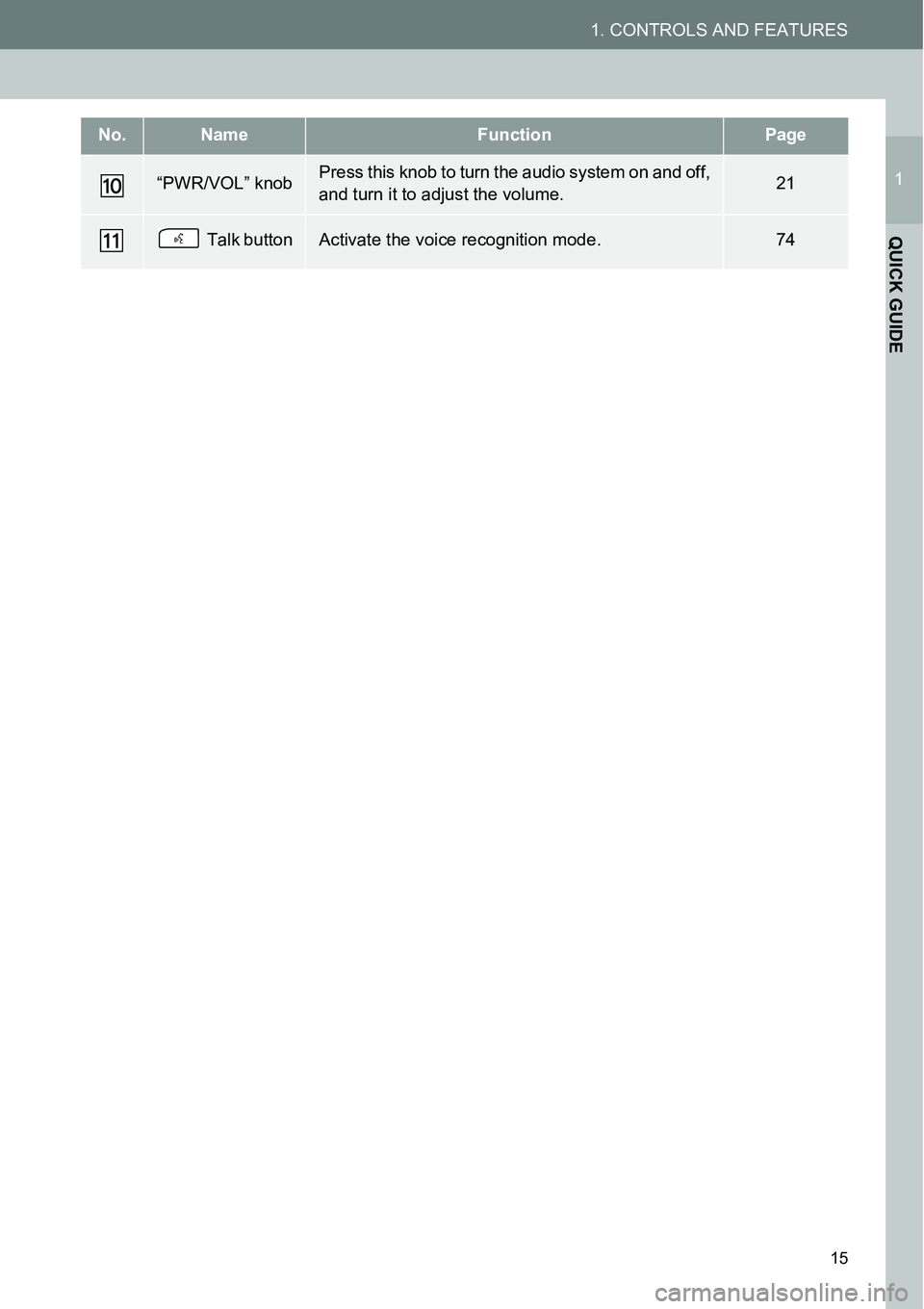

“PWR/VOL” knobPress this knob to turn the audio system on and off,
and turn it to adjust the volume.21
Talk buttonActivate the voice recognition mode.74
No.NameFunctionPage

16
1. CONTROLS AND FEATURES

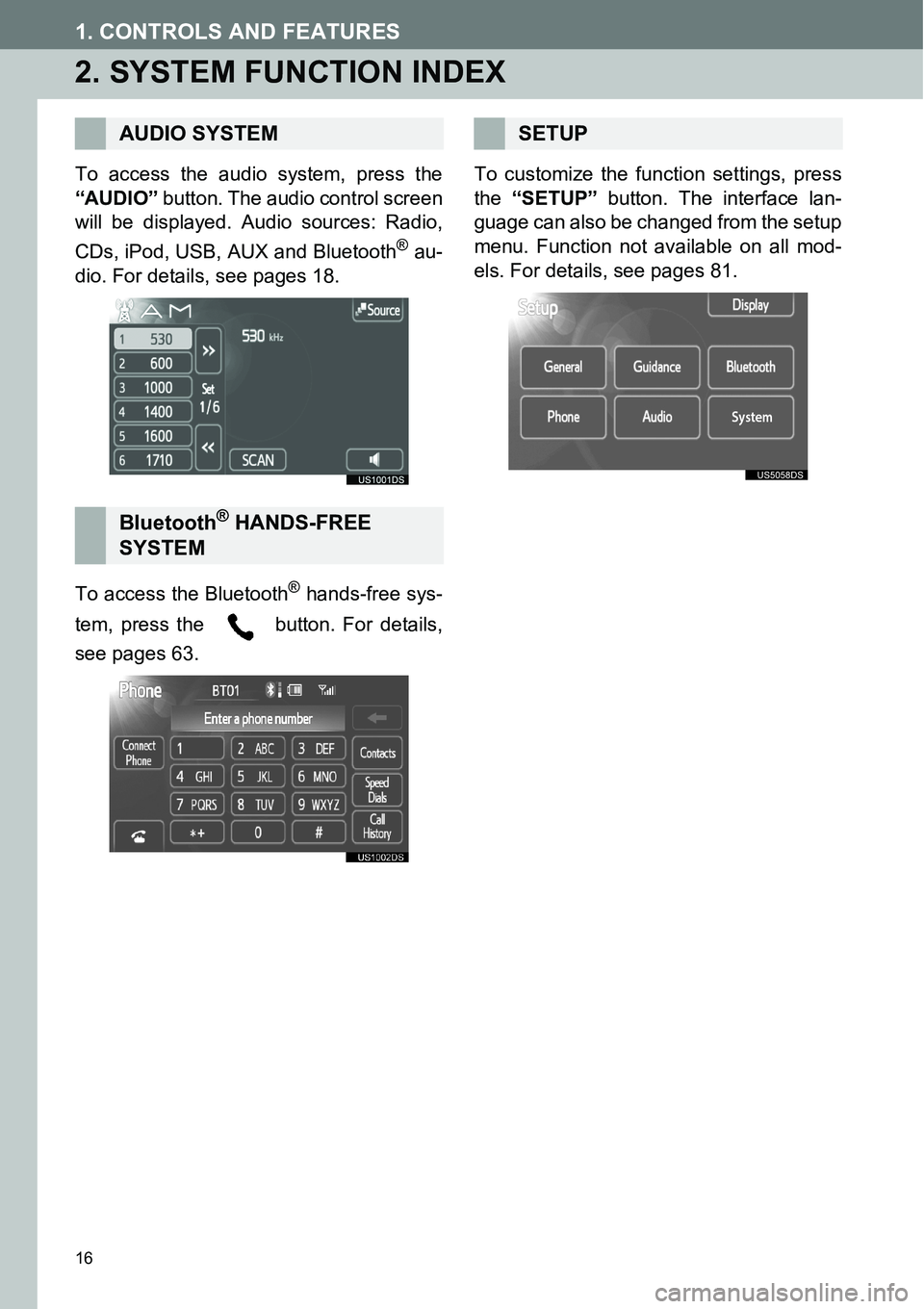

2. SYSTEM FUNCTION INDEX
To access the audio system, press the
“AUDIO” button. The audio control screen
will be displayed. Audio sources: Radio,
CDs, iPod, USB, AUX and Bluetooth
® au-
dio. For details, see pages 18.
To access the Bluetooth
® hands-free sys-
tem, press the button. For details,
see pages 63. To customize the func
tion settings, press
the “SETUP” button. The interface lan-
guage can also be changed from the setup
menu. Function not available on all mod-
els. For details, see pages 81.
AUDIO SYSTEM
Bluetooth® HANDS-FREE
SYSTEM
SETUP

17
1. CONTROLS AND FEATURES
1
QUICK GUIDE

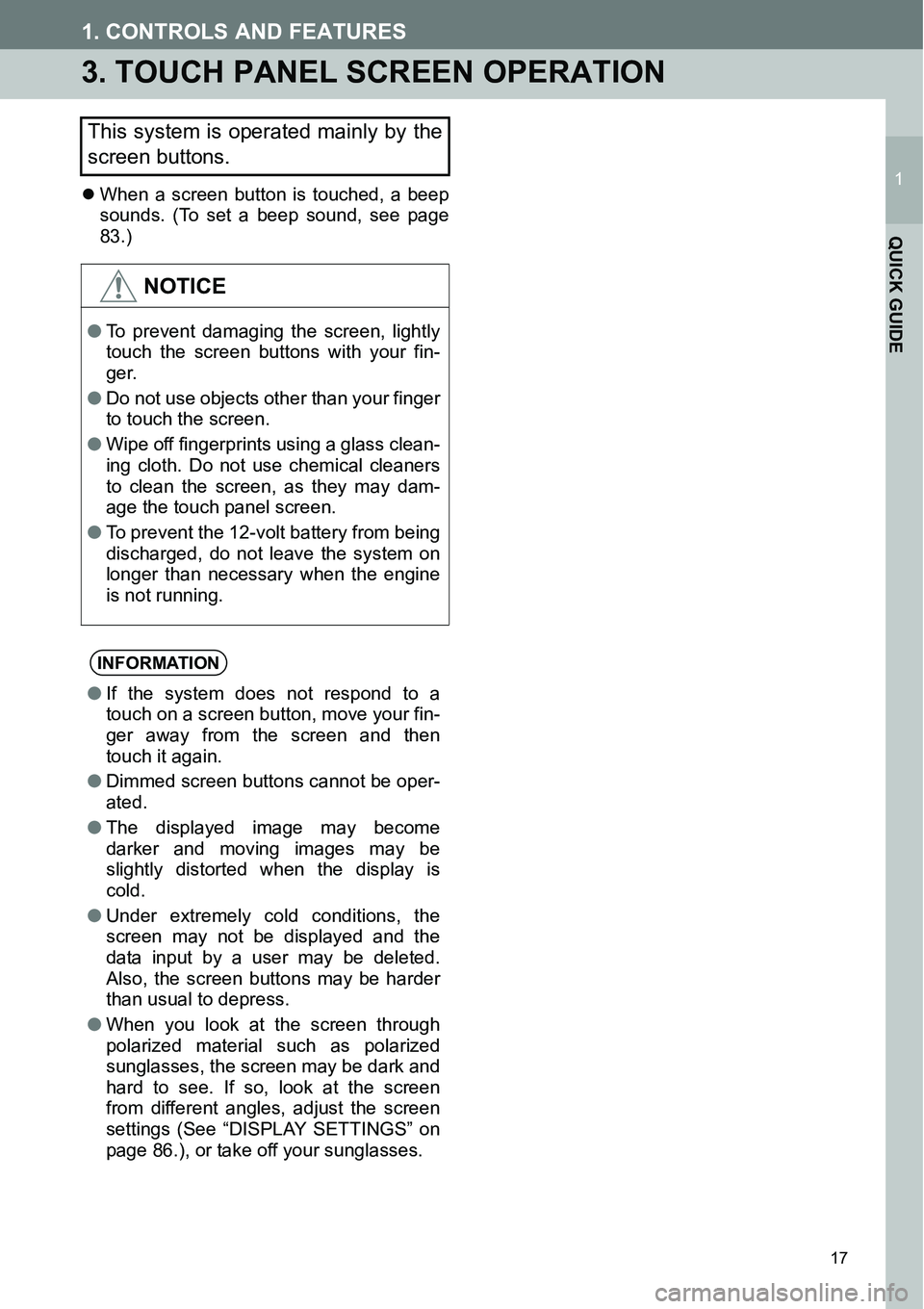

3.TOUCH PANEL SCREEN OPERATION
zWhen a screen button is touched, a beep
sounds. (To set a beep sound, see page
83.)
This system is operated mainly by the
screen buttons.
NOTICE
●To prevent damaging the screen, lightly
touch the screen buttons with your fin-
ger.
● Do not use objects other than your finger
to touch the screen.
● Wipe off fingerprints using a glass clean-
ing cloth. Do not use chemical cleaners
to clean the screen, as they may dam-
age the touch panel screen.
● To prevent the 12-volt battery from being
discharged, do not leave the system on
longer than necessary when the engine
is not running.
INFORMATION
●If the system does not respond to a
touch on a screen button, move your fin-
ger away from the screen and then
touch it again.
● Dimmed screen buttons cannot be oper-
ated.
● The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
● Under extremely cold conditions, the
screen may not be displayed and the
data input by a user may be deleted.
Also, the screen buttons may be harder
than usual to depress.
● When you look at the screen through
polarized material such as polarized
sunglasses, the screen may be dark and
hard to see. If so, look at the screen
from different angles, adjust the screen
settings (See “DISPLAY SETTINGS” on
page 86.), or take off your sunglasses.

18

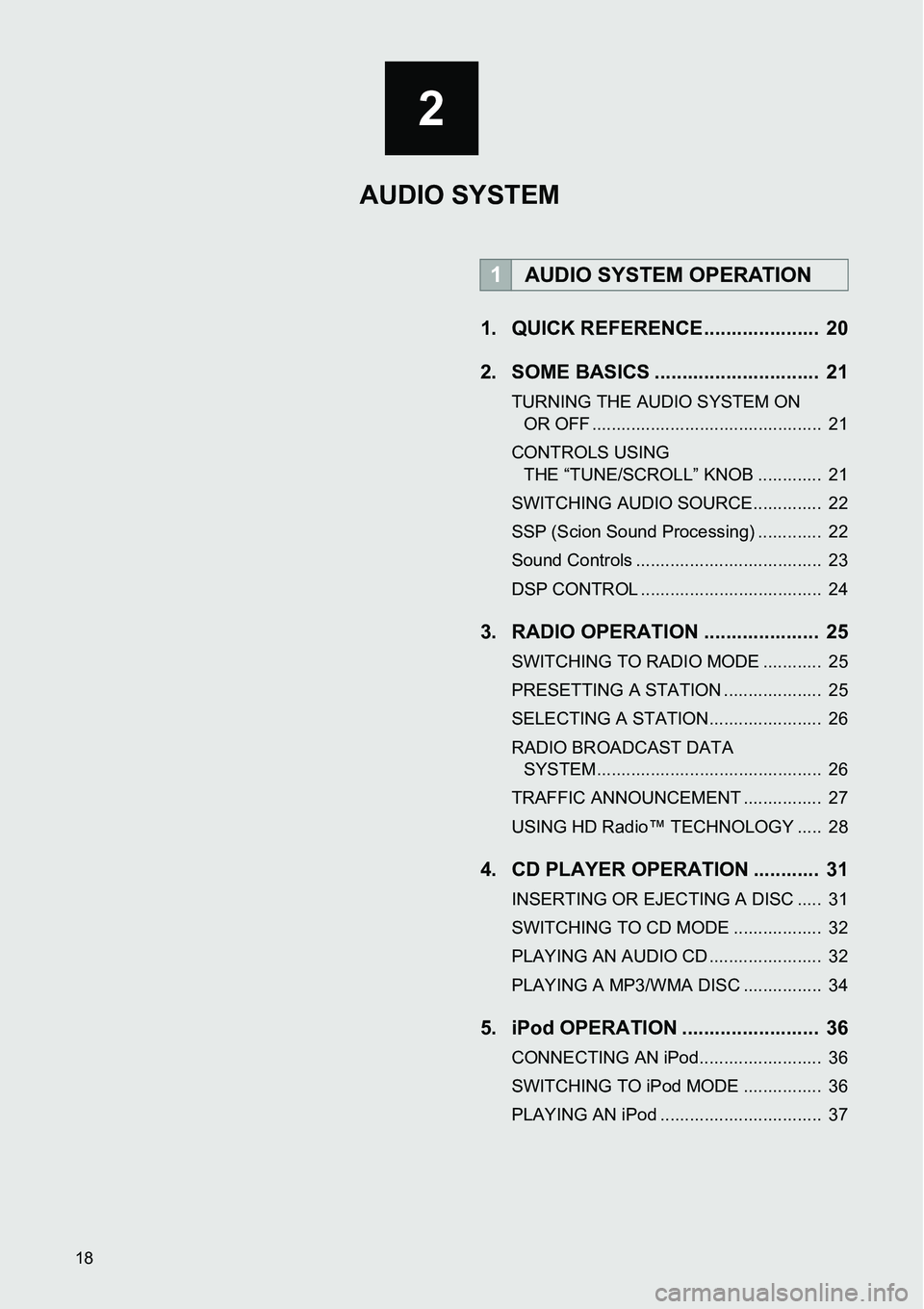

1. QUICK REFERENCE ..................... 20
2. SOME BASICS .............................. 21
TURNING THE AUDIO SYSTEM ON OR OFF ............................................... 21
CONTROLS USING THE “TUNE/SCROLL” KNOB ............. 21
SWITCHING AUDIO SOURCE.............. 22
SSP (Scion Sound Processing) ............. 22
Sound Controls ...................................... 23
DSP CONTROL ..................................... 24
3. RADIO OPERATION ..................... 25
SWITCHING TO RADIO MODE ............ 25
PRESETTING A STATION .................... 25
SELECTING A STATION....................... 26
RADIO BROADCAST DATA SYSTEM.............................................. 26
TRAFFIC ANNOUNCEMENT ................ 27
USING HD Radio™ TECHNOLOGY ..... 28
4. CD PLAYER OPERATION ............ 31
INSERTING OR EJECTING A DISC ..... 31
SWITCHING TO CD MODE .................. 32
PLAYING AN AUDIO CD ....................... 32
PLAYING A MP3/WMA DISC ................ 34
5. iPod OPERATION ......................... 36
CONNECTING AN iPod......................... 36
SWITCHING TO iPod MODE ................ 36
PLAYING AN iPod ................................. 37
1AUDIO SYSTEM OPERATION
2
AUDIO SYSTEM

19
2
12
3
4
6. USB MEMORY OPERATION ........ 40
CONNECTING A USB MEMORY ......... 40
SWITCHING TO USB MODE ................ 40
PLAYING A USB MEMORY .................. 41
7. AUX DEVICE OPERATION ........... 44
CONNECTING A PORTABLE AUDIO DEVICE............................................... 44
SWITCHING TO AUX MODE ................ 45
PLAYING A PORTABLE AUDIO DEVICE............................................... 45
8. Bluetooth® AUDIO
OPERATION ............................... 46
SWITCHING TO Bluetooth®
AUDIO MOD

E ..................................... 47
CONNECTING A Bluetooth
®
AUDIO PLAYE
R ................................. 48
PLAYING A Bluetooth
®
AUDIO PLAYE

R ................................. 50
9. STEERING SWITCHES ................. 54
STEERING SWITCHES (WITH TWO DIRECTION
STEERING SWITCH) ......................... 54
10. AUDIO SYSTEM OPERATING HINTS .......................................... 55
RADIO RECEPTION ............................. 55
iPod ....................................................... 56
USB MEMORY ...................................... 57
CARING FOR YOUR CD PLAYER
AND DISCS ........................................ 57
MP3/WMA FILES .................................. 59
CD-R AND CD-RW DISCS.................... 60
TERMS .................................................. 61
AUDIO SYSTEM

20
1. AUDIO SYSTEM OPERATION

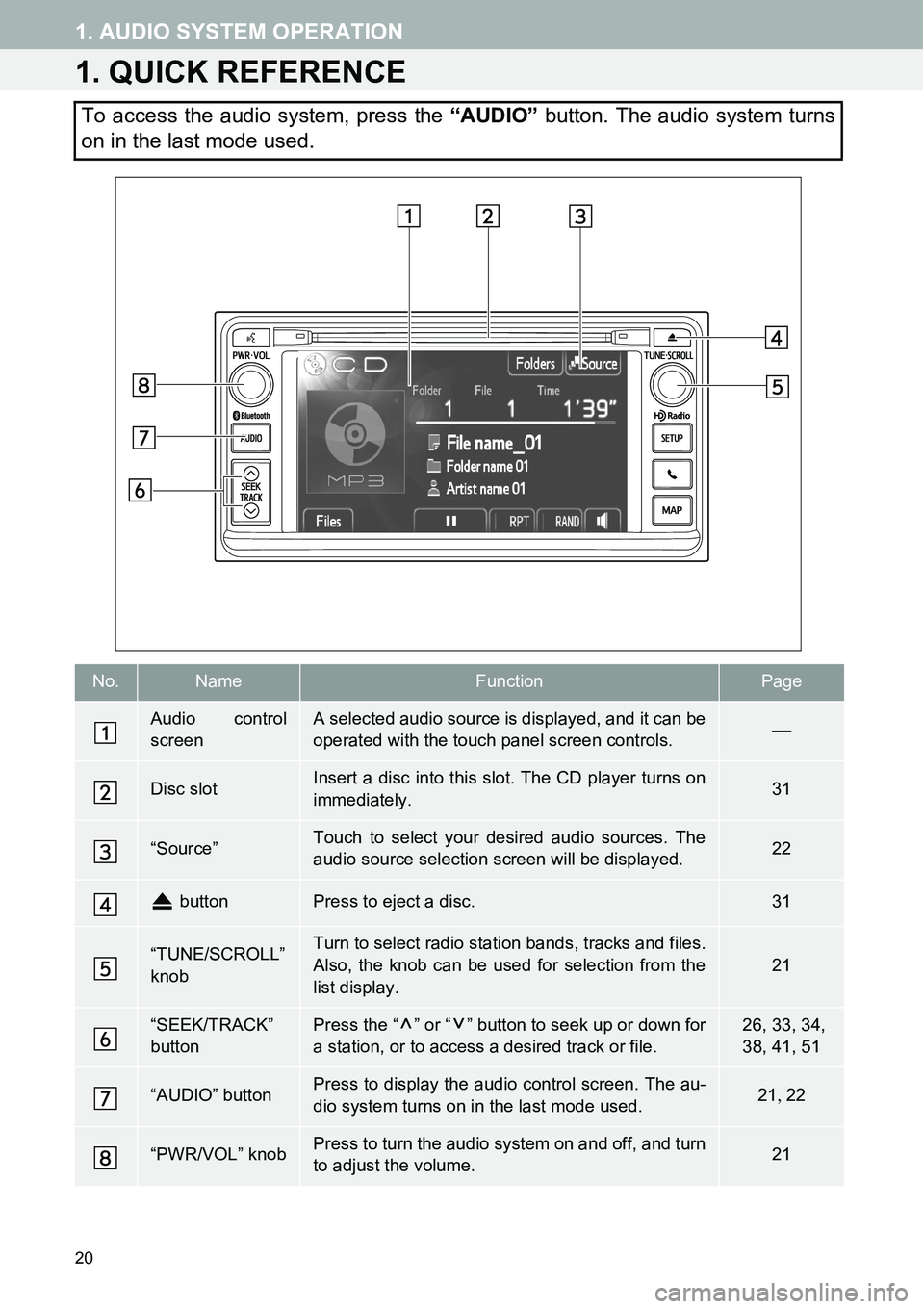

1. QUICK REFERENCE
To access the audio system, press the “AUDIO” button. The audio system turns
on in the last mode used.
No.NameFunctionPage
Audio control
screenA selected audio source is displayed, and it can be
operated with the touch panel screen controls.
Disc slotInsert a disc into this slot. The CD player turns on
immediately.31
“Source”Touch to select your desired audio sources. The
audio source selection screen will be displayed.22
buttonPress to eject a disc.31
“TUNE/SCROLL”
knobTurn to select radio station bands, tracks and files.
Also, the knob can be used for selection from the
list display.
21
“SEEK/TRACK”
buttonPress the “ ” or “ ” button to seek up or down for
a station, or to access a desired track or file. 26, 33, 34,
38, 41, 51
“AUDIO” buttonPress to display the audio control screen. The au-
dio system turns on in the last mode used.21, 22
“PWR/VOL” knobPress to turn the audio system on and off, and turn
to adjust the volume.21
