TOYOTA xB 2013 Owners Manual (in English)

141
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xB_OM_OM12G46U_(U)

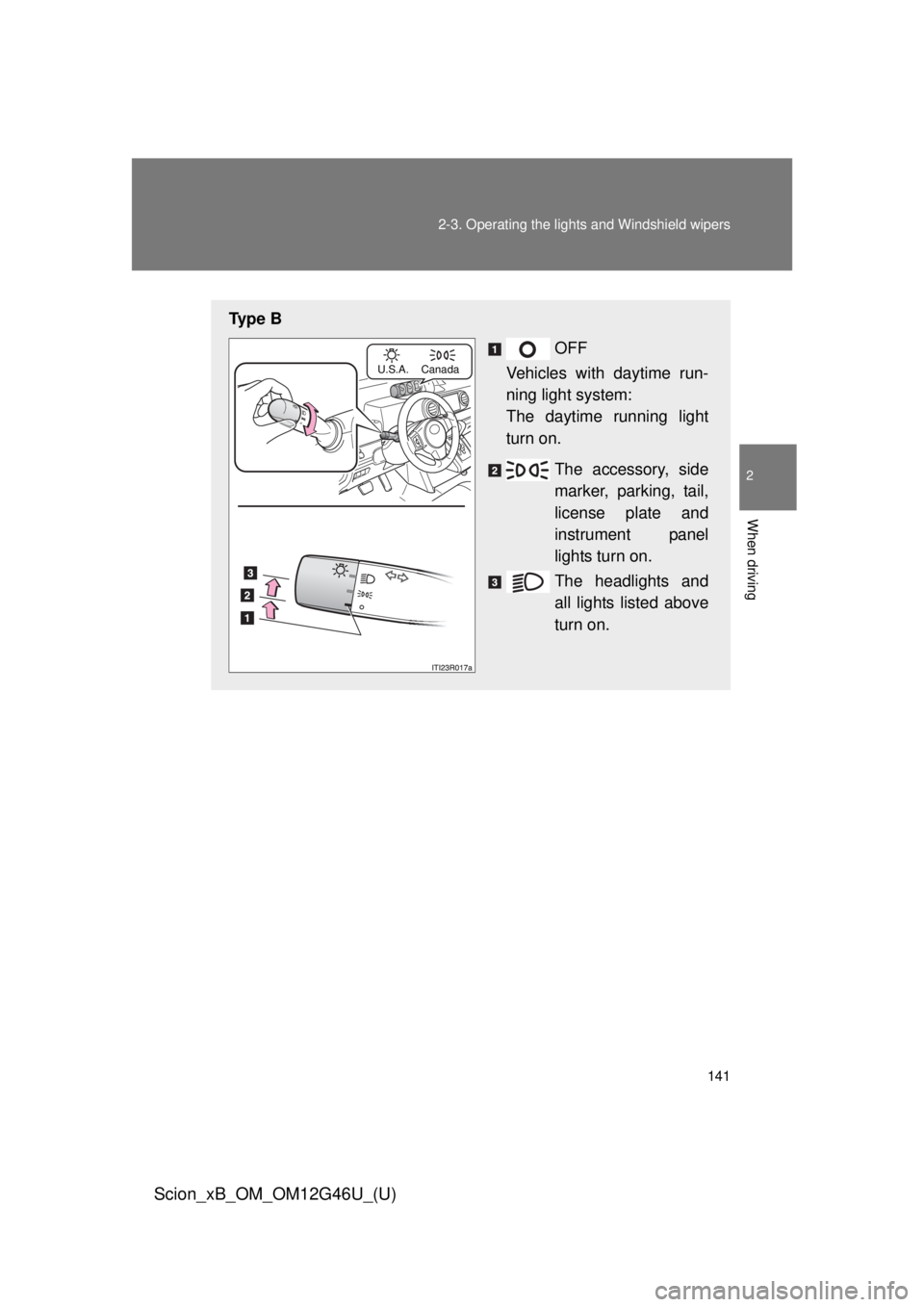

Ty p e B
OFF
Vehicles with daytime run-
ning light system:
The daytime running light
turn on.
The accessory, side
marker, parking, tail,
license plate and
instrument panel
lights turn on.
The headlights and
all lights listed above
turn on.
U.S.A. Canada

142 2-3. Operating the lights and Windshield wipers
Scion_xB_OM_OM12G46U_(U)
Turning on the high beam headlightsWith the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
● To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Light reminder buzzer
A buzzer sounds when the driver’s door is opened with the key removed
from the engine switch while the lights are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

143
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xB_OM_OM12G46U_(U)

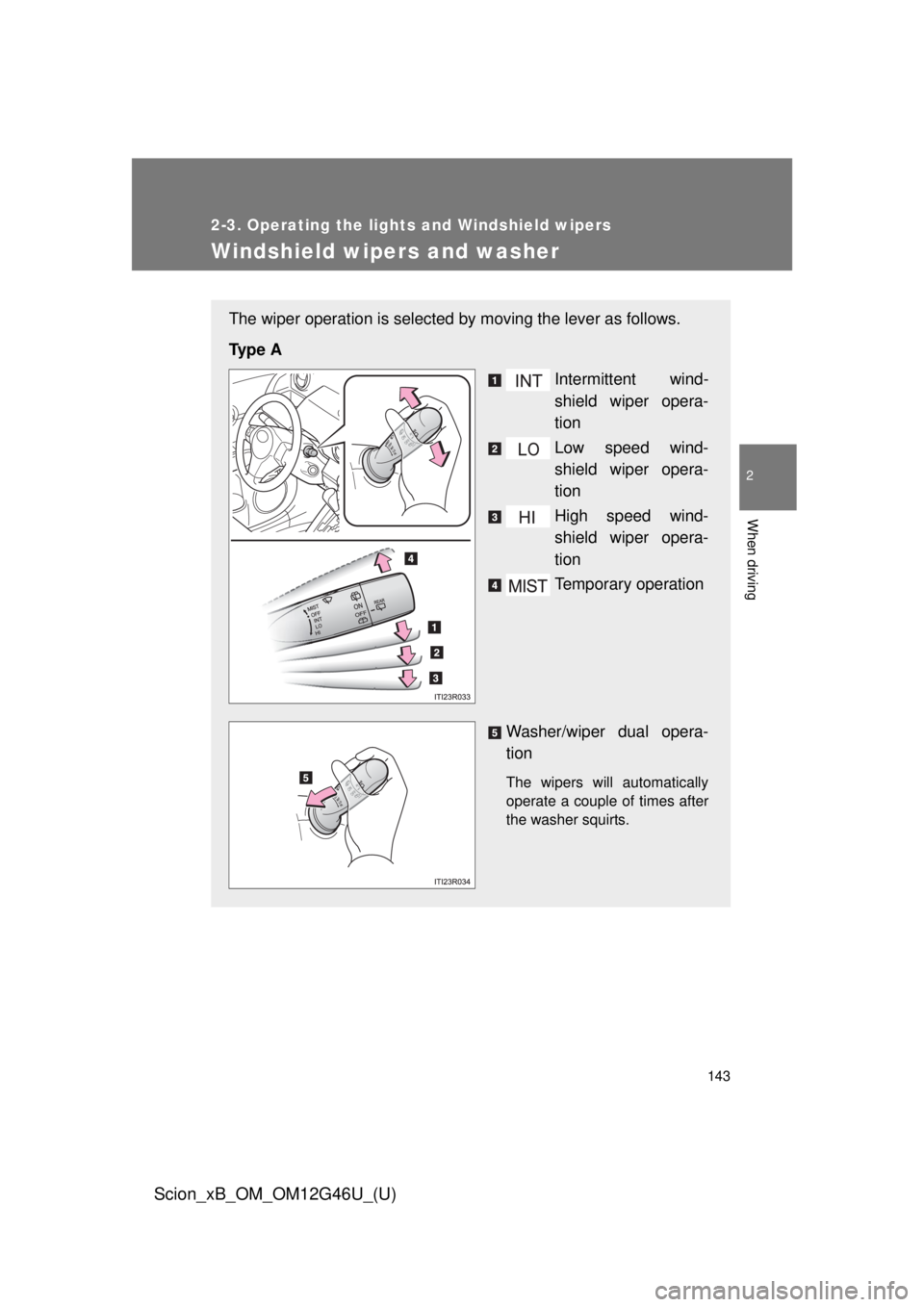

Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
Ty p e A Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

144 2-3. Operating the lights and Windshield wipers
Scion_xB_OM_OM12G46U_(U)

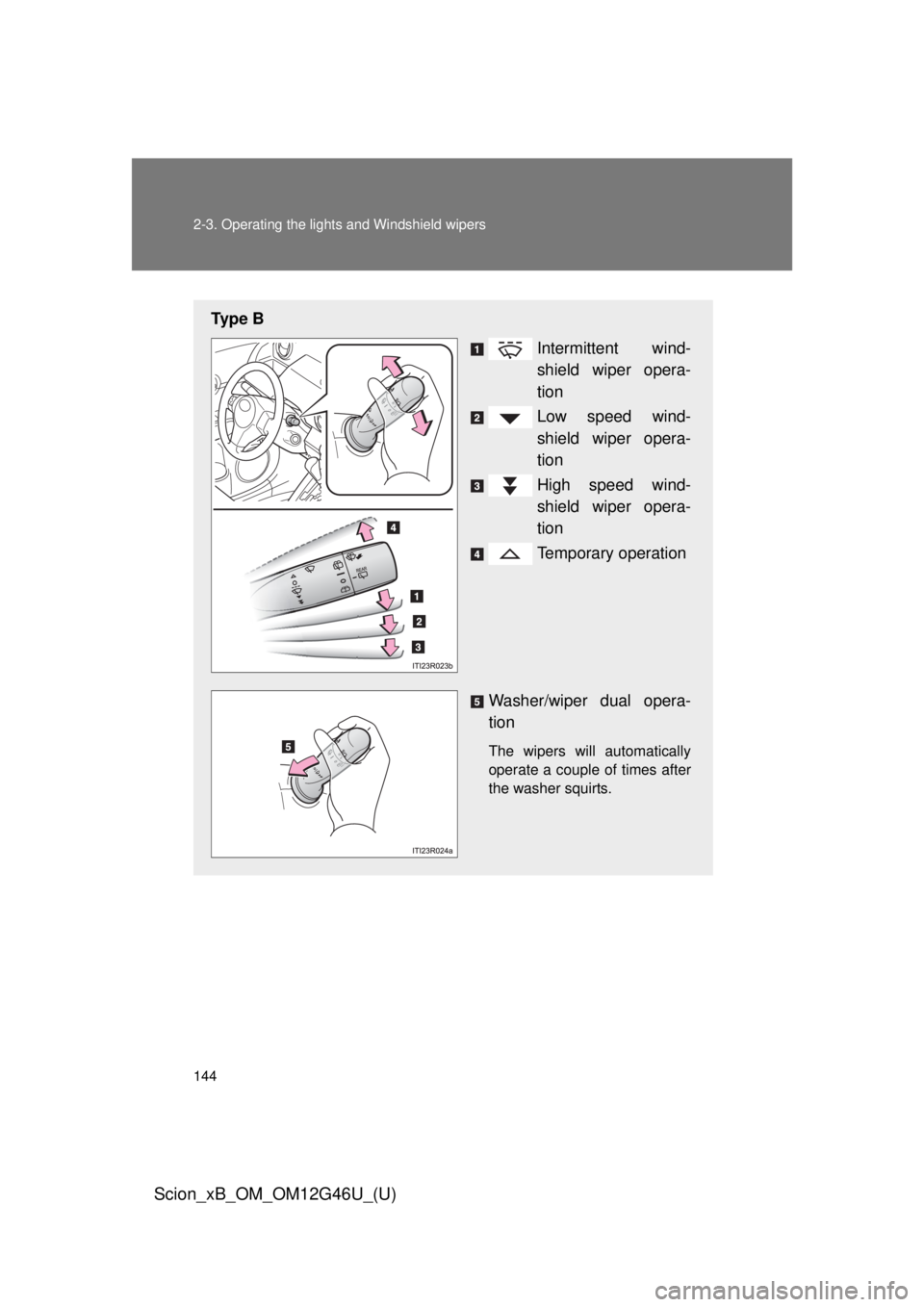

Ty p e BIntermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

145
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xB_OM_OM12G46U_(U)
■
The windshield wipers and washer can be operated when
The engine switch is in the “ON” position.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Scion dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

146
2-3. Operating the lights and Windshield wipers
Scion_xB_OM_OM12G46U_(U)

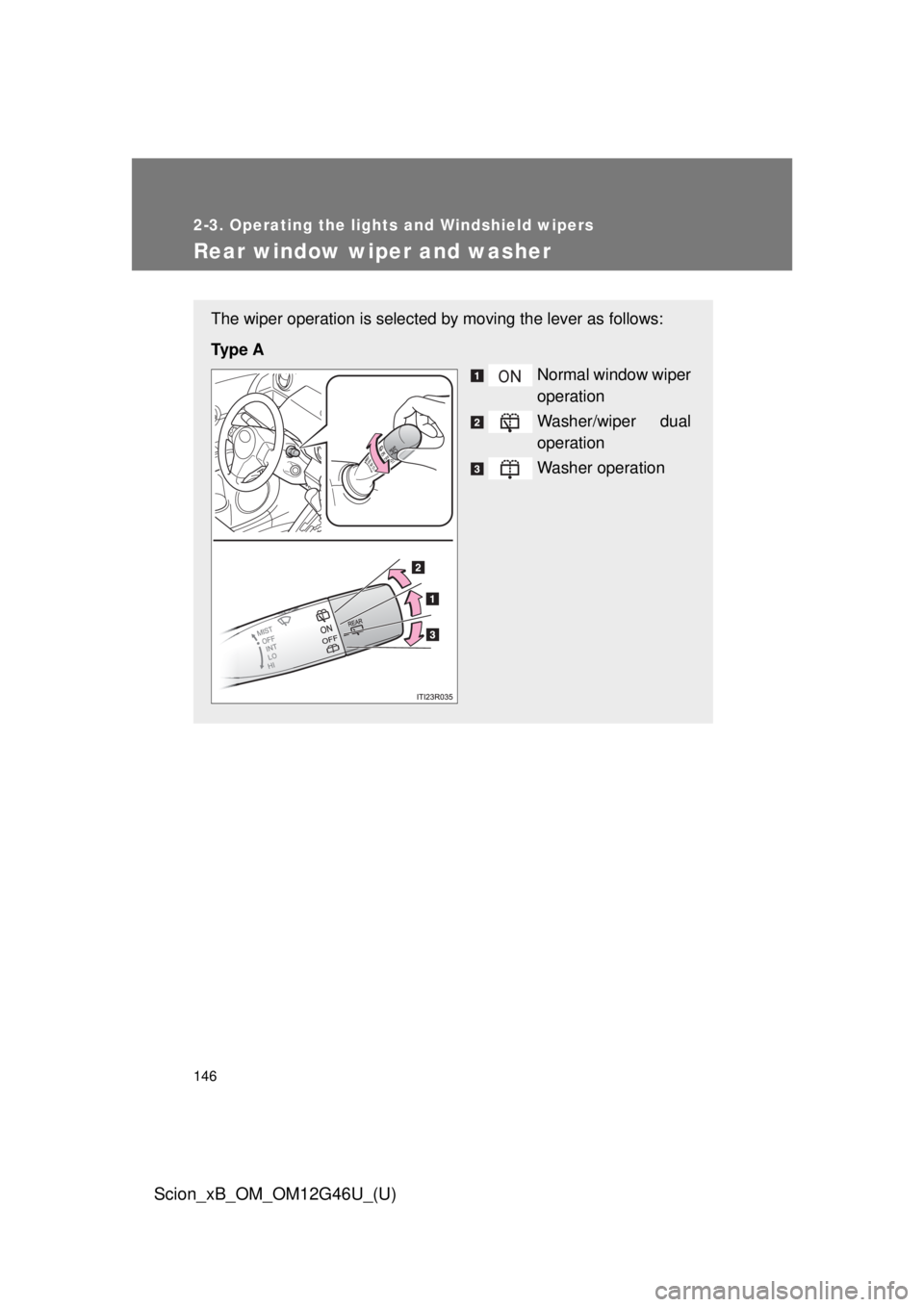

Rear window wiper and washer
The wiper operation is selected by moving the lever as follows:
Ty p e A Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

147
2-3. Operating the lights and Windshield wipers
2
When driving
Scion_xB_OM_OM12G46U_(U)
■
The rear window wiper and w asher can be operated when
The engine switch is in the “ON” position
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.

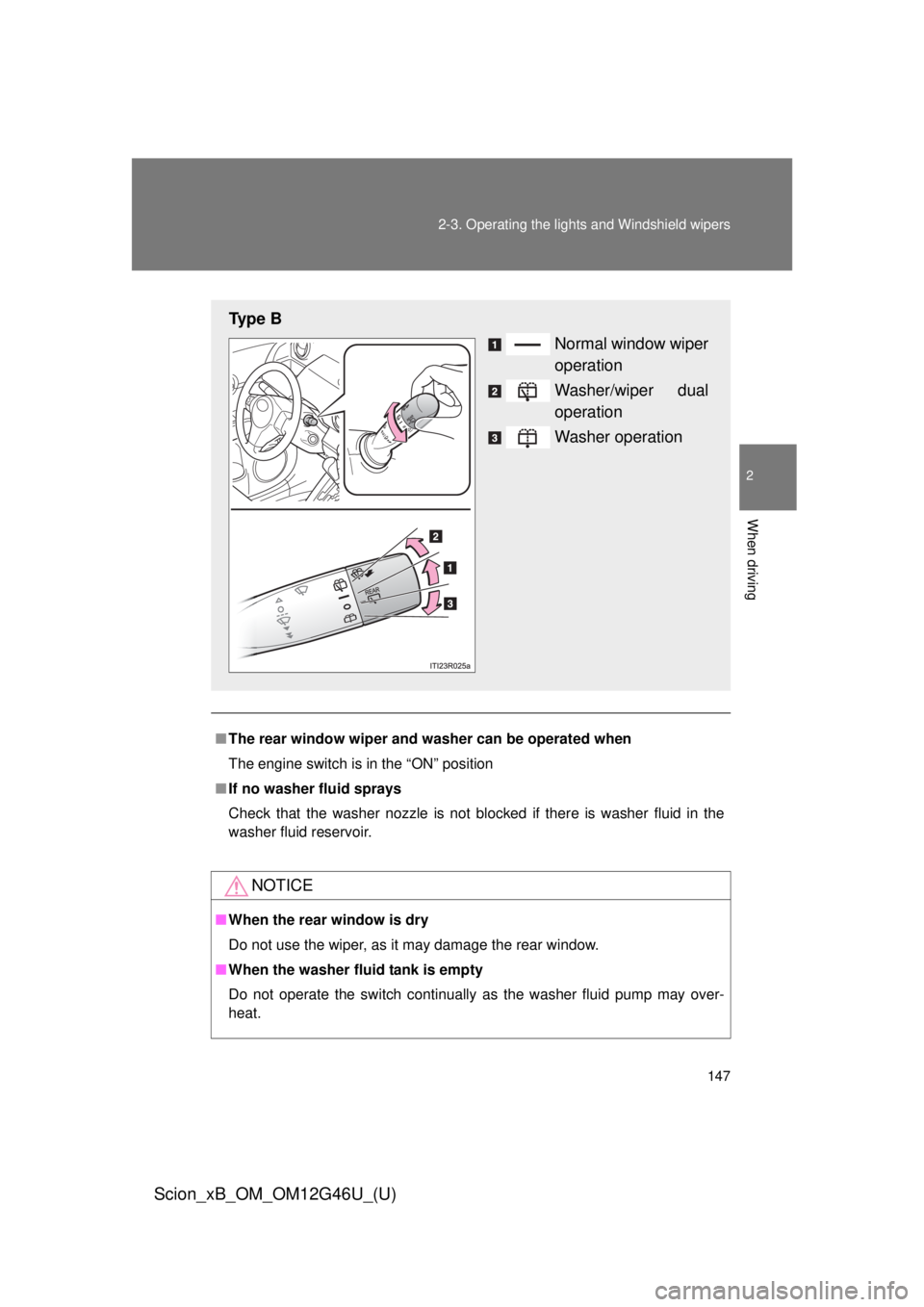

Ty p e B
Normal window wiper
operation
Washer/wiper dual
operation
Washer operation

148
Scion_xB_OM_OM12G46U_(U)

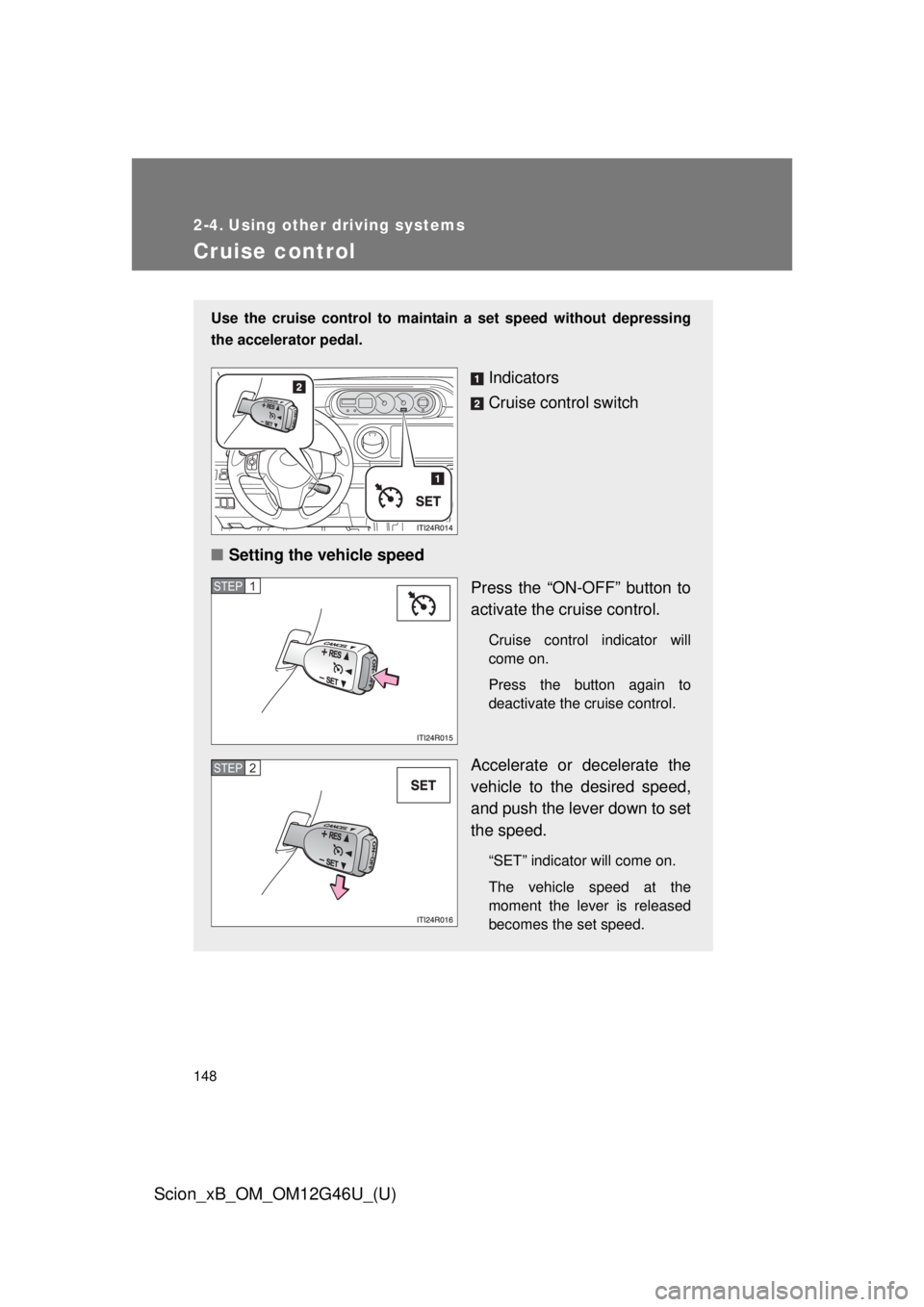

2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■ Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP 1
STEP 2

149
2-4. Using other
driving systems
2
When driving
Scion_xB_OM_OM12G46U_(U)

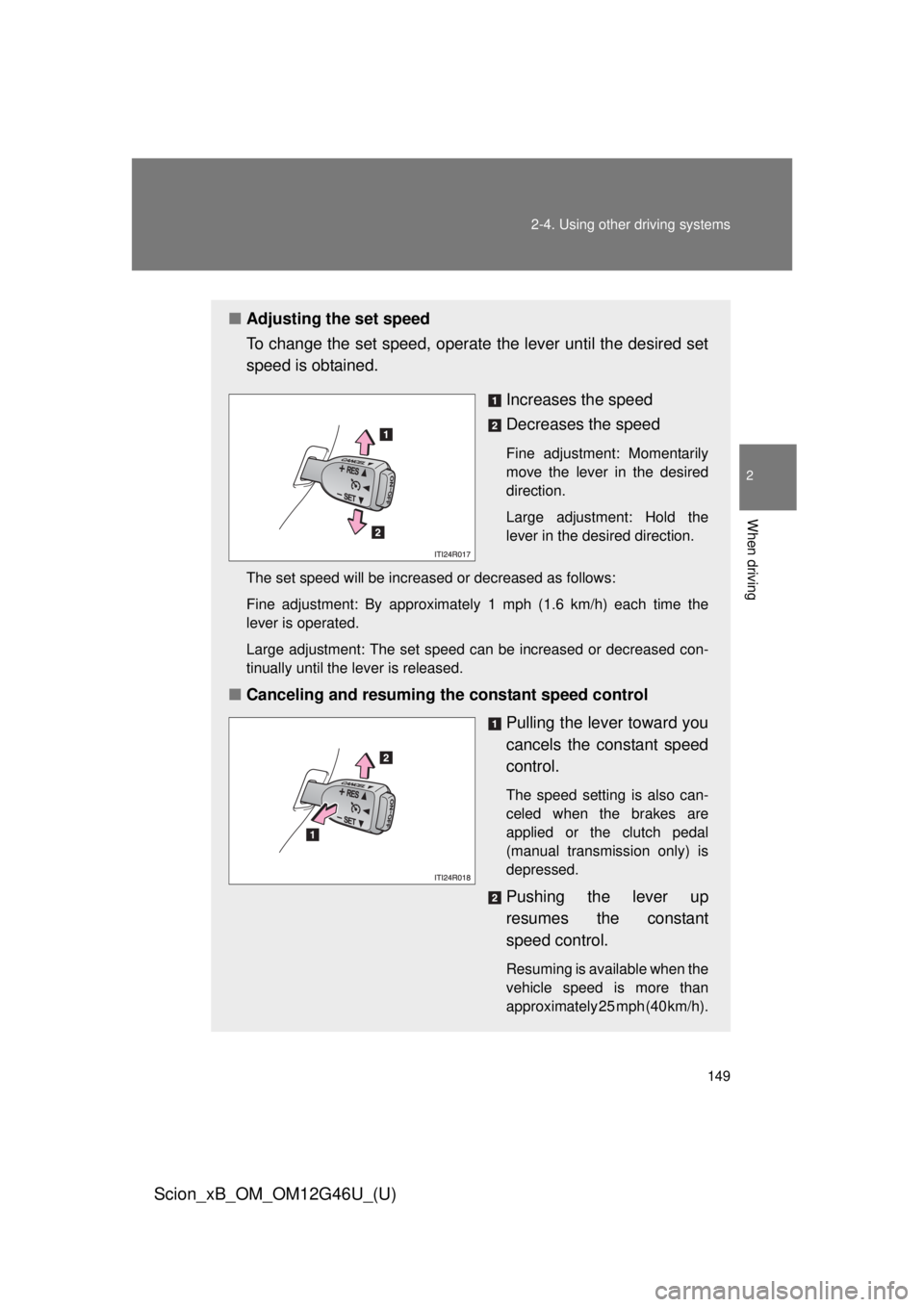

■Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.
■ Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when the
vehicle speed is more than
approximately 25 mph (40 km/h).

150 2-4. Using other driving systems
Scion_xB_OM_OM12G46U_(U)
■Cruise control can be set when
● On vehicles with an automatic transmission, the shift lever is in the D or
range 3 or higher of S has been selected.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating
● The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Scion dealer.
