Seat adjustments

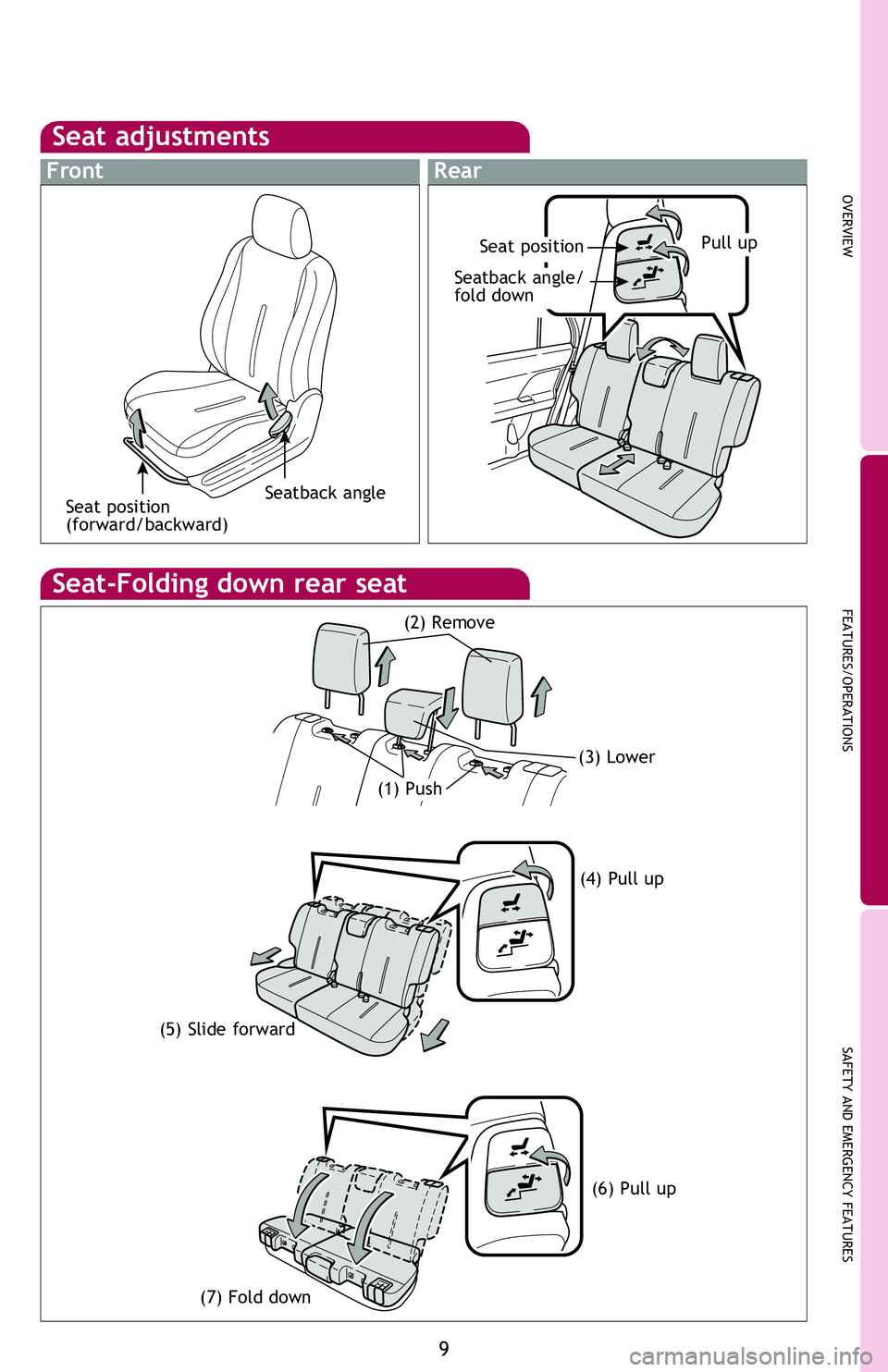

Seat-Folding down rear seat
(5) Slide forward (4) Pull up
(7) Fold down
(6) Pull up
(3) Lower
(1) Push
FrontRear
Seat position
Seatback angle/
fold down
Pull up
Seatback angle
(2) Remove
Seat position
(forward/backward)
2013Scion-xD.indd 98/6/12 8:47 PM

10
FEATURES/OPERATIONS
Windshield wipers & washers
Front
Rear
Wash and wipe
WipeWash
Lights & turn signals

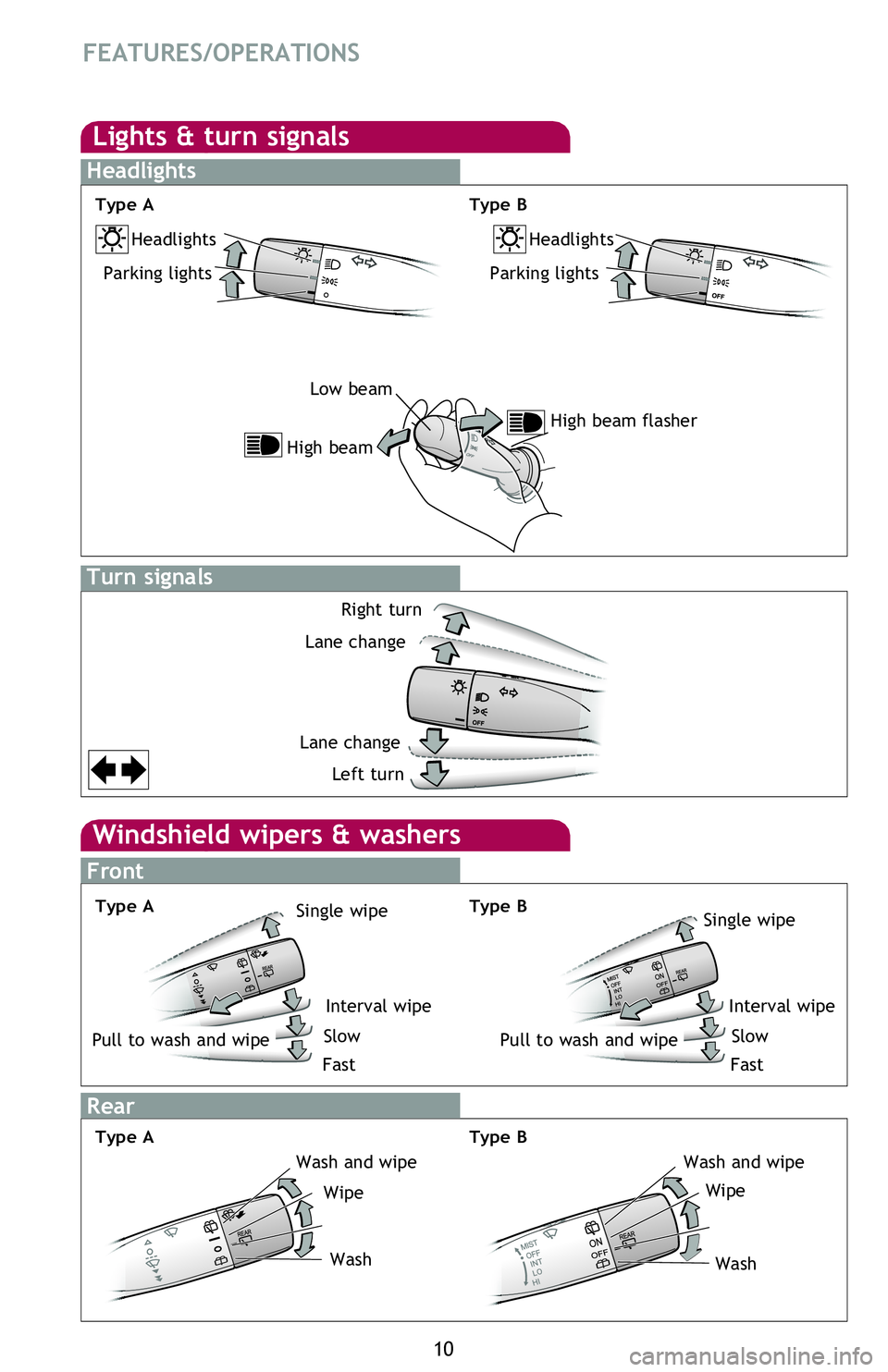

Turn signals
Headlights
Headlights
Parking lights
Right turn
Lane change
Lane change Left turn
Low beam
High beam flasher
High beam
Windows
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Driver side
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
Type A Type B
Headlights
Parking lights
Type A
Interval wipe
Slow
Fast
Pull to wash and wipe
Single wipe
Interval wipe Slow
Fast
Pull to wash and wipe
Single wipeType B
Type A Type B
Wash and wipe
Wipe
Wash
2013Scion-xD.indd 108/6/12 8:47 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Windows
Automatic down operation (driver side only)

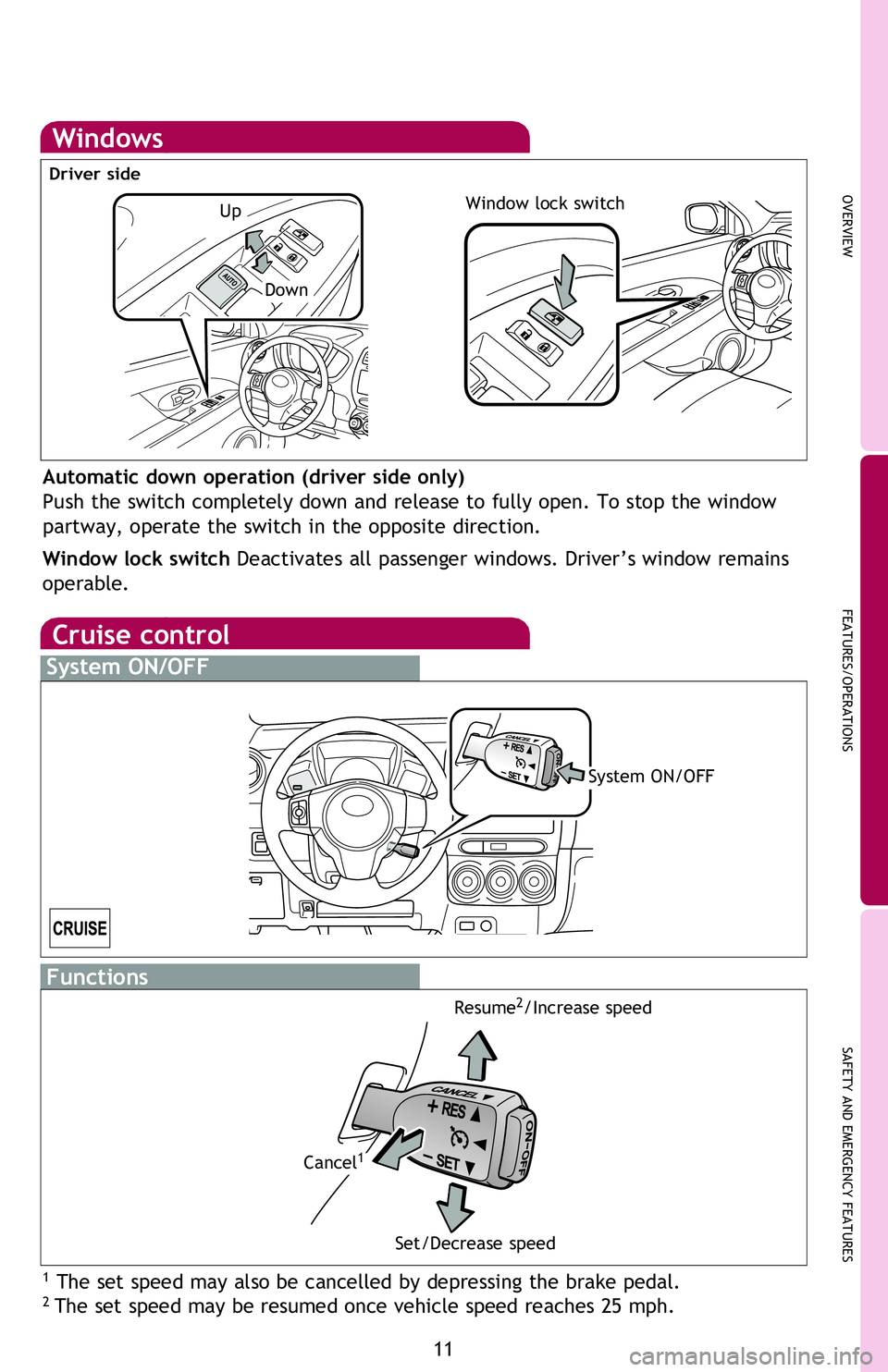

Push the switch completely down and release to fully open. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Up
Down
Driver side
Window lock switch
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed reaches 25 mph.
System ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel1
Interval wipe
Single wipe
System ON/OFF
Wipe Wash
2013Scion-xD.indd 118/6/12 8:47 PM

12
FEATURES/OPERATIONS
Air Conditioning/Heating
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Fan speed
Rear window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “” mode, use with the air intake selector position in “” to
reduce window fogging.
Clock
USB port/AUX port

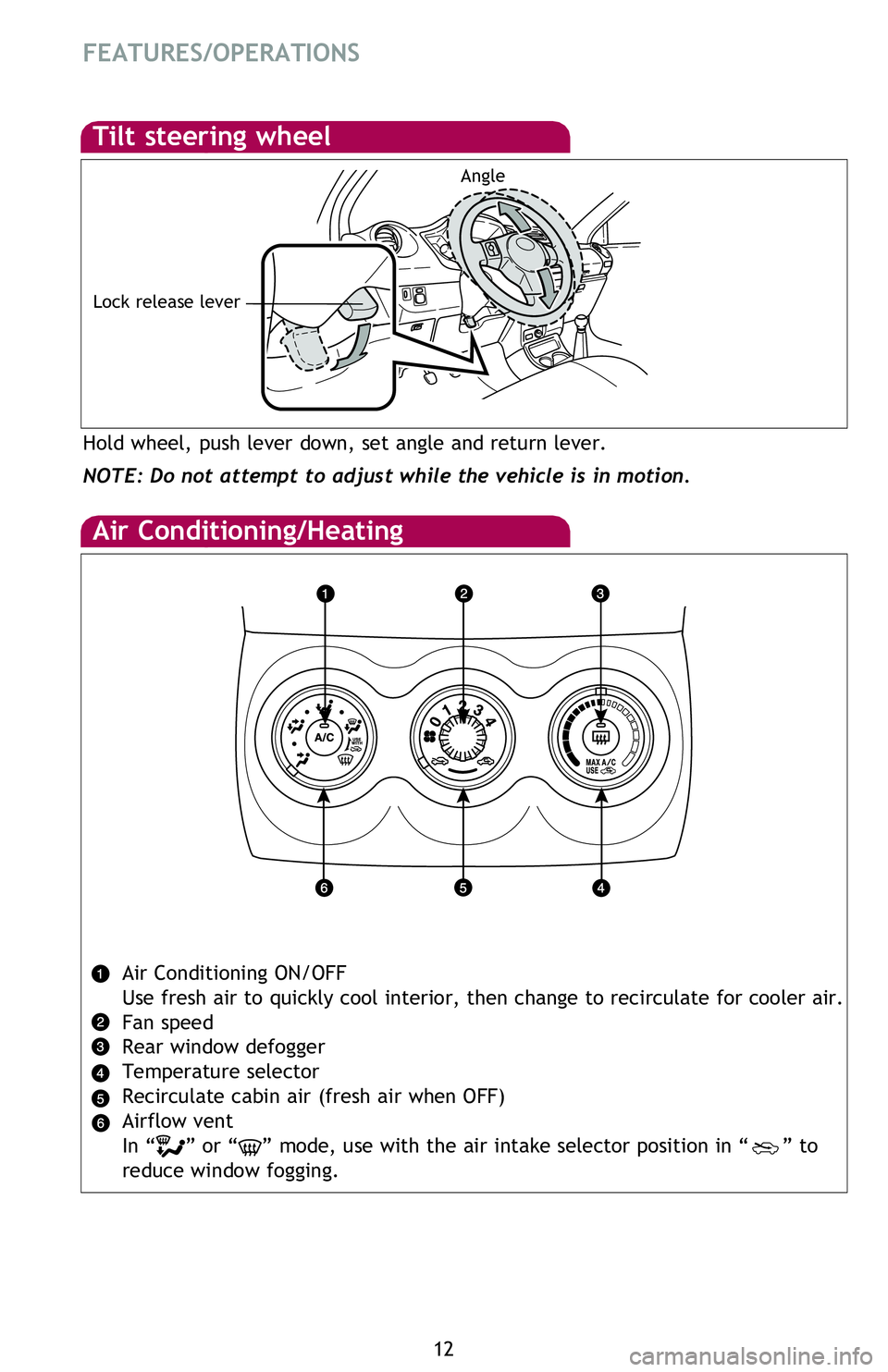

Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt steering wheel
USB port

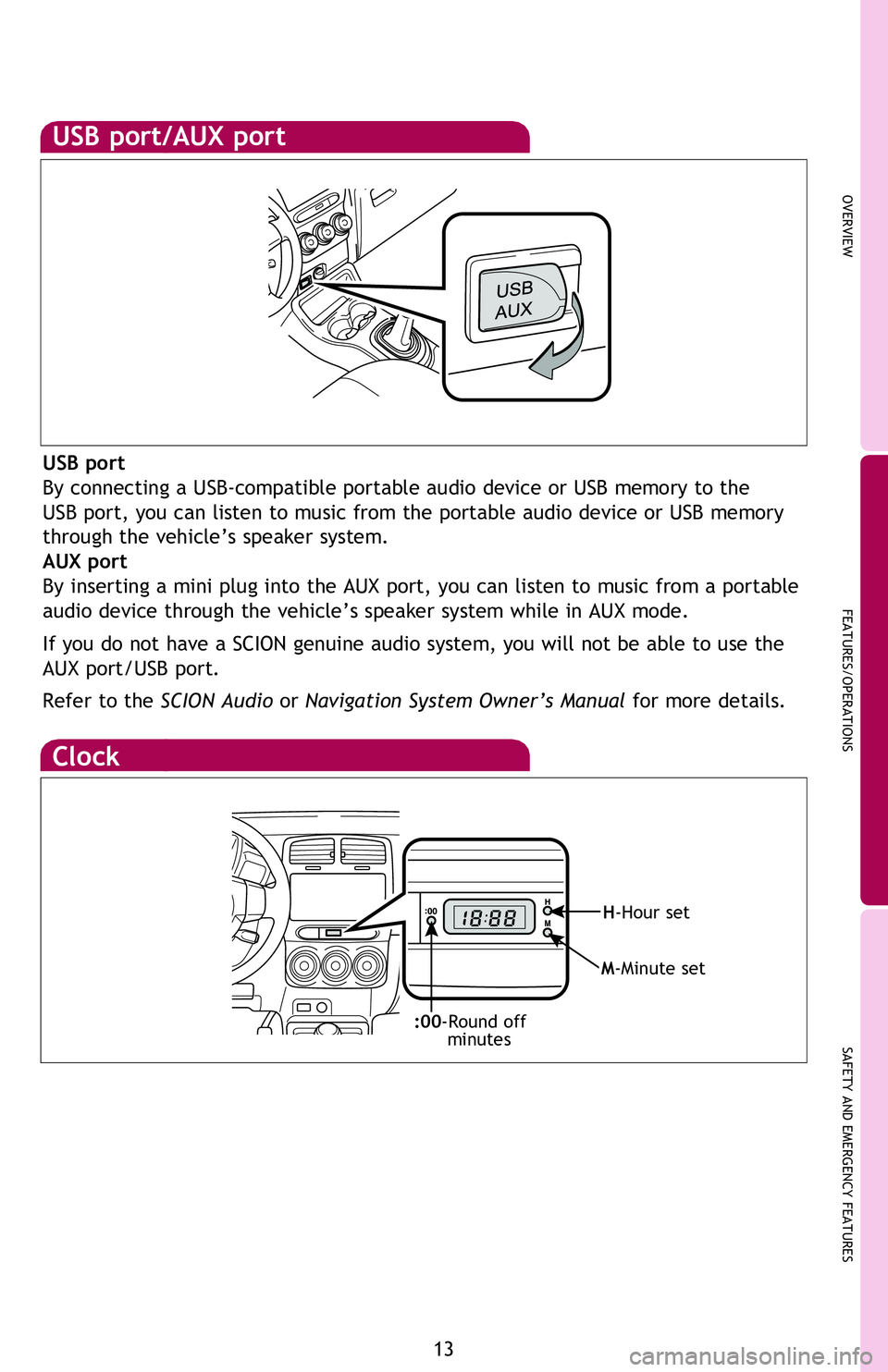

By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
If you do not have a SCION genuine audio system, you will not be able to use the
AUX port/USB port.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.
Lock release lever
Angle
2013Scion-xD.indd 128/6/12 8:47 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Fan speed
Rear window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “” mode, use with the air intake selector position in “” to
reduce window fogging.
Clock
USB port/AUX port
Hold wheel, push lever down, set angle and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
If you do not have a SCION genuine audio system, you will not be able to use the
AUX port/USB port.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.
:00-Round off
minutes
H-Hour set
M-Minute set
2013Scion-xD.indd 138/6/12 8:47 PM

14
FEATURES/OPERATIONS
Power outlet
Designed for car accessories. Key must be in the “ACC” or “ON” position for use.
Bottle holders
Front
Multi-Information Display
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Average vehicle speed from engine start (AVG/MPH)
(6) Miles left on remaining fuel (RANGE/MI)
Cup holders
Front passenger side
Front
Steering wheel switches
“ ”
-In radio mode Push to select a preset station; push and hold to seek the next
strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.>>
Volume control
2013Scion-xD.indd 148/6/12 8:47 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

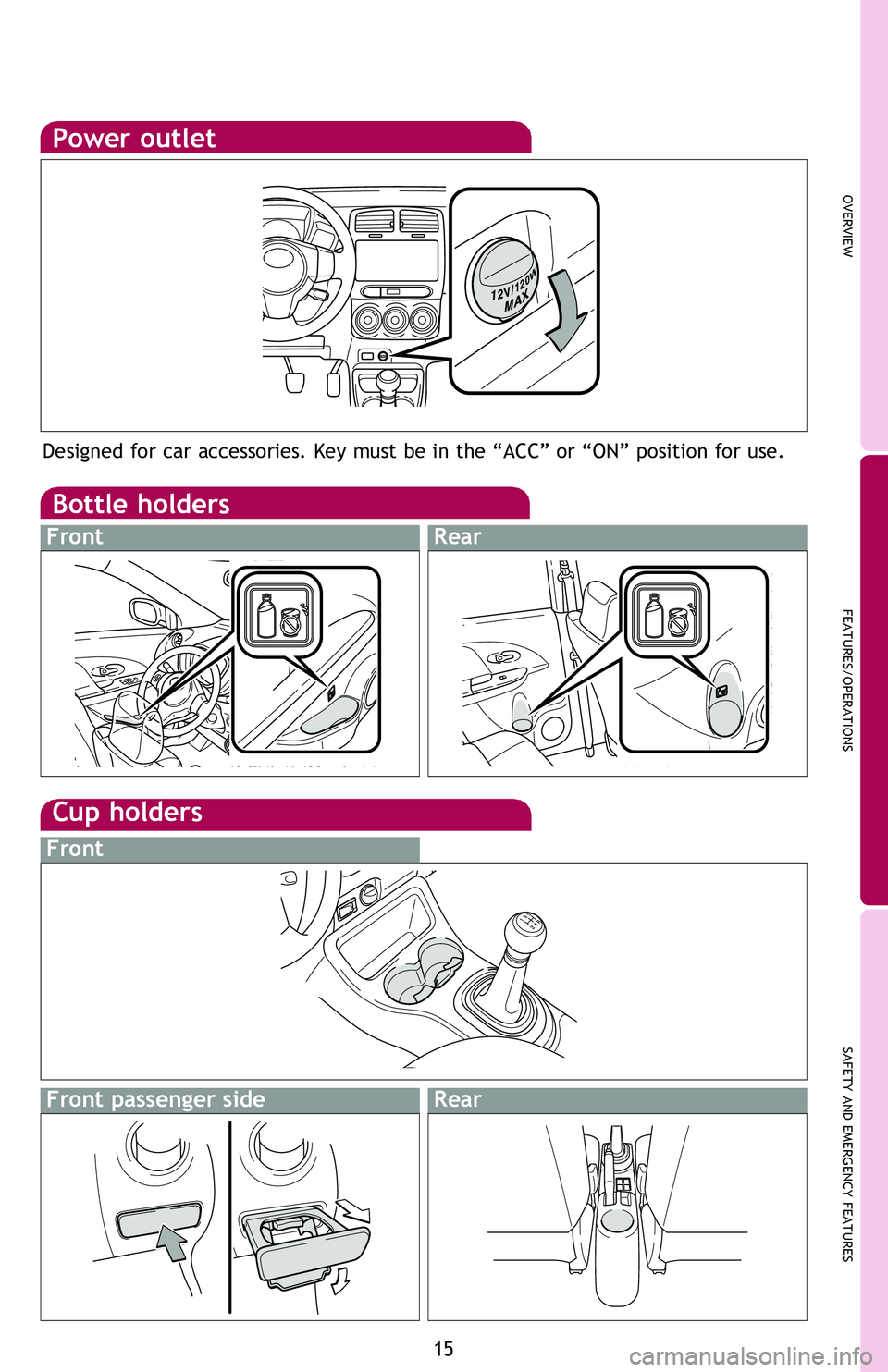

Power outlet
Designed for car accessories. Key must be in the “ACC” or “ON” position for use.
Bottle holders
FrontRear
Push button to change information in the following succession:
(1) Odometer
(2) Trip meters
(3) Current gas mileage (MPG)
(4) Average gas mileage (AVG/MPG)
(5) Average vehicle speed from engine start (AVG/MPH)
(6) Miles left on remaining fuel (RANGE/MI)
Cup holders
Front passenger sideRear
Front
“ ”
-In radio mode Push to select a preset station; push and hold to seek the next strong station.
-In CD mode Push to skip up or down to a next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Refer to the SCION Audio or Navigation System Owner’s Manual for more details.
2013Scion-xD.indd 158/6/12 8:47 PM

16
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks

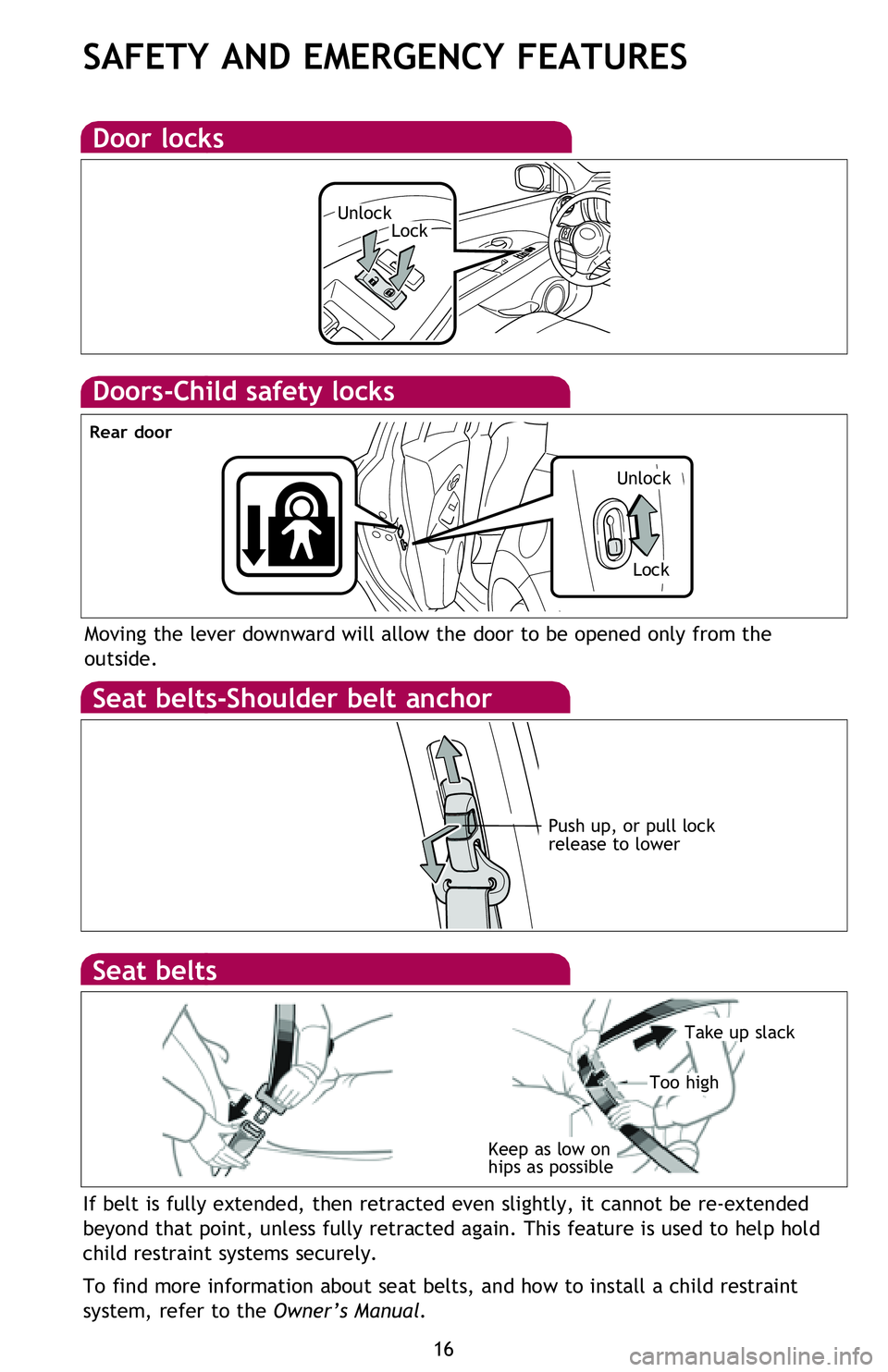

Moving the lever downward will allow the door to be opened only from the
outside.
Seat belts-Shoulder belt anchor
Push up, or pull lock
release to lower
Rear door
Door locks
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Scion dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should tu\
rn off the light.
UnlockLock
Spare tire
Jack handle
Unlock
Lock
2013Scion-xD.indd 168/6/12 8:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

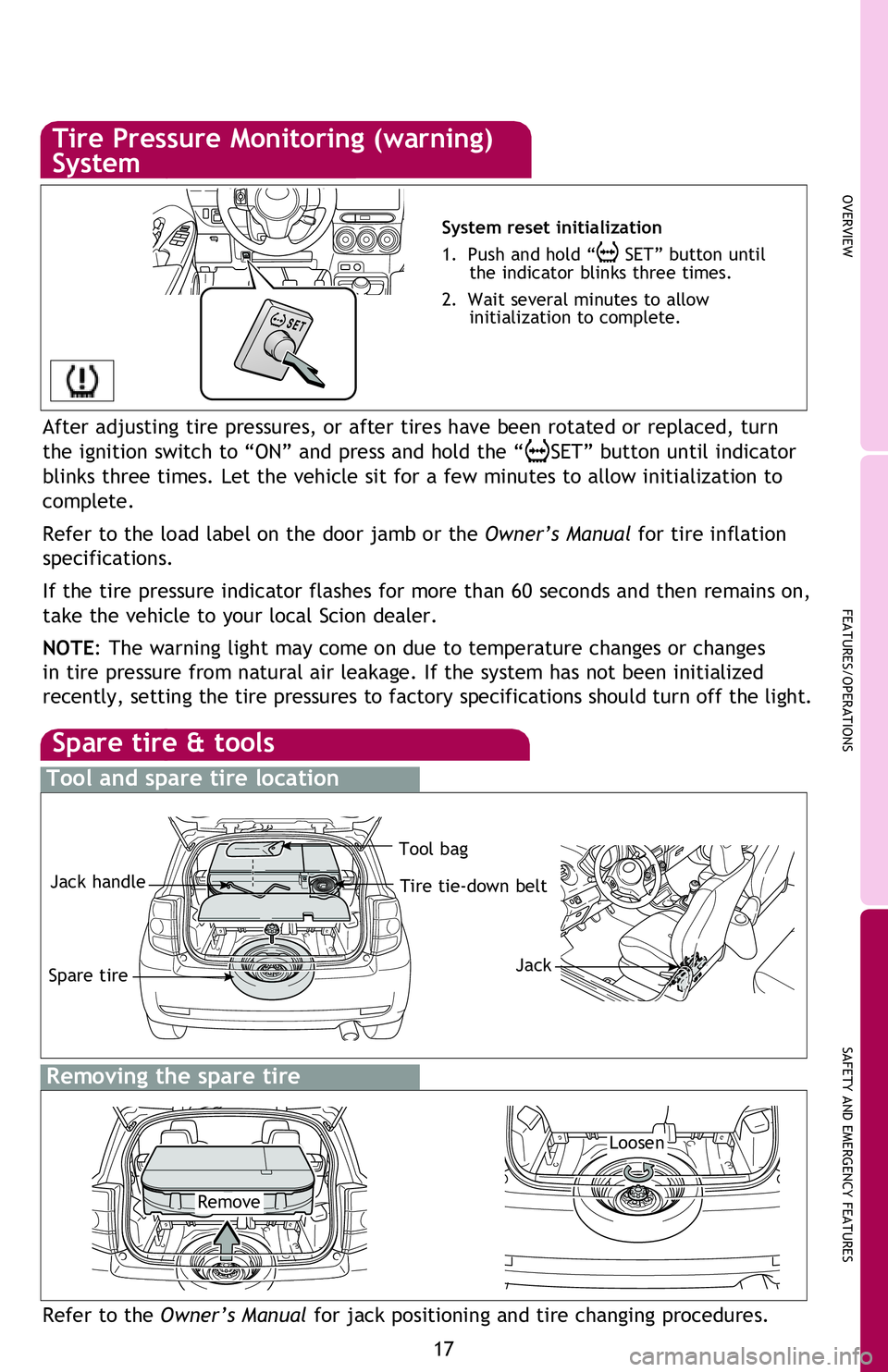

17
Moving the lever downward will allow the door to be opened only from the
outside.
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Tire Pressure Monitoring (warning)
System
System reset initialization
1. Push and hold “
SET” button until
the indicator blinks three times.
2. Wait several minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or replaced, turn
the ignition switch to “ON” and press and hold the “
SET” button until indicator
blinks three times. Let the vehicle sit for a few minutes to allow initialization to
complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Scion dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should tu\
rn off the light.
Loosen
Remove Tool bag
Tire tie-down belt
Spare tire
Jack handle
Jack
2013Scion-xD.indd 178/6/12 8:48 PM

18
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)Star Safety SystemTM

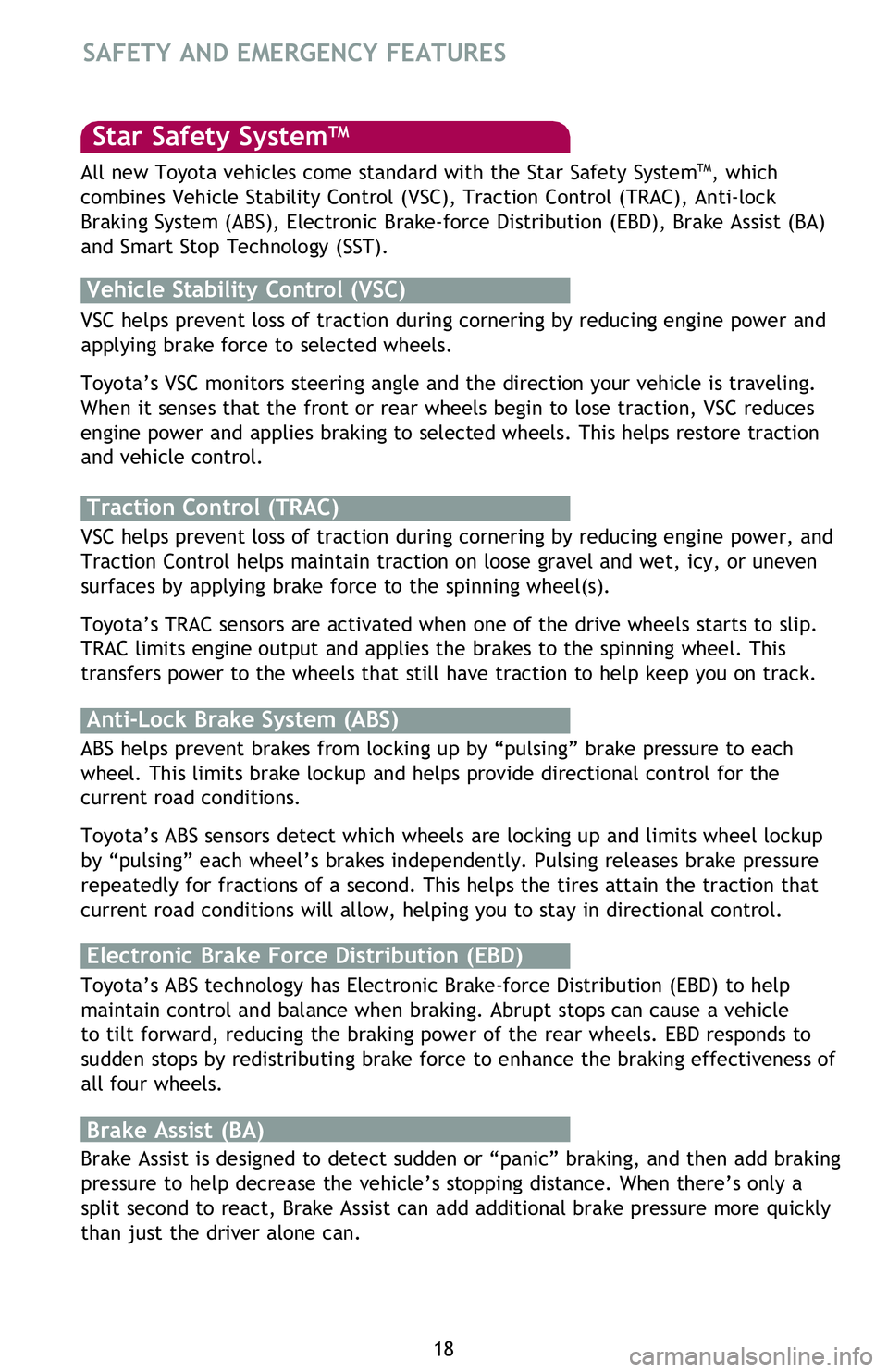

VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
2013Scion-xD.indd 188/6/12 8:48 PM
