The following information is displayed
on the multiinformation display when
you push the “MODE” switch (on the
instrument cluster) with the ignition
switch turned on.
Each time you push the “MODE”
switch, the display changes to the next

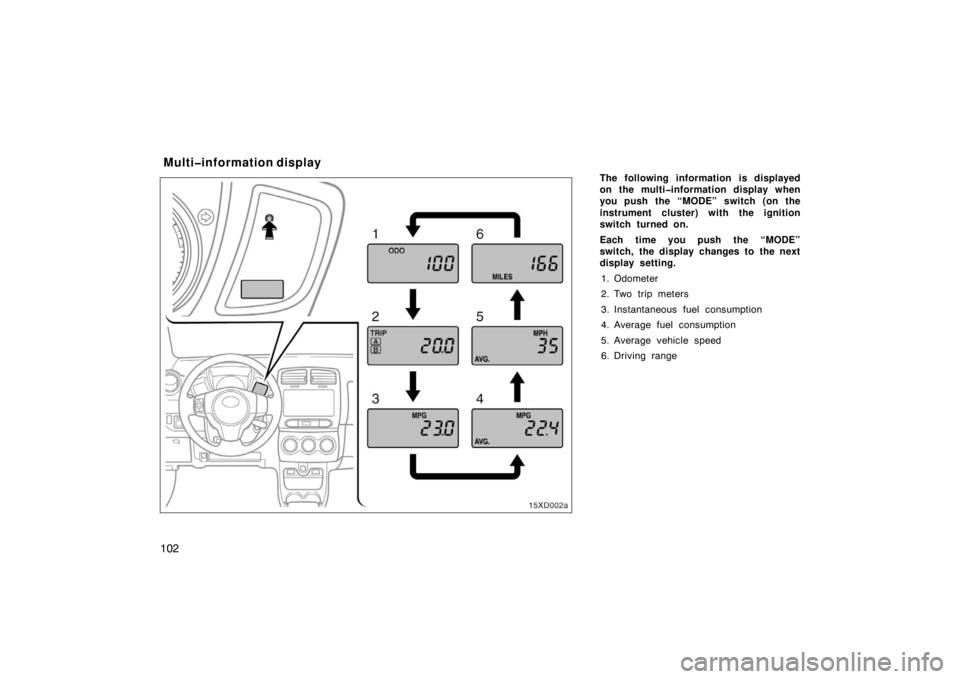

display setting.1. Odometer
2. Two trip meters
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Average vehicle speed
6. Driving range
Multiinformation display
15xD002a

103
The displayed values in the multi−informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
When the engine switch is on, the last
previously used mode displayed just be-
fore the engine switch is off will appear.
If the electrical power source has been
disconnected from the multi −information
display, the display will automatically be
set to the initial mode.
When the headlight switch is turned on,
the brightness of the display will be re-
duced.
You can adjust the brightness of the dis-
play. To adjust the brightness, see “Instru-
ment panel light control” on page 94.
CAUTION
Do not operate the switches while the
vehicle is moving. Make sure to oper-
ate the switches when the vehicle is
stopped.
1. Odometer
The total distance the vehicle has been
driver is displayed.
2. Two trip meters
Two different distances are displayed
independently.
You can use one trip meter to calculate
the fuel economy and the other to mea-
sure the distance on each trip. All trip
meter data are cancelled if the electrical
power source is disconnected.
To reset the trip meter A to zero, display
the meter A reading, then push and hold
the knob until the meter is set to zero.
The same process can be applied for re-
setting the trip meter B. 3. Instantaneous fuel consumption (“MPG”)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption with the
engine running.
Note that an accurate figure may not be
shown in the following cases.The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope, applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off. 4. Average fuel consumption (“AVG. MPG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
Every time you refuel the vehicle, the cal-
culation is reset. 5. Average vehicle speed (“AVG. MPH”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.

104
6. Driving range(“RANGE MI”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
Every time you refuel the vehicle, the cal-
culation is reset. However, when only a
small amount of fuel is added to the tank,
the display may not be reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further.

105
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)(Indicator and buzzer)If parking brake is off, stop immediately and contact Scion dealer.
(b)
(Indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(Indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Replace engine oil.
(e)Stop immediately and contact Scion dealer.
(f)Take vehicle to Scion dealer.
(g)Fill up tank.

106
If the indicator or buzzer comes on...Do this.
(h)Stop and check.
(i)Take vehicle to Scion dealer. If brake system warning light is also on, stop immediate-
ly and contact Scion dealer.
(j)Close all side doors and back door.
(k)Take vehicle to Scion dealer immediately.
(l)Add washer fluid.
(m)Take vehicle to Scion dealer immediately.
(n)If the light flashes, take vehicle to Scion dealer.

107
If the indicator or buzzer comes on...Do this.
(o)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Scion dealer.
(p)Stop and check.
(q)Key reminder
buzzerRemove key.
(r)Light reminder
buzzerTurn off lights.

108
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
If the vehicle speed rises above 5 km/h (3
mph) with the parking brake applied for 1
second or more, a buzzer sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Scion dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned to the “ON” posi-
tion with the parking brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Scion dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will increase. Depress the
brake pedal firmly and bring the ve-
hicle to an immediate stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to the
“ON” or “START” position, the reminder
light and buzzer come on if the driver’s
seat belt is not fastened. Unless the driv-
er fastens the belt, the light continues
flashing and 5 beeps sound.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer.
However, Scion recommends that the seat
belt reminder buzzer be operational to
alert the driver and front passenger that
the seat belts are not fastened.

109
(c) Front Passenger ’s Seat BeltReminder Light and Buzzer
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to the
“ON” or “START” position, the reminder
light comes on if a passenger sits in the
front passenger seat and does not fasten
the seat belt. Unless the front passenger
fastens the belt, the light continues flash-
ing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sound.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Scion dealer. (d) Engine Oil Replacement Reminder
Light
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to the “ON” position, and
will go off after a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
after the ignition key is turned to the “ON”
position. If you continue driving without
engine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on when the ignition key
is turned to the “ON” position. The light
will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.
The system must be reset after the en-
gine oil replacement. Reset the system by
following the procedure below: 1. Turn the ignition key to the “OFF” posi- tion with the odometer reading shown.
(For details, see “Multi −information dis-
play” on page 102.) 2. Turn the ignition key to the “ON” posi-
tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The light goes off, and the display
shows zero for 1 second and changes to
the odometer reading.
If the system fails to reset, the light will
remain on or keep flashing.
(e) Charging System Warning Light
This warning light comes on when the
engine switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Scion
dealer.

11 0
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, first check the
following.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Scion dealer as
soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, auto-
matic transmission electrical system or
warning light system itself.
Contact your Scion dealer as soon as
possible to service the vehicle. Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Scion deal-
er to check your vehicle’s emission control
system and OBD (On
−Board Diagnostics)
system before taking your vehicle for the
inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 238.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes very low. Fill up the
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Scion dealer or qualified repair shop for
assistance. The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
−
lock brake system works properly, the
light turns off after a few seconds. There-
after, if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally.

111
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate
so that the wheels could lock up during
sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warning light system.
Contact your Scion dealer as soon as
possible to service the vehicle.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Scion dealer.
In this case, not only the antilock
brake system will fail but also the ve-
hicle will become extremely unstable
during braking.
(j) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed. (k) SRS Warning Light
This indicator comes on when the igni-
tion key is turned to the “ON” position. It
goes off after about 6 seconds. This
means the SRS front airbags, SRS side
airbags, curtain shield airbags and seat
belt pretensioners are operating properly.
This warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON”
indicator light, “AIR BAG OFF” indicator
light, passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources.
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners Contact your
Scion dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds or flashes.
The light comes on or starts flashing
while driving.
