143
Ventilation
For best results, set controls to:Fan speed— Any setting except “0”
Temperature— Towards blue zone
Air intake—FRESH (outside air)
Air flow—PANEL
Air conditioning—OFF
Defogging
The inside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— Towards red zone to
heat; blue zone to cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “0”
Temperature— Towards red zone
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

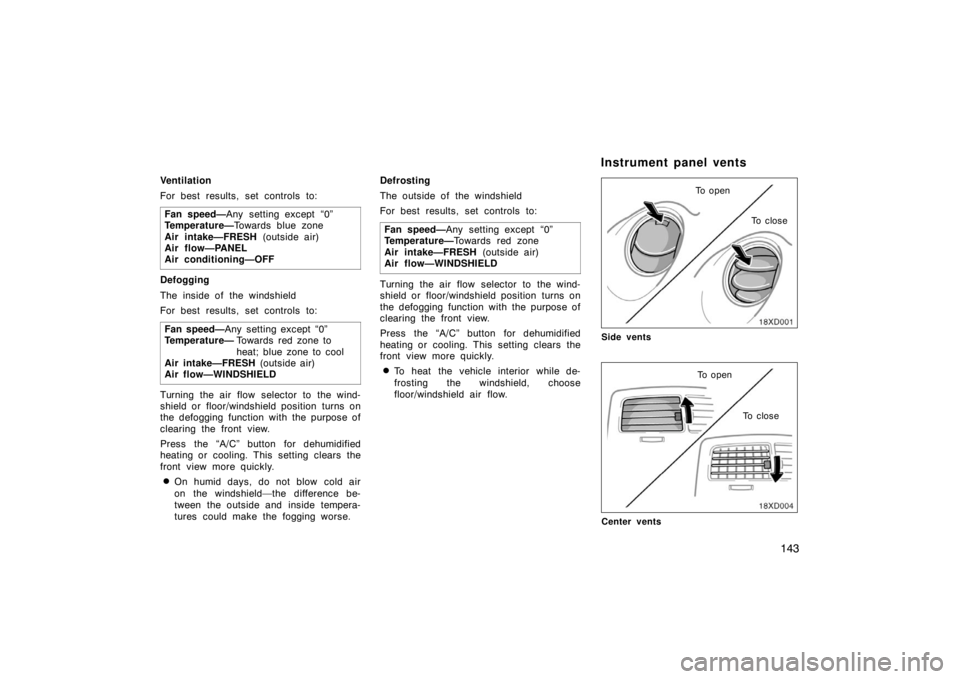

To open
To c l o s e
Side vents
To o p e n To c l o s e
Center vents
Instrument panel vents

144
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
Side vents
Center vents

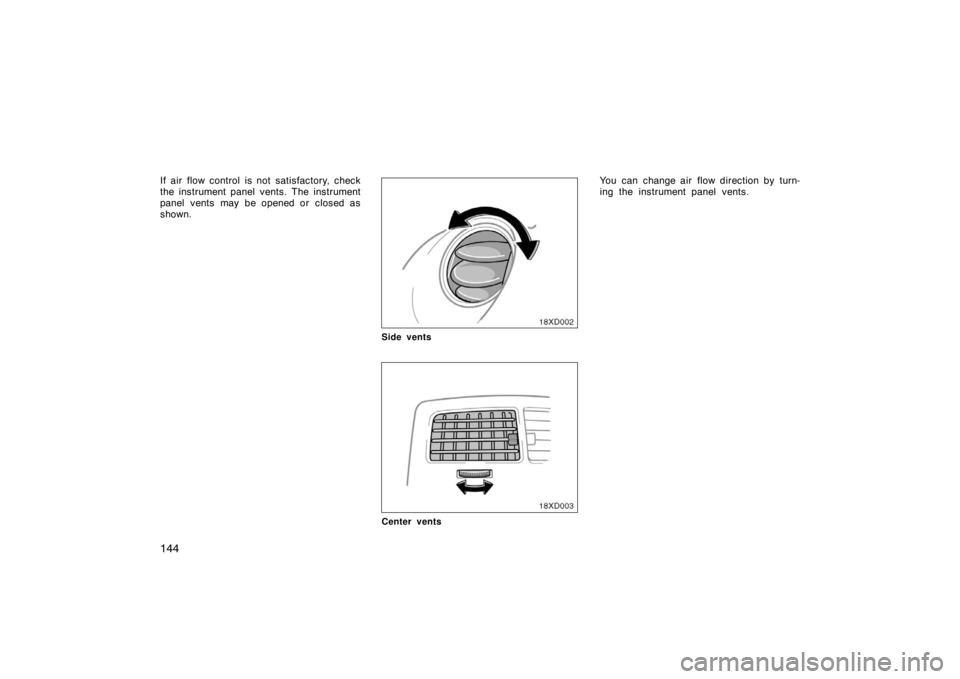

You can change air flow direction by turn-
ing the instrument panel vents.

145
18xD008
The air conditioning filter information
label is placed on the inside of the
lower glove box as shown and indicates
that the filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
18xD009
The air conditioning filter is behind the
lower glove box.The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows become to fog up easily
in FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Air conditioning filter—
—Checking and cleaning the
air conditioning filter

146
18xD010

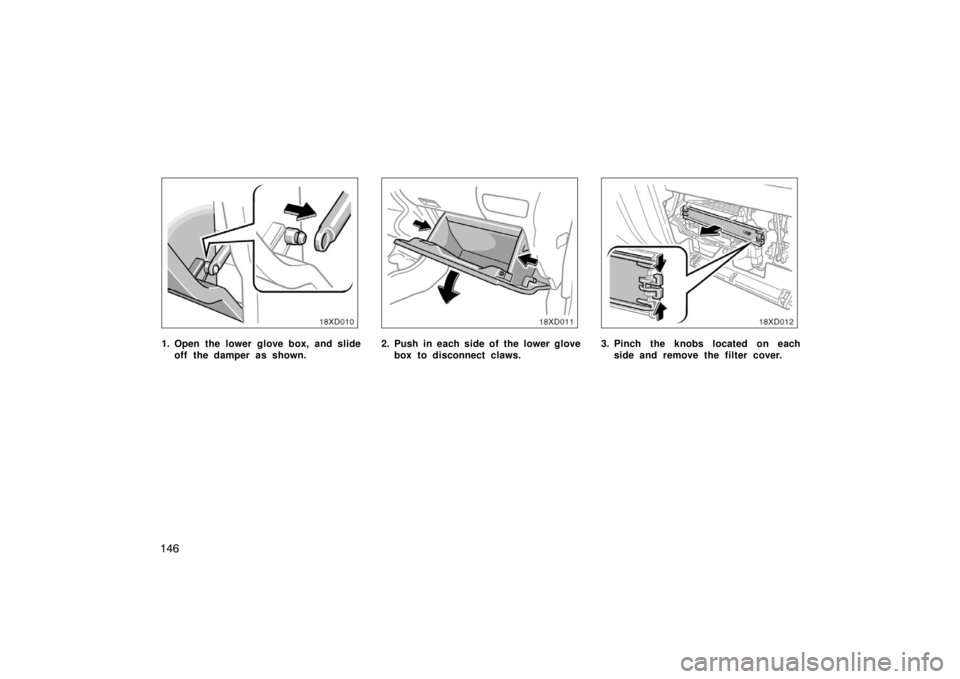

1. Open the lower glove box, and slideoff the damper as shown.
18xD011
2. Push in each side of the lower glovebox to disconnect claws.
18xD012
3. Pinch the knobs located on eachside and remove the filter cover.

147

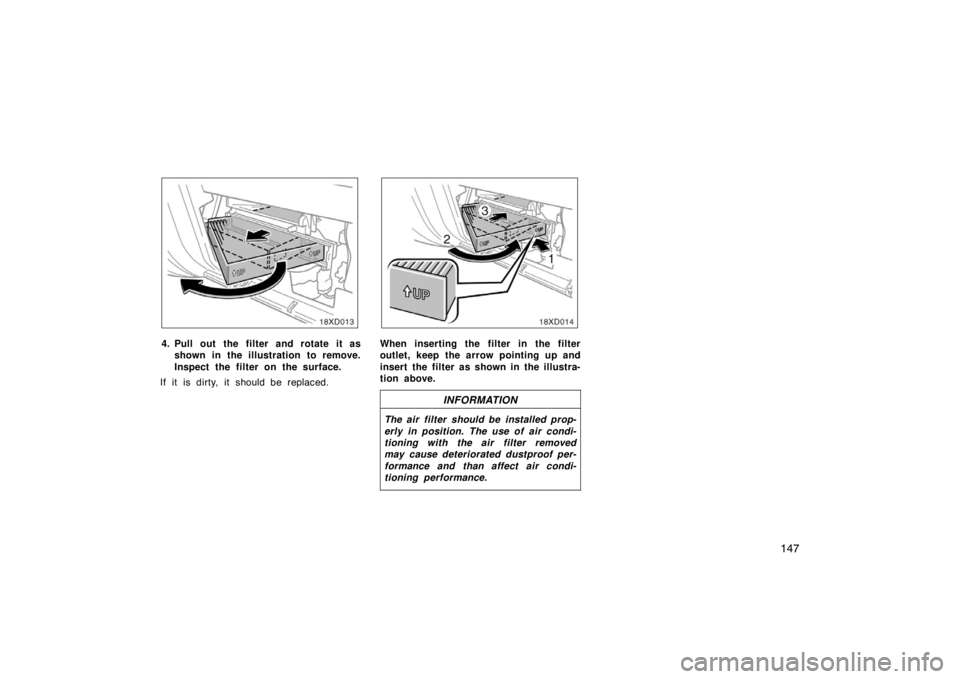

18xD013
4. Pull out the filter and rotate it asshown in the illustration to remove.
Inspect the filter on the surface.
If it is dirty, it should be replaced.
18xD014
When inserting the filter in the filter
outlet, keep the arrow pointing up and
insert the filter as shown in the illustra-
tion above.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and than affect air condi-
tioning performance.

148

149
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Power outlet 150
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio remote controls (steering switches) 151
. . . . . . . . . . . . . . . . . . . . .
AUX adapter 151
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
iPod jack 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Glove boxes 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Auxiliary box 153
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Cup holders 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Tie −down hooks 155
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage storage box 156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Floor mat 156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

150
Clock
19xD014
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
It the time is between 1:30—1:59, the time
will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
Power outlet
The power outlet is designed for power
supply for car accessories. To use it,
open as shown.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.

151
14xB001

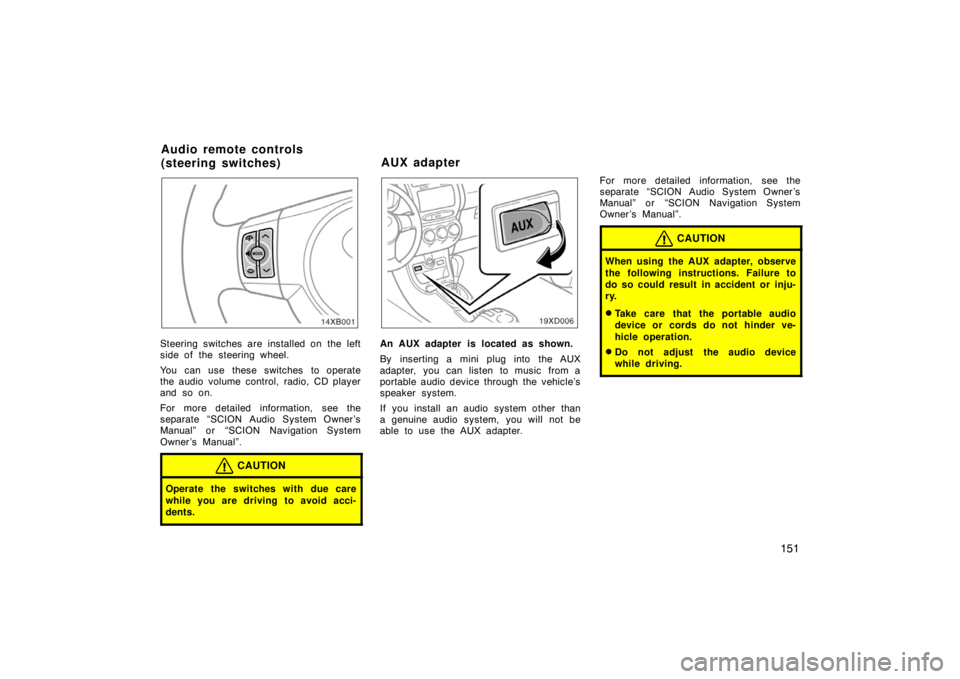

Steering switches are installed on the left
side of the steering wheel.
You can use these switches to operate
the audio volume control, radio, CD player
and so on.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
Operate the switches with due care
while you are driving to avoid acci-
dents.
An AUX adapter is located as shown.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
When using the AUX adapter, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the portable audio
device or cords do not hinder ve-
hicle operation.
Do not adjust the audio device
while driving.
Audio remote controls
(steering switches)
AUX adapter

152

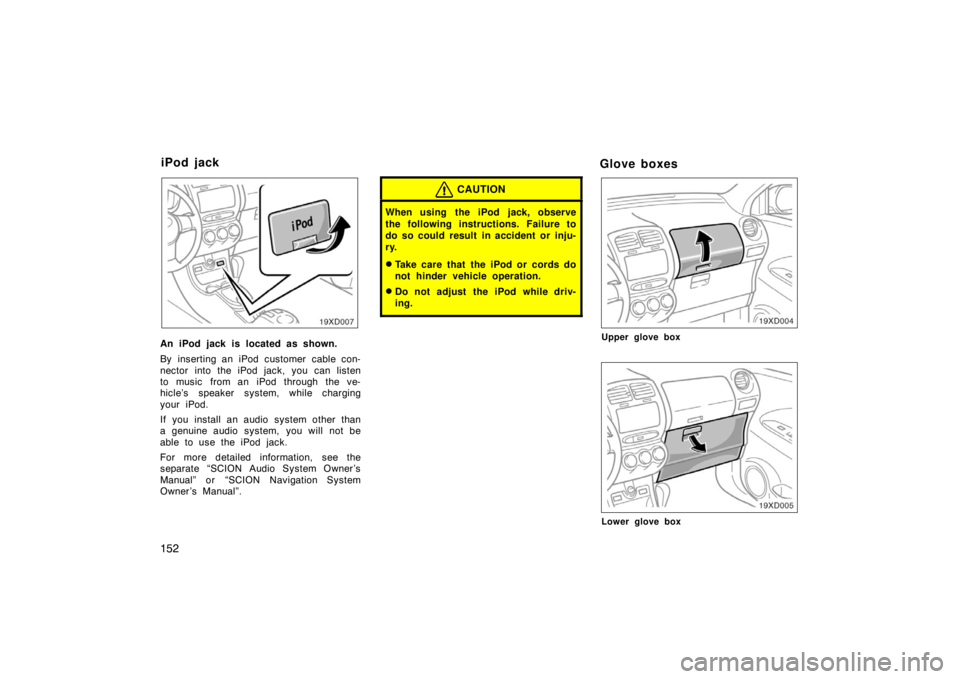

An iPod jack is located as shown.
By inserting an iPod customer cable con-
nector into the iPod jack, you can listen
to music from an iPod through the ve-
hicle’s speaker system, while charging
your iPod.
If you install an audio system other than
a genuine audio system, you will not be
able to use the iPod jack.
For more detailed information, see the
separate “SCION Audio System Owner ’s
Manual” or “SCION Navigation System
Owner ’s Manual”.
CAUTION
When using the iPod jack, observe
the following instructions. Failure to
do so could result in accident or inju-
ry.
Take care that the iPod or cords do
not hinder vehicle operation.
Do not adjust the iPod while driv-
ing.
Glove boxes
Upper glove box
Lower glove box
iPod jack
