OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument cluster 5
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

2
Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Interior lights
5. Upper glove box
6. Cup holders
7. Power door lock switches
8. Power window switches
9. Lower glove box
10. Bottle holders
11. “VSC OFF” switch
12. Parking brake lever
13. Automatic transmission selector lever or manual transmission gear shift lever
14. Auxiliary box
15. Hood lock release lever
16. Window lock switch
11xD002a

3
1. Headlight and turn signal switches
2. Audio remote controls(steering switches)
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. “AIR BAG ON” and “AIR BAG OFF” indicator lights / front passenger ’s seat
belt reminder light
7. Air conditioning controls
8. Rear window defogger switch
9. iPod jack
10. Power outlet 11. AUX adapter
12. Cruise control switch
13. Engine switch
14. Tilt steering lock release lever
15. Tire pressure warning reset switch
16. Instrument panel light control dial
17. Power rear view mirror control switches
11xD003a

4
1. Service reminder indicators andindicator lights
2. Speedometer
3. MODE switch 4. Multi
−information display
5. Tachometer 6. Shift position indicators
7. Fuel gauge
Instrument cluster overview

5
Indicator symbols on the instrument cluster
Brake system warning light*1
Driver ’s seat belt reminder light*1
Charging system warning light*1
Malfunction indicator lamp*1
Low engine oil pressure warning light*1
Anti-lock brake system warning light*1
SRS warning light*1
Low windshield washer fluid level warning
light*1
Electric power steering system warning light*1
“VSC OFF” warning light*1/”VSC OFF” indicator
light
Tire pressure warning light*
1
Low engine coolant temperature indicator light*2
High engine coolant temperature warning light*1
Front passenger ’s seat belt reminder light*1
Open door warning light*1
Engine oil replacement reminder light*1
Slip indicator light
Low fuel level warning light*1

6
Turn signal indicator lights
Headlight high beam indicator light
Cruise control indicator light*
3

*1: For details, see “Service reminder indicators and warning buzzers” on page 105 in Section 1 −6.
*2: For details, see “Engine coolant temperature indicator and
warning light” on page 100 in Section 1 −6.
*3: If this light flashes, see “Cruise control” on page 133 in
Section 1 −7.
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Headlight low beam indicator light

7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Wireless remote control 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 2

8
Keys
These keys work in every lock.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Wireless remote
control” below.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Scion dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Wireless remote control—
1. Indicator light
2. Lock switch
3. Panic switch
4. Unlock switch
The wireless remote control system is
designed to lock or unlock the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.

9
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys for the same vehicle. Contact
your Scion dealer for detailed information.
If the wireless remote control key does
not actuate the doors or operate from a
normal distance, or the indicator light on
the key is dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 12. If you lose your wireless remote control
key, contact your Scion dealer as soon as
possible to avoid the possibility of theft,
or an accident. (See “If you lose your
keys” on page 223.)
FCC ID: MOZB41TG
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) this de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired op-
eration.

10
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

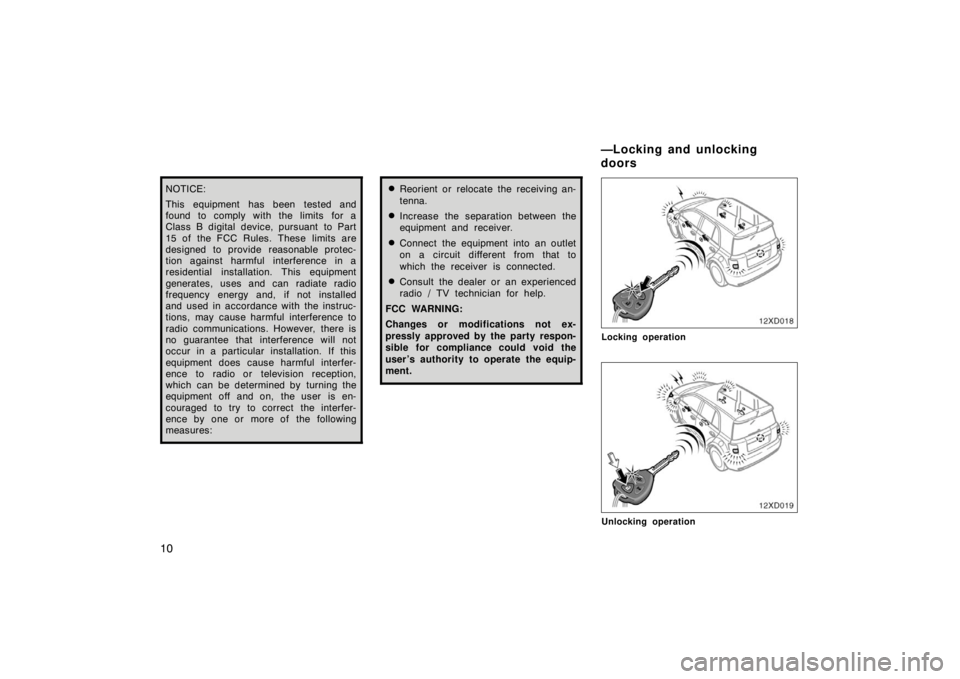

12xD018
Locking operation
12xD019
Unlocking operation
—Locking and unlocking
doors
