TOYOTA xD 2008 (in English) Owner's Manual

11
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time, you will hear one
beep and the turn signal lights will flash
once.
Check to see that all the doors are se-
curely locked.
The beep and flashing turn signal lights
can be disabled. For details, contact your
Scion dealer.
If any of side doors or back door is not
securely closed or if the key is in the
engine switch, locking cannot be per-
formed by the lock switch. At this time,
a beep will sound for 10 seconds. Howev-
er, if the key is in the engine switch, a
beep will not sound. To stop the beep,
close all the side doors and back door
securely or push the unlock switch.
The beep can be disabled. For details,
contact your Scion dealer.To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the side doors and back door simulta-
neously. Each time the unlock switch is
pushed, you will hear two beeps and the
turn signal lights will flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Scion dealer.
When the unlock switch is pressed, the
interior lights come on. The light remain
on for about 15 seconds unless any of the
doors is opened and then closed. (For
further information, see “Interior light” on
page 94.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Scion dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push it again.
12xD020
Pushing the panic switch for 1 second
blows the horn intermittently and
flashes the headlights, tail lights and
emergency flashers and turns on the
interior light.
The panic switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The panic mode will last for one minute.
To stop the panic mode midway, do the
follows:
Push any switch on the key.
Turn the ignition key from the “LOCK”
to “ON” position.
—Activating panic mode

12
The panic mode does not work when the
ignition key is in the “ON” position.
This panic mode can be disabled. For
details, contact your Scion dealer.For replacement, use a CR2016 lithium
battery or equivalent and a flathead
screwdriver or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Scion dealer.
 Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:
12T014
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.
—Replacing battery

13
12H059
2. Remove the module from the keyframe.
12T017a
3. Remove the battery cover of the mod-ule.
NOTICE
Do not bend the terminals.
4. Remove the discharged battery and put in a new battery with positive (+) side
up.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
frame.
5. Install the battery cover of the module.
6. Install the module into the key frame
and secure the cover.
After replacing the battery, check that the
key operates properly. If the key still does
not operate properly, contact your Scion
dealer.

14
Side doors
12xD004
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with driver ’s door.
Turning the key once will unlock the driv-
er’s door and twice in succession will un-
lock all the side doors and back door
simultaneously.When the driver’s door is unlocked using
the key or the wireless remote control
function, the interior light come on for
about 15 seconds and then fade out. (For
further information, see “Interior light” on
page 94.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.

15
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Scion strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
12xD005
Driver’s side
12xD006
Front passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
For driver ’s use—
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
For front passenger ’s use—
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch locks or unlocks all
the side doors and back door simulta-
neously.
If you do any of the following, no door
can be unlocked with the power door lock
switch.
Lock all the side doors and back door
with the key or wireless remote control
when all the side doors and back door
are closed.
Set the either front door inside lock
knob in the lock position, and close the
door.

16
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON” position.
Unlock all the side doors and back
door with the key or wireless remote
control.
Unlock the either front door with the
inside lock knob, and then unlock all
the side doors and back door with the
power door lock switch.12xD009
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.

17
Power windows

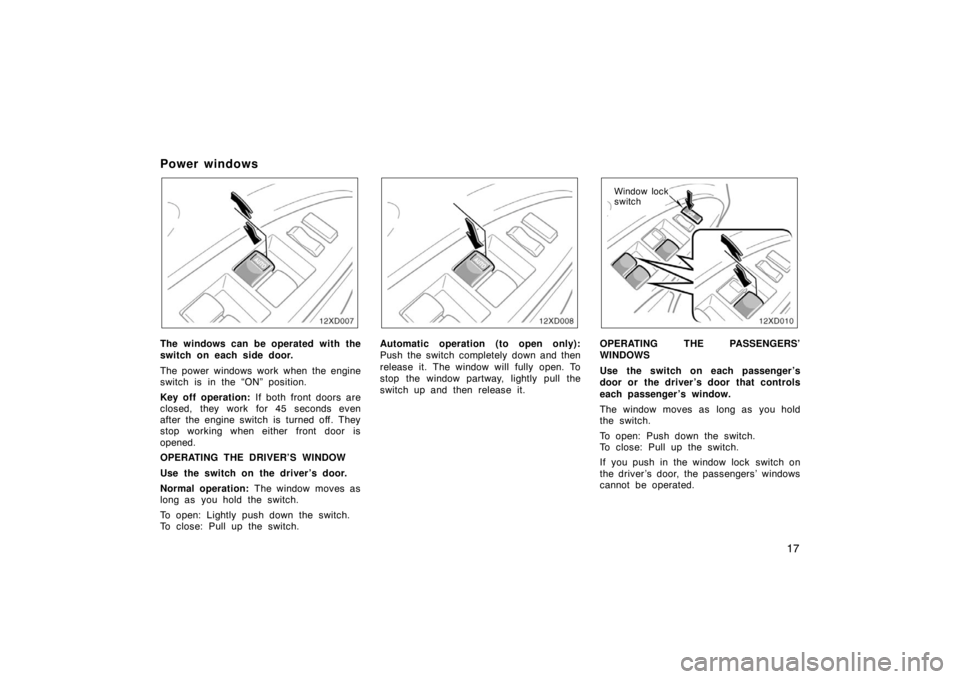

12xD007
The windows can be operated with the
switch on each side door.
The power windows work when the engine
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the engine switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
12xD008
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
12xD010
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the driver ’s door that controls
each passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

18

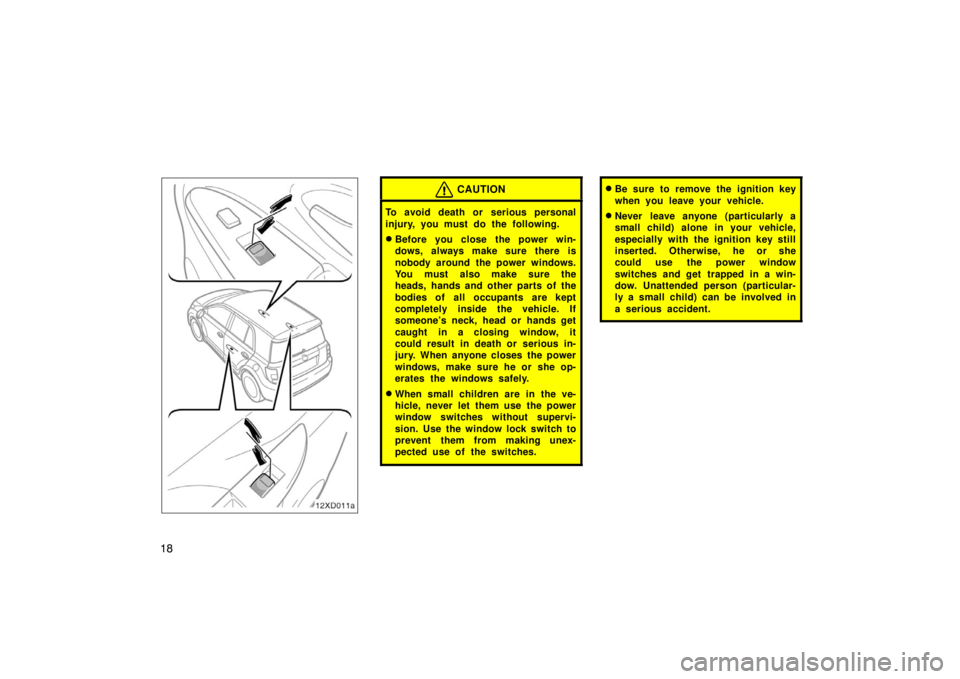

12xD011a
CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he or she
could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.

19
Back door

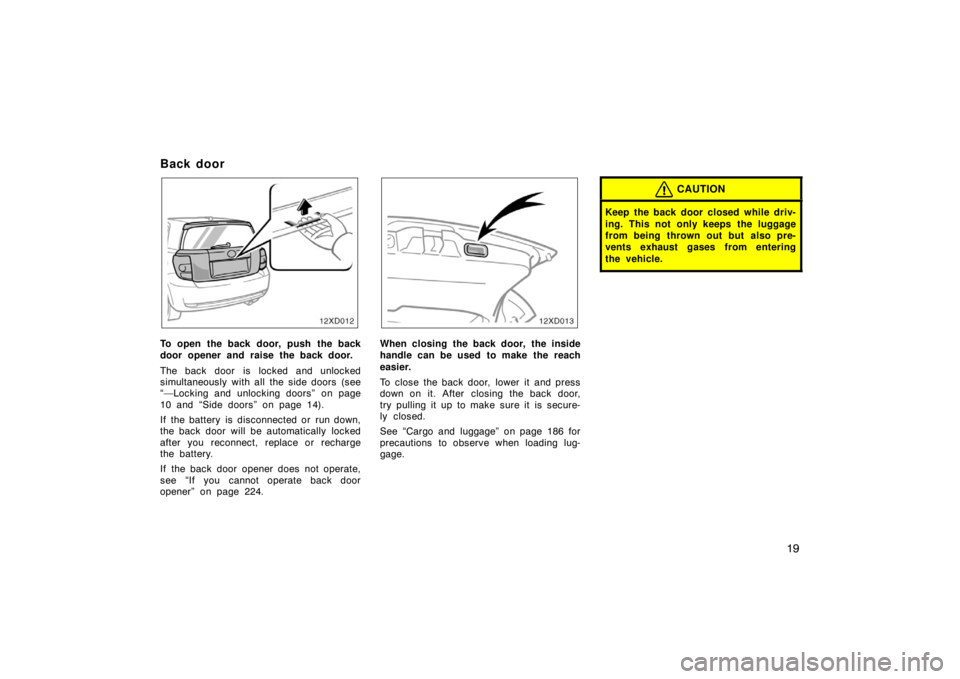

12xD012
To open the back door, push the back
door opener and raise the back door.
The back door is locked and unlocked
simultaneously with all the side doors (see
“—Locking and unlocking doors” on page
10 and “Side doors” on page 14).
If the battery is disconnected or run down,
the back door will be automatically locked
after you reconnect, replace or recharge
the battery.
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 224.
12xD013
When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Cargo and luggage” on page 186 for
precautions to observe when loading lug-
gage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

20
Hood

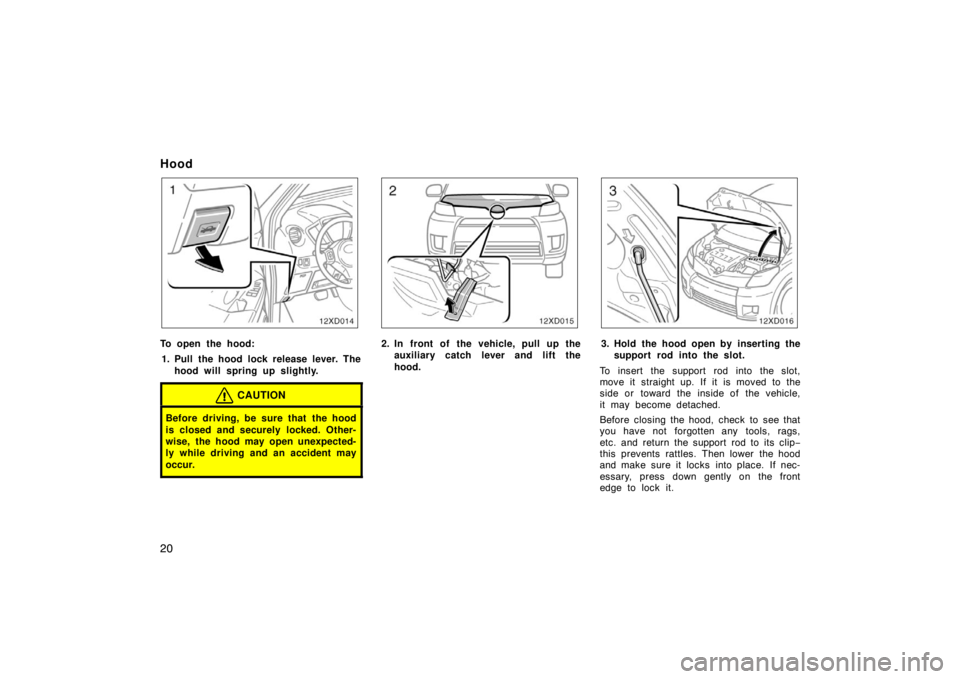

12xD014
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
12xD015
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
12xD016
3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip−
this prevents rattles. Then lower the hood
and make sure it locks into place. If nec-
essary, press down gently on the front
edge to lock it.
