25BASIC FUNCTIONS
SCION V398
Touchorto change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
oruntil the scale bar
changes normally. By continuing to touch
the button, the scale bar changes smooth-
ly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north− up symbol or heading −up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the maxi-
mum range of 250 miles (400 km),
is dimmed. When the map scale
is at the minimum range of 150 feet
(50 m), is dimmed. In areas
where the foot print map is available
the map scale changes from to when at the minimum range.
For the area which is covered by the foot
print map (Some areas in the following cit-
ies: Detroit, Chicago, N.Y., L.A.), you can
switch to the foot print map on a scale of 75
feet (25 m).
DTo switch to the foot print map
changes intowhen the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
D If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
D On the foot print map, a one way
street is displayed by .
D It is not possible to perform scroll-
ing on the foot print map (one −
touch scroll) while driving.
— Map scale— Foot print map

26BASIC FUNCTIONS
SCION V398
DTo display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map dis-
play.
2. Using the eight −direction arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.

27BASIC FUNCTIONS
SCION V398
"North− up screen
"Heading− up screen
The orientation of the map can be changed
from North− up to Heading −up by touching
the orientation symbol at the top left of the
screen.
North− up symbol
Regardless of the direction of vehicle trav-
el, North is always up.
Heading− up symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
— Orientation of the map

28BASIC FUNCTIONS
SCION V398

SECTIONIII
29DESTINATION SEARCH
SCION V398
DESTINATION SEARCH
DQuick reference (“Destination” screen) 30 .....................
D Destination search 31
....................................
Selecting the search area 32 ..............................
Destination search by Home 34 ...........................
Destination search by Quick access 34 .....................
Destination search by “Address” 35 ........................
Destination search by “POI Name” 39 ......................
Destination search by “POI Category” 42 ...................
Destination search by “Emergency” 45 .....................
Destination search by “Memory” 46 ........................
Destination search by “Previous” 46 ........................
Destination search by “Map” 47 ...........................
Destination search by “Intersection” 47 .....................
Destination search by “Freeway Ent./Exit” 48 ................
Destination search by “Coordinates” 49 .....................
Destination search by “Phone #” 50 ........................
D Starting route guidance 50 ..................................

30DESTINATION SEARCH
SCION V398
1“Address”
A house number and the street address
can be input by using the input keys. 35
.................................
2“POI Name”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 39 ...............
3“POI Category”
A destination can be selected from the POI
category. 42 ........................
4“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point. 46
.................................
5“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 83.) 46 .......
6“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected. 45
.................................
7“Map”
A destination can be selected simply by
touching the location on the displayed
map. 47 ............................
Quick reference (“Destination” screen)

31DESTINATION SEARCH
SCION V398
8“Intersection”
The names of two intersecting streets can
be entered. This is helpful if only the gen-
eral vicinity, not the specific address, is
known. (Intersections for which there is no
information in the database cannot be
searched for.) 47 ....................
9“Freeway Ent./Exit”
The name of a freeway (interstate) en-
trance or exit can be entered. 48 ......
10“?”
Function help for the “Destination” screen
can be viewed on this screen. 17 ......
11“Change”
To change the selected search area, touch
this button. 32 ......................
12Quick access touch− screen but-
tons
One of 5 preset destinations can be se-
lected by touching the screen directly. To
use this function, it is necessary to set the
“Quick Access” for each memory point.
(To register a “Quick Access”, see “ —
Editing memory points” on page 84.) 34
.................................
13Home touch− screen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see “ — Registering home” on
page 89.) 34
........................
14“Phone #”
A destination can be entered by the tele-
phone number. 50 ...................
15“Coordinates”
A destination can be set by using latitude
and longitude as coordinates. 49 ......Push the “DEST” button and the “Des-
tination” screen appears.
You can use one of 13 different methods to
search your destination. (See pages 34
through 50.)
INFORMATION
When searching the destination, the
response to the touch−
screen button
may be slow.
Destination search —

32DESTINATION SEARCH
SCION V398

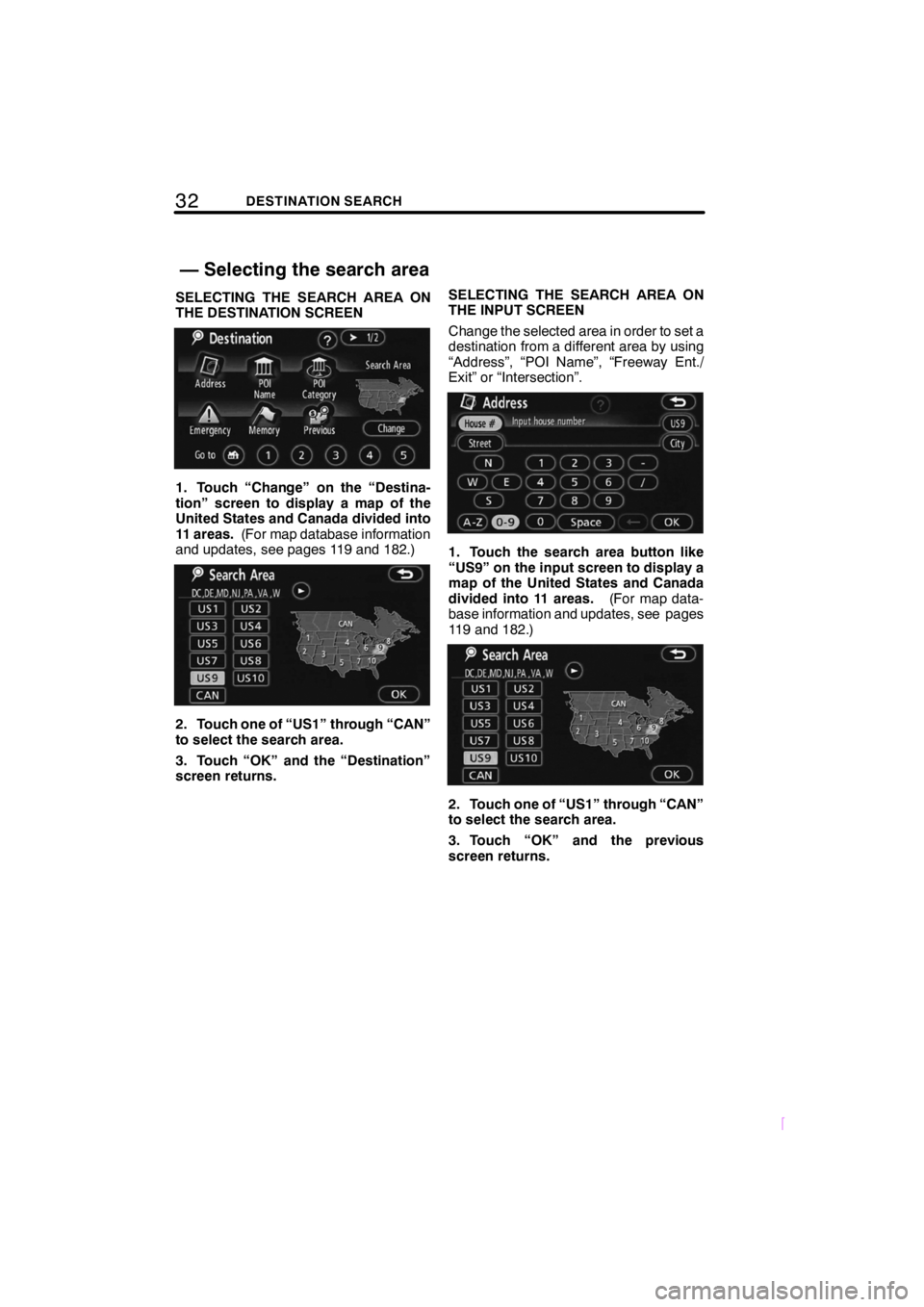

SELECTING THE SEARCH AREA ON
THE DESTINATION SCREEN
1. Touch “Change” on the “Destina-
tion” screen to display a map of the
United States and Canada divided into
11 areas.(For map database information
and updates, see pages 119 and 182.)
2. Touch one of “US1” through “CAN”
to select the search area.
3. Touch “OK” and the “Destination”
screen returns. SELECTING THE SEARCH AREA ON
THE INPUT SCREEN
Change the selected area in order to set a
destination from a different area by using
“Address”, “POI Name”, “Freeway Ent./
Exit” or “Intersection”.
1. Touch the search area button like
“US9” on the input screen to display a
map of the United States and Canada
divided into 11 areas.
(For map data-
base information and updates, see pages
119 and 182.)
2. Touch one of “US1” through “CAN”
to select the search area.
3. Touch “OK” and the previous
screen returns.
— Selecting the search area

33DESTINATION SEARCH
SCION V398
U.S.A.
ButtonStates included in the search
area
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
Canada
ButtonProvinces and areas included
in the search area
“CAN”All provinces and areas in
Canada included in this button.

34DESTINATION SEARCH
SCION V398

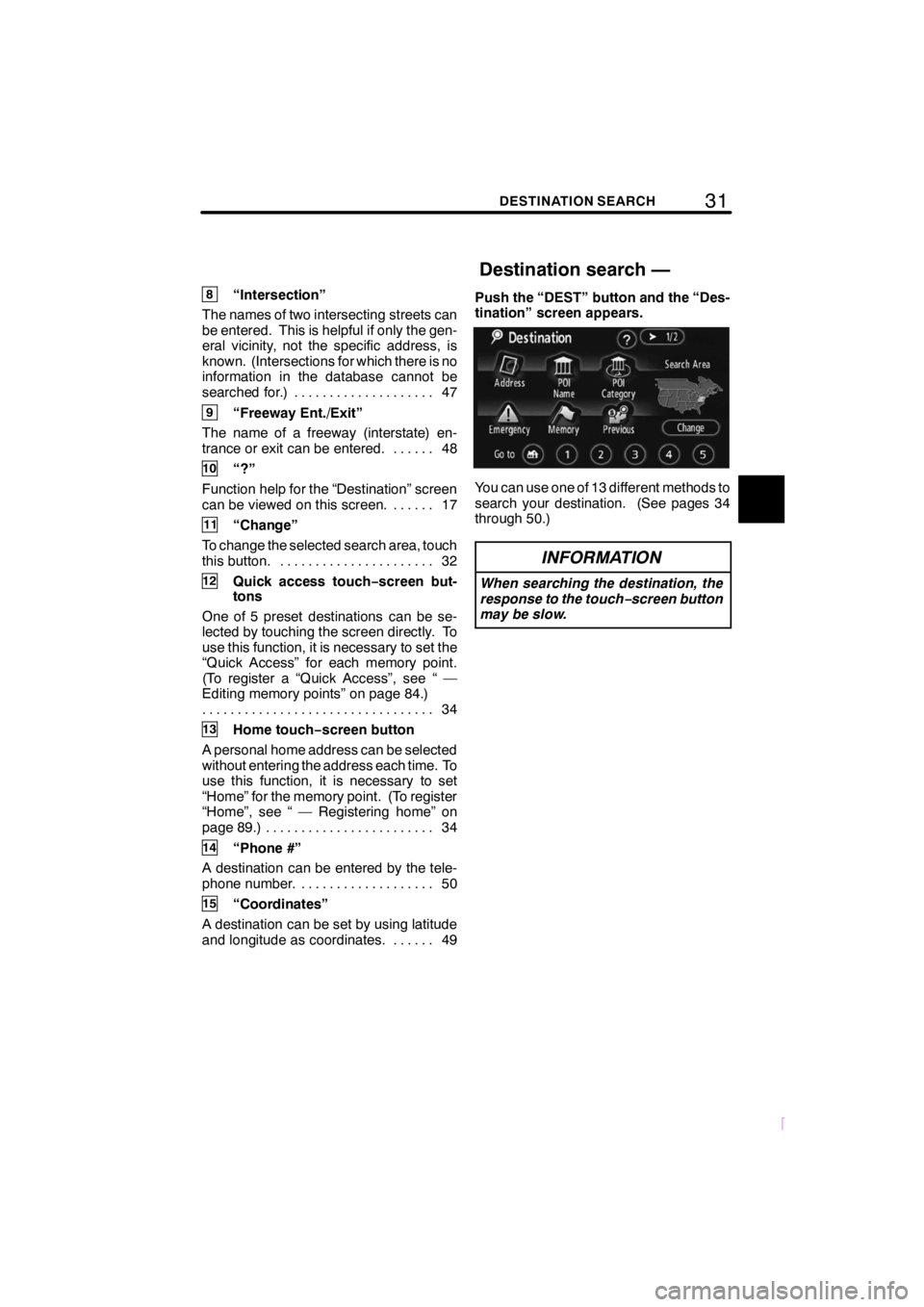

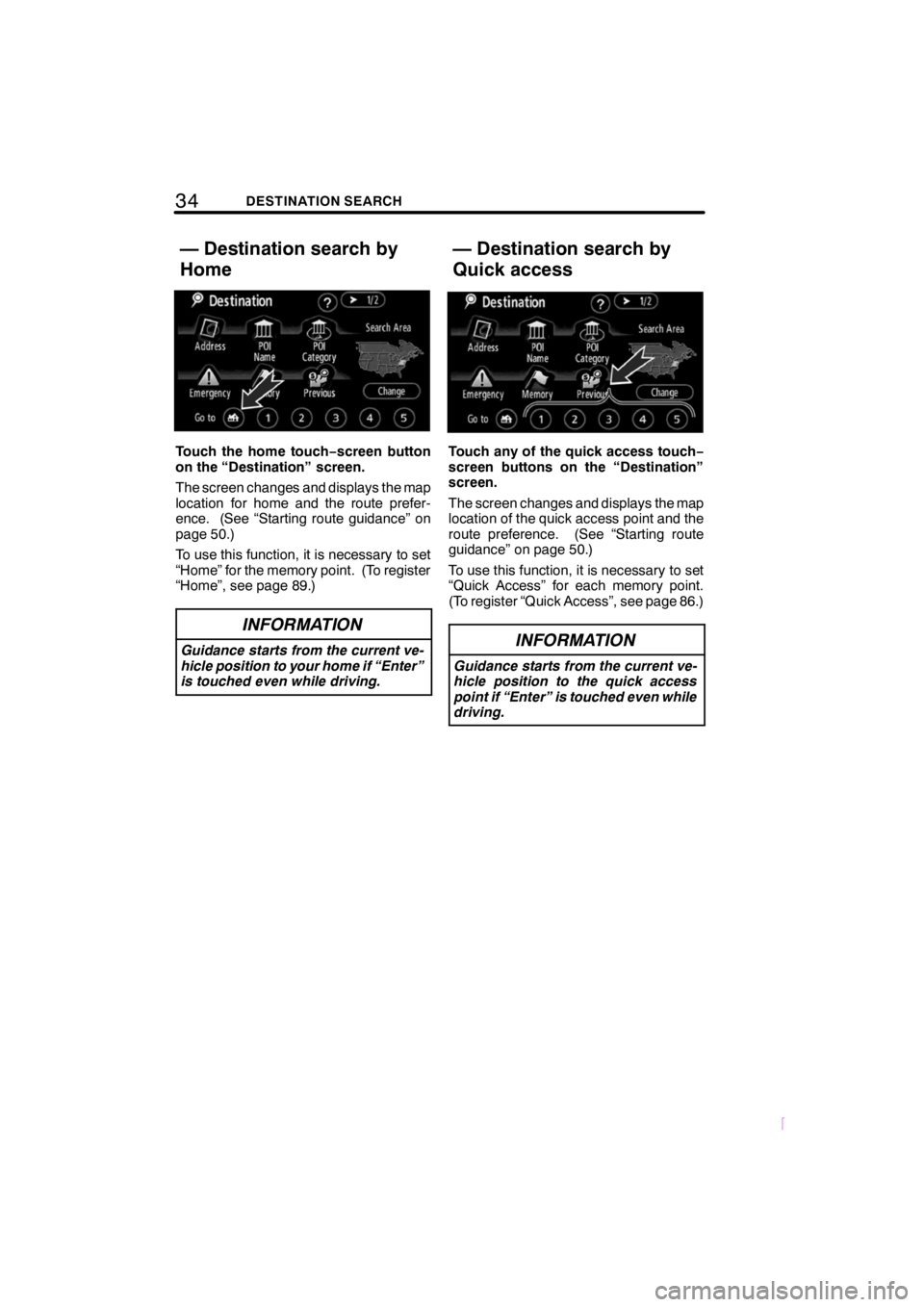

Touch the home touch−screen button
on the “Destination” screen.
The screen changes and displays the map
location for home and the route prefer-
ence. (See “Starting route guidance” on
page 50.)
To use this function, it is necessary to set
“Home” for the memory point. (To register
“Home”, see page 89.)
INFORMATION
Guidance starts from the current ve-
hicle position to your home if “Enter”
is touched even while driving.
Touch any of the quick access touch−
screen buttons on the “Destination”
screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See “Starting route
guidance” on page 50.)
To use this function, it is necessary to set
“Quick Access” for each memory point.
(To register “Quick Access”, see page 86.)
INFORMATION
Guidance starts from the current ve-
hicle position to the quick access
point if “Enter” is touched even while
driving.
— Destination search by
Home — Destination search by
Quick access
