xD
QUICK
REFERENCE
GUIDE
GET INFORMED.
ROLL
.
2009
EMAIL
www.scion.com
> Contact
-
CHAT
www.scion.com
> Have a Question? > Contact
-
PHONE
1.866.70.SCION
-
MAIL
SCION
19001 S. Western Ave.
D102, P.O. Box 2742
Torrance, CA 90509-2742
USA
-
WEB
www.scion.com
-
©2009 Scion, a marque of
Toyota Motor Sales, U.S.A., Inc.
00505-QRG09-XD
412775M1 8/11/08 2:26 PM Page 1
Page 2 of 18
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2009
Scion xD
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in the vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Scion xD.
This Quick Reference Guide is not a full description of
Scion xD operations. Every Scion xD owner should review
the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Spare tire & tools
Tool and spare tire location
Removing the spare tire
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
Loosen Remove
Tire Pressure Monitoring (warning)
System
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait several minutes to allow initialization to complete.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Let the vehicle sit f\
or a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tool bag Tire tie-down belt
Spare tire
Jack handle
Jack
412775M1 8/11/08 2:28 PM Page 2
Page 3 of 18
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

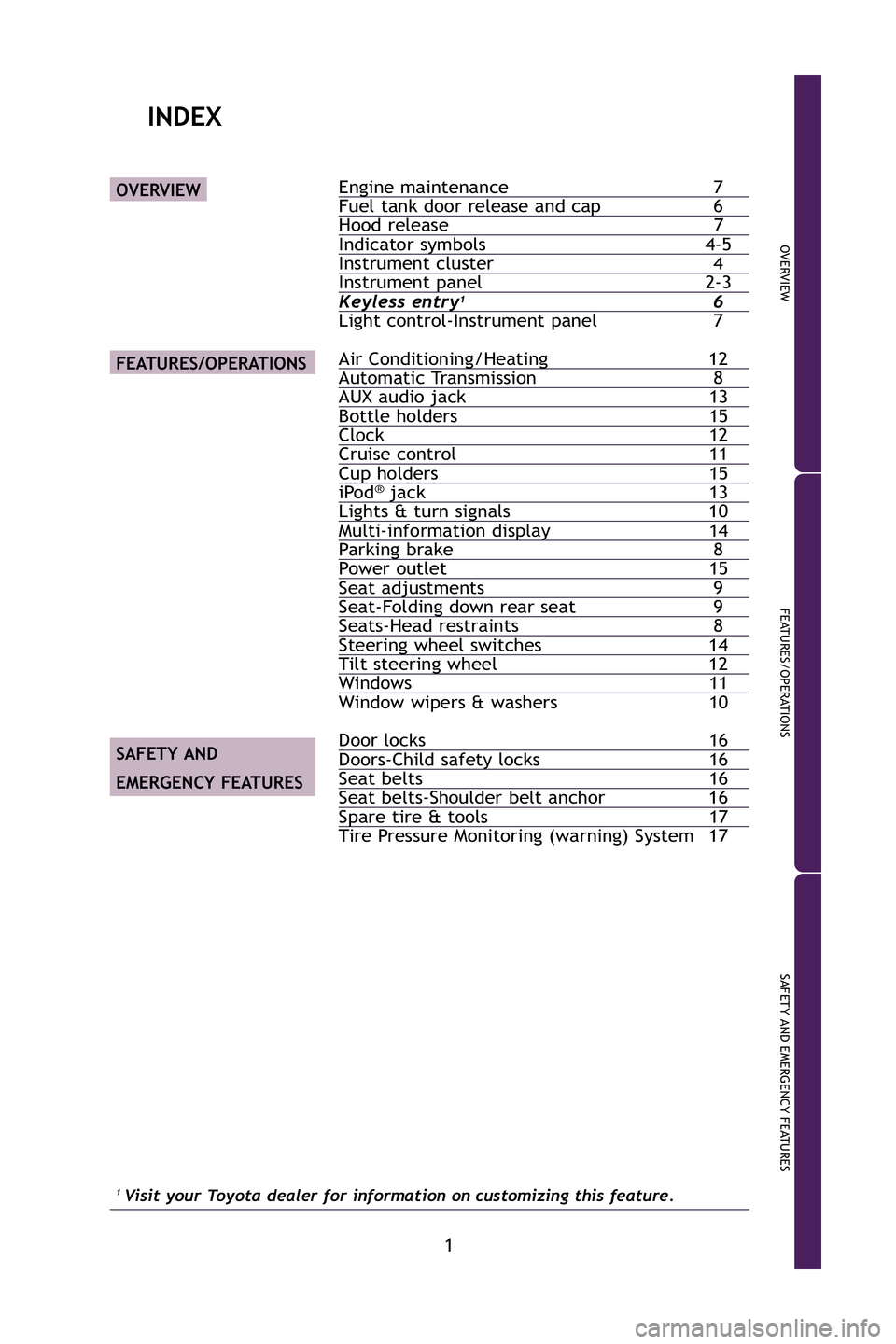

Engine maintenance7Fuel tank door release and cap6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16
Light control-Instrument panel 7
Air Conditioning/Heating12Automatic Transmission 8AUX audio jack13Bottle holders 15Clock 12Cruise control11Cup holders15iPod®jack13Lights & turn signals 10Multi-information display 14Parking brake 8Power outlet15Seat adjustments 9Seat-Folding down rear seat 9Seats-Head restraints8Steering wheel switches14Tilt steering wheel 12Windows 11
Window wipers & washers 10
Door locks 16Doors-Child safety locks16Seat belts16Seat belts-Shoulder belt anchor16Spare tire & tools 17
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.
412775M2 8/11/08 1:35 PM Page 1
Page 4 of 18
2
OVERVIEW
Headlight and turn signal controls
Steering wheel audio controls*
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger seat
belt reminder light
Air Conditioning controls
Rear window defogger button
Instrument panel
412775M2 8/11/08 1:35 PM Page 2
Page 5 of 18

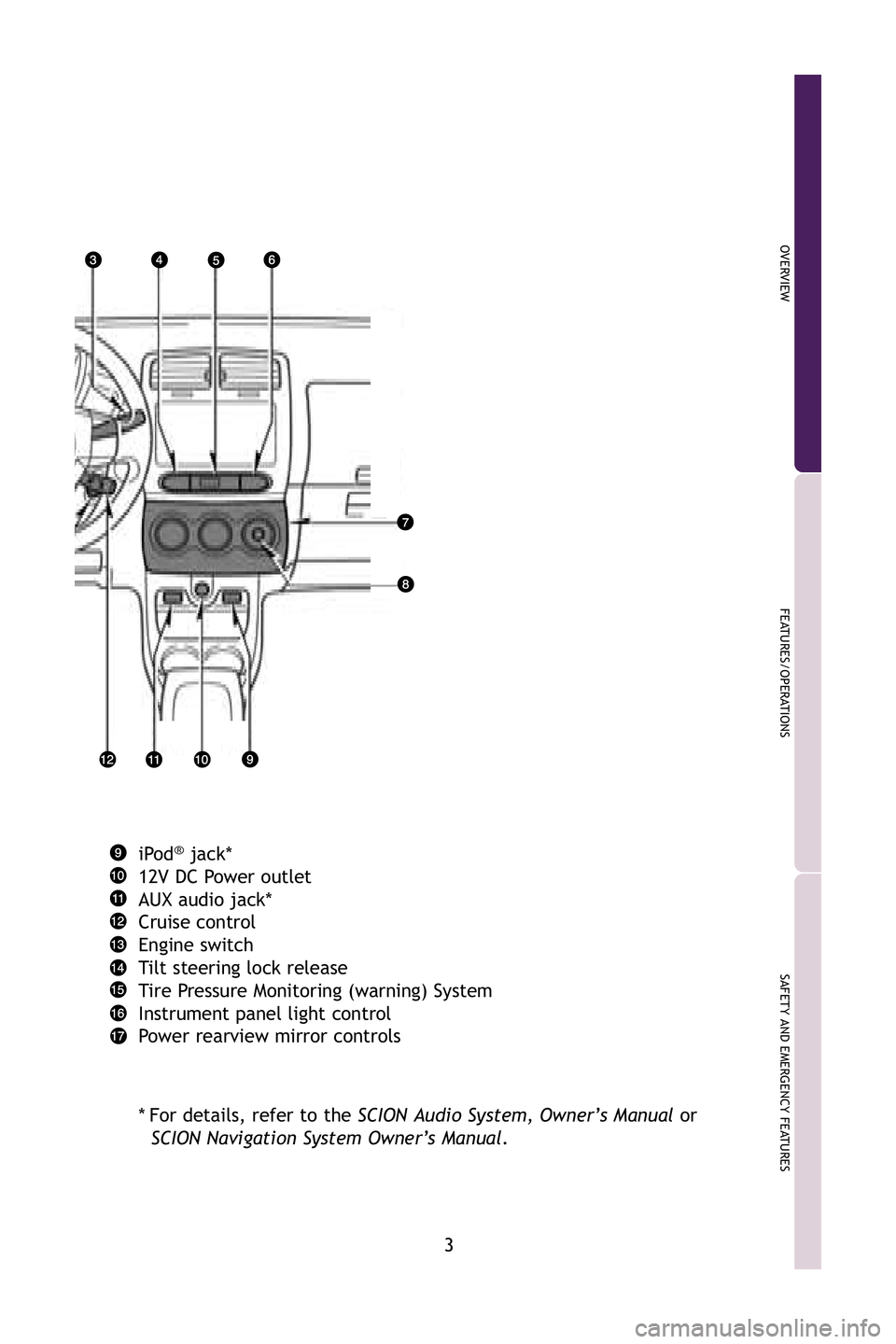

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
iPod®jack*
12V DC Power outlet
AUX audio jack*
Cruise control
Engine switch
Tilt steering lock release
Tire Pressure Monitoring (warning) System
Instrument panel light control
Power rearview mirror controls
* For details, refer to the SCION Audio System, Owner’s Manual or
SCION Navigation System Owner’s Manual .
412775M2 8/11/08 1:35 PM Page 3
Page 6 of 18
4
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning1
Low Tire Pressure Warning1
Airbag SRS warning1
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
Low windshield washer fluid level warning1
1
For details, refer to “Service reminder indicators and warning buzzer\
s,” Section 1-6,
2009 Owner’s Manual.
2For details, refer to “Engine coolant temperature indicator and warni\
ng light,”
Section 1-6, 2009 Owner’s Manual.
412775M2 8/11/08 1:35 PM Page 4
Page 7 of 18
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicatorTurn signal indicator Headlight high beam indicator
Cruise control indicator
3
Electric power steering system warning1
Slip indicator
Vehicle Stability Control OFF indicator
Low fuel level warning1
High engine coolant temperature warning1
Low engine coolant temperature indicator2
3
If this light flashes, refer to “Cruise control,” Section 1-7, 200\
9 Owner’s Manual.
412775M2 8/11/08 1:35 PM Page 5
Page 8 of 18
6
OVERVIEW

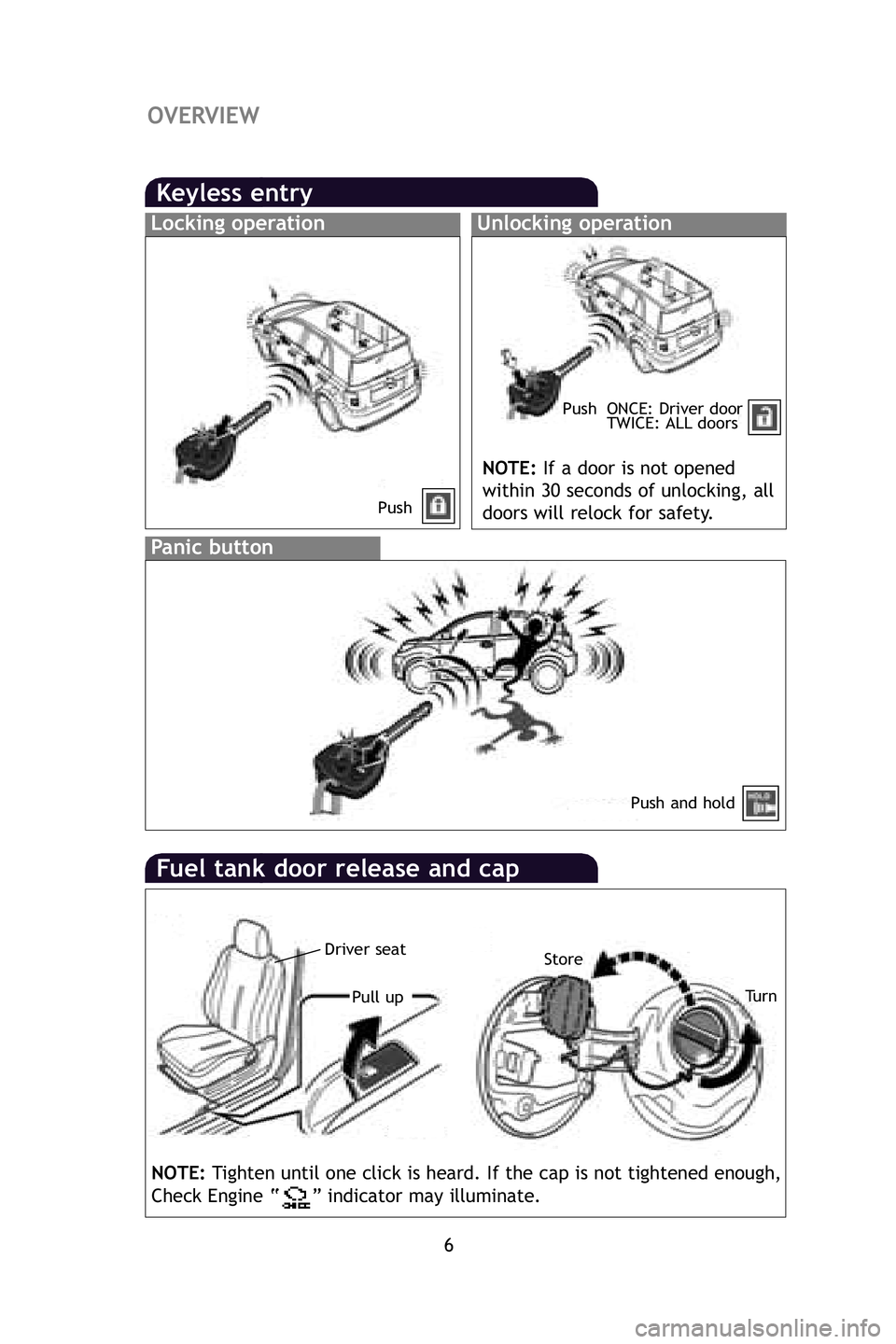

Fuel tank door release and cap
Pull upStore
Tu r n
Keyless entry
Locking operationUnlocking operation
NOTE:If a door is not opened
within 30 seconds of unlocking, all
doors will relock for safety.
Push Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Driver seat
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
412775M2 8/11/08 1:35 PM Page 6
Page 9 of 18
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
PullPull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
412775M2 8/11/08 1:35 PM Page 7
Page 10 of 18

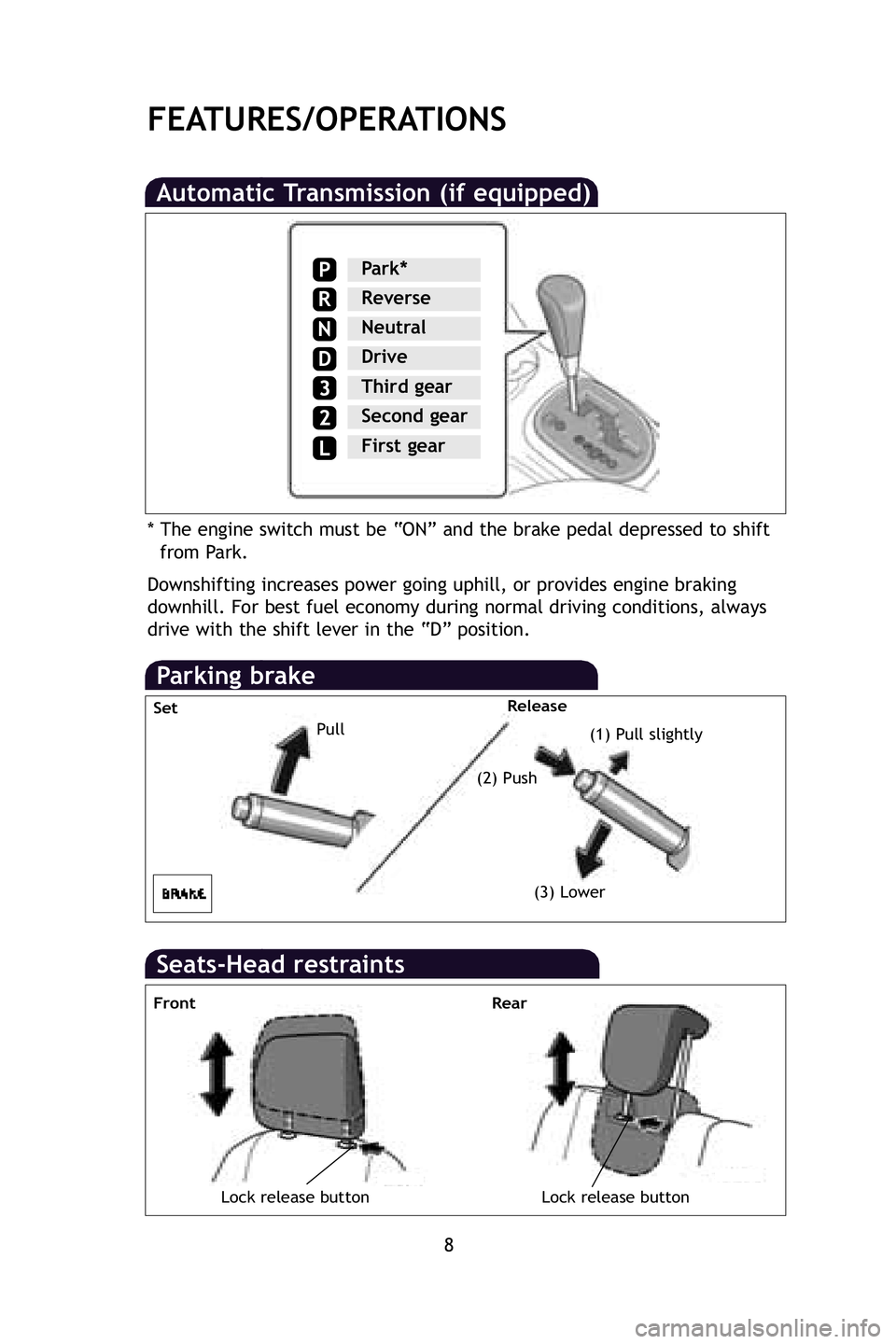

8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position. * The engine switch must be “ON” and the brake pedal depressed to \
shiftfrom Park.
Parking brake
Pull
(2) Push (1) Pull slightly
(3) Lower
Set Release
Park*
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
Seats-Head restraints
Lock release buttonLock release button
Front
Rear
