NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“–” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
—Checking battery c ondition
SU73002
Ty p e A
Green DarkClear or
light yellow
Blue White
Red
Ty p e B

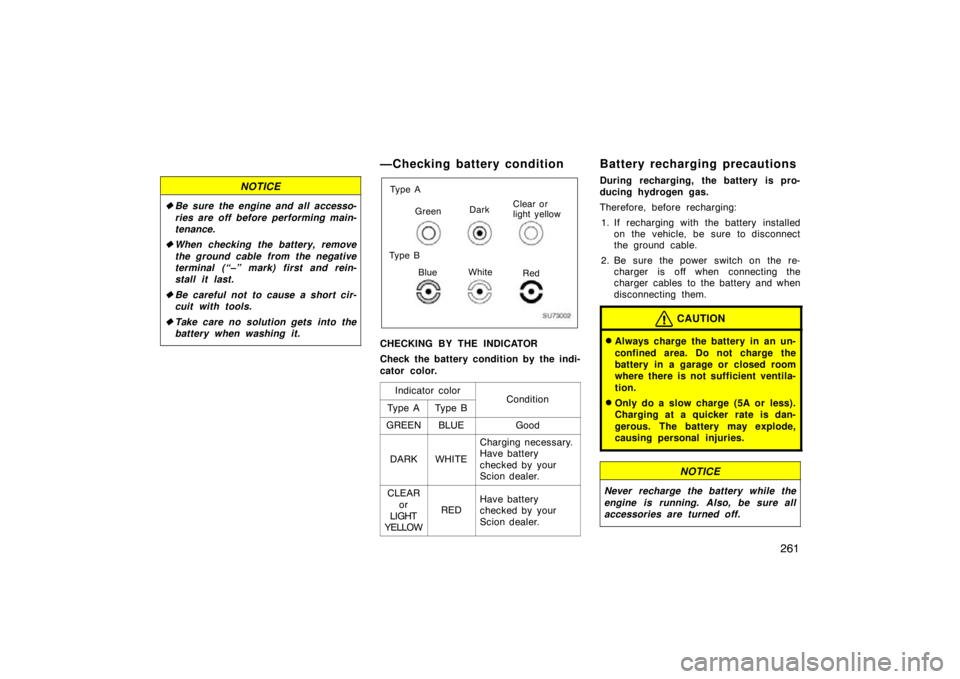

CHECKING BY THE INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GREENBLUEGood
DARKWHITE
Charging necessary.
Have battery
checked by your
Scion dealer.
CLEARor
LIGHT
YELLOW
REDHave battery
checked by your
Scion dealer.
Battery recharging precautions
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5A or less).
Charging at a quicker rate is dan-
gerous. The battery may explode,
causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.

262

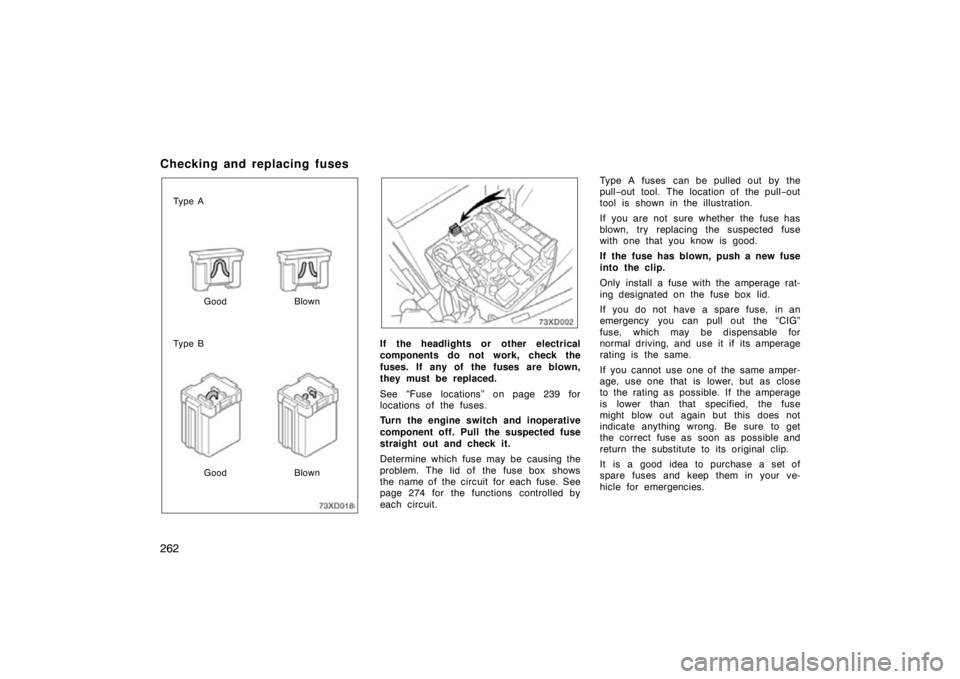

Checking and replacing fuses
Ty p e AGood Blown
Ty p e B
Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 239 for
locations of the fuses.
Turn the engine switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 274 for the functions controlled by
each circuit. Type A fuses can be pulled out by the
pull
−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “CIG”
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.

263
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Scion dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
Adding washer fluid
If any washer does not work, the wash-
er tank may be empty. Add washer
fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Scion dealer
and most auto parts stores. Follow the
manufacturer’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Replacing light bulbs—
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The high mounted stoplight and side turn
signal lights consist of a number of LEDs.
If any of the LEDs burn out, take your
vehicle to your Scion dealer to have the
light replaced.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.

264
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your Scion
dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Front turn signal
lights744021B
Parking lights—5B
Front side marker
lights—5B
Rear turn signal
lights744021C
Stop/tail lights744321/5B
Back −up lights92116B
License plate lights—5B
Interior light—8D
Personal light—8D
Luggage
compartment light—5D
A: HB2 halogen bulbs
B: Wedge base bulbs (clear)
C: Wedge base bulbs (amber)
D: Double end bulbs

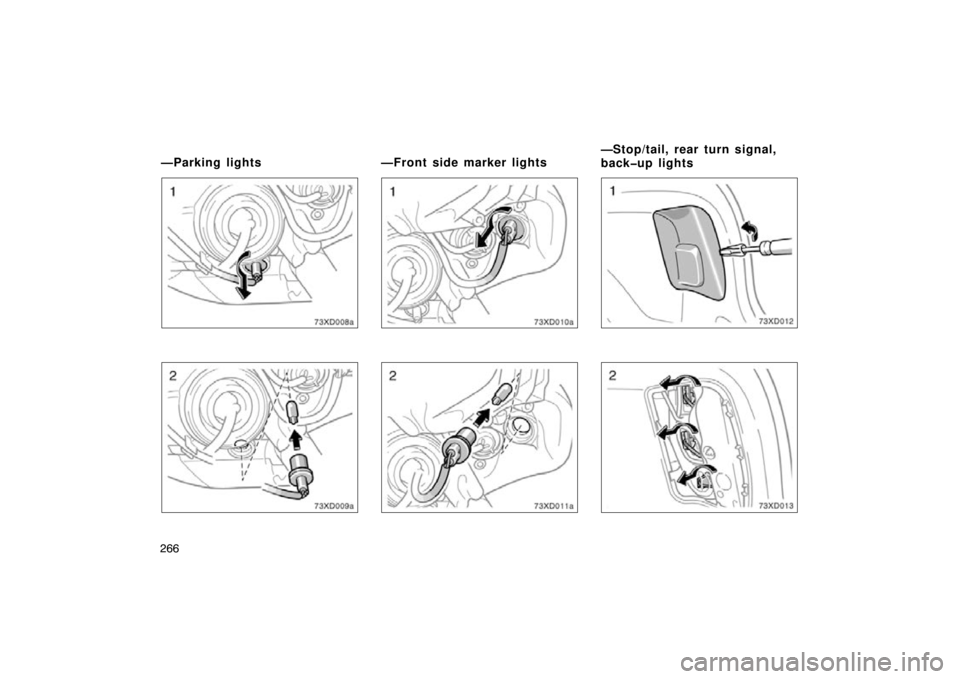

—Headlights
1. Unplug the connector. Remove the
rubber cover.
If the connector is tight, wiggle it.

265
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Scion dealer.

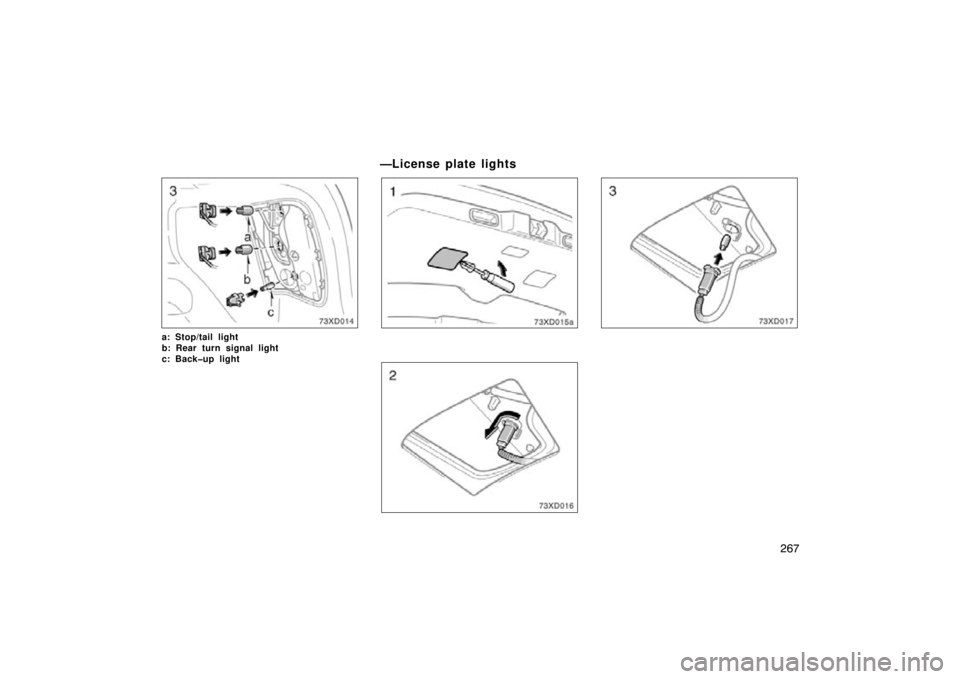

—Front turn signal lights

266
—Parking lights—Front side marker lights—Stop/tail, rear turn signal,
backup lights

267
a: Stop/tail light
b: Rear turn signal light
c: Backup light
—License plate lights

268

269
SPECIFICATIONS
Specifications
Dimensions and weights270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 270
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 271
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

270
Dimensions and weights
Overall length mm (in.):3930 (154.7)
Overall width mm (in.): 1725 (67.9)
Overall height mm (in.): 1525 (60.0)
Wheelbase mm (in.): 2460 (96.9)
Front tread mm (in.): 1485 (58.5)
Rear tread mm (in.):
1490 (58.7)
Vehicle capacity weight
(occupants+cargo) kg (lb.): 383 (845)
Engine
Model:1.8 L 4 −cylinder (2ZR −FE)
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 80.5  88.3 (3.17  3.48)
Displacement, cm
3 (cu. in.):
1798 (109.7)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp.gal.): 42 (11.1, 9.2)
