oil level TOYOTA xD 2009 Owners Manual (in English)

4
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder1
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols
Open door warning1
Low Tire Pressure Warning1
Airbag SRS warning1
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
Low windshield washer fluid level warning1
1
For details, refer to “Service reminder indicators and warning buzzer\
s,” Section 1-6,
2009 Owner’s Manual.
2For details, refer to “Engine coolant temperature indicator and warni\
ng light,”
Section 1-6, 2009 Owner’s Manual.
412775M2 8/11/08 1:35 PM Page 4

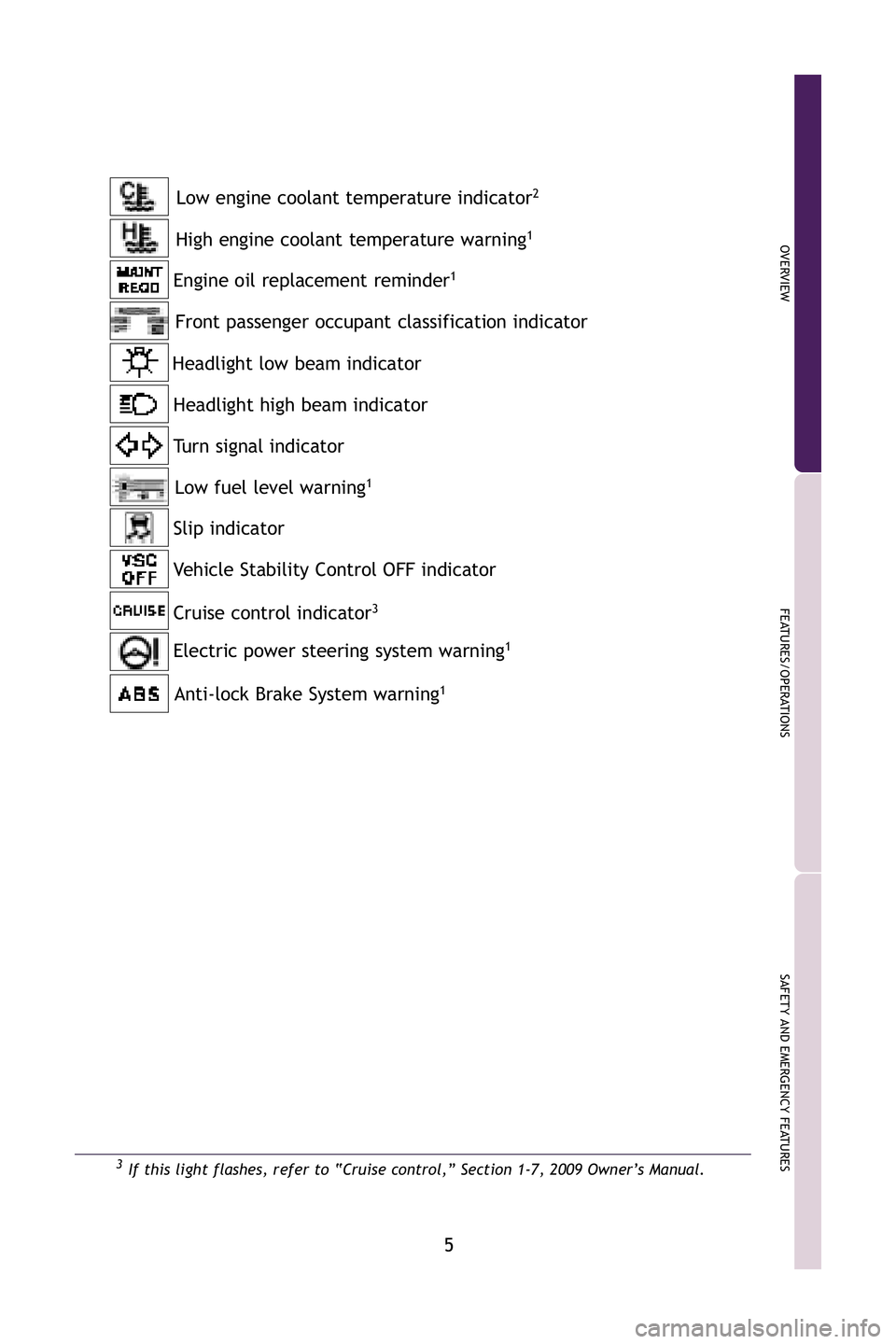

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicatorTurn signal indicator Headlight high beam indicator
Cruise control indicator
3
Electric power steering system warning1
Slip indicator
Vehicle Stability Control OFF indicator
Low fuel level warning1
High engine coolant temperature warning1
Low engine coolant temperature indicator2
3
If this light flashes, refer to “Cruise control,” Section 1-7, 200\
9 Owner’s Manual.
412775M2 8/11/08 1:35 PM Page 5

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
PullPull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
412775M2 8/11/08 1:35 PM Page 7
