33

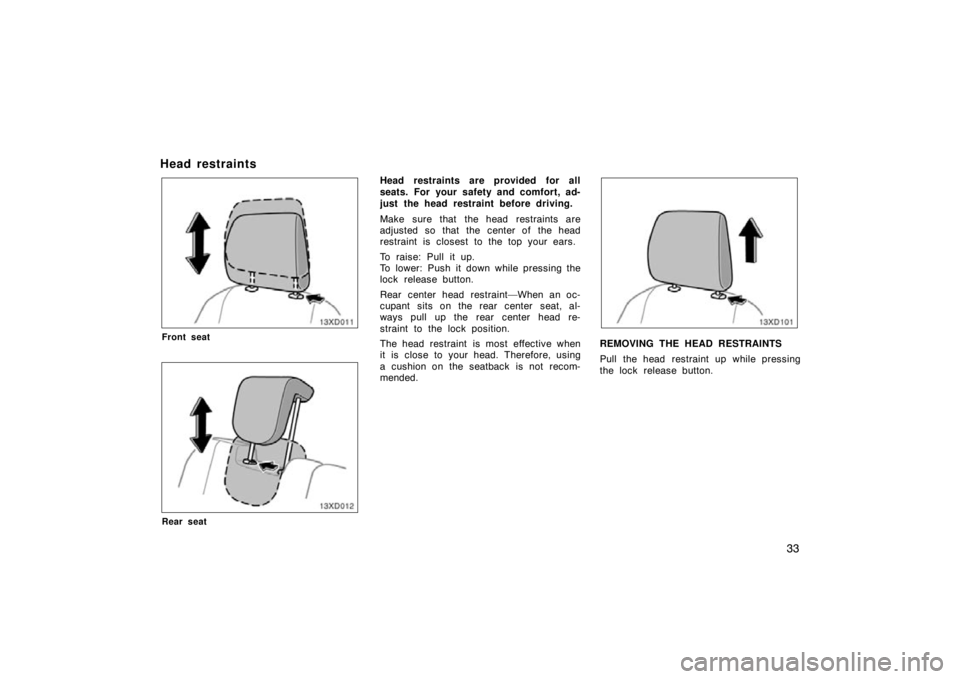

Head restraints
Front seat
Rear seat
Head restraints are provided for all
seats. For your safety and comfort, ad-
just the head restraint before driving.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top your ears.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Rear center head restraint—When an oc-
cupant sits on the rear center seat, al-
ways pull up the rear center head re-
straint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
13xD101
REMOVING THE HEAD RESTRAINTS
Pull the head restraint up while pressing
the lock release button.

34
13xD102
INSTALLING THE HEAD RESTRAINTS
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
Use the head restraint designed for
each respective seat.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Scion strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 69 for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions

35
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Scion recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Scion recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

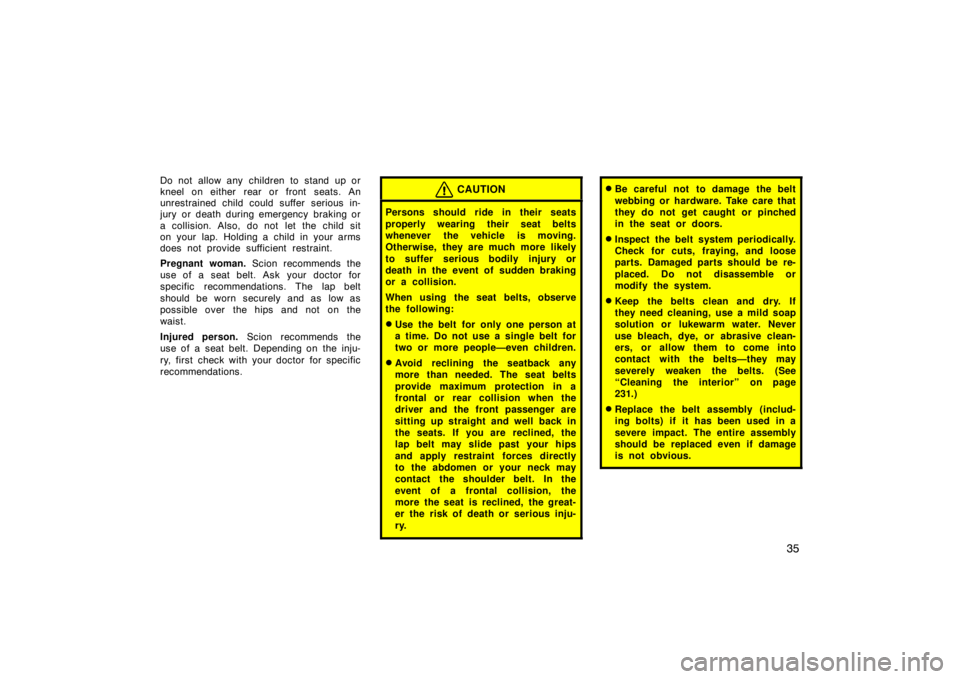

recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or serious inju-
ry.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page
231.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

36

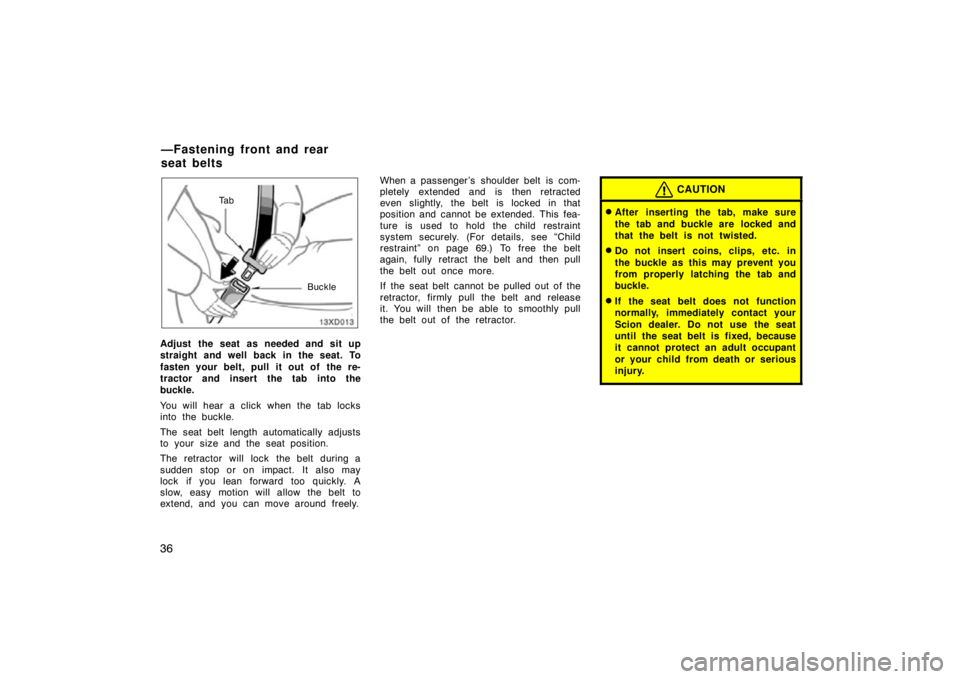

13xD013
Ta bBuckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 69.) To free the belt
again, fully retract the belt and then pull
the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Scion dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
—Fastening front and rear
seat belts

37

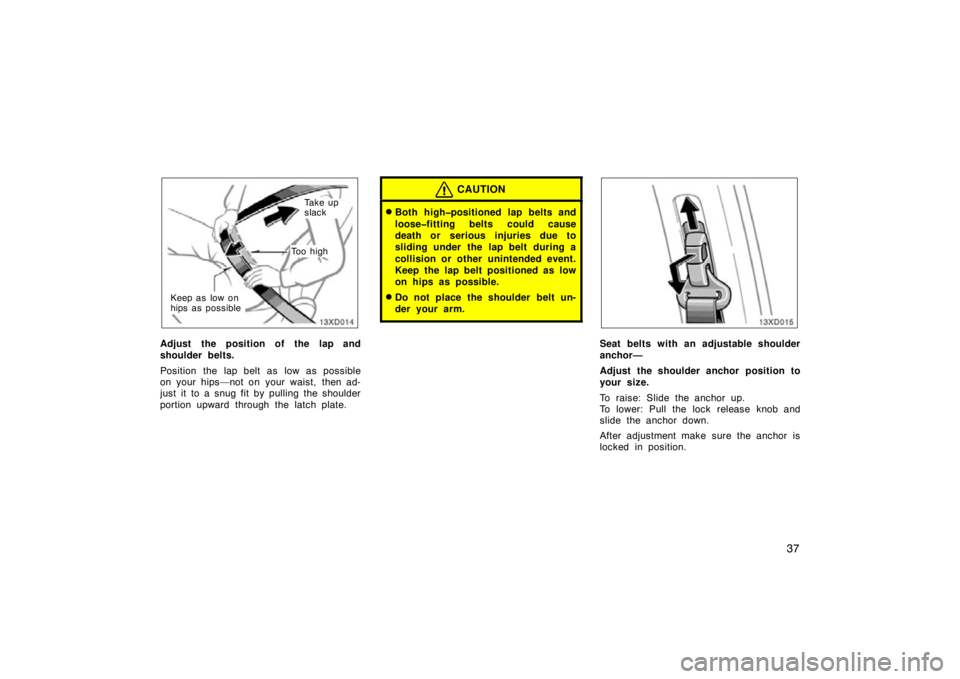

To o h i g h
Keep as low on
hips as possible
Ta k e u p
slack
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on hips as possible.
Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Pull the lock release knob and
slide the anchor down.
After adjustment make sure the anchor is
locked in position.

38

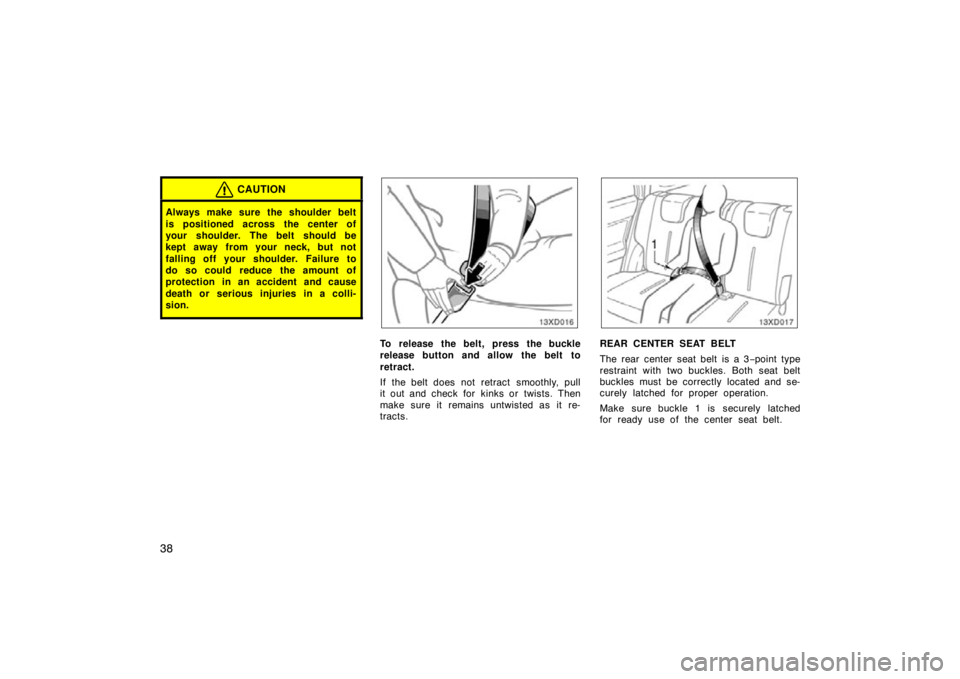

CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
death or serious injuries in a colli-
sion.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.REAR CENTER SEAT BELT
The rear center seat belt is a 3 −point type
restraint with two buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation.
Make sure buckle 1 is securely latched
for ready use of the center seat belt.

39

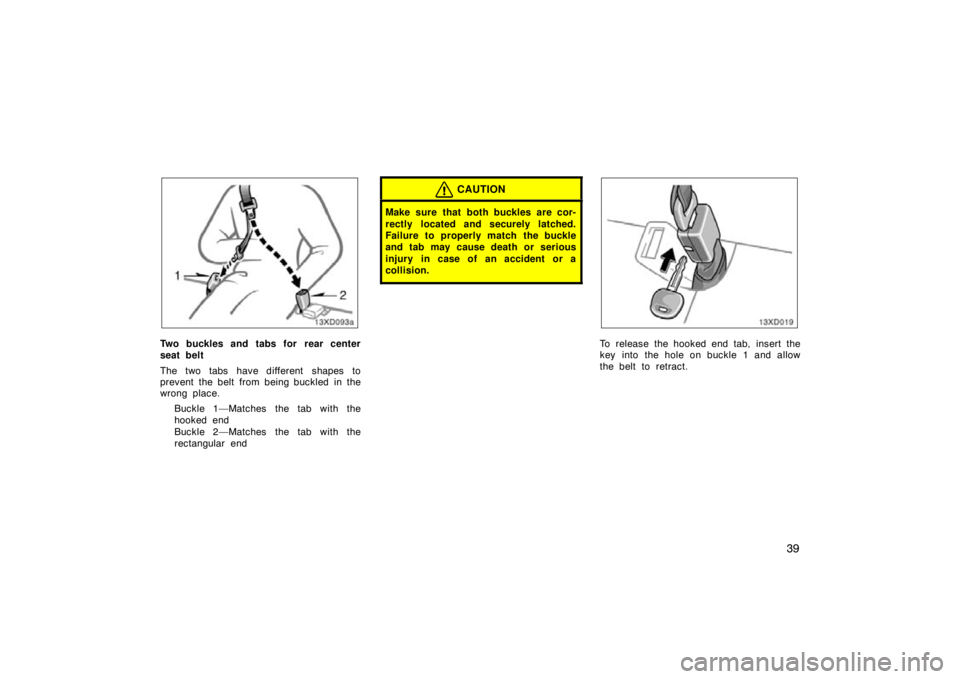

Two buckles and tabs for rear center
seat belt
The two tabs have different shapes to
prevent the belt from being buckled in the
wrong place.Buckle 1—Matches the tab with the
hooked end
Buckle 2—Matches the tab with the
rectangular end
CAUTION
Make sure that both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause death or serious
injury in case of an accident or a
collision.
To release the hooked end tab, insert the
key into the hole on buckle 1 and allow
the belt to retract.

40

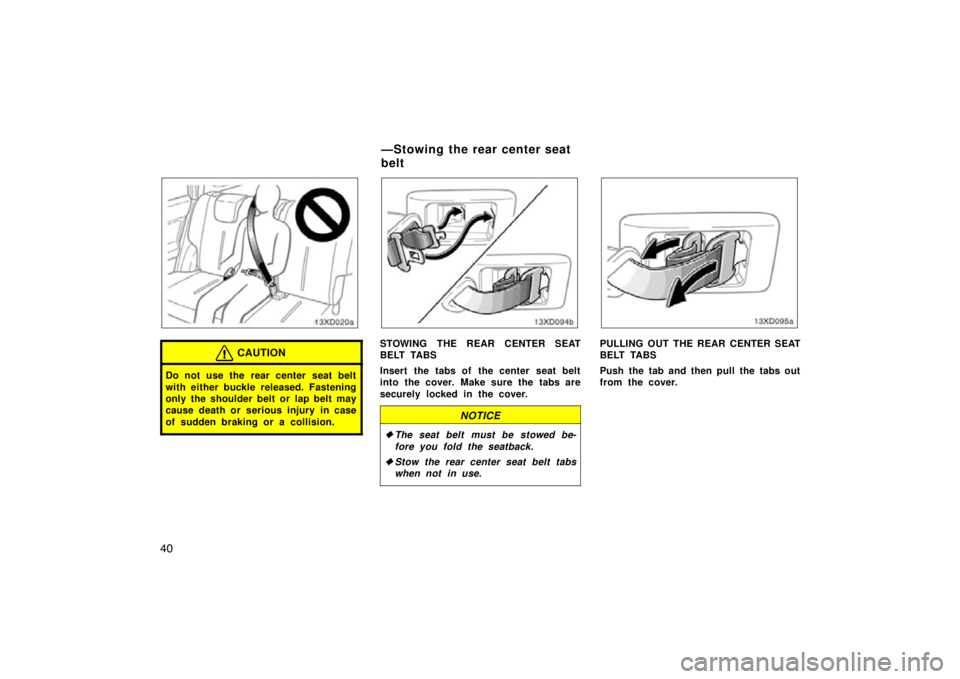

CAUTION
Do not use the rear center seat belt
with either buckle released. Fastening
only the shoulder belt or lap belt may
cause death or serious injury in case
of sudden braking or a collision.
STOWING THE REAR CENTER SEAT
BELT TABS
Insert the tabs of the center seat belt
into the cover. Make sure the tabs are
securely locked in the cover.
NOTICE
The seat belt must be stowed be-
fore you fold the seatback.
 Stow the rear center seat belt tabs
when not in use.
13xD095a
PULLING OUT THE REAR CENTER SEAT
BELT TABS
Push the tab and then pull the tabs out
from the cover.
—Stowing the rear center seat
belt

41

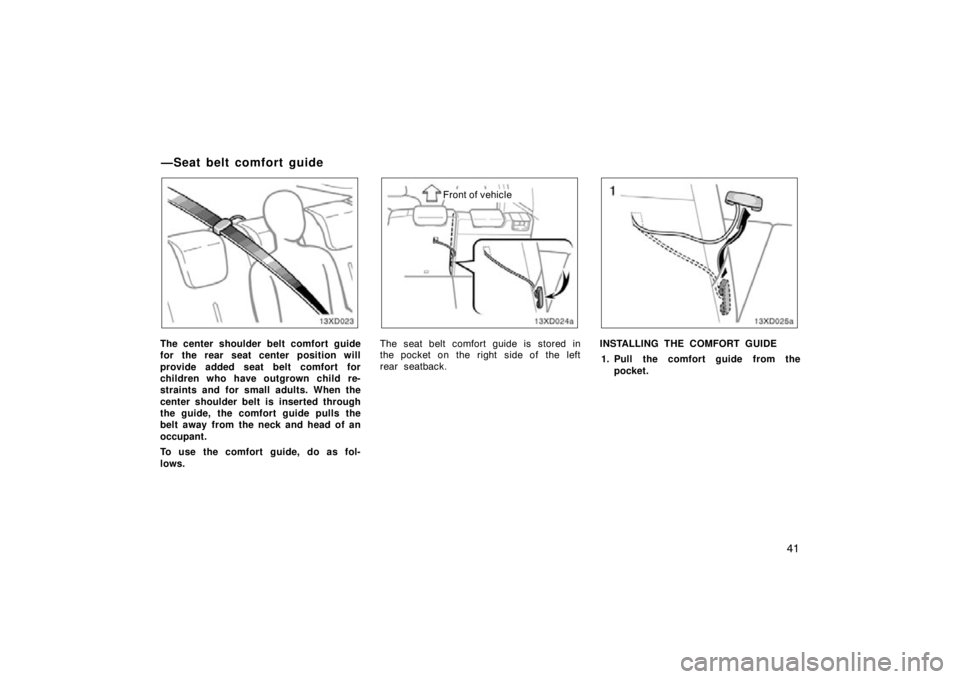

The center shoulder belt comfort guide
for the rear seat center position will
provide added seat belt comfort for
children who have outgrown child re-
straints and for small adults. When the
center shoulder belt is inserted through
the guide, the comfort guide pulls the
belt away from the neck and head of an
occupant.
To use the comfort guide, do as fol-
lows.
13xD024a
Front of vehicle
The seat belt comfort guide is stored in
the pocket on the right side of the left
rear seatback.
13xD025a
INSTALLING THE COMFORT GUIDE 1. Pull the comfort guide from the pocket.
—Seat belt comfort guide

42

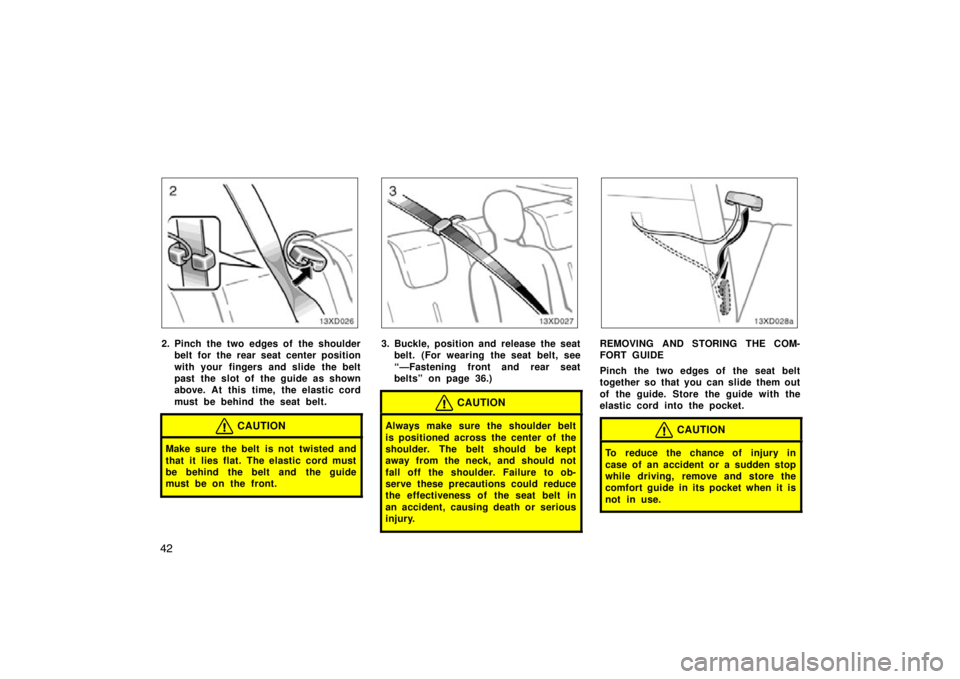

2. Pinch the two edges of the shoulderbelt for the rear seat center position
with your fingers and slide the belt
past the slot of the guide as shown
above. At this time, the elastic cord
must be behind the seat belt.
CAUTION
Make sure the belt is not twisted and
that it lies flat. The elastic cord must
be behind the belt and the guide
must be on the front.
3. Buckle, position and release the seatbelt. (For wearing the seat belt, see
“—Fastening front and rear seat
belts” on page 36.)
CAUTION
Always make sure the shoulder belt
is positioned across the center of the
shoulder. The belt should be kept
away from the neck, and should not
fall off the shoulder. Failure to ob-
serve these precautions could reduce
the effectiveness of the seat belt in
an accident, causing death or serious
injury.
13xD028a
REMOVING AND STORING THE COM-
FORT GUIDE
Pinch the two edges of the seat belt
together so that you can slide them out
of the guide. Store the guide with the
elastic cord into the pocket.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, remove and store the
comfort guide in its pocket when it is
not in use.
