53
In response to a severe frontal impact,
the SRS front airbags work with the seat
belts to help reduce injury by inflating.
The SRS front airbags help reduce injuries
mainly to the driver ’s or front passenger ’s
head or chest caused by hitting the ve-
hicle interior.
The SRS front passenger airbag will not
activate if there is no passenger sitting in
the front passenger seat. However, the
front passenger airbag may deploy if lug-
gage is put in the seat, or the seat belt
is buckled up, regardless of the presence
of an occupant in the seat. (As for the
front passenger occupant classification
system, see “—Front passenger occupant
classification system” on page 68.)
Always wear your seat belt properly.CAUTION
The SRS front airbag system is de-
signed only as a supplement to the
primary protection of the driver and
front passenger seat belt systems.
The driver and front passenger can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move for-
ward into direct contact with or
close proximity to the airbag which
may then deploy during the colli-
sion. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wear-
ing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions con-
cerning the seat belt system, see
“Seat belts” on page 38.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Scion strong-
ly recommends that all infants and
children be placed in the rear seat
of the vehicle and properly re-
strained. The rear seat is the safest
for infants and children. For in-
structions concerning the installa-
tion of a child restraint system, see
“Child restraint” on page 73.

54
The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the forward deceleration of the ve-
hicle exceed the designed threshold lev-
el.
The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corre-
sponding to an approximately 20−30 km/h
[12 −18 mph] frontal collision with a fixed
wall that does not move or deform).
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride co llision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the ve-
hicle is very close to the designed thresh-
old level, the SRS front airbags and the
seat belt pretensioners may not activate
together.
Always wear your seat belts properly.
Collision from the side
Vehicle rollover
Collision from the rear
The SRS front airbags are not generally
designed to inflate if the vehicle is in-
volved in a side or rear collision, if it
rolls over, or if it is involved in a low
speed frontal collision. But, when
ever a
collision of any type causes sufficient
forward deceleration of the vehicle, de-
ployment of the SRS front airbags may
occur.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS front airbags may also deploy
if a serious impact occurs to the under-
side of your vehicle. Some examples
are shown in the illustration.

55
The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion.1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger (airbag and inflator)
4. “AIR BAG ON” and “AIR BAG OFF” indicator lights
5. Front passenger occupant classification system (ECU and sensors)
6. Front passenger ’s seat position sensor
7. Front passenger ’s seat belt buckle switch 8. Driver ’s seat belt buckle switch
9. Driver ’s seat position sensor
10. Airbag sensor assembly 11. Airbag module for driver (airbag and inflator) The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the inflat-
ors very quickly fills the airbags with non
−
toxic gas to help restrain the forward mo-
tion of the occupants. The front airbags
then quickly deflate so that there is no
obstruction of the driver ’s vision should it
be necessary to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.

56
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Scion strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants must be prop-
erly restrained using the available
seat belts.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of a collision. Be sure to
wear the seat belt with the seat belt
extender. Otherwise, there will also
not be any effective protection in a
sudden stop or a collision provided
by the seat belt.
For instructions and precautions con-
cerning the seating position, see
“—Front seat precautions” on page
30.

57

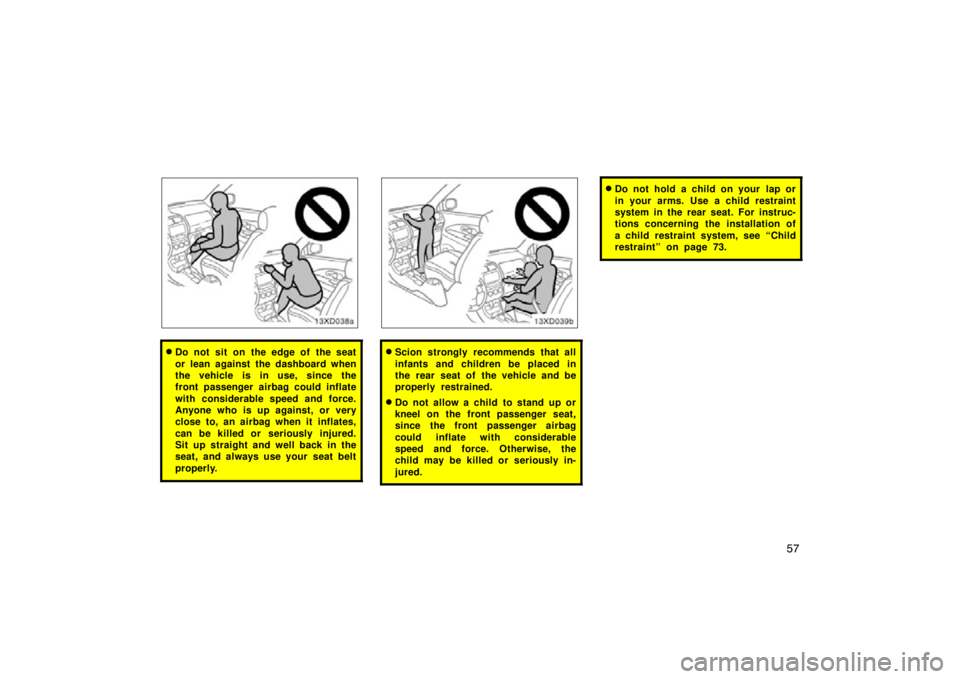

Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.Scion strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not allow a child to stand up or
kneel on the front passenger seat,
since the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 73.

58

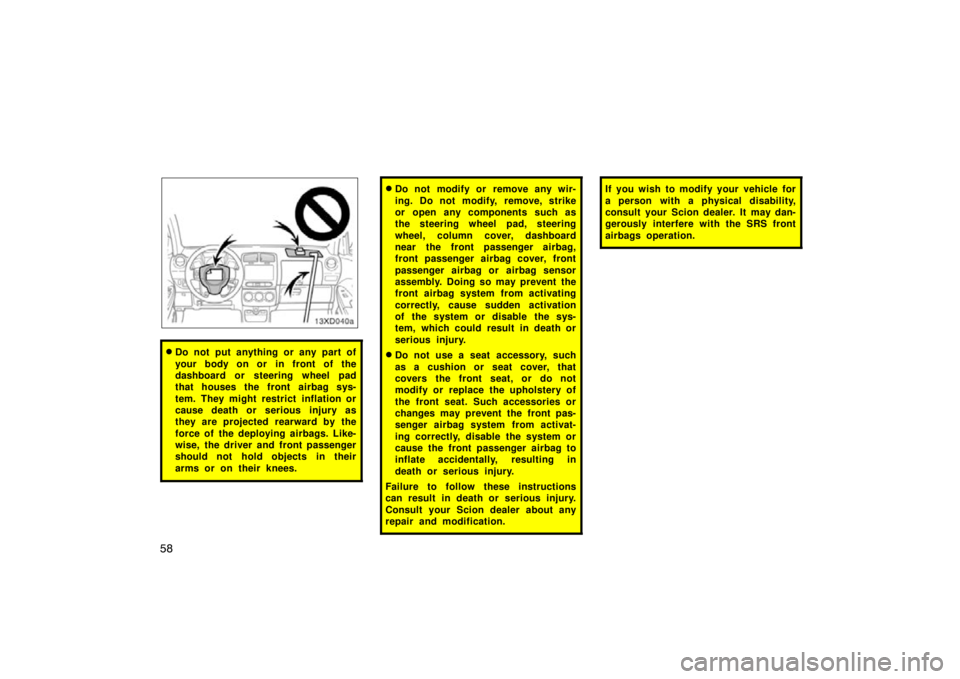

Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag sys-
tem. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Like-
wise, the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Do not use a seat accessory, such
as a cushion or seat cover, that
covers the front seat, or do not
modify or replace the upholstery of
the front seat. Such accessories or
changes may prevent the front pas-
senger airbag system from activat-
ing correctly, disable the system or
cause the front passenger airbag to
inflate accidentally, resulting in
death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Scion dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Scion dealer. It may dan-
gerously interfere with the SRS front
airbags operation.

59
NOTICE
Do not perform any of the following
changes without consulting your
Scion dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This indicator comes on when the en-
gine switch is turned to the “ON” posi-
tion. It goes off after about 6 seconds.
This means the SRS front airbags are
operating properly.
This warning light system monitors the air-
bag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, cur-
tain shield airbag sensors, driver ’s seat
position sensor, driver ’s seat belt buckle
switch, front passenger occupant classifica-
tion system, “AIR BAG ON” indicator light,
“AIR BAG OFF” indicator light, front pas-
senger ’s seat belt buckle switch, seat belt
pretensioner assemblies, inflators, intercon-
necting wiring and power sources. (For de-
tails, see “Service reminder indicators and
warning buzzers” on page 113.) If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Scion dealer as soon as possible.
When the engine switch is turned to
the “ON” position, the light does not
come on or remains on for more than
about 6 seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light and “AIR BAG
OFF” indicator light will come on if there
is a malfunction in the front passenger
occupant classification system.

60
In the following cases, contact your Scion
dealer as soon as possible:
The SRS front airbags have been in-
flated.

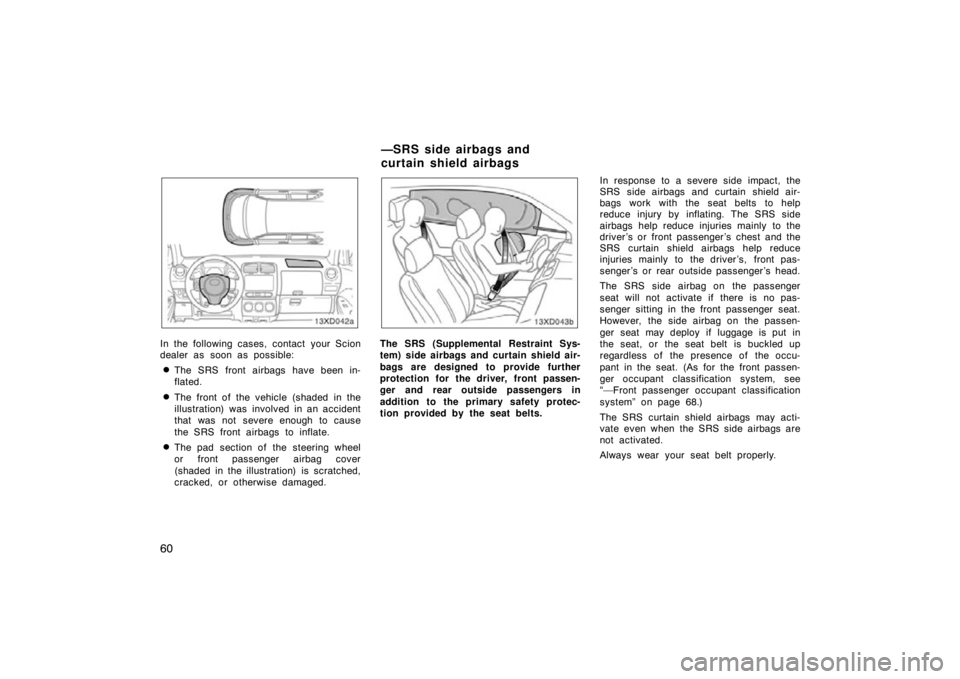

The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and rear outside passengers in
addition to the primary safety protec-
tion provided by the seat belts. In response to a severe side impact, the
SRS side airbags and curtain shield air-
bags work with the seat belts to help
reduce injury by inflating. The SRS side
airbags help reduce injuries mainly to the
driver ’s or front passenger ’s chest and the
SRS curtain shield airbags help reduce
injuries mainly to the driver’s, front pas-
senger ’s or rear outside passenger ’s head.
The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put in
the seat, or the seat belt is buckled up
regardless of the presence of the occu-
pant in the seat. (As for the front passen-
ger occupant classification system, see
“—Front passenger occupant classification
system” on page 68.)
The SRS curtain shield airbags may acti-
vate even when the SRS side airbags are
not activated.
Always wear your seat belt properly.
—SRS side airbags and
curtain shield airbags

61

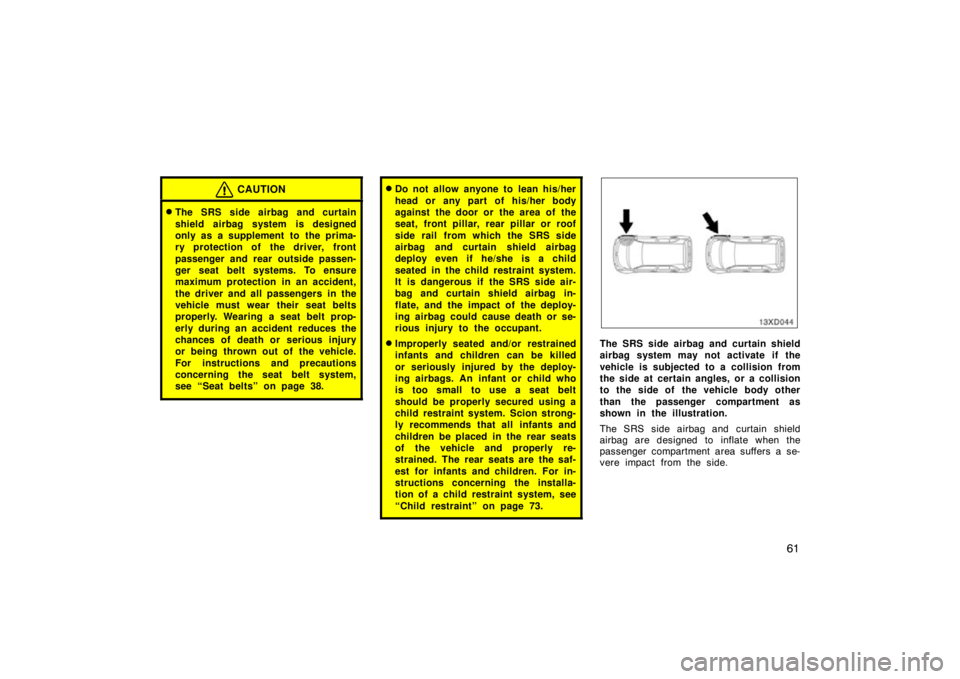

CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver, front
passenger and rear outside passen-
ger seat belt systems. To ensure
maximum protection in an accident,
the driver and all passengers in the
vehicle must wear their seat belts
properly. Wearing a seat belt prop-
erly during an accident reduces the
chances of death or serious injury
or being thrown out of the vehicle.
For instructions and precautions
concerning the seat belt system,
see “Seat belts” on page 38.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, front pillar, rear pillar or roof
side rail from which the SRS side
airbag and curtain shield airbag
deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side air-
bag and curtain shield airbag in-
flate, and the impact of the deploy-
ing airbag could cause death or se-
rious injury to the occupant.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Scion strong-
ly recommends that all infants and
children be placed in the rear seats
of the vehicle and properly re-
strained. The rear seats are the saf-
est for infants and children. For in-
structions concerning the installa-
tion of a child restraint system, see
“Child restraint” on page 73.The SRS side airbag and curtain shield
airbag system may not activate if the
vehicle is subjected to a collision from
the side at certain angles, or a collision
to the side of the vehicle body other
than the passenger compartment as
shown in the illustration.
The SRS side airbag and curtain shield
airbag are designed to inflate when the
passenger compartment area suffers a se-
vere impact from the side.

62
The SRS side airbags and curtain shield
airbags will deploy in the event of an
impact that exceeds the set threshold lev-
el (the level of force corresponding to the
impact force produced by an approximate-
ly 1500 kg (3300 lb.) vehicle colliding with
the vehicle cabin from a direction perpen-
dicular to the vehicle orientation at an
approximate speed of 20−30 km/h [12 −18
mph]).
Always wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbag and curtain shield
airbags are not generally designed to
inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are
shown in the illustration.1. Curtain shield airbag modules (airbag and inflator)
2. SRS warning light
3. “AIR BAG ON” and “AIR BAG OFF” indicator lights
4. Front passenger occupant classification system (ECU and sensors)
5. Side airbag modules (airbag and inflator)
6. Curtain shield airbag sensors
