NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.

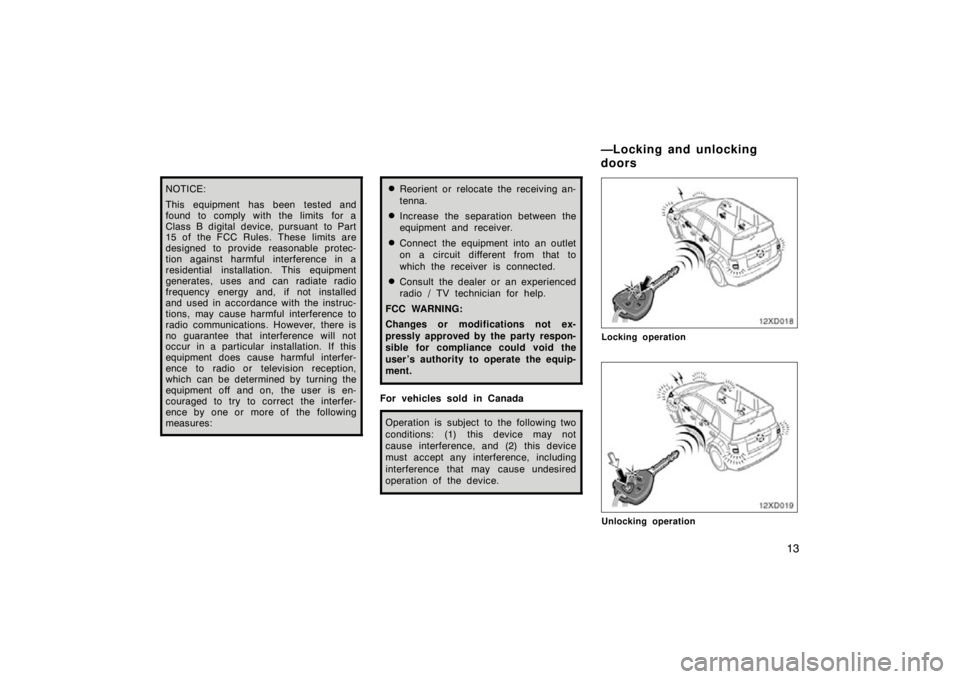

12xD018
Locking operation
12xD019
Unlocking operation
—Locking and unlocking
doors

14
To lock and unlock all the side doors
and back door, push the switches slow-
ly and securely.
To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time, you will hear one
beep and the turn signal lights will flash
once.
Check to see that all the doors are se-
curely locked.
The beep and flashing turn signal lights
can be disabled. For details, contact your
Scion dealer.
If any of side doors or back door is not
securely closed or if the key is in the
engine switch, locking cannot be per-
formed by the lock switch. At this time,
a beep will sound for 10 seconds. Howev-
er, if the key is in the engine switch, a
beep will not sound. To stop the beep,
close all the side doors and back door
securely or push the unlock switch.
The beep can be disabled. For details,
contact your Scion dealer.To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the side doors and back door simulta-
neously. Each time the unlock switch is
pushed, you will hear two beeps and the
turn signal lights will flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Scion dealer.
When the unlock switch is pressed, the
interior lights come on. The light remains
on for about 15 seconds unless any of the
doors is opened and then closed. (For
further information, see “Interior light” on
page 102.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Scion dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push it again.
12xD020
Pushing the panic switch for 1 second
blows the horn intermittently and
flashes the headlights, tail lights and
emergency flashers and turns on the
interior light.
The panic switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The panic mode will last for one minute.
To stop the panic mode midway, do the
following:
Push any switch on the key.
Turn the engine switch from the
“LOCK” to “ON” position.
—Activating panic mode

15
The panic mode does not work when the
engine switch is in the “ON” position.
The panic mode can be disabled. For de-
tails, contact your Scion dealer.For replacement, use a CR2016 lithium
battery or equivalent and a flathead
screwdriver or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
Failure to do so could result in death
or serious injury.
NOTICE

When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Scion dealer.
 Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:

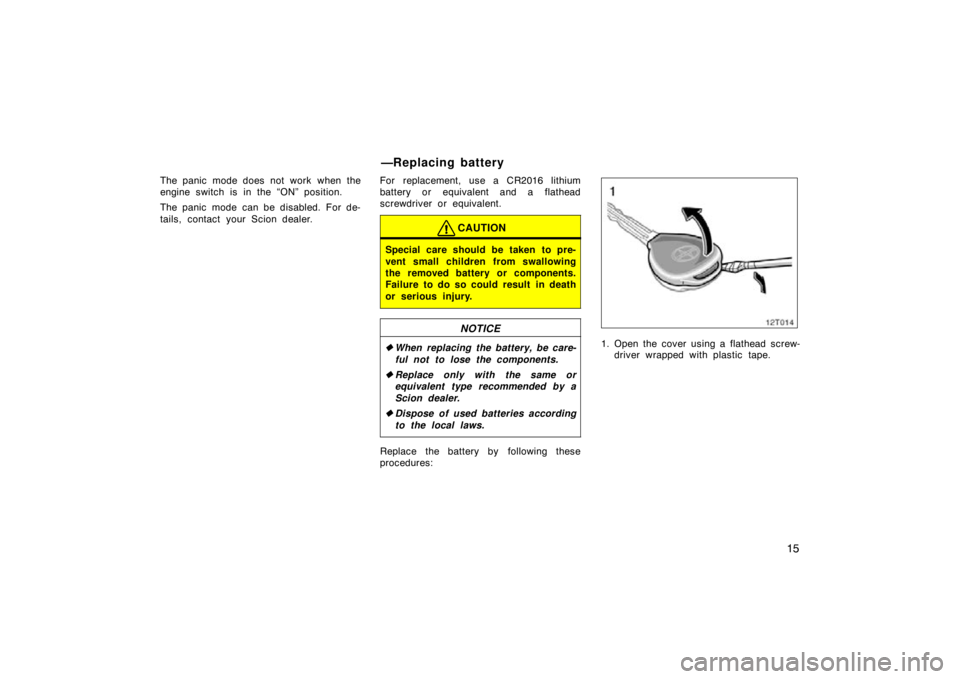

12T014
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.
—Replacing battery

16

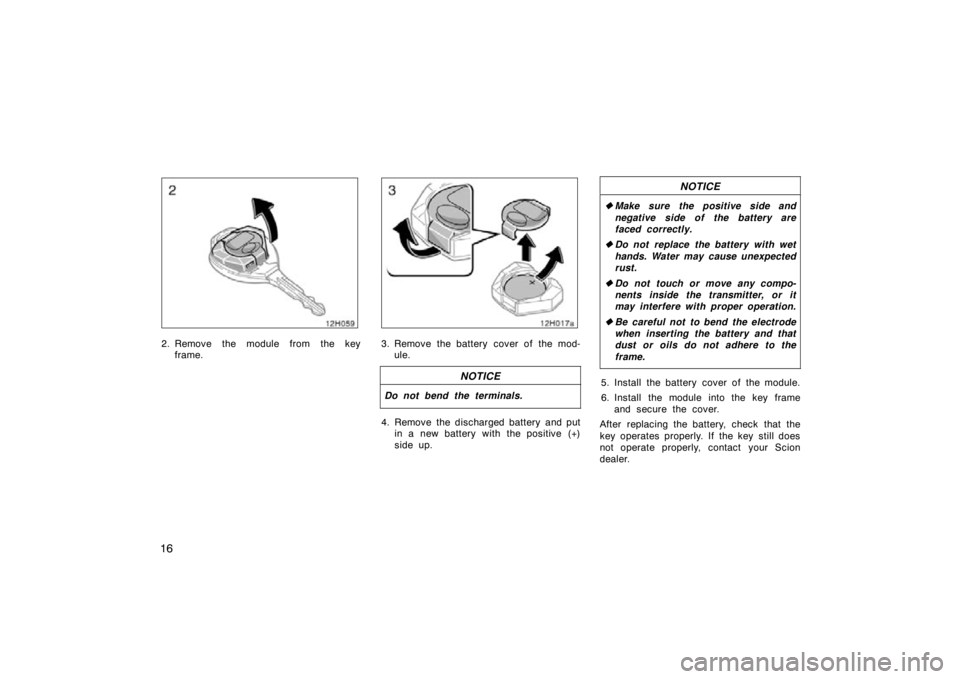

12H059
2. Remove the module from the keyframe.
12T017a
3. Remove the battery cover of the mod-ule.
NOTICE
Do not bend the terminals.
4. Remove the discharged battery and put in a new battery with the positive (+)
side up.
NOTICE
Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
frame.
5. Install the battery cover of the module.
6. Install the module into the key frame
and secure the cover.
After replacing the battery, check that the
key operates properly. If the key still does
not operate properly, contact your Scion
dealer.

17
Side doors
12xD004

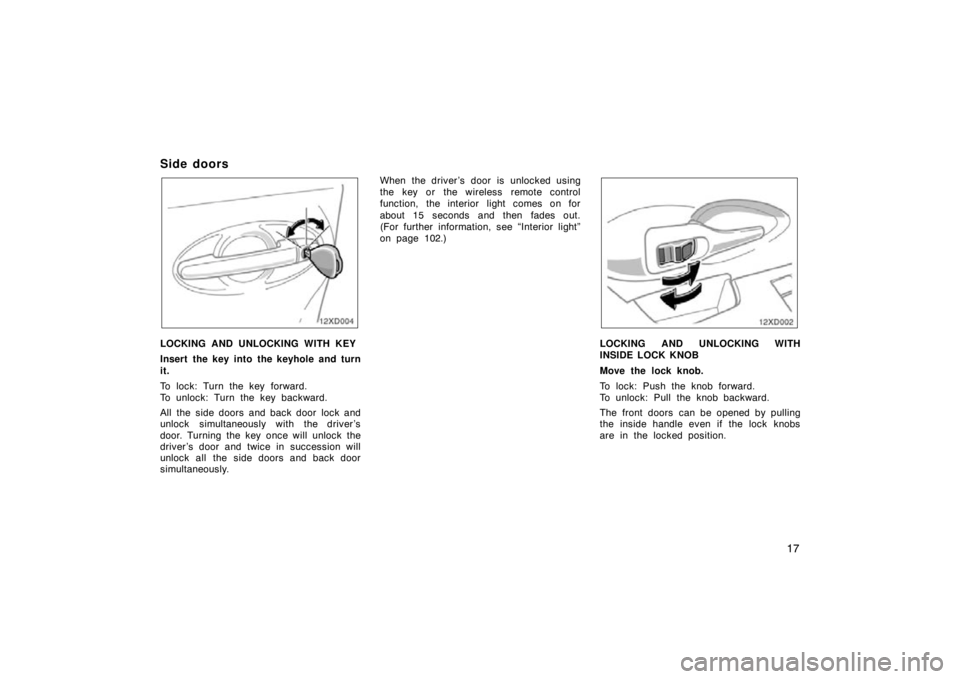

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with the driver ’s
door. Turning the key once will unlock the
driver’s door and twice in succession will
unlock all the side doors and back door
simultaneously.When the driver’s door is unlocked using
the key or the wireless remote control
function, the interior light comes on for
about 15 seconds and then fades out.
(For further information, see “Interior light”
on page 102.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.

18
CAUTION
Do not pull the inside handle of the
doors while driving. The doors may
be opened and the passengers are
thrown out of the vehicle and it may
result in serious injury or death. Be
especially careful for the front doors,
as the doors may be opened even if
the inside lock knobs are in locked
position. Scion strongly recommends
that all children be placed in the rear
seat of the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the engine
switch.

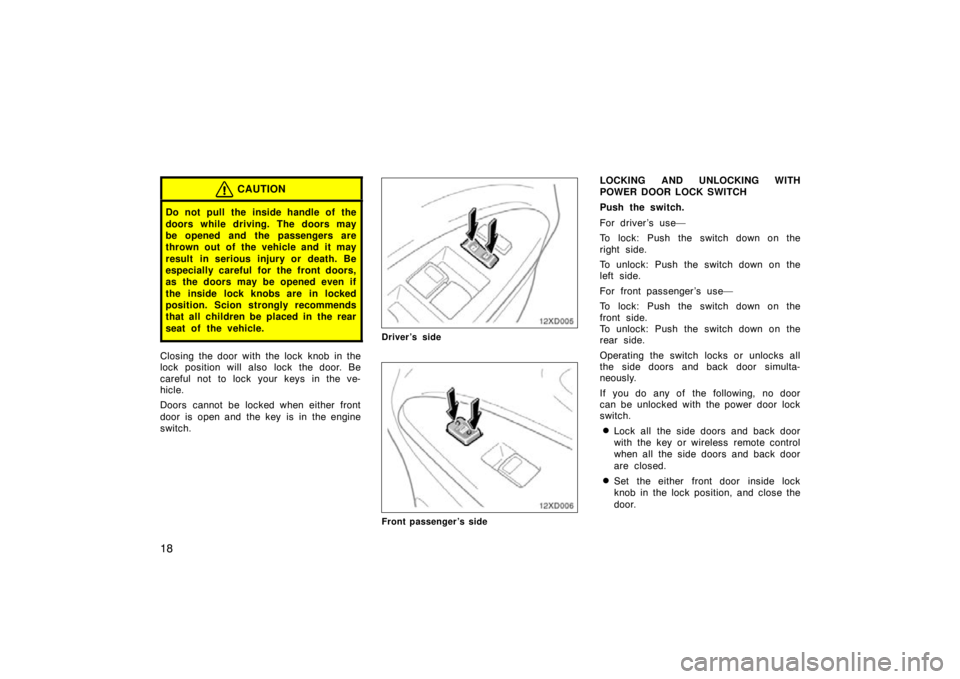

12xD005
Driver’s side
12xD006
Front passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
For driver ’s use—
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
For front passenger ’s use—
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch locks or unlocks all
the side doors and back door simulta-
neously.
If you do any of the following, no door
can be unlocked with the power door lock
switch.
Lock all the side doors and back door
with the key or wireless remote control
when all the side doors and back door
are closed.
Set the either front door inside lock
knob in the lock position, and close the
door.

19
The power door lock switch can be reset
in the following ways.
Turn the engine switch to “ON” posi-
tion.
Unlock all the side doors and back
door with the key or wireless remote
control.
Unlock the either front door with the
inside lock knob, and then unlock all
the side doors and back door with the
power door lock switch.
12xD009
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.

20
Power windows

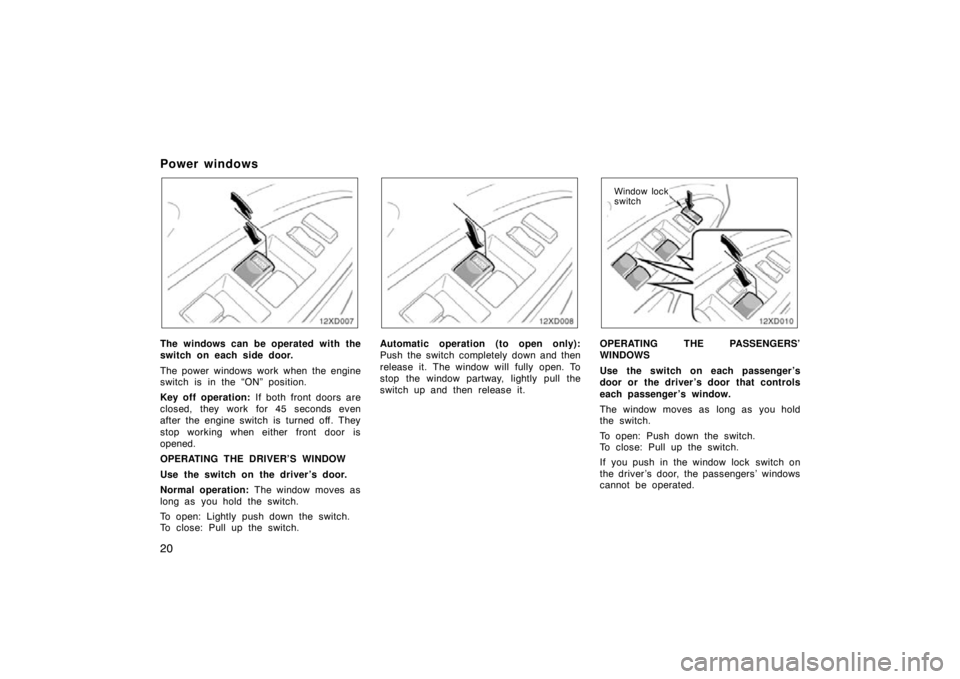

12xD007
The windows can be operated with the
switch on each side door.
The power windows work when the engine
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 45 seconds even
after the engine switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
12xD008
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
12xD010
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the driver ’s door that controls
each passenger ’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

21

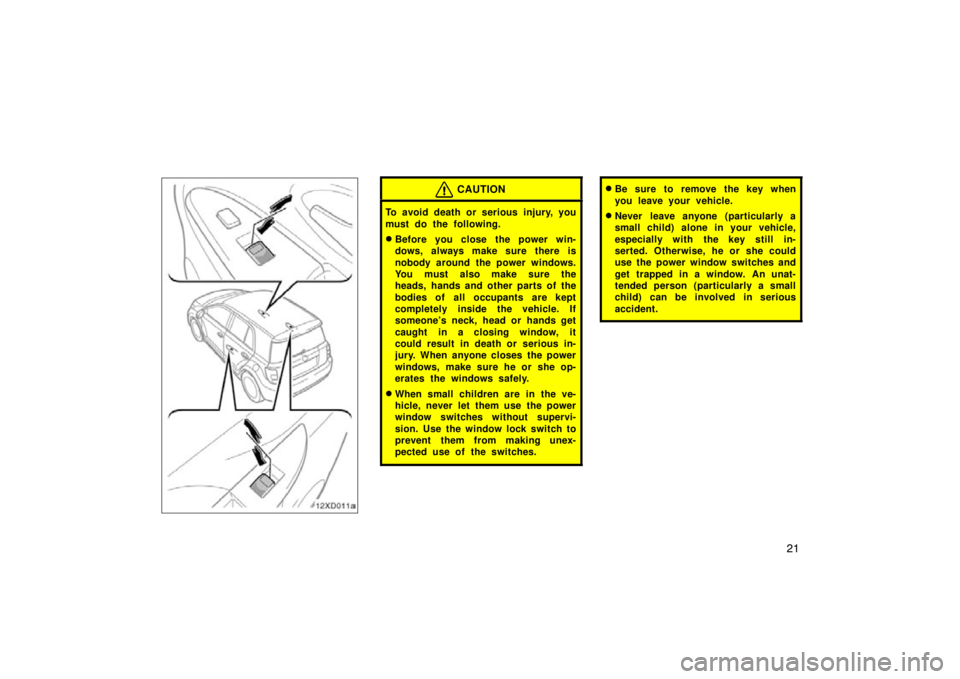

12xD011a
CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he or she could
use the power window switches and
get trapped in a window. An unat-
tended person (particularly a small
child) can be involved in serious
accident.

22
CAUTION
Keep the back door closed while dri-
ving. If the back door is left open, it
may hit nearby objects while driving
or luggage may be unexpectedly
thrown out, causing an accident. In
addition, exhaust gases may enter the
vehicle, causing death or a serious
health hazard. Make sure to close the
back door before driving.
Before driving the vehicle, make sure
that the back door is fully closed. If
the back door is not fully closed, it
may open unexpectedly while driving,
causing an accident.
Never let anyone sit in the luggage
compartment. In the event of sudden
braking or a collision, they are sus-
ceptible to death or serious injury.
When children are in the vehicle, ob-
serve the following precautions. Fail-
ure to do so may result in death or
serious injury:
Do not leave children alone in the
luggage compartment. If a child is
accidentally locked in the luggage
compartment, they could overheat.
Do not allow a child to open or
close the back door. Doing so may
cause the back door to operate un-
expectedly, or cause the child’s
hands, head, or neck to be caught
by the closing back door.

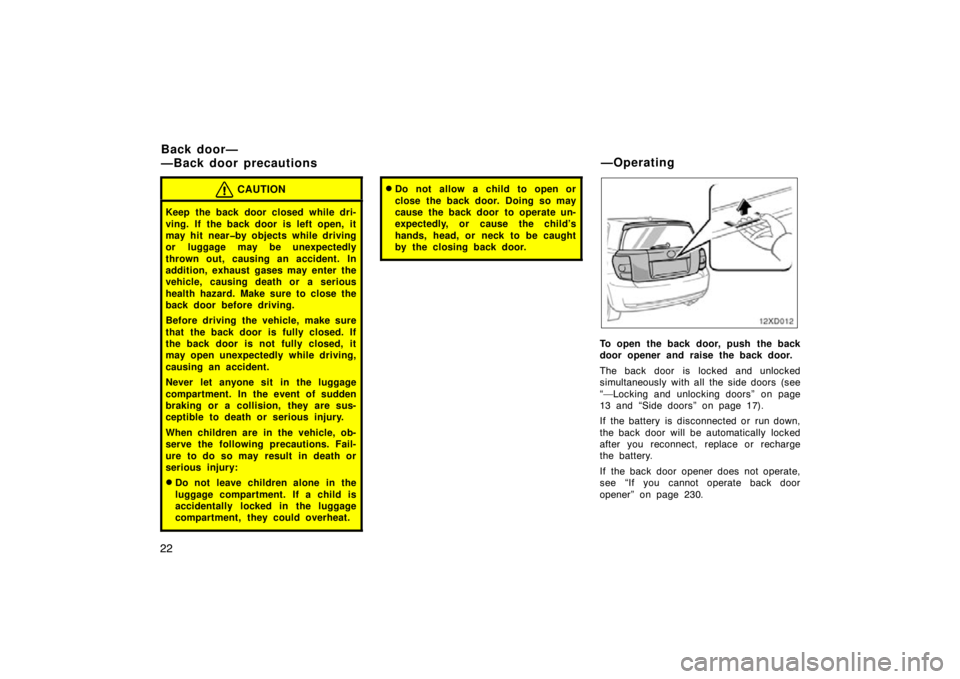

12xD012
To open the back door, push the back
door opener and raise the back door.
The back door is locked and unlocked
simultaneously with all the side doors (see
“—Locking and unlocking doors” on page
13 and “Side doors” on page 17).
If the battery is disconnected or run down,
the back door will be automatically locked
after you reconnect, replace or recharge
the battery.
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 230.
Back door—
—Back door precautions—Operating
