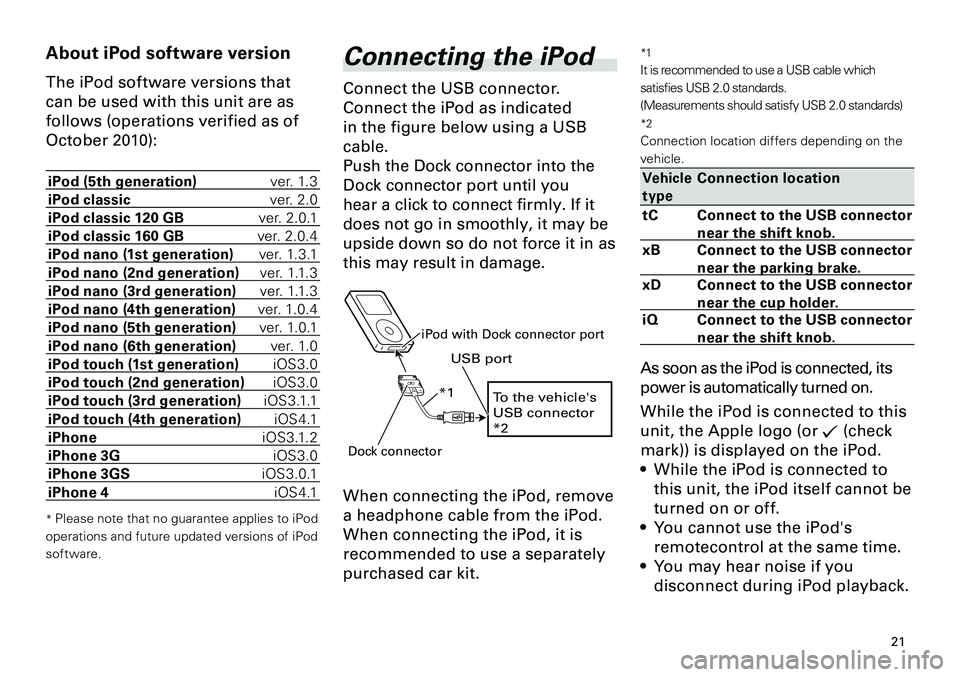

About iPod software version
The iPod sof tware versions that
can be used with this unit are as
follows (operations verified as of
October  010):
iPod (5th generation)ver. 1.3
iPod classicver. 2.0
iPod classic 120 GBver. 2.0.1
iPod classic 160 GBver. 2.0.4
iPod nano (1st generation)ver. 1.3.1
iPod nano (2nd generation)ver. 1.1.3
iPod nano (3rd generation)ver. 1.1.3
iPod nano (4th generation)ver. 1.0.4
iPod nano (5th generation)ver. 1.0.1
iPod nano (6th generation)ver. 1.0
iPod touch (1st generation)iOS3.0
iPod touch (2nd generation)iOS3.0
iPod touch (3rd generation)iOS3.1.1
iPod touch (4th generation)iOS4.1
iPhoneiOS3.1.2
iPhone 3GiOS3.0
iPhone 3GSiOS3.0.1
iPhone 4iOS4.1
* Please note that no guarantee applies to iPod
operations and future updated versions of iPod
software.
Connecting the iPod
Connect the USB connector.
Connect the iPod as indicated
in the figure below using a USB
cable.
Push the Dock connector into the
Dock connector port until you
hear a click to connect firmly. If it
does not go in smoothly, it may be
upside down so do not force it in as
this may result in damage.
To the vehicle's USB connector *2
*1
USB port
iPod with Dock connector port
Dock connector
When connecting the iPod, remove
a headphone cable from the iPod.
When connecting the iPod, it is
recommended to use a separately
purchased car kit.
*1
It is recommended to use a USB cable which
satisfies USB 2.0 standards.
(Measurements should satisfy USB 2.0 standards)
*2
Connection location differs depending on the
vehicle.
Vehicle
type
Connection location
tCConnect to the USB connector
near the shift knob.
xBConnect to the USB connector
near the parking brake.
xDConnect to the USB connector
near the cup holder.
iQConnect to the USB connector
near the shift knob.
As soon as the iPod is connected, its
power is automatically turned on.
While the iPod is connected to this
unit, the Apple logo (or (check
mark)) is displayed on the iPod.
While the iPod is connected to
this unit, the iPod itself cannot be
turned on or of f.
You cannot use the iPod's
remotecontrol at the same time.
You may hear noise if you
disconnect during iPod playback.
•
•
•




NOTICE
To resolve most problems
when using your iPod with
the Scion Audio system,
disconnect your iPod from the
vehicle iPod connection and
reset it.
For instructions on how to
reset your iPod, refer to the
User Guide of your iPod.
Connect the Dock connector
directly to the iPod with
Dock connector port. Do not
connect it via the iPod Dock
or other connection.
When the iPod is connected
to this unit, sound will
also be heard from the
headphone of the iPod.
Disconnect the headphone
from the iPod before use.
If you install an audio
system other than a Scion
Genuine Audio, you will
not be able to use the USB
connector.
•
•
•
•
•
If the iPod does not operate
with Scion Audio system,
disconnect the connector
from the iPod and re-
connect again.
When you are using
iPhone by the multitasking,
according to the application
under use, it might not be
able to charge a battery.
•
•

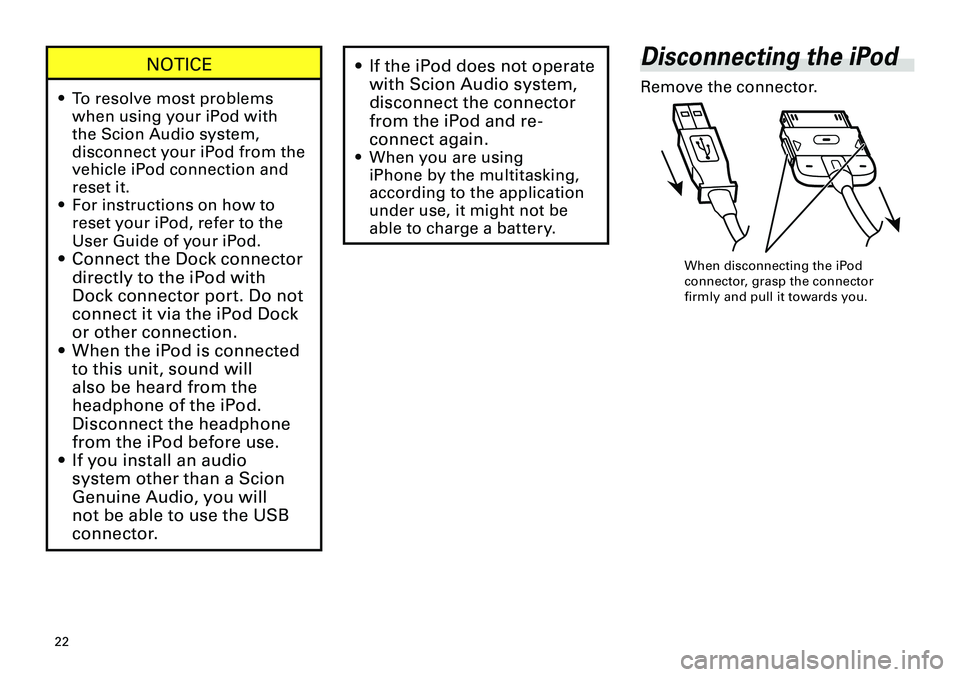

Disconnecting the iPod
Remove the connector.
When disconnecting the iPod connector, grasp the connector firmly and pull it towards you.

3
3

4
4

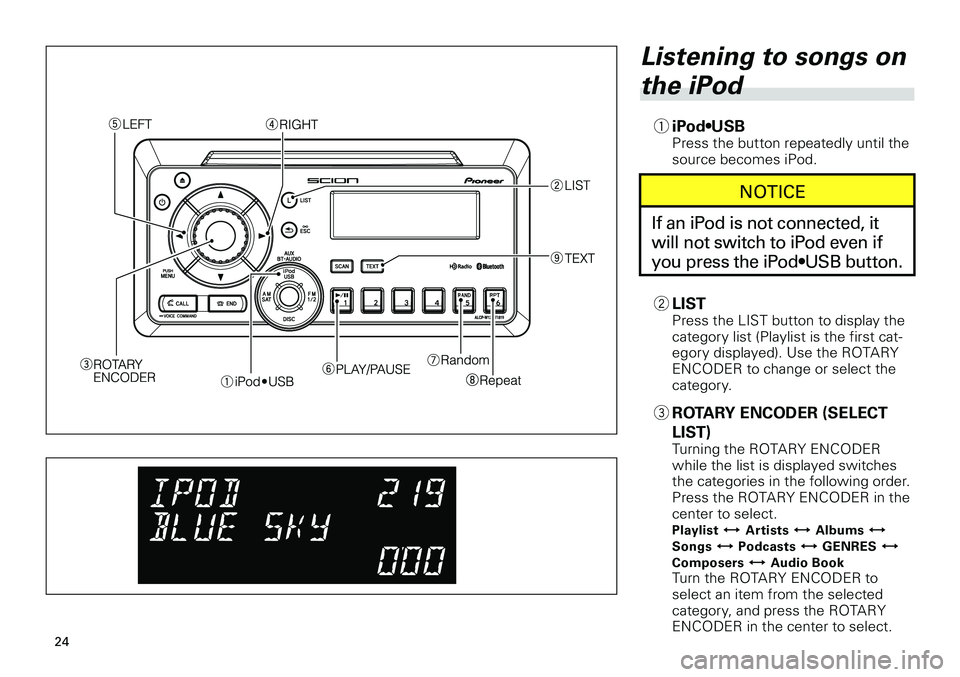

Listening to songs on
the iPod
1 iPod•USBPress the button repeatedly until the source becomes iPod.
NOTICE
If an iPod is not connected, it
will not switch to iPod even if
you press the iPod•USB button.
2 LISTPress the LIST button to display the category list (Playlist is the first cat-egory displayed). Use the ROTARY ENCODER to change or select the category.
3 ROTARY ENCODER (SELECT
LIST)Turning the ROTARY ENCODER while the list is displayed switches
the categories in the following order. Press the ROTARY ENCODER in the center to select.Playlist  Artists  Albums  Songs  Podcasts  GENRES  Composers  Audio BookTurn the ROTARY ENCODER to select an item from the selected category, and press the ROTARY ENCODER in the center to select.

5
5

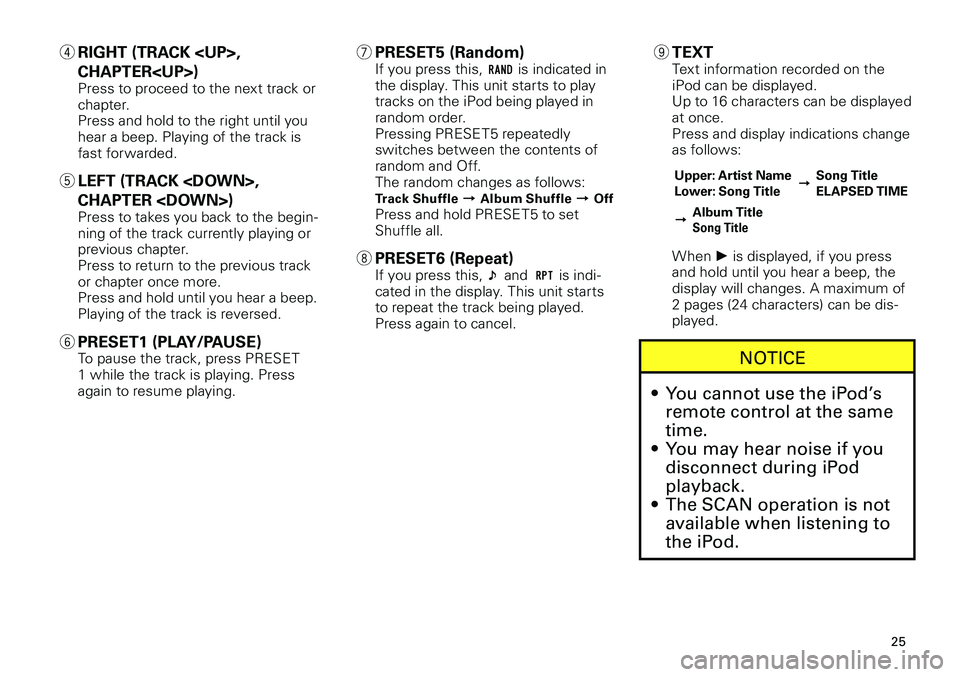

4 RIGHT (TRACK ,
CHAPTER)Press to proceed to the next track or chapter. Press and hold to the right until you hear a beep. Playing of the track is fast forwarded.
5 LEFT (TRACK ,
CHAPTER )Press to takes you back to the begin-ning of the track currently playing or previous chapter.
Press to return to the previous track or chapter once more.Press and hold until you hear a beep. Playing of the track is reversed.
6 PRESET1 (PLAY/PAUSE)To pause the track, press PRESET 1 while the track is playing. Press again to resume playing.
7 PRESET5 (Random)If you press this, is indicated in the display. This unit starts to play tracks on the iPod being played in random order.Pressing PRESET5 repeatedly switches between the contents of random and Off.The random changes as follows:Track Shuffle  Album Shuffle  Off Press and hold PRESET5 to set Shuffle all.
8 PRESET6 (Repeat)
If you press this, and is indi-cated in the display. This unit starts to repeat the track being played. Press again to cancel.
9 TEXTText information recorded on the iPod can be displayed.Up to 16 characters can be displayed at once.Press and display indications change as follows:
Upper: Artist NameLower: Song Title Song TitleELAPSED TIME
Album Title Song Title
When d is displayed, if you press and hold until you hear a beep, the display will changes. A maximum of 2 pages (24 characters) can be dis-played.
NOTICE
You cannot use the iPod’s
remote control at the same
time.
You may hear noise if you
disconnect during iPod
playback.
The SCAN operation is not
available when listening to
the iPod.
•
•
•

6
6

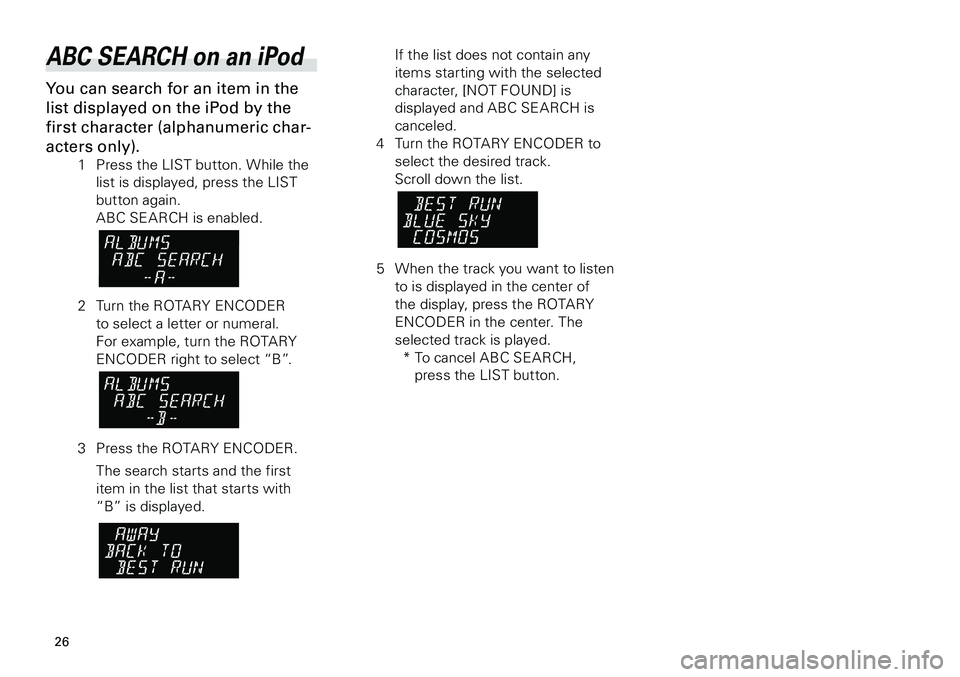

ABC SEARCH on an iPod
You can search for an item in the
list displayed on the iPod by the
first character (alphanumeric char-
acters only).
1 Press the LIST button. While the
list is displayed, press the LIST
button again.
ABC SEARCH is enabled.

2 Turn the ROTARY ENCODER
to select a letter or numeral.
For example, turn the ROTARY
ENCODER right to select “B”.

3 Press the ROTARY ENCODER.
The search starts and the first
item in the list that starts with
“B” is displayed.

If the list does not contain any
items starting with the selected
character, [NOT FOUND] is
displayed and ABC SEARCH is
canceled.
4 Turn the ROTARY ENCODER to
select the desired track.
Scroll down the list.

5 When the track you want to listen
to is displayed in the center of
the display, press the ROTARY
ENCODER in the center. The
selected track is played.
* To cancel ABC SEARCH,
press the LIST button.

7
7

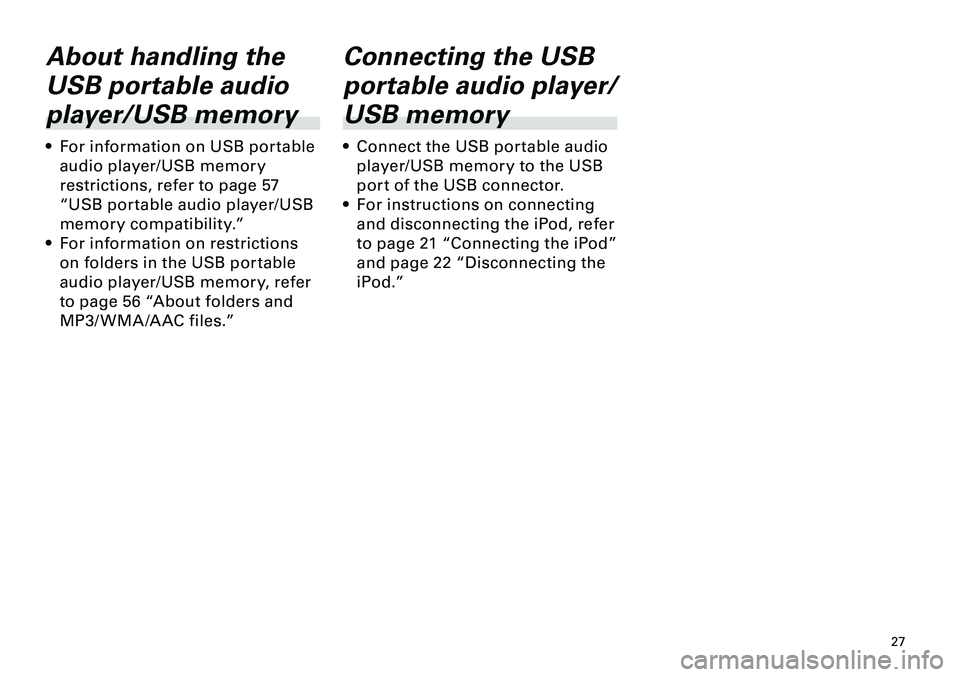

About handling the
USB portable audio
player/USB memory
For information on USB por table
audio player/USB memor y
restrictions, refer to page 57
“USB por table audio player/USB
memor y compatibility.”
For information on restrictions
on folders in the USB por table
audio player/USB memor y, refer
to page 56 “About folders and
MP3/ WMA /A AC files.”
•
•
Connecting the USB
portable audio player/
USB memory
Connect the USB por table audio
player/USB memor y to the USB
por t of the USB connector.
For instructions on connecting
and disconnecting the iPod, refer
to page 1 “Connecting the iPod”
and page  “Disconnecting the
iPod.”
•
•

8
8

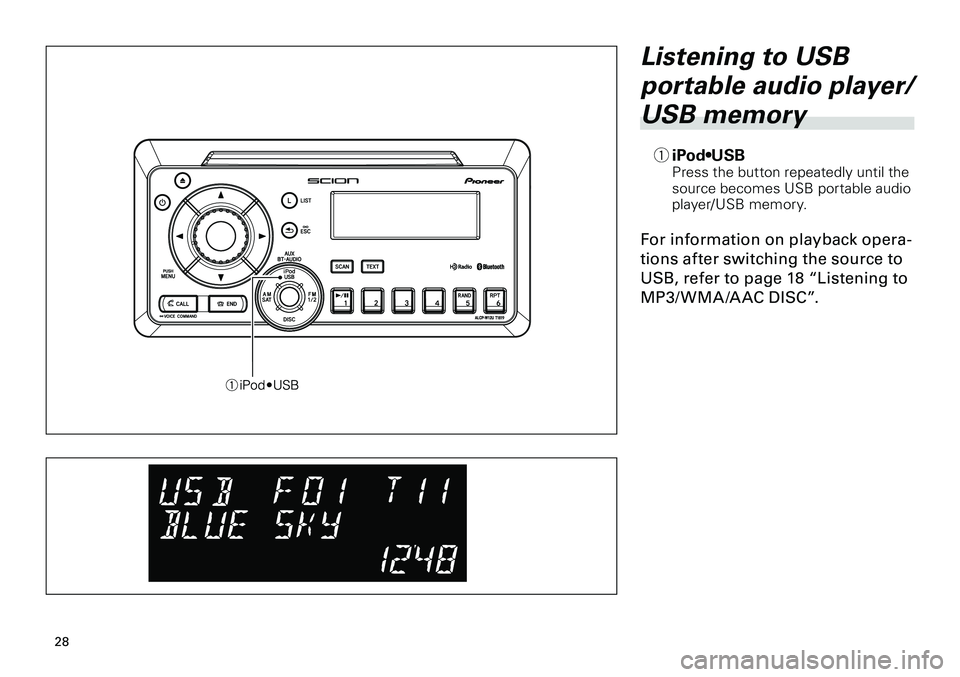

Listening to USB
portable audio player/
USB memory
1 iPod•USBPress the button repeatedly until the source becomes USB portable audio player/USB memory.
For information on playback opera-
tions af ter switching the source to
USB, refer to page 18 “Listening to
MP3/ WMA /A AC DISC”.

9
9

30
30

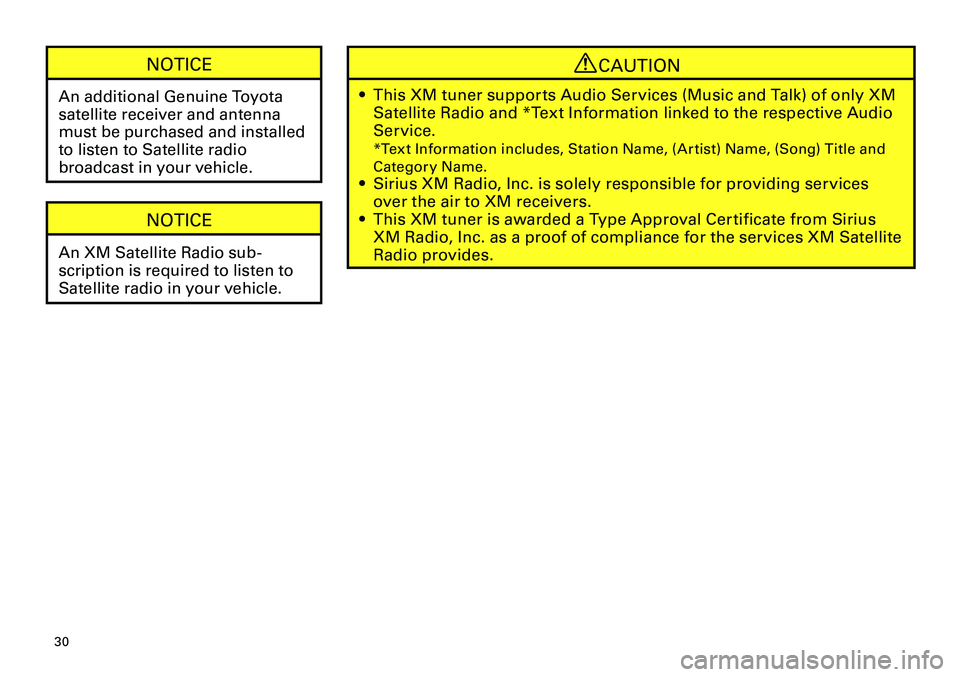

NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio
broadcast in your vehicle.
NOTICE
An XM Satellite Radio sub-
scription is required to listen to
Satellite radio in your vehicle.
CAUTION
This XM tuner supports Audio Services (Music and Talk) of only XM
Satellite Radio and *Text Information linked to the respective Audio
Service.
*Text Information includes, Station Name, (Ar tist) Name, (Song) Title and
Categor y Name.
Sirius XM Radio, Inc. is solely responsible for providing services
over the air to XM receivers.
This XM tuner is awarded a Type Approval Certificate from Sirius
XM Radio, Inc. as a proof of compliance for the services XM Satellite
Radio provides.
•
•
•
