!A word about safe vehicle operations
This Quick Reference Guide
is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main
equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion xD.
This Quick Reference Guide is not a full description of
Scion xD operations. Every Scion xD owner should review
the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2012
Scion xD
OVE
FEA
SAF
EME
IND
1 Vis
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:33 PM Page ii
Page 3 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1

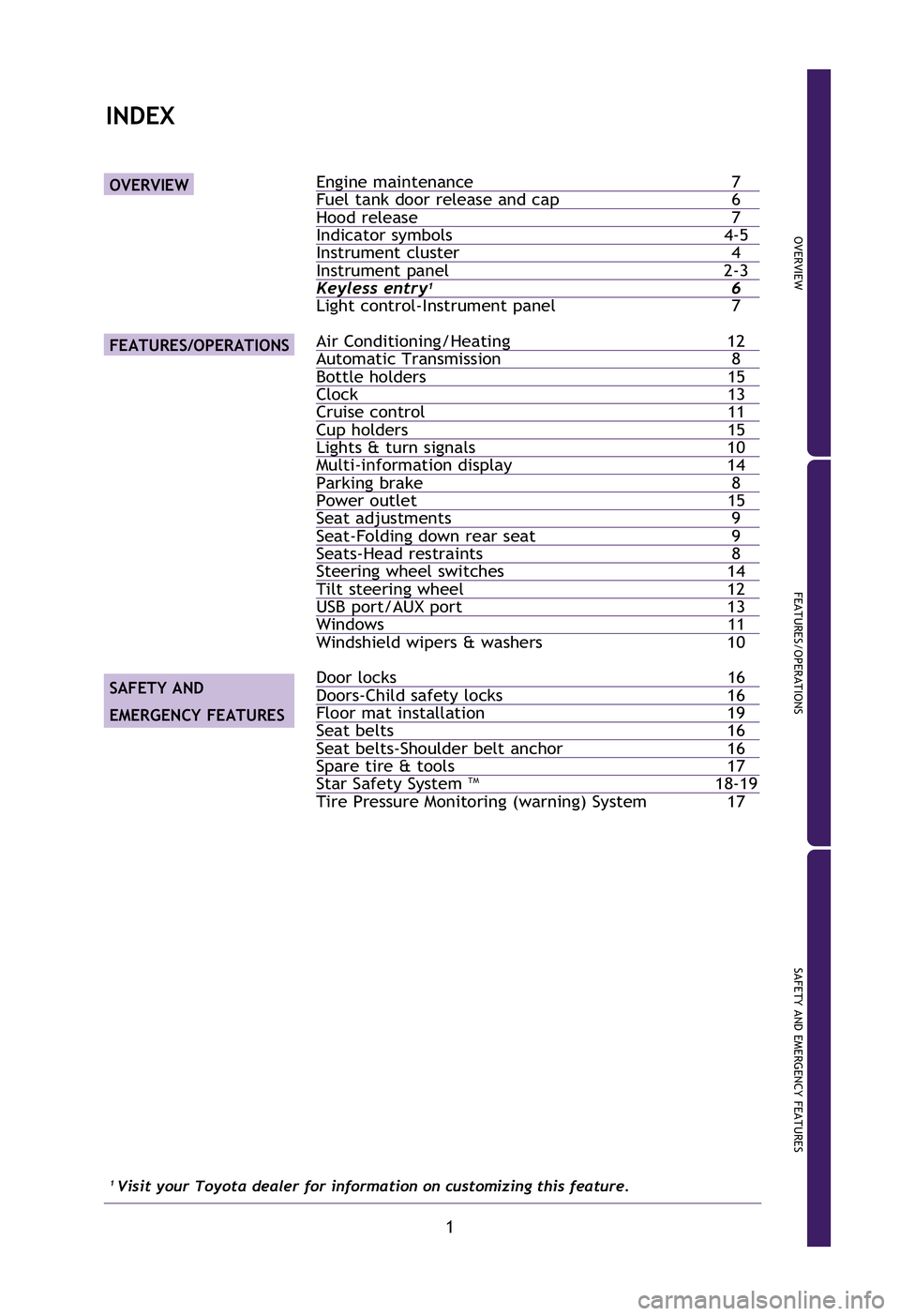

Engine maintenance7Fuel tank door release and cap6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16
Light control-Instrument panel 7
Air Conditioning/Heating12Automatic Transmission 8Bottle holders15Clock13Cruise control11Cup holders15Lights & turn signals10Multi-information display14Parking brake8Power outlet 15Seat adjustments9Seat-Folding down rear seat9Seats-Head restraints 8Steering wheel switches14Tilt steering wheel12USB port/AUX port13Windows 11
Windshield wipers & washers 10
Door locks 16Doors-Child safety locks16Floor mat installation19Seat belts16Seat belts-Shoulder belt anchor16Spare tire & tools17Star Safety System TM18-19
Tire Pressure Monitoring (warning) System 17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:55 PM Page 1
Page 4 of 24
2
OVERVIEW

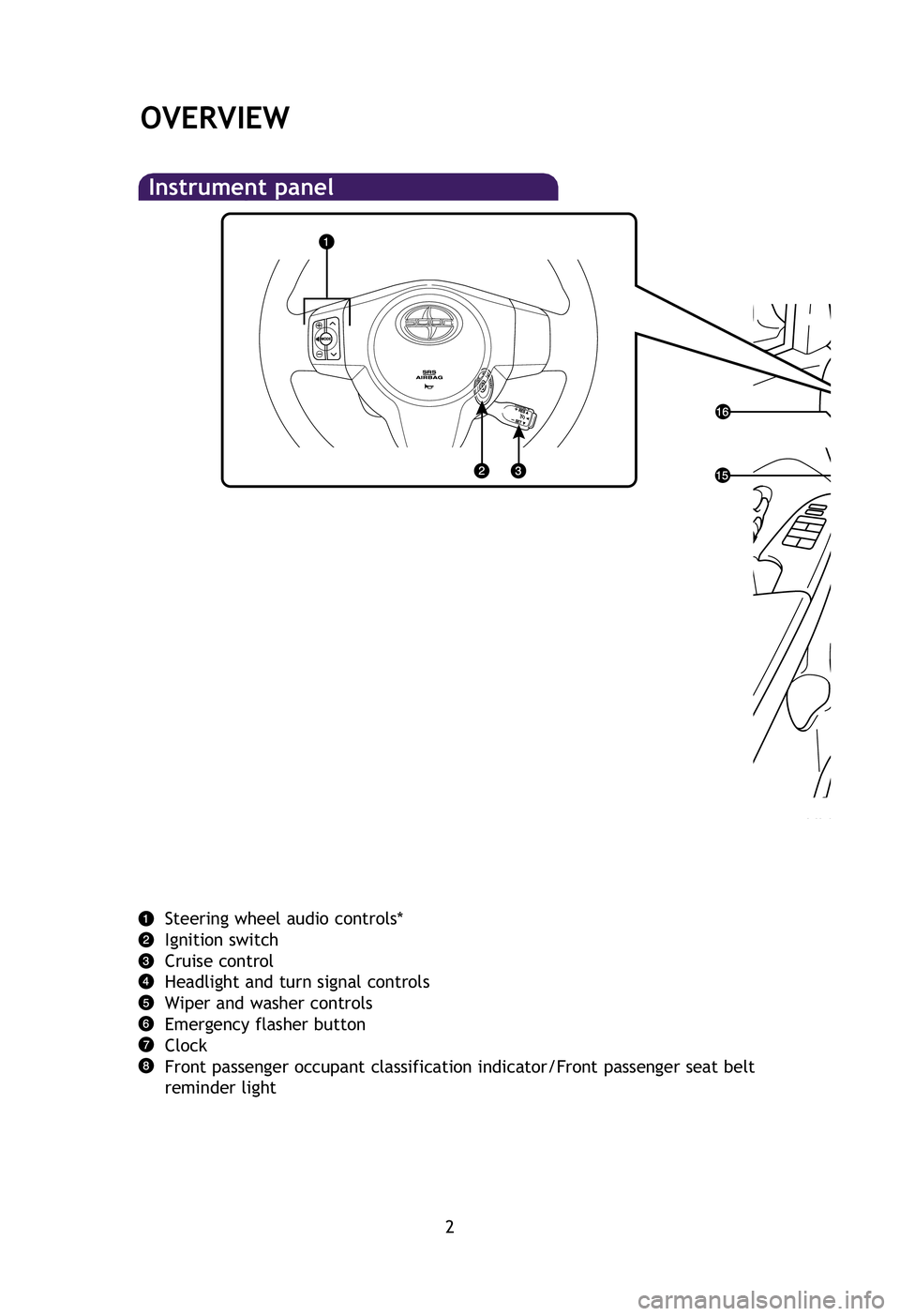

Steering wheel audio controls*
Ignition switch
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Clock
Front passenger occupant classification indicator/Front passenger seat b\
elt
reminder lightA
R
1
U
T
T
In
P
*
Instrument panel
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:33 PM Page 2
Page 5 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

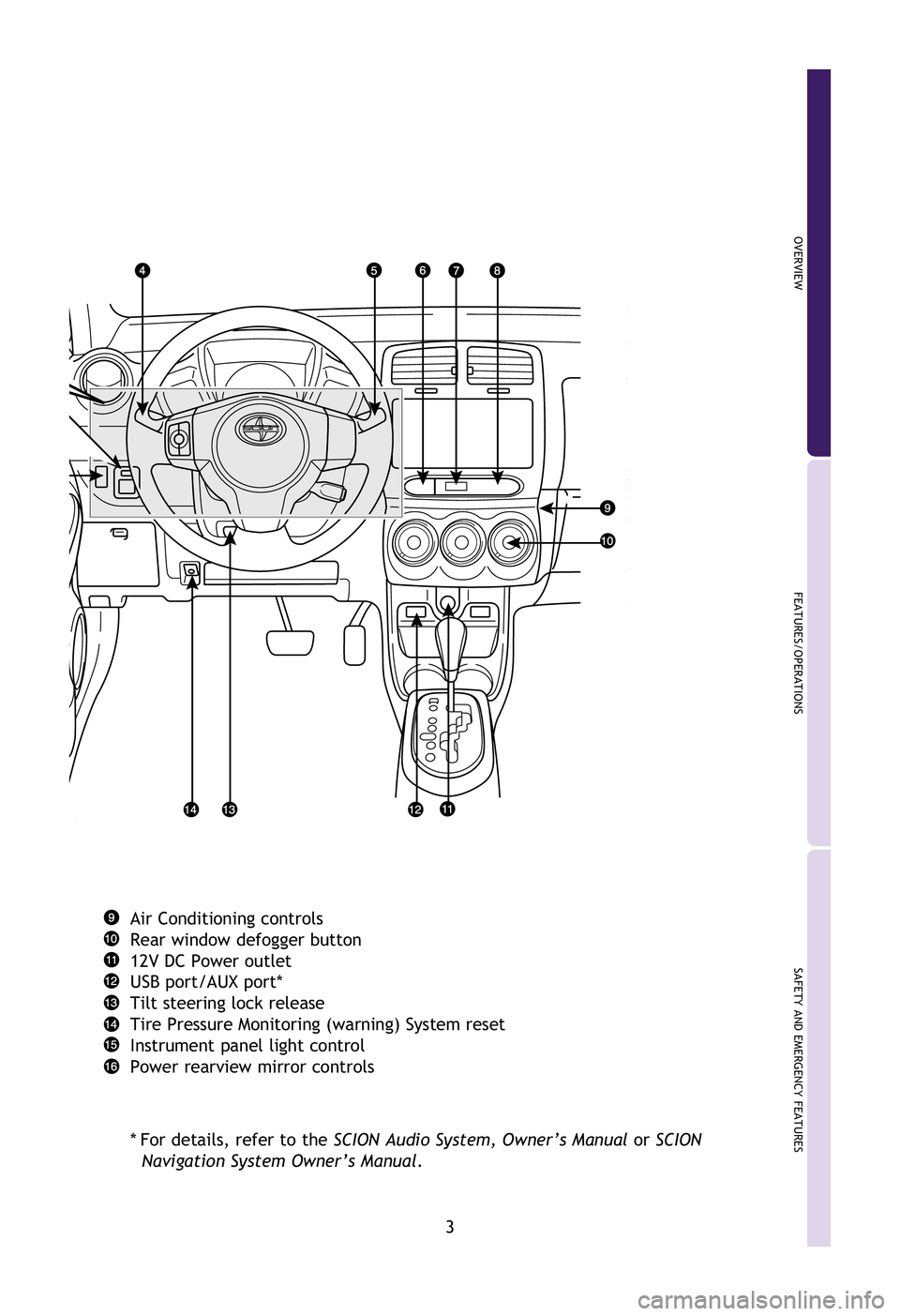

Air Conditioning controls
Rear window defogger button
12V DC Power outlet
USB port/AUX port*
Tilt steering lock release
Tire Pressure Monitoring (warning) System reset
Instrument panel light control
Power rearview mirror controls
* For details, refer to the SCION Audio System, Owner’s Manual or SCION
Navigation System Owner’s Manual .
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 3
Page 6 of 24
4
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
1
Charging system warning1
Malfunction/Check Engine indicator1

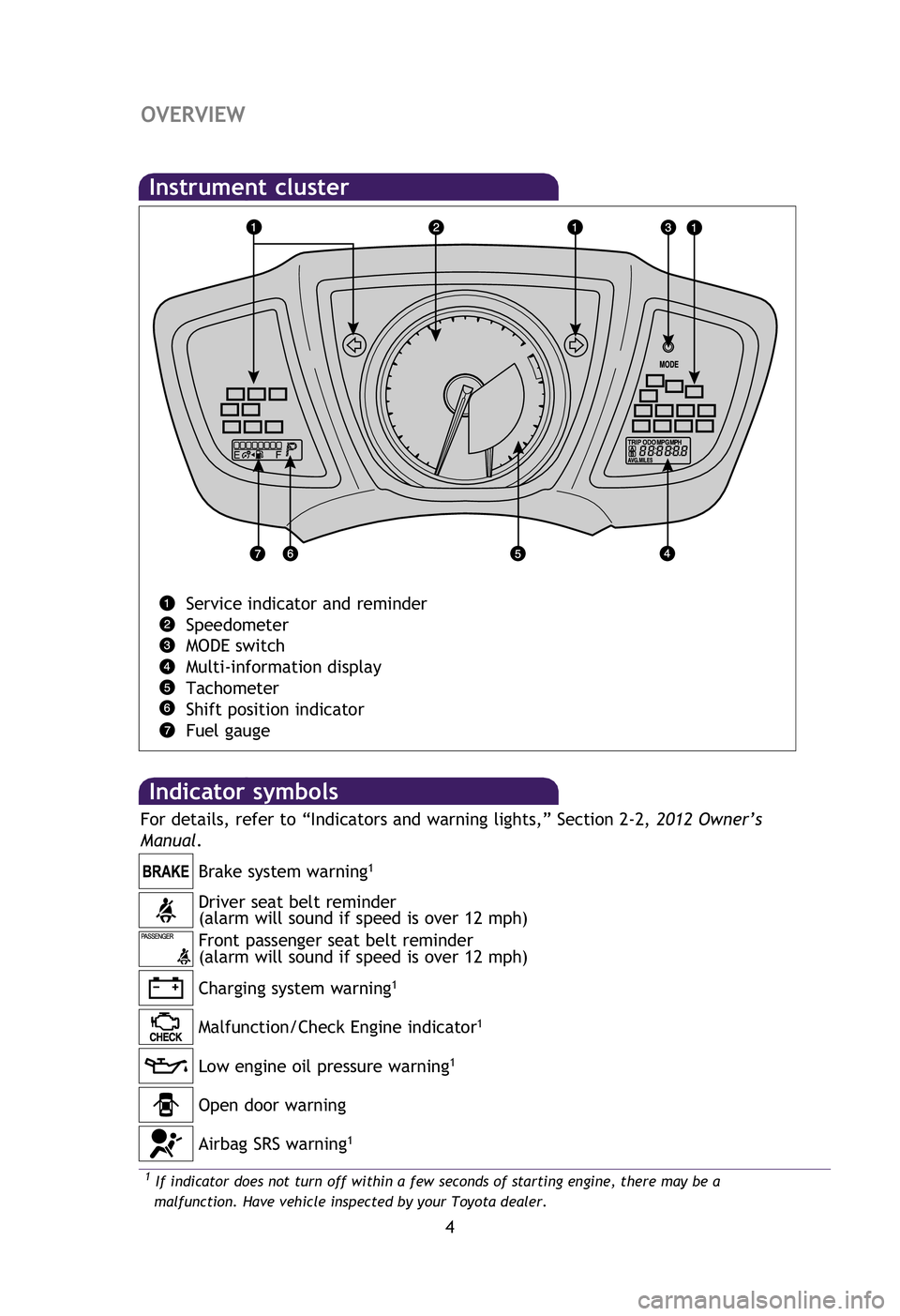

Indicator symbols
Instrument cluster
Service indicator and reminder
Speedometer
MODE switch
Multi-information display
Tachometer
Shift position indicator
Fuel gauge
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.2If t
Open door warning
Airbag SRS warning
1
For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s
Manual .
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 4
Page 7 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

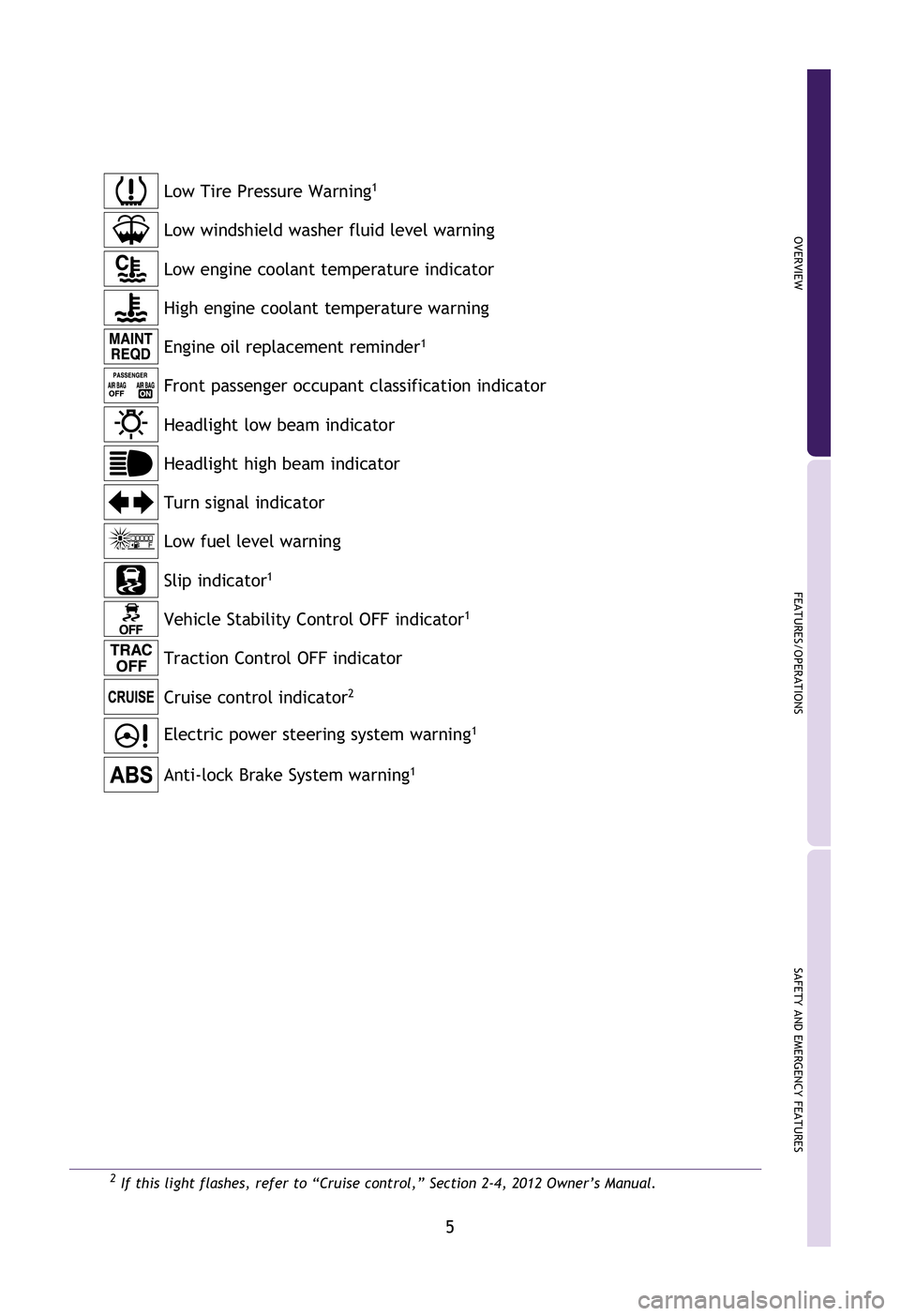

Anti-lock Brake System warning1
Engine oil replacement reminder1
Front passenger occupant classification indicator
Headlight low beam indicator
Turn signal indicator Headlight high beam indicator
Cruise control indicator
2
Electric power steering system warning1
Slip indicator1
Vehicle Stability Control OFF indicator1
Low fuel level warning
High engine coolant temperature warning Low engine coolant temperature indicator
2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.
Traction Control OFF indicator
Low Tire Pressure Warning1
Low windshield washer fluid level warning
s
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 5
Page 8 of 24
6
OVERVIEW

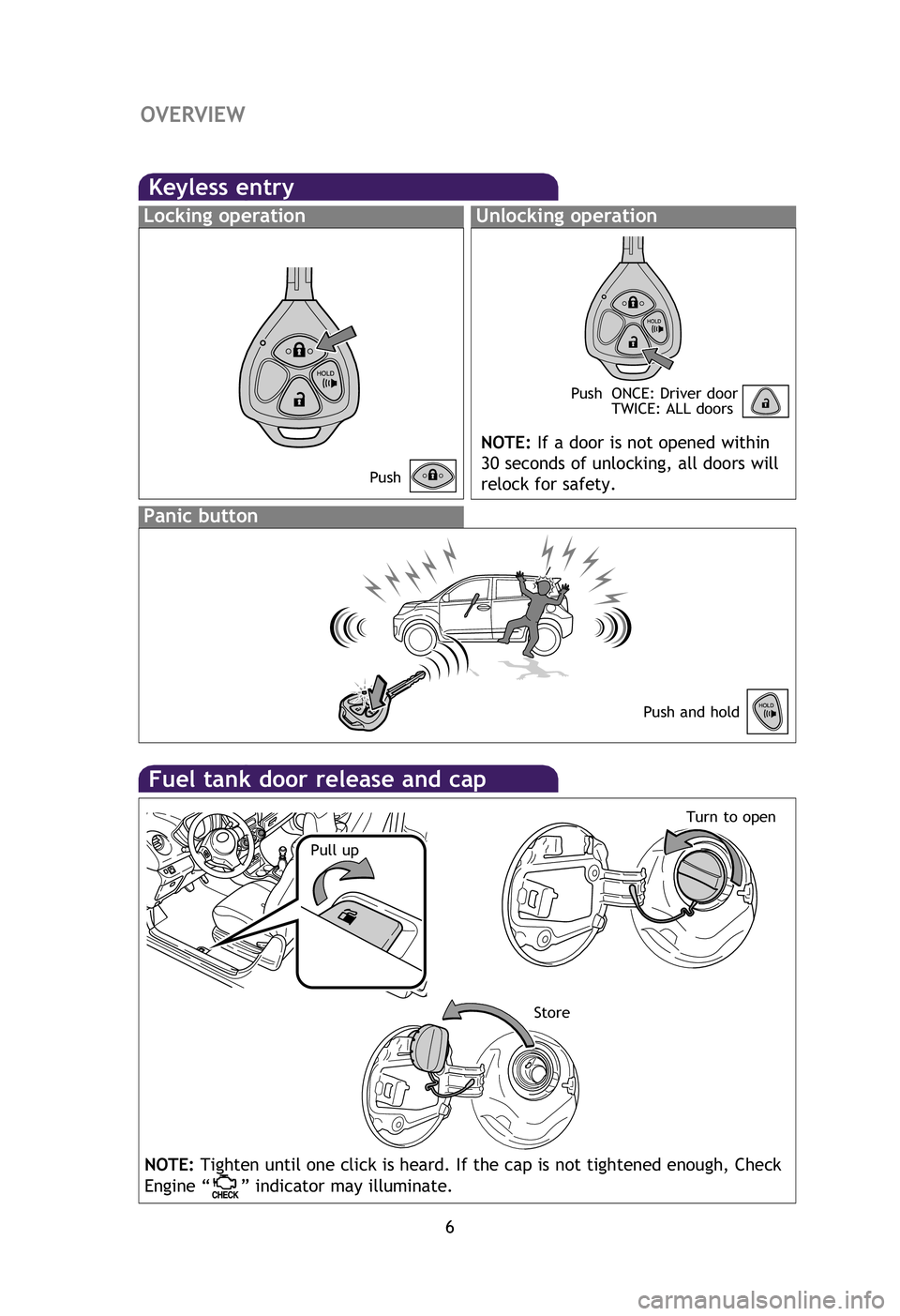

Fuel tank door release and cap
Pull upStoreTurn to open
Keyless entry
Locking operationUnlocking operation
NOTE:
If a door is not opened within
30 seconds of unlocking, all doors will
relock for safety.
Push Push ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Ch\
eck
Engine “ ” indicator may illuminate.
Ho
W
E
E
E
NOT
En
Lig
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 6
Page 9 of 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
en
n
will
eck

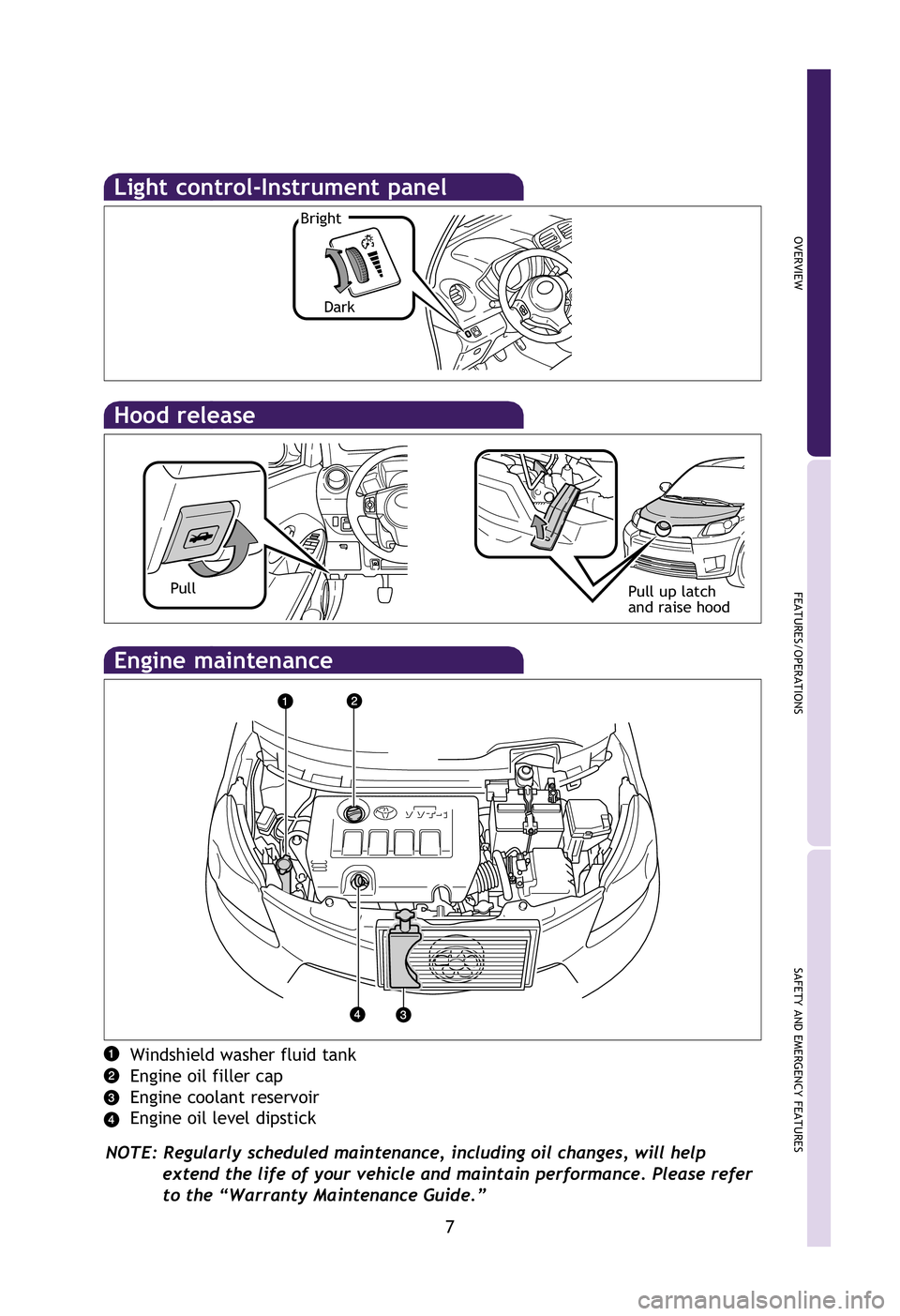

Hood release
Pull Pull up latch
and raise hood
Windshield washer fluid tank
Engine oil filler cap
Engine coolant reservoir
Engine oil level dipstick
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 7
Page 10 of 24
8
FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Parking brake
Pull(2) Push
(1) Pull slightly
(3) Lower
Set Release
Park*
Reverse
Neutral
Drive
P
R
N
D
Third gear
Second gear
First gear
Se
Se
Fro
Seats-Head restraints
Lock release buttonLock release button
FrontRear
Se
(fo
resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 8
