1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_U_(OM52C20U)
CAUTION
■When returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Be careful not to get your hands or feet pinched in the seat.
● Make sure the seats are securely locked by pressing forward and rear-
ward on the top of the seatback.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
NOTICE
■When returning the seatbacks to their original position
Do not pull the pocket that stores the seat belt comfort guide.

42
1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_U_(OM52C20U)
Head restraints
■Removing the head restraints
Head restraints are provided for all seats.
Front seats
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Rear seatsUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button
Pull the head restraint up while pressing
the lock release button.

43
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_U_(OM52C20U)
■Installing the head restraints
■ Adjusting the height of the head restraints
■ Adjusting the rear cent er seat head restraint
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

44
1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_U_(OM52C20U)
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

45
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_U_(OM52C20U)
Rear center seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be corr ectly located and securely latched
for proper operation.
■ Fastening the belt
Make sure that the buckle is
securely latched for ready use of
the center seat belt.
Matches the tab with the
hooked end
Matches the tab with the con-
cave end

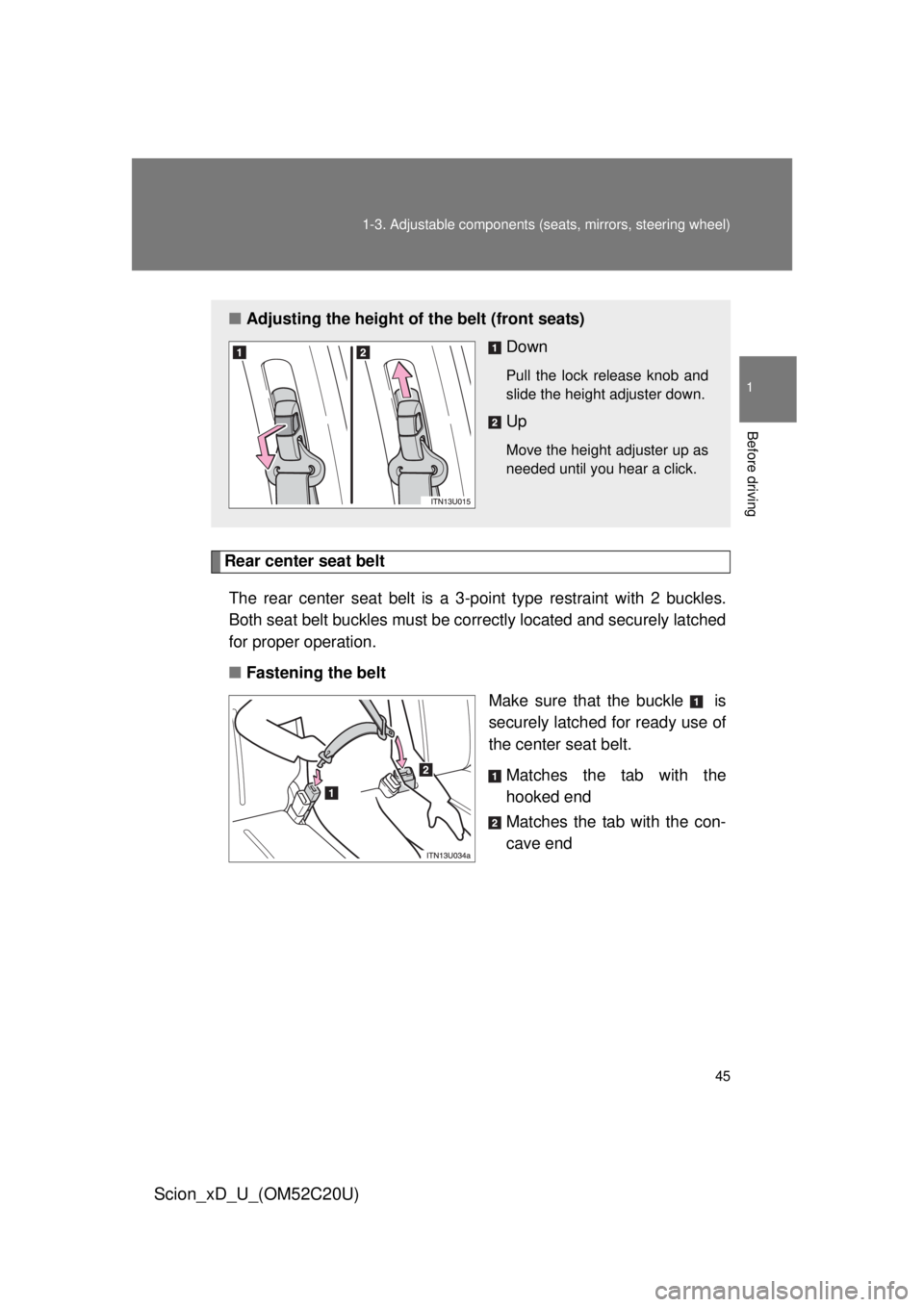

■Adjusting the height of the belt (front seats)
Down
Pull the lock release knob and
slide the height adjuster down.
Up
Move the height adjuster up as
needed until you hear a click.

46 1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_U_(OM52C20U)
■Releasing and stowing the belt
The belt can be completely rel eased when not required, such as
when folding down the rear seat.
To release the hooked end tab,
insert the vehicle’s key into the
hole on the buckle.

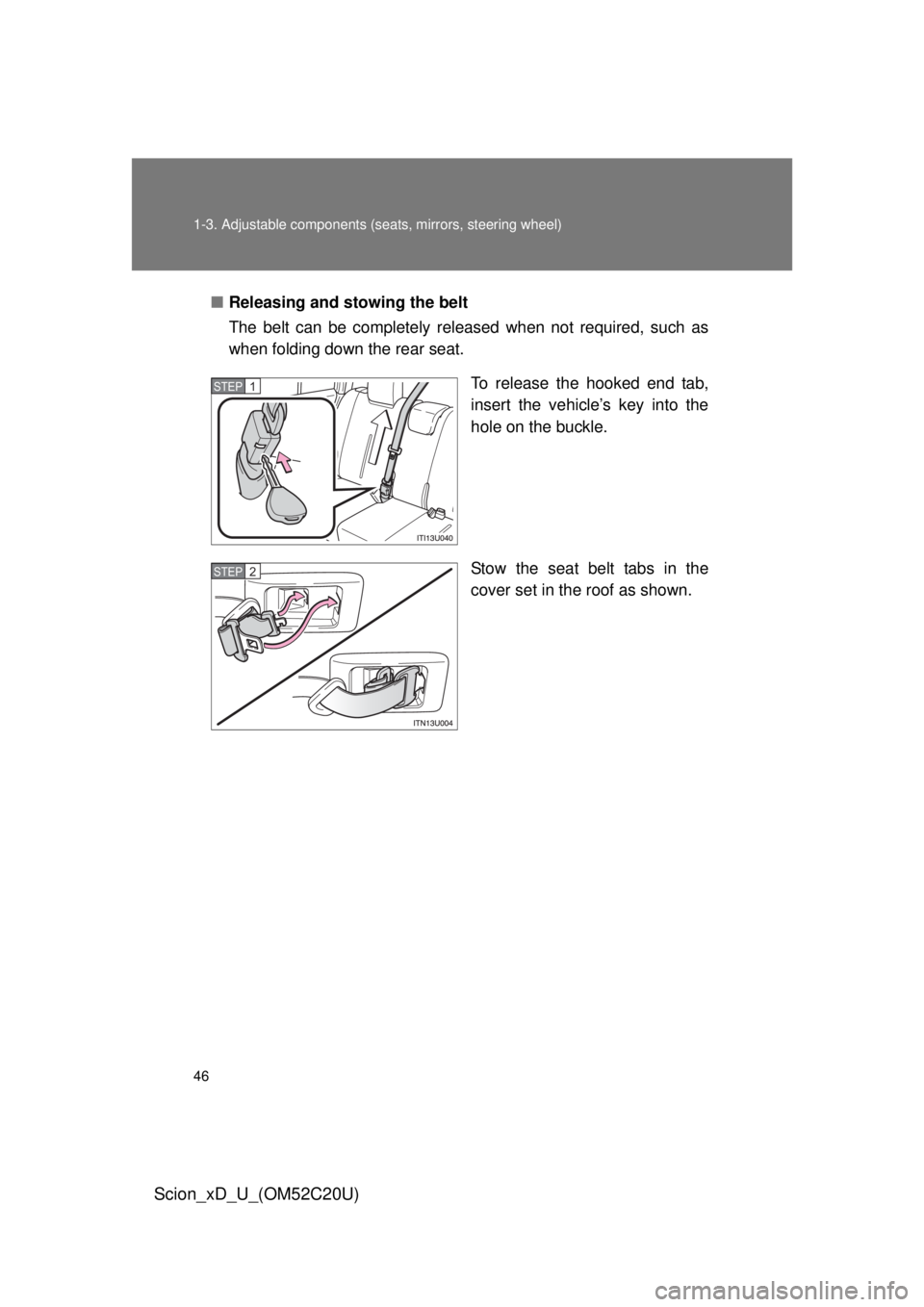

Stow the seat belt tabs in the
cover set in the roof as shown.
STEP 1
STEP 2

47
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_U_(OM52C20U)

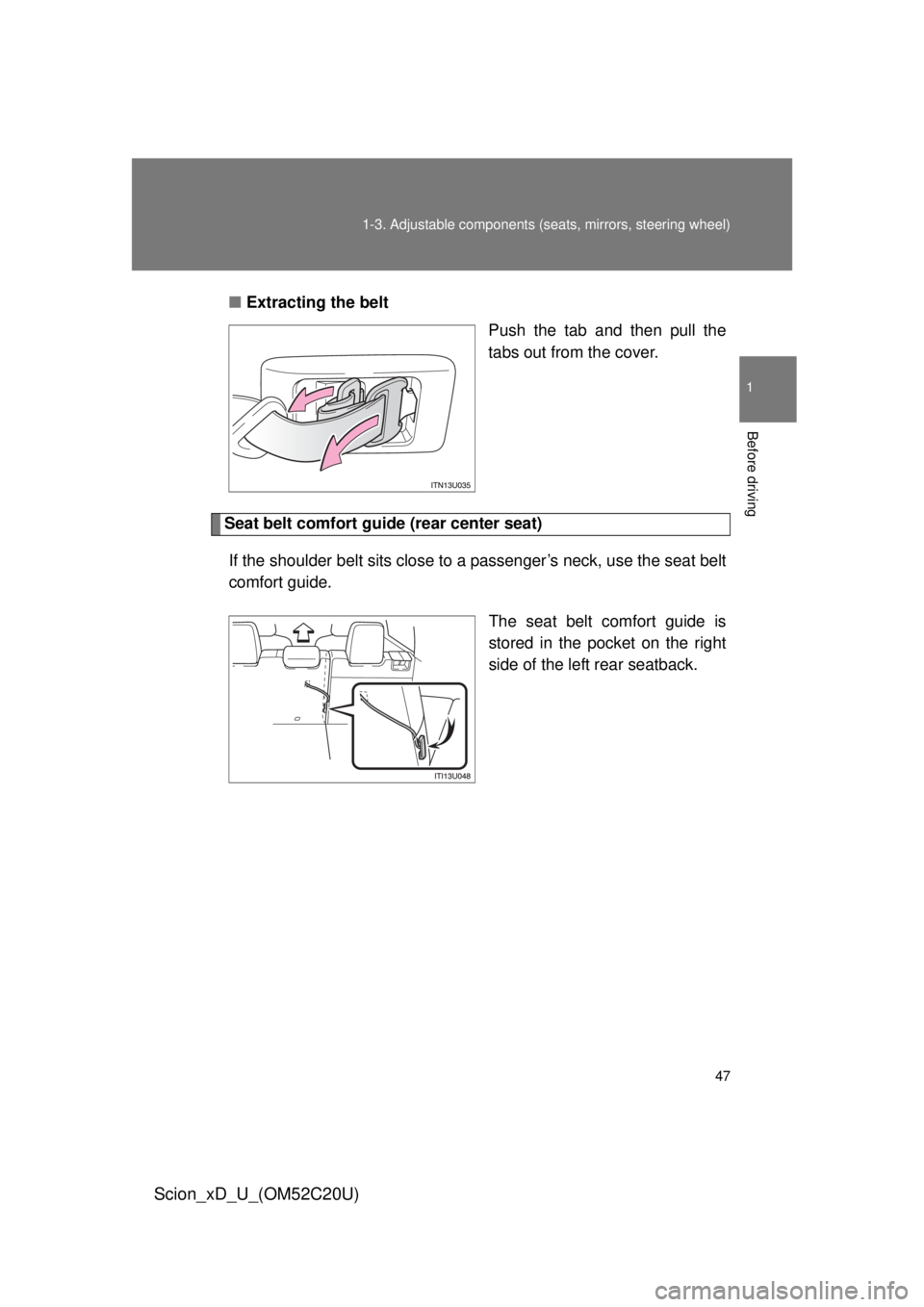

■Extracting the belt
Push the tab and then pull the
tabs out from the cover.
Seat belt comfort guide (rear center seat)
If the shoulder belt sits close to a passenger’s neck, use the seat belt
comfort guide.
The seat belt comfort guide is
stored in the pocket on the right
side of the left rear seatback.

48 1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_U_(OM52C20U)
Pull the comfort guide from the
pocket.
Slide the belt past the slot of the
guide.
The elastic cord must be behind
the seat belt.
Buckle the seat belt and position
it comfortably.
STEP 1
STEP 2
STEP 3

49
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Scion_xD_U_(OM52C20U)
Seat belt pretensioners (front seats)

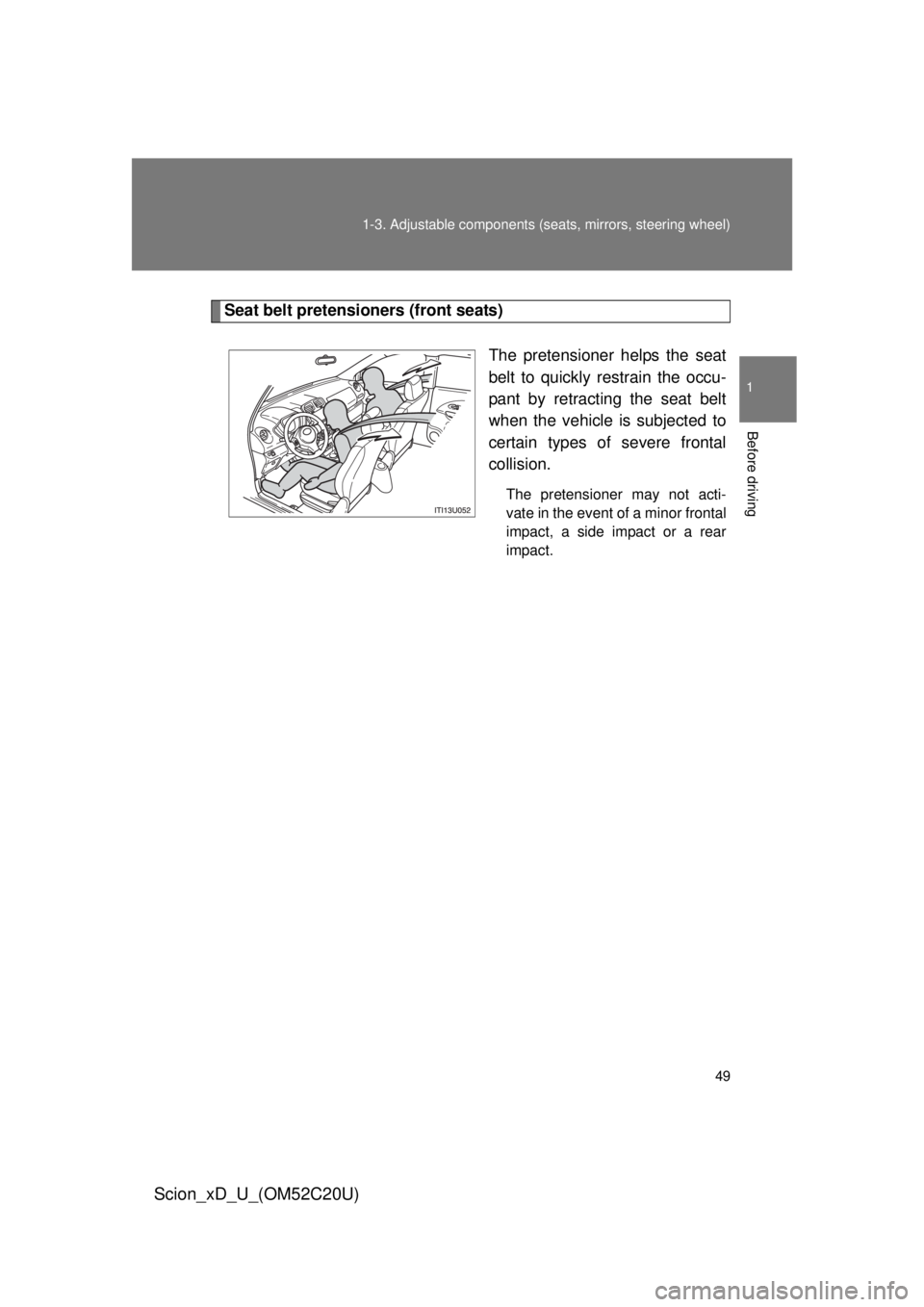

The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.

50 1-3. Adjustable components (seats, mirrors, steering wheel)
Scion_xD_U_(OM52C20U)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 93)
■ Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( P. 44)
Obtain medical advice and wear the seat
belt in the proper way. (P. 44)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
